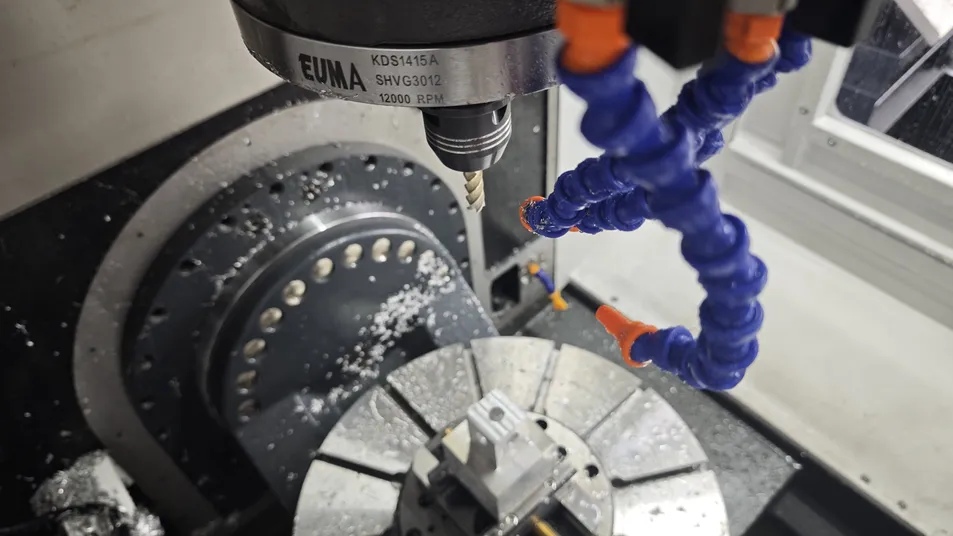

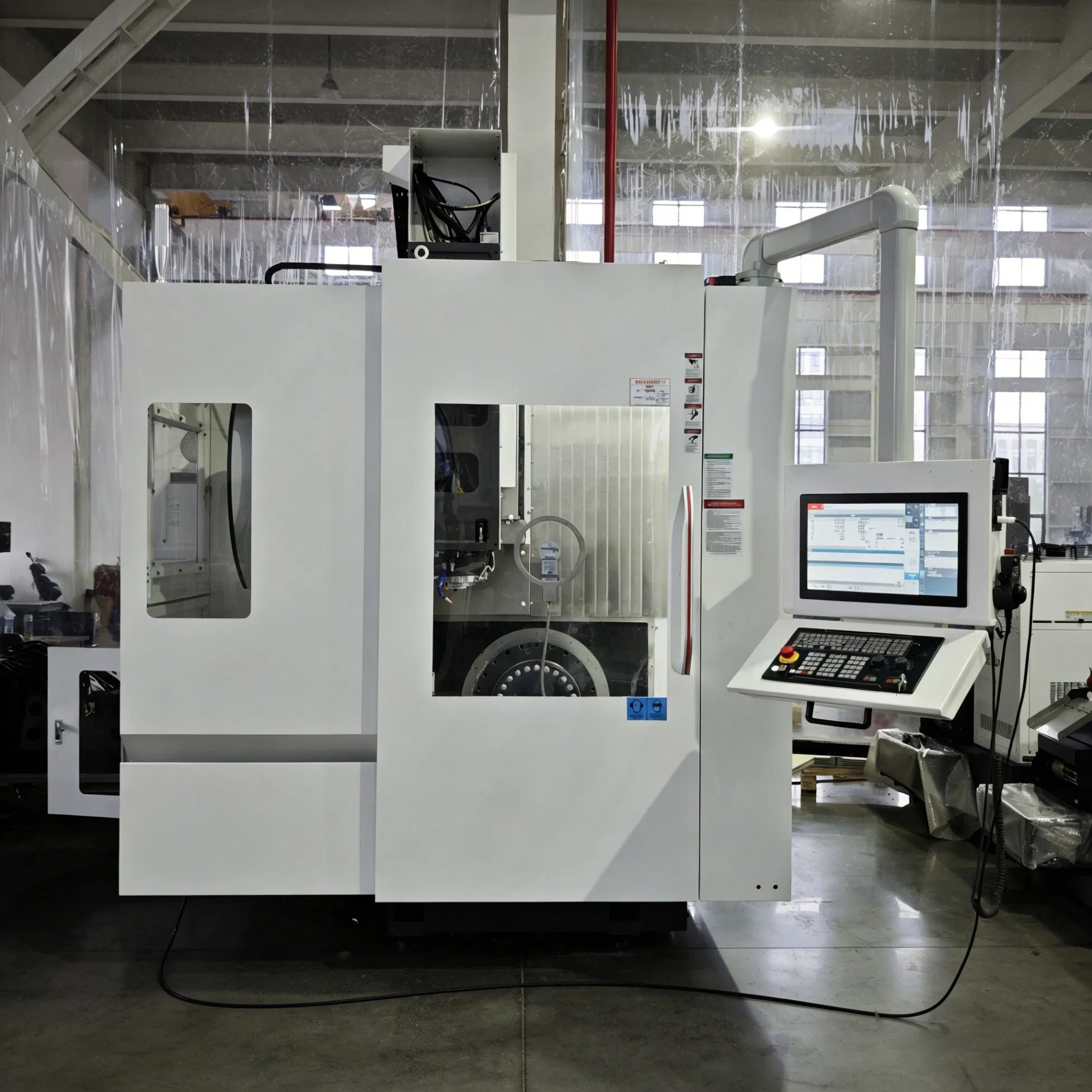

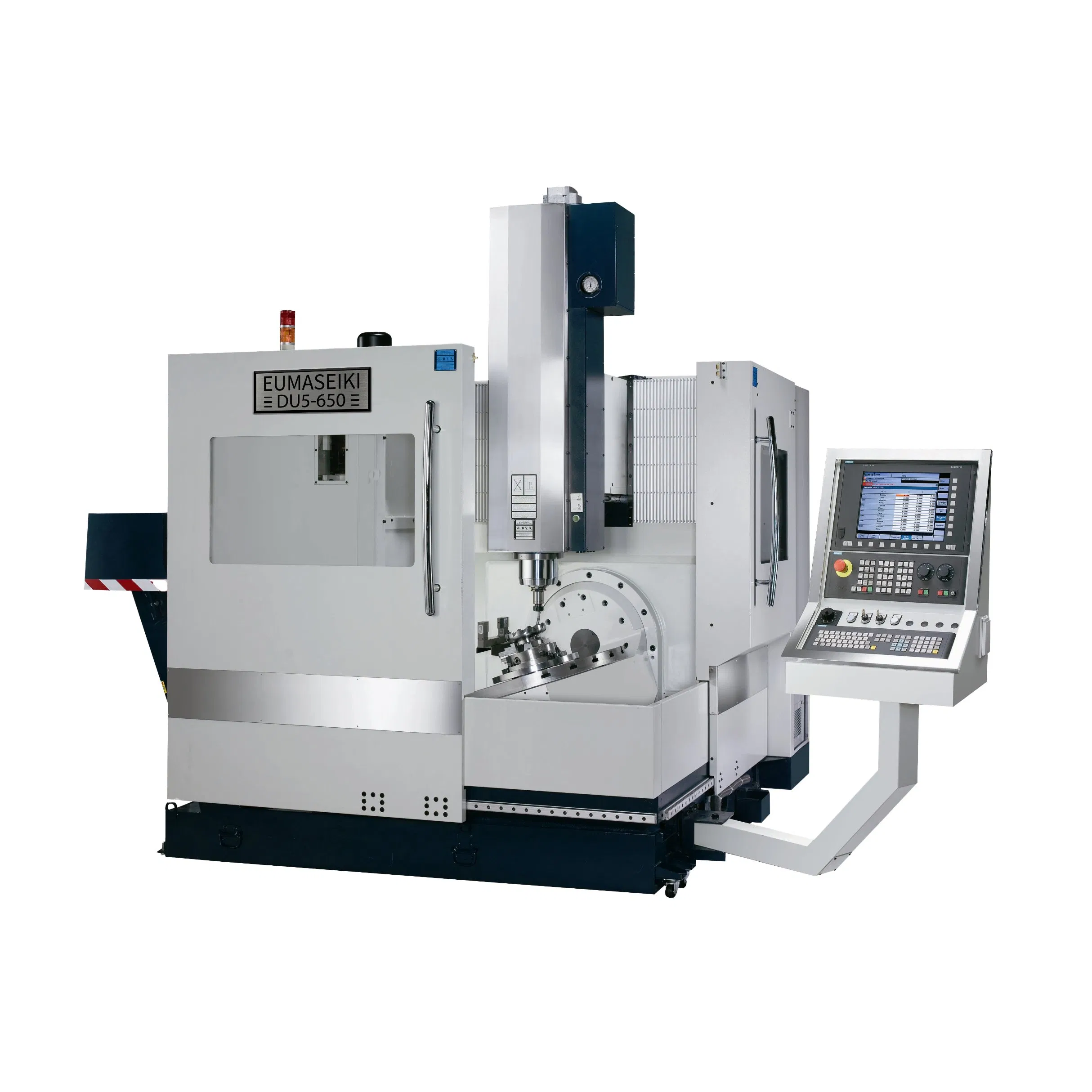

The DU Series 5-axis vertical machining center is a modern and classic 5-axis milling machine featuring a well-thought-out compact design. It is universally applicable and user-friendly, offering perfect accessibility to all components and maximum flexibility for 5-axis precision machining with excellent rigidity and highly dynamic accuracy.

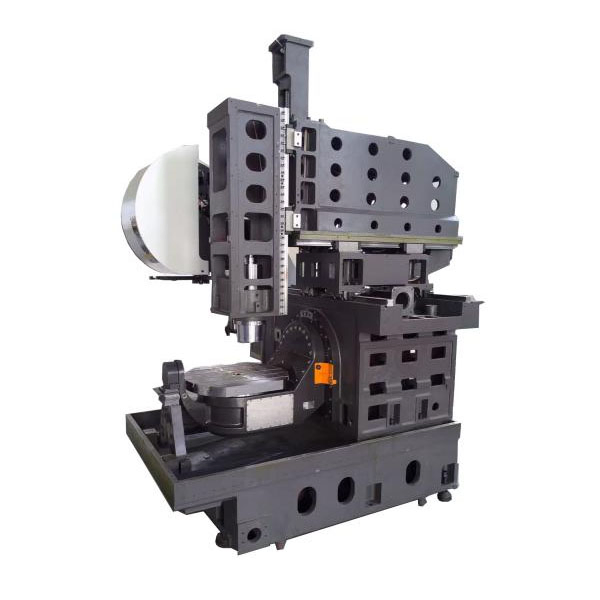

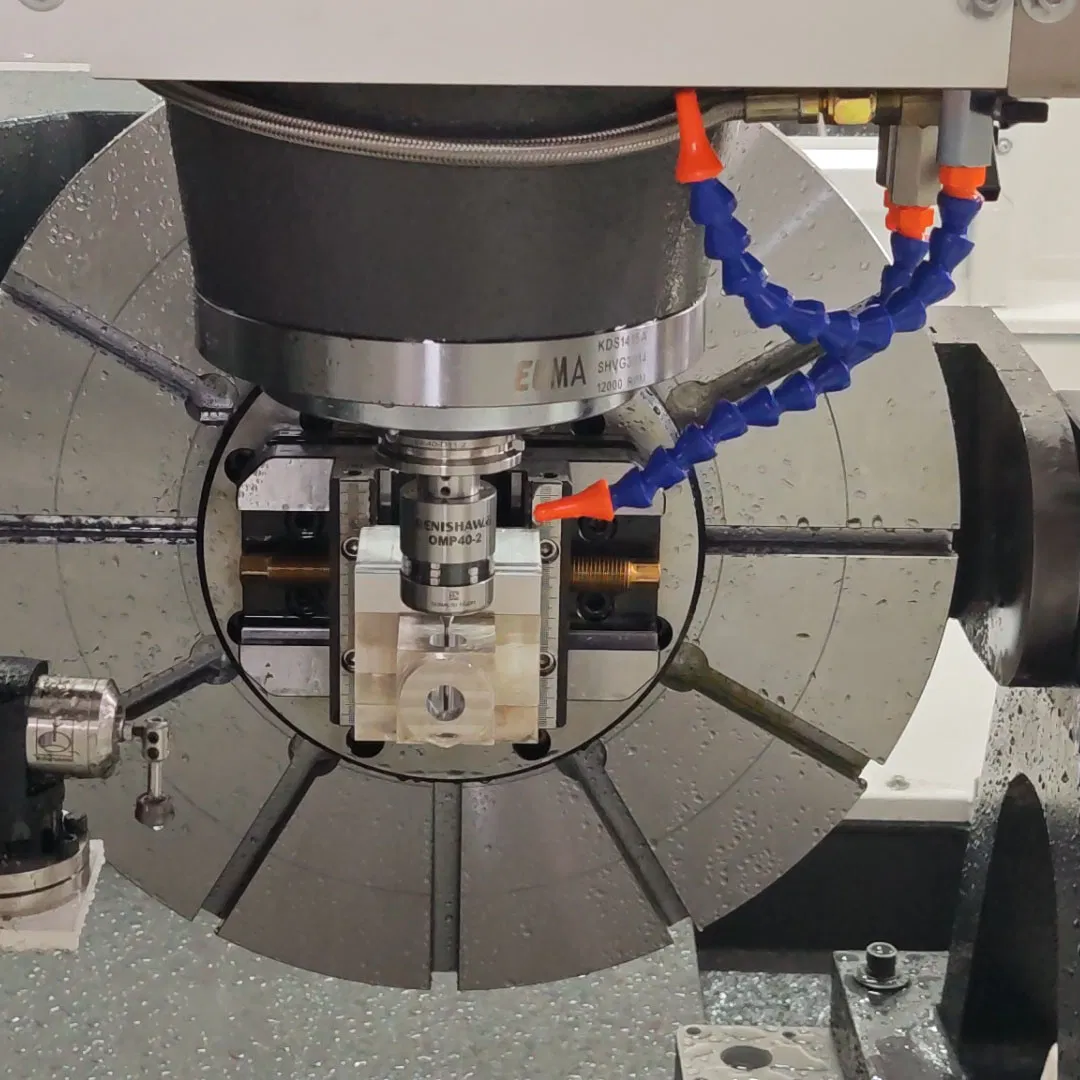

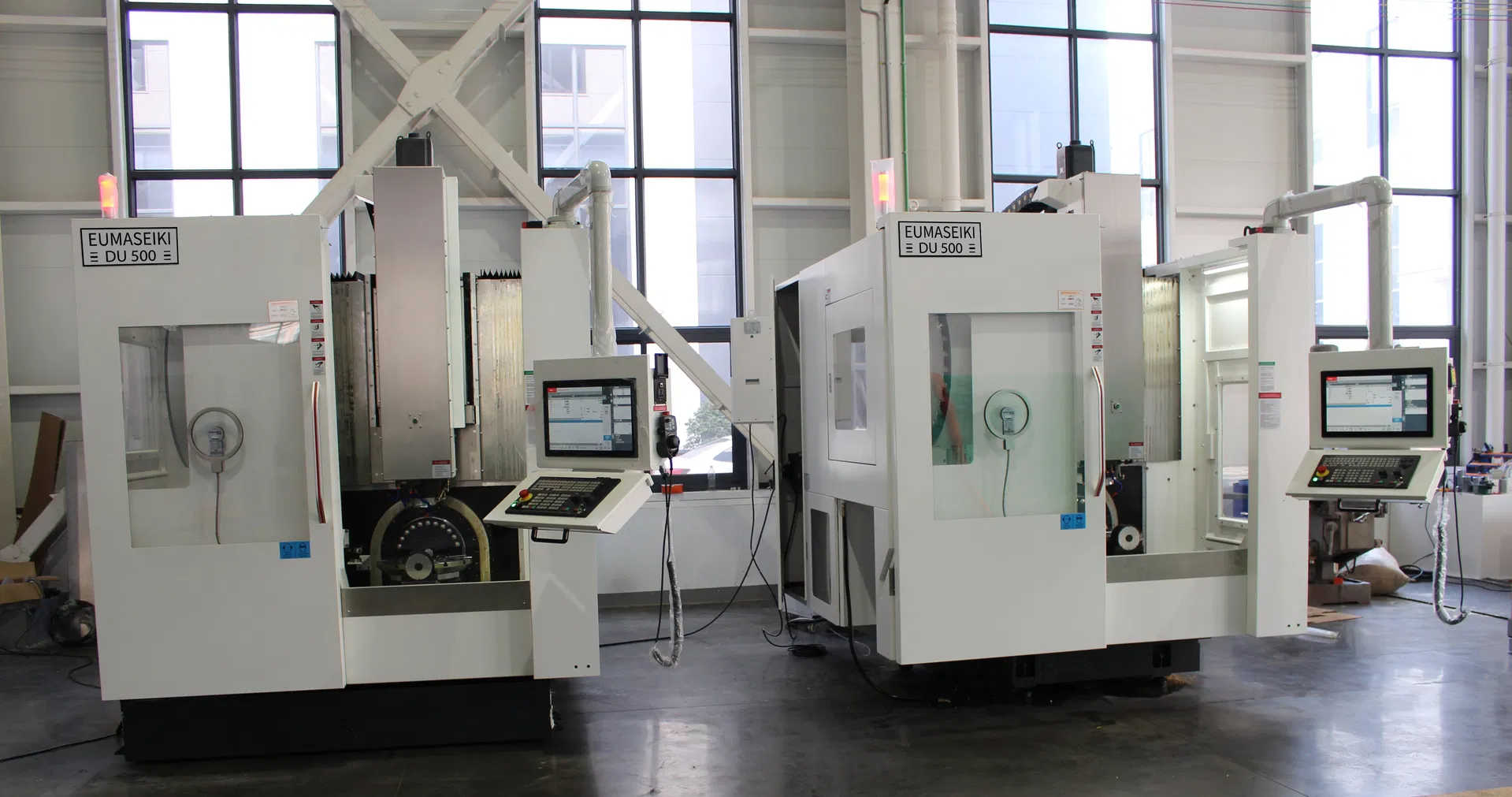

The DU series utilizes a cantilever design where the bed supports the entire tool structure. The saddle moves along the column (X-axis), the sliding seat drives the spindle box longitudinally (Y-axis), and the spindle box moves vertically (Z-axis). The BC-axis tilting rotary table is driven by high-performance servo motors, achieving high dynamism and stability.
| Feature | Unit | DU5-500 | DU5-650 |
|---|---|---|---|
| X/Y/Z axis travel | mm | 520/450/420 | 620/520/460 |
| B-axis swing range | degree | ± 120 | ± 120 |
| C-axis rotation range | degree | 360(0.001) | 360(0.001) |
| Worktable size | mm | Ø500 | Ø650 |
| Maximum load weight | kg | 200 | 300 |
| Max spindle speed | rpm | 15000 | 15000 |

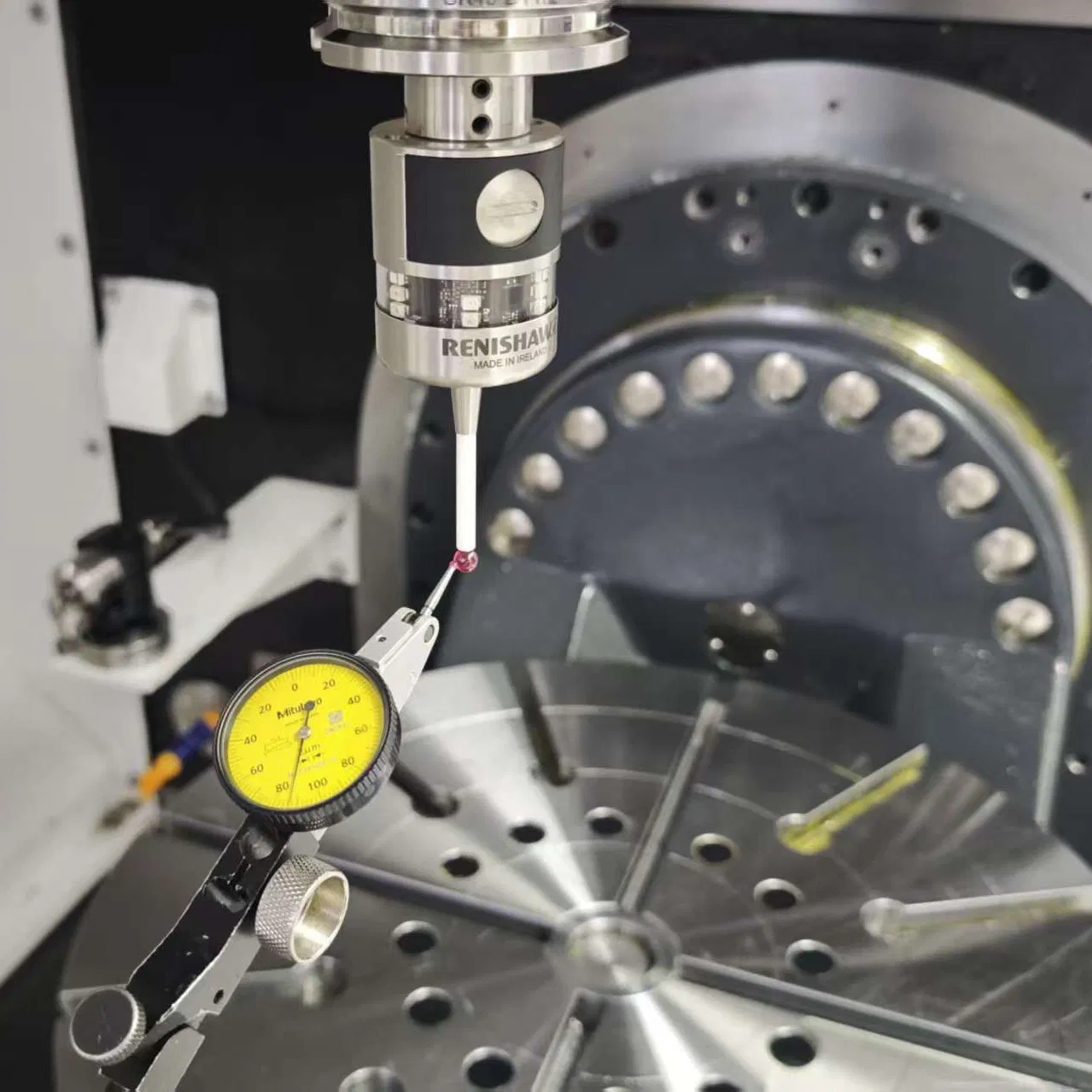

| Positioning accuracy | mm | 0.008 | 0.008 |
| Repeat accuracy | mm | 0.005 | 0.004 |
| Net weight | kg | 6000 | 6800 |
Standard Warranty: 12 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation and maintenance training.
OEM/ODM capabilities with competitive pricing. We provide turnkey project solutions and customs clearance support for global clients.
Payment Method: 30% T/T in advance, balance paid before shipping; or irrevocable L/C at sight.
Lead Time: 15 days to 40 days depending on model specifications.
Packaging: Sea-worthy heavy-duty packaging to ensure safety during international transit.
