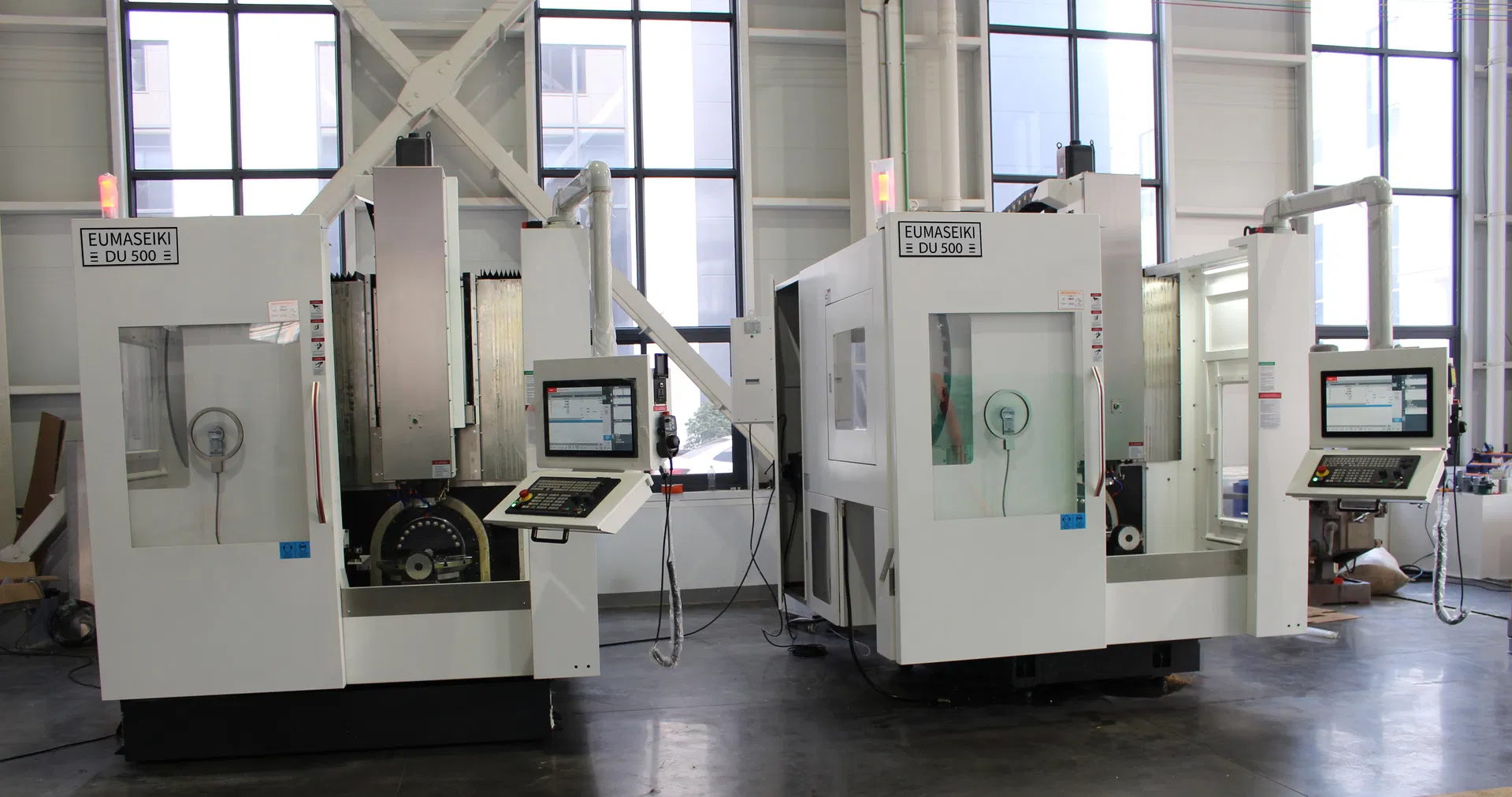

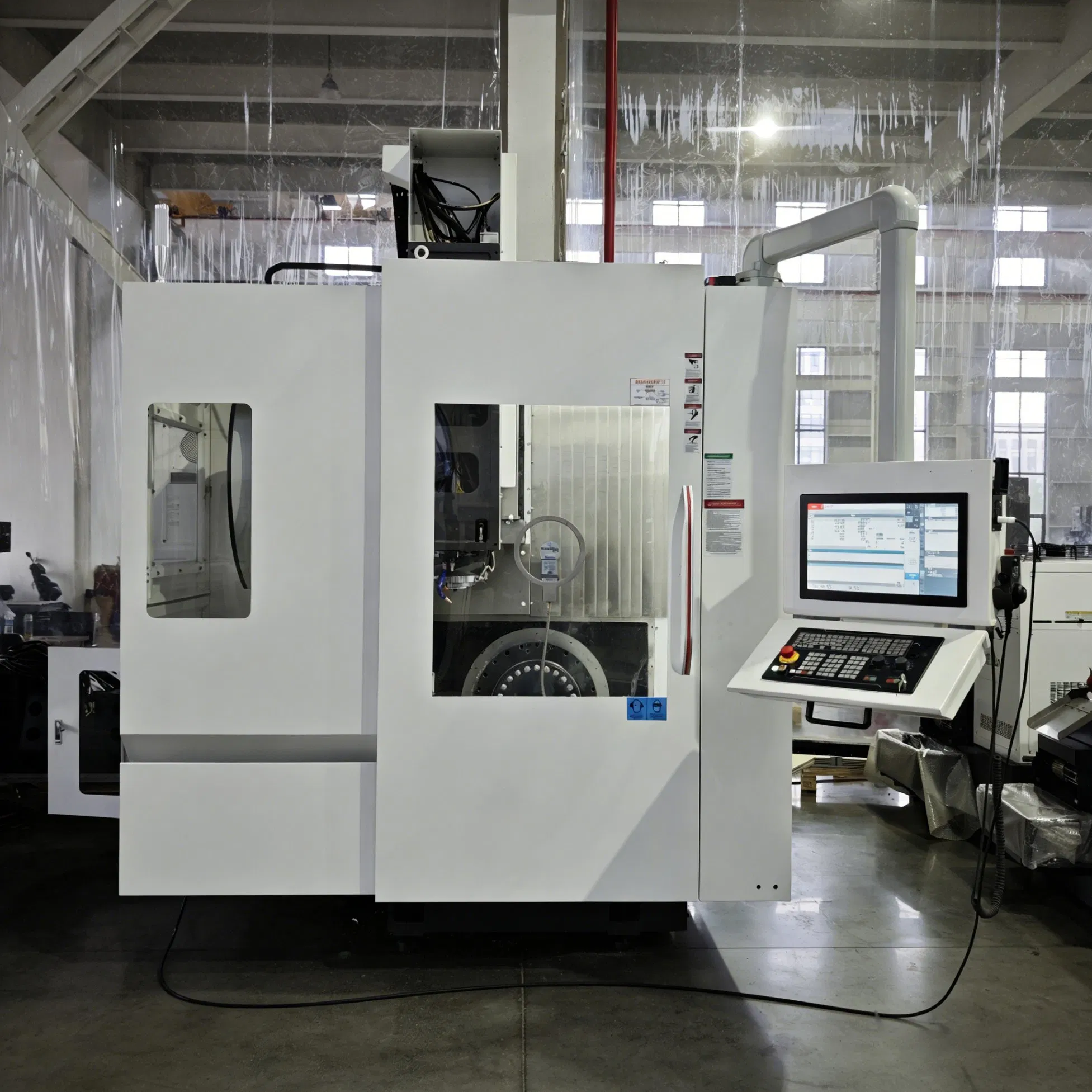

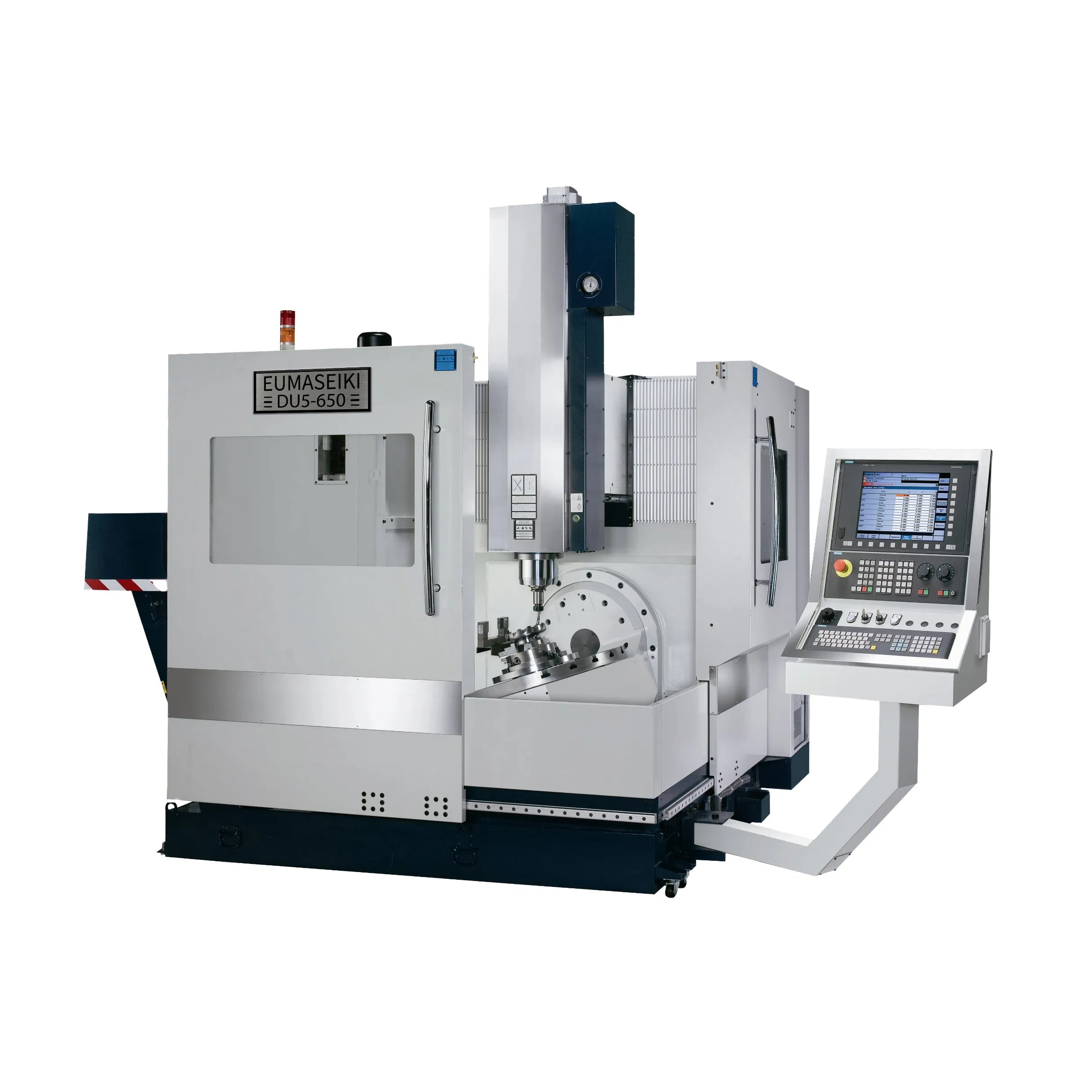

DU Series 5-Axis Vertical Machining Center

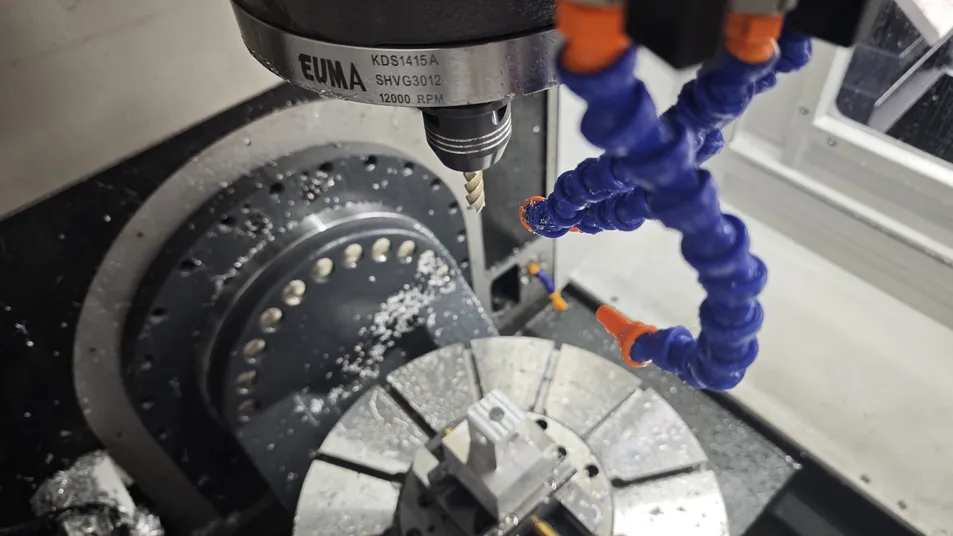

The BC axis 5-axis vertical machining center is a modern and classic 5-axis milling machine featuring a well-thought-out compact design. It is universally applicable and user-friendly, offering perfect accessibility to all components and maximum flexibility for 5-axis precision machining with excellent rigidity and highly dynamic accuracy.

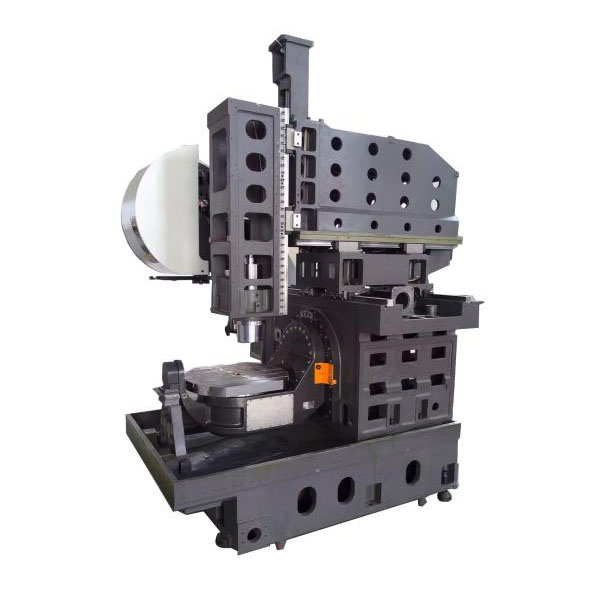

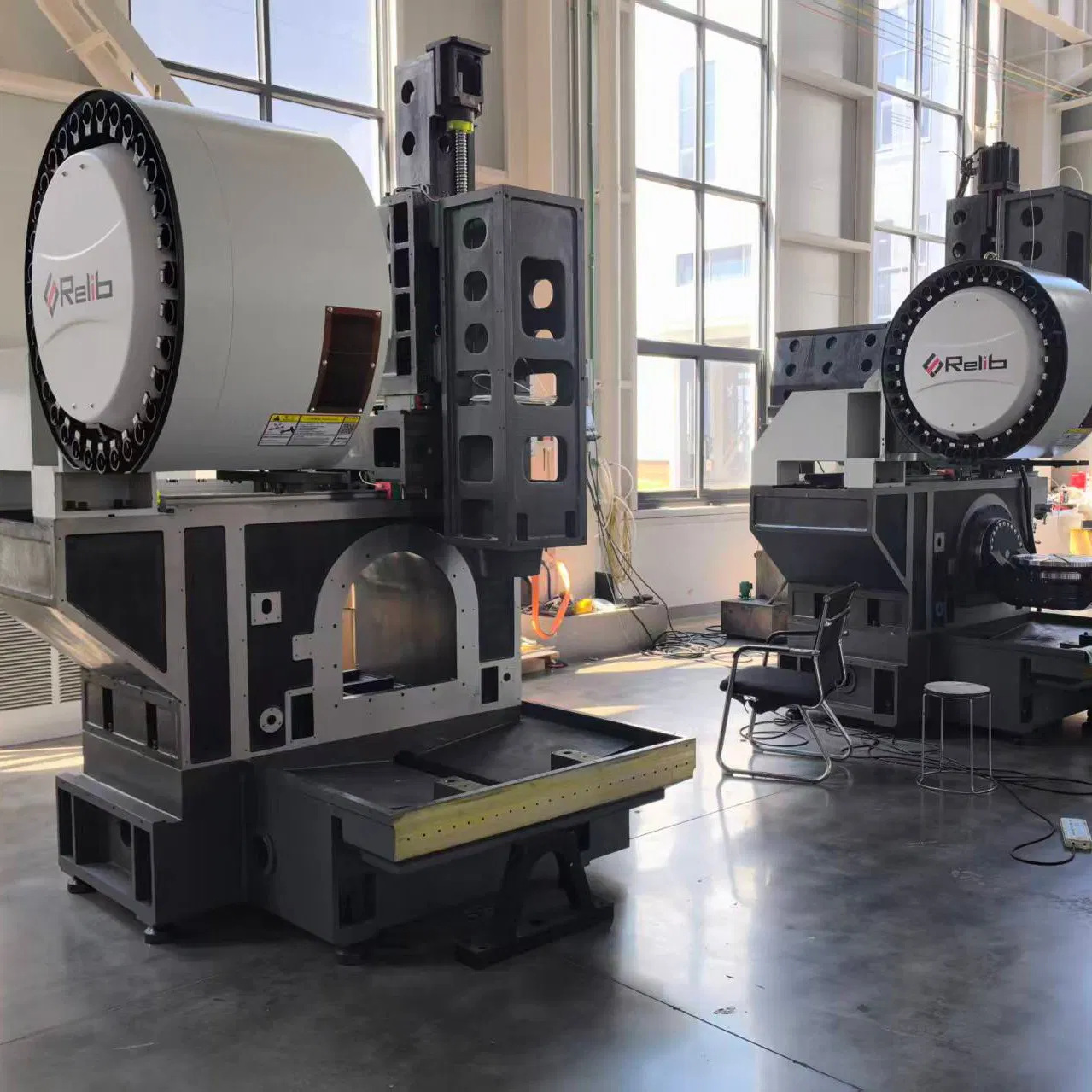

The DU series features a cantilever design where the bed is the fundamental part supporting the machine tool. The saddle moves transversely along the column (X-axis), the sliding seat provides longitudinal movement (Y-axis), and the spindle box moves vertically (Z-axis). The BC-axis tilting rotary table is driven by high-performance servo motors, achieving unprecedented dynamism and stability.
| Category | Feature | Unit | DU5-500 | DU5-650 |
|---|---|---|---|---|
| Travel | X/Y/Z axis travel | mm | 520/450/420 | 620/520/460 |
| B/C Axis | Swing Range (B) | degree | ± 120 | ± 120 |
| Rotation Range (C) | degree | 360(0.001) | 360(0.001) | |
| Max Working Space | mm | Ø500/540*R480 | Ø650/880 | |
| Maximum Load | kg | 200 | 300 | |
| Spindle | Max Speed | rpm | 15000/20000 | 15000/20000 |
| Taper | - | HSK-A63 | HSK-A63 | |

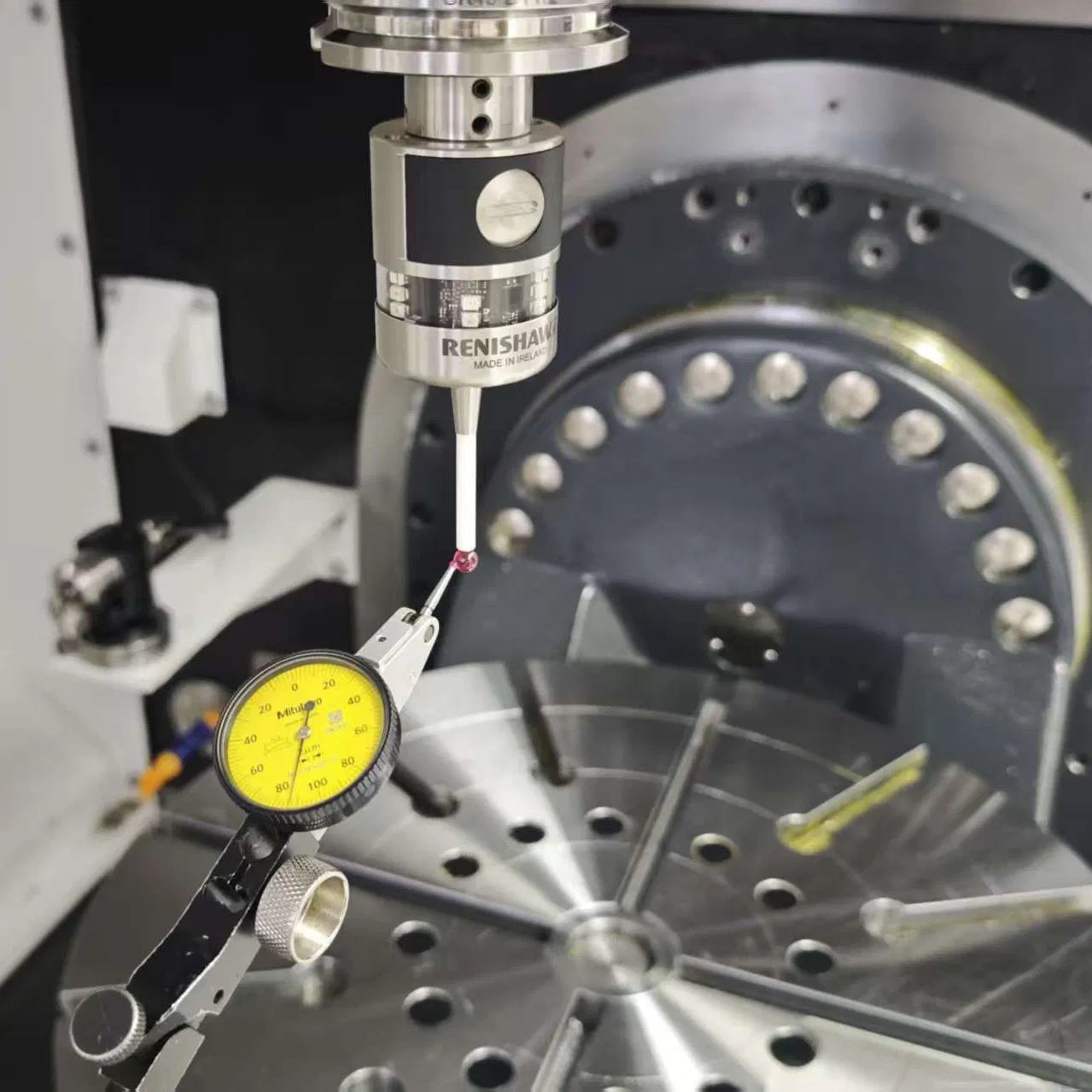

| Accuracy | Positioning (X/Y/Z) | mm | 0.008 | 0.008 |
| Weight | Net Weight | kg | 6000 | 6800 |
🛡️ After Sales Service

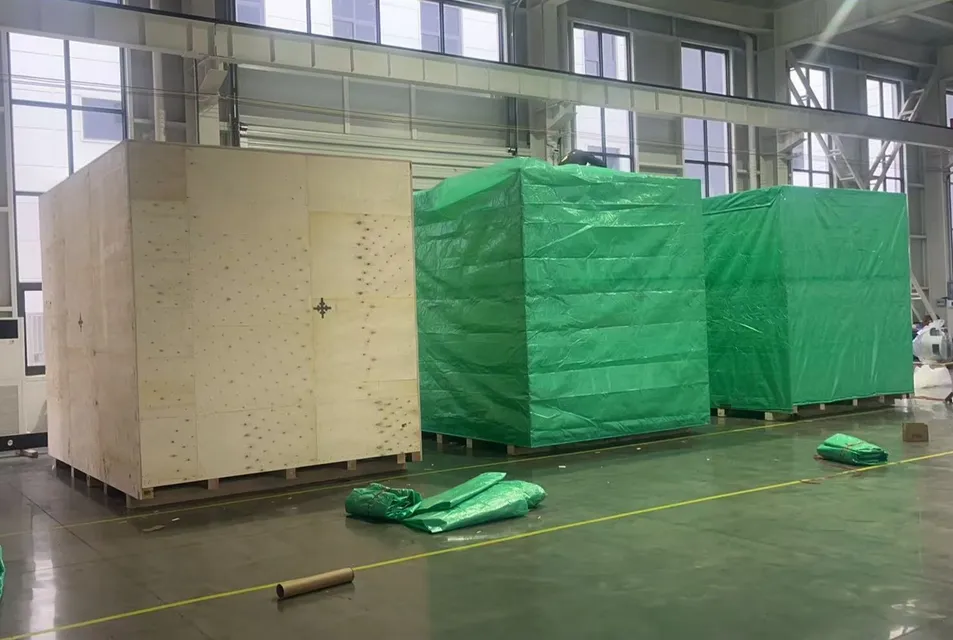

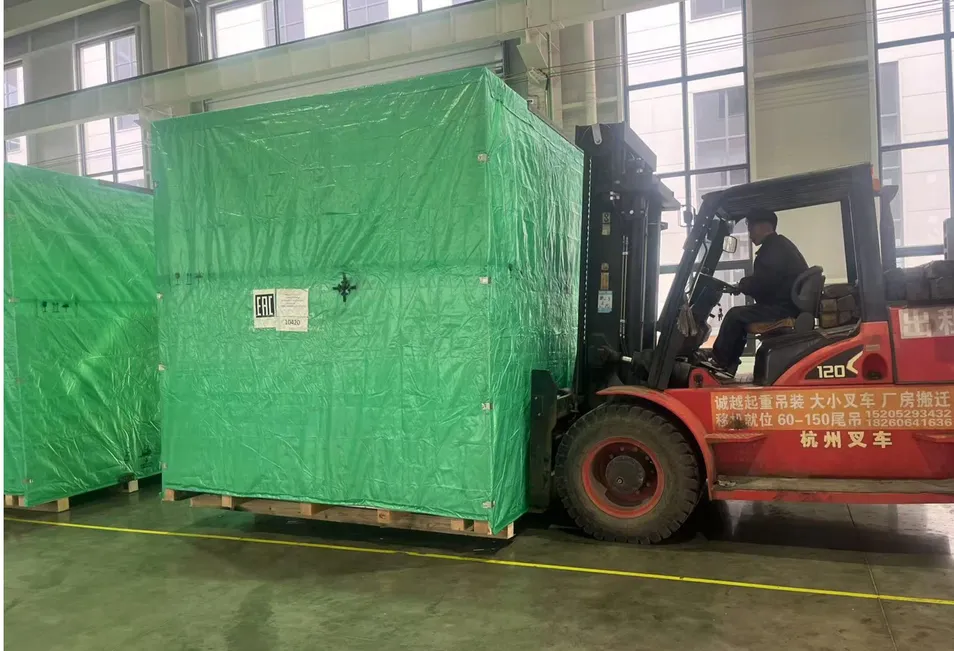

📦 Payment & Packing
Payment: 30% T/T in advance, balance before shipping; or irrevocable L/C at sight.
Lead Time: 15 to 40 days depending on customization.

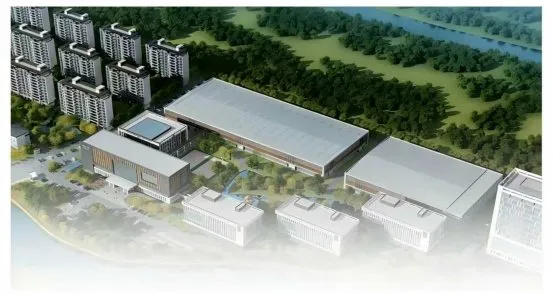

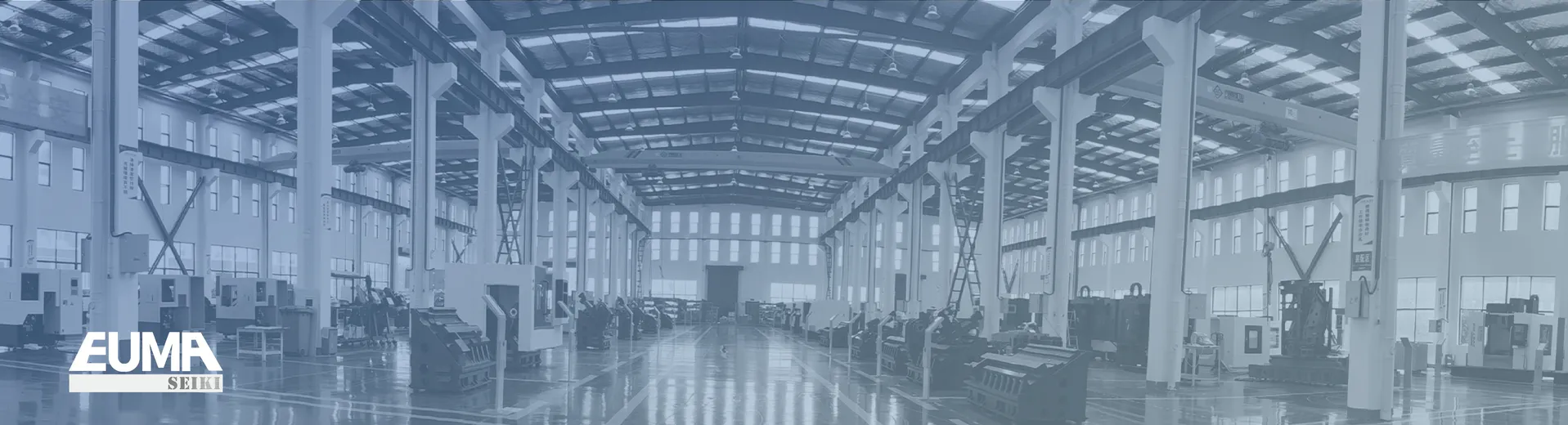

Our high-tech enterprise integrates industry and trade, focusing on the customization of high-end CNC machining centers. With a professional R&D center and patented technologies, our equipment serves precision mold making, aerospace, automotive parts, and shipbuilding sectors.
