| Model | wmt4020-ZDL |
| Certification | CE |
| Application | Metal, Rubber, Ceramic, Glass, Stone, Leather, Fabric |
| Structure Style | Gantry / Five-Axis |
| Machine Weight | 4500 Kg |
| Table Travel (X/Y/Z) | 4000mm / 2000mm / 150mm |
| Max. Operating Pressure | 330-390 MPa (Max 420 MPa) |
| Power Requirement | 37kw, 380V/50Hz (Compatible with 220V/415V) |
| Cutting Accuracy | 0.1 mm |
| Motor Brand | Siemens |
| Water Discharge | 3.8 L/Min |

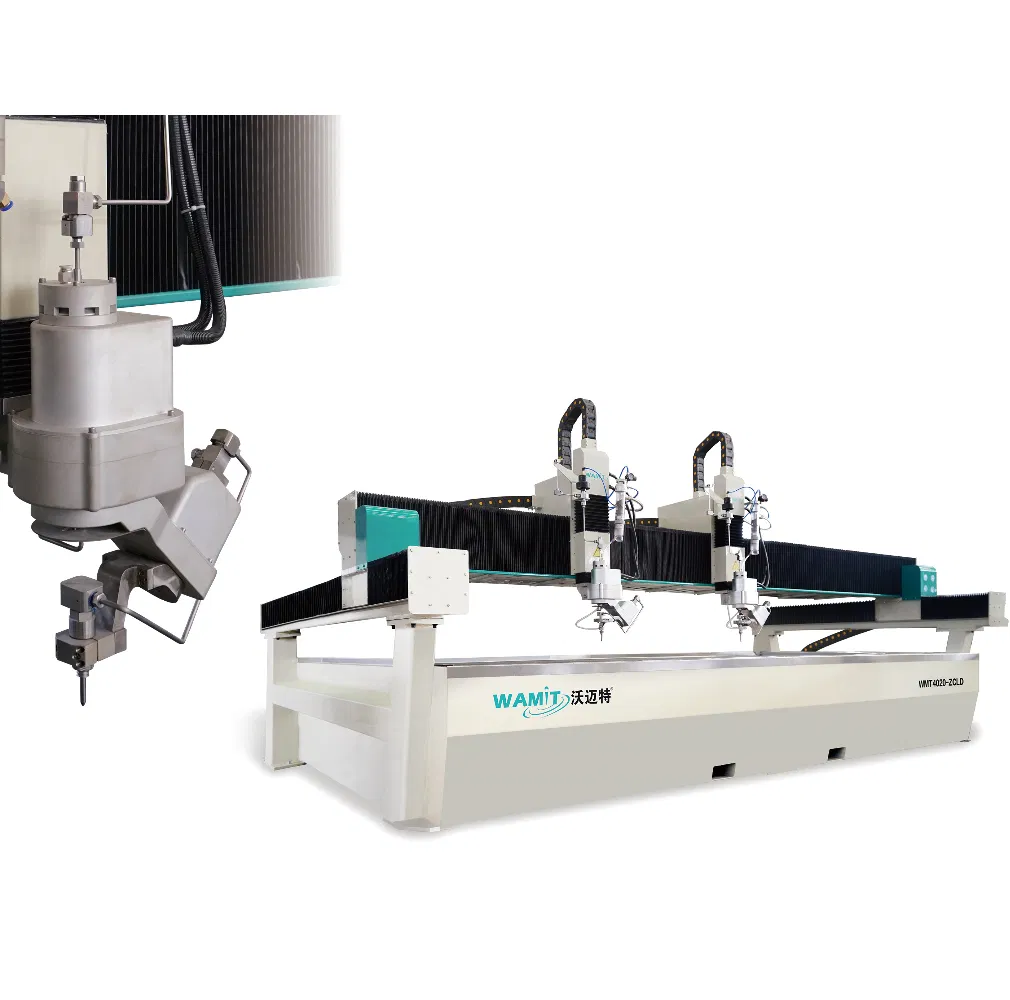

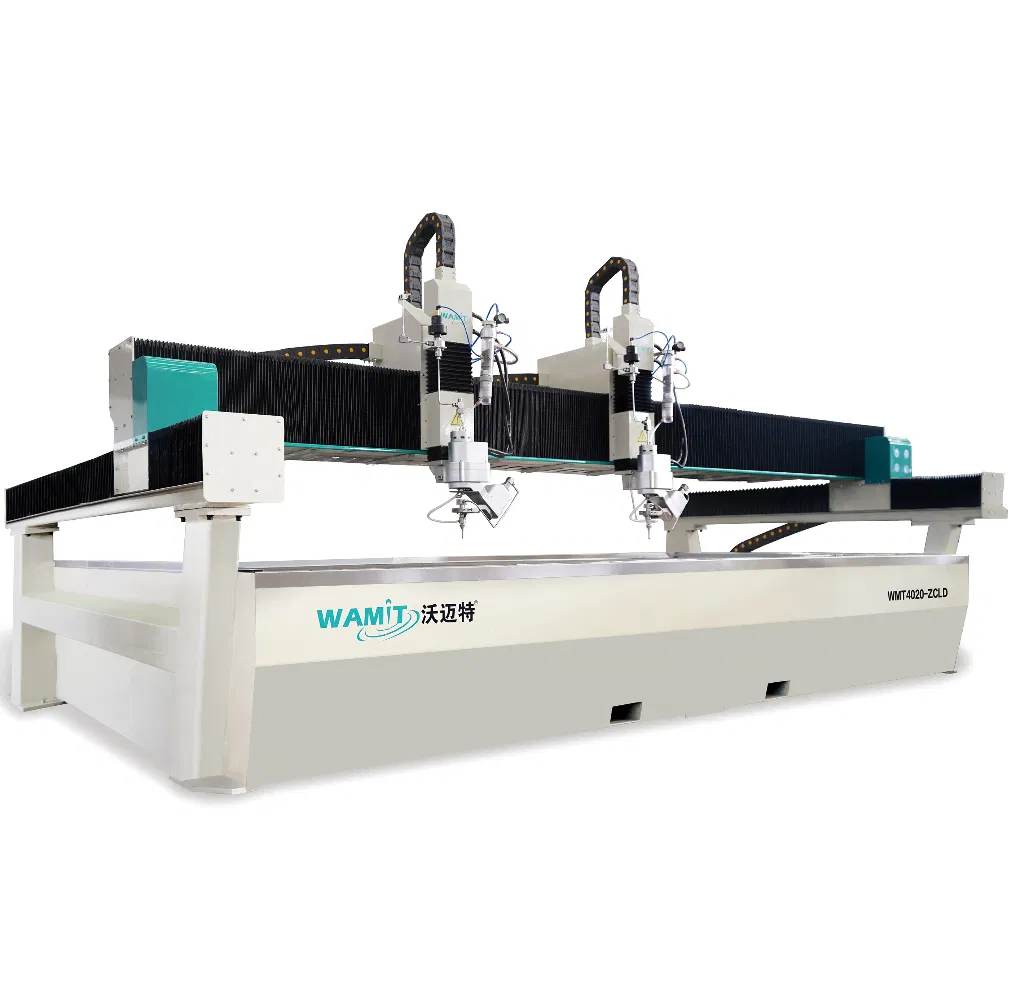

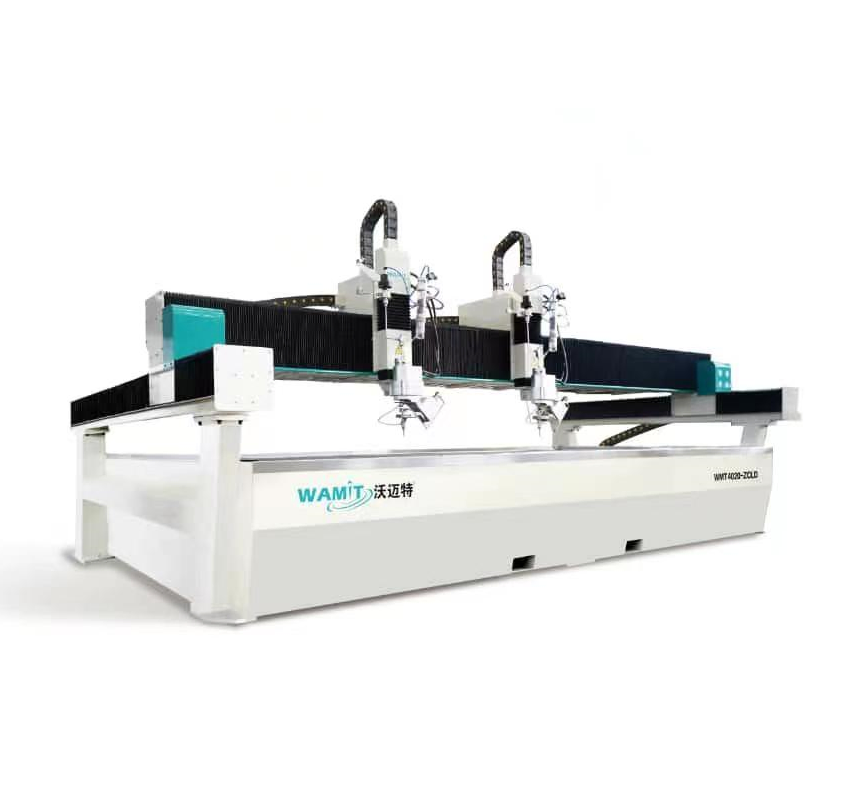

Double Heads 5 Axis Waterjet Cutting Machine (4000*2000 mm)

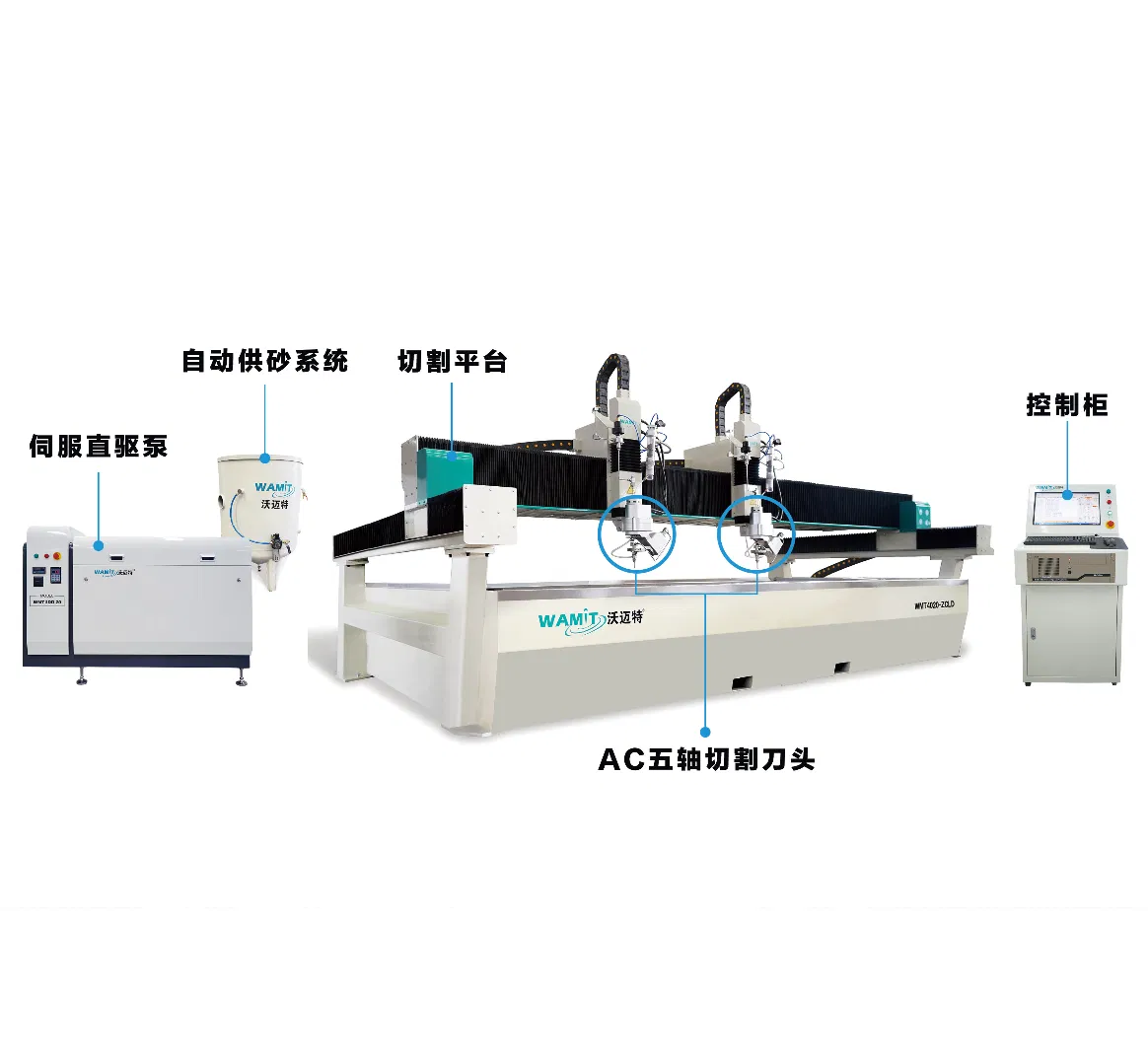

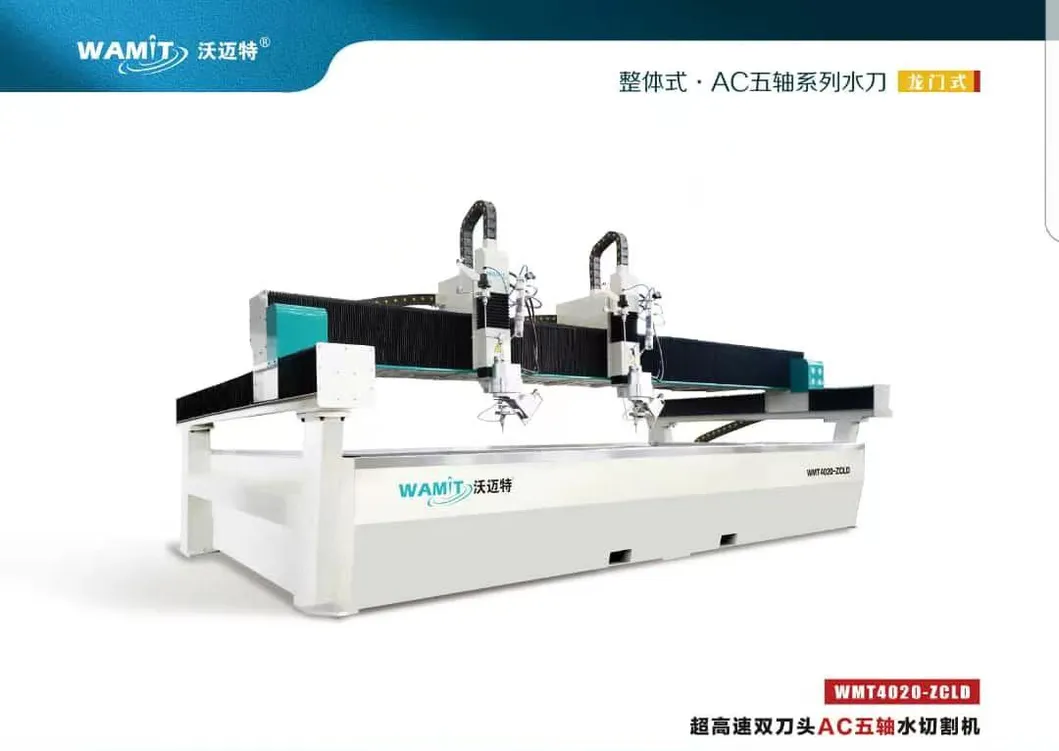

The gantry-style balanced design structure provides superior stability and machine accuracy. Equipped with an ultra-high pressure cutter head, it supports both pure water and abrasive sand cutting. The 5-axis system allows for vertical and non-vertical cutting with a maximum angle of 60 degrees.

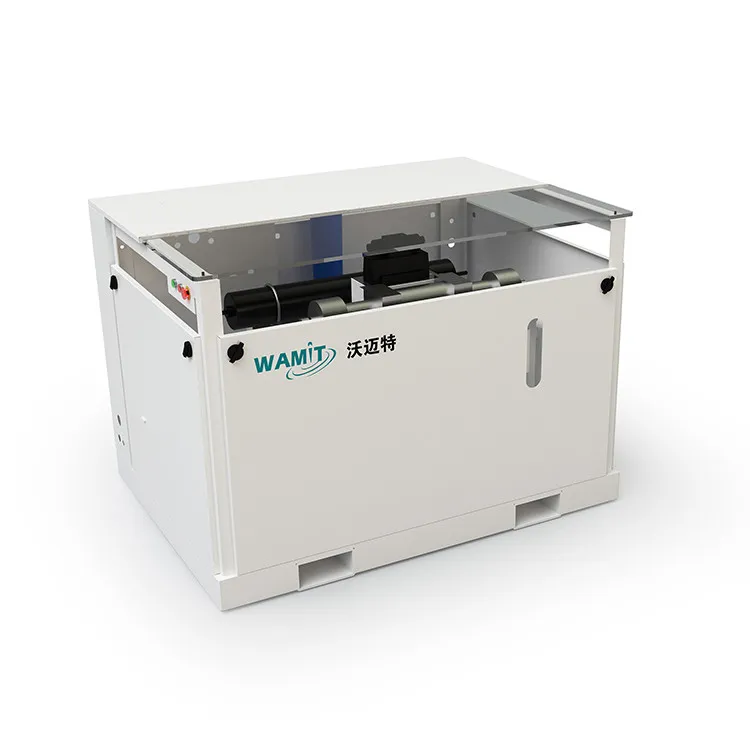

420MPA Intensifier Pump
Electronic direction regulation, Siemens motor, Max flow 3.7 L/min.

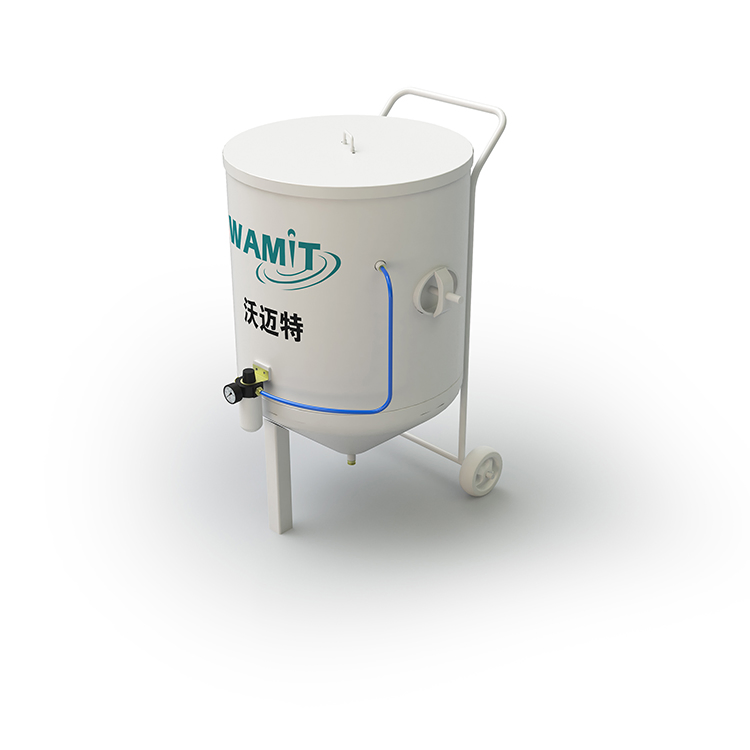

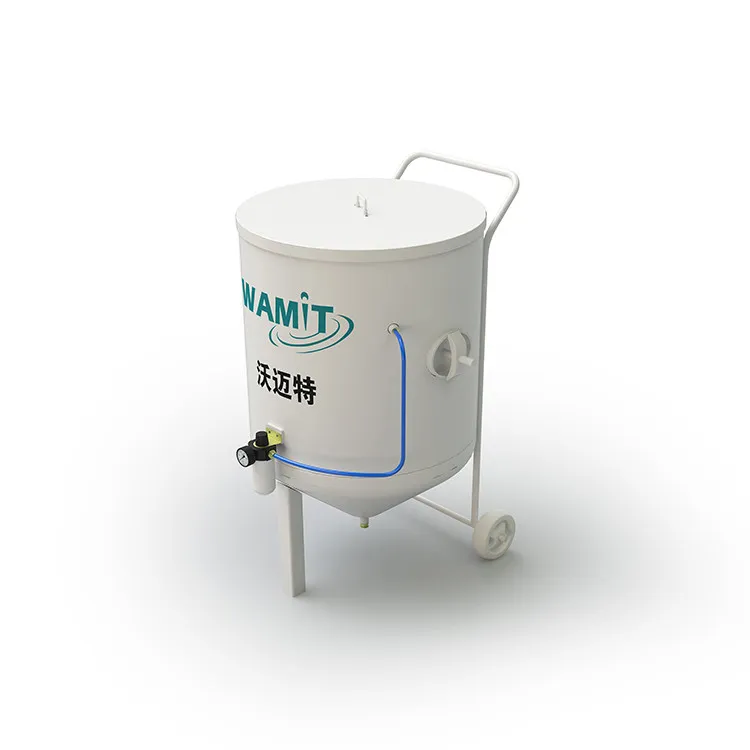

Automatic Abrasive Feeder
200kg capacity, pressure-driven sand delivery, no electronic control needed.

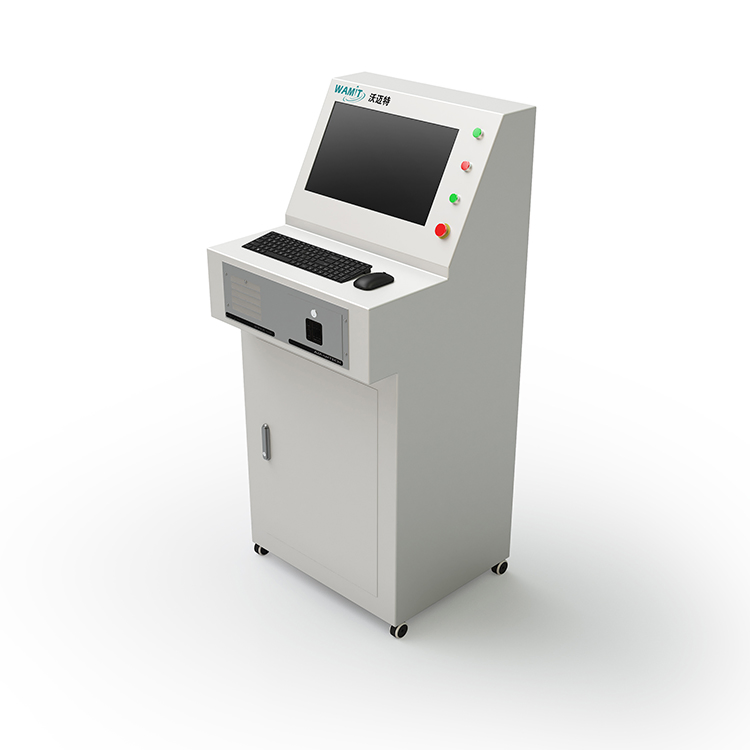

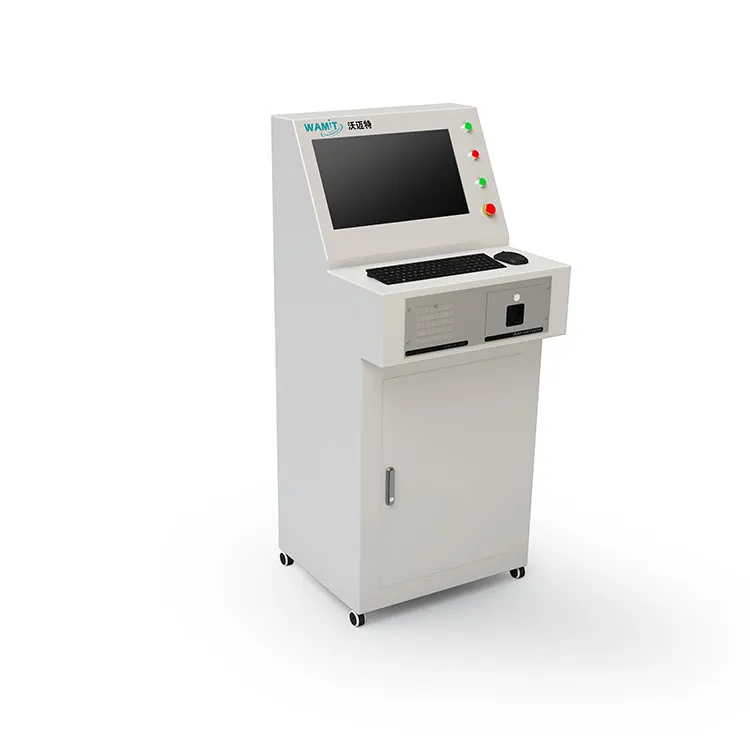

CNC Controller System
21-inch LCD, Industrial PC, Windows-based, supports DXF files.

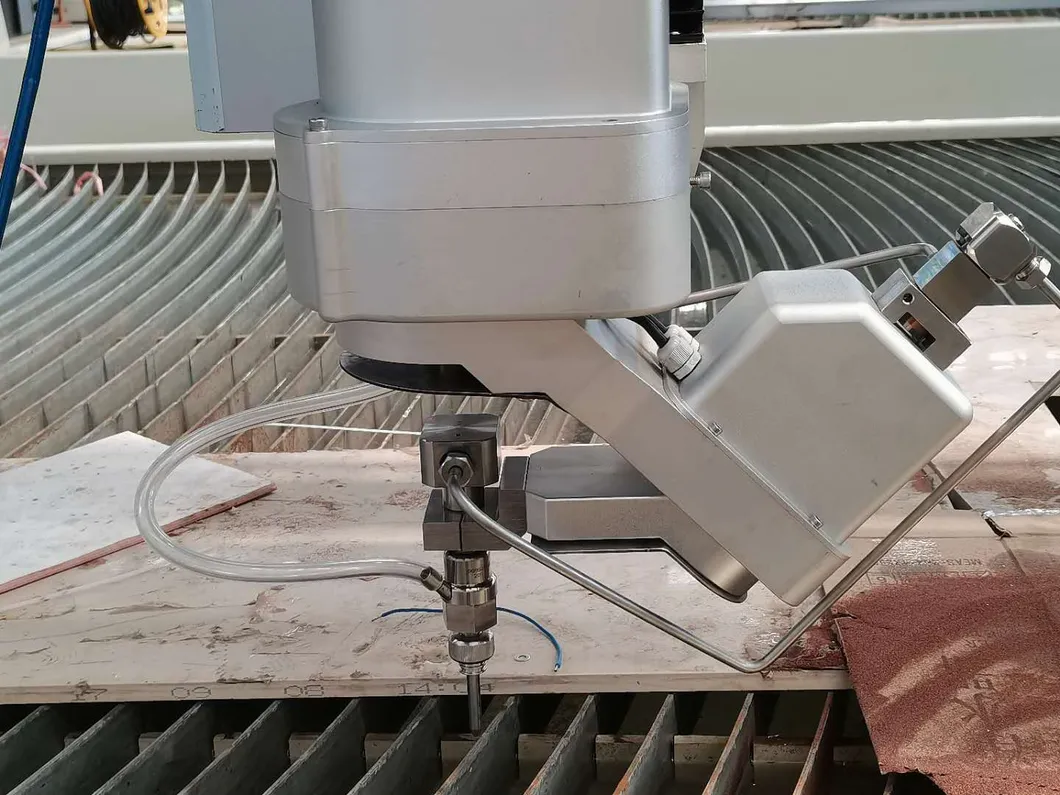

AC 5-Axis Head
Capable of 60-degree angle cutting for complex bevels.

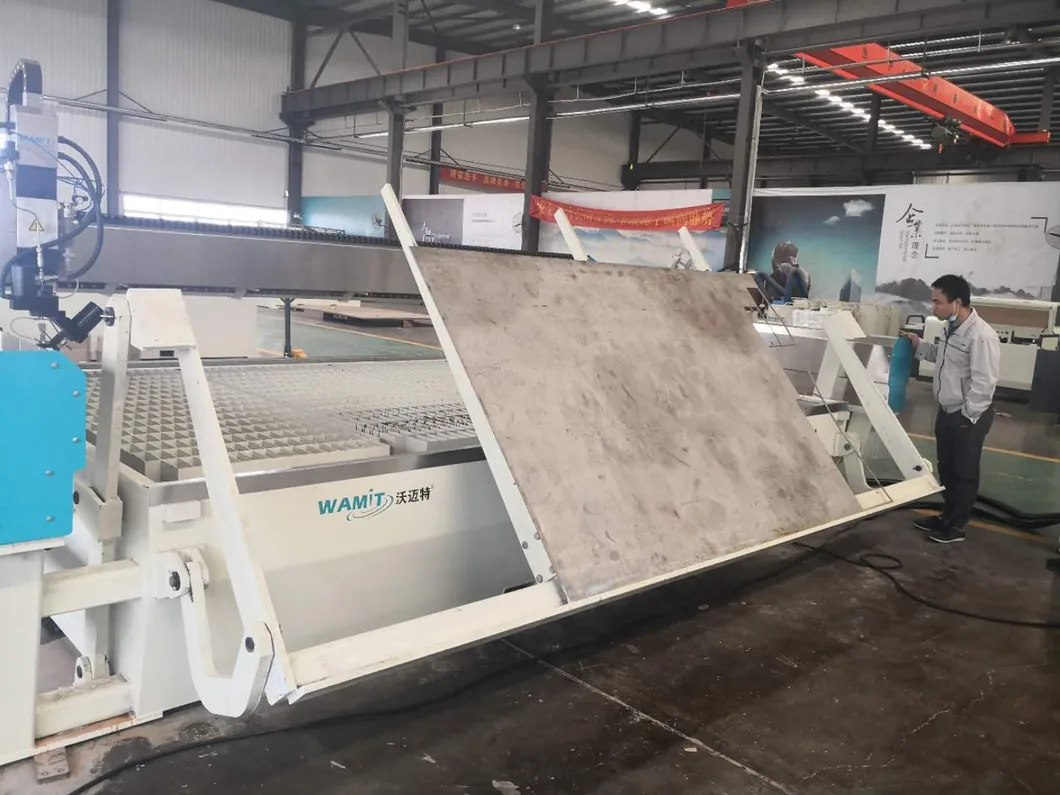

Optional Flip Table
Facilitates easier material loading and unloading.
Machines are professionally packed and can be delivered in a single 20'FCL or 40'FCL container depending on the table size and configurations.
| Package Size | 250.00cm * 450.00cm * 200.00cm |
| Gross Weight | 4500.00kg |
We provide comprehensive global support including field installation, commissioning, and staff training. Our technical team ensures a response time of less than 12 hours.
