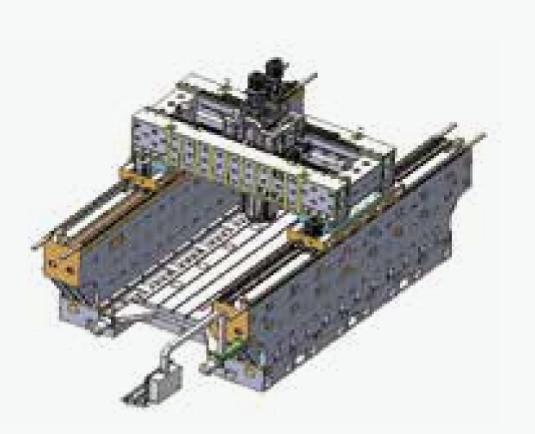

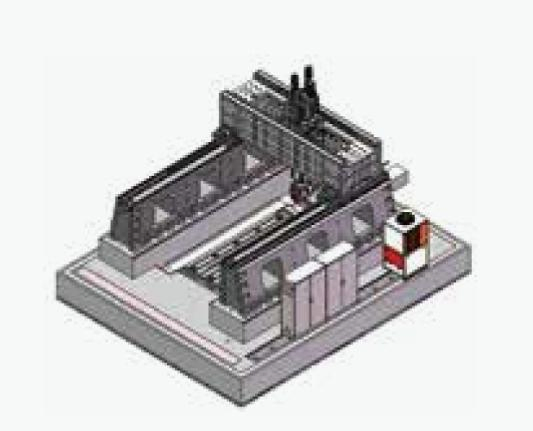

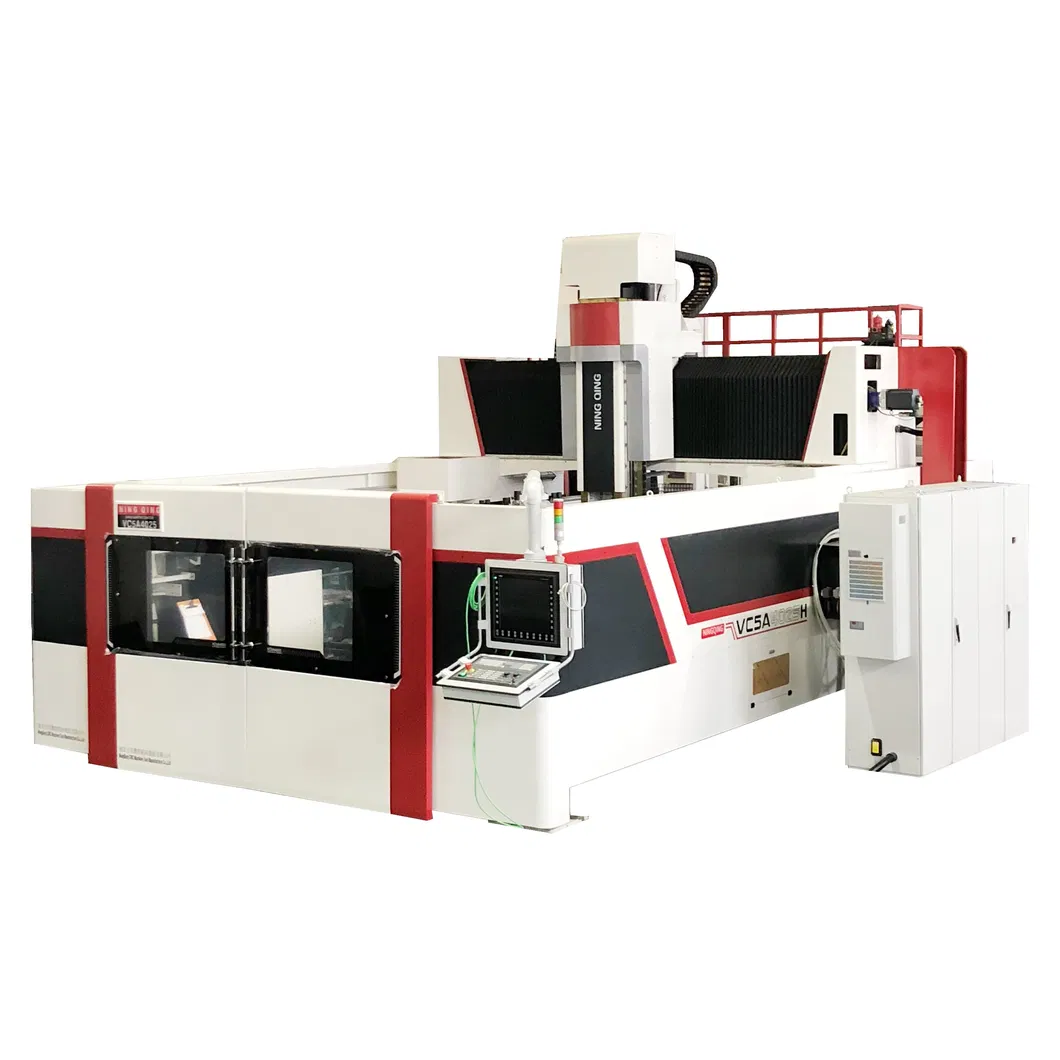

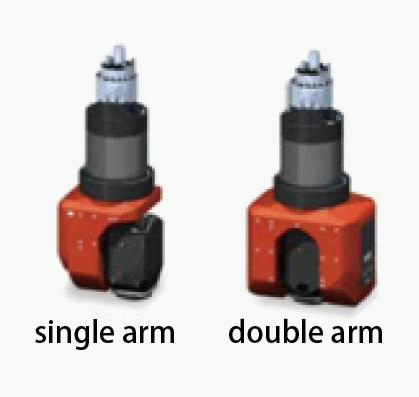

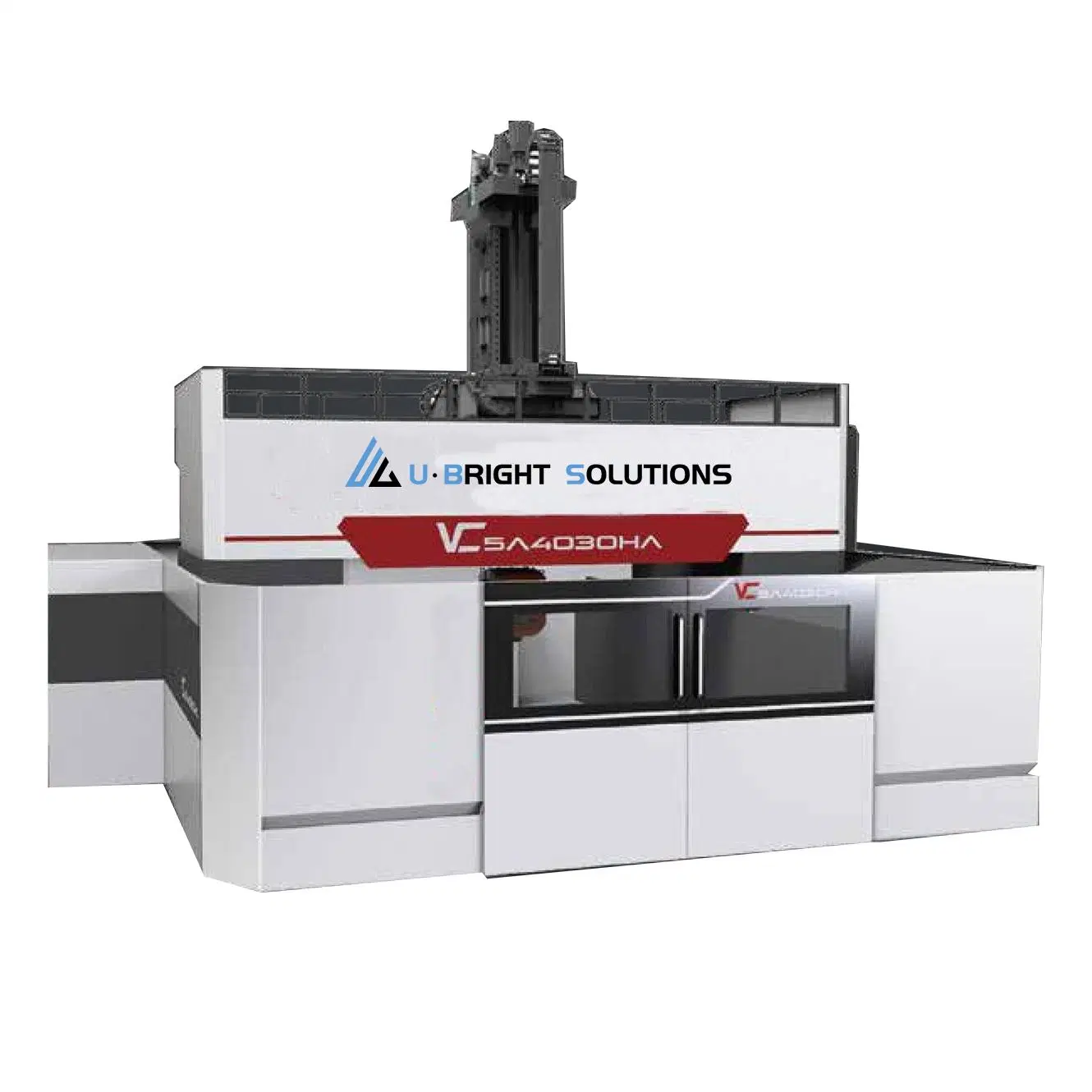

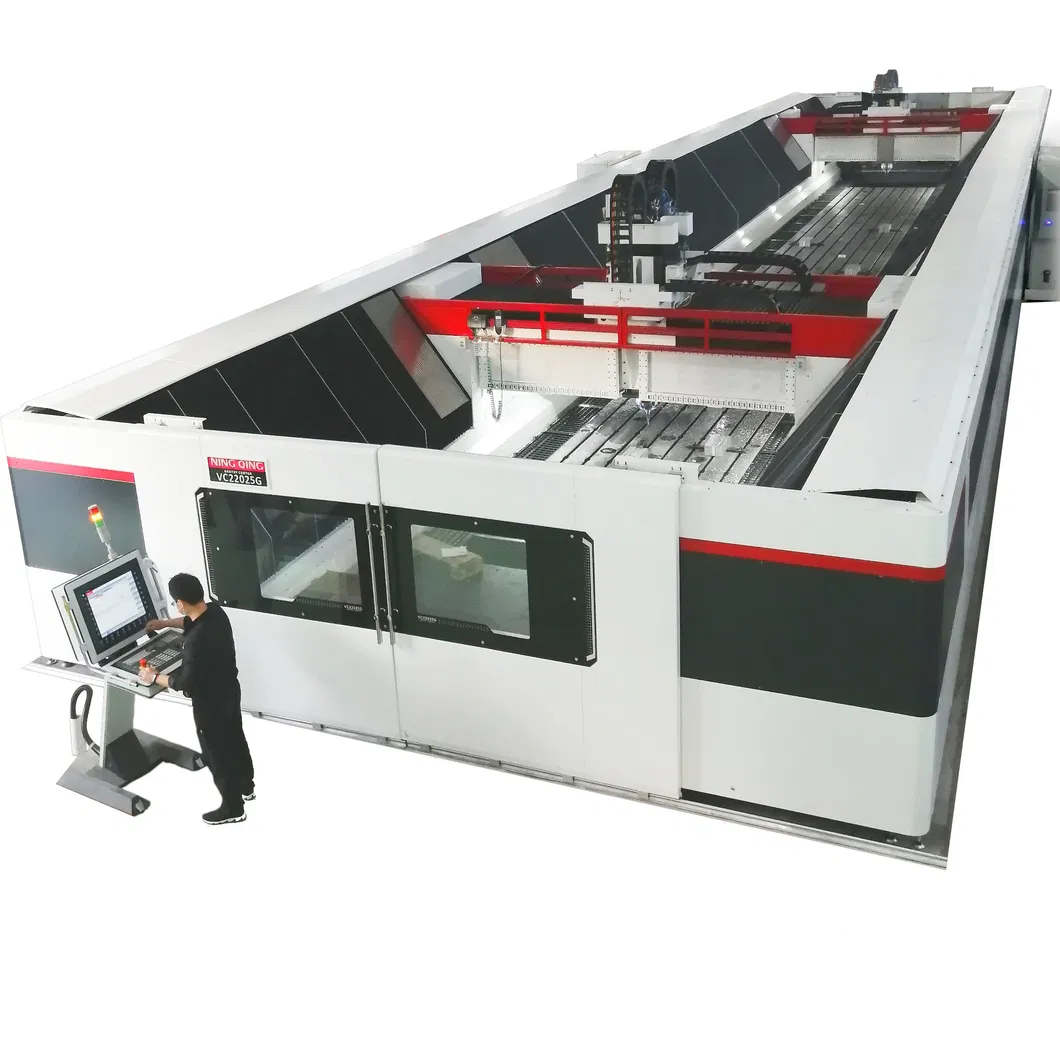

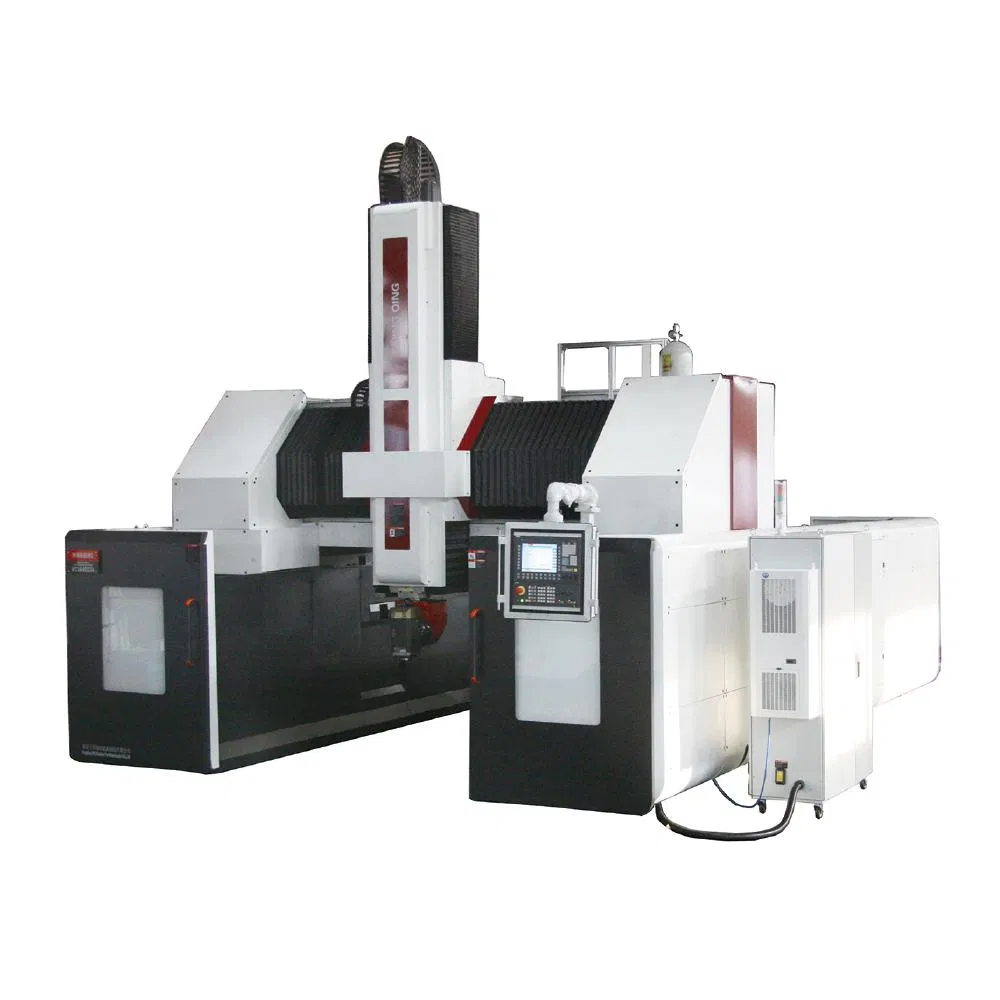

The saddle and the ram moving parts are fed in Y and Z directions on the beam and saddle respectively. A and C double pendulum head are fixed on the end face of the machine tool ram to realize the continuous swing of the machine tool spindle (axis A) and the continuous rotation of the five axis head (axis C). Five-axis high-speed gantry processing center layout is orderly, with fully enclosed protection room, equipped with safety electronic door lock and spacious safety observation window.
Key Applications: Used for electric locomotive projects, automotive industry, high hardness mold, large and medium-sized mold processing. It is the preferred equipment for efficient processing of large thin-wall parts and complex aircraft structures in the aerospace industry.
| Parameter Item | Specifications |
|---|---|
| Processing capacity | Heavy Duty |
| Spindle taper | Standard High-speed |

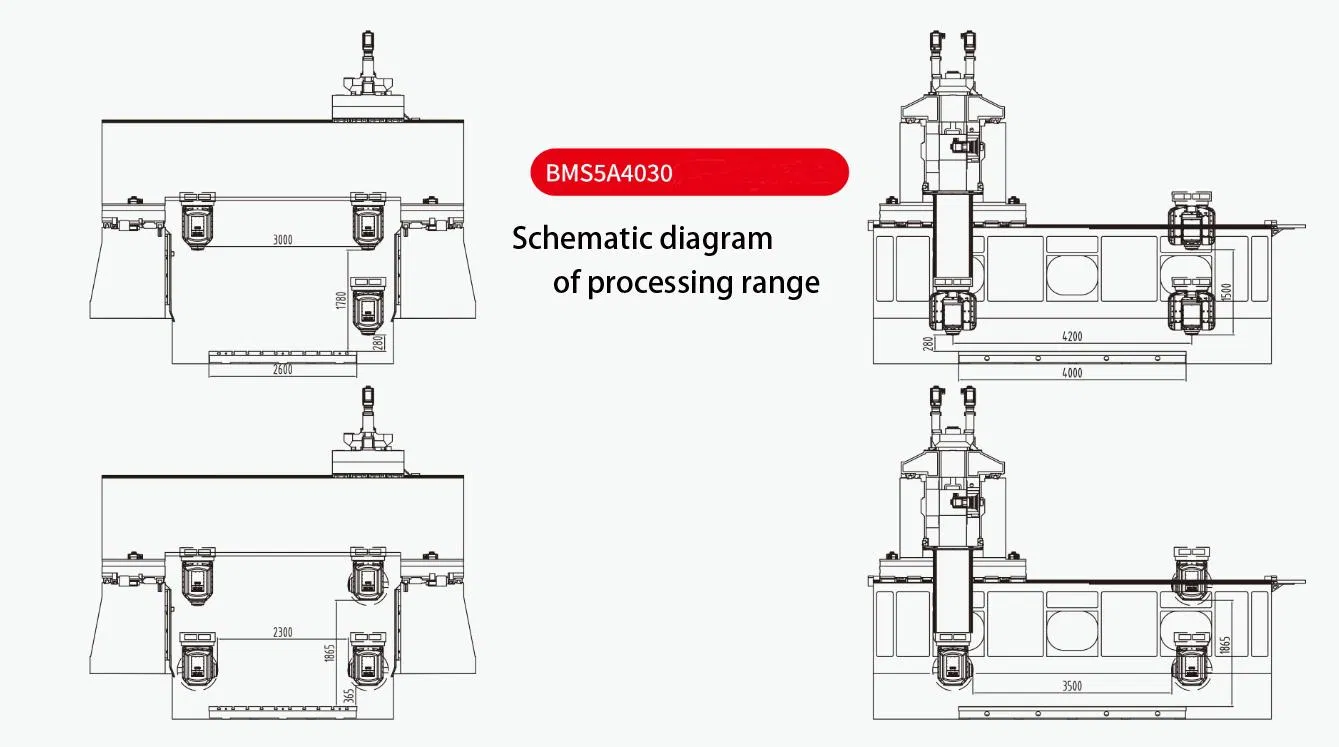

| Table Stroke (X) | 2500 mm |
| Table Travel (Y) | 4200 mm |
| Table Travel (Z) | 1500 mm |
| Positioning Accuracy | ±0.005 mm |
| Total Weight | 60,000 KG |
