Compact 5-Axis Simultaneous CNC Machining Center Fu240 with Siemens Control System
Compact 5-Axis Simultaneous CNC Machining Center Fu240 with Siemens Control System
Compact 5-Axis Simultaneous CNC Machining Center Fu240 with Siemens Control System
Compact 5-Axis Simultaneous CNC Machining Center Fu240 with Siemens Control System
Compact 5-Axis Simultaneous CNC Machining Center Fu240 with Siemens Control System
1 / 5
Compact 5-Axis Simultaneous CNC Machining Center Fu240 with Siemens Control System
Compact 5-Axis Simultaneous CNC Machining Center Fu240 with Siemens Control System
Compact 5-Axis Simultaneous CNC Machining Center Fu240 with Siemens Control System
Compact 5-Axis Simultaneous CNC Machining Center Fu240 with Siemens Control System
Compact 5-Axis Simultaneous CNC Machining Center Fu240 with Siemens Control System

Compact 5-Axis Simultaneous CNC Machining Center Fu240 with Siemens Control System

Customization: Available
After-sales Service: Worldwide
Warranty: 1 Year
Send Inquiry

Product Description

📊

Basic Information

Model NO.MM-FU240
Product NameSmall 5-Axis CNC Milling Machine
Control SystemSiemens or GSK 5-Axis
Table Size240 mm
Spindle Speed24000 Rpm
Table Load30 Kgs
X/Y/Z Travel240 / 390 / 280 mm
Tool Magazine12-Station ATC
Repeating Accuracy0.005 mm
Positioning Accuracy0.01 mm
⚙️

Product Description

High Precision Compact 5-Axis Simultaneous Machining Center with Motorized Spindle and SIEMENS Control System is perfect for industry workshops and teaching institutions. This high-performance machine is designed for quality, efficiency, and precision in a compact footprint.

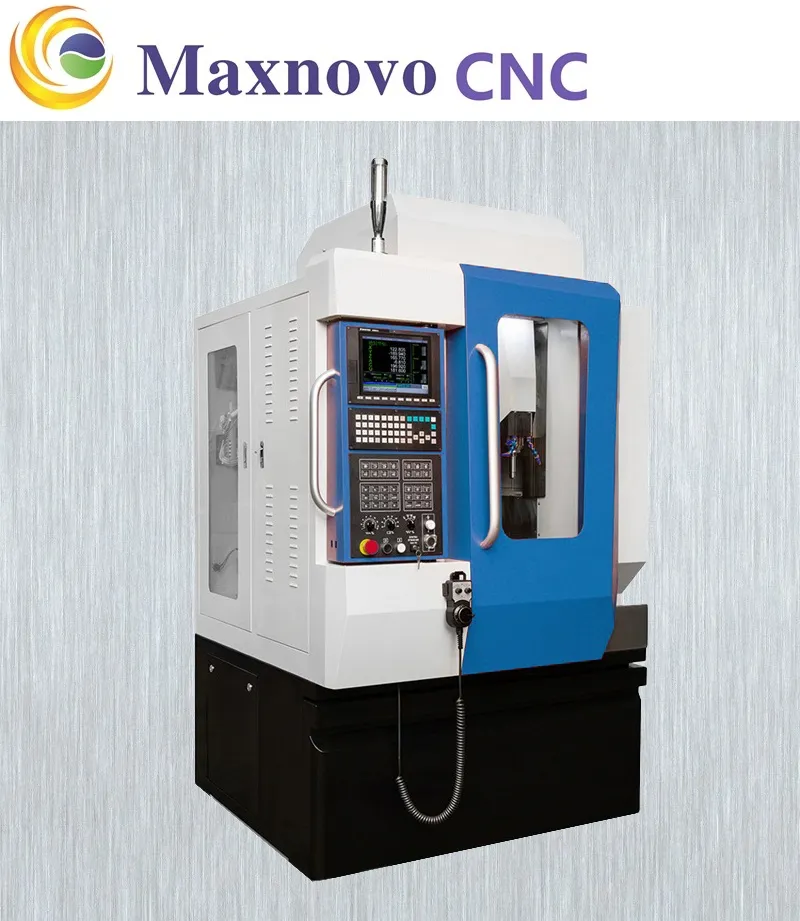

Compact 5-Axis CNC Machining Center

Main Features:

  • Simultaneous 5-Axis Machining

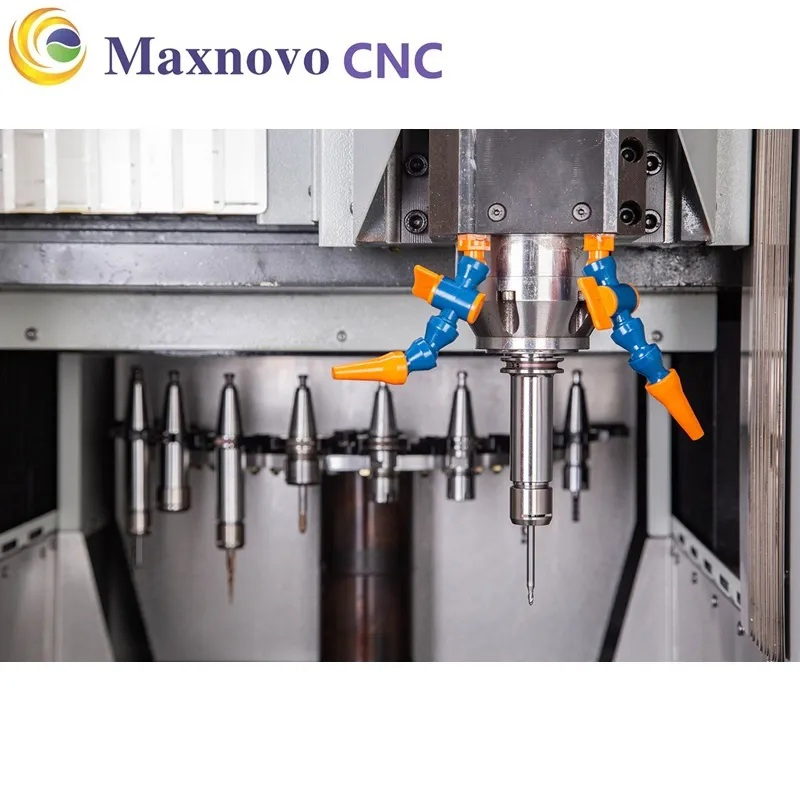

  • Motorized Spindle Speed up to 24000 RPM
  • Automatic Tool Changer (ATC) with 12-Stations

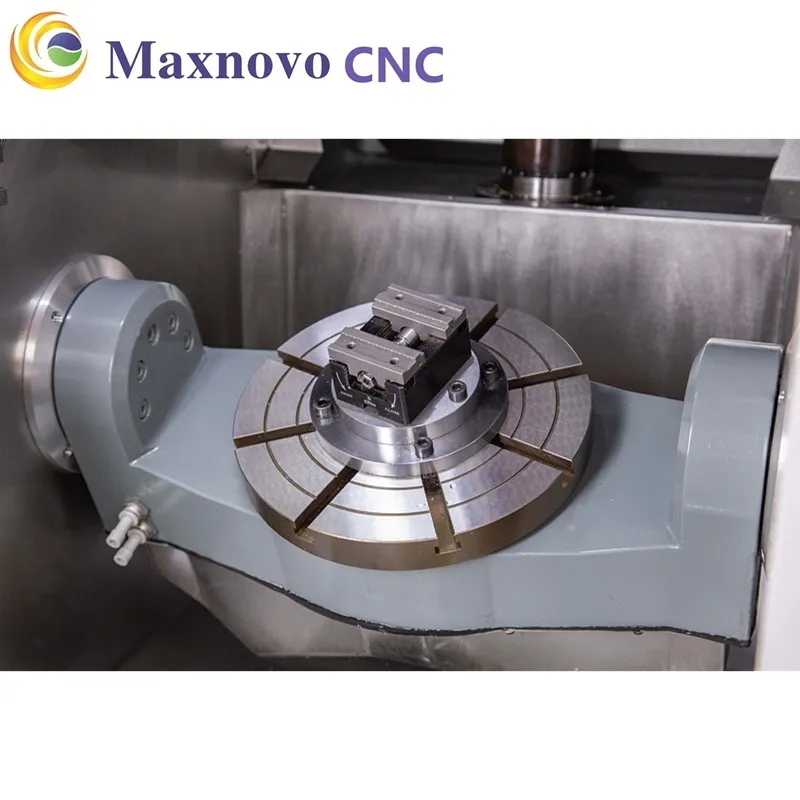

  • Cradle Type Rotary Working Table
  • High Precision Linear Guides on Three Axes
  • High Performance Ball Screws (X/Y/Z)
  • Rotated Tool Center Point
  • Completely Enclosed Workspace
📋

Technical Parameters

Machine Data
Table SizeØ 240 mm
Table Load Capacity30 KGS
Spindle Speed24000 RPM
Spindle TaperISO 20
Travels & Feed
X/Y/Z Travel240 / 390 / 280 mm
A-axis Swivel Angle-110 to +110 degree
C-axis Swivel Angle360 degree
Rapid Feed (X/Y/Z)10000 mm/min
Precision
Positioning Accuracy (X/Y/Z)0.01 mm
Repeating Accuracy (X/Y/Z)0.005 mm
Repeating Accuracy (A/C)20 sec
Tool Changer (ATC)
Number of Tools12 Tools
Max. Tool Weight1.5 KGS
💎

Quality Assurance & Craftsmanship

Our products are convincing by outstanding quality, accurate manufacturing, cost-efficient price, and trustable performance. All contact surfaces are scrapped by hand with at least 20 spots per square inch and a 40% contact rate to guarantee true geometric accuracy.

Machine Testing
Precision Component

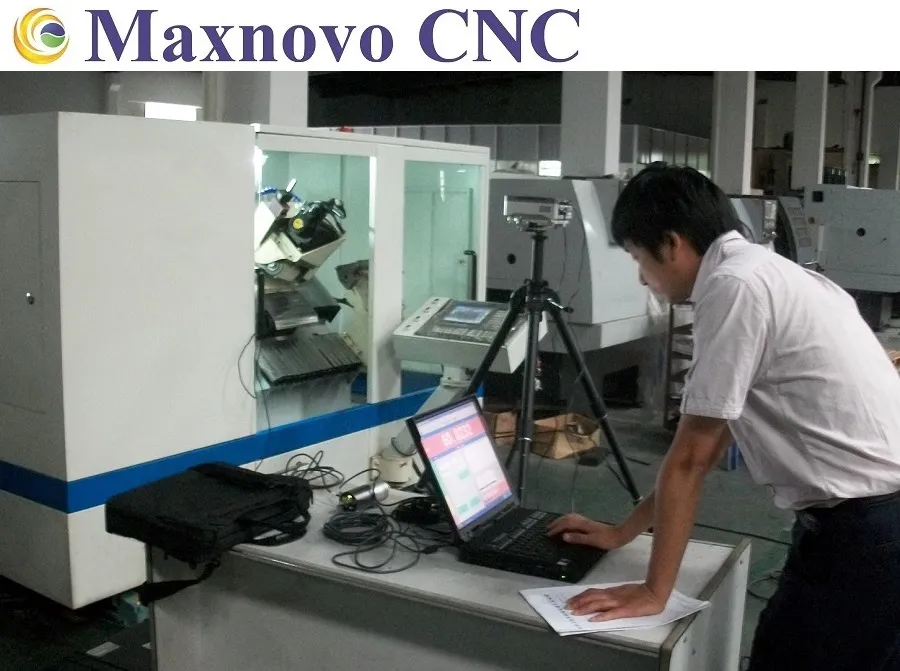

Laser Testing

Laser Interferometer Testing

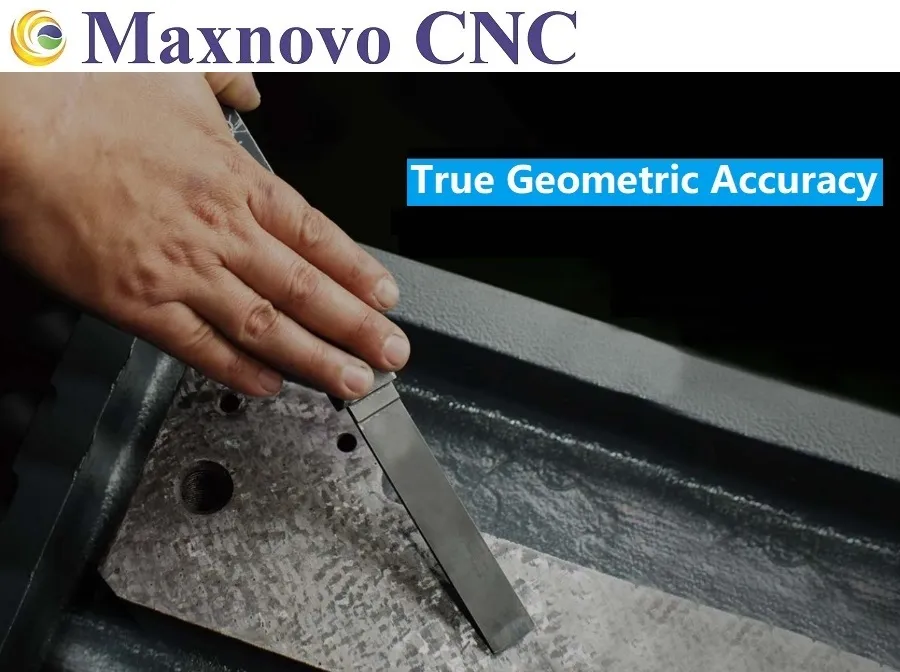

Hand Scraping

Hand Scraper Craftsmanship

High Quality Casting

Stable Casting Quality

Frequently Asked Questions

Can you provide OEM or ODM services?
Yes, we have the full capacity to provide OEM and ODM manufacturing services to meet specific client requirements.
How is quality control managed during production?
Quality is our priority. We employ dedicated engineers for Incoming Quality Control (IQC), In-Process Quality Control (IPQC), and Outgoing Quality Control (OQC), including laser interferometer testing and hand-scraping verification.
What is the typical delivery time for this 5-axis machine?
The average delivery time is approximately 2 months after contract confirmation. Mass production orders may vary based on quantity.

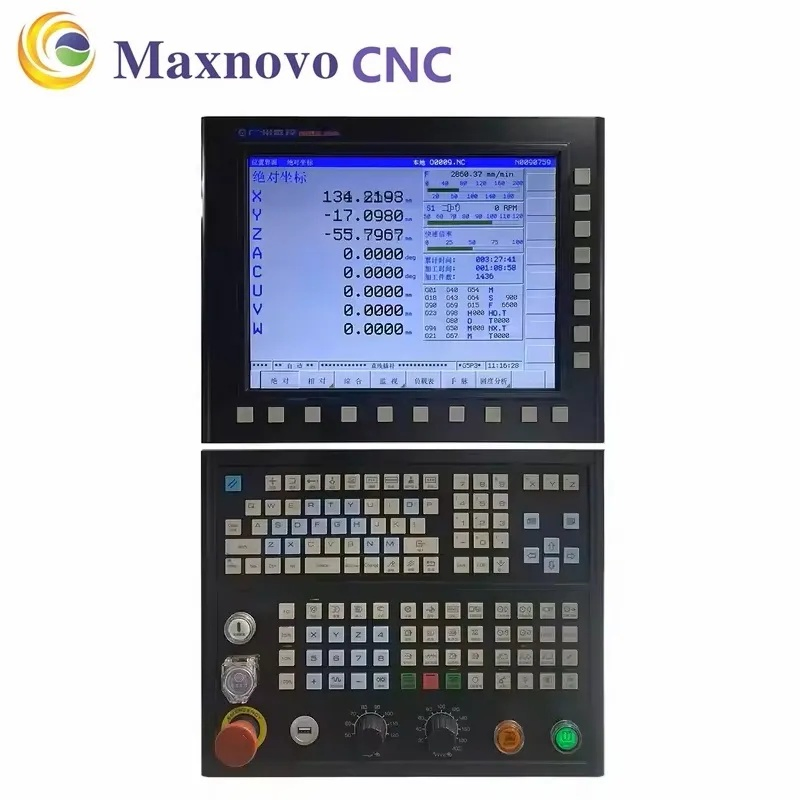

What control systems are available for the MM-FU240?
Customers can choose from SIEMENS, GSK, SYNTEC, or HNC 5-Axis CNC Control Systems based on their operational preferences.
What are the key advantages of the motorized spindle?
The motorized spindle provides high speeds up to 24000 RPM, ensuring excellent surface finish and precision for intricate 5-axis machining tasks.
Is the machine suitable for educational purposes?
Yes, its compact design and high precision make it an ideal choice for both professional industry workshops and high-end teaching institutions.
