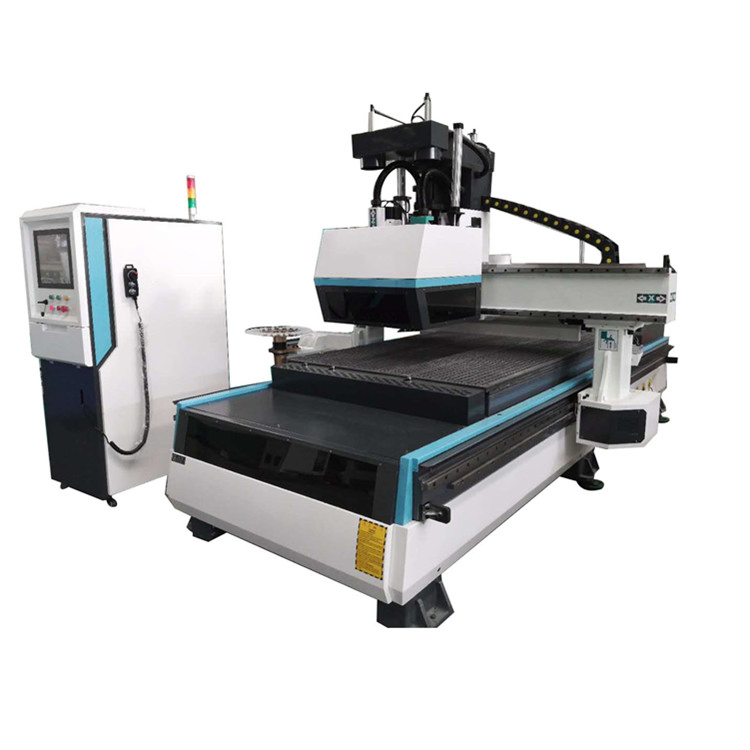

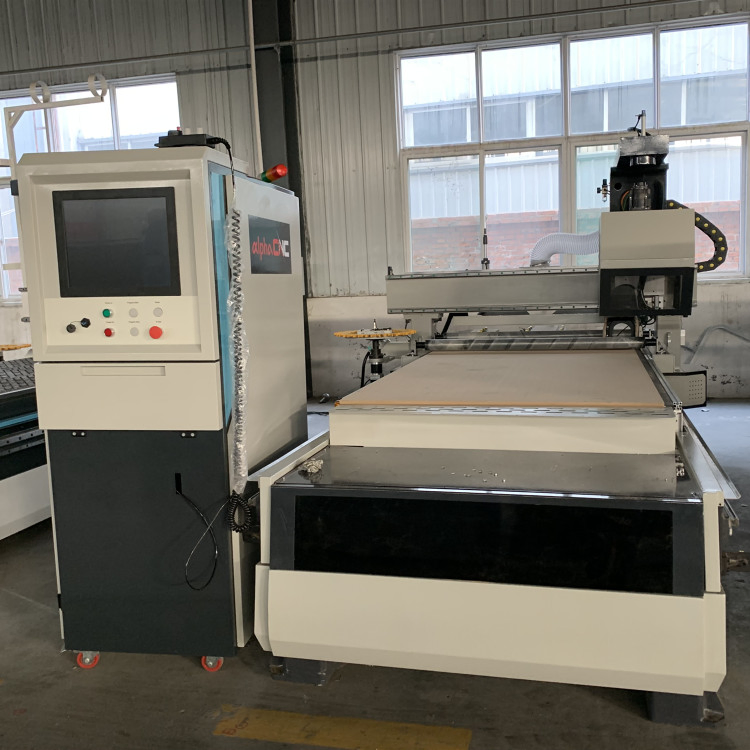

Wood Engraving Machine 3 Axis 4 Axis 5 Axis 1325 Atc Cnc Wood Router with Auto Tool Changer
| Performance parameter | Cabinet door sculpting, engraving, milling, cutting; optimizes material opening, punches vertical holes, and automatically unloads in one step. Uninterrupted process for maximum efficiency. |
| Applicable industries | Panel furniture, cabinet doors, moulded doors, plastic door panels, office furniture, custom furniture automation CNC processing. |
| Functions | Door panel molding, slotting, cutting, punching, carving, etc. |
| Working dimensions | 1300*2500*200mm |
| Engraving Speed | Max. Idling 80000mm/min | Max. Cutting 25000mm/min |
| Accuracy | Repositioning Accuracy: ±0.05mm |
| Compatible Software | Alphacam, Yunxi, Yimu, Haixun 1010, etc. |
| X/Y/Z Structure | XY axis high precision German rack drive; Z axis imported TBI ball screw. |
| Machine Material | Integral steel structure, thickened bed, tempered and quenched. Large gantry beams processed by vertical machining centers. |
| Table Type | Vacuum adsorption (double-layer) table with 7.5kw water-cooled vacuum pump. |
| Control System | Taiwan 60WA six-axis control system, all-in-one drive and control. |
| Spindle Motor | 9kw air-cooled motor HQD / CC |
| Tool Magazine | 16 tool changer magazines |
| Drive Motor | Taiwan bus absolute value servo motor; Z axis with brake. |
| Maintenance | Automatic Oil Filling System |

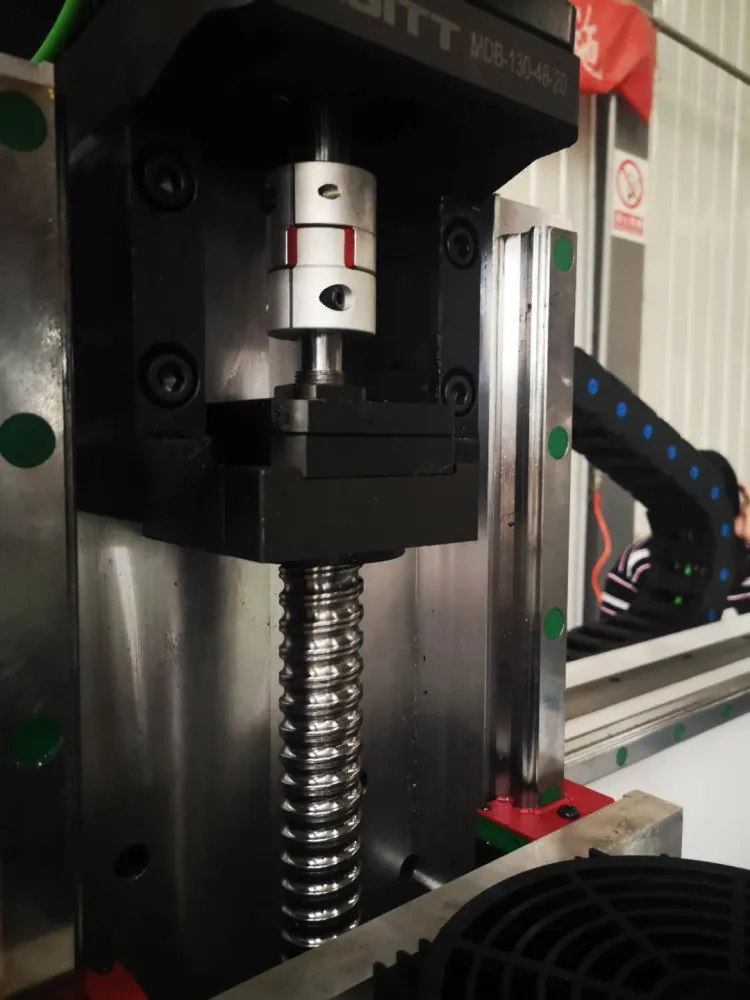

1) High Precision Drive System: XY axis German rack drive and Z axis Taiwan TBI screw.

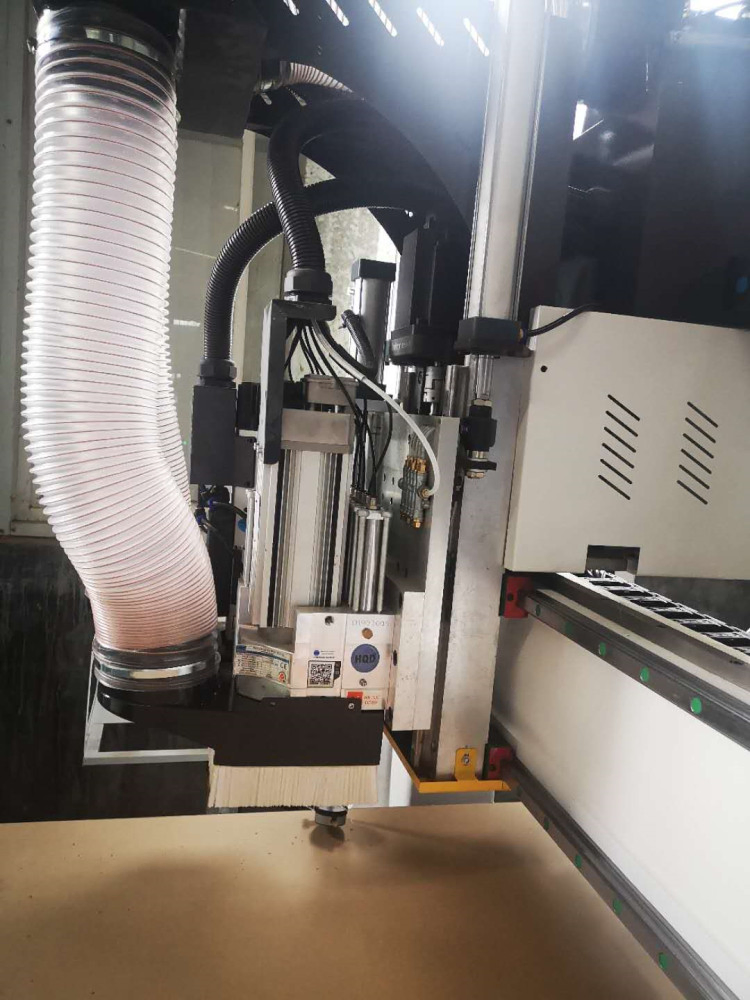

2) 9kw Air-cooled Spindle

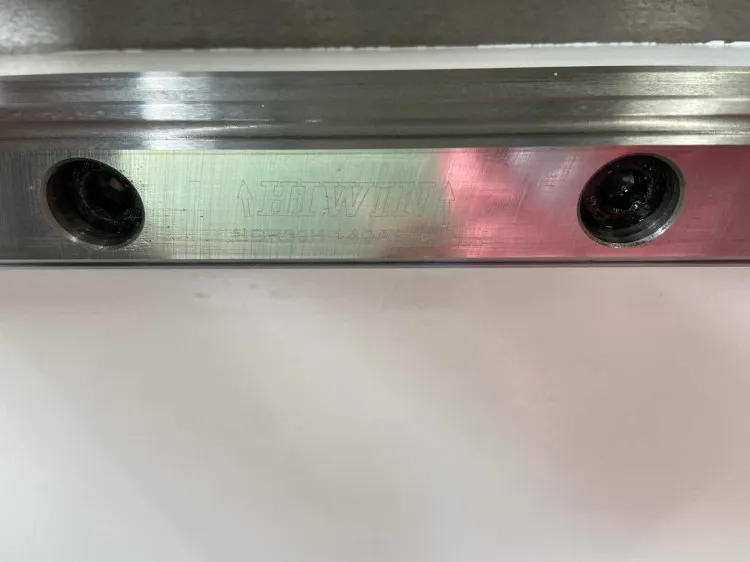

3) HIWIN Guide Rail

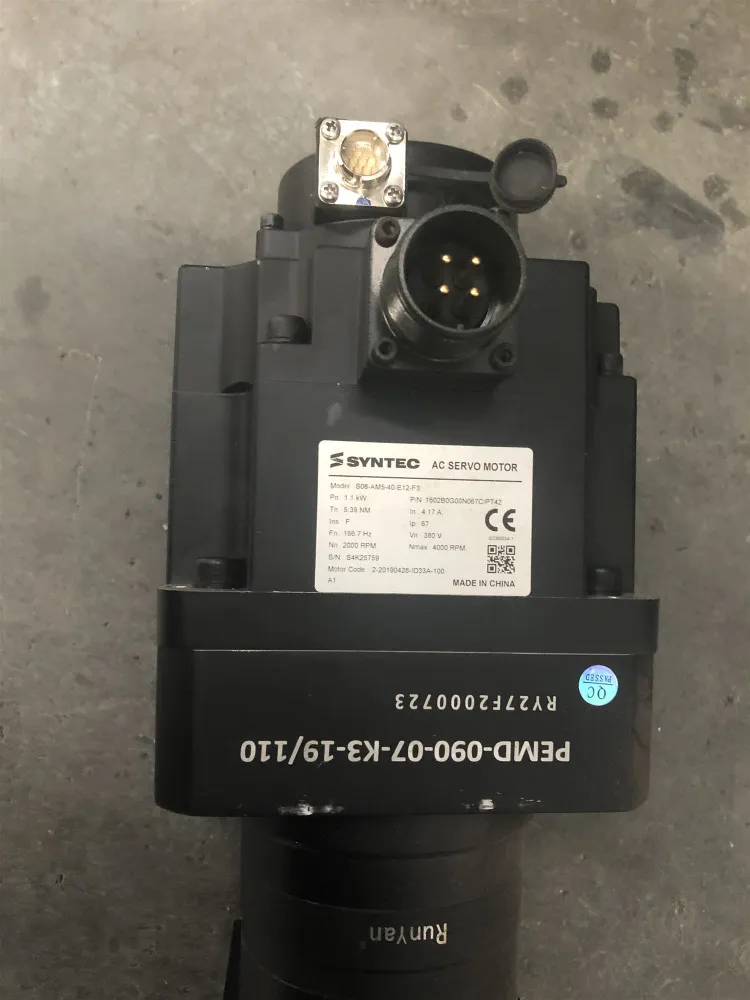

4) Servo Motor

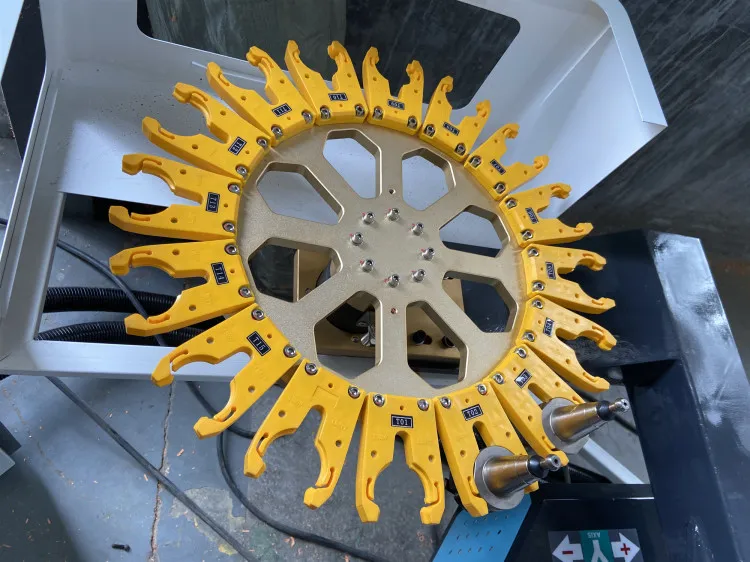

5) 16 Tools Round Disc Tool Magazine:
Standard Packaging: Plywood case + PVC film for moisture protection.
