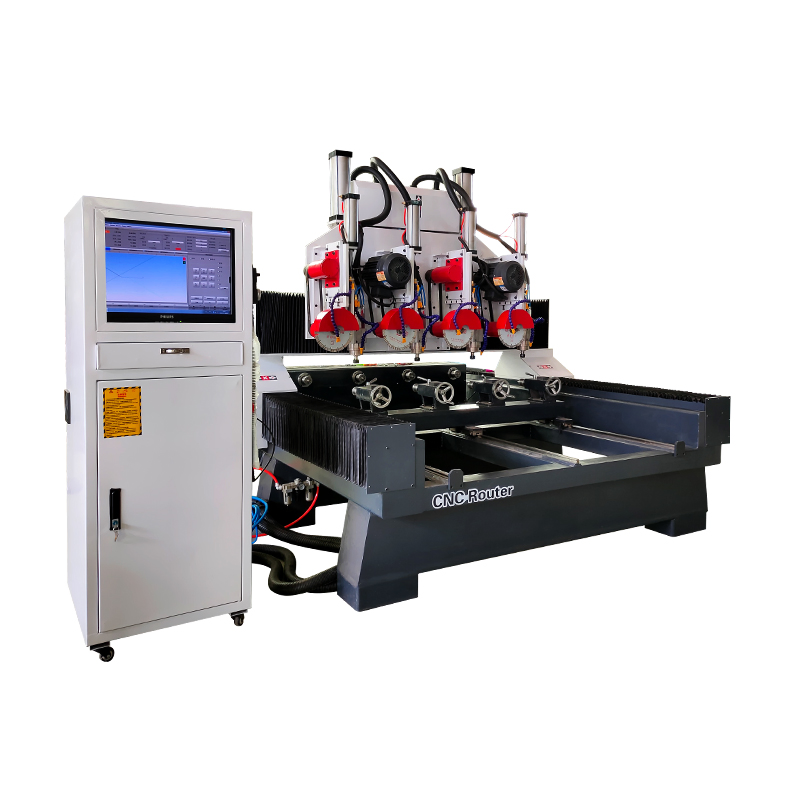

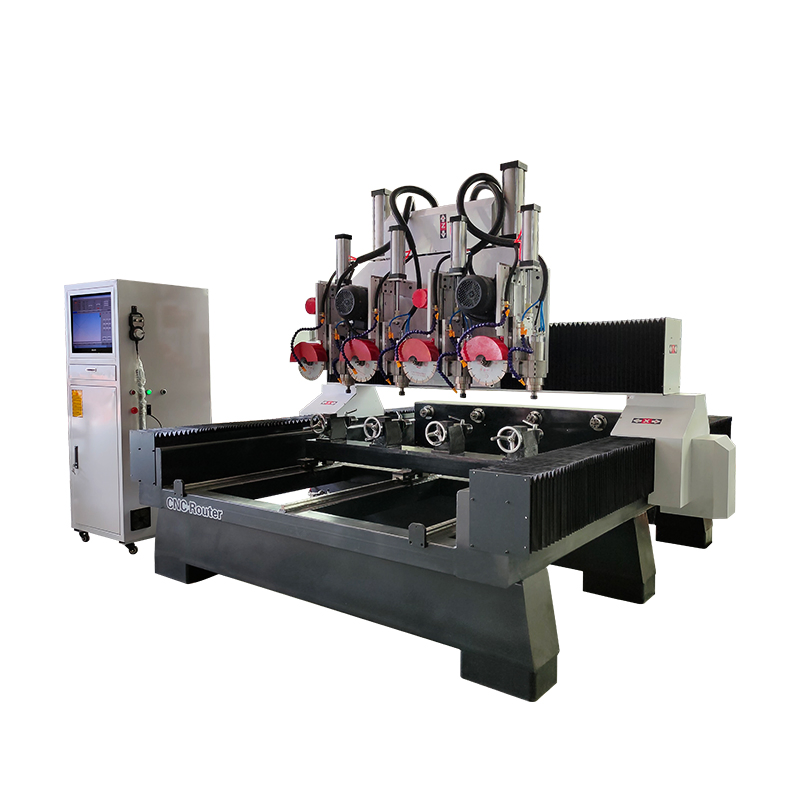

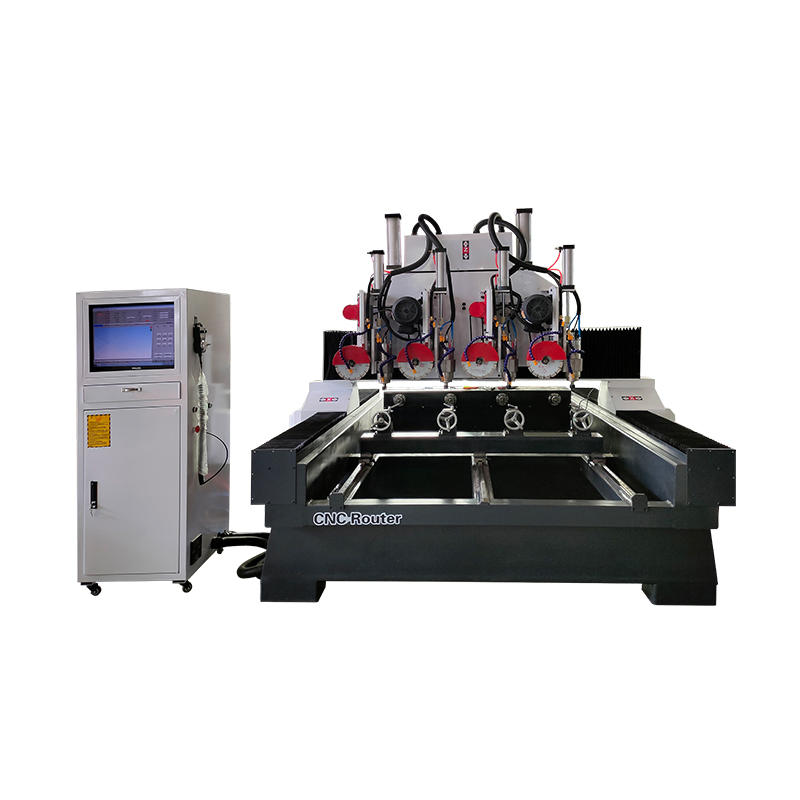

CNC Stone Lathe Machine, CNC Carving Machine for 3D Roman Columns Corbel Pilasters Cylinders Pillars
CNC Stone Lathe Machine, CNC Carving Machine for 3D Roman Columns Corbel Pilasters Cylinders Pillars
CNC Stone Lathe Machine, CNC Carving Machine for 3D Roman Columns Corbel Pilasters Cylinders Pillars
1 / 3
CNC Stone Lathe Machine, CNC Carving Machine for 3D Roman Columns Corbel Pilasters Cylinders Pillars
CNC Stone Lathe Machine, CNC Carving Machine for 3D Roman Columns Corbel Pilasters Cylinders Pillars
CNC Stone Lathe Machine, CNC Carving Machine for 3D Roman Columns Corbel Pilasters Cylinders Pillars

CNC Stone Lathe Machine, CNC Carving Machine for 3D Roman Columns Corbel Pilasters Cylinders Pillars

Customization: Available
Function: Cutting, Line Engraving, Carving Engraving
Application Material: Marble
Send Inquiry

Product Description

Technical Specifications

Automation:Automatic
Control:CNC
Motor Power:High Power
Certification:CE, ISO, CCC
Current:AC
Type:CNC Stone Lathe & Carving Machine
Working Size:200mm Dia x 1300mm Length (x4 Rotary)
Spindle Power:3kw Water Cooled * 4 Pieces
Spindle Speed:0-24000rpm
Max Moving Speed:20m/Min
Resolution:0.05mm
Control System:4 Axis Ncstudio Card

CNC Stone Lathe & Carving Machine

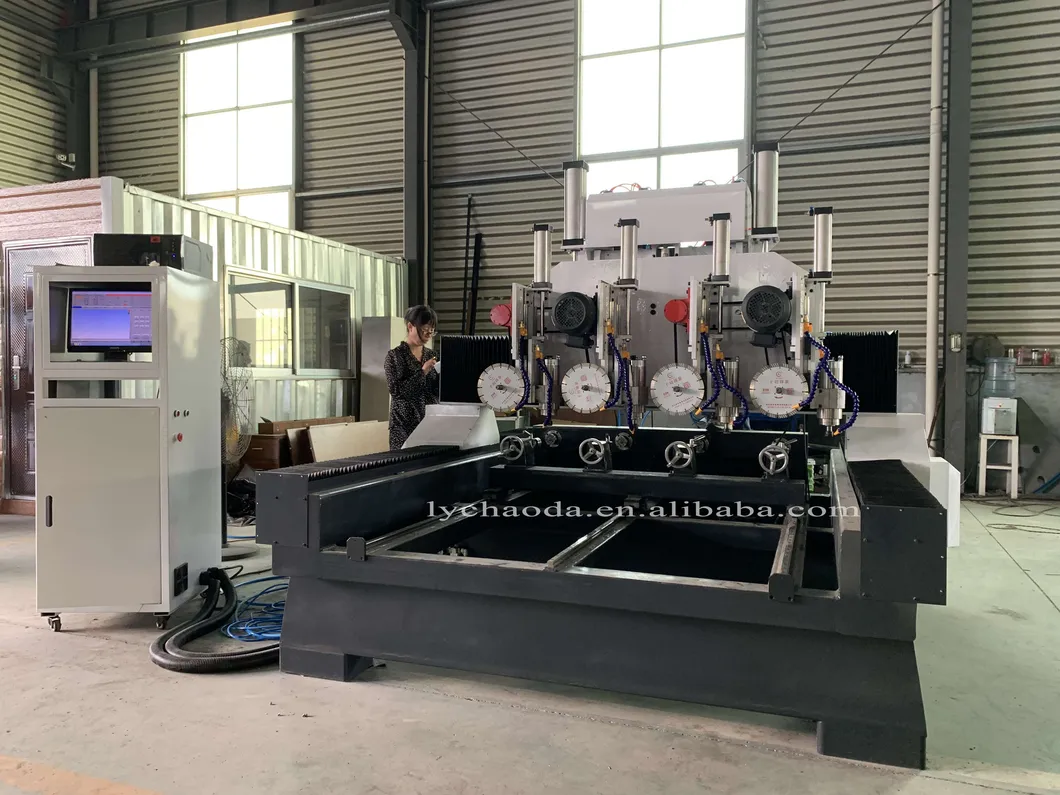

CNC Stone Lathe Machine
  • Perfect for bulk production of columns, stair railings, 3D sculptures, and furniture legs.
  • Equipped with multiple spindles that can work simultaneously or independently to increase efficiency.
  • Premium global components: Japan YASKAWA Servo Motors, Taiwan HIWIN linear guides, and Taiwan TBI ball screws.
  • Highly compatible software support for all types of 3D carving designs.
  • Four rotary devices specialized for Roman columns, pilasters, cylinders, and pillars.
  • Flexible configuration options including 3-axis or 5-axis setups.

Detailed Parameters

Model No.JCS1325R-4H
Lathe BedHeavy duty steel structure
Working Size200mm diameter, 1300mm length for each rotary * 4 pieces
Spindle Power3KW water cooled spindle * 4 pieces
Spindle Rotating0-24000rpm
Max. Travelling Speed20m/min
Max. Working Speed15m/min
Control System4 axis Ncstudio card
Motor & DriverJapan YASKAWA Servo system
InverterTaiwan Delta
Oil SystemAutomatic
Roughing UnitSaw blade unit * 4pcs for fast roughing

Applicable Materials

This versatile CNC machine is designed to handle a wide range of materials including:

Artificial stone, Marble, Granite, Ceramic Tile, Tombstone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, Jade, Crystal, Glass, Plexiglass, Wood, PVC, EPS Foam, Aluminum Composite Panels, and Copper.

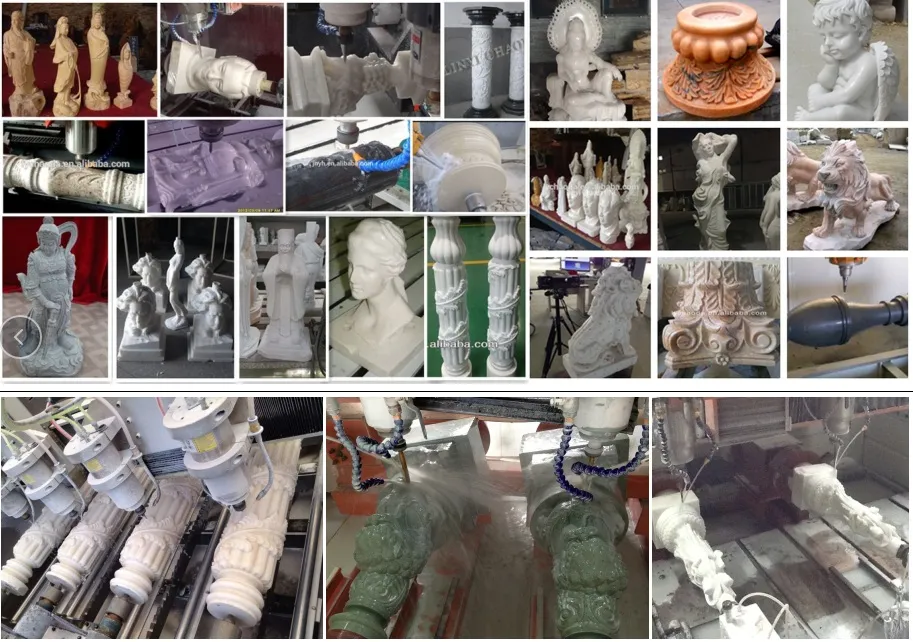

Stone Samples
3D Carving Sample 1
3D Carving Sample 2
3D Carving Sample 3

Our Services & Support

Service Support
🔍 Sample testing before shipment
🏫 2 days free training sessions
🛡️ 12 months comprehensive warranty
📖 English manuals & operation videos
🛠️ Lifetime technical support
✈️ Overseas engineering service available
Machine Packaging

Frequently Asked Questions

Q1: What kind of products can this CNC machine produce?
It is specifically designed for 3D cylindrical objects such as Roman columns, stair handrails, table legs, Buddha statues, and various complex 360-degree sculptures.
Q2: Can the four spindles work at the same time?
Yes, the multi-spindle design allows all four spindles to process the same design simultaneously, which quadruples your production efficiency. They can also be configured to work independently.
Q3: Is the machine capable of processing hard materials like granite?
Absolutely. With high-power water-cooled spindles and a heavy-duty steel structure, it can efficiently carve hard stones including granite, marble, and quartz.
Q4: Does the machine come with a control system?
Yes, it uses a professional 4-axis Ncstudio control system, which is stable, easy to learn, and provides precise control for complex 3D carvings.
Q5: How do you ensure the quality of the machine?
We use top-tier global components (YASKAWA, HIWIN, Delta). Every machine undergoes rigorous sample testing before shipment and comes with a 12-month warranty.
Q6: Is technical support available for international customers?
Yes, we provide free technical support via email, phone, and remote sessions. We also offer English manuals, operation videos, and have engineers available for overseas servicing.
