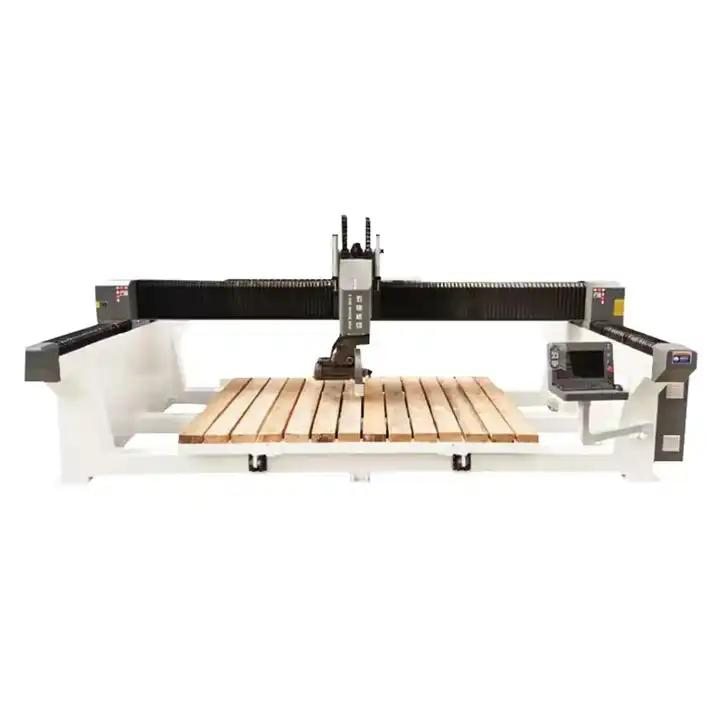

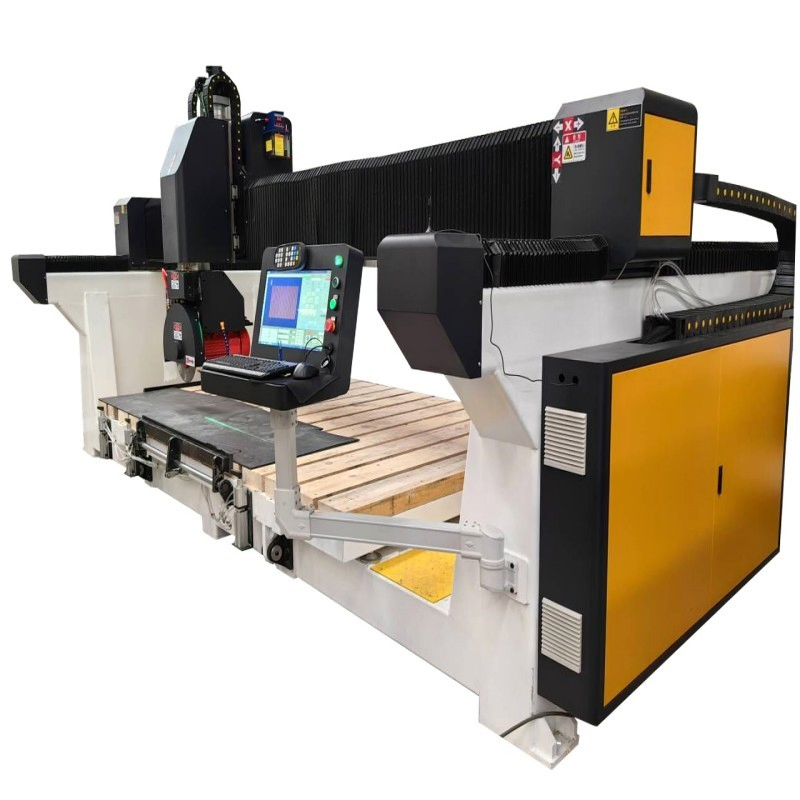

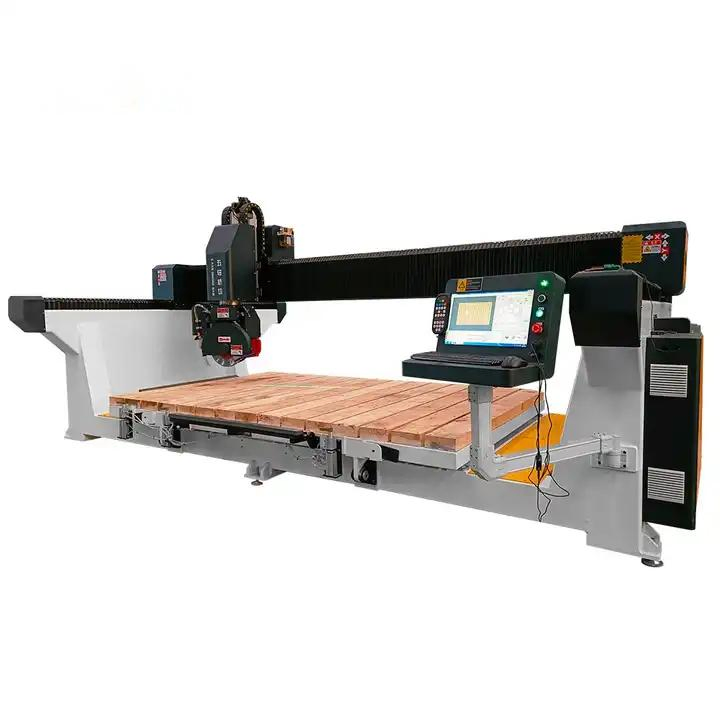

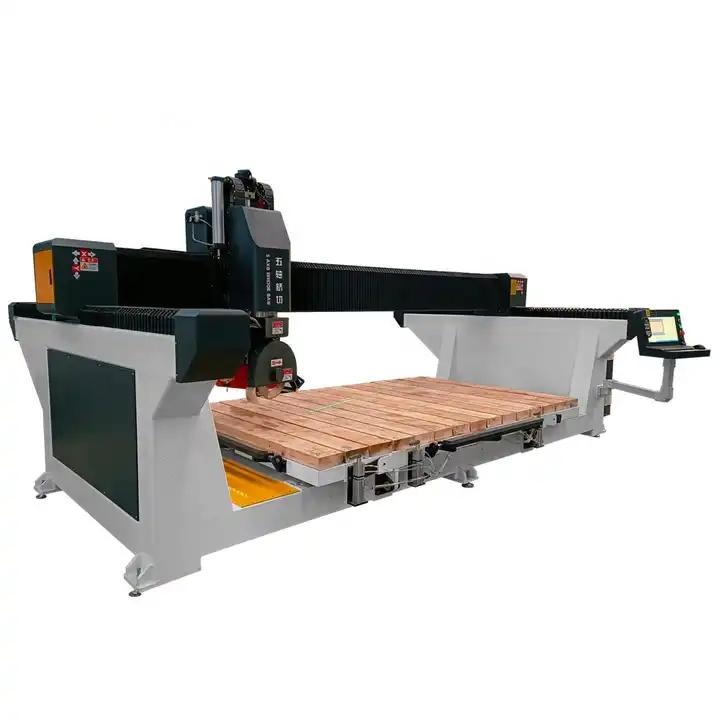

CNC Engraving Stone Cutting Machine Stone Bridge Saw CNC Engraver Stone Edge Engraving Polishing Machine

Customization:	Available
After-sales Service:	Provided
Warranty:	1 Year

Basic Information

Model NO.

ST-3220

Type

CNC Cutting Machine

Usage

Ceramics, Glass, Stone, Granite, Marble

Automation

Automatic

Control

CNC

Voltage

380V (Option 220V)

Spindle Power

11kw Water-Cooling

Working Size

3220*2000mm

Product Description

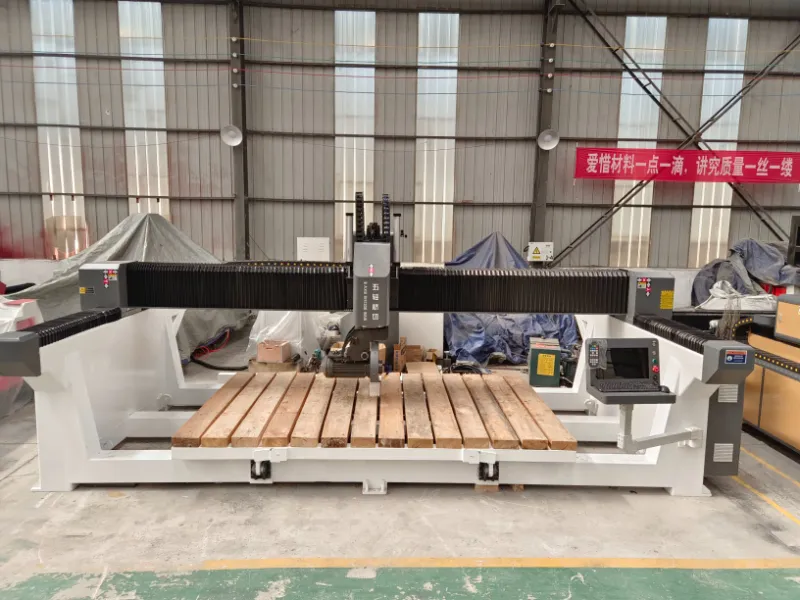

Adopts 5 axis bridge cutting head with cast rotating bracket for superior stability and flexibility.

Equipped with a high-precision reducer to ensure pinpoint rotating precision.

Integrated CAM software within the control system for easy design and programming.

Automatic flipping worktable (up to 80 degrees) for efficient material unloading.

Ideal for high-speed cutting of quartz, marble, granite, and various stone slabs.

Detailed Features

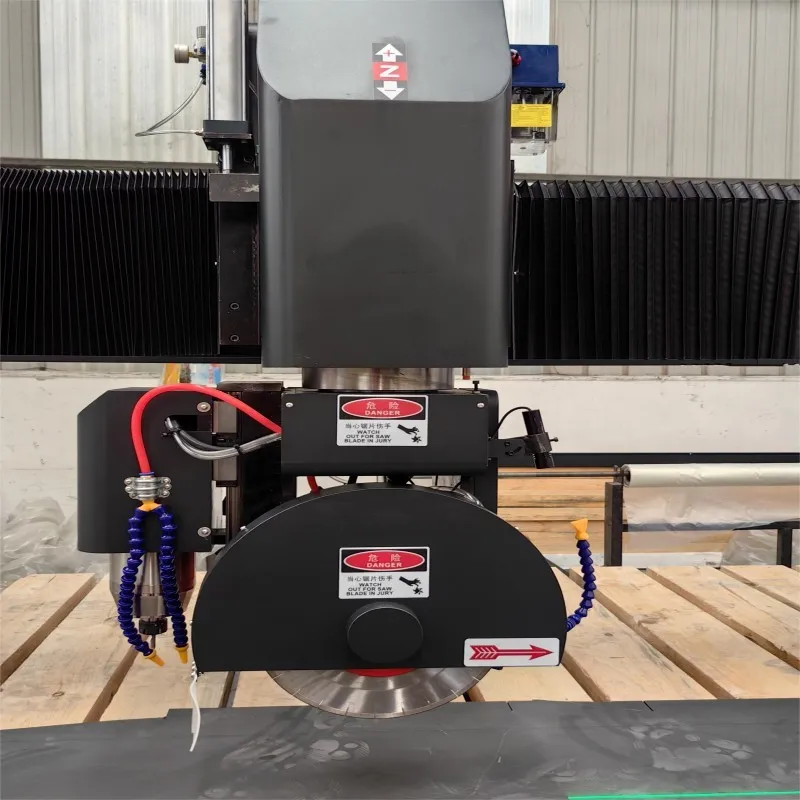

Spindle and Saw Blade

Laser alignment device mounted on the head signs the blade's cutting line for extreme accuracy.

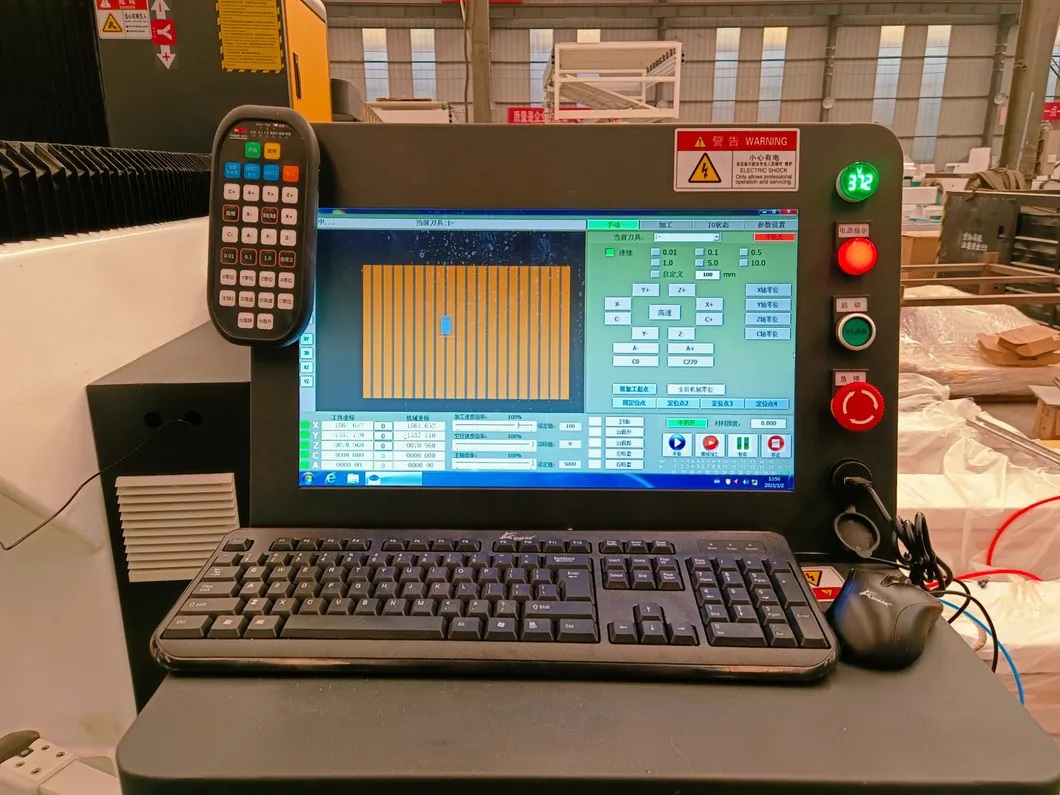

Special Control System

Advanced PLC control system and human-machine interface with touch screen. Intelligent and easy to operate.

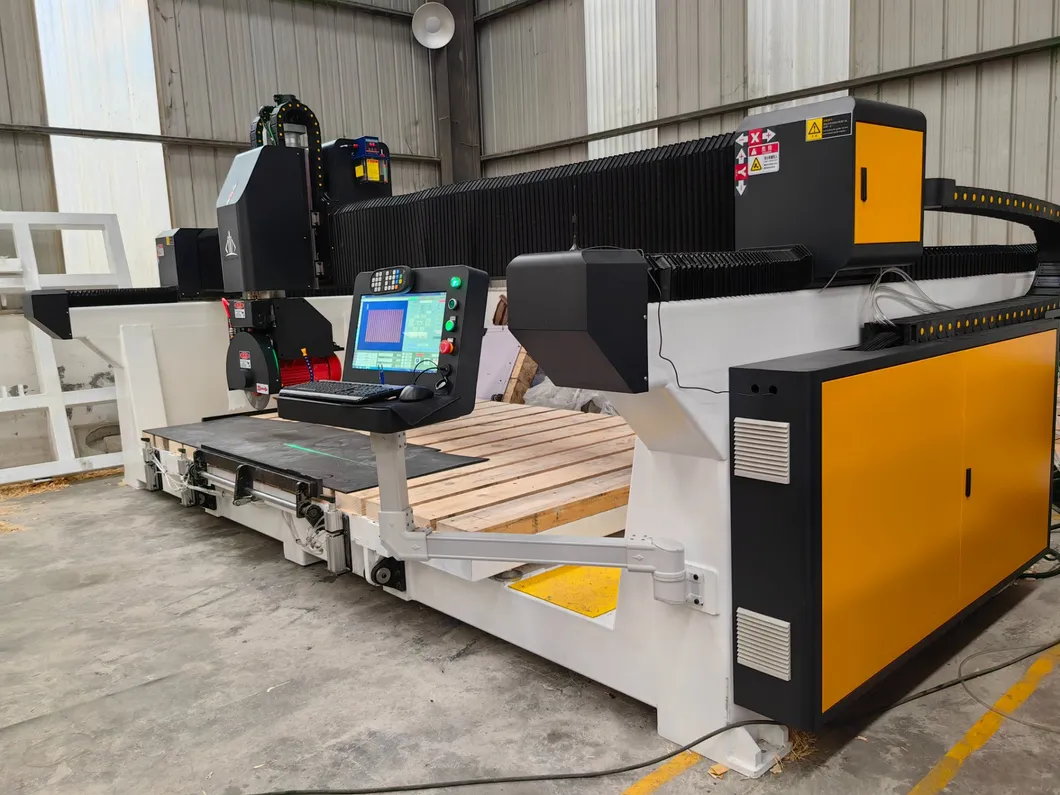

Dust Protection Device

All axes are equipped with dust protection to shield guide rails and racks, significantly prolonging machine life.

Product Parameters

Working Area	3200*2500mm (customizable)
Positioning Accuracy	±0.03mm
Frame Structure	Heavy-duty Welded Structure
Z-Axis Structure	Hiwin Rail Linear Bearings and Ball Screw
Saw Blade Diameter	350-450mm
Driving System	Servo System
Spindle	11KW water cooling spindle
Software Compatibility	Type3/UcancameV9/Artcam

Packaging & Shipping

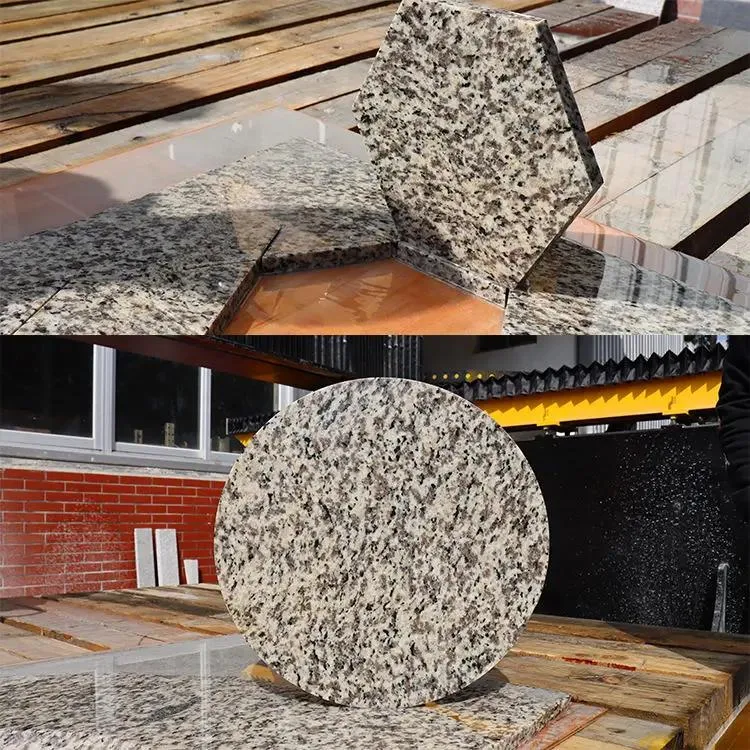

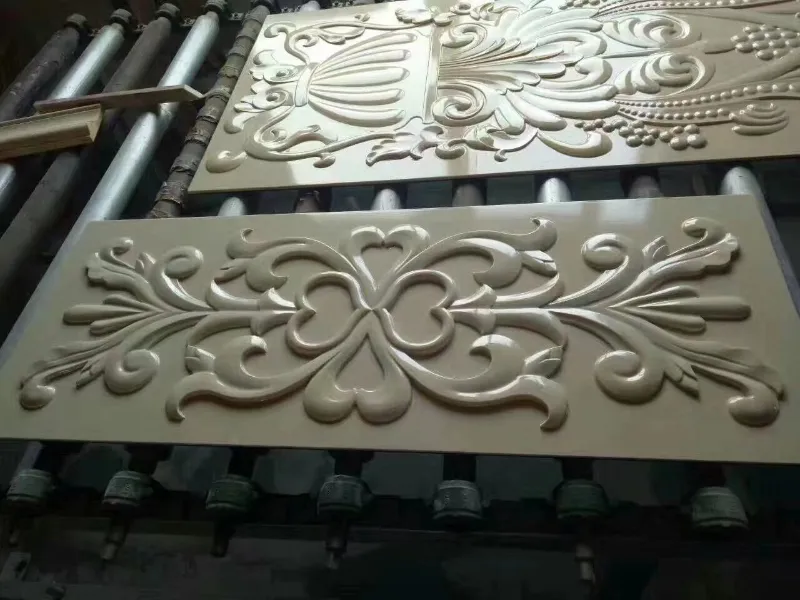

Application Samples

After Sales Service

1-year quality guarantee: Main parts replaced free of charge during warranty.

Lifetime maintenance service provided free of charge.

Free professional training courses at our facility.

24-hour online technical support and daily service availability.

Machine fully adjusted and tested before delivery.

Frequently Asked Questions

What materials can this CNC machine cut?

The bridge saw is designed for cutting marble, granite, quartz, ceramics, glass, and various high-density bricks.

How do you ensure the quality of the machine?

We conduct a pre-production sample check before mass production and a final inspection of all 139 production procedures before shipment.

Is the operating software difficult to learn?

No, the machine features a built-in CAM software and an intelligent touch-screen PLC interface that is designed for easy learning and user-friendly operation.

What kind of after-sales support do you offer?

We offer a 1-year warranty, lifetime free technical support, and 24-hour online service to help resolve any operational queries.

Can the machine voltage be customized for different regions?

Yes, while the standard is 380V, we offer an optional 220V configuration to meet your specific local electrical requirements.

What are the key advantages of the 5-axis head?

The 5-axis bridge cutting head provides superior stability and flexibility, allowing for complex rotations and high-precision cutting lines.
