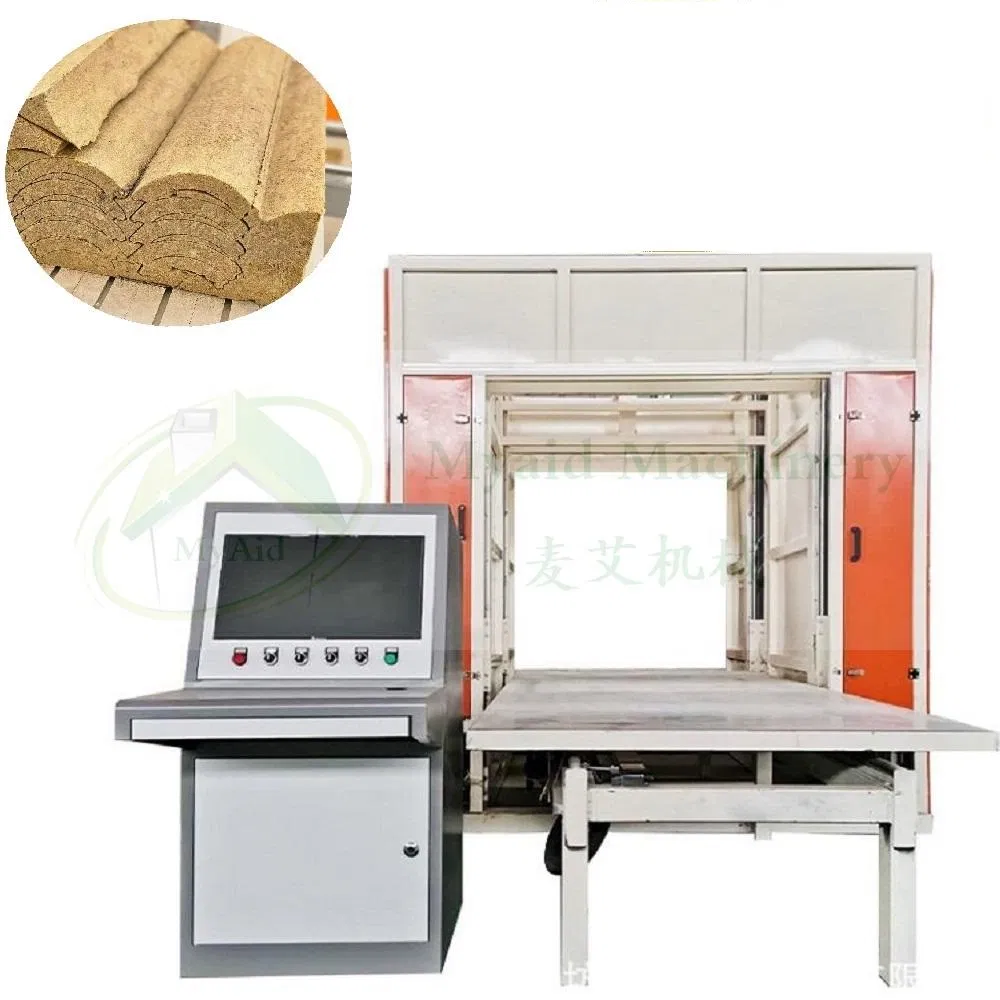

CNC Contour Fast Wire Foam Cutting Machine for Pipe Insulation System
CNC Contour Fast Wire Foam Cutting Machine for Pipe Insulation System
CNC Contour Fast Wire Foam Cutting Machine for Pipe Insulation System
CNC Contour Fast Wire Foam Cutting Machine for Pipe Insulation System
CNC Contour Fast Wire Foam Cutting Machine for Pipe Insulation System
1 / 5
CNC Contour Fast Wire Foam Cutting Machine for Pipe Insulation System
CNC Contour Fast Wire Foam Cutting Machine for Pipe Insulation System
CNC Contour Fast Wire Foam Cutting Machine for Pipe Insulation System
CNC Contour Fast Wire Foam Cutting Machine for Pipe Insulation System
CNC Contour Fast Wire Foam Cutting Machine for Pipe Insulation System

CNC Contour Fast Wire Foam Cutting Machine for Pipe Insulation System

Customization: Available
After-sales Service: Yes
Warranty: 12 Months
Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.
2500
Application
Rigid Foam Materials
Process Usage
Foam Contour
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.2mm
Certification
GS, CE, RoHS, ISO 9001
Table Movement
Horizontal X
Gantry Movement
Vertical Y
De Dust
Bag System
Origin
China
📦

Packaging & Delivery

Package Size
500.00cm * 200.00cm * 200.00cm
Gross Weight
1200.000kg
Transport Package
Plywood Box
🛠️

Product Description

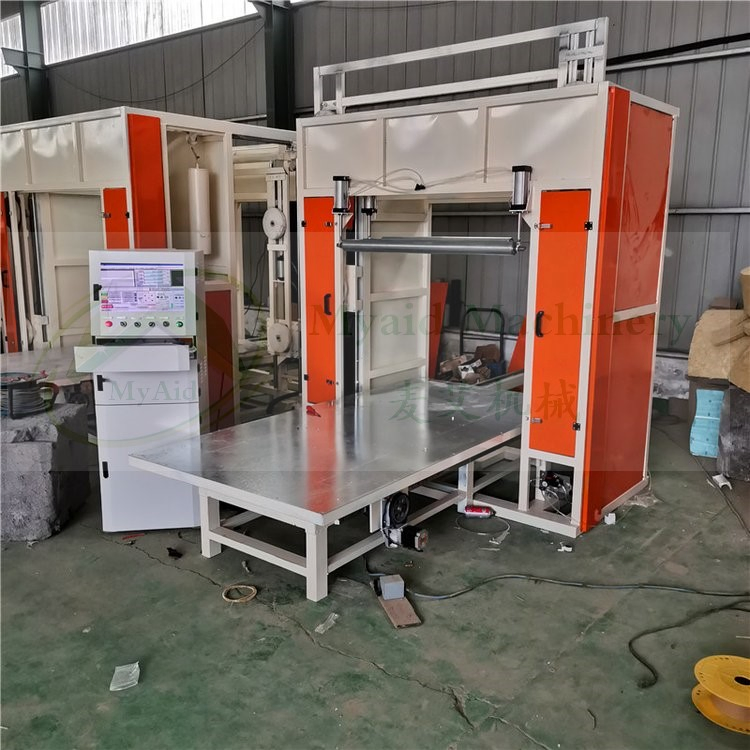

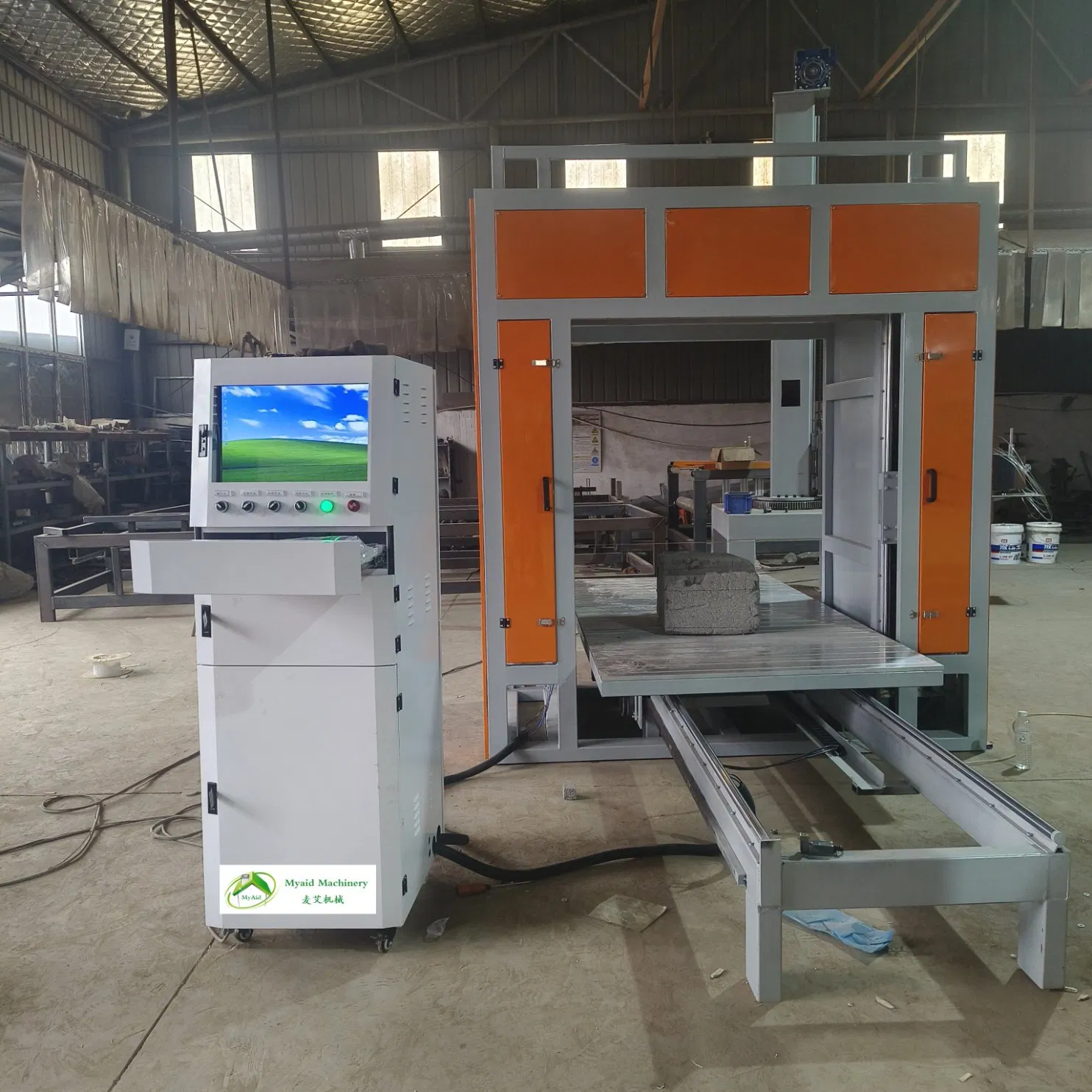

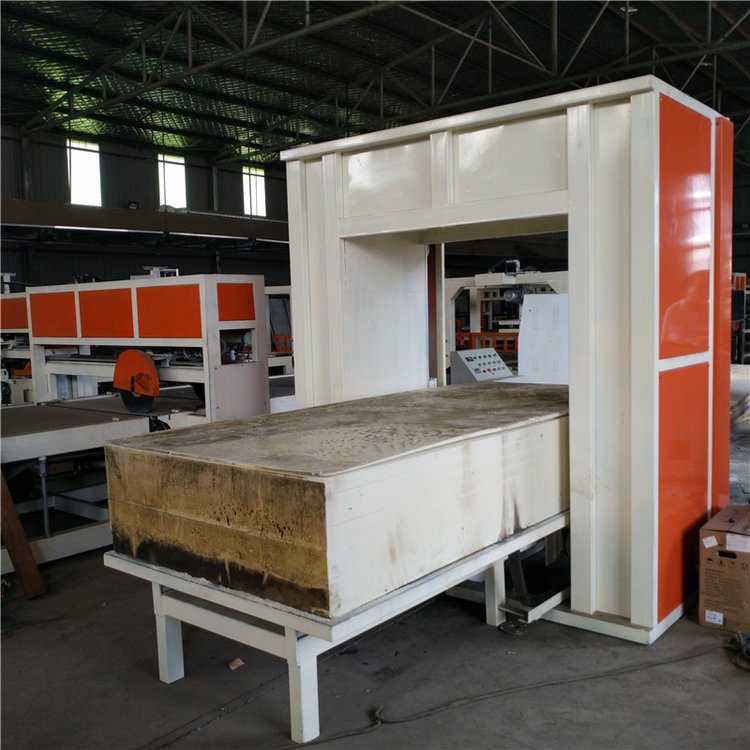

The CNC contour cutting machine is a computer-controlled machine with a working principle based on the endless and high-speed running of abrasive steel wire to cut various foam materials. The steel wire revolves in the framework which moves up and down, while the table moves horizontally. This enables the CNC contour cutting machine to cut large foam blocks into sheets and complex 2D models.
⚙️

Cutting Wire & Technology

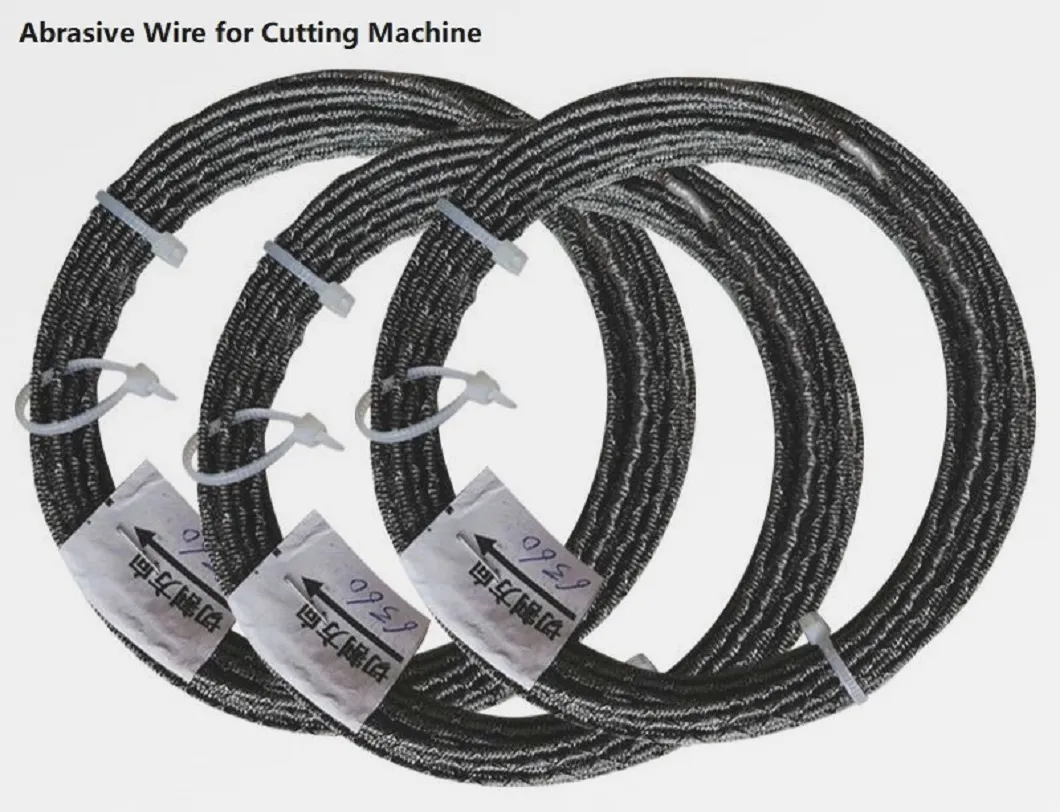

Cutting Wire Overview

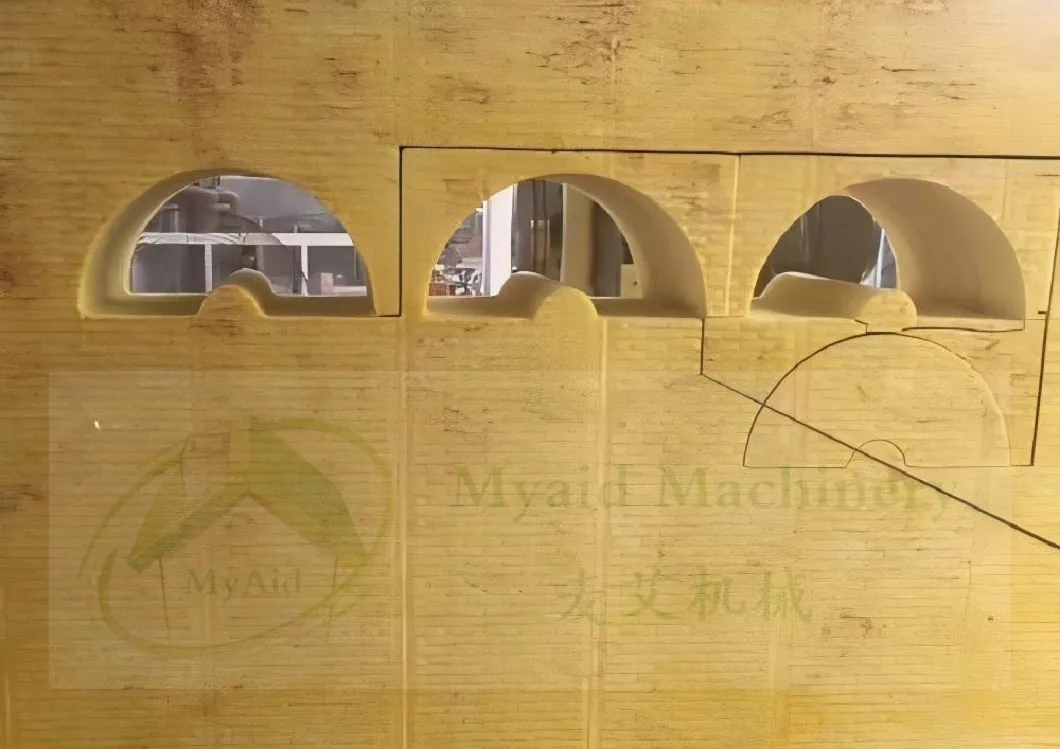

Fast Wire Foam Cutting
💻

CNC Software System

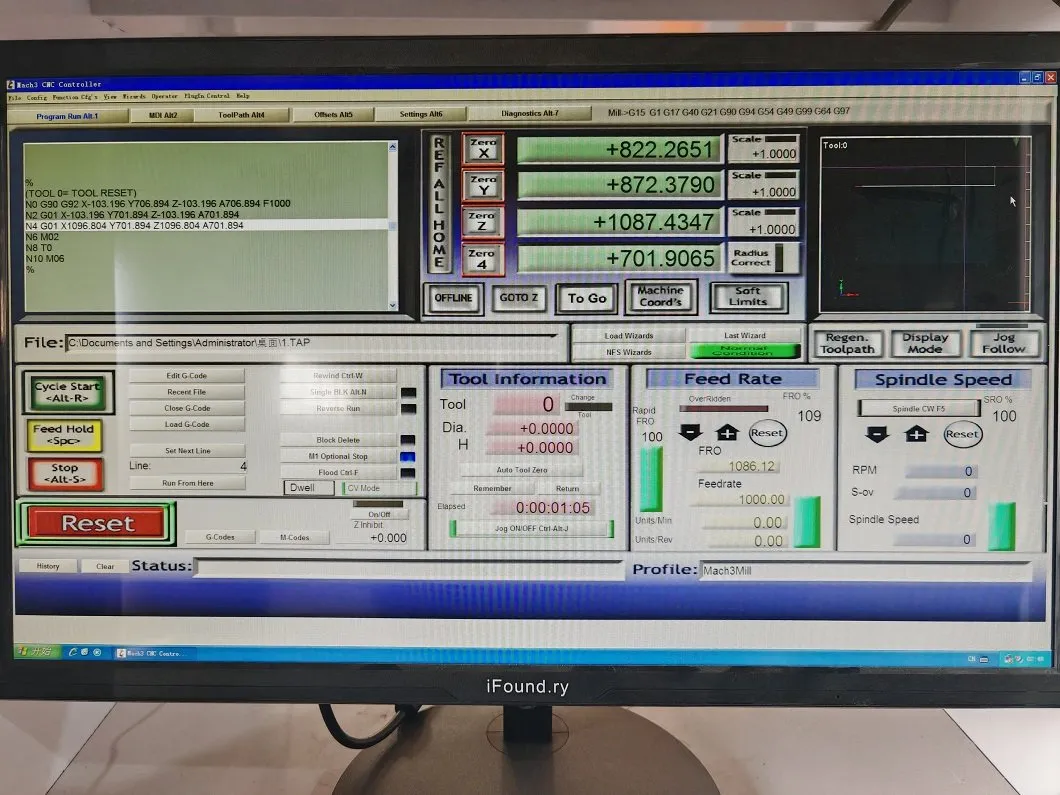

CNC Software Interface
🏗️

Machine Application

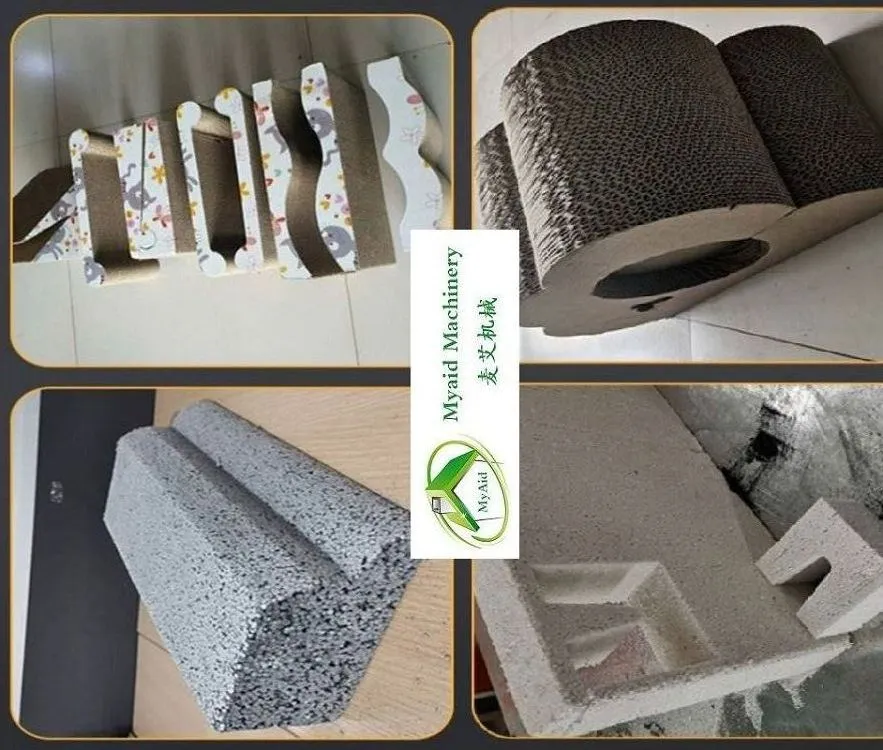

Application Sample 1

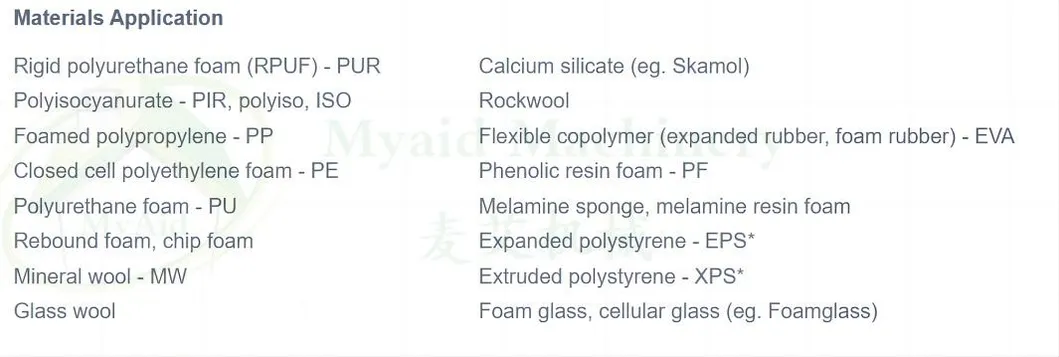

Application Sample 2
📊

Technical Parameters

Model No. CNCPSQ2500
Working Size L2500mm*W1224mm*H900mm Cutting Speed 0~6 m/min
Machine Size 4000mm*2200mm*2300mm Speed Control Frequency conversion control
Max Lifting Height 3300mm Control System Mach3
Power Supply 380V 3 phases 50Hz Total Power 3kw
Cutting Wire High Carbon Steel Abrasive Wire Wire Type Smooth / Single Peak / Double Peaks
Motor Type 4 sets Stepper Motor De-dust Bagging De-dust unit
Applicable Materials EPS Cement, PU, Sponge, EPS, XPS, Foam Glass, EVA, Corrugation Paper, PE, Mineral Wool, etc.
❓

Frequently Asked Questions

What foam materials can this machine cut?
It can cut EPS cement, foamed cement, paper corrugation, PU, PUR, Sponge, mineral wool, rock wool, and various composite materials.
Are there different options for the cutting wire?
Yes. We provide smooth type, double peak type, and single peak type wires, specifically designed for different material densities.
How many axes are controlled on the cutter?
The machine operates on a 2-axis system (X and Y) to handle precise 2D contour shapes.
Can the machine fit into a standard shipping container?
Yes. The machine is shipped in two primary boxes that are designed to be overlapped inside a container for space efficiency.
What software is used for designing the cutting paths?
The machine comes with specialized software that is compatible with CAD files, allowing you to import your drawings directly.
How is the wire tension maintained during operation?
The wire tensioner is pneumatic, powered by an air compressor, ensuring consistent cutting precision.
