TitanPro Cutting
TitanPro Cutting

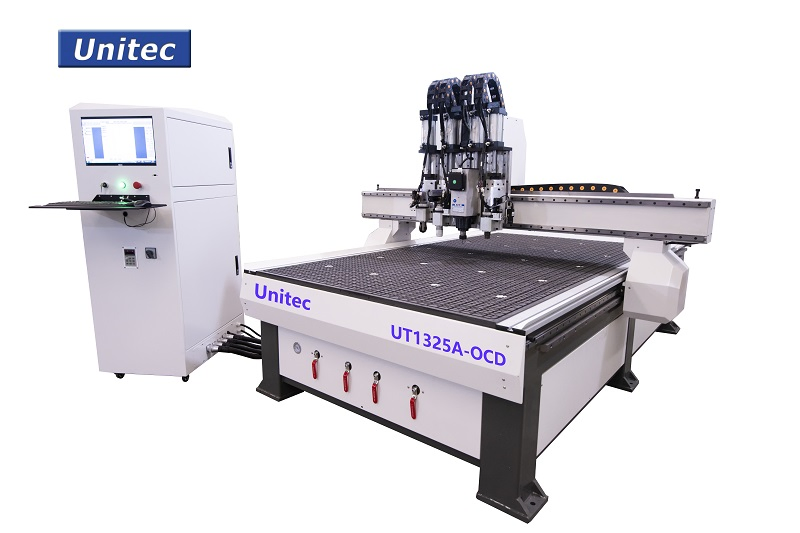

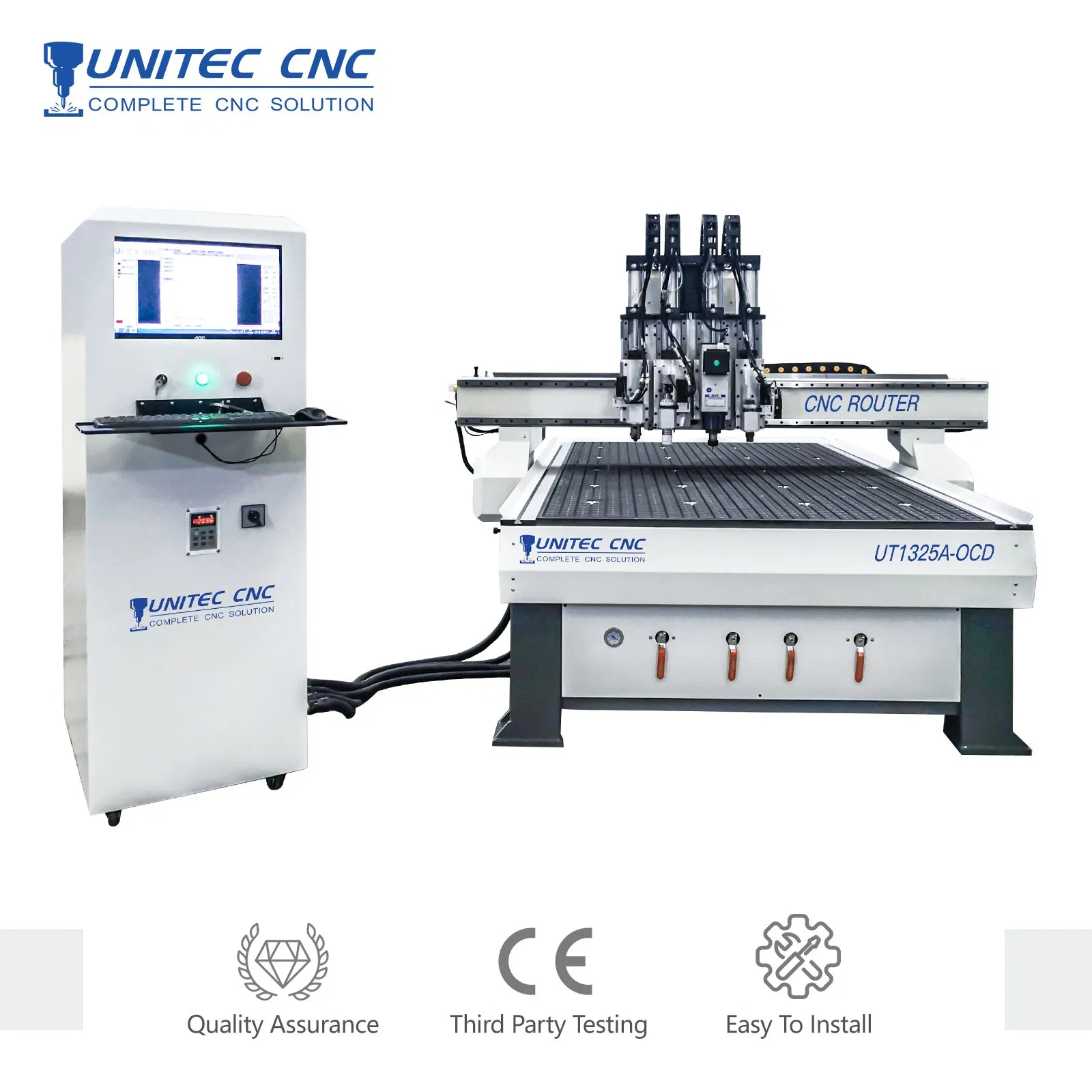

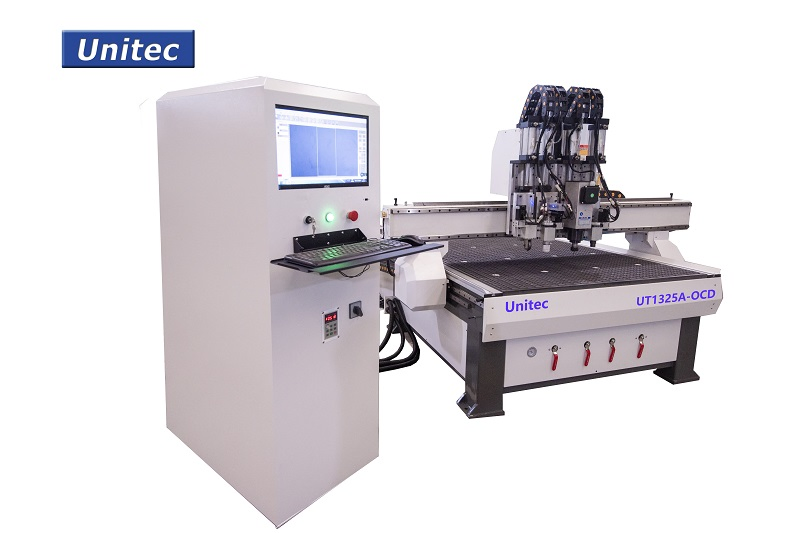

| Model NO. | UT1325A-OCD |
|---|---|
| Certification | CE |
| Condition | New |
| Control | Automatic |
| Application | Paper, Plastic, Leather, EVA Foam, Thin Acrylic, Aluminum Composite |
| Power Source | Electric |
| Spindle Power | 6kw Italy Hsd Spindle |
| Table Type | Vacuum |

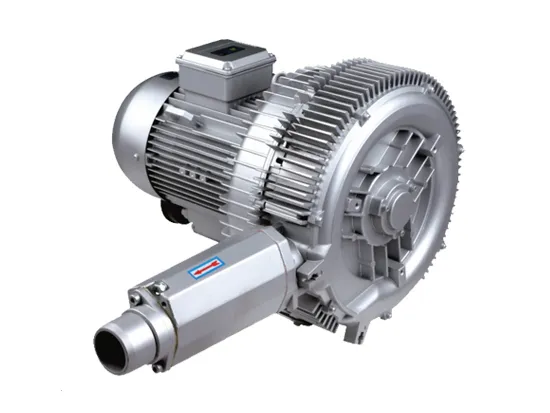

| Vacuum Pump | 7.5kw Water Recycle Cool Pump or 4.8kw Air Pump |

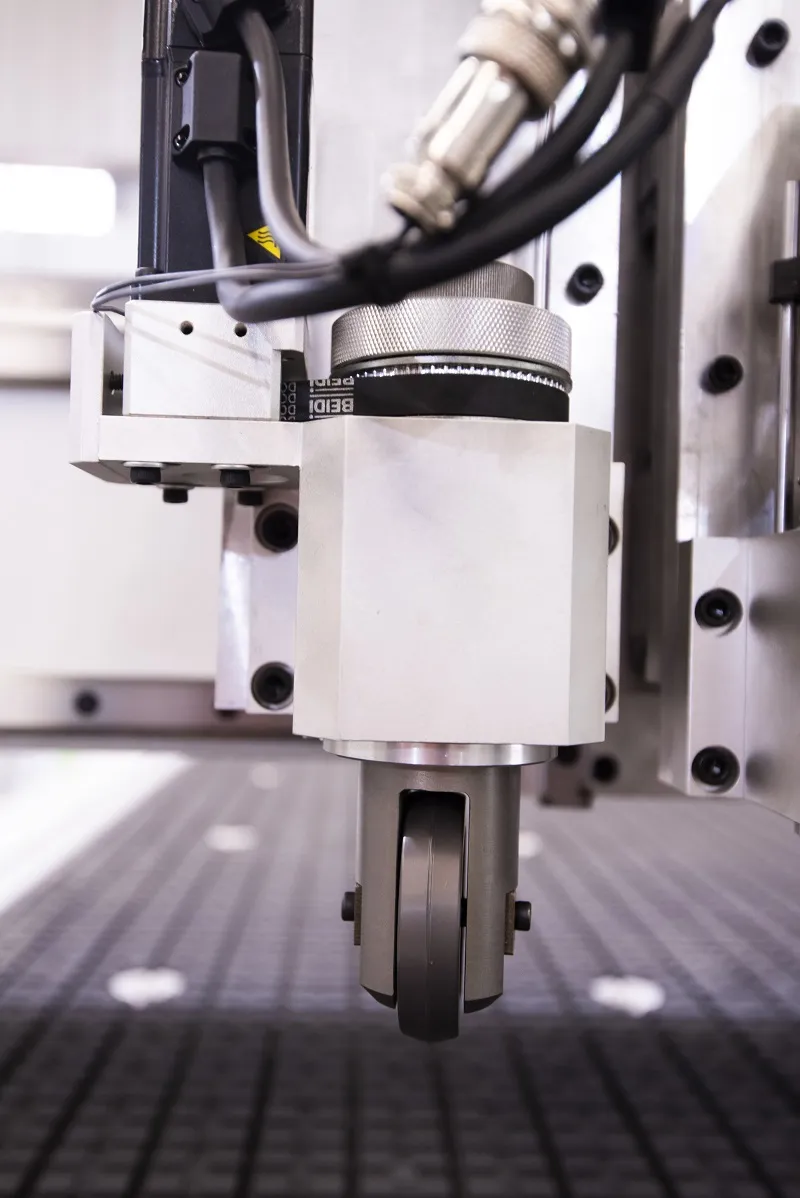

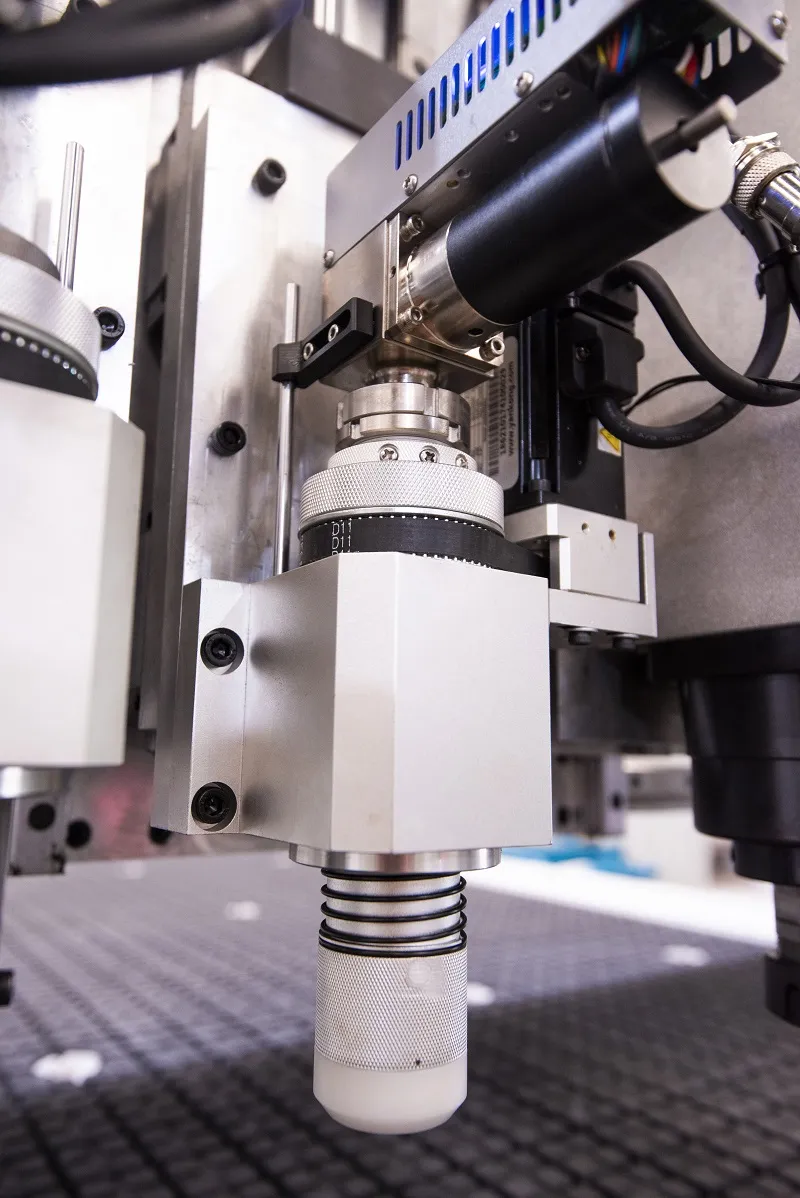

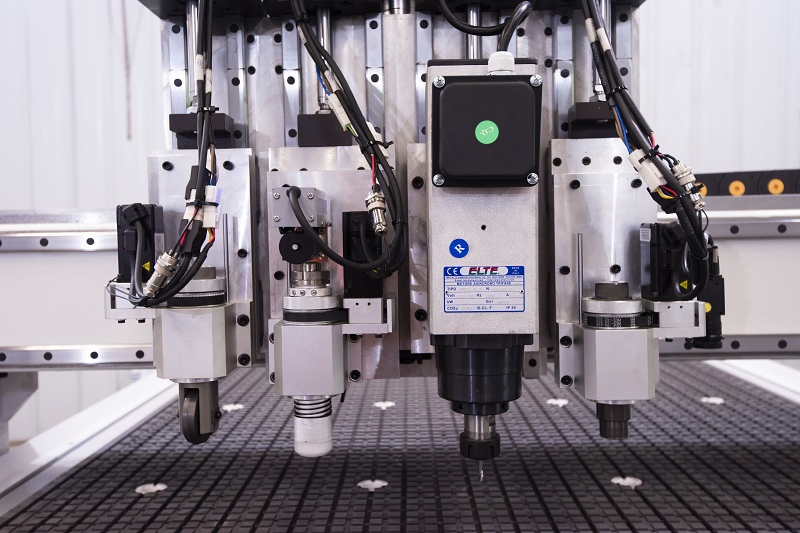

| Knife System | Oscillating + Creasing + Drag Knife + CCD Camera |

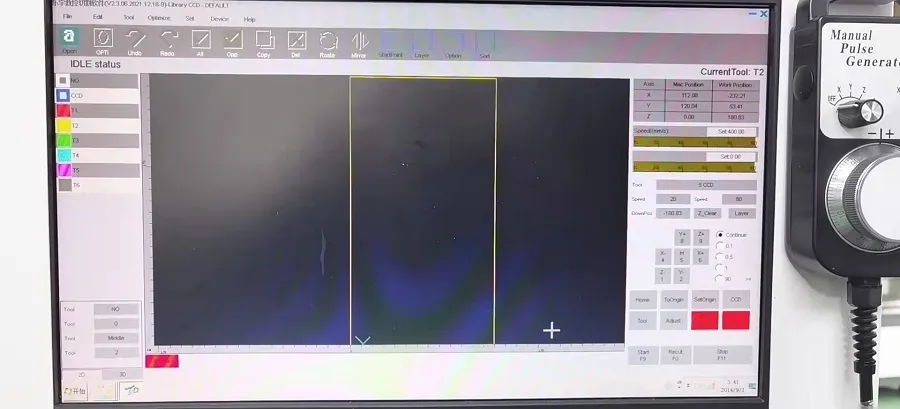

| Controller System | China Leyu |
| Production Capacity | 200PCS/Year |
| Package Size | 230.00cm * 320.00cm * 190.00cm |
|---|---|
| Package Gross Weight | 1500.000kg |

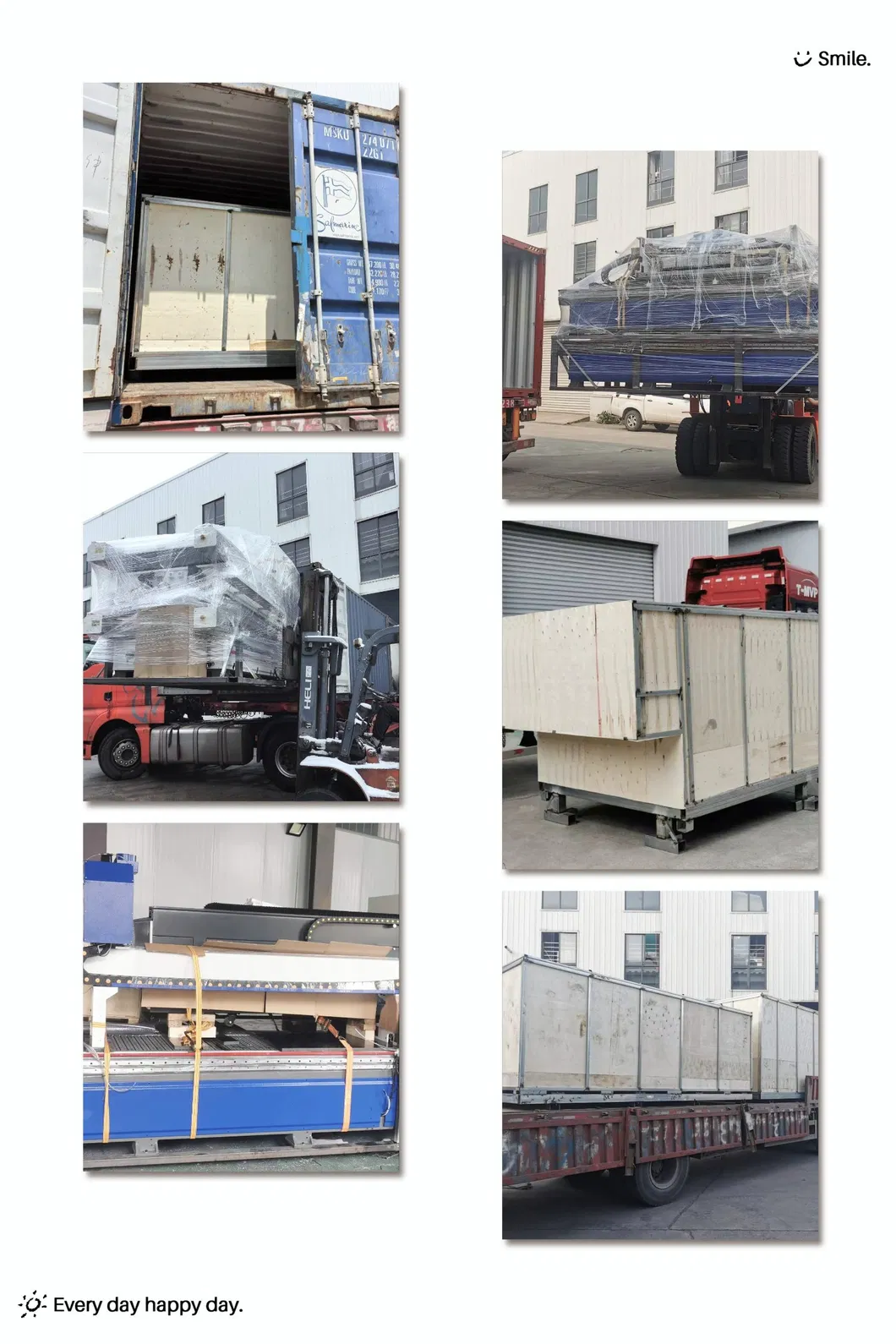

| Transport Package | Plywood |
| XYZ Travel Size | 1300 X 2500 X 220mm |
|---|---|
| Table Size | 1300 X 2600mm |
| Transmission Type | XY rack / Z ball screw |
| Guide Rail | Taiwan CSK Square Linear Guide |
| Spindle Speed | 18000rpm |
| Max Travel Speed | 40000mm/min |
| Max Work Speed | 25000mm/min |
| Work Voltage | AC380V 50HZ |
| Processing Accuracy | ±0.05mm |
| Repeat Accuracy | ±0.01mm |
| File Format | G code or PLT |
Applicable Industries:
• Automobile: Car Mats, leather seats, Aluminum Composite
• Advertising: Acrylic, Flag Banner, KT board, Foam Board, Corrugated paper, MDF, Plastic
• Packaging: EVA Foam, Kraft Paper, Cardboard, Hollow board, Grey board

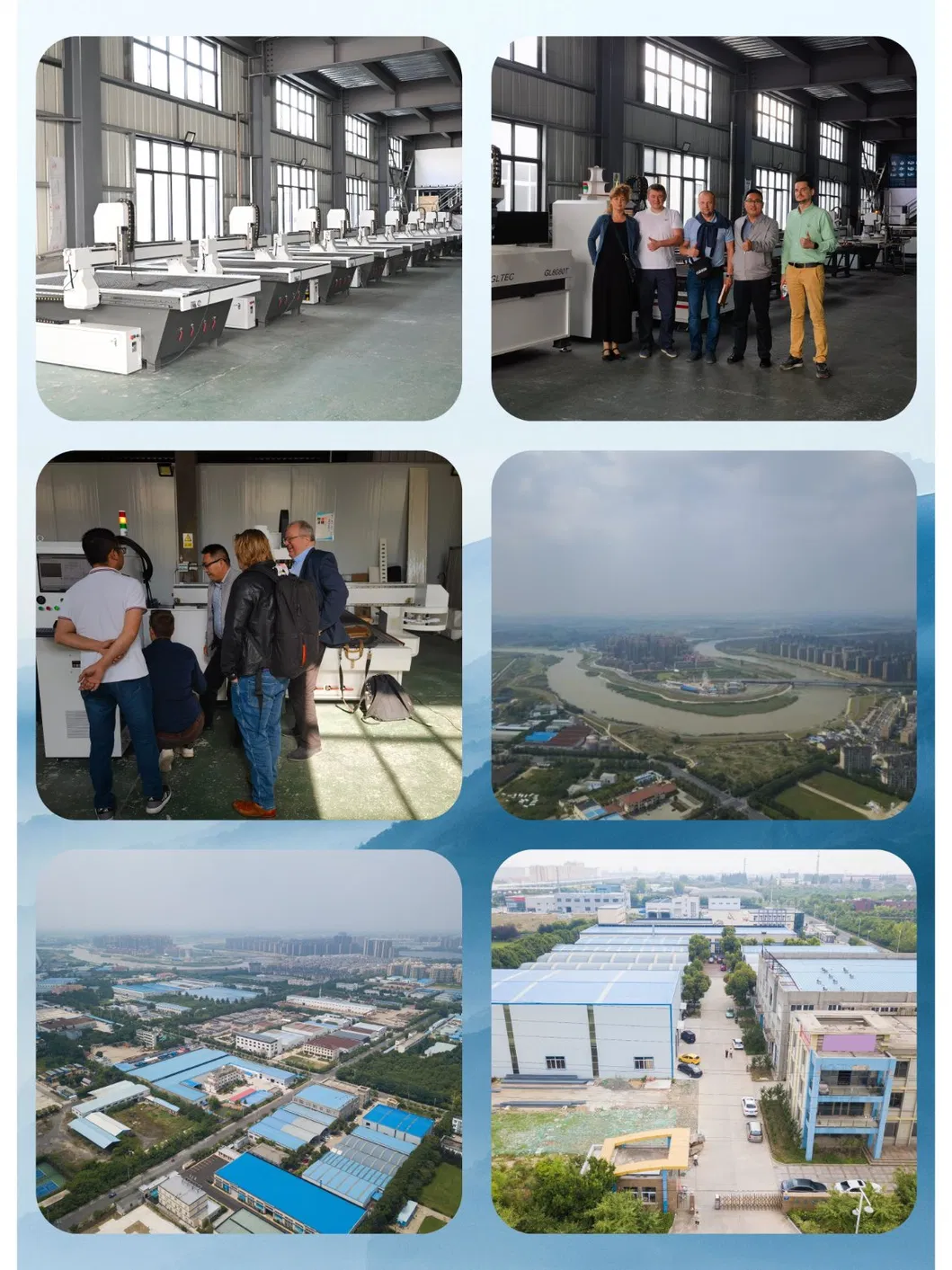

We are a dynamic and innovative manufacturer at the forefront of CNC Technology. Established in 2008, we provide cutting solutions and services across various markets including signmaking, metalworking, woodworking, automotive interiors, and packaging.
Our team consists of highly skilled professionals dedicated to innovation and continuous improvement. We have established strong relationships with world-class suppliers such as Italy HSD, Japan Yaskawa, and Taiwan Syntec to guarantee the quality of our machines.
With an extensive global sales network, our products are exported to more than 100 countries including Japan, South Korea, the UK, the United States, and Germany.
The system is designed for a variety of materials including EVA foam, leather, corrugated paper, cardboard, KT board, and car mats. It can also handle harder materials like thin acrylic and aluminum composite using the high-power spindle.

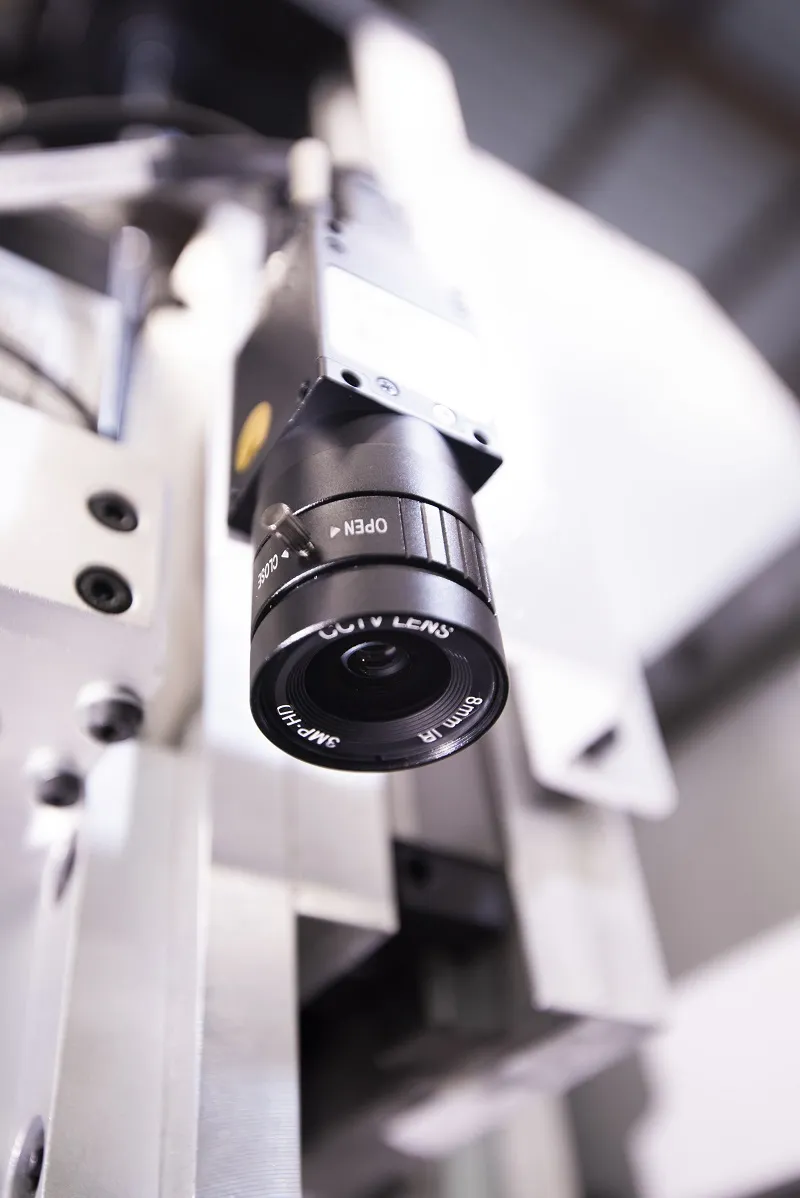

Yes, the machine is equipped with a high-precision CCD camera system that allows for accurate contour cutting and registration mark recognition.

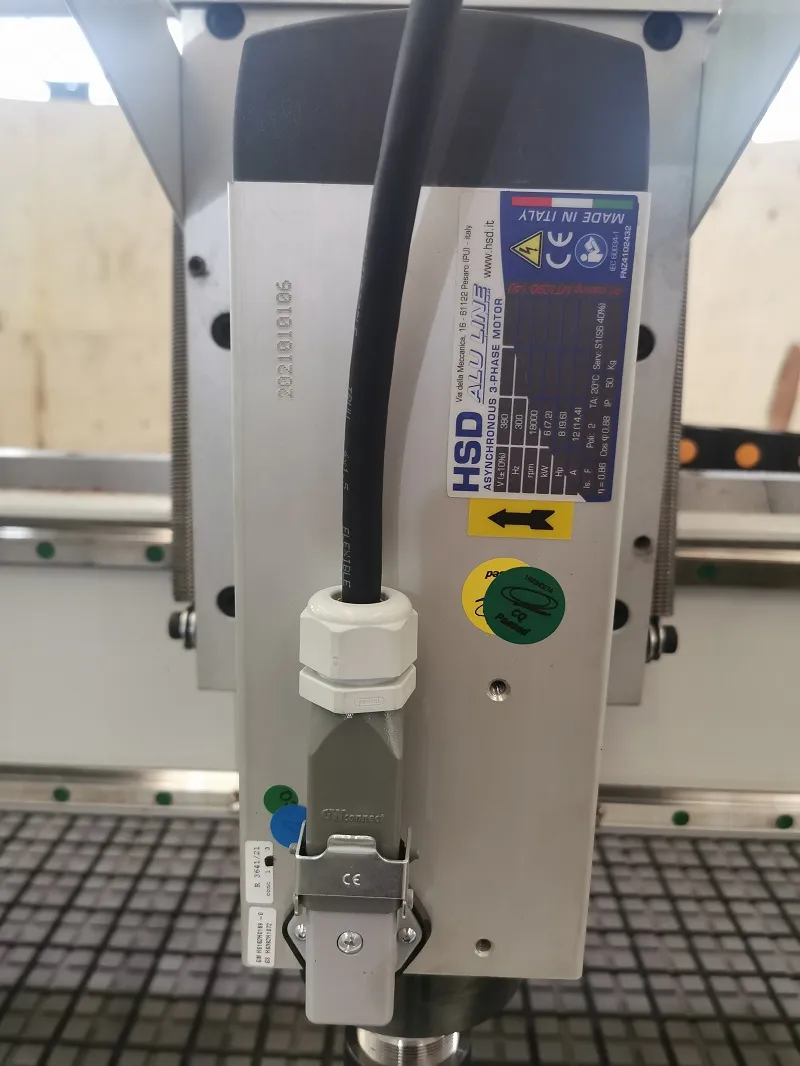

The 6KW HSD spindle provides high-speed rotation (up to 18,000 RPM) and exceptional reliability, making it suitable for heavy-duty industrial processing and high-quality edge finishing.

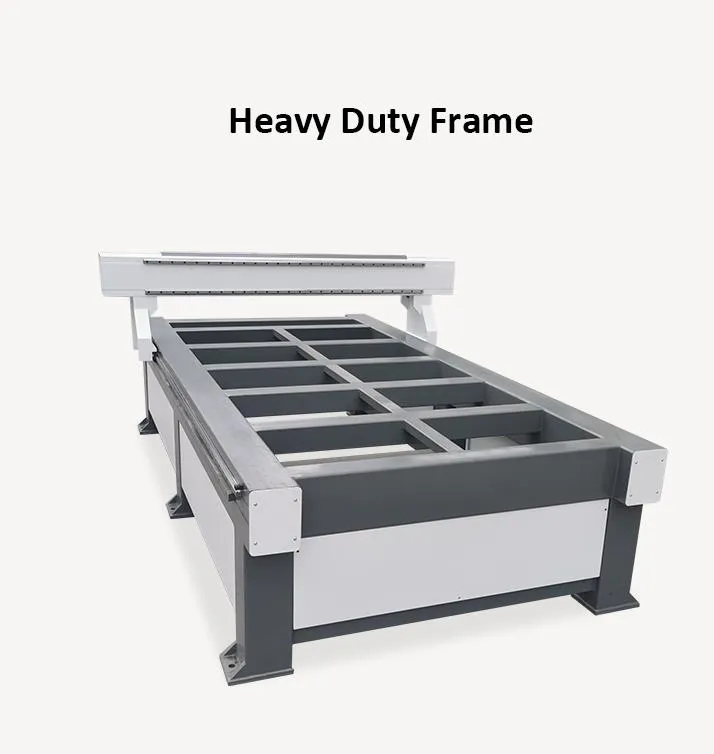

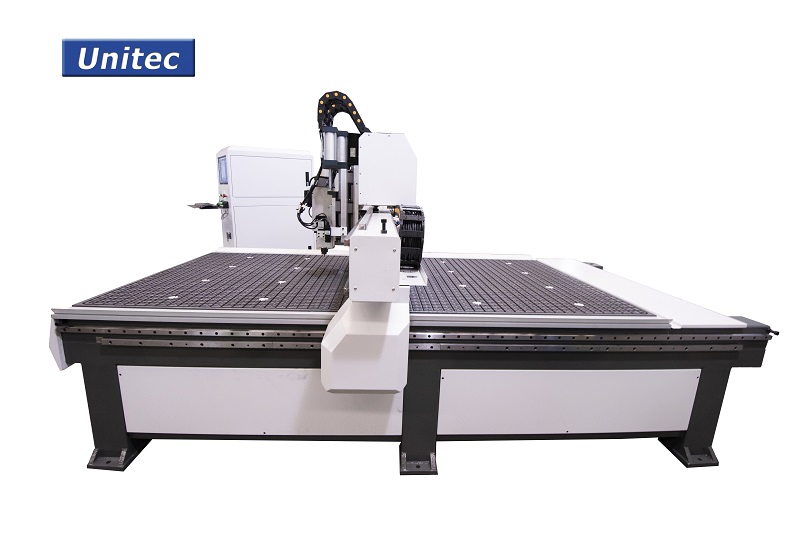

The machine features a heavy-duty welded rectangular tube frame processed by a gantry milling machine. The Y-axis uses a dual-motor drive and planetary reducer to prevent deformation during high-speed operation.
No, the machine is equipped with an automatic refueling lubrication system. Users can maintain the mechanical parts with a single touch, ensuring a long service life with minimal effort.
The machine is built in strict compliance with CE electrical standards. All moving parts are fitted with safe and reliable protection devices to ensure operator safety.
