Basic Specifications
Model NO.CK1325
Spindle NumberSingle-Spindle
Controlling ModeCNC
CertificationCE, ISO, FDA
Working Size1300X2500mm
Cooling ModeWater/Air Cooling
HS Code847989999
Capacity50 sets/Month
⚙️
Wood CNC Router Features

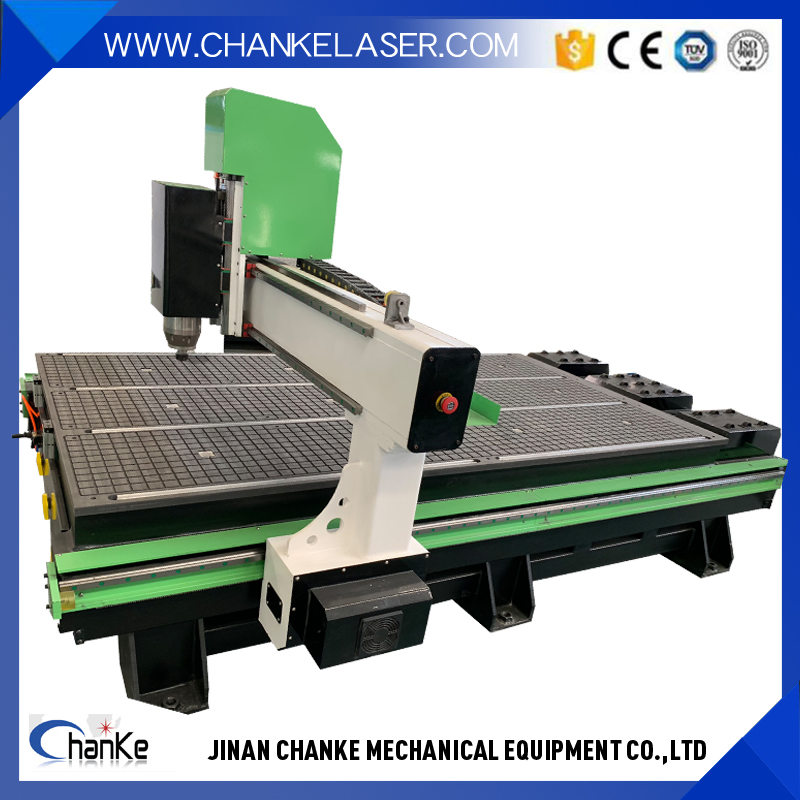

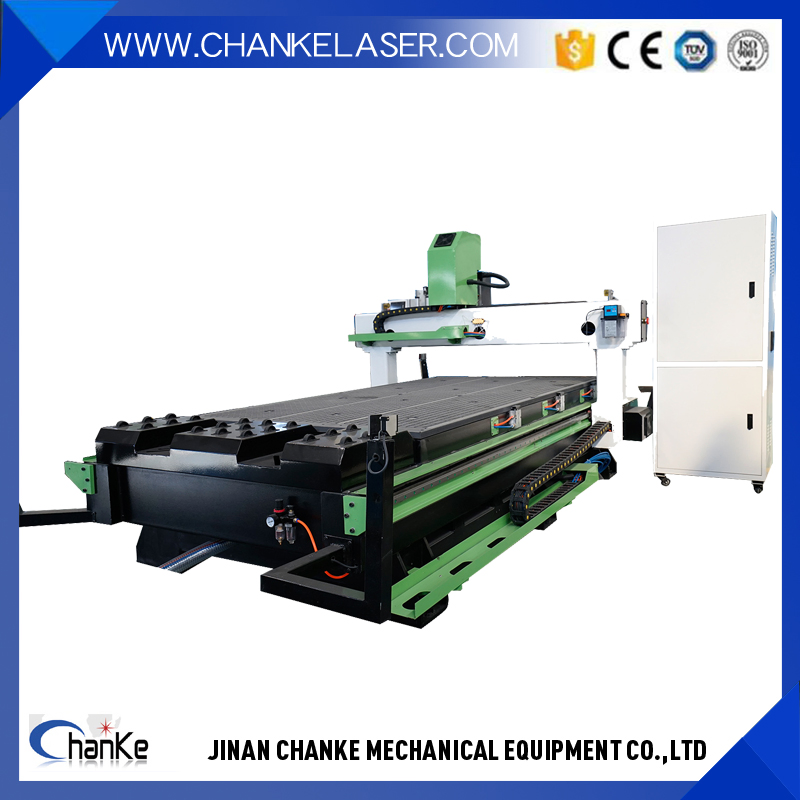

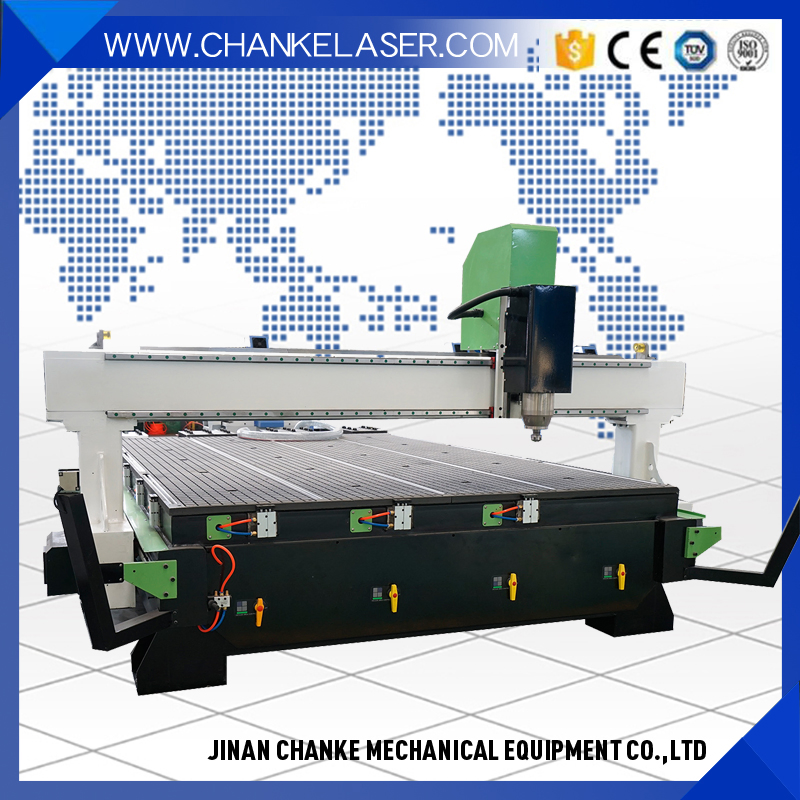

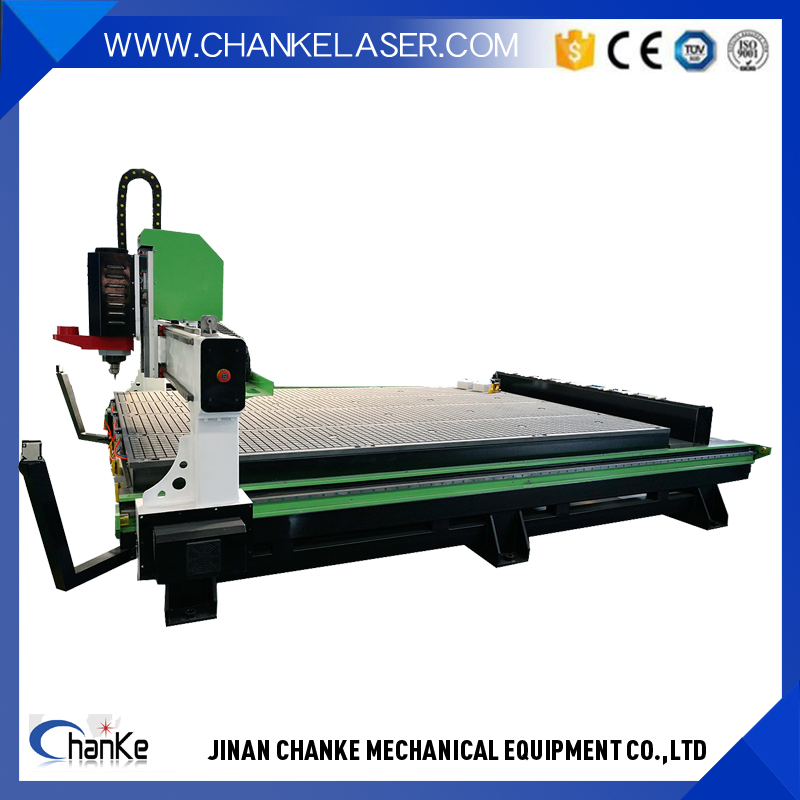

This high-performance wood CNC router features a working size of 1300x2500x200mm. Equipped with a vacuum table and 3kw water cooling spindle (upgradable to 4.5kw/5.5kw/7.5kw), it is designed for efficiency and precision.

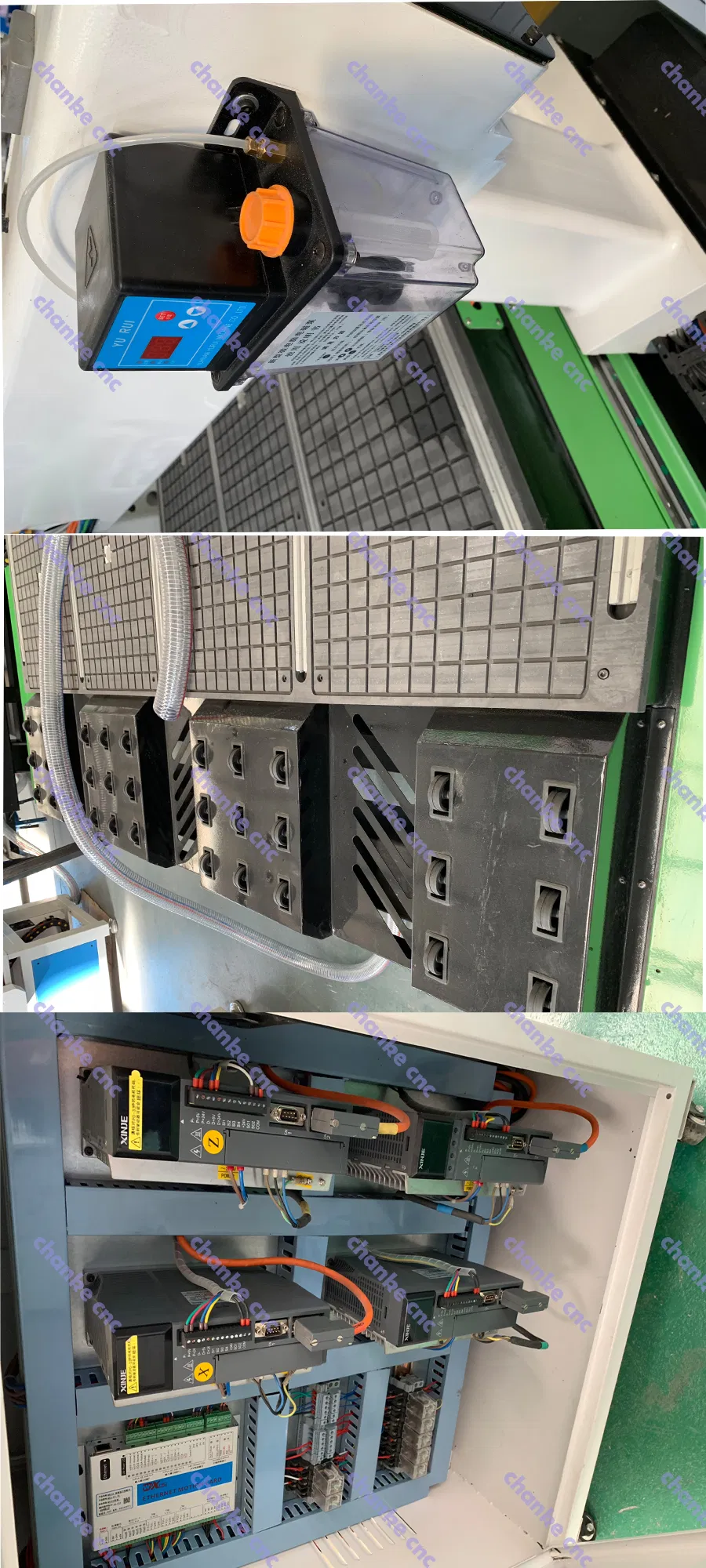

✔Vacuum & T-slot Combined Table: Perfect for both large scale processing via adsorption and small-scale work using material holders.
✔High Precision Spindle: Water cooling system ensures long life time and steady working performance.

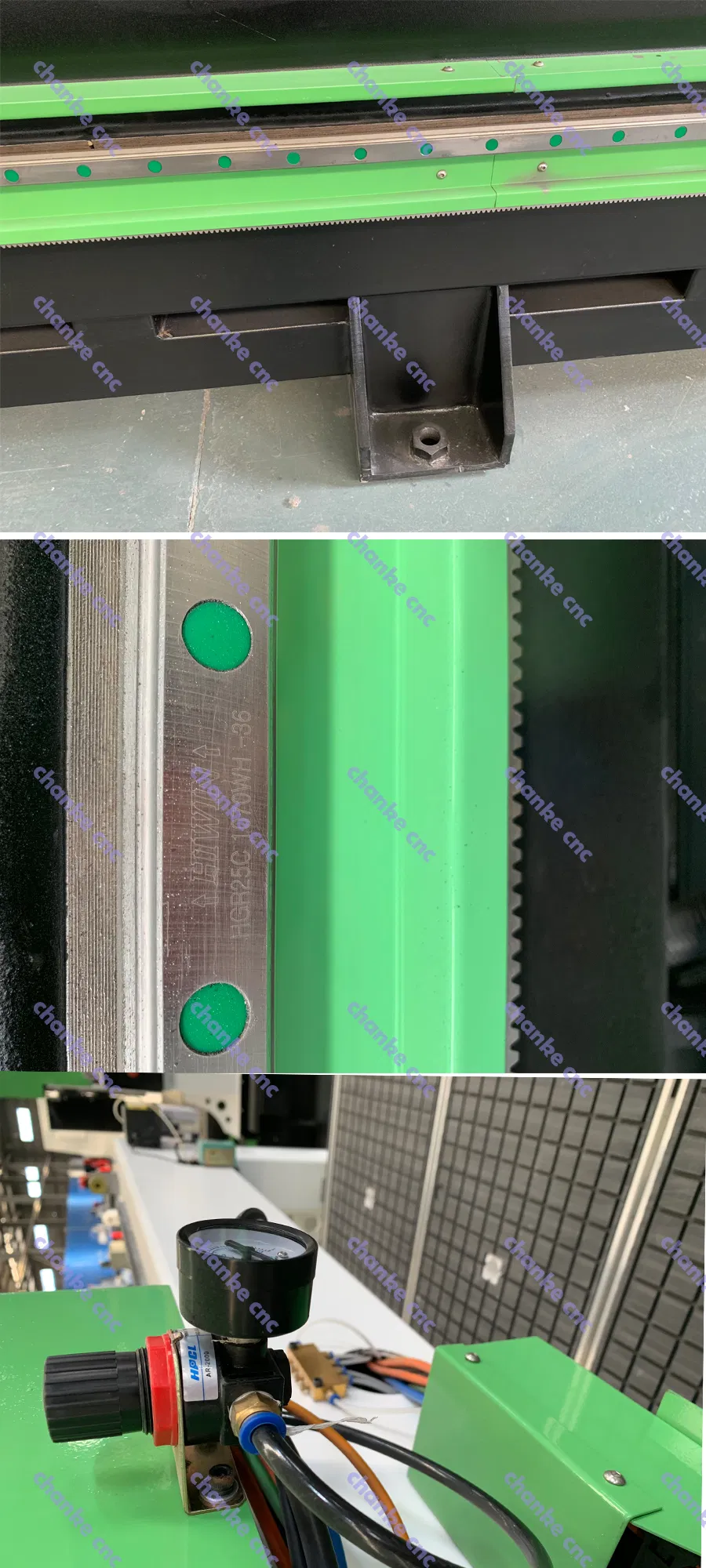

✔Taiwan Hiwin Linear Rails: Self-lubricating sliding blocks ensure accuracy and strength in all directions.
✔Dual-Motor Y Axis: Synchronized drive system for smooth and equalized machine movement.
✔DSP Controller: USB interface allows for independent operation without a constant computer connection.
📊
Technical Parameters
| Engraving Area | 1300*2500*200mm |
| Spindle Power | 3.0kw / 4.5kw / 5.5kw (Optional) |
| Spindle Speed | 6000~24000 rpm |
| Motor Type | Stepper or Japanese Servo Motor |
| Transmission | X,Y Axis: Helical Rack; Z Axis: Taiwan TBI Ball Screw |
| Accuracy | ±0.03/300mm |
| Engraving Speed | 8000~12000 mm/min |
| Software Support | Artcam, Type3, CAD/CAM, UcancamV8, etc. |
| Working Voltage | AC220V/50Hz or 380V/50Hz |
🛠️
Applicable Materials
FurnitureDoors, Cabinets, Office Furniture
Wood ProductsSpeakers, Musical Instruments, Game Cabinets
Board ProcessingPCB, ABS, PP, PE, Insulation Boards
DecorationAcrylic, PVC, MDF, Copper, Aluminum
📦
Packing & Service
All units are packed with standard inner plastic wrap and steel structures within outer plywood cases for maximum protection during shipping.
Warranty & Support:
- Two years quality guarantee for main parts.
- Whole life technical support with 24h online service.
- English manual and professional engineering support included.
❓
Frequently Asked Questions
Q1: What materials can this CNC router cut and engrave?
A: It is suitable for wood, MDF, acrylic, PVC, plastic, and soft metals such as aluminum and copper.
Q2: Can the spindle power be customized?
A: Yes, we offer 3.0kw, 4.5kw, 5.5kw, and 7.5kw options depending on your cutting thickness requirements.
Q3: Does the machine require a computer to operate?
A: With the DSP control system and USB interface, the machine can operate independently without being connected to a computer during the working process.
Q4: What is the benefit of the Vacuum & T-slot combined table?
A: It provides flexibility. Use the vacuum suction for large plates to save time, or use T-slot clamps for smaller, irregular pieces.
Q5: How is the machine protected during international shipping?
A: We use a robust plywood case that is moisture-proof and fumigation-free, ensuring the machine stays safe and meets customs requirements.
