Product Description

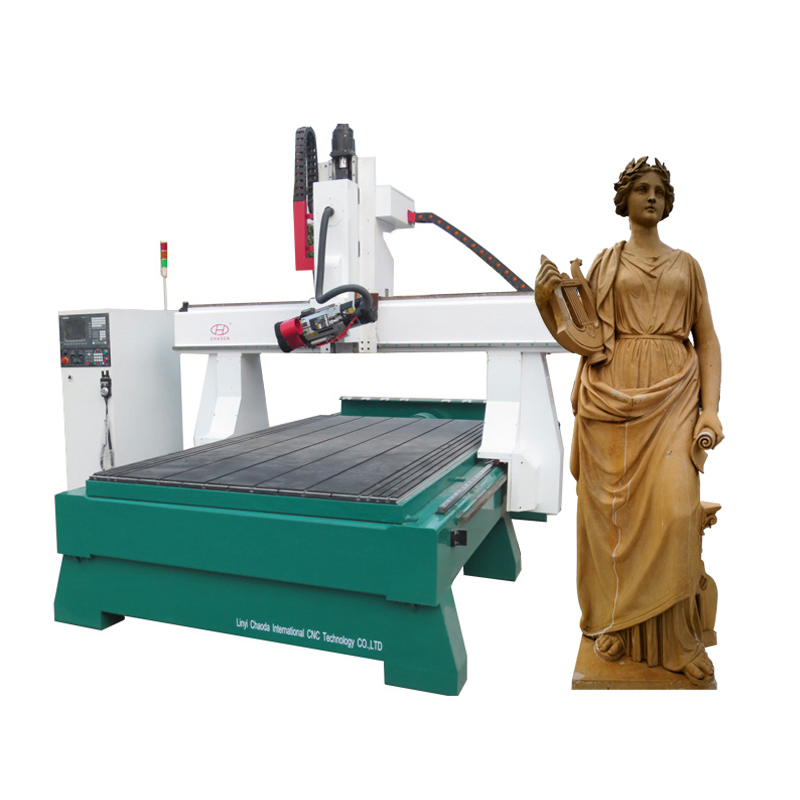

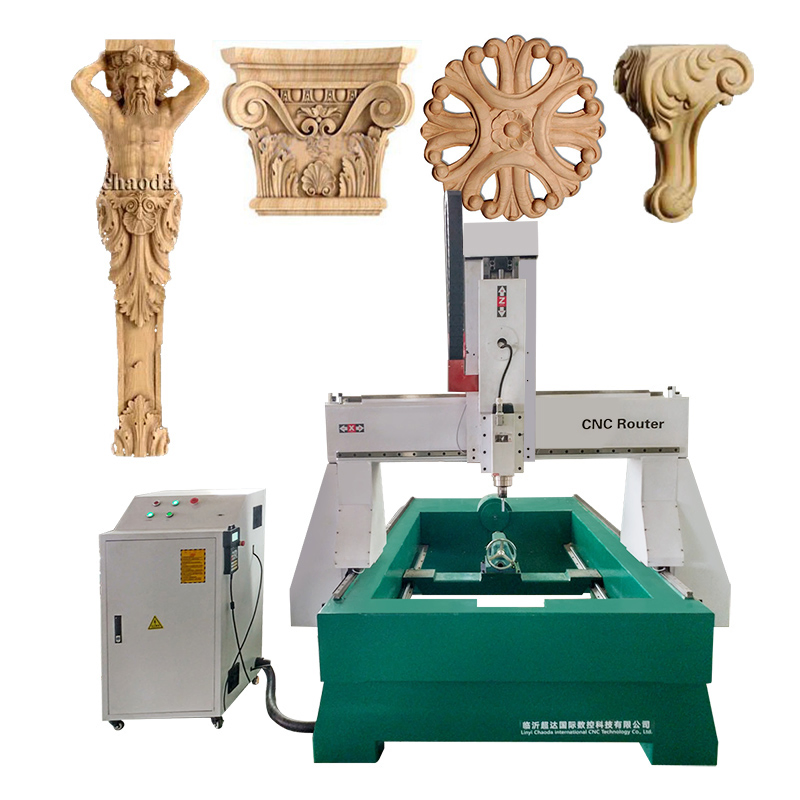

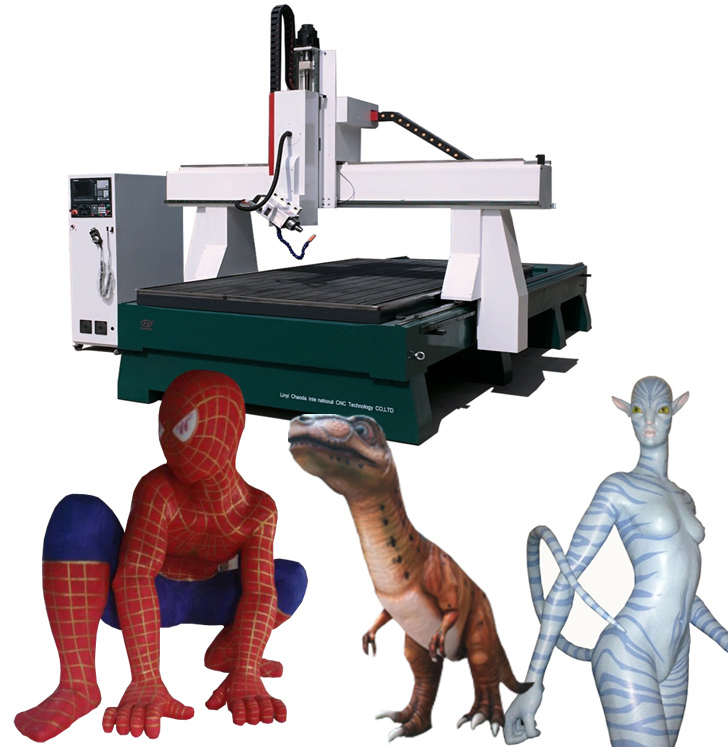

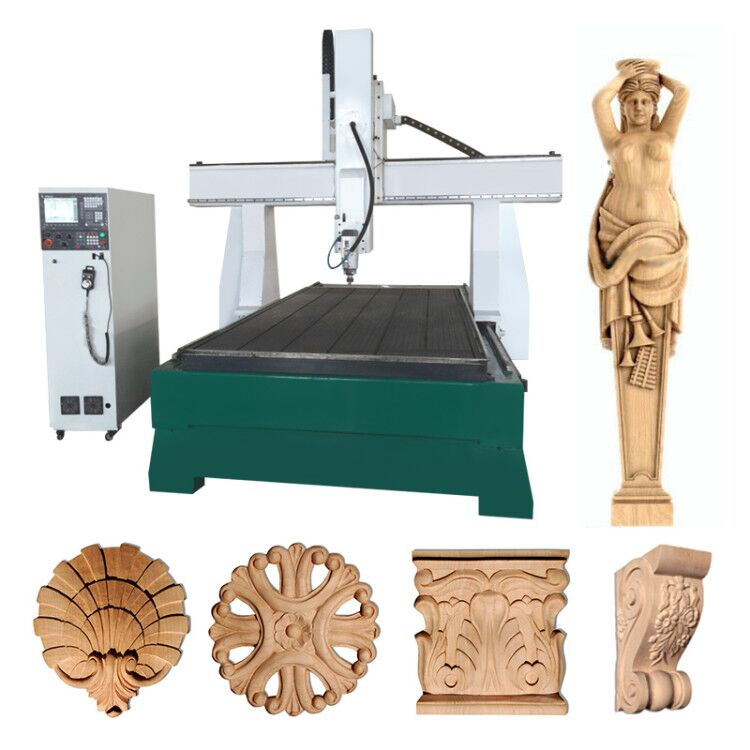

EPS Foam Block CNC Cutting Machine / 4 Axis 3D CNC Milling Machine
⚙️
High performance and durability with top-quality global components and high configuration parts.
🔄

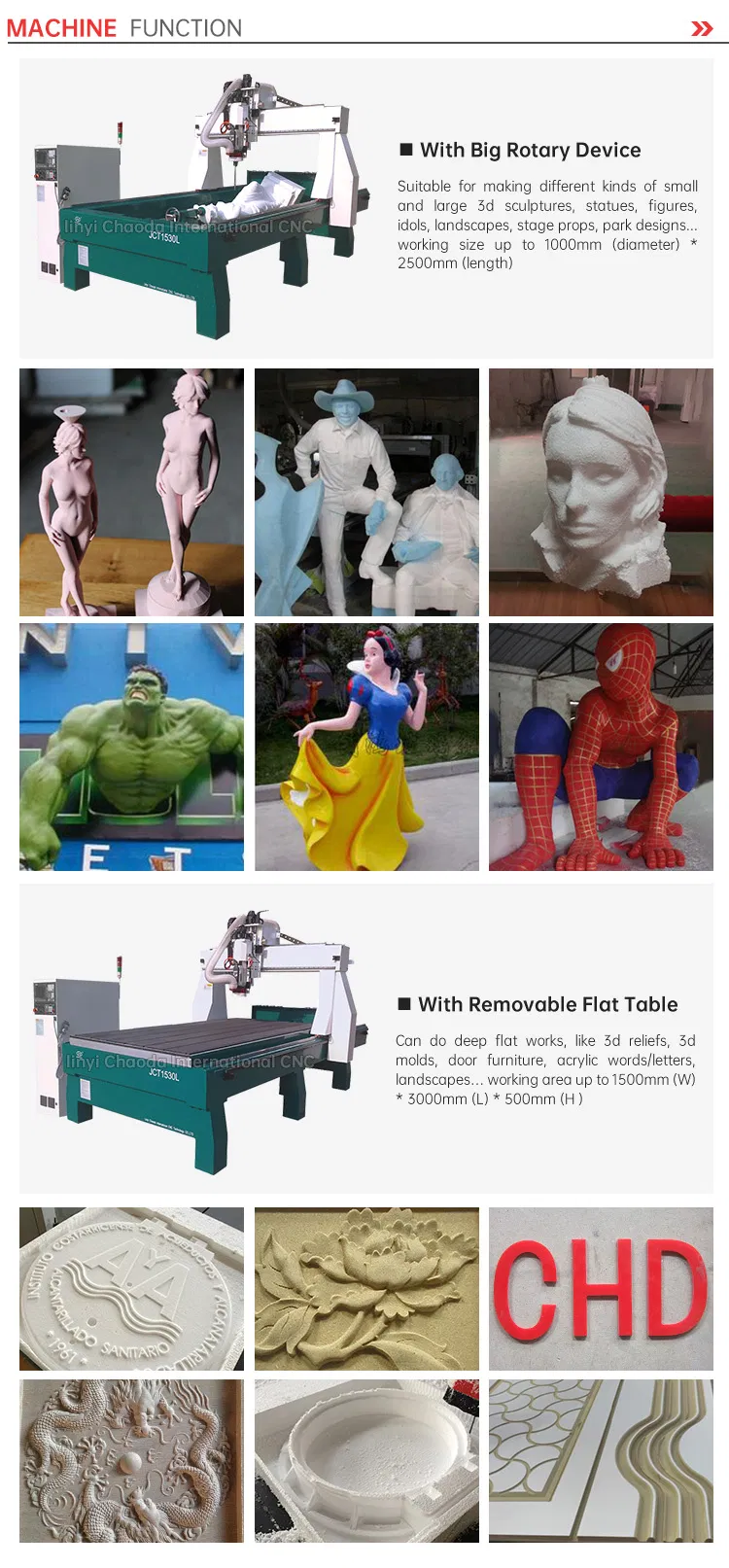

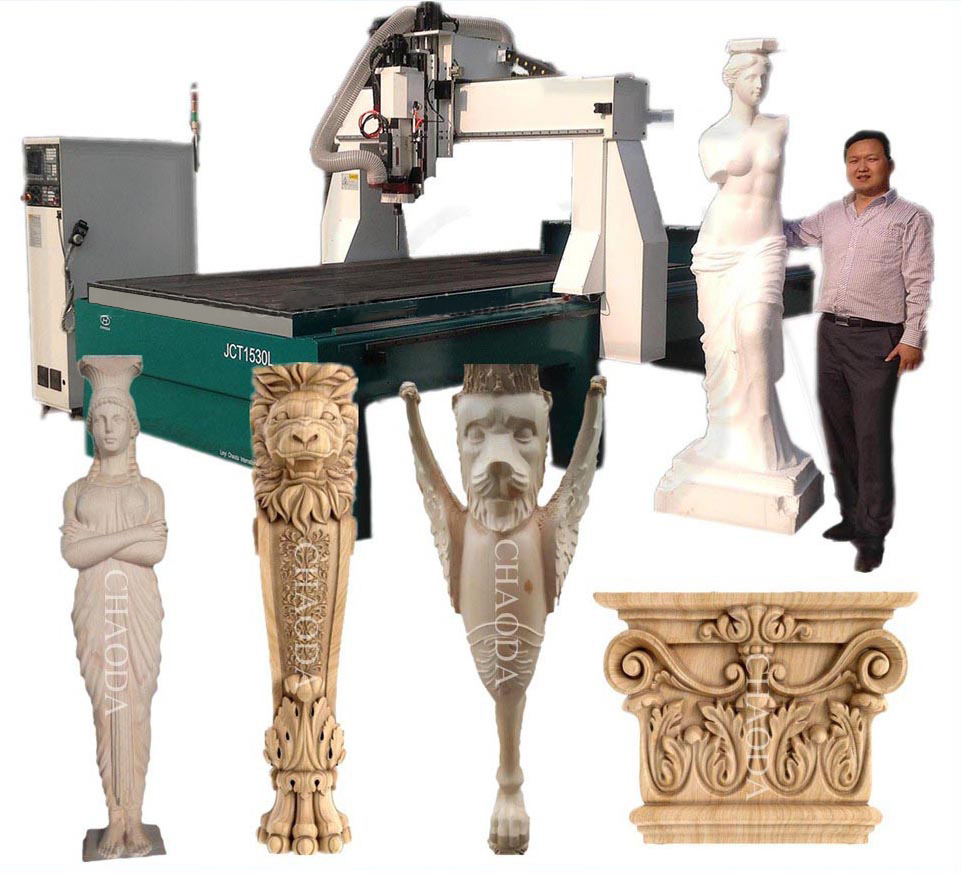

Equipped with a large rotary device for 3D sculptures, statues, figures, and park designs.
📐
Flat table capability for deep flat works, 3D reliefs, door furniture, and acrylic letters.
💻
Advanced Ncstudio control system ensures stability and ease of operation.
| Model No. | JCT1530L |
| Flat working size | 1500*3000*500mm |
| Rotary working size | 1000mm diameter, 2500mm length |
| Lathe bed structure | T-extrusion, Thick Steel frame |
| Table | Removable, T-slot with clamps |
| Movement Structure | Rack and pinion, linear square rail (X/Y), Ball screw (Z) |
| Max. working speed | 0-30000mm/min |
| Spindle | 9kw air cooling ATC spindle |
| Tool magazine | Linear type auto tool changer, 8 tools |
| Operating system | 4 axis Ncstudio with Screen |
| Working materials | Eps foam, Styrofoam, Woods, MDF, Alucobond, PVC, Rigid plastics, Polyester, Fiberglass, Acrylic, Aluminum, etc. |
Service & Support
Sample testing before shipment
Provide 2 days free training for each machine
12 months warranty for each machine
Friendly English version manual and operation videos
Free technical support by email, chatting or remote
Engineers available to service machinery overseas
Frequently Asked Questions
What materials can this CNC machine process?
This machine is versatile and can process EPS foam, Styrofoam, various types of wood, MDF, PVC, rigid plastics, polyester, fiberglass, acrylic, and even soft metals like aluminum.
Does the machine support both flat and 3D rotary carving?
Yes, it features a removable flat T-slot table for relief work and a large rotary device (1000mm diameter) for complex 3D statues, sculptures, and architectural molds.
What kind of control system and motors does it use?
The machine is equipped with a high-stability Ncstudio 4-axis control system and professional-grade Japan Yaskawa servo motors and drivers for high precision and speed.
Is there an automatic tool changer included?
Yes, the JCT1530L model comes with a linear type automatic tool changer (ATC) capable of holding 8 different tools to improve production efficiency.
What after-sales technical support is available?
We provide a 12-month warranty, free sample testing, two days of initial training, English manuals/videos, and ongoing technical support via remote assistance or overseas engineer service.
