TitanPro Cutting
TitanPro Cutting
| Model NO. | GM3010AH5 |
| Certification | CE, ISO 9001 |
| Usage | Woodworking, Plastic, Rubber, Advertising |
| Power | High Power |
| Control | CNC |
| Drive Type | AC Servo Drive |
| Processing Precision | 0.02~0.03(mm) |
| Application | Cutting Machine |
| Travel Size | 3000*10000*350mm |
| Spindle Speed | 0-12000rpm |
| Materials | Aluminum, Wood, Plastic, Composites |
| Production Capacity | 200 Set/ Month |

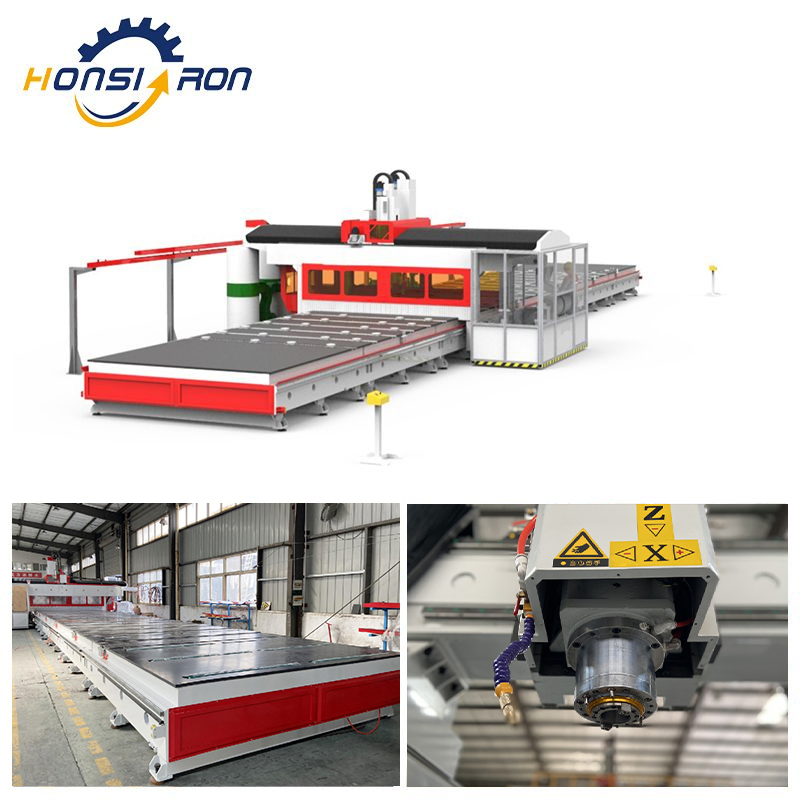

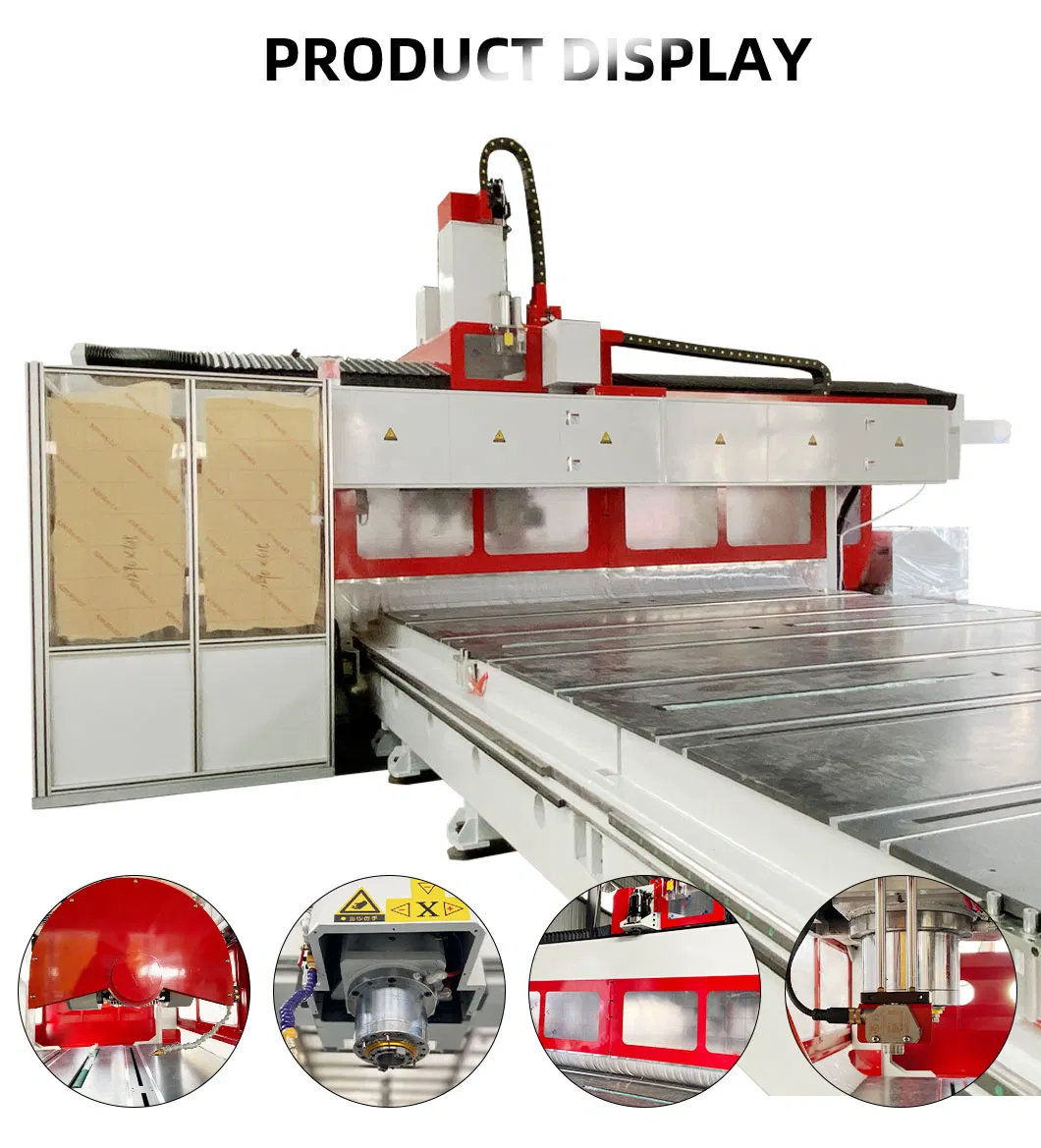

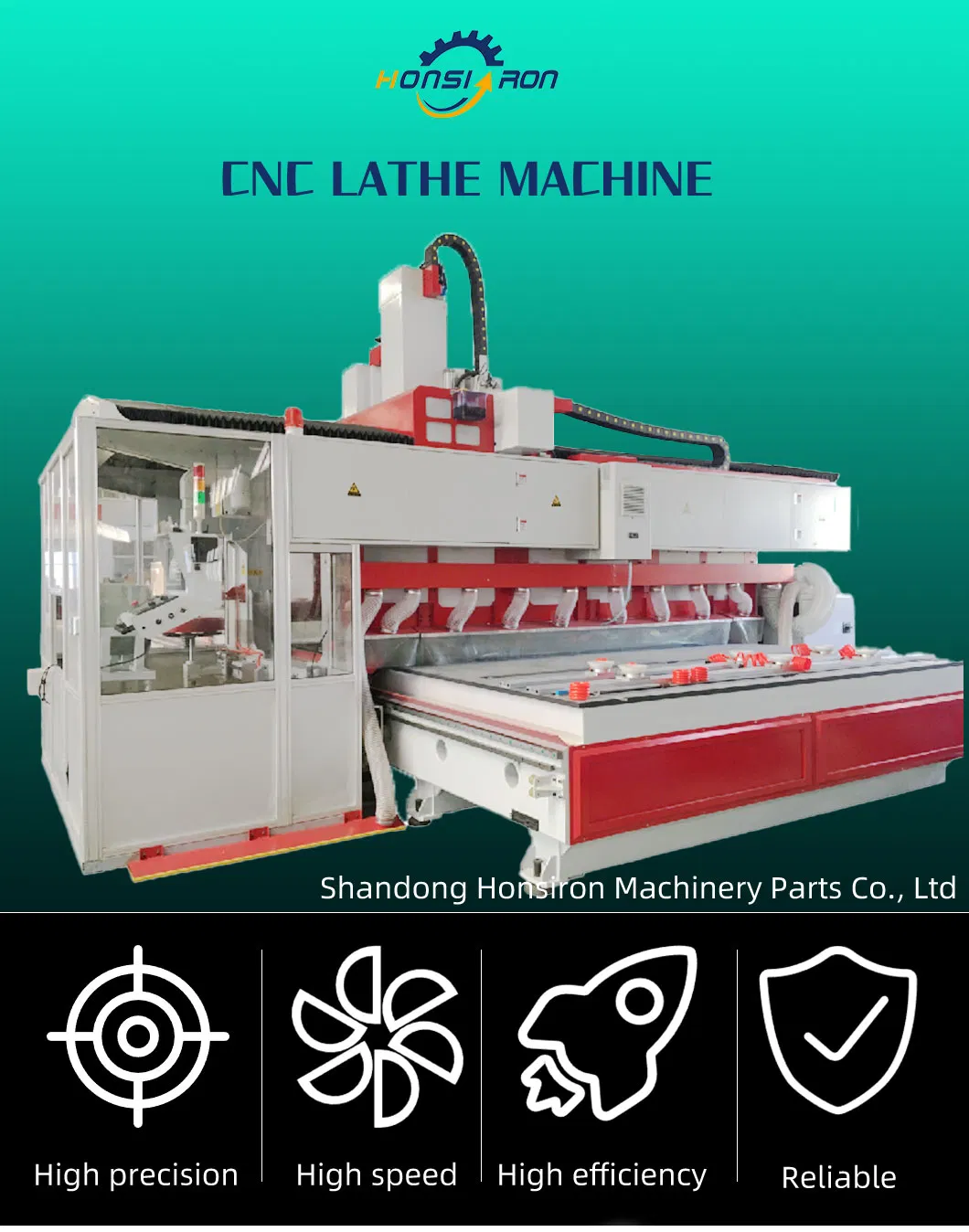

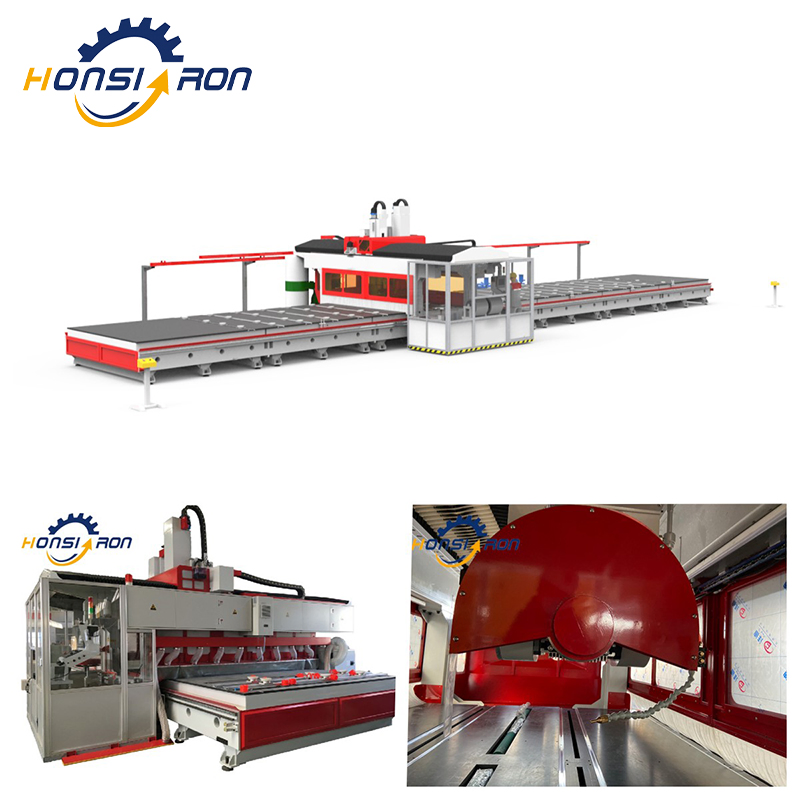

This five-axis CNC machine applies to large panel production and processing, such as wood, fiberglass, FRP composition sheet, aluminum, hard plastic, acrylic, and insulation materials. It is ideal for refrigerated compartments, insulation compartments, sun rooms, RVs, field barracks, and quick housing.

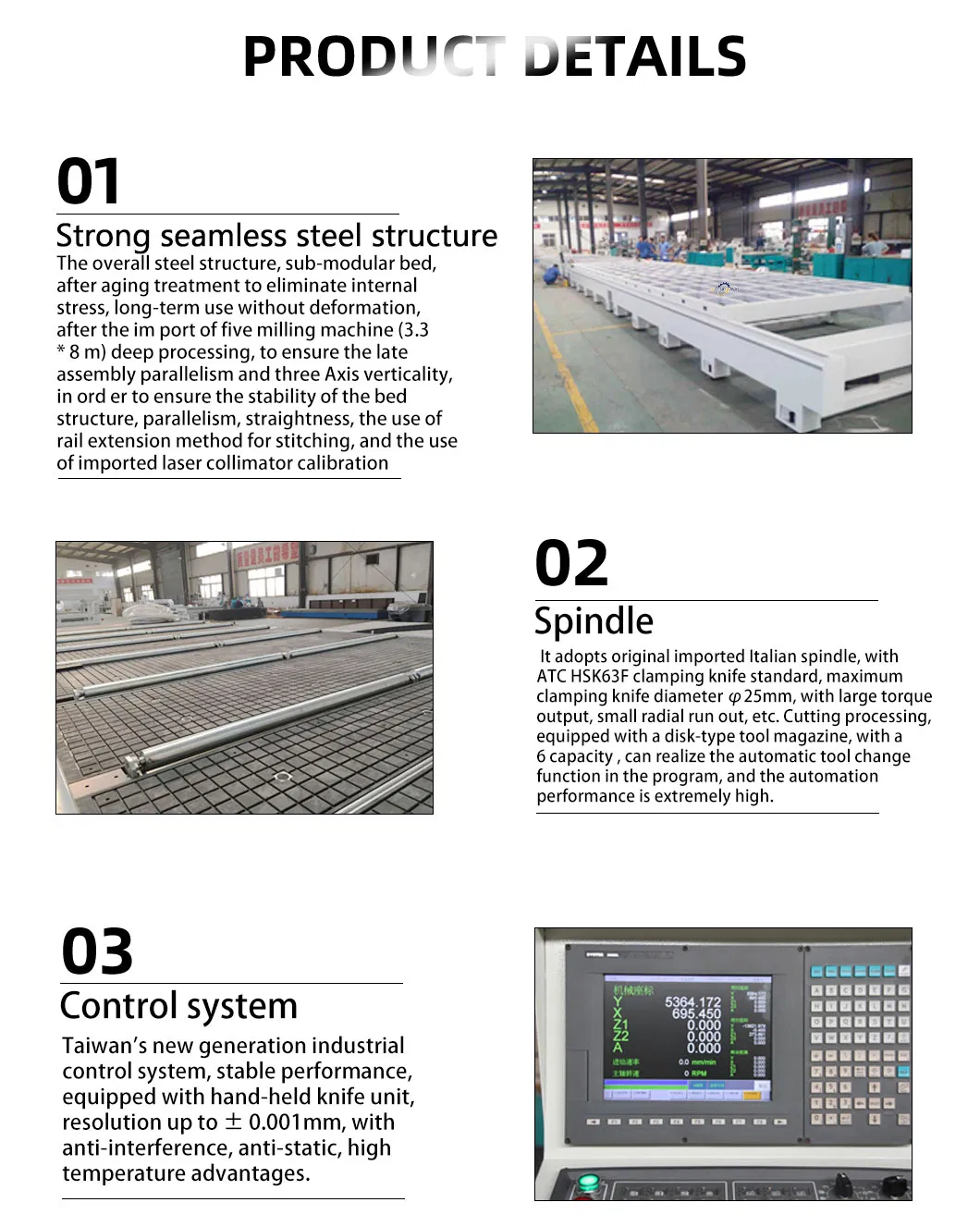

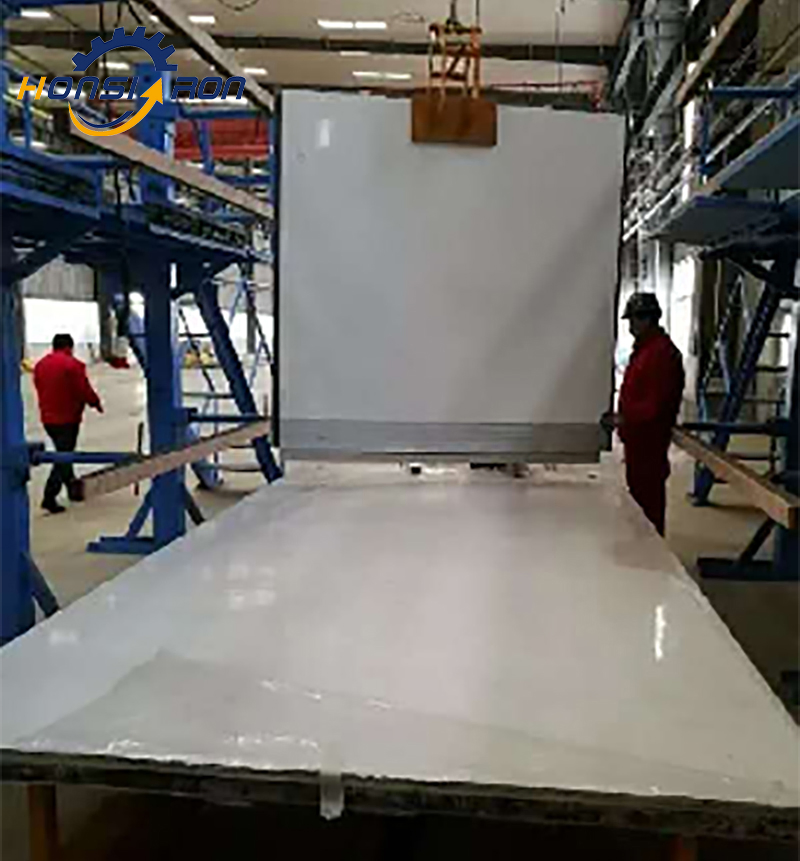

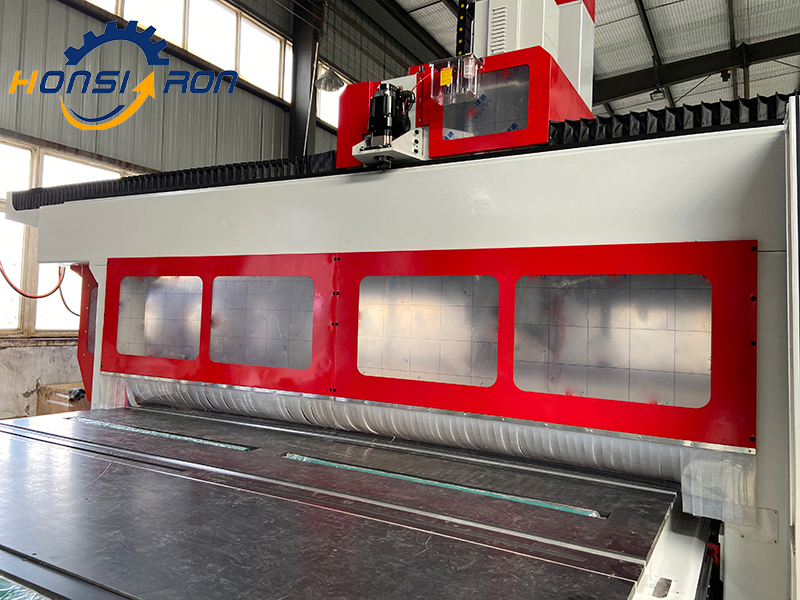

The large panel material features a laminate or sandwich structure with aluminum or glass steel skins. The internal filler can be polyurethane foam, EPS foam, or XPS foam. The overall steel structure utilizes a fixed table and gantry frame mobile system for high precision and stability.
| Specification | GM3010AH5 | GM3015AH5 | GM3017AH5 |
|---|---|---|---|
| Travel Size (mm) | 3000*10000*350 | 3000*15000*350 | 3000*17000*350 |
| Idling Speed | XY: 50m/min, Z: 25m/min | ||
| Working Speed | XY: 30m/min, Z: 15m/min | ||

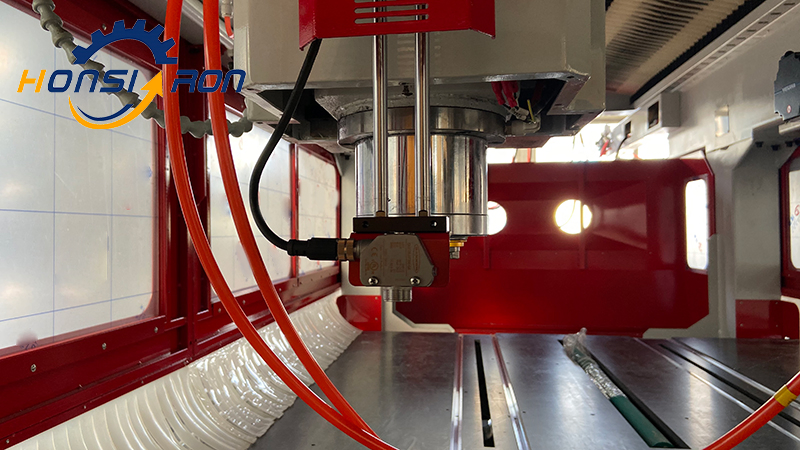

| Spindle Type | Mechanical ATC Spindle | ||
| Cutting Saw | Seimec Cutting Saw | ||
| Control System | Syntec Controller | ||
| Table Surface | Vacuum & T-slot Table | ||

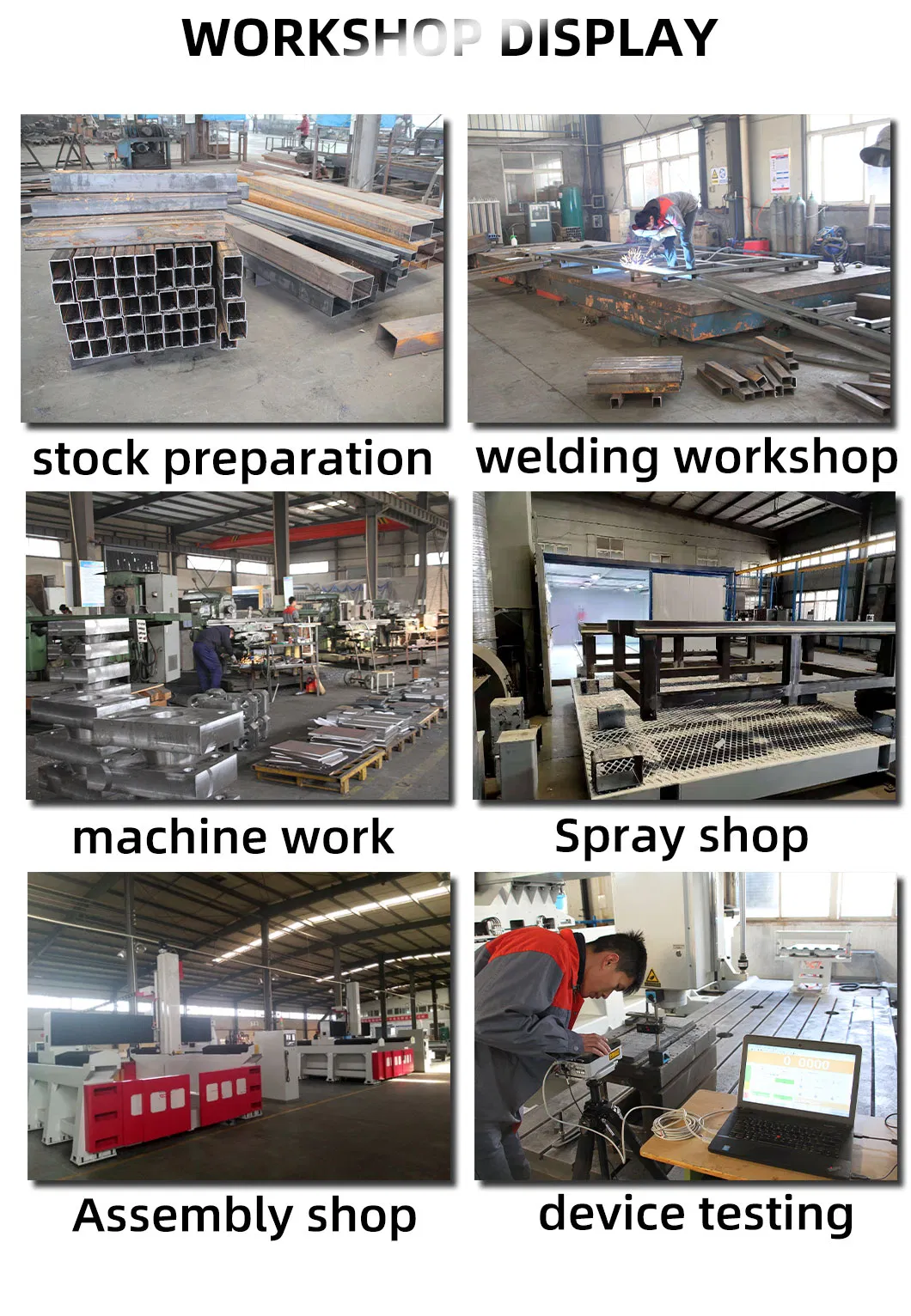

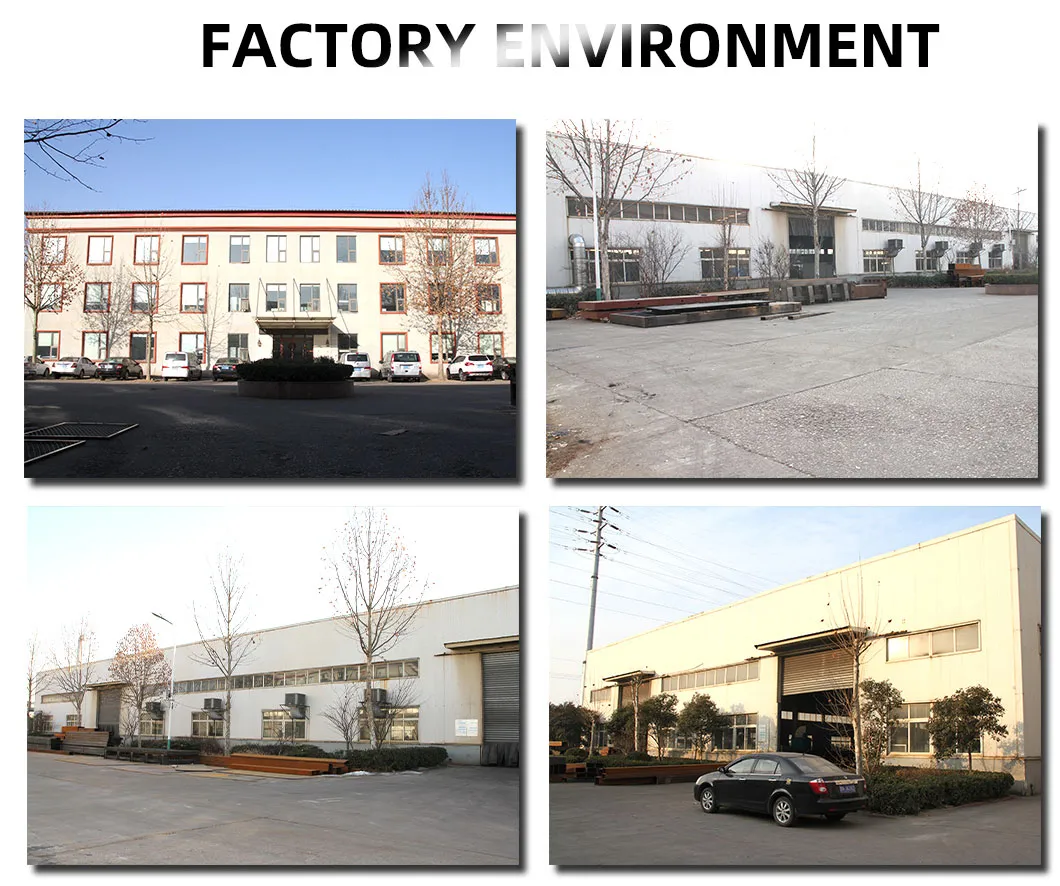

Our manufacturing base spans 13,000 square meters of modern plant space. We utilize advanced production equipment, including Vertical Machining Centers, Gantry Five-Face Machining Centers, and eight-axis welding robots.
