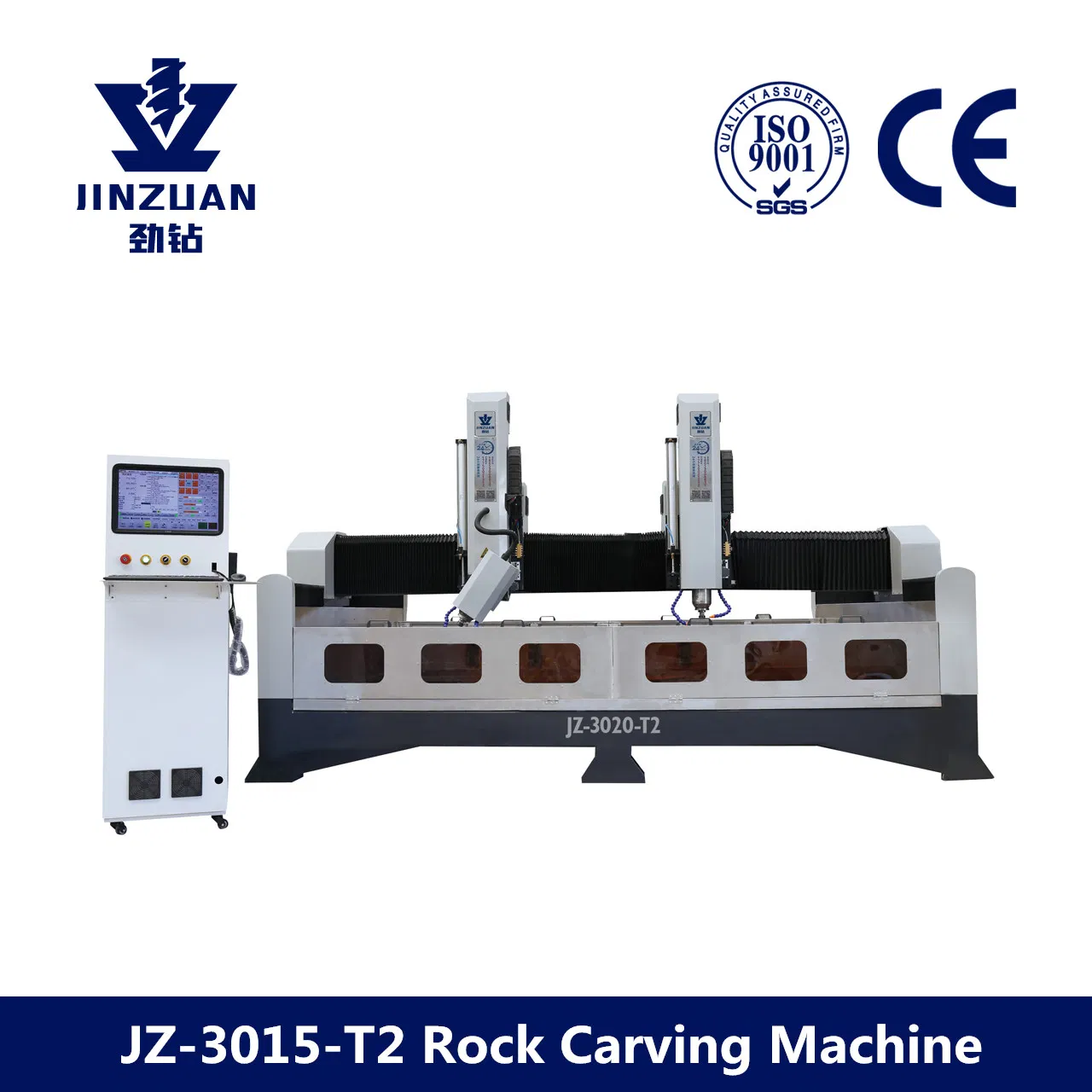

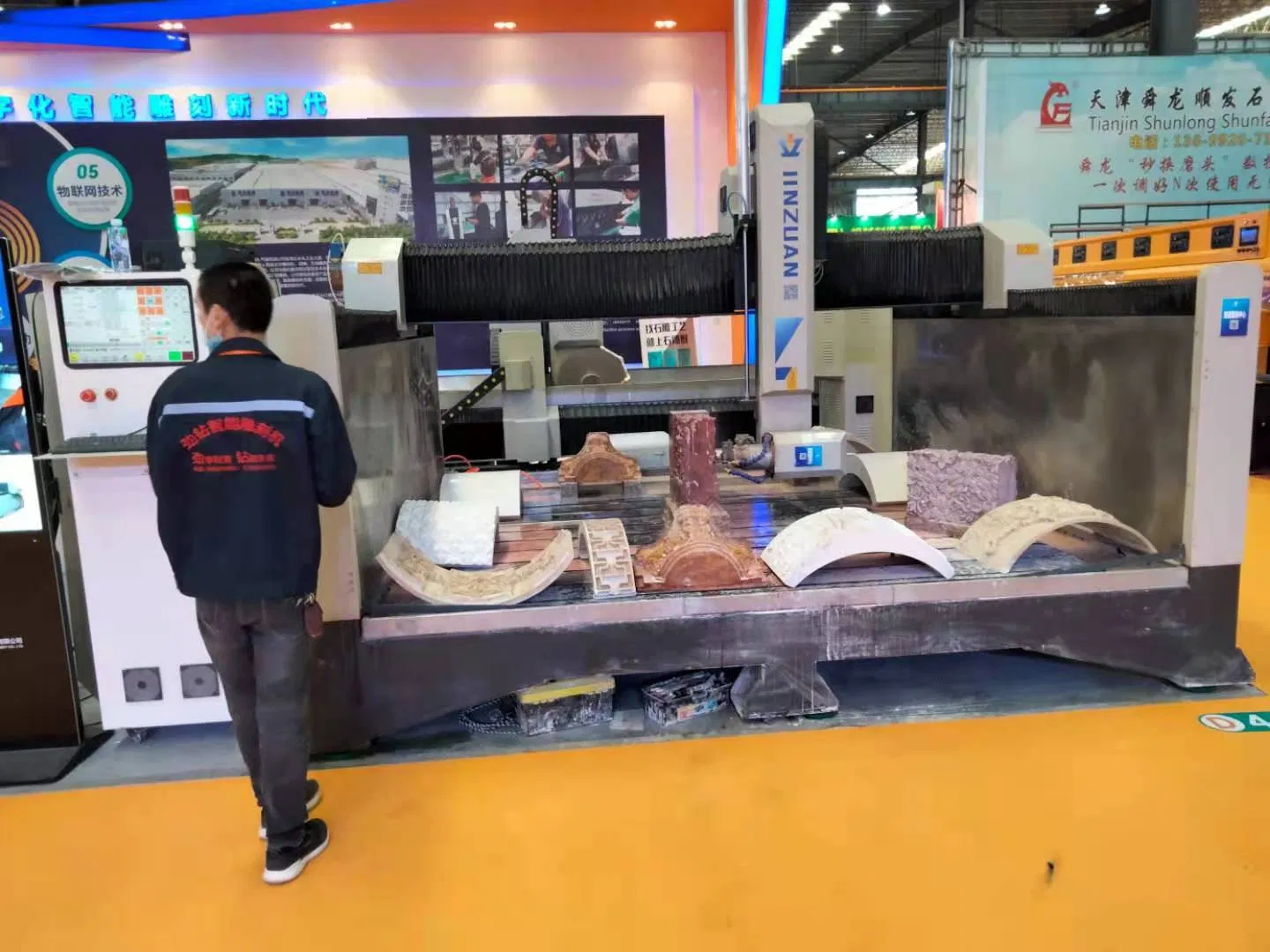

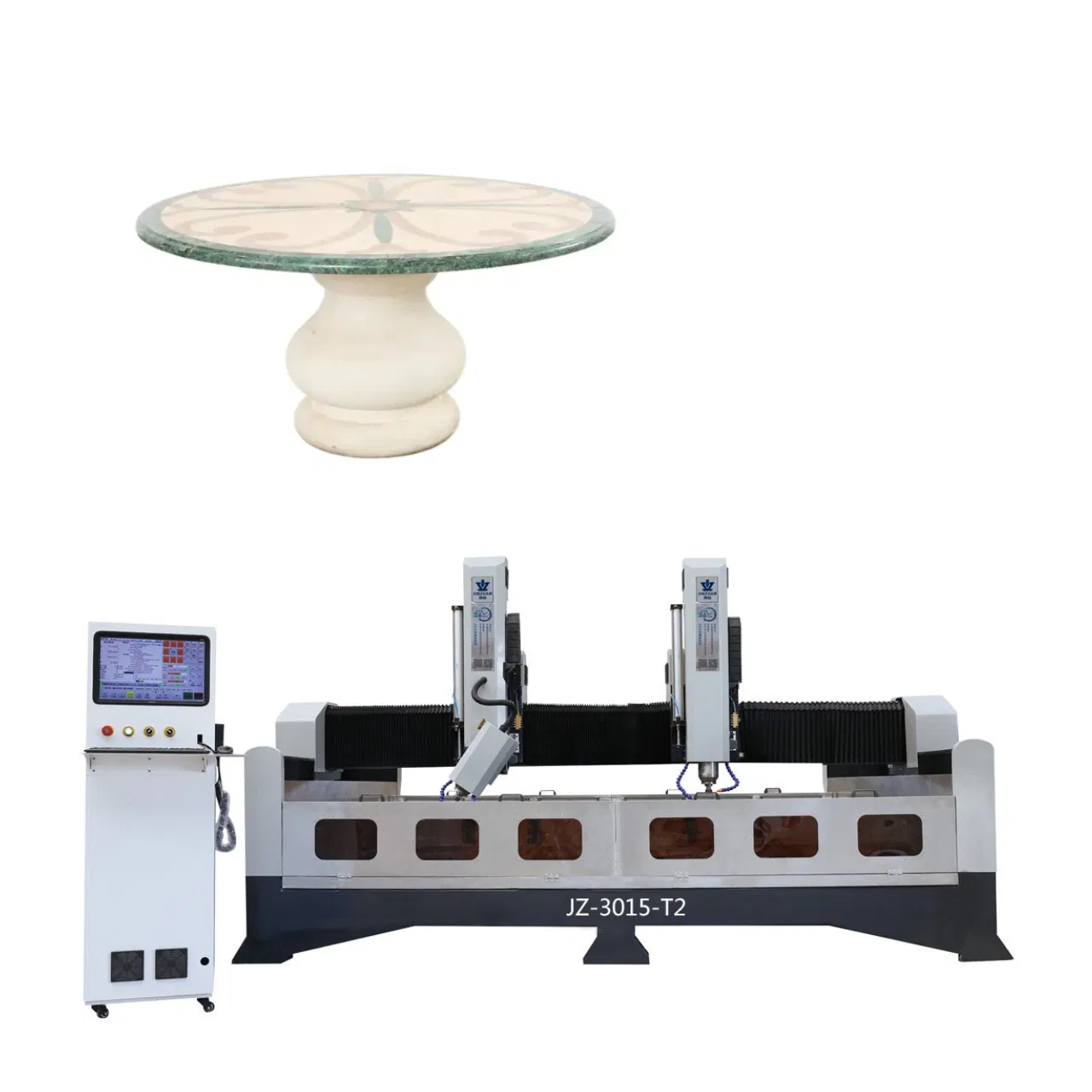

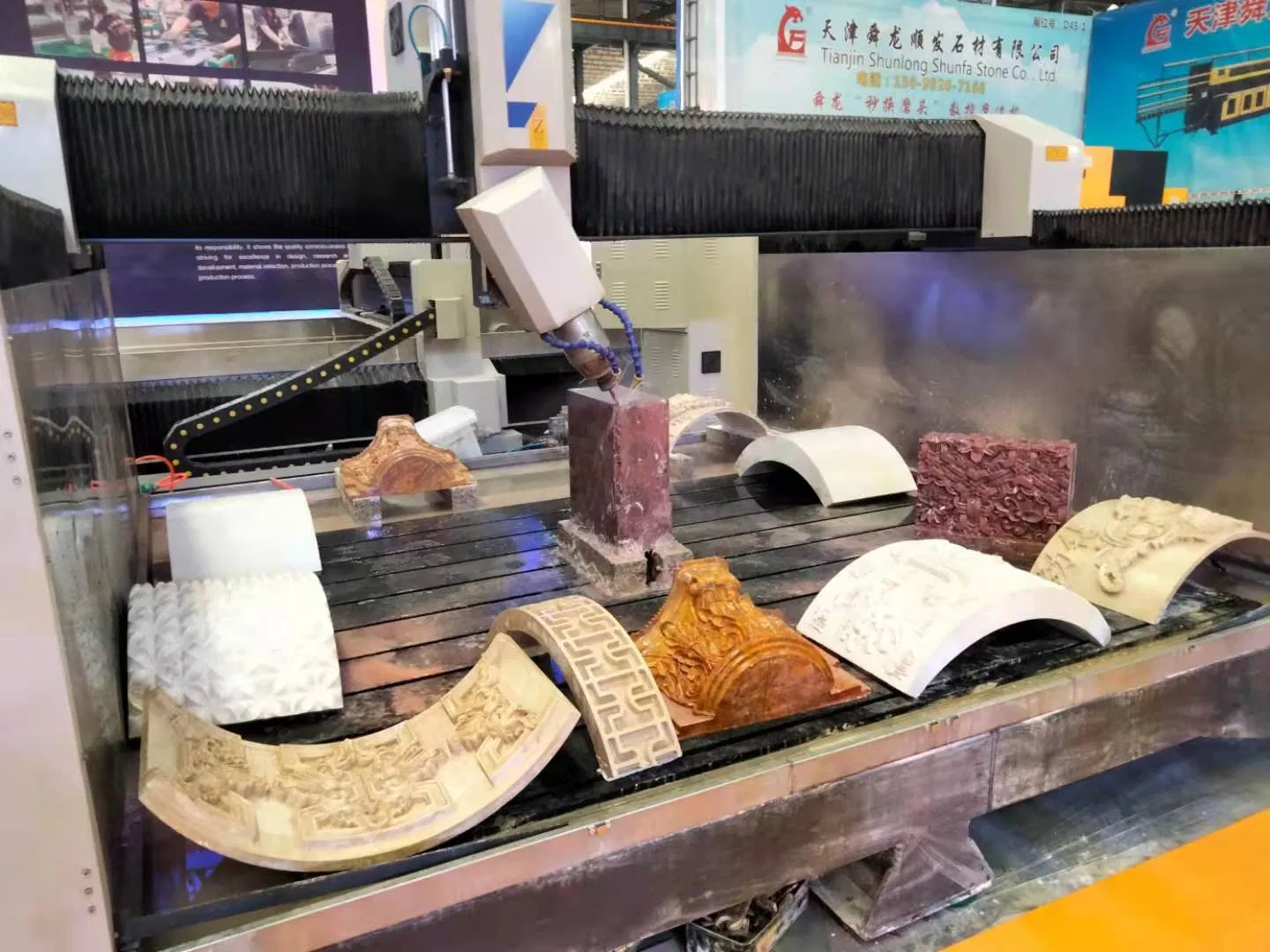

Chinese Quality 4 Axis CNC Rocking Carving Machine Router for Pillar Cap (3015FB-2D)
Chinese Quality 4 Axis CNC Rocking Carving Machine Router for Pillar Cap (3015FB-2D)
Chinese Quality 4 Axis CNC Rocking Carving Machine Router for Pillar Cap (3015FB-2D)
Chinese Quality 4 Axis CNC Rocking Carving Machine Router for Pillar Cap (3015FB-2D)
Chinese Quality 4 Axis CNC Rocking Carving Machine Router for Pillar Cap (3015FB-2D)
1 / 5
Chinese Quality 4 Axis CNC Rocking Carving Machine Router for Pillar Cap (3015FB-2D)
Chinese Quality 4 Axis CNC Rocking Carving Machine Router for Pillar Cap (3015FB-2D)
Chinese Quality 4 Axis CNC Rocking Carving Machine Router for Pillar Cap (3015FB-2D)
Chinese Quality 4 Axis CNC Rocking Carving Machine Router for Pillar Cap (3015FB-2D)
Chinese Quality 4 Axis CNC Rocking Carving Machine Router for Pillar Cap (3015FB-2D)

Chinese Quality 4 Axis CNC Rocking Carving Machine Router for Pillar Cap (3015FB-2D)

Customization: Available
After-sales Service: Provided
Warranty: 1 Year
Send Inquiry

Product Description

📋

Basic Information

Model NO.
JZ-3015FB-2D
Function
Hollow out, Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering, Carving
Application Material
Marble, Glass, Ceramics
Automation
Automatic
Control
CNC
Motor Power
High Power
Certification
CE, ISO
Current
AC
Specification
4300*2300*2300mm
Production Capacity
500PCS/Year
💎

Product Description

4 Axis CNC Rocking Carving Machine Router for Pillar Cap (3015FB-2D)

Professional cutting machine, granite, marble cutting effect is good; Mechanical structure optimization design, exquisite carving, exquisite pattern, vivid pattern; The machine appearance is beautiful, and the structure is not deformed, high cutting precision, high efficiency.

CNC Machine

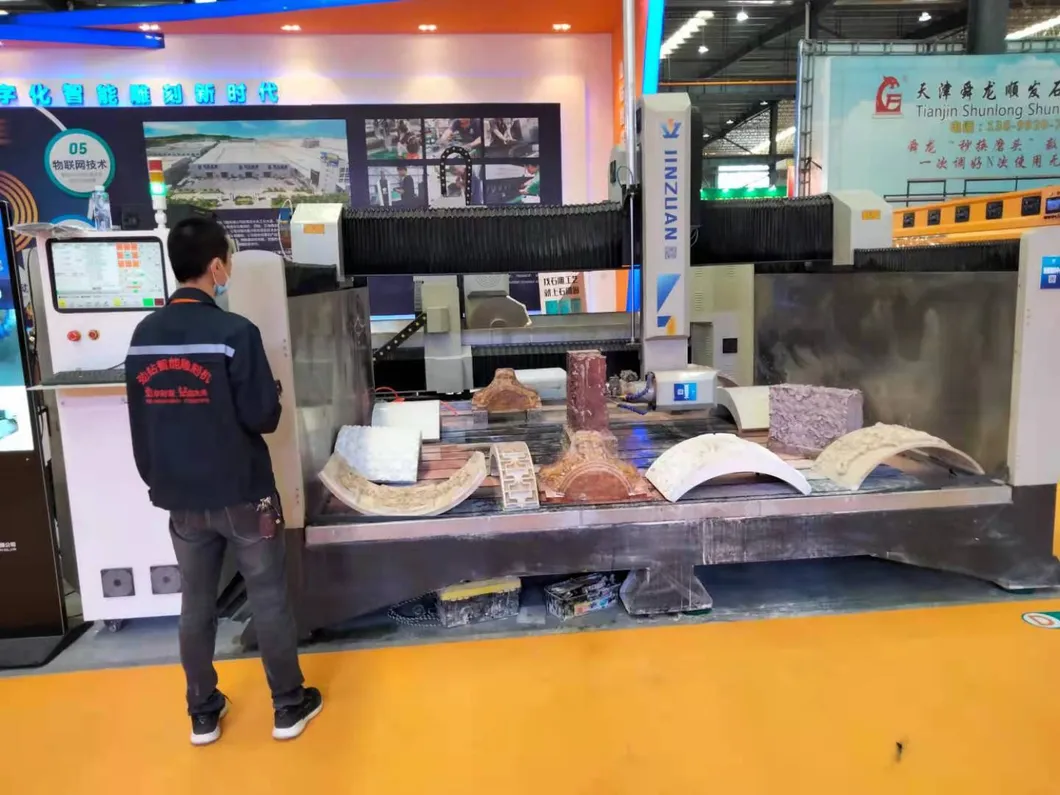

CNC Machine Details

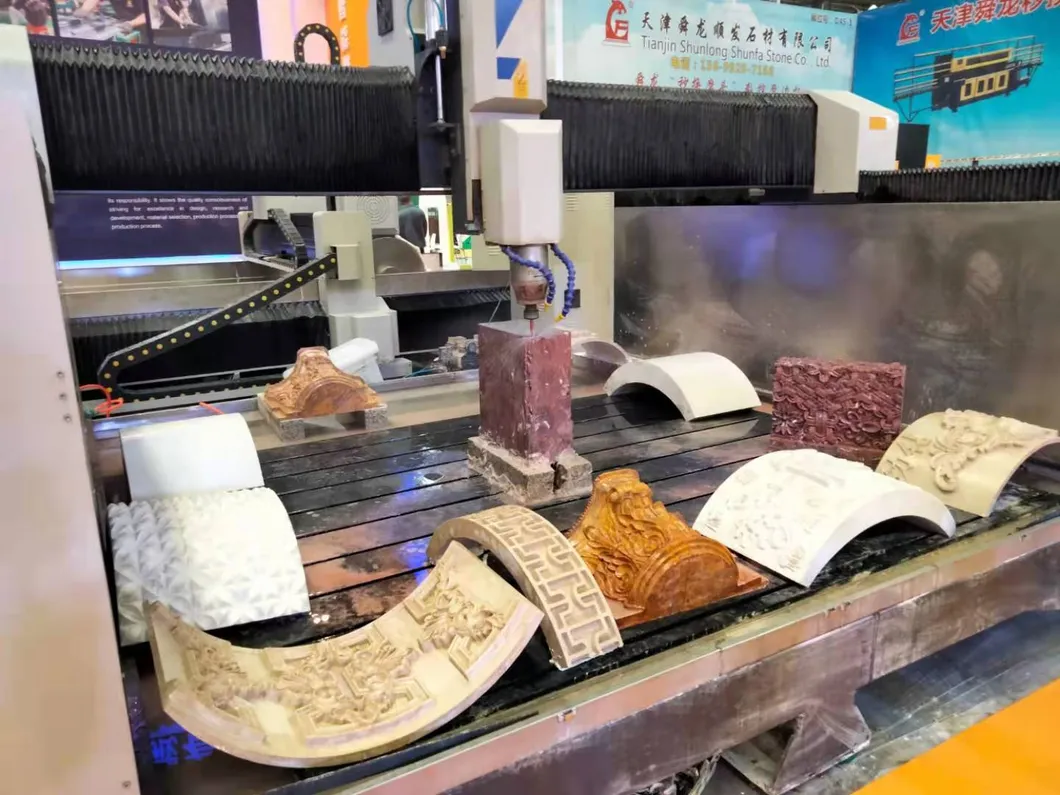

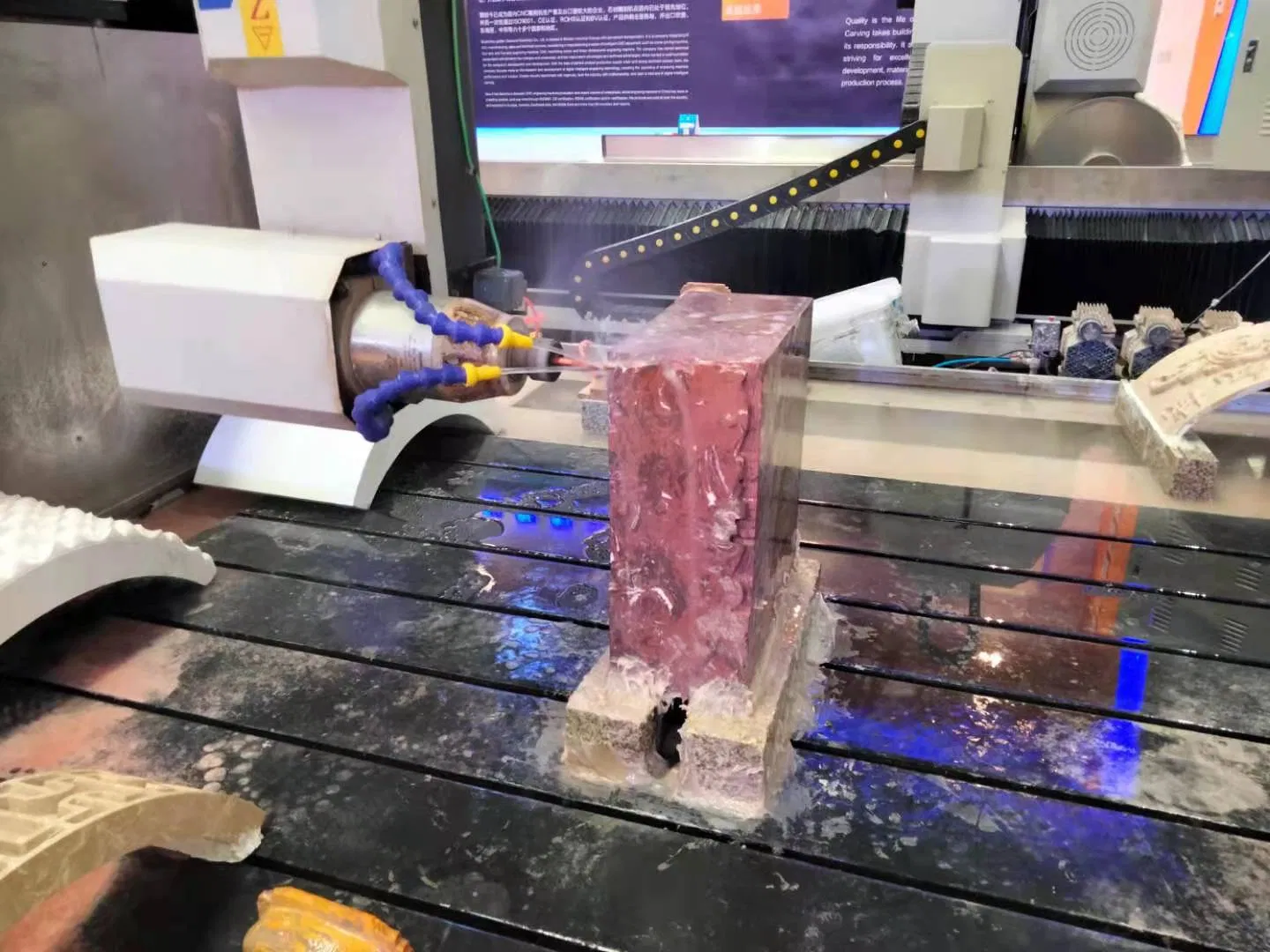

Machine Working
⚙️

Technical Parameters

Machine Specification
Model No.JZ-3015FB-2D
Platform Dimension3000*1500mm
Working Size1400*1400*2
Working TableAluminum T-Slot Table with PVC Plate
Linear Guide RailY Axis PMI-25; X Z Axis PMI-30
Feed Height≤600mm
Processing Speed12m/min
Spindle Power5.5~7.5kW variable frequency water-cooled
Spindle Speed6000-24000rmp/min
Control SystemTaiwan LNC
Machine Weight3200kg
🚀

Our Advantages

  • This machine can swing 180° carving, effectively solving large angle carving of stone arc plates and flower caps.
  • Equipped with famous brand full servo motor and reducer for high speed and stability.
  • Imported widened straight guide rail for large bearing capacity and high precision.
  • Constant power spindle motor with large cutting force and high efficiency.
  • CNC digital control with power-off memory and broken knife carving functions.
  • Heavy-duty steel structure, rigid and non-deforming, with a capacity of over 4 tons.

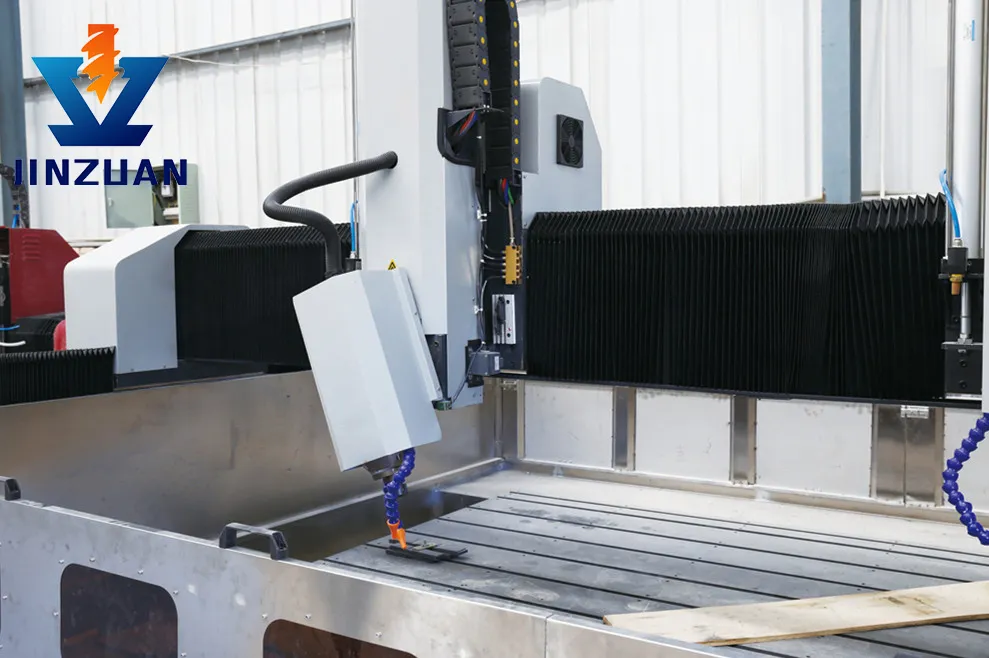

Advantages
🎨

Works Display

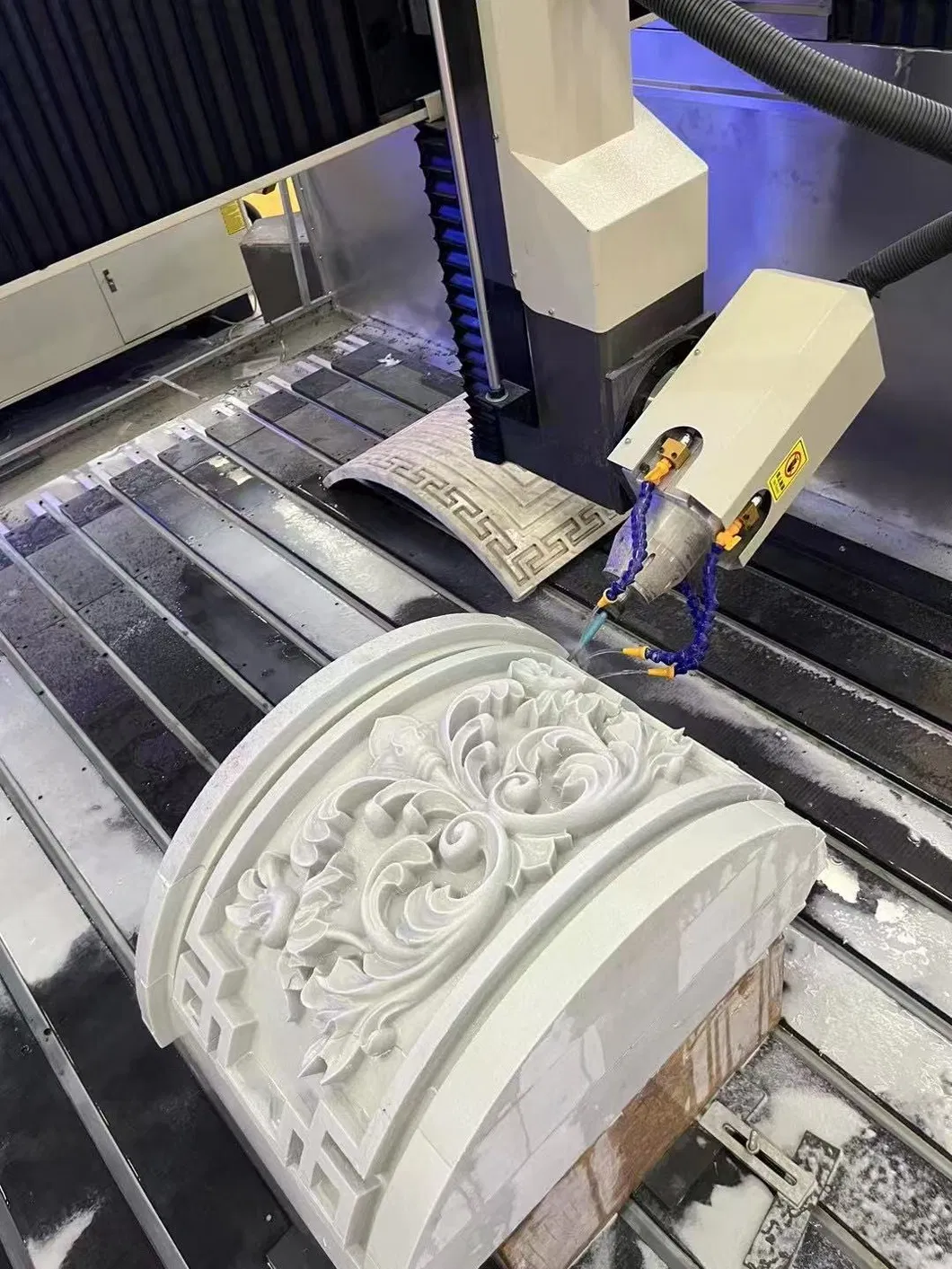

Work 1

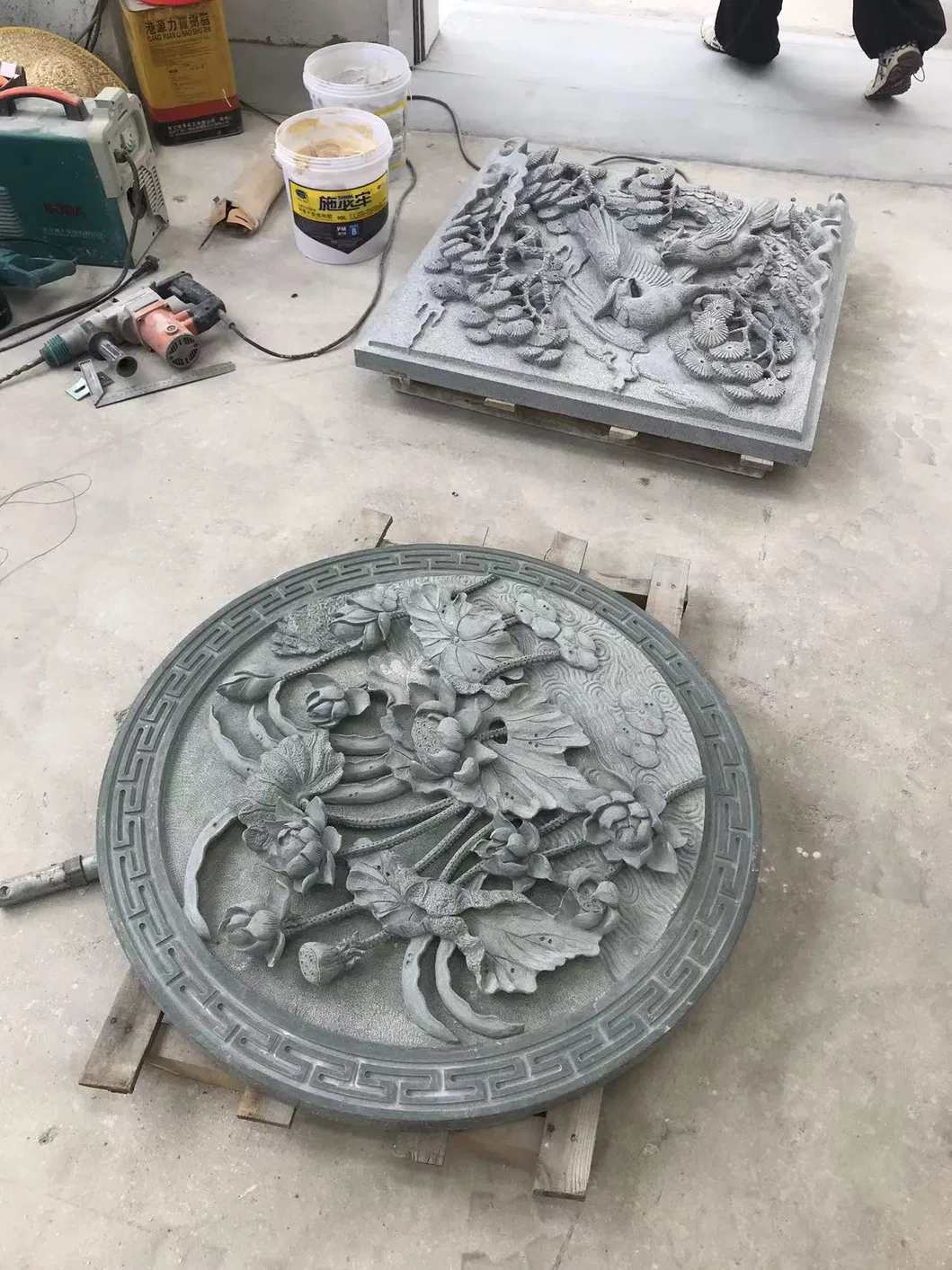

Work 2

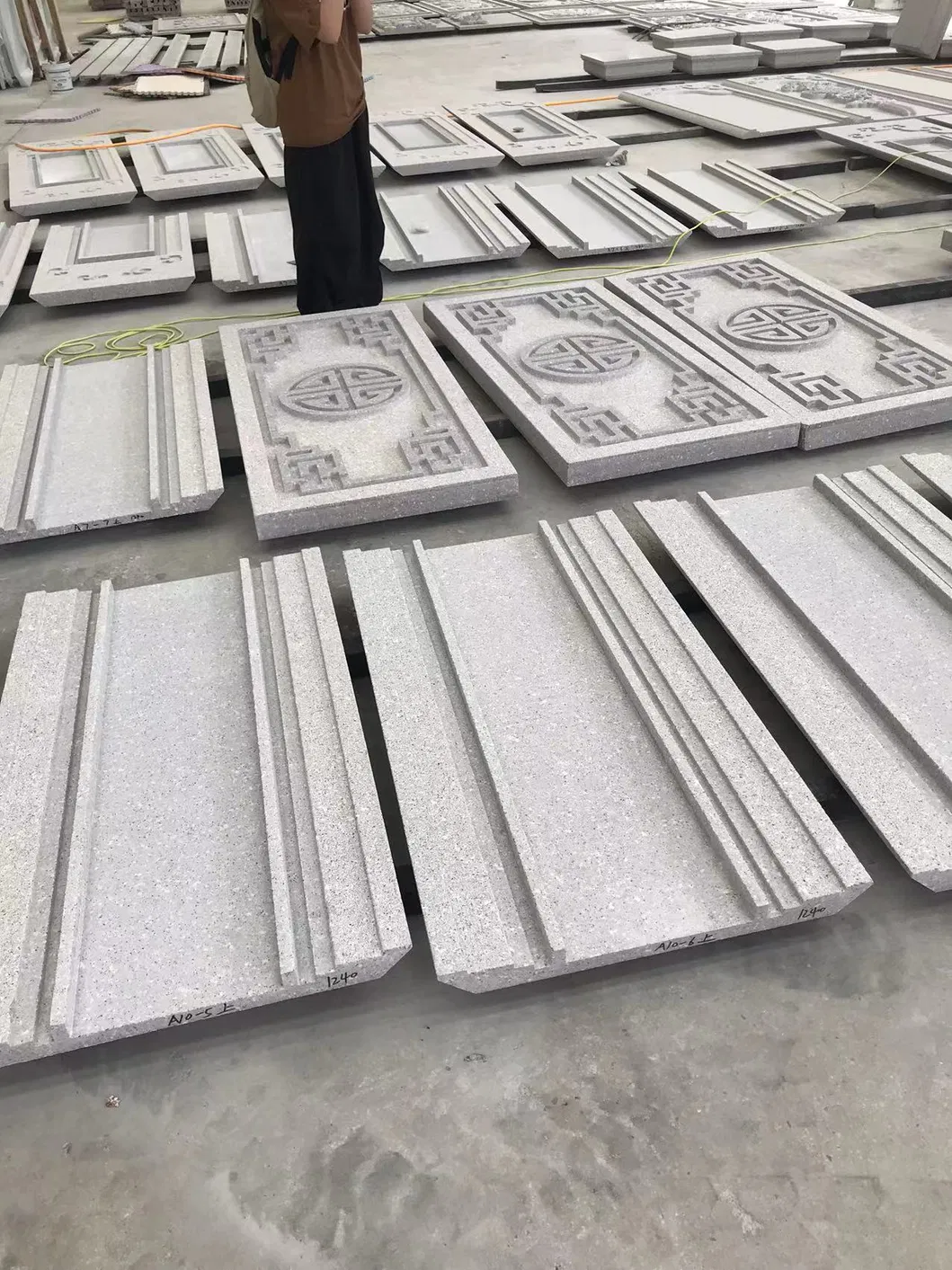

Work 3
📦

Packaging & Shipping

Packaging technology requirements focus on rust prevention, moisture protection, pressure resistance, and impact resistance. Equipment is fully protected and boxed before shipment to ensure arrival in perfect condition.

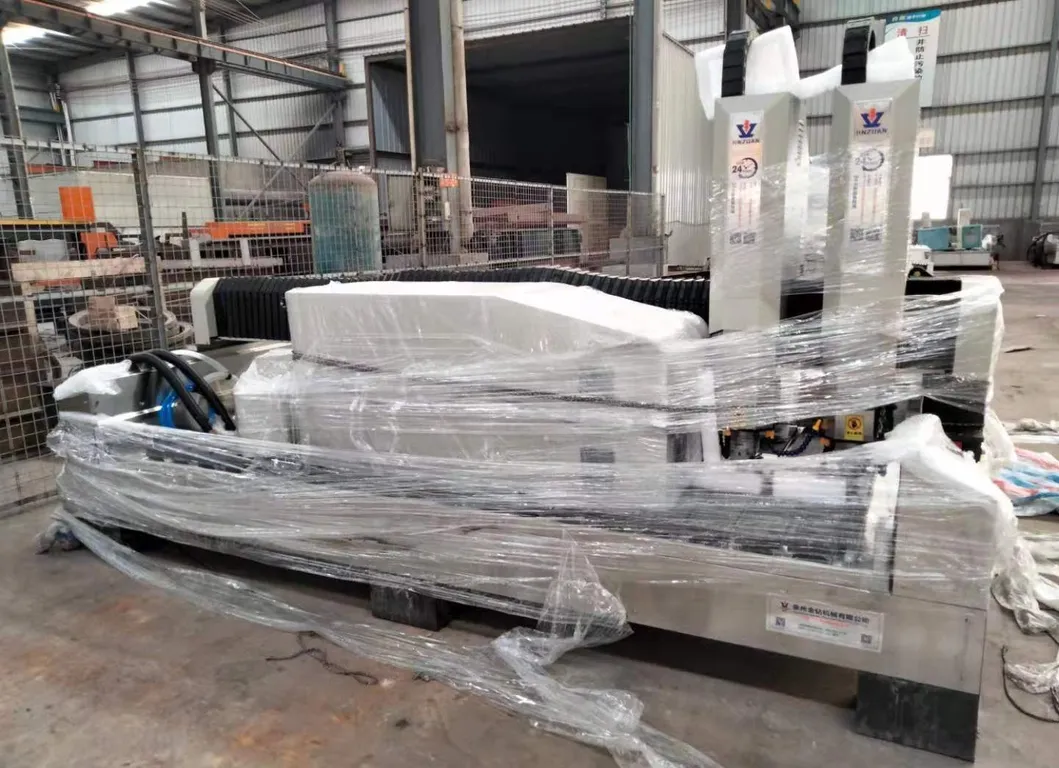

Packaging

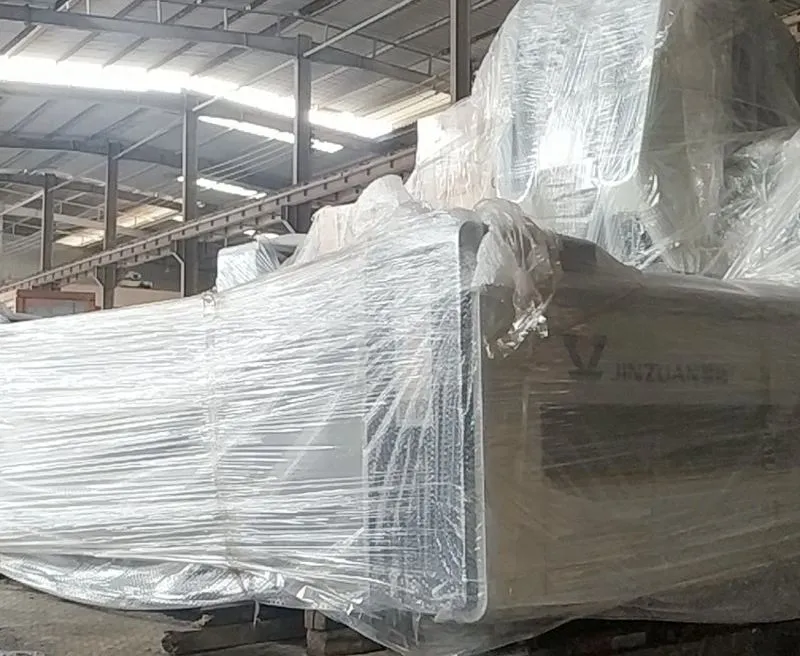

Shipping
🏢

Factory Display

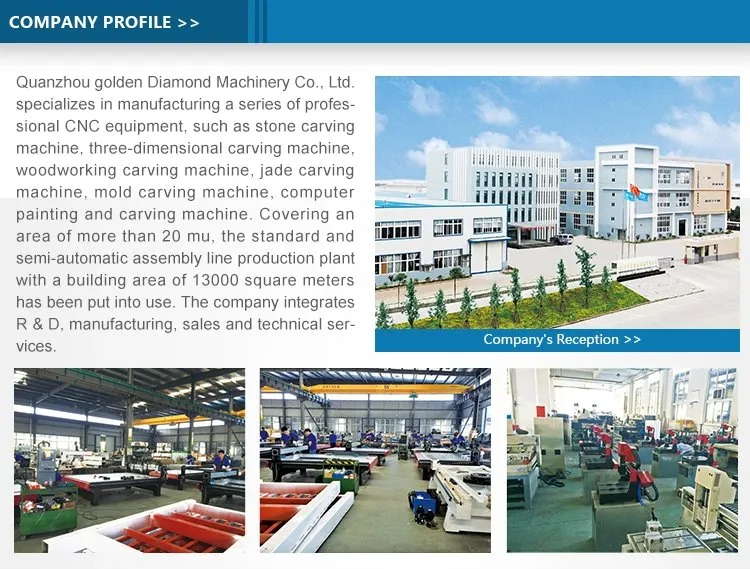

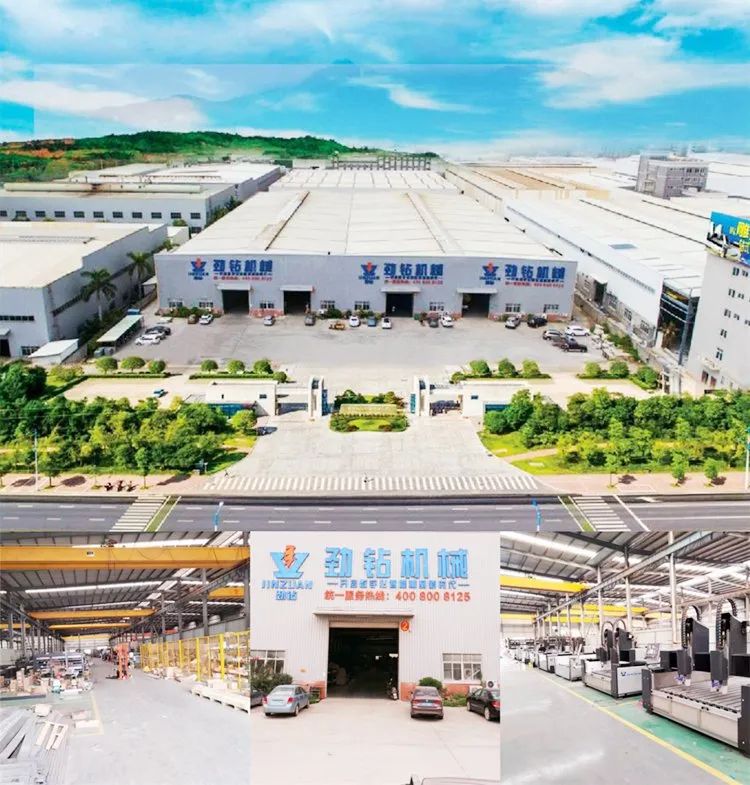

Factory 1
Factory 2
Factory 3
Factory 4
Factory 5
Factory 6
Factory 7
Factory 8
❓

Frequently Asked Questions

1. What is the payment process?
TT: 30% as deposit, 70% before shipping.
2. How long does shipping take?
Production takes approximately 30 days. Shipping dates depend on your specific destination port.
3. Who provides technical support for installation?
We offer 24-hour online support via video calls, messaging, and email. English manuals and installation videos are also provided. Engineers are available for factory-based training.
4. What materials can this CNC machine process?
It is ideal for marble, granite, ceramics, glass, and other stone-related materials used in decoration and art.
5. Does the machine have a memory function?
Yes, it features CNC digital control with a power-off memory function and broken knife carving recovery.
6. Is the machine structure stable for heavy materials?
The entire machine uses a heavy-duty steel structure that is rigid and resistant to deformation, with a bearing capacity of over 4 tons.
