TitanPro Cutting
TitanPro Cutting
| Condition | New |
| Certification | ISO, CE |
| CNC or Not | CNC |
| Voltage | 380V |

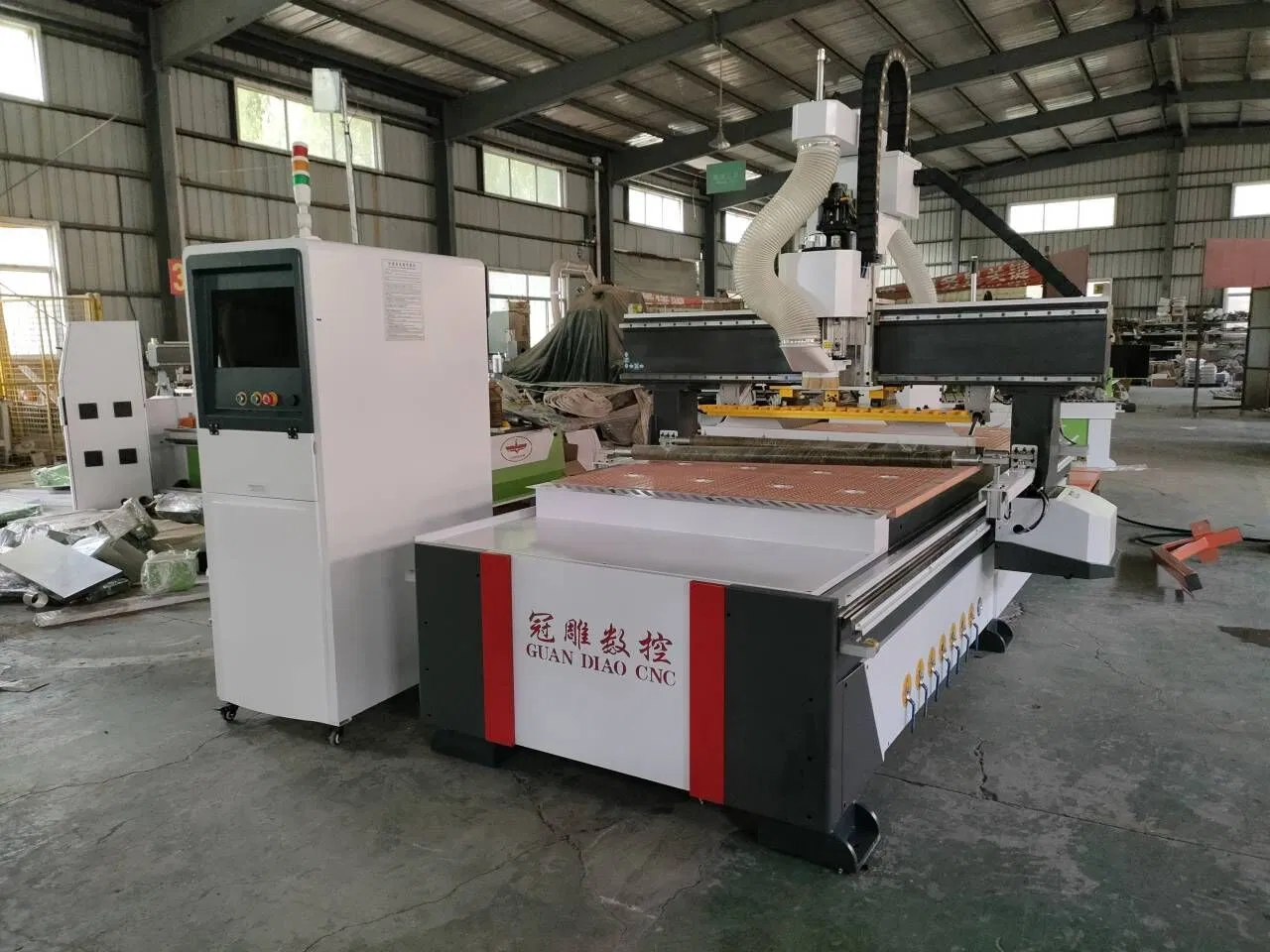

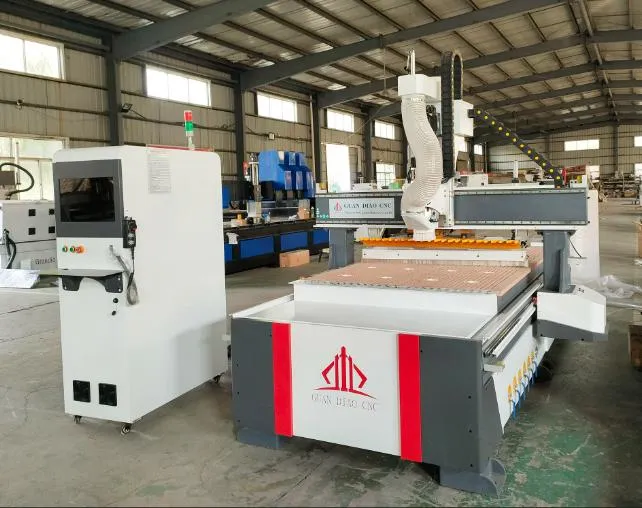

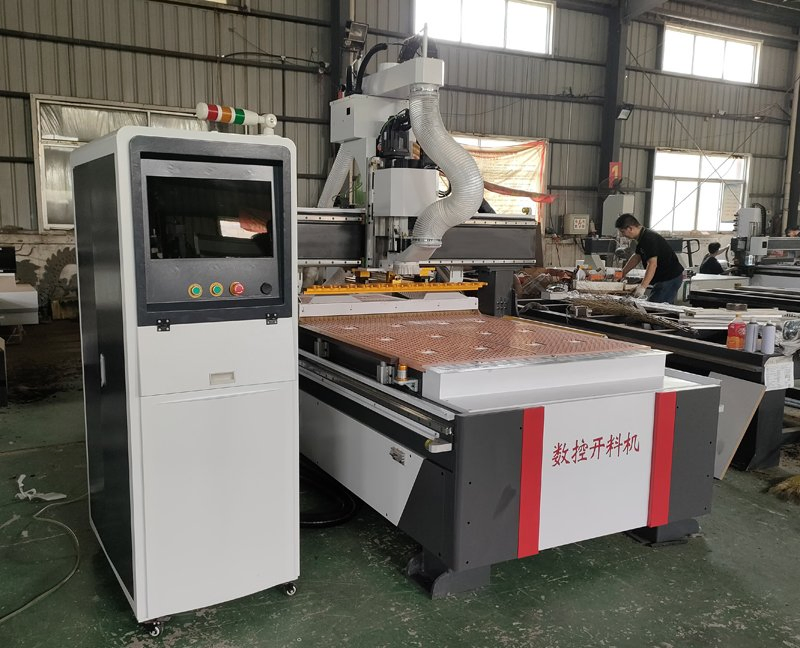

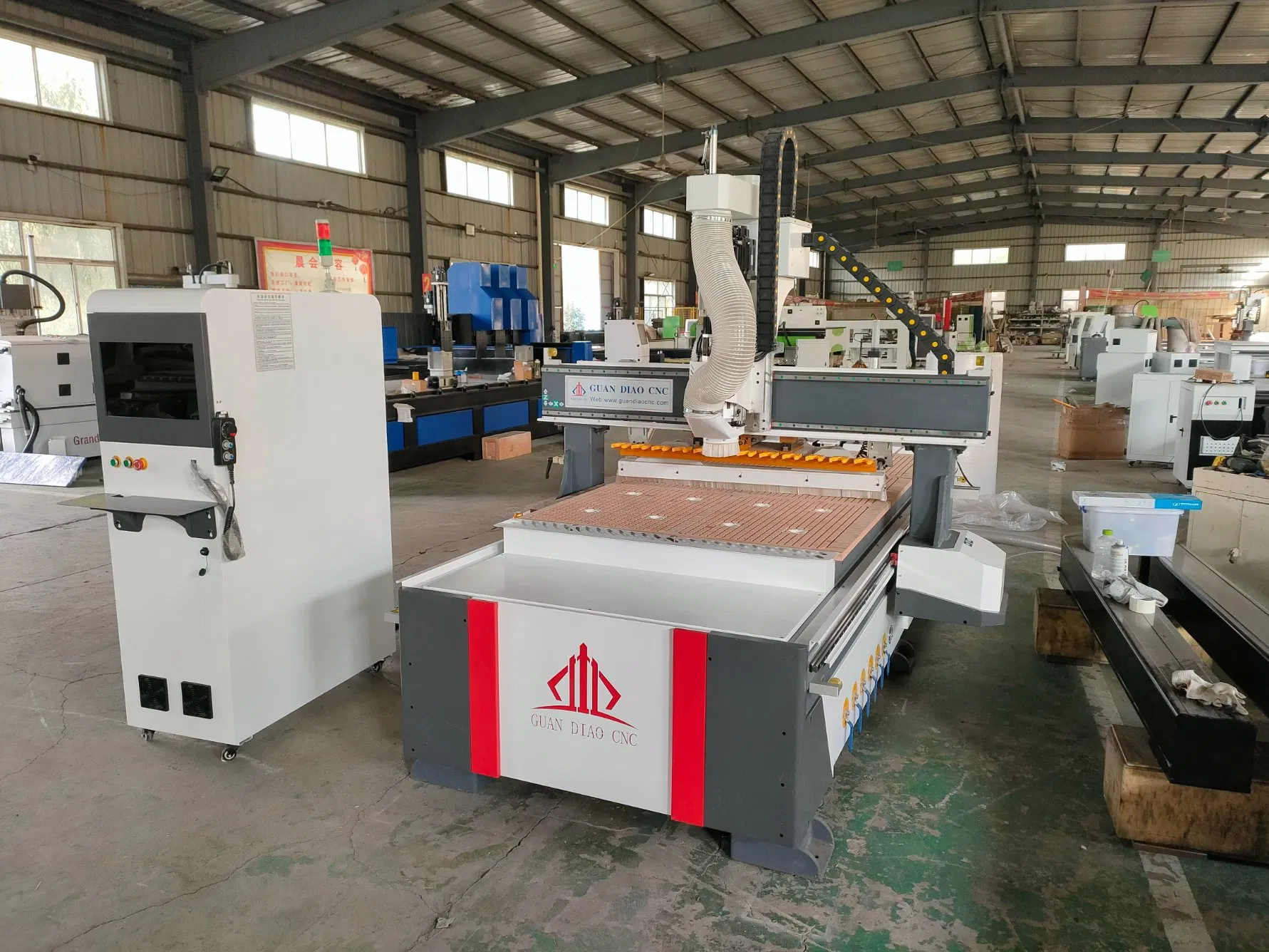

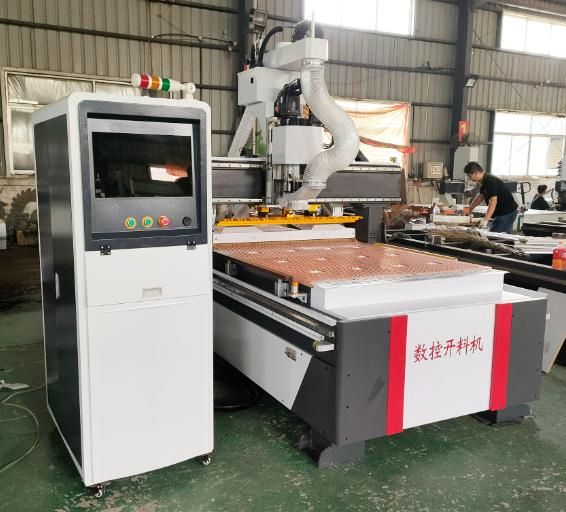

| Name | 1325 Atc CNC Router |
| Working Size | 1300*2500*250mm |

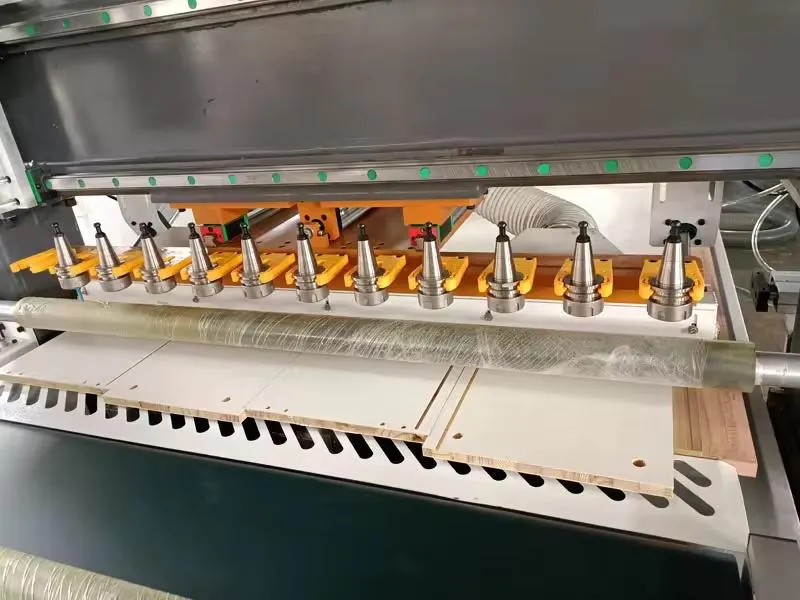

| Spindle | 9kw Atc Air Cooling Spindle |
| Controller | Taiwan Lnc Controller |
| Motor and Driver | 1500W Servo Motor and Driver |
| Inverter | 11kw Fuling Inverter |
| Reducer | Japan Shimpo Reducer |
| Table | Vacuum Table |
| Vacuum Pump | 7.5kw Vacuum Pump |
| Dust Collector | 4kw Double Bags Dust Collector |
| Frame | 8-12mm Heavy Duty Frame |
| Transport Package | 3550*2200*2350 |
| HS Code | 9031499090 |
| Production Capacity | 300 Sets Per Month |
| Model | 1325ATC |
| XY working area | 1300*2500mm (Customizable) |
| Z axis | 200mm-300mm (Option) |
| Max Cutting Speed | 70m/min |

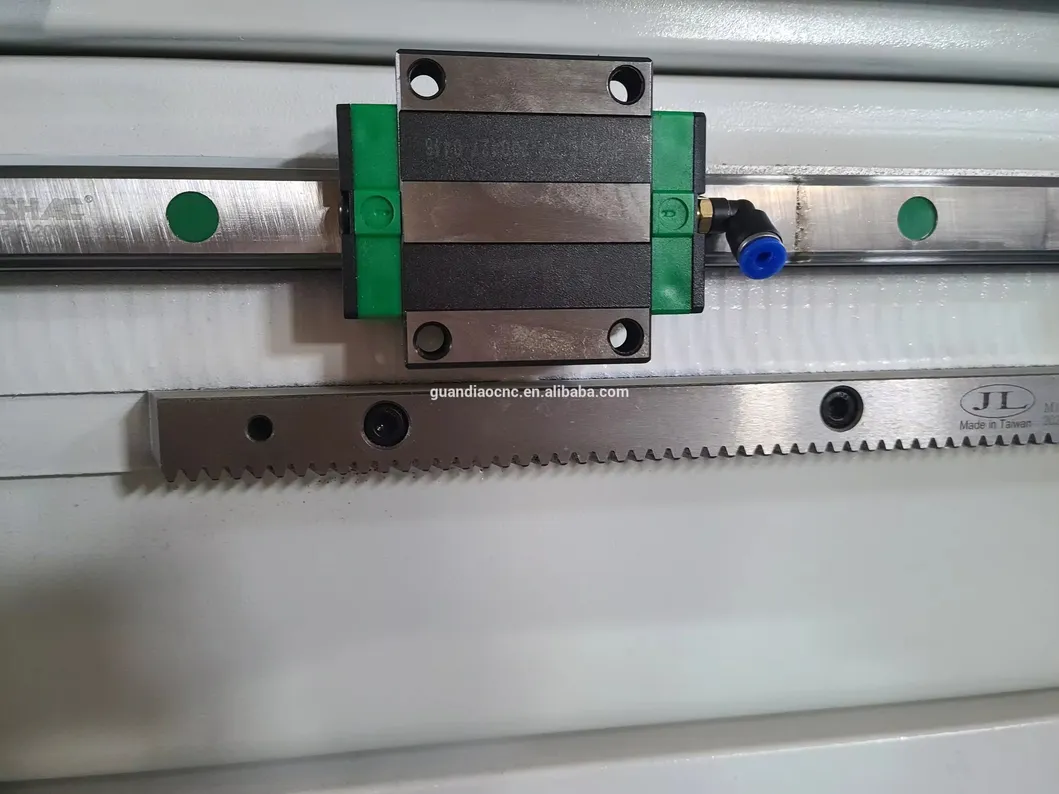

| Transmission system | XY axis: Germany Herion 1.5M Rack and Pinion; Z: Germany TBI Ball Screw |
| Guide rail | Taiwan Hiwin 25mm Linear rail |

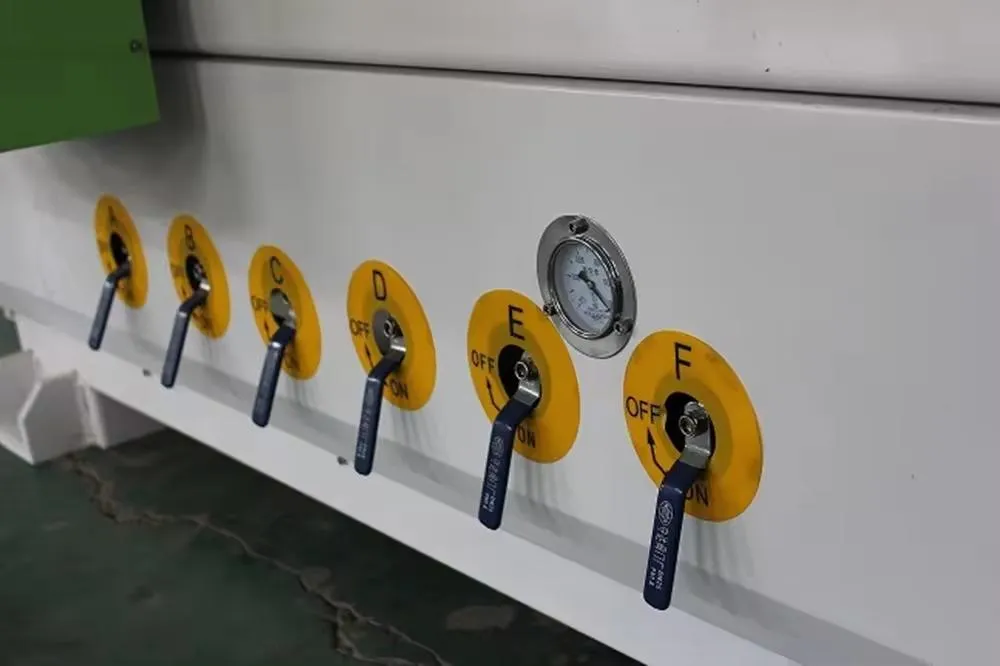

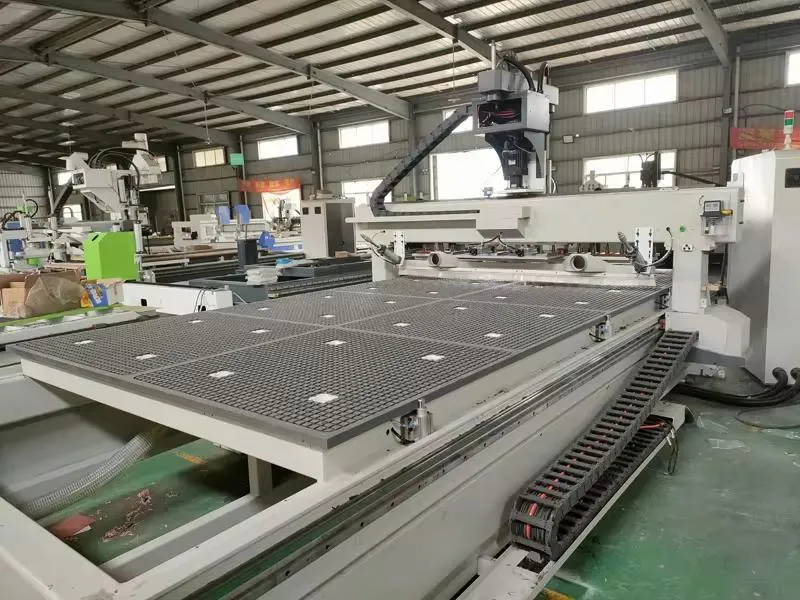

| Working Table | T slot Vacuum table 6 And T clamp combination |

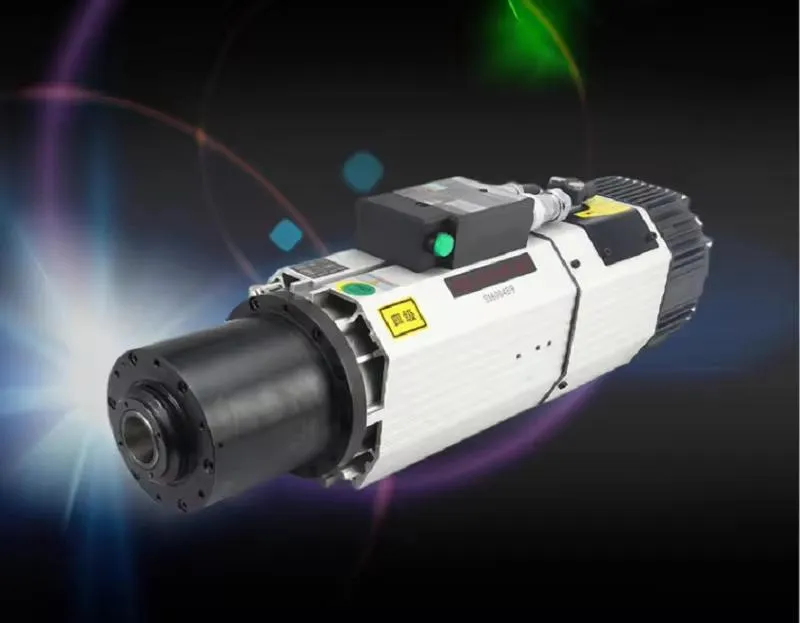

| Spindle | 9.0kw ATC air cooling spindle |
| Control system | Taiwan control system |
| Motor | 1.5kw servo motor |
| Air pump | 7.5KW |
| Dust collector | 4KW, double bags |
| Inverter | HPMANT 11KW |
| Spindle Speed | 0-24000rpm/min |
| Max. Rapid Travel Rate | 45000mm/min |
| Max. Working Speed | 30000mm/min |
| Command | G-code |

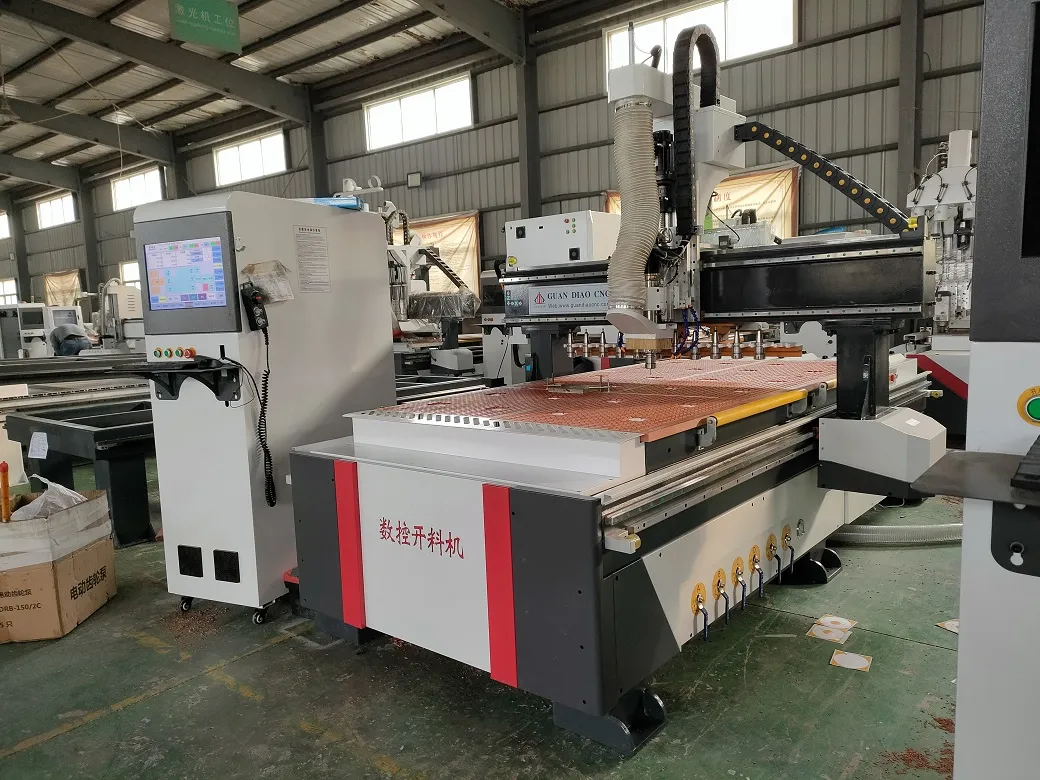

This ATC CNC woodworking machine is specially designed for users with high standards and a high degree of automation requirements. It is suitable for batch processing of various materials including:
