⚙️ Basic Information
Type
Stone Grinding Machine
Grinding Method
Semi-Dry Grind
Production Capacity
50set/Year
📌 Applications: Ceramics, Glass, Jadestone, Cement Brick, Concrete Curb, Granite, Marble.
💎 Product Description

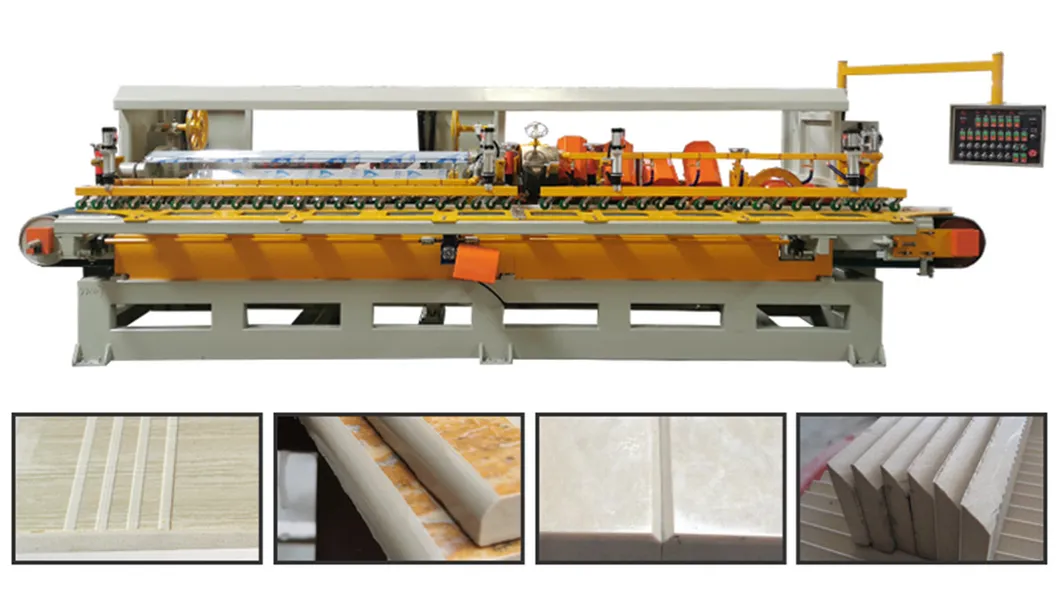

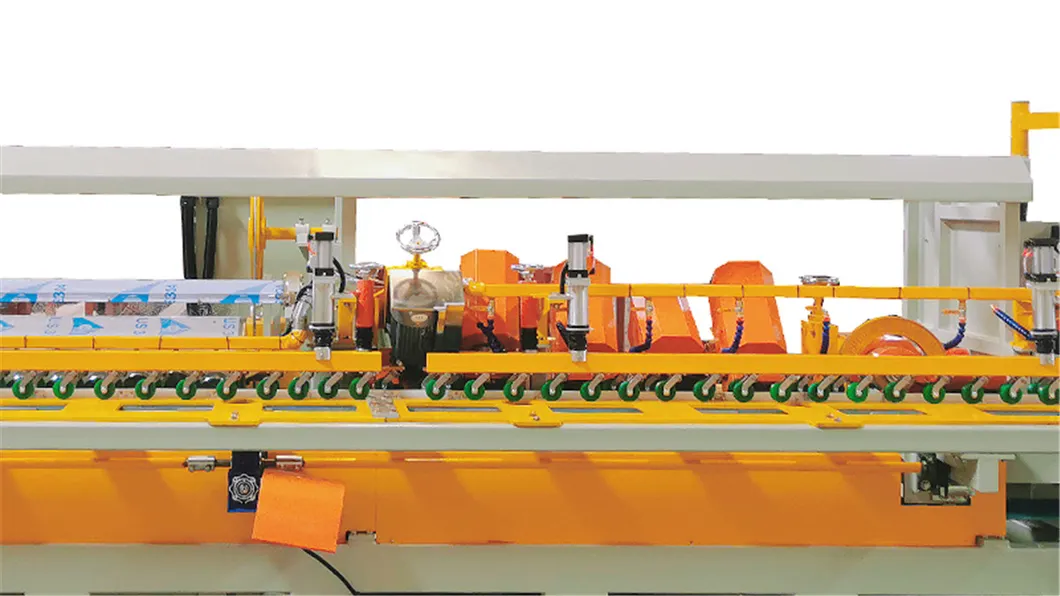

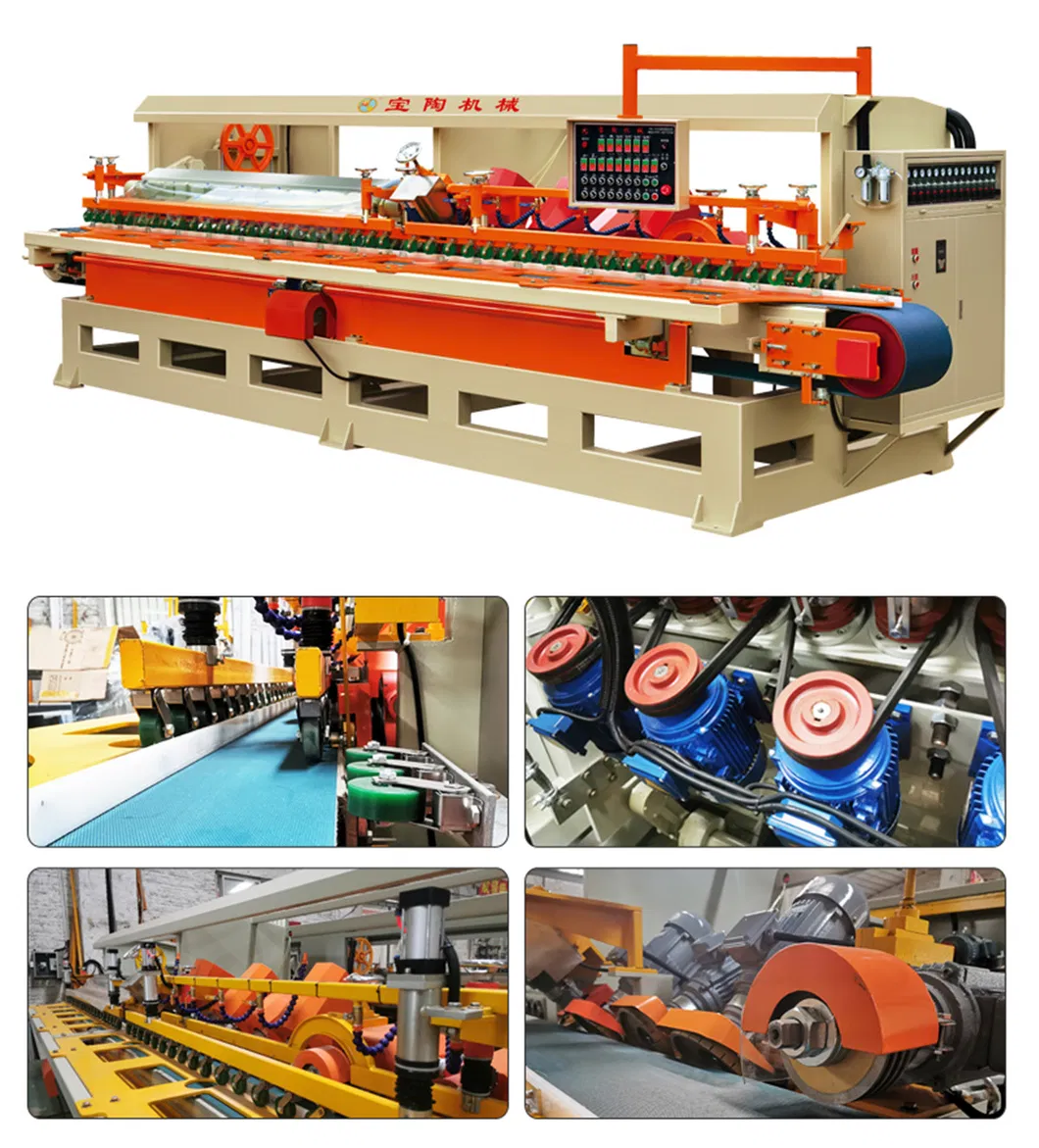

14 Heads Ceramic Tile Bullnose Polishing Machine

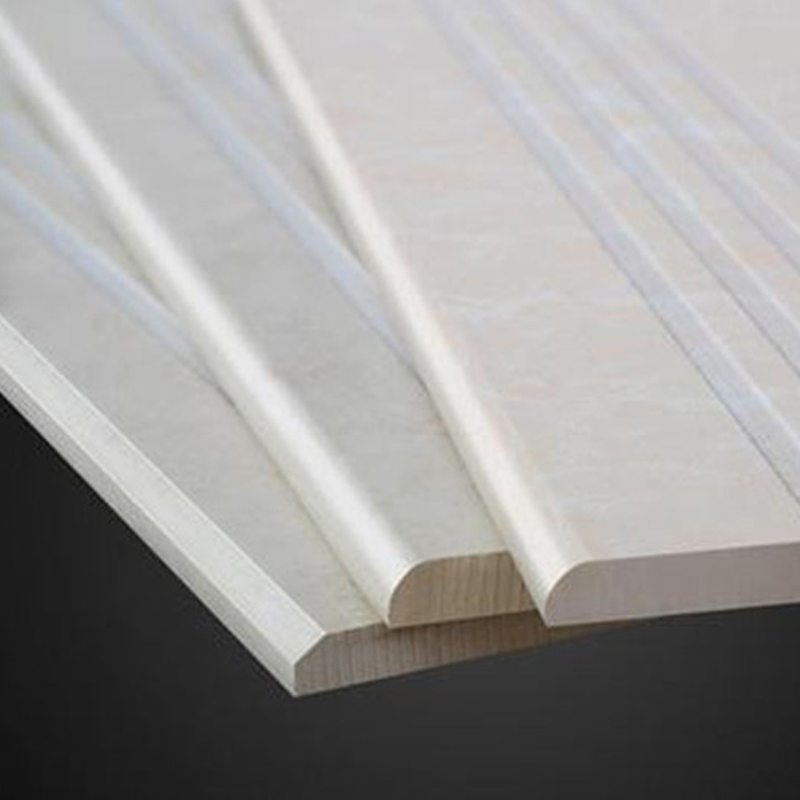

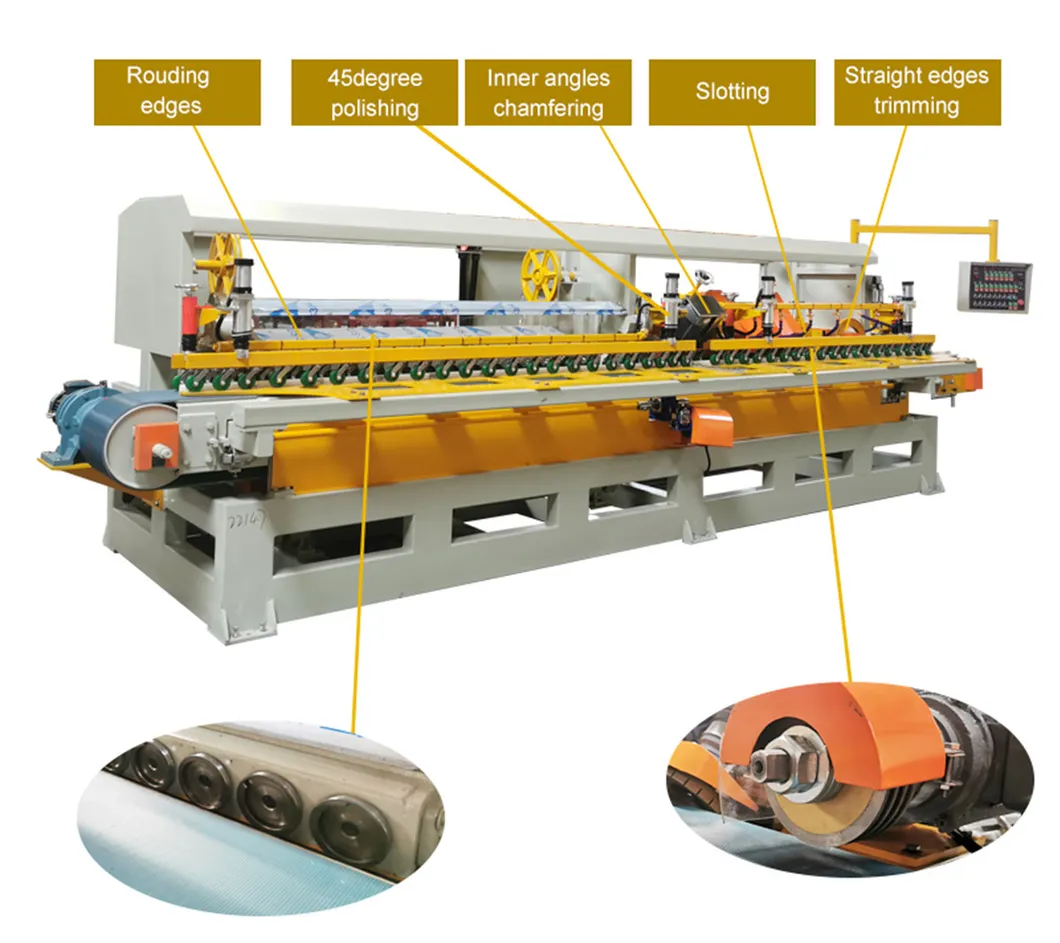

Automatic ceramic tiles arc edge grinding polishing machine designed for Ceramic Tiles and Stone Tiles to create bullnose, bevel, squared, 45-degree tile edges, anti-slip grooves, stair treads, skirting tiles, and flooring tiles.
Key Purposes:
1. Polishing Arc-edge range up to 1/4 (90°).
2. Full automatic processing of flat-edge, bevel-edge, and round-edge.
3. Processing thickness up to 35mm.
4. Gloss level reaches more than 90°, exceeding the original surface gloss.
| No |
Item |
Parameters |
| 1 | Conveyor belt | 300mm |
| 2 | Processing speed | 1.5-7.5m/min |
| 3 | Cutting thickness | 6-20mm |
| 4 | Working width | 100-1200mm |
| 5 | Nos. of polishing head | 14pc |
| 6 | Nos. of chamfering head | 5pc |
| 7 | Diameter of polishing wheel | φ120mm |
| 8 | Diameter of chamfering wheel | φ200mm |
| 9 | Water consumption | 490L/min |
| 10 | Electricity consumption | 23kw/h |
| 11 | Air consumption | 55L/min |

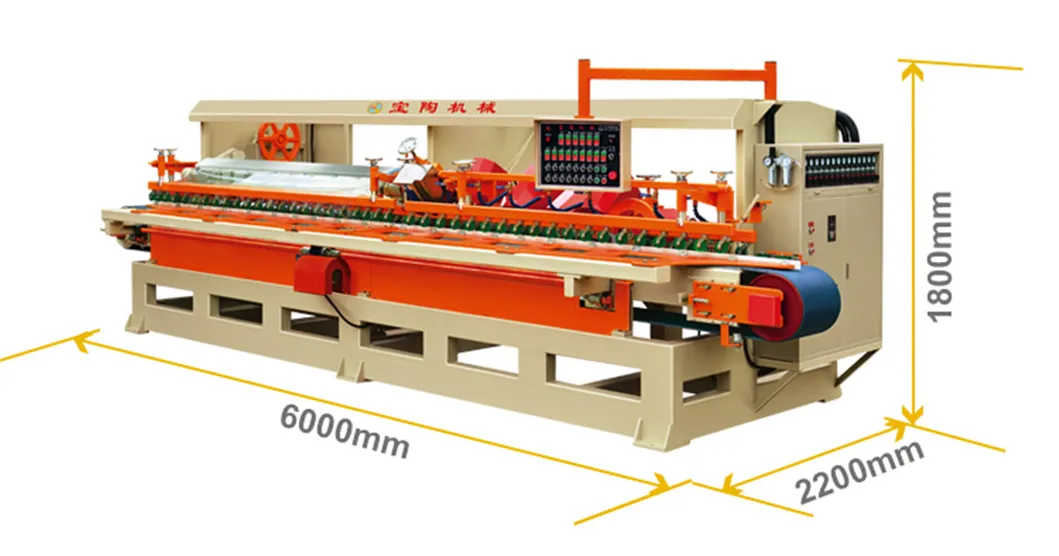

| 12 | Size | 6*2.2*1.8m |
| 13 | Total power | 38kw |
| 14 | Weight | 6200KG |
🏭 Manufacturer Overview
We are a leading manufacturer of ceramics, stone, glass, and deep processing machinery. Founded in 2005, we have over 14 years of R&D experience, our expert team ensures high-quality manufacturing, efficient management, and exceptional after-sales service.
Our main products include arc polishing machines, stone line polishing machines, CNC cutting machines, edge grinding machines, intelligent water knives, and other ceramic processing equipment. Our products are widely used across the globe, exported to Europe, the U.S., and Southeast Asia.
Frequently Asked Questions
How can I place an order?
You can contact us via our official communication channels or place an order through our online store.
What are the available payment methods?
We accept T/T bank transfers and various online payments including credit cards, PayPal, and Western Union.
What is the expected delivery timeframe?
Stock products ship within one week. Regular non-stock models take 14-20 working days, while customized orders range from 20-45 days.
What kind of warranty do you provide?
We offer a 6-month warranty for the whole machine and 1 year for the motor, along with lifetime free technical support.
What type of packaging is used for shipping?
We provide bare machine protection for fragile parts for free. Optional wooden cases, pallets, or steel pallets are available for an extra charge.
Can we visit your facility before ordering?
Yes, we warmly welcome you to visit our factory. We can assist with hotel arrangements and airport pick-up services.
