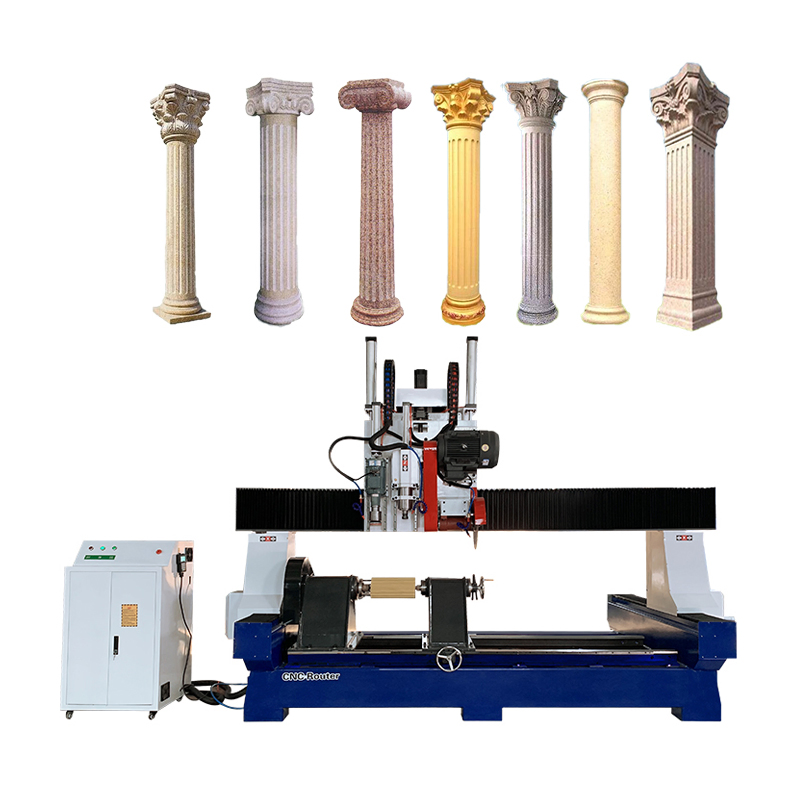

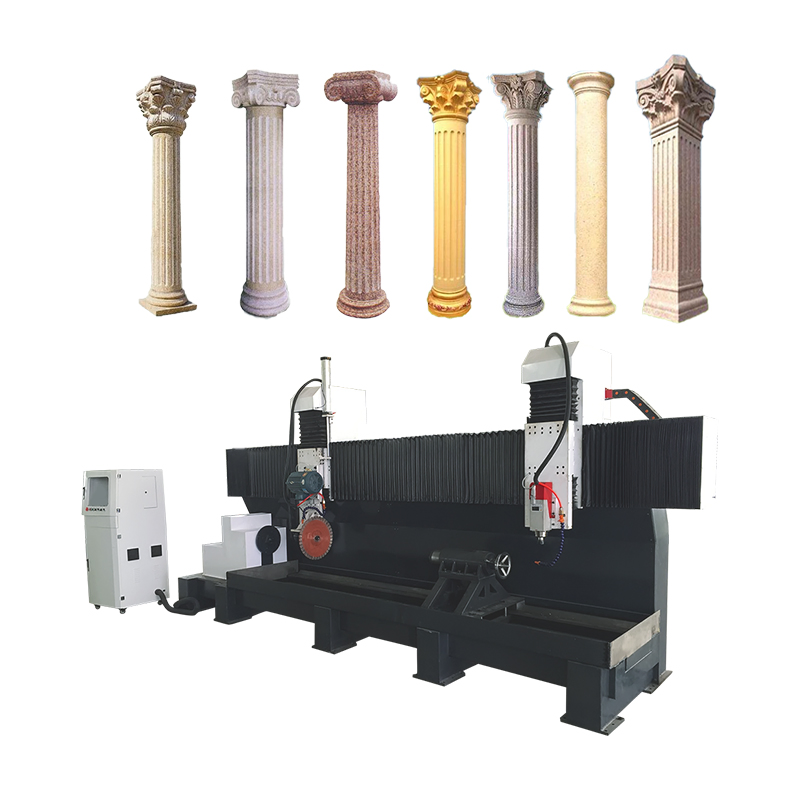

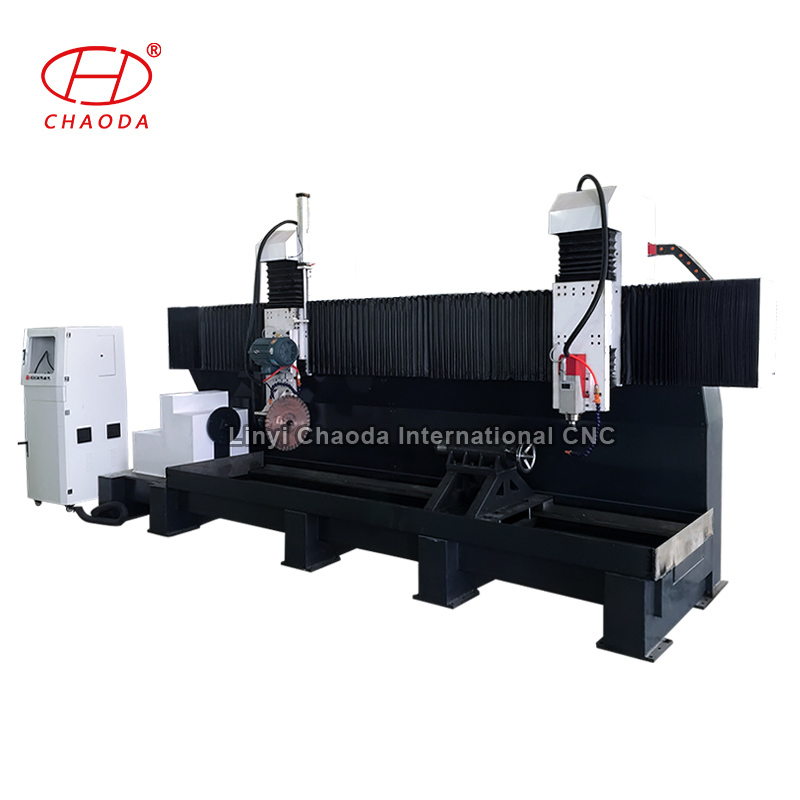

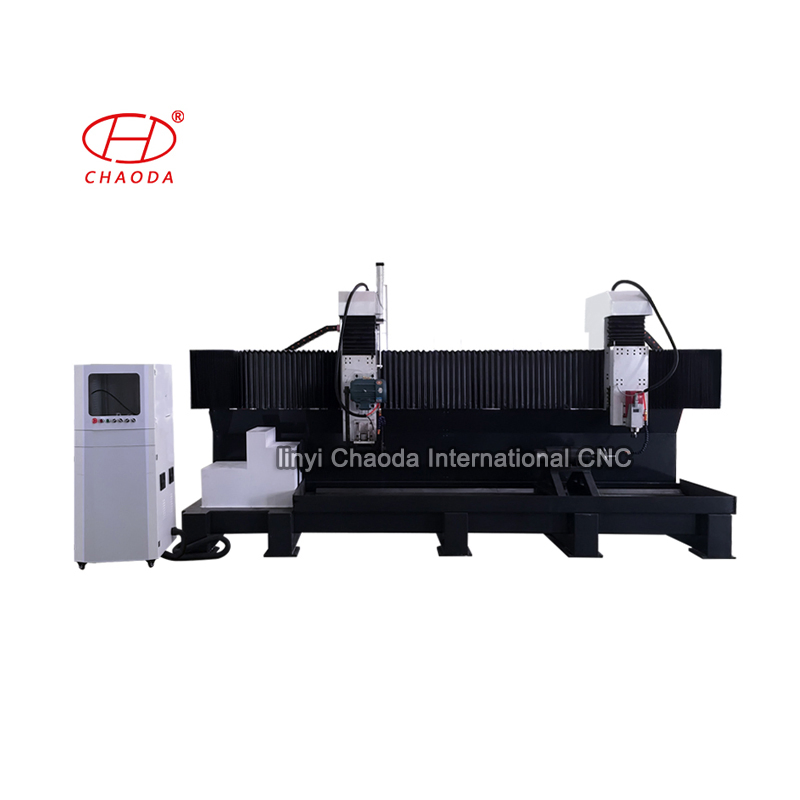

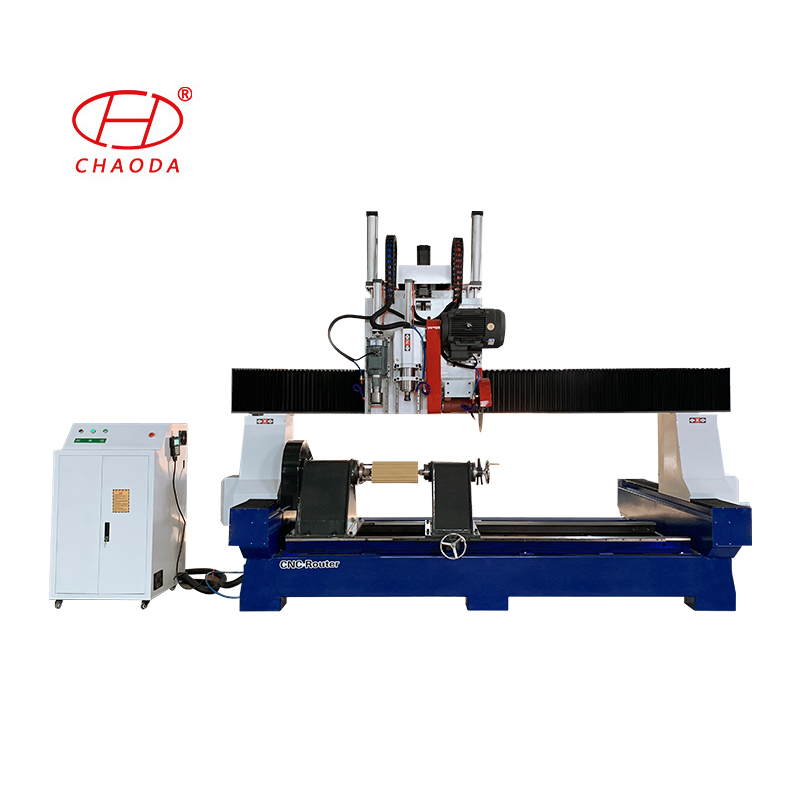

Big Marble Corbel Column Pillar Making Machine, Stone CNC Milling Machine with Big Rotary Lathe

Customization: Available
After-sales Service: Online Services
Warranty: 1 Year

Product Description

Big Marble Corbel Column Pillar Making Machine, Stone CNC Milling Machine with Big Rotary Lathe

Basic Specifications

Model NO.
JCS7030R
Function
Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering, Milling, Sculpturing
Application Material
Granite, Marble, Stone, Wood, Soft Metal, Plastic, EPS Foam
Automation
Automatic CNC
Motor Power
High Power Servo/Stepper
Current
AC
Working Size
700mm Diameter * 3000mm Length (Customizable)
Spindle Power
7.5kw Water Cooling Spindle
Operating System
3 Axis Ncstudio (4 Axis / 5 Axis Optional)
HS Code
8465990000
Production Capacity
100 sets/Month

Packaging & Delivery

Package Size
540.00cm * 220.00cm * 226.00cm
Gross Weight
3500.000kg
Stone CNC Milling Machine

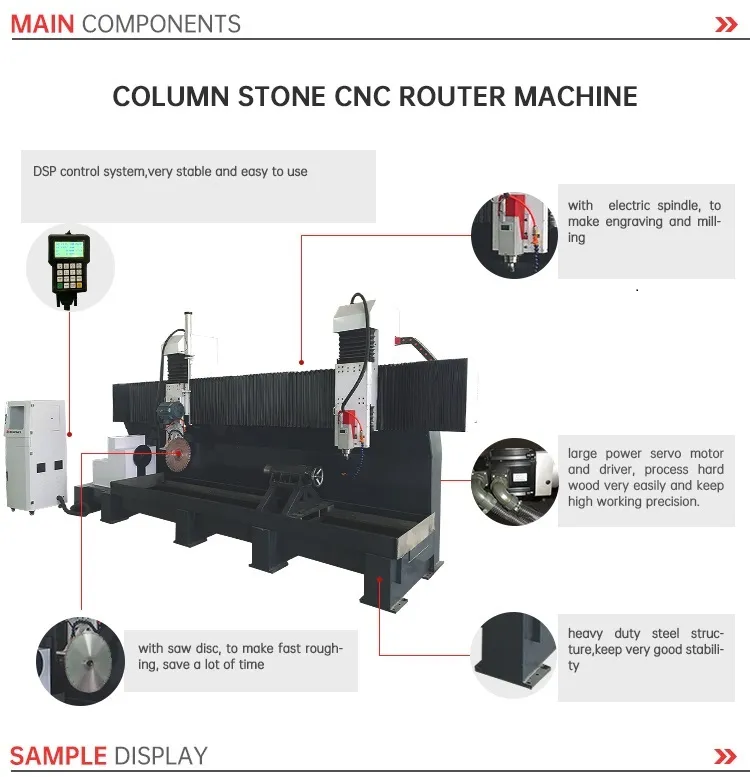

Key Features

  • Heavy duty steel structure ensures exceptional machine stability during high-speed operations.
  • High-performance components adopted for maximum durability and precision.
  • Equipped with a high-speed electrical spindle specifically designed for intricate engraving.
  • Includes a saw blade unit for rapid roughing and grooving processes.

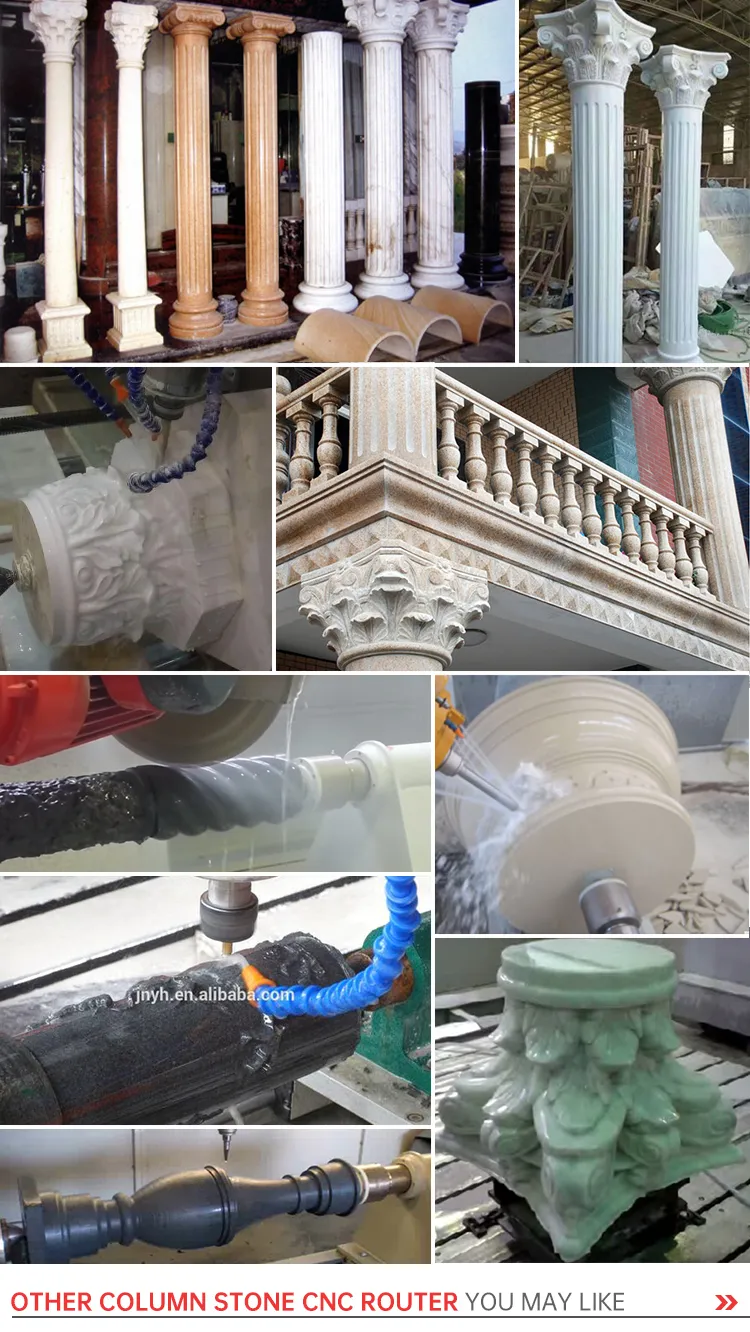

  • Integrated large rotary device for processing 3D roman columns, corbels, pilasters, and cylinders.
  • Fully customizable working dimensions to meet specific production requirements.
  • Available in 4-axis and 5-axis configurations for complex geometry.
Machine Detail
Parameter Specification
Model No.JC7030RP
Lathe BedHeavy duty steel structure
Working Size700mm diameter, 3000mm length (Customizable)
Spindle Power5.5 / 7.5 / 11KW
Spindle Speed12000 / 18000 / 24000rpm
Max Travelling Speed30m/min
Max Working Speed15m/min
Control SystemDSP / Ncstudio
Motor TypeStepper / Servo
Saw Blade UnitYes
Auto Oil SystemYes

Applicable Materials

This versatile CNC machine can process a wide range of materials including:

Marble, Granite, Stone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Grindstone, Jade, Crystal, Glass, Fiberglass, Acrylic, Wood, PVC, EPS Foam, Aluminum Composite Panels, Aluminum Blocks, and Copper.

Service & Support

  • Comprehensive sample testing conducted before every shipment.
  • Free 2-day operational training provided for each machine purchase.
  • 12-month standard warranty for complete peace of mind.
  • User-friendly English manuals and operation videos included.
  • Lifetime free technical support via phone, email, or remote assistance.
  • Engineers available for overseas machinery servicing if required.
Frequently Asked Questions
What is the maximum diameter and length this machine can handle?
The standard working size is 700mm in diameter and 3000mm in length, but this can be fully customized according to your specific production needs.
Can this machine process materials other than stone?
Yes, besides marble and granite, it is highly effective for wood, PVC, EPS foam, acrylic, and even soft metals like aluminum and copper.
Does the machine support 4-axis or 5-axis engraving?
The standard configuration is 3-axis with a rotary device, but we offer optional 4-axis and 5-axis systems for more complex 3D carvings.
How do I learn to operate the machine?
We provide a 2-day free training session, English operation manuals, and detailed instructional videos. Our technical support team is also available for remote assistance.
What is the purpose of the saw blade unit?
The saw blade unit is designed for fast roughing and grooving, which significantly improves efficiency before the fine engraving spindle takes over.
What kind of maintenance does the machine require?
The machine features an auto-oil system to simplify maintenance. Regular cleaning and ensuring the water cooling system for the spindle is active are the primary requirements.
