Multi Grinding Heads Automatic Stone Granite Marble Ceramic Tiles Arc Edge Grinding Polishing Machine
Multi Grinding Heads Automatic Stone Granite Marble Ceramic Tiles Arc Edge Grinding Polishing Machine
Multi Grinding Heads Automatic Stone Granite Marble Ceramic Tiles Arc Edge Grinding Polishing Machine
Multi Grinding Heads Automatic Stone Granite Marble Ceramic Tiles Arc Edge Grinding Polishing Machine
Multi Grinding Heads Automatic Stone Granite Marble Ceramic Tiles Arc Edge Grinding Polishing Machine
1 / 5
Multi Grinding Heads Automatic Stone Granite Marble Ceramic Tiles Arc Edge Grinding Polishing Machine
Multi Grinding Heads Automatic Stone Granite Marble Ceramic Tiles Arc Edge Grinding Polishing Machine
Multi Grinding Heads Automatic Stone Granite Marble Ceramic Tiles Arc Edge Grinding Polishing Machine
Multi Grinding Heads Automatic Stone Granite Marble Ceramic Tiles Arc Edge Grinding Polishing Machine
Multi Grinding Heads Automatic Stone Granite Marble Ceramic Tiles Arc Edge Grinding Polishing Machine

Multi Grinding Heads Automatic Stone Granite Marble Ceramic Tiles Arc Edge Grinding Polishing Machine

Customization: Available
After-sales Service: Provide Online Services
Warranty: 1years
Send Inquiry

Product Description

📋

Basic Information

Model NO.BT1200
TypeStone Grinding Machine
ControlCNC
AutomationAutomatic
PrecisionHigh Precision
ConditionNew
Total Power37.2kw
Weight6200kg
CertificationISO, CE
OriginChina
Arc Edge Grinding Machine Multi Grinding Heads Automatic Grinding Detail
⚙️

Product Description

14 Heads Ceramic Tile Bullnose Polishing Machine
Automatic ceramic tiles arc edge grinding polishing machine designed for Ceramic and Stone Tiles. It excels in creating bullnose edges, bevels, squared edges, 45-degree tilers, anti-slip grooves, and processing for stair treads, skirting, and flooring tiles.
🎯

Main Purposes

  • Polishing Arc-edge range reaches 1/4 (90°).
  • Full automatic processing of flat-edge, bevel-edge, and round-edge.
  • Processing thickness is compatible up to 35mm.
  • Gloss finish reaches more than 90°, exceeding original surface gloss.

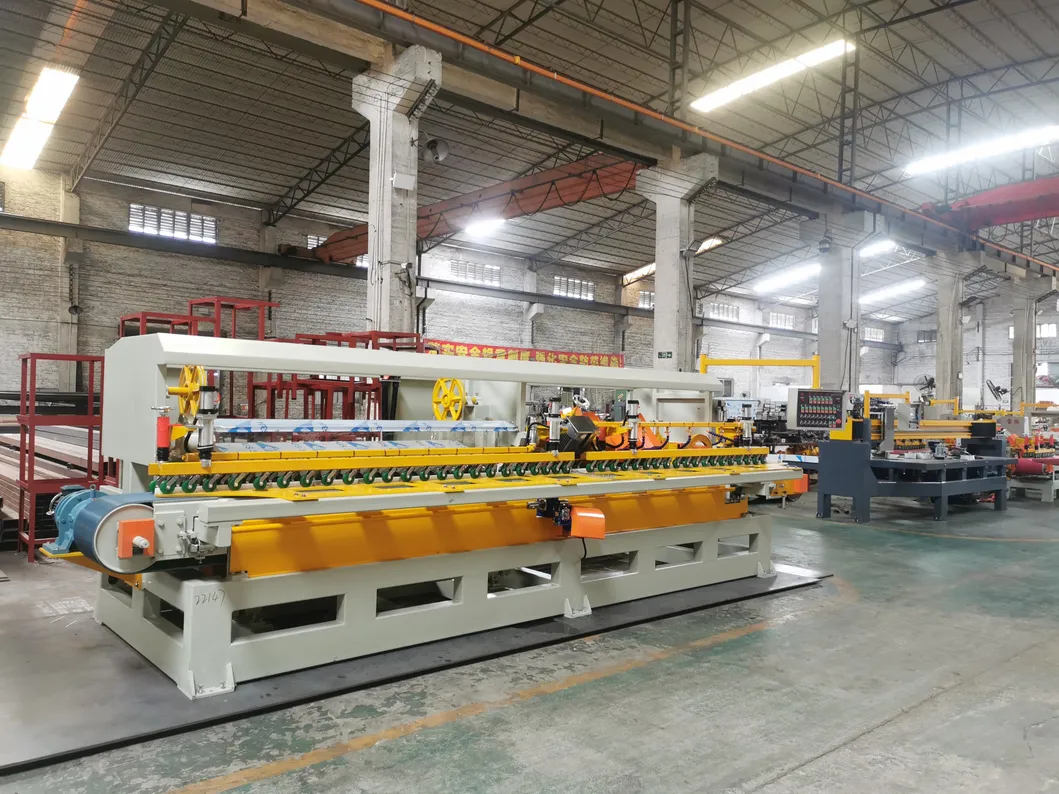

Machine Overview
📊

Technical Parameters

No Item Parameters
1Conveyor belt300mm
2Processing speed1.5-7.5m/min
3Cutting thickness6-20mm
4Working width100-1200mm
5Nos. of polishing head14pc
6Nos. of chamfering head5pc
7Diameter of polishing wheelφ120mm
8Diameter of chamfering wheelφ200mm
9Water consumption490L/min
10Electricity consumption23kw/h
11Air consumption55L/min

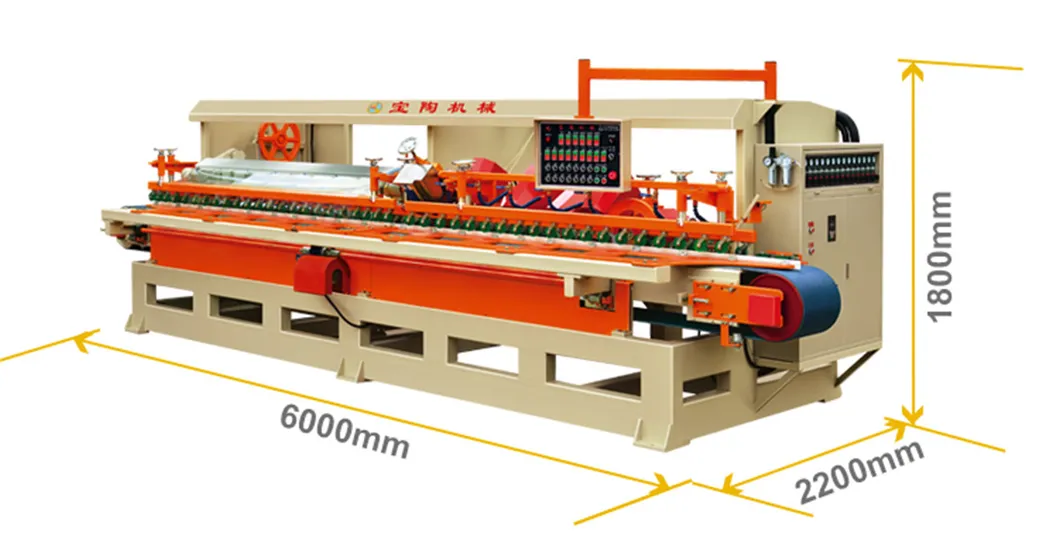

12Size6*2.2*1.8m
13Total power38kw
14Weight6200KG

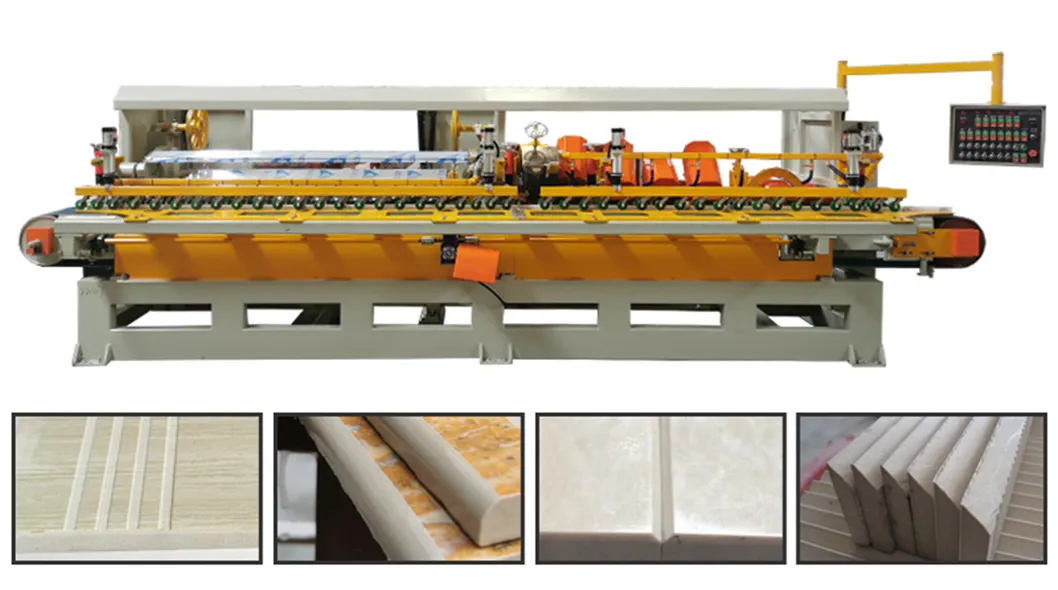

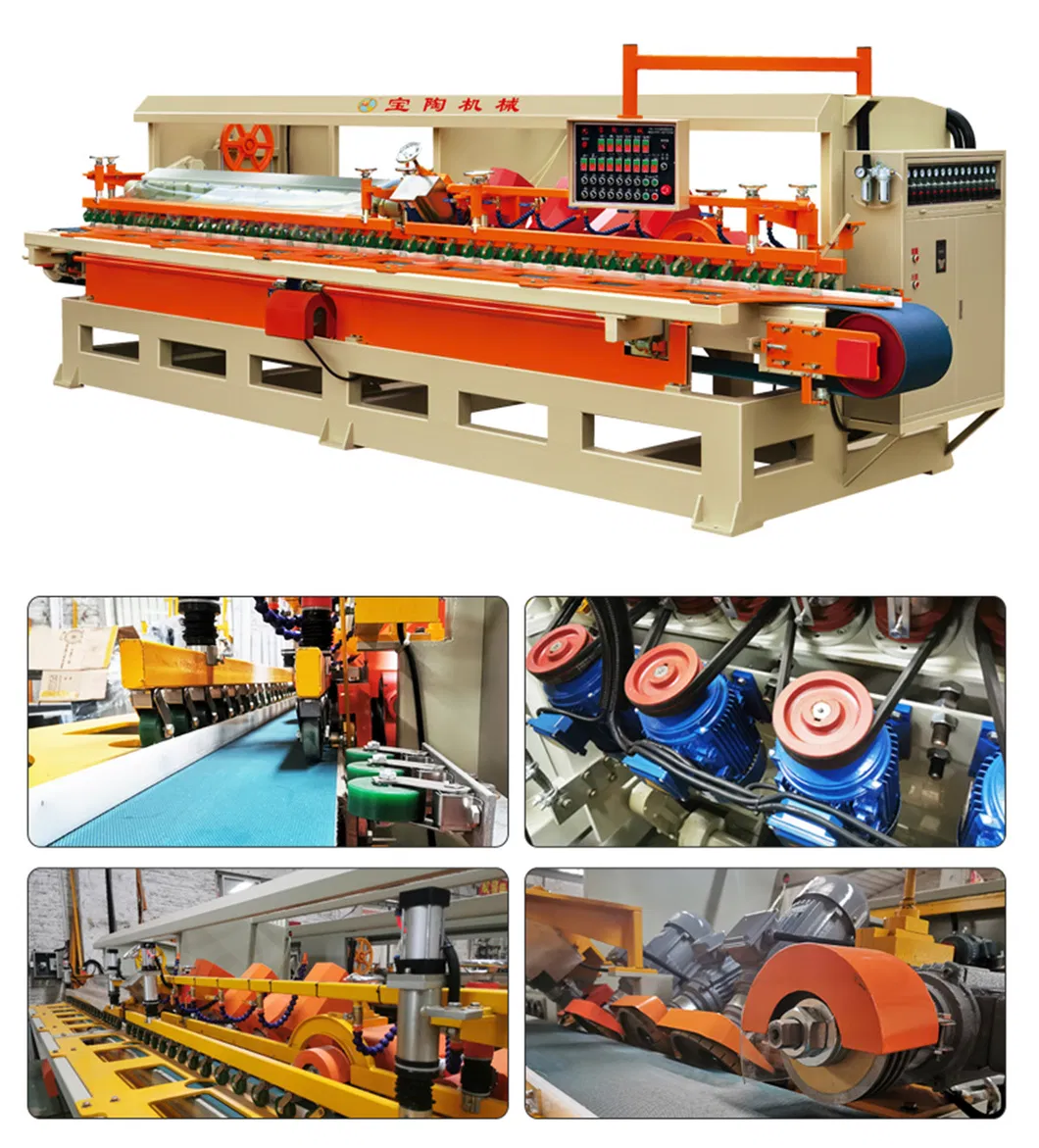

Polishing Detail Processing Results Machine Structure

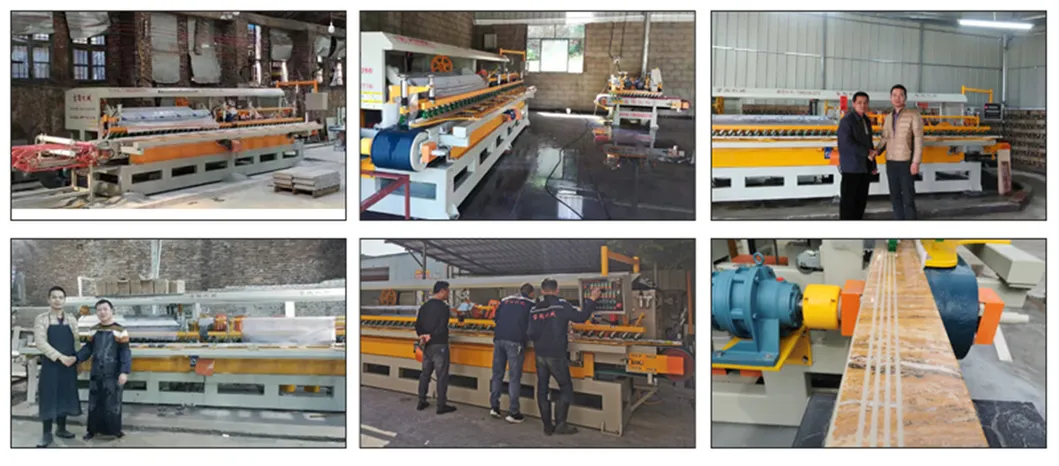

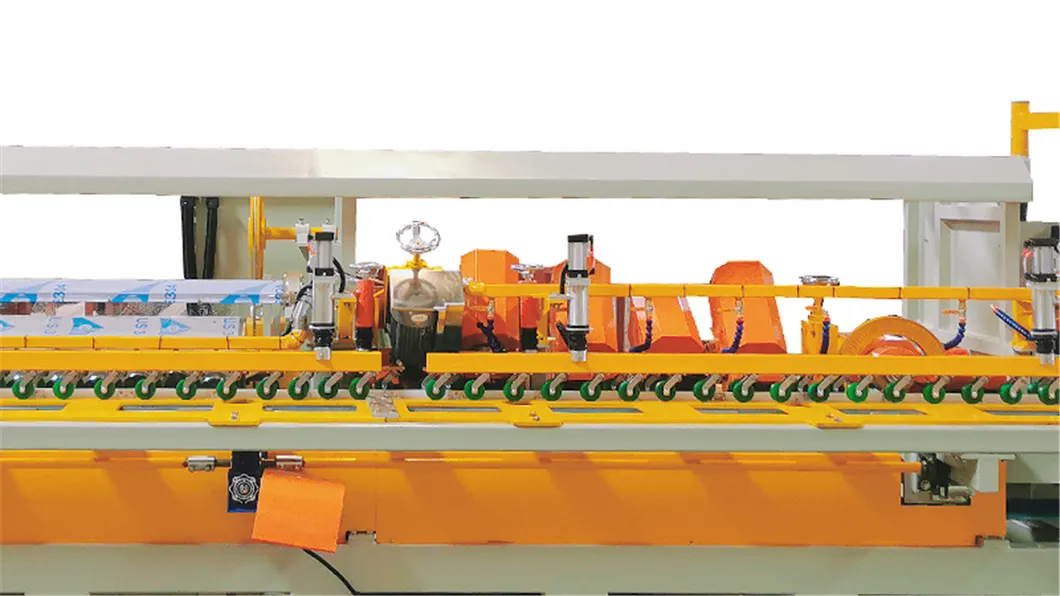

Machine Component Tile Finishing Production Line
Final Product Showcase
🏭

Manufacturing Excellence

With over 14 years of R&D, our expert team ensures high-quality manufacturing, efficient management, and exceptional after-sales service. Our main products include arc polishing machines, stone line polishing machines, CNC cutting machines, edge grinding machines, intelligent water knives, and other ceramic processing equipment.

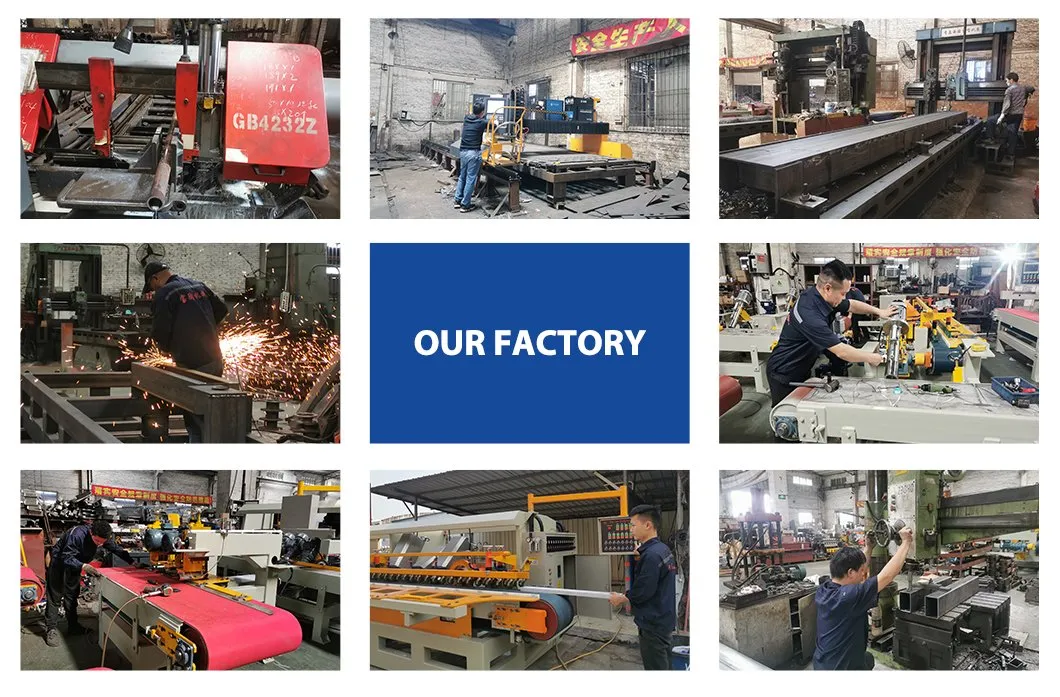

Workshop Manufacturing Equipment Setup
❓

Frequently Asked Questions

How can I place an order?
You can contact us via messaging apps or place an order through our online store.
What are the payment options?
We accept T/T bank transfers and various online payment methods including credit cards, PayPal, and Western Union.
What is the delivery timeline?
In-stock products are shipped within one week. Regular non-stock models take 14-20 working days, and customized orders require 20-45 days.
What is the warranty period?
We provide a 6-month warranty for the whole machine and 1 year for the motor, plus lifetime free technical support.
What kind of packaging is provided?
Bare machines include free protection for fragile parts. Optional wooden cases or steel pallets are available for an extra charge.
What after-sales services do you offer?
We have a professional team to assist with machine setup, workshop planning, and provide free training or tutorial guidance.
