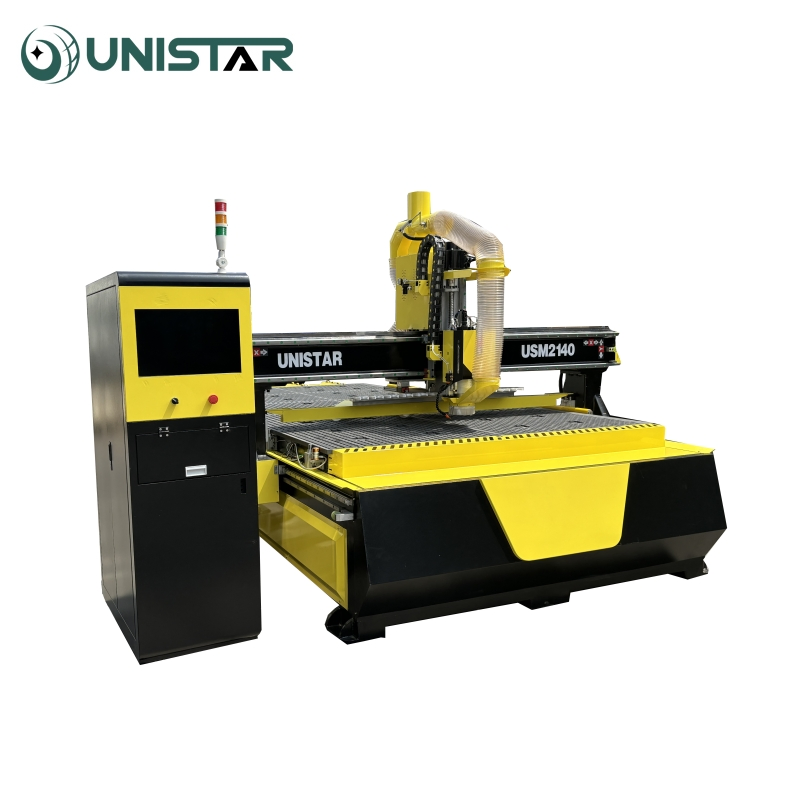

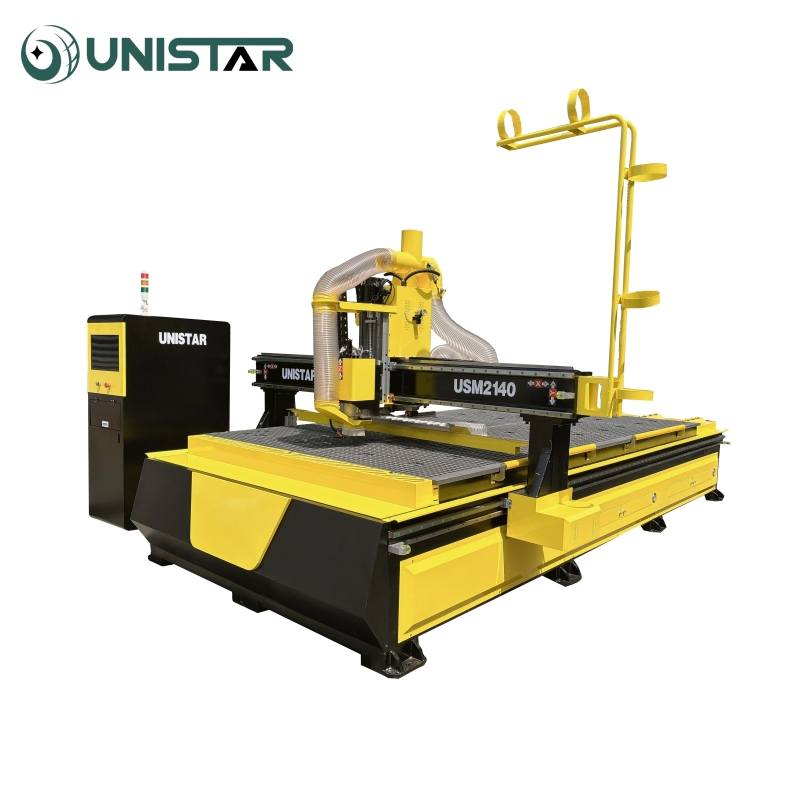

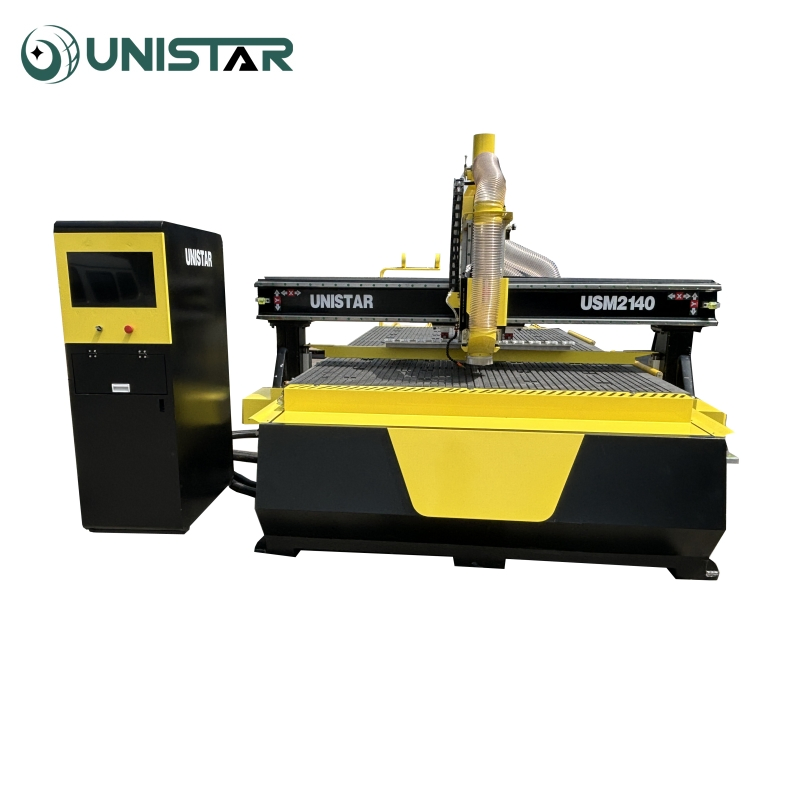

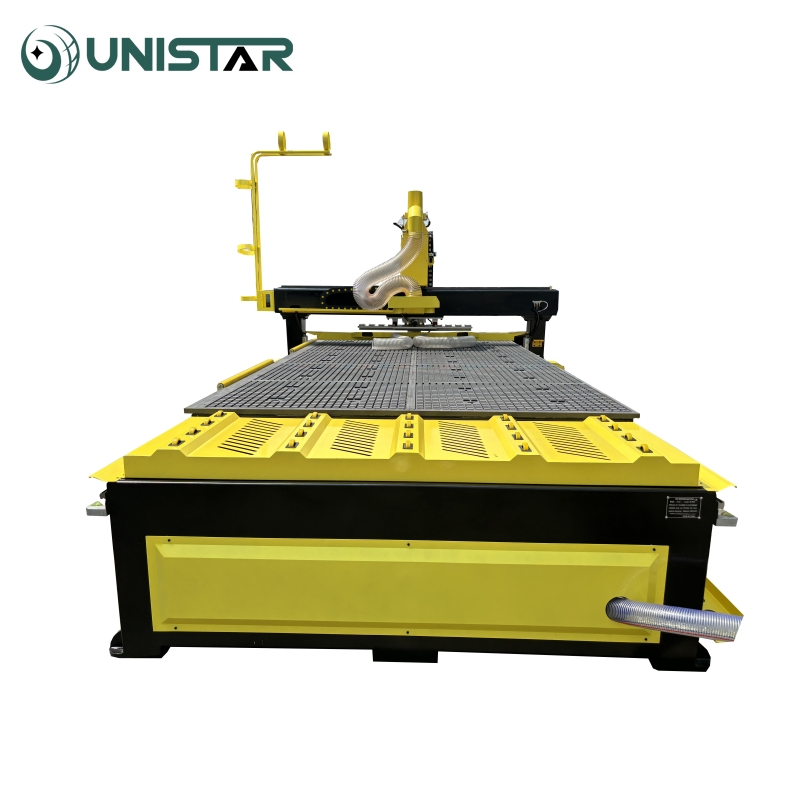

Atc 3D CNC Woodworking Wood Carving Router 1325 1530 2140 with Linear Type Auto Tool Changer 4 Axis Optional Double Head Four Head Optional
Atc 3D CNC Woodworking Wood Carving Router 1325 1530 2140 with Linear Type Auto Tool Changer 4 Axis Optional Double Head Four Head Optional
Atc 3D CNC Woodworking Wood Carving Router 1325 1530 2140 with Linear Type Auto Tool Changer 4 Axis Optional Double Head Four Head Optional
Atc 3D CNC Woodworking Wood Carving Router 1325 1530 2140 with Linear Type Auto Tool Changer 4 Axis Optional Double Head Four Head Optional
Atc 3D CNC Woodworking Wood Carving Router 1325 1530 2140 with Linear Type Auto Tool Changer 4 Axis Optional Double Head Four Head Optional
1 / 5
Atc 3D CNC Woodworking Wood Carving Router 1325 1530 2140 with Linear Type Auto Tool Changer 4 Axis Optional Double Head Four Head Optional
Atc 3D CNC Woodworking Wood Carving Router 1325 1530 2140 with Linear Type Auto Tool Changer 4 Axis Optional Double Head Four Head Optional
Atc 3D CNC Woodworking Wood Carving Router 1325 1530 2140 with Linear Type Auto Tool Changer 4 Axis Optional Double Head Four Head Optional
Atc 3D CNC Woodworking Wood Carving Router 1325 1530 2140 with Linear Type Auto Tool Changer 4 Axis Optional Double Head Four Head Optional
Atc 3D CNC Woodworking Wood Carving Router 1325 1530 2140 with Linear Type Auto Tool Changer 4 Axis Optional Double Head Four Head Optional

Atc 3D CNC Woodworking Wood Carving Router 1325 1530 2140 with Linear Type Auto Tool Changer 4 Axis Optional Double Head Four Head Optional

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊

Basic Specifications

Model NO.
USM-2140
Certification
GS, CE, RoHS, ISO 9001
Usage
Woodworking
Control
CNC
Drive Type
AC Servo Drive
Working Area
2100*4000mm
Spindle
HQD Air Cooling ATC Spindle
Control System
Taiwan Syntec Control System
Tool Magazine
12 Slots
Inverter
Delta Inverter
📝

Product Description

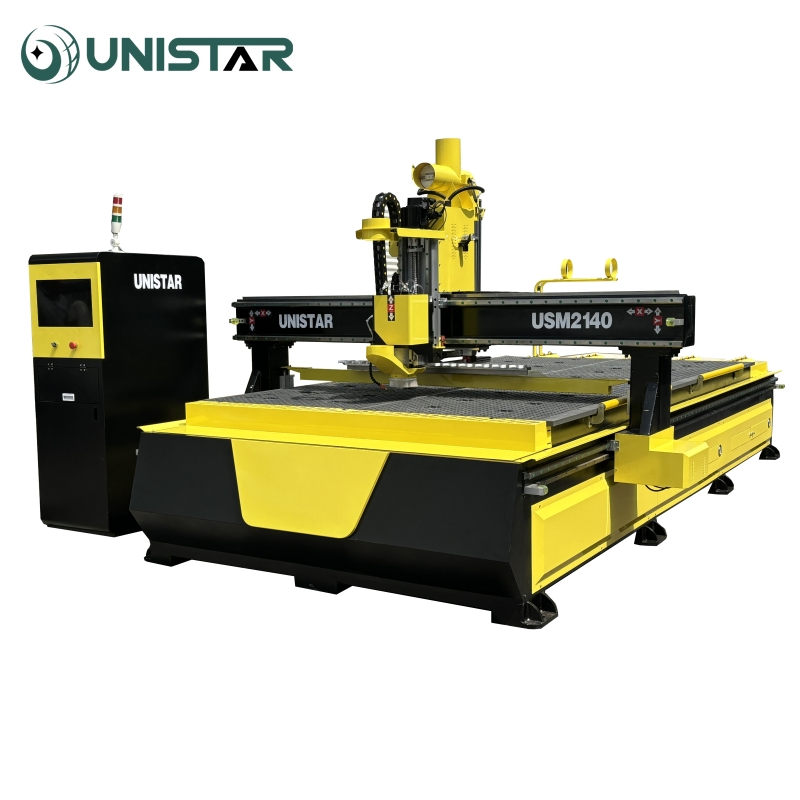

ATC 3D CNC Woodworking Wood Carving Router with Linear Auto Tool Changer

CNC Wood Router

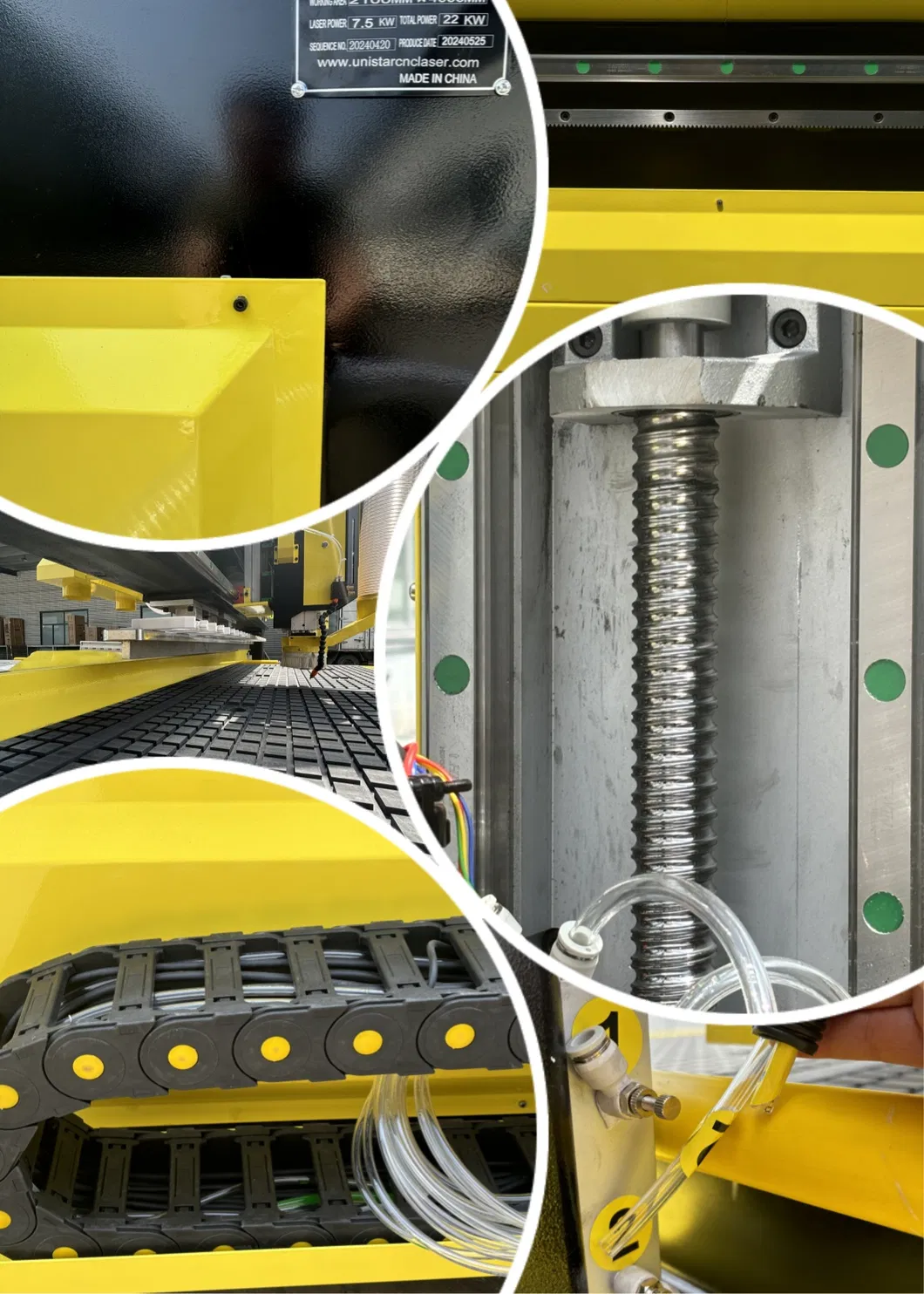

Wood Carving Machine

⚡ Core Features:

  • High-performance machine with extraordinary value at an economical price.
  • World-class components ensuring consistent high performance.
  • Italian high-frequency air-cooling electronic spindle.
  • Advanced world-class servo motor and driving system.
  • Rigid vacuum table with grids and T-slots for maximum hold-down power.
🏭

Applicable Industries

🪑 Furniture

Wooden doors, cabinets, office furniture, tables, chairs, windows, and plate processing.

🎸 Wood Products

Voice boxes, game cabinets, computer tables, instruments, and sewing machine tables.

🧪 Plate Processing

Insulation parts, PCB, car inner bodies, epoxy resin, ABS, PP, PE, and carbon mixed compounds.

🎨 Decoration & Advertising

Acrylic, PVC, MDF, stone, organic glass, signage, trademarks, and soft metal engraving (copper/aluminum).

⚙️

Technical Parameters

Products Name2140 Linear Automatic Tool Changer CNC Router
Working Area2100*4000*200mm
Spindle9KW HQD Tool Changer Air Cooling Spindle
Machine BodyHeavy duty structure weld steel (10mm thickness), Tempered sandblasted rust-proof
Control SystemTaiwan Syntec Control System
Motor and DriverLeadshine Servo Motor and Drivers 1KW
InverterTaiwan Delta Inverter 11KW
Tool Magazine12 Pieces (Linear Type)
TransmissionX/Y Axis: High Precision Helical Rack; Z Axis: Taiwan TBI Ball Screw
Traveling Speed60m-80m/min
Processing Speed25m/min
Accuracy±0.02mm
🔧

Component Introduction

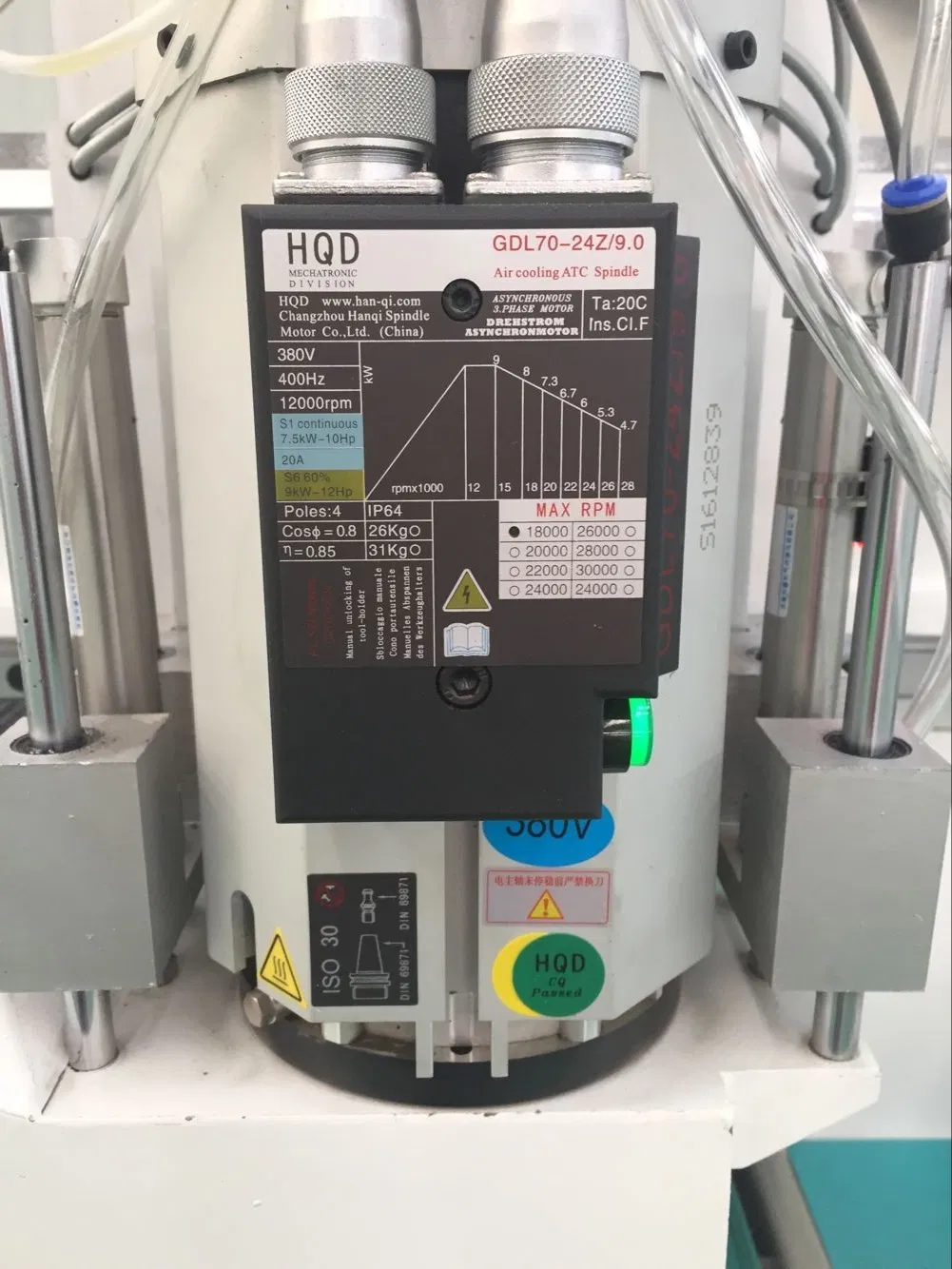

Italian High-Speed Spindle

The spindle is the heart of the machine. We utilize high-rated HQD spindles providing unrivaled speed and performance (9KW rated units).

Spindle

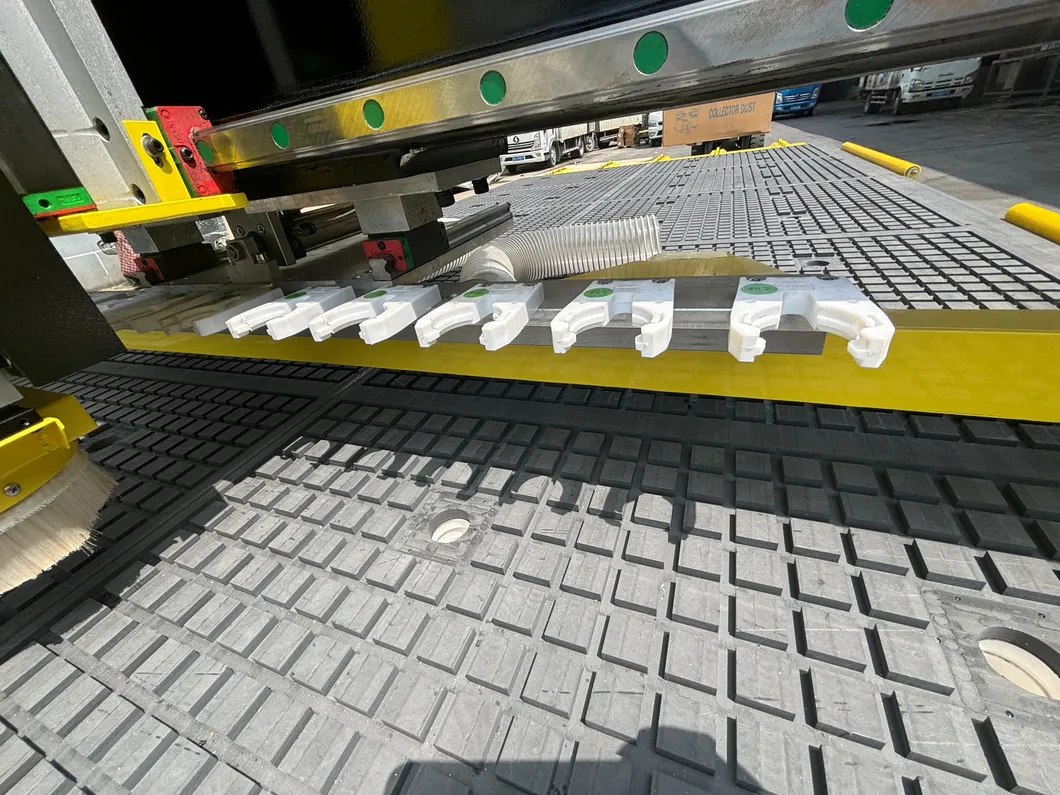

Linear ATC

Linear Tool Changer

Swaps tools on the fly during operation. The software automatically locates the correct tool from the rack (up to 12 tools), drastically reducing manufacturing time.

Taiwan Syntec Control System

Equipped with the world-famous Syntec system for more convenient operation and higher precision throughout the machining process.

Control System

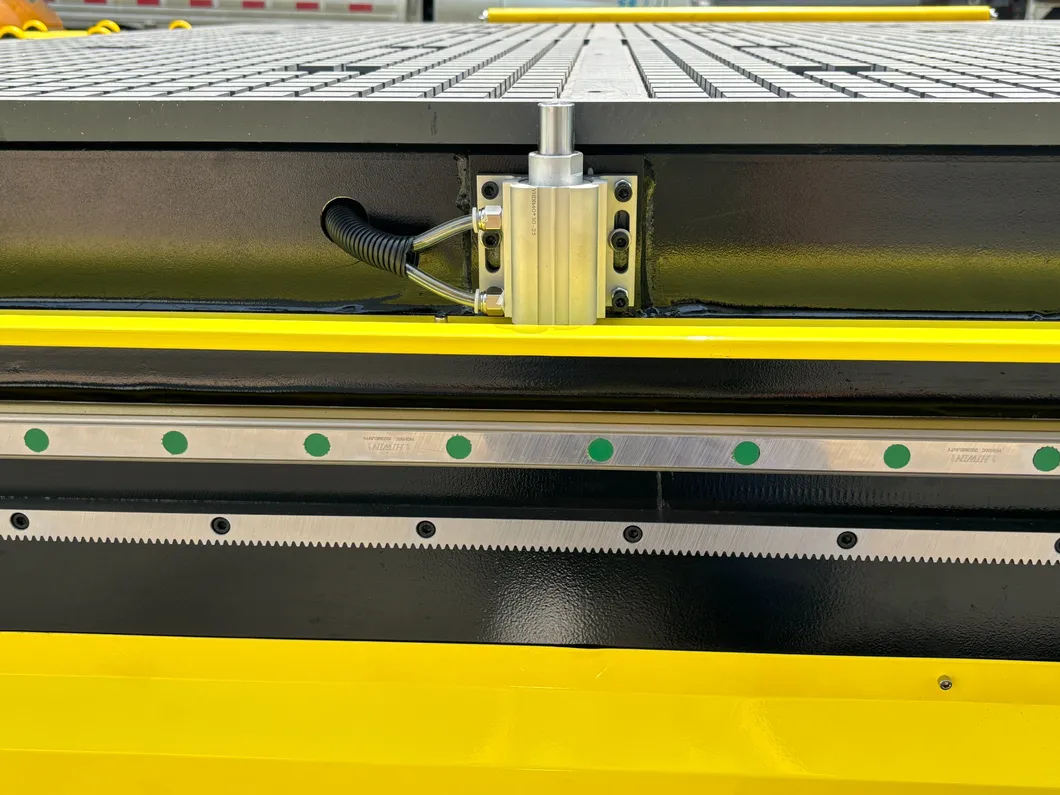

Positioning Cylinder

Positioning Air Cylinder

Simplifies operation by ensuring consistent feeding positions. Includes "out-of-line" protection to prevent tool collisions and ensure safety.

🖼️

Processing Samples

Sample 1
Sample 2
Sample 3
Sample 4
❓

Frequently Asked Questions

What is the advantage of an Automatic Tool Changer (ATC)?
An ATC reduces production time by automatically changing cutters between tool paths, eliminating the need for manual intervention and tool zeroing.
Can this machine handle both vacuum and mechanical clamping?
Yes, the machine features a vacuum absorption and T-slot combined table, allowing you to use vacuum power for large sheets or manual clamps for specialized workpieces.
What materials can the CNC router process?
It is highly versatile and can process wood, MDF, acrylic, PVC, plastic, and soft metals like copper and aluminum.
Is the machine suitable for 3D carving?
Absolutely. With the 4-axis optional upgrade and high-precision control system, it is ideal for complex 3D carvings and embossed medal designs.
What kind of software is compatible with this system?
The machine is compatible with mainstream software including Type 3, Artcam, Ucancam, and Alphacam.
How does the positioning cylinder improve workflow?
It ensures the same feeding position every time, eliminating the need to repeatedly define the origin of the workpiece and saving significant setup time.
