3*2m Abrasive Steel Pipe 350mm Carbon Steel Cut AC 5 Axis CNC Water Jet Equipment Hydro Cutting Machine

Customization:	Available
After-sales Service:	Yes
Warranty:	2 Years

Basic Specifications

Model NO.

WMT3020-ZL

Certification

CE

Type

Five-Axis

Maximum Pressure

420 MPa

Application

Metal, Rubber, Ceramic, Glass, Stone, Plastic, Leather

Power Source

Electric

Style

Gantry

Weight

3500 Kg

Voltage

380V/220V/415V

Motor & PLC

Siemens

Product Description

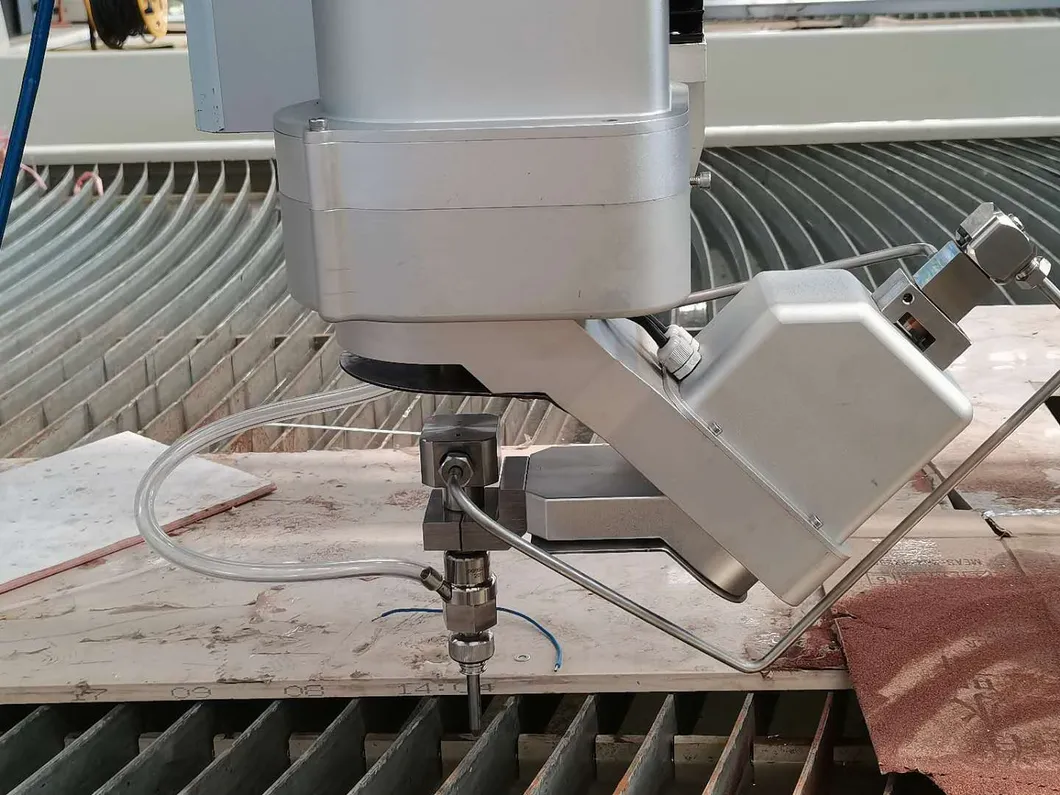

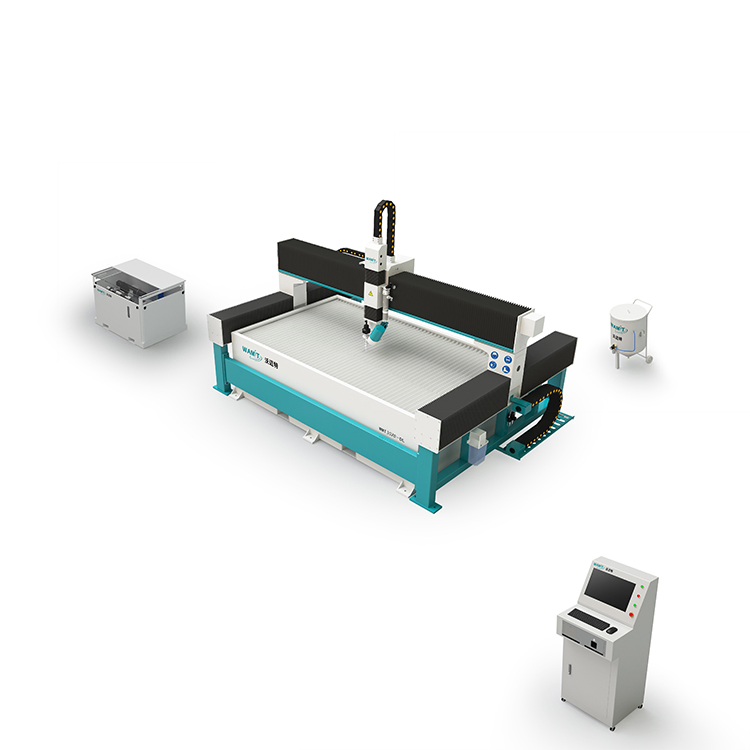

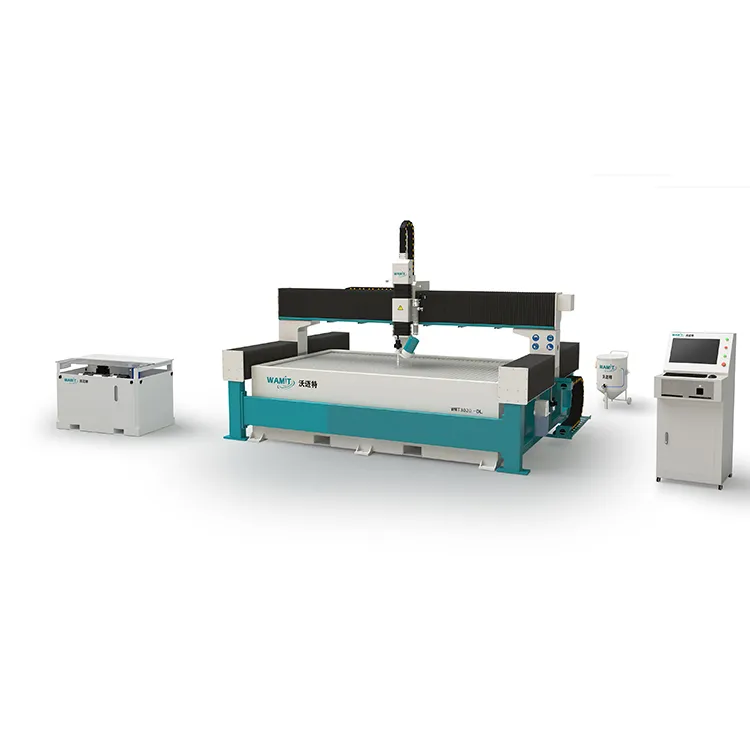

3*2m AC 5 Axis CNC Water Jet Equipment

ENERGY SAVING: Our direct drive pump can save your 60%-70% electricity cost!

Key Advantages

2 years (2000 hours) warranty with CE certificate.
Flow type ECL cutting head: Efficiency is at least 10% higher.
New technology: Moving speed up to 30m/min (normal is 6m/min).
Soft cover for linear guiders to prevent dust and maintain precision.
Auto oil feeding system for maintenance-free operation.

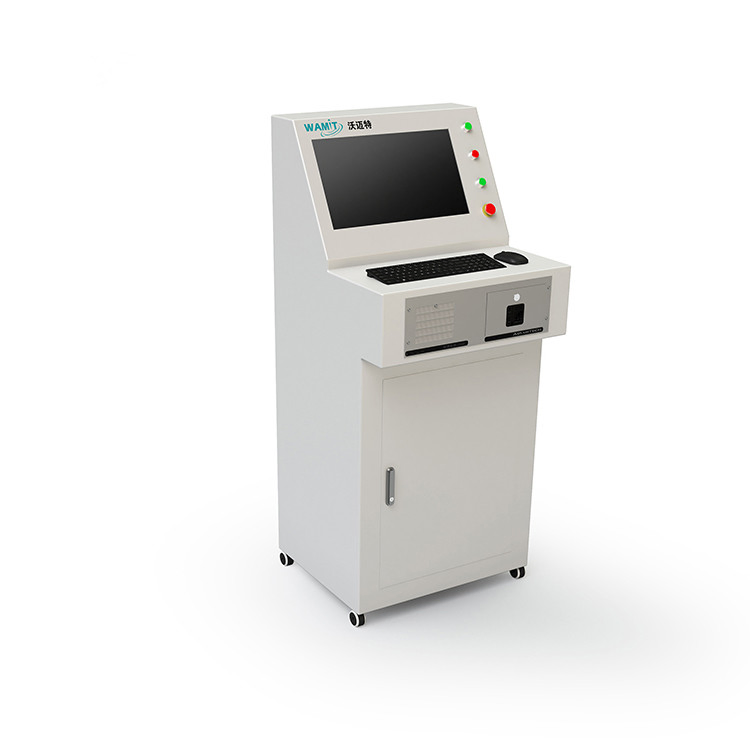

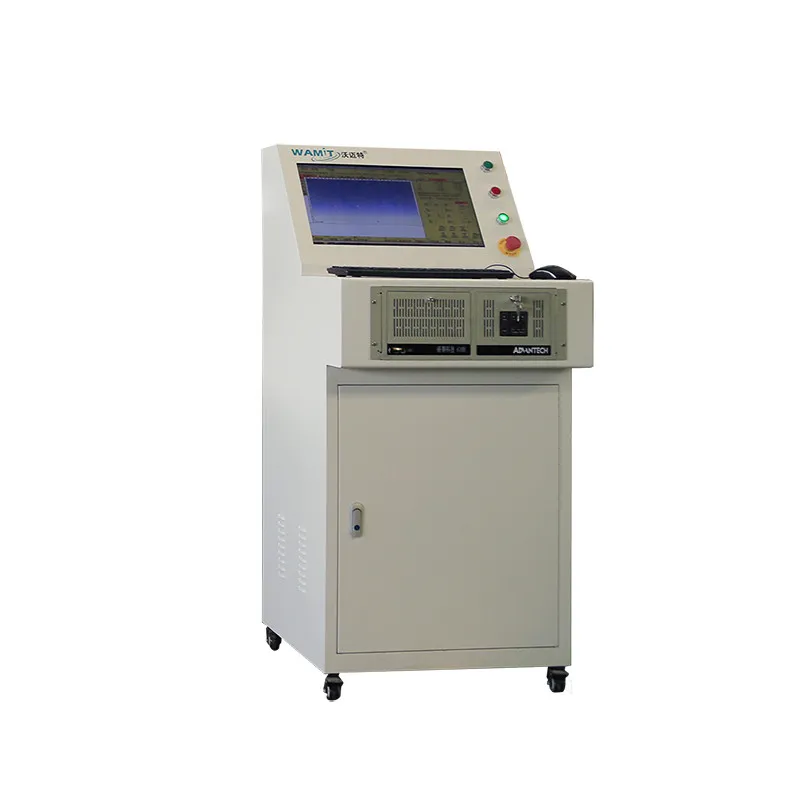

Equipped with remote control pendent.
420MPa pump with 37KW Siemens motor.
Schneider electric components and Japan Yaskawa servo motor.
Imported Taiwan Hiwin ball screw and America intensifier.

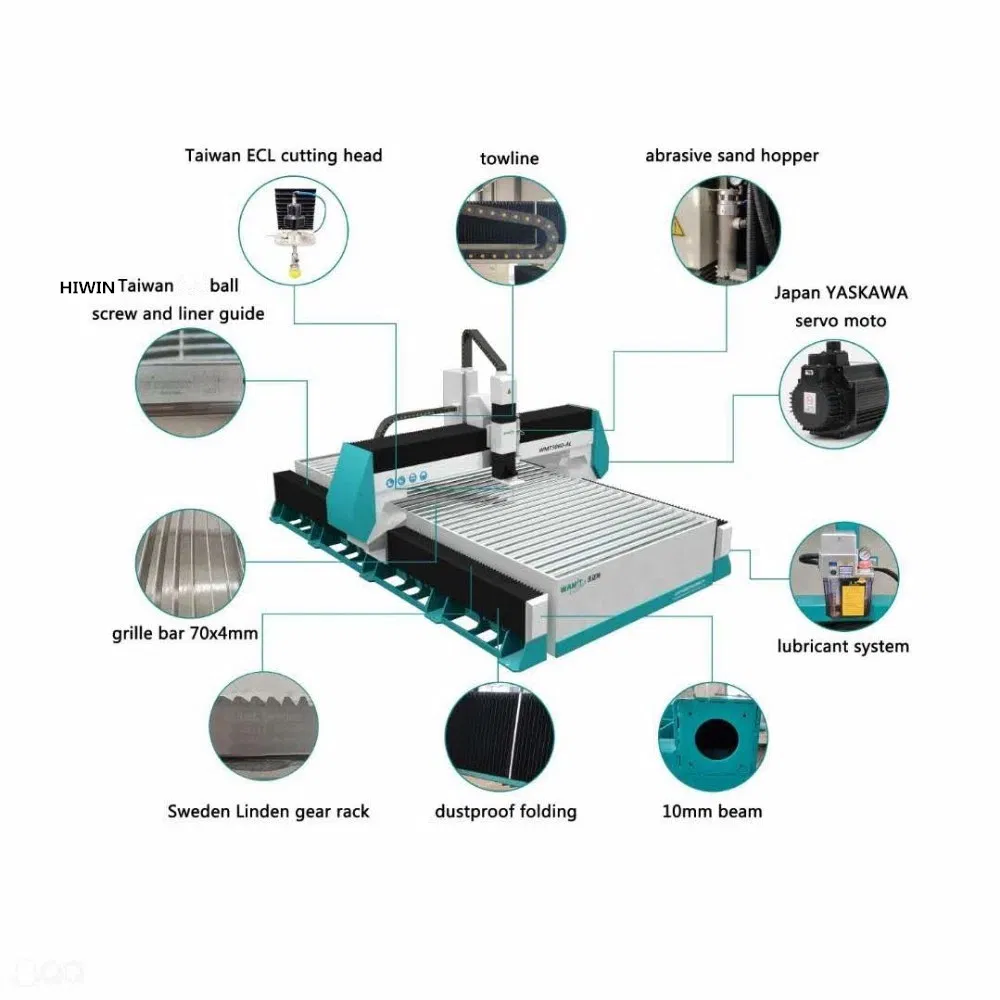

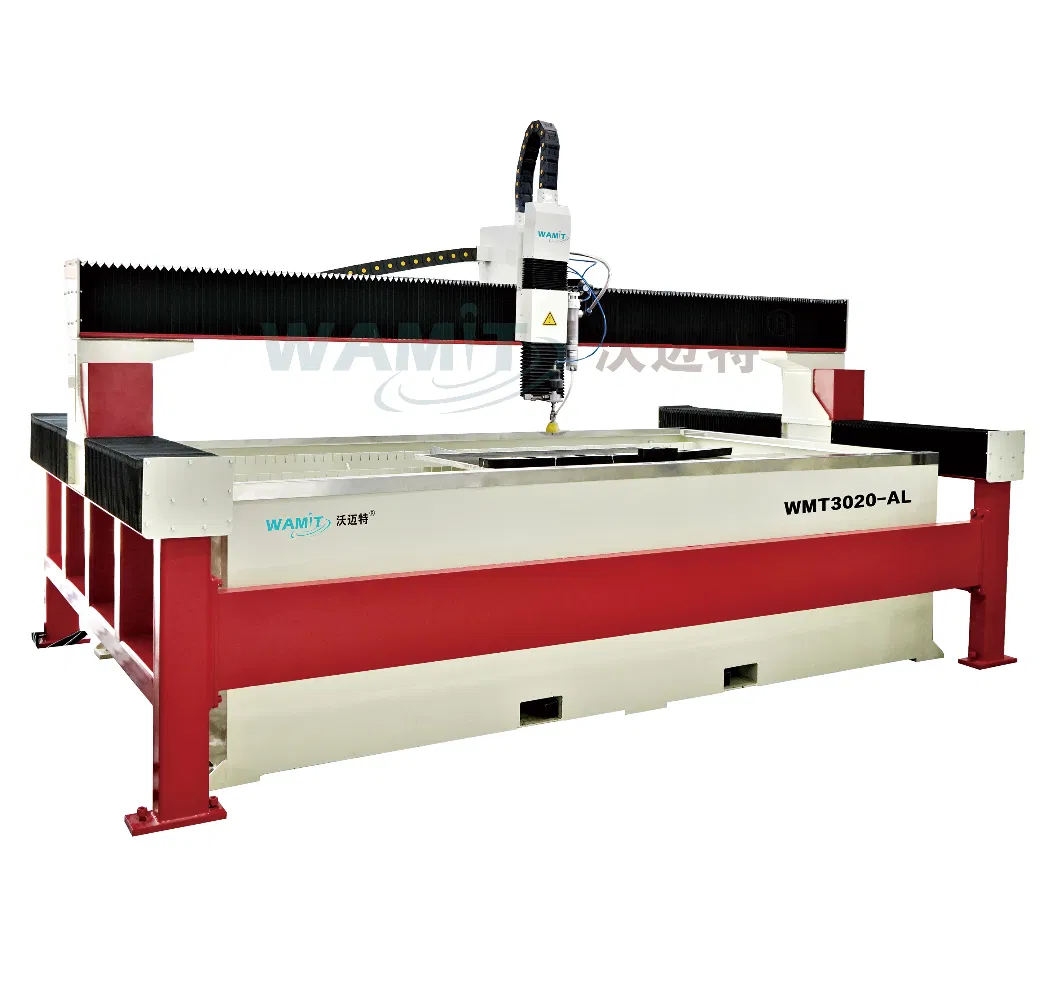

Cutting Table Features

Gantry type balanced design: Solid and stable with higher strength.
Split structure: Eliminates water gushing influence on precision.
X/Y Axis: High-quality rack and pinion with TBI rail.
Z-Axis: Fully enclosed lifting structure prevents corrosion.
Integrated automatic lubrication system.

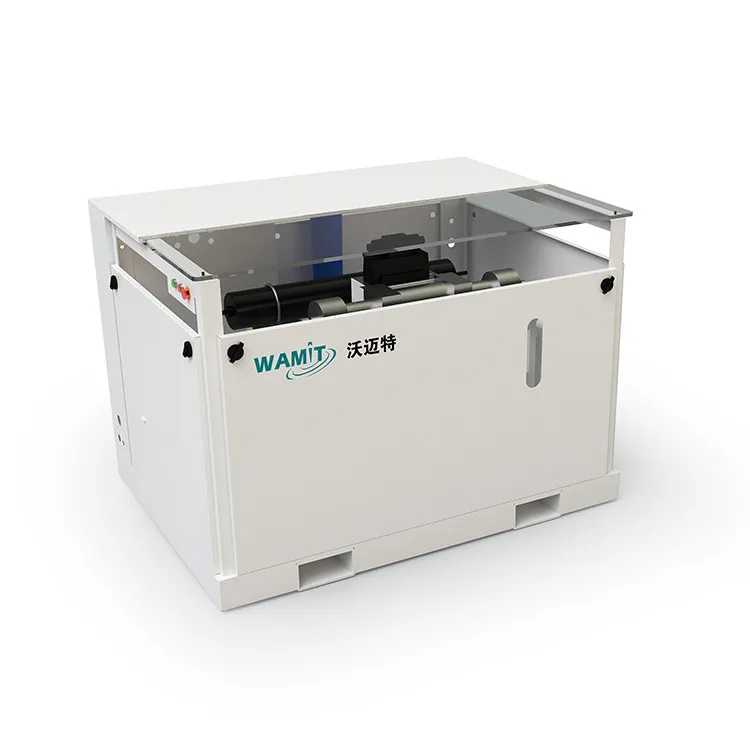

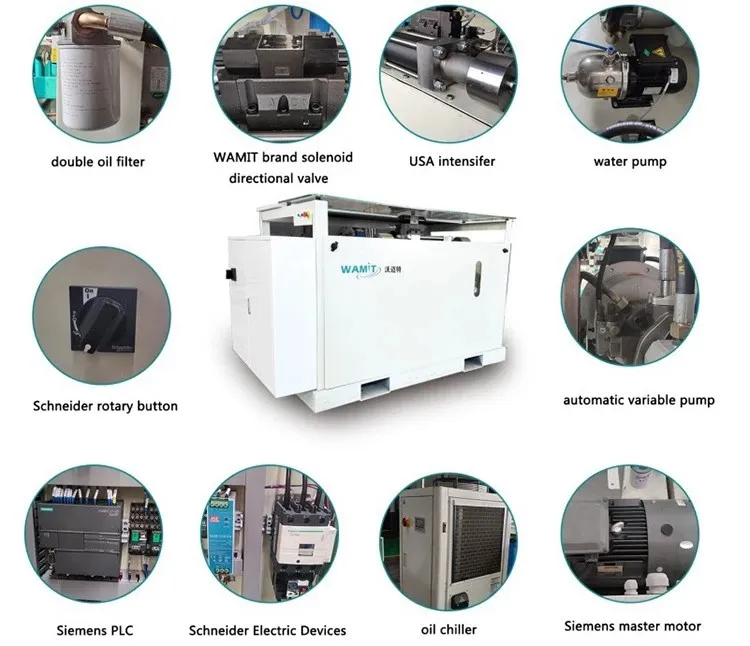

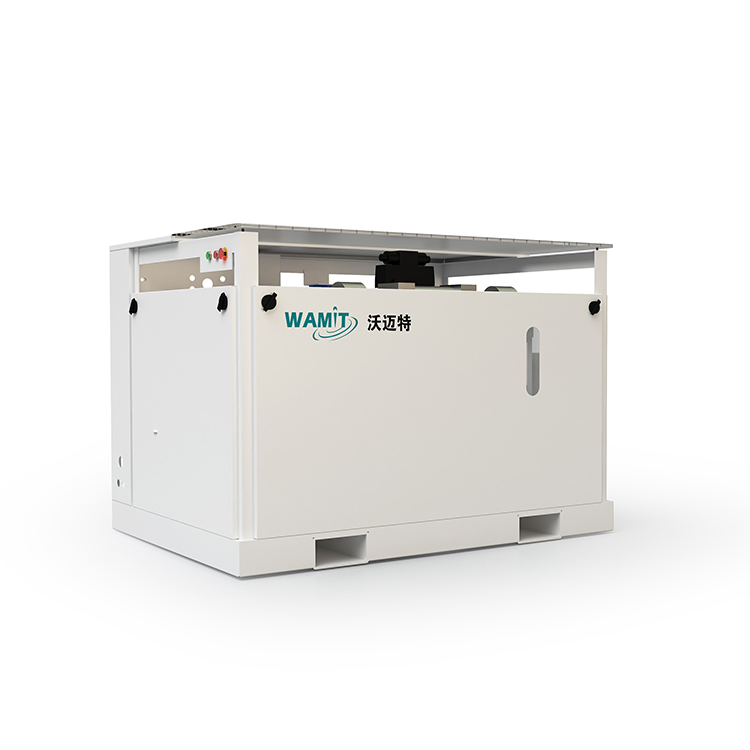

60000PSI (420MPa) Intensifier Pump

Max Water Discharge

3.8 L/min

Max Orifice Dia.

0.33 mm

Operating Pressure

350-380 MPa

Power Requirement

37KW, 380V/50HZ

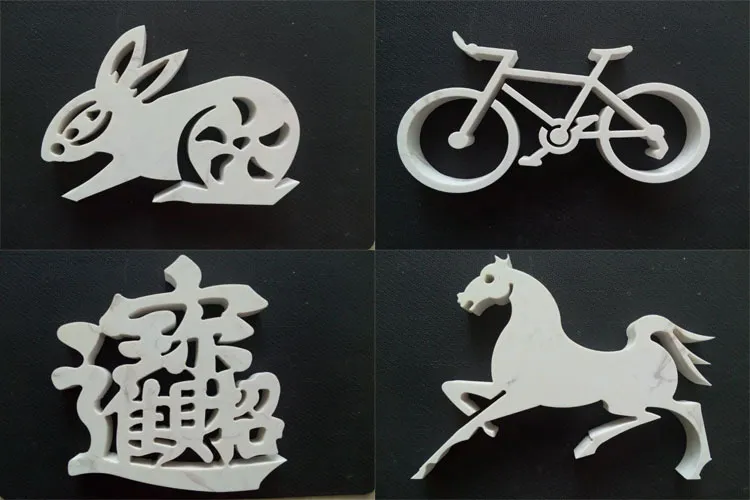

Applicable Materials

Alloy SteelAluminumBrass Cast IronCopperStainless Steel TitaniumCeramicsComposites GlassAcrylicsRubber MarbleGranitePVC

Cutting Speed Reference

Material	Thickness	Servo Pump (mm/min)	Hydraulic Pump (mm/min)
Carbon Steel	10mm	330	270
Carbon Steel	20mm	170	110
Aluminum	12mm	800	600
Glass	10mm	1500	1100
Ceramic Tile	12mm	2000	1500
Marble	25mm	1000	800

Packing & Service

Packing: Soft packing in one 20'FCL container.

After-Sales: We have exported to more than 20 countries. We can arrange engineers to the customer's factory for installation and training. Response time is within 12 hours.

Frequently Asked Questions

1. Are you a manufacturer? Yes, we are a professional manufacturer of water jet cutting machines.

2. What materials can your machine cut? It can cut stone, ceramic, quartz, glass, foam, plastic, rubber, copper, aluminum, mild steel, and titanium.

3. What is the maximum cutting thickness? For steel, it can cut up to 240mm, though we recommend under 150mm for smooth edges. Marble up to 120mm and glass up to 80mm.

4. How do you provide after-sales service? We provide local service in many countries or arrange engineers for overseas installation and 7-10 days of training.

5. What is the delivery time? Generally 30 days. If the model is in stock, it can be delivered within 7-15 days.

6. Is the machine compatible with different voltages? Yes, we can provide configurations for 220V, 380V, and 415V based on your requirements.
