📋 Basic Information
Process Usage
CNC Machine Tools
Control Method
Closed-Loop Control
Certification
GS, CE, ISO 9001
Control System
Fanuc, Siemens, Mitsubishi
Tool Magazine
24 PCS, 32 PCS
Motor Power
11, 15, 18.5, 22kw
⚙️ Product Description

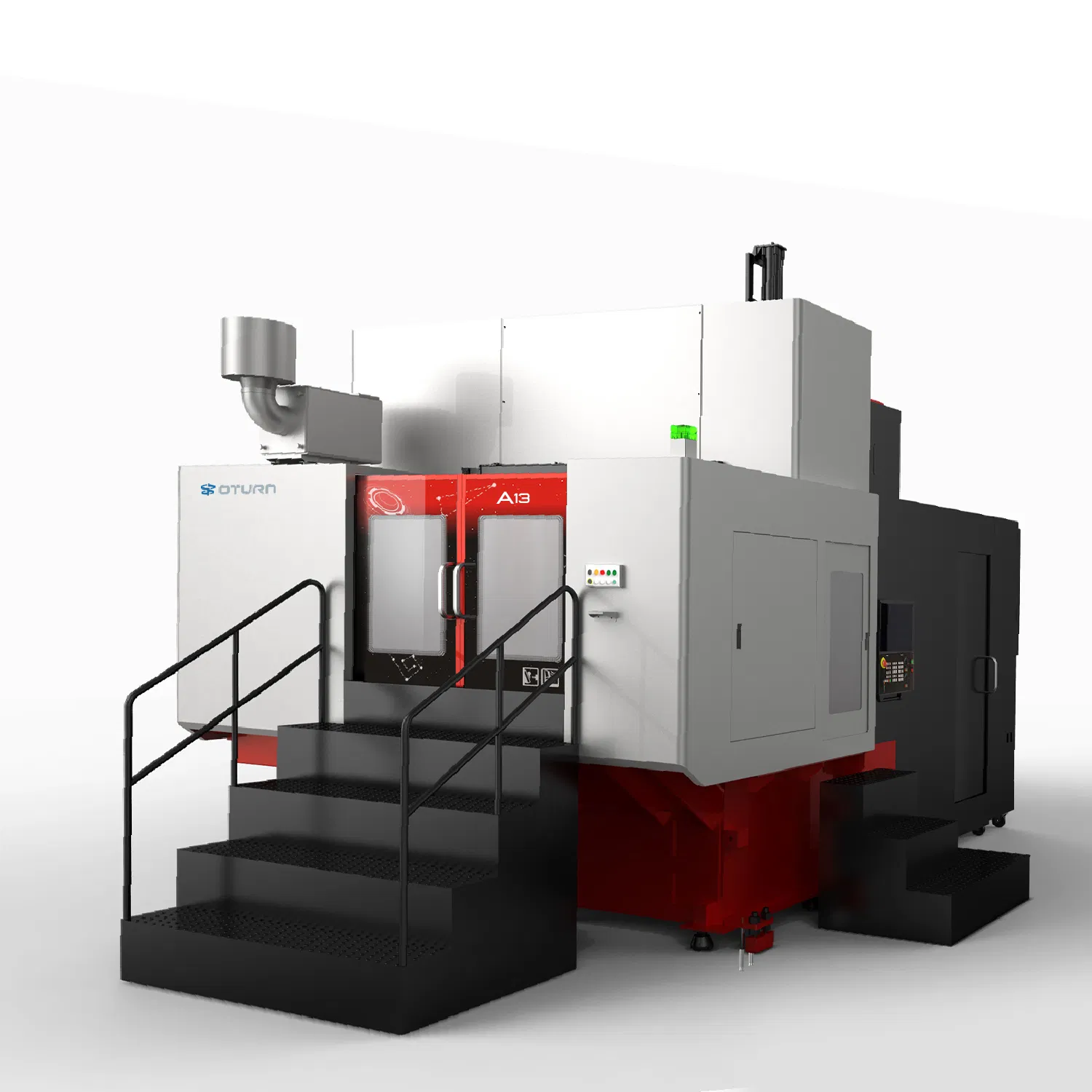

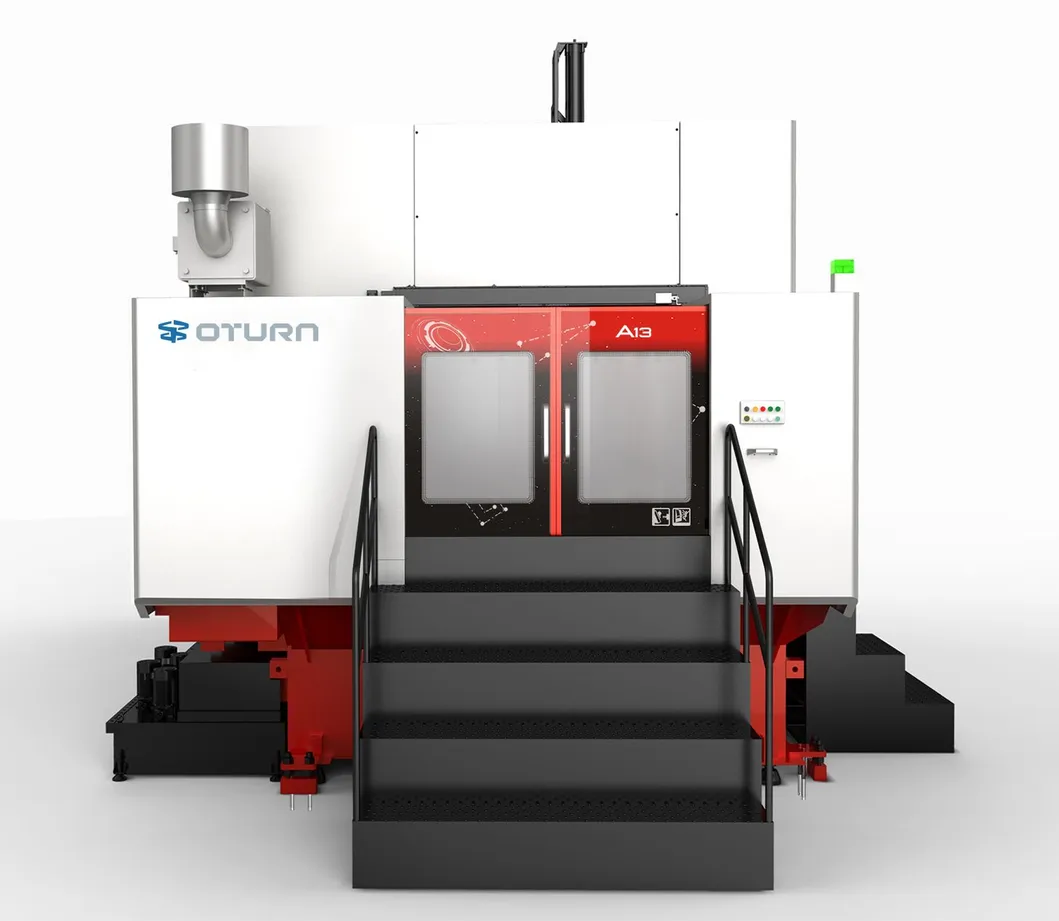

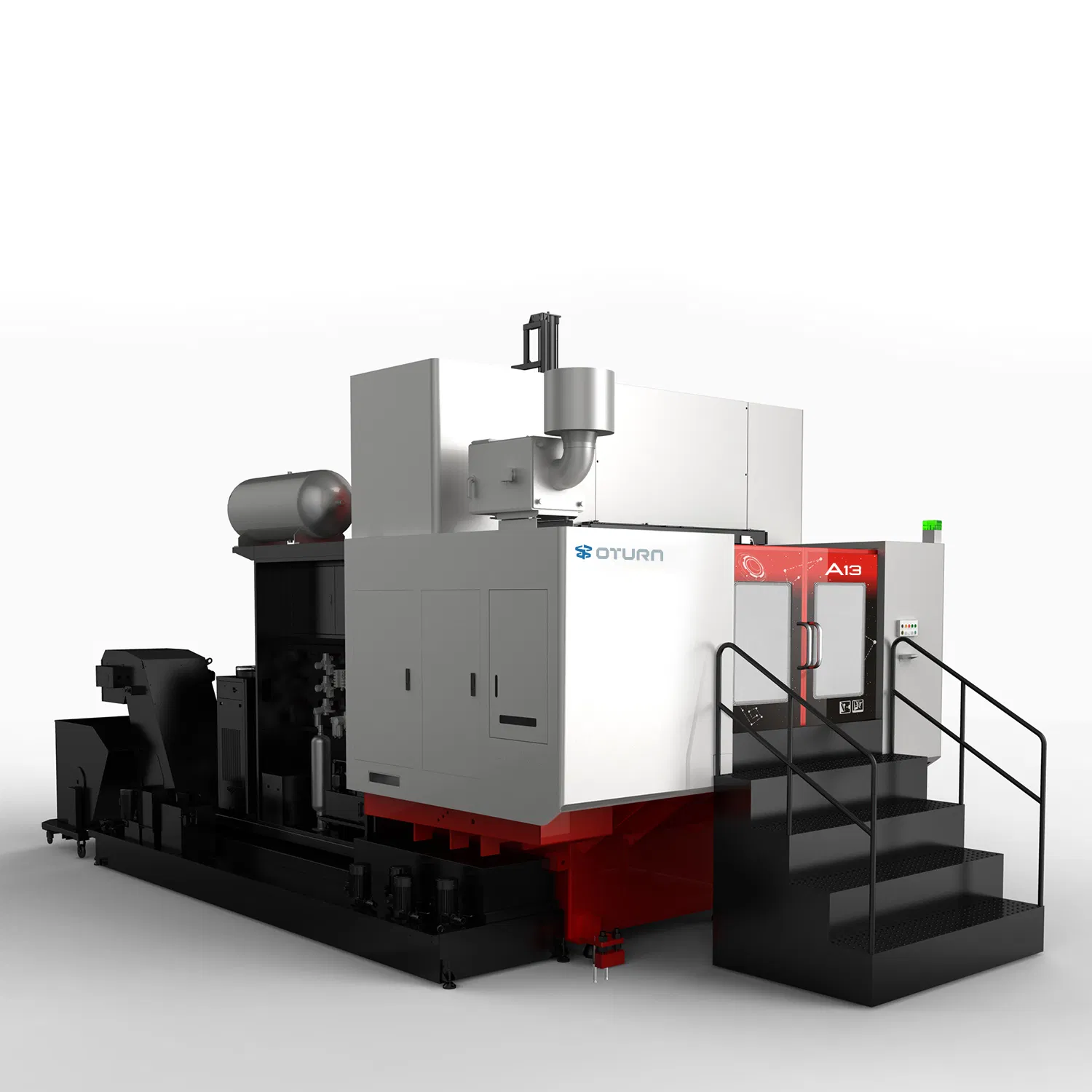

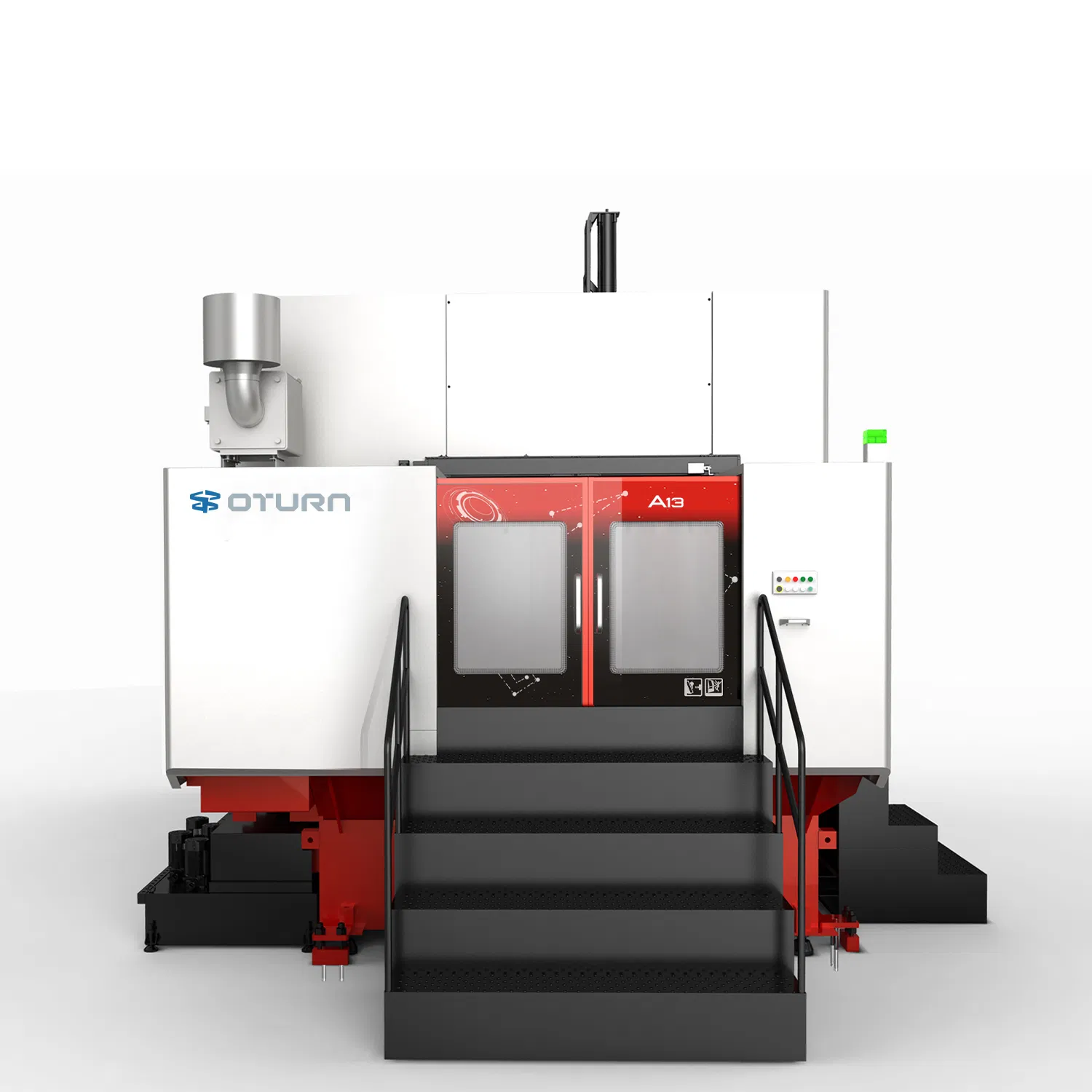

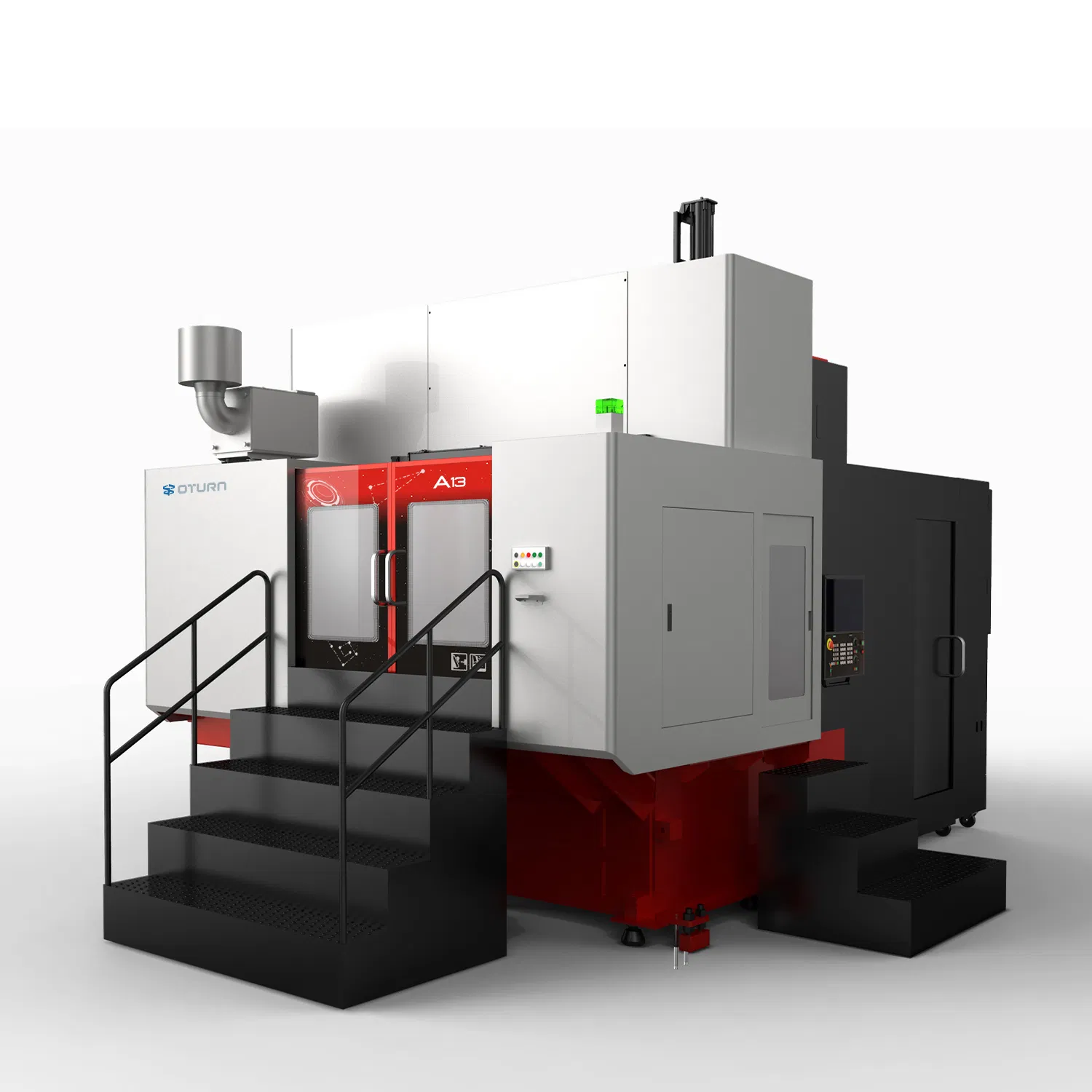

The 5-axis Horizontal Cradle Machine Center A Series is engineered for high rigidity, high precision, and high-efficiency processing. It incorporates a built-in spindle (HSK E40/HSK A63/HSK A100) that eliminates vibration to maintain stable accuracy during high-speed, long-term operations.
- Moving column structure: tool moves on three axes, workpiece rotates on two axes for full 5-axis linkage.
- Lightweight design with linear axis rapid displacement of 90M/min and 0.8G acceleration.
- Direct drive structure for A and B axes: zero transmission chain, zero reverse clearance, and superior rigidity.
- T-shaped bed layout and X-axis stepped guide rail for optimized stress distribution.
- High-speed electric spindle ensuring rapid operation with minimal noise.
- Three linear axis roller guide rails for low friction and high structural rigidity.
📊 Product Parameters
| Item |
Unit |
A13 |
| Travel | X/Y/Z axis travel | mm | 1300/850/650 |
| Distance spindle center to A-axis center (Y) | mm | -10-840 |
| Max rotation diameter of B-axis | mm | 1400 |
| Max rotation diameter of A-axis | mm | 1450 |
| Spindle | Spindle taper hole | mm | A63 |
| Maximum spindle speed | r/min | 16000 |
| Rated power of spindle motor | kW | 30KW |
| Accuracy | X/Y/Z axis rapid displacement | m/min | 90/90/90 |
| Positioning accuracy | mm | 0.015/0.008/0.008 |
| Repetitive positioning accuracy | mm | 0.012/0.006/0.006 |
| Turntable | Disc diameter | mm | 600*600 |
| Allow load | kg | 1000 |
| A/B axis travel | deg | +90°~-180° / 360° |
| Magazine | Tool magazine capacity | T | 41T |
| Tool exchange time (T-T) | S | 5 |
| Physical | Size | mm | 4481*7346*3700 |
| Machine weight | T | 15 |

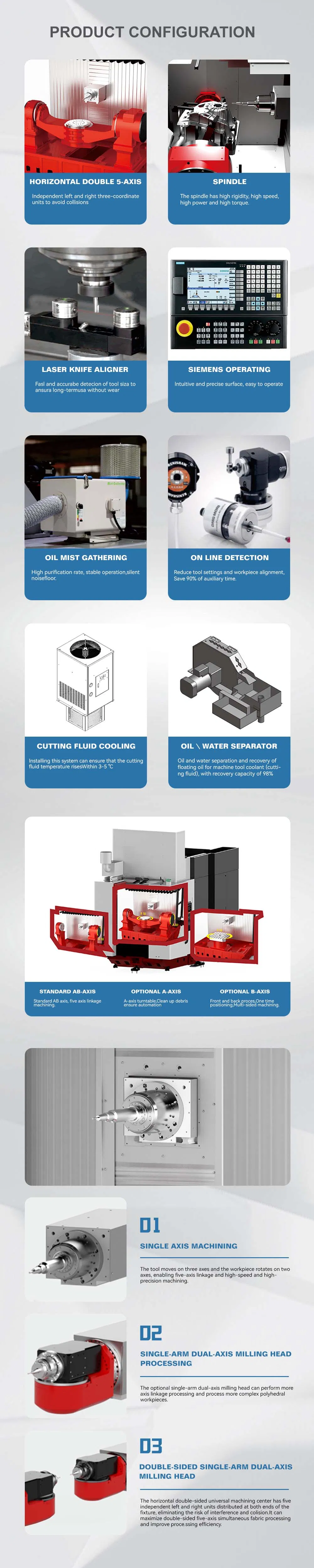

🛠️ Products Configurations
🏆 Quality Control & Advantages
❓ Frequently Asked Questions
How can I choose the most suitable machine?
Please provide your technical specifications or product drawings. Our engineering team will evaluate your requirements and recommend the most efficient model for your production needs.
What are your primary product categories?
We specialize in a comprehensive range of CNC machinery, including CNC Lathes, Milling Machines, Turning Centers, and both Vertical and Horizontal Machining Centers, as well as composite processing equipment.
What transportation solutions do you offer?
We provide flexible international shipping options including DDP, CIF, FOB, and FCA to ensure your equipment arrives safely and efficiently.
What are the standard payment terms?
Our standard terms are a 30% initial deposit upon order confirmation, with the remaining 70% balance due prior to shipment.
Is there a Minimum Order Quantity (MOQ)?
For most industrial machining centers, the MOQ is 1 set. Some specialized low-cost auxiliary machines may have different requirements.
What information is needed for an accurate evaluation?
We suggest providing the dimensions and material type of your workpiece. Providing a CAD drawing allows us to perform a more precise evaluation of the machining compatibility.
