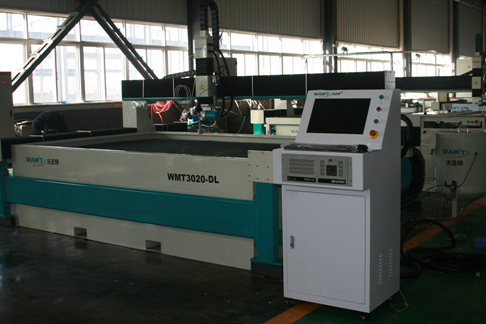

Factory Supply Low Price 5 Axis High Pressure Waterjet Tile Cutter Countertop Glass Metal Stainless Steel Water Jet Cutting Machine

1 / 5

Factory Supply Low Price 5 Axis High Pressure Waterjet Tile Cutter Countertop Glass Metal Stainless Steel Water Jet Cutting Machine

Customization:	Available
After-sales Service:	Provided
Warranty:	Provided

Send Inquiry

Product Description

Technical Specifications

Model NO.

WMT3020-CL

Source Voltage

380V/220V/415V

Control

CNC (Automatic)

Weight

3500 Kg

Dimensions

2200*4200*1000mm

Maximum Pressure

420 MPa

Operating Pressure

300-380MPa

Cutting Accuracy

0.1mm

Repeatability

0.005mm

Table Travel (X/Y/Z)

2000 / 4000 / 150 mm

★

Product Description

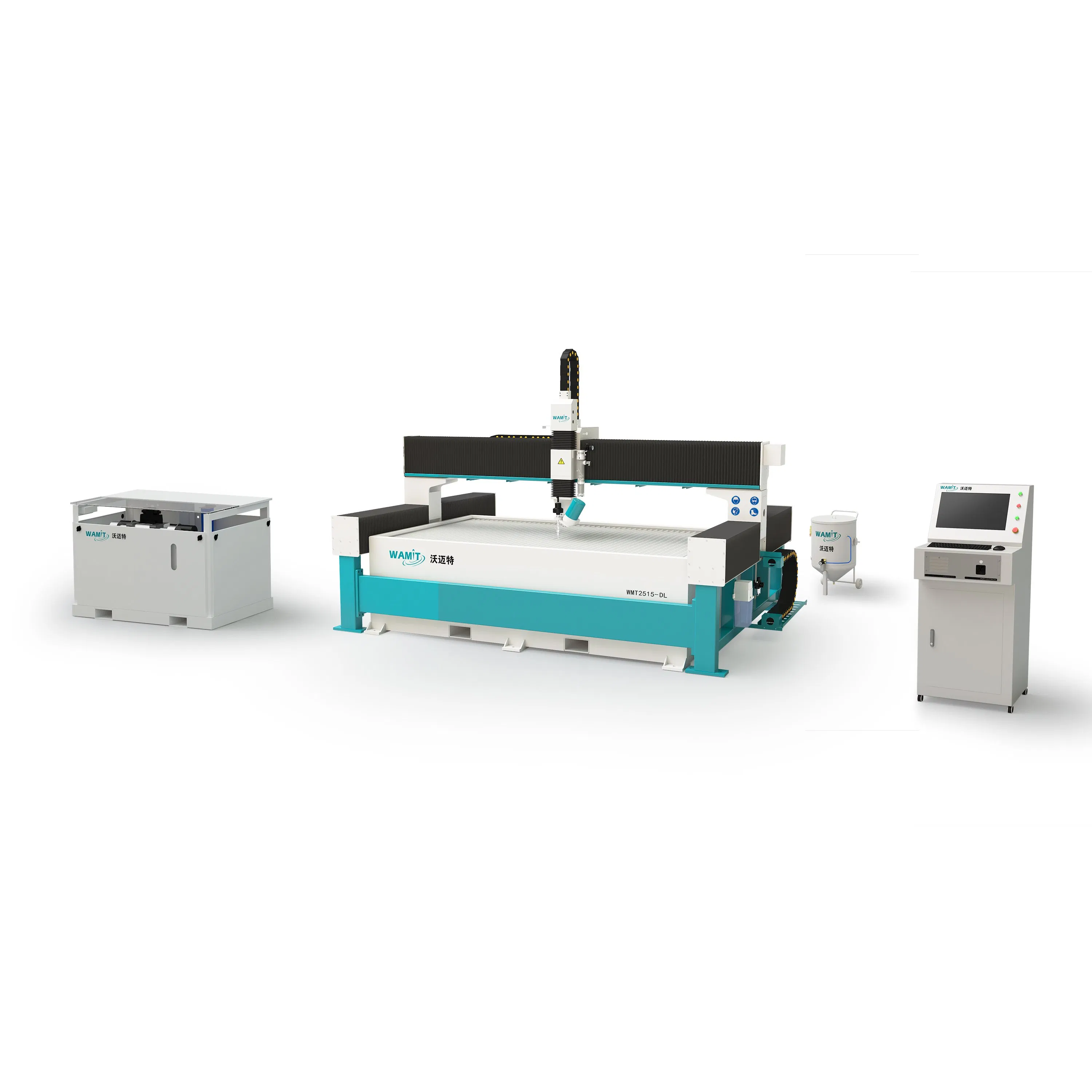

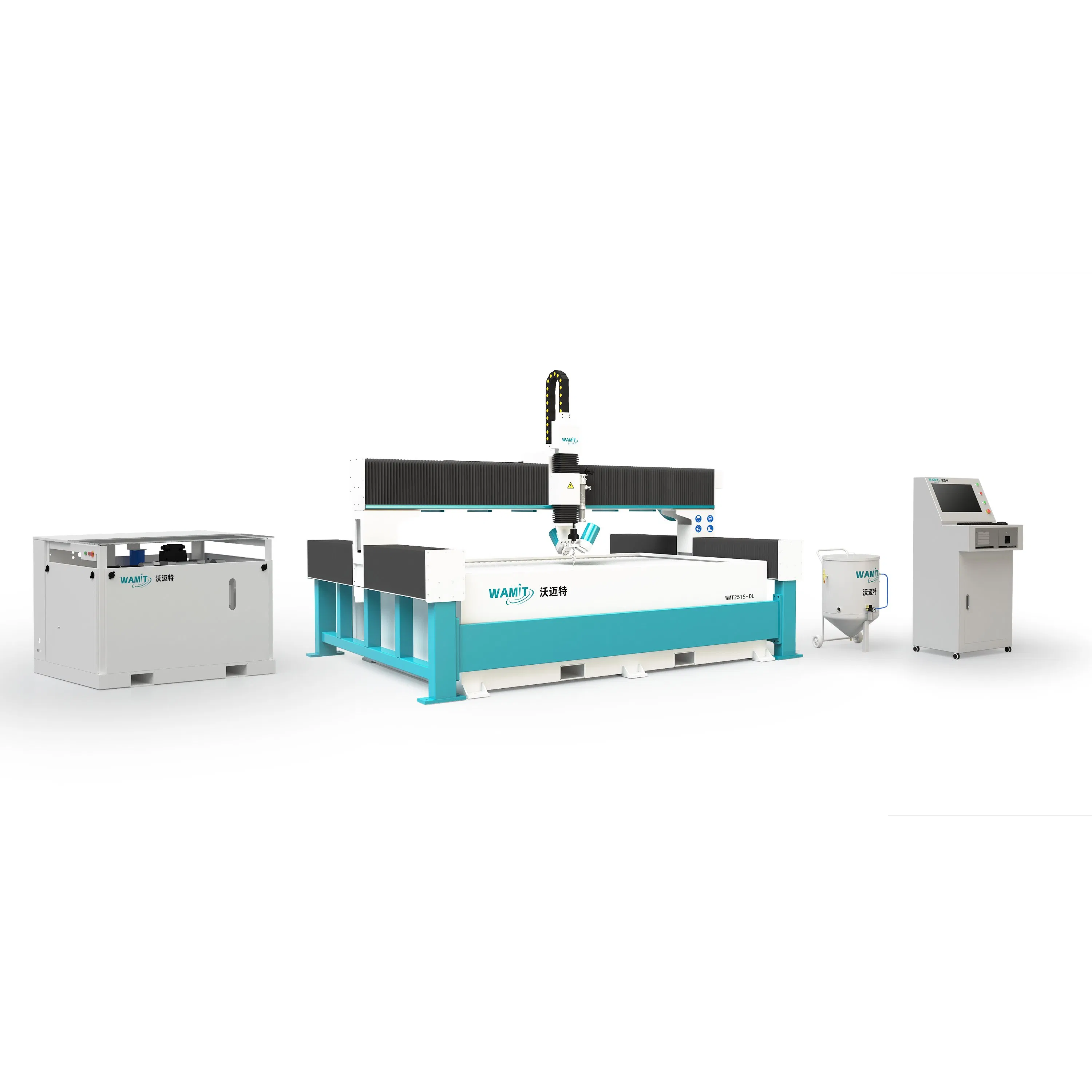

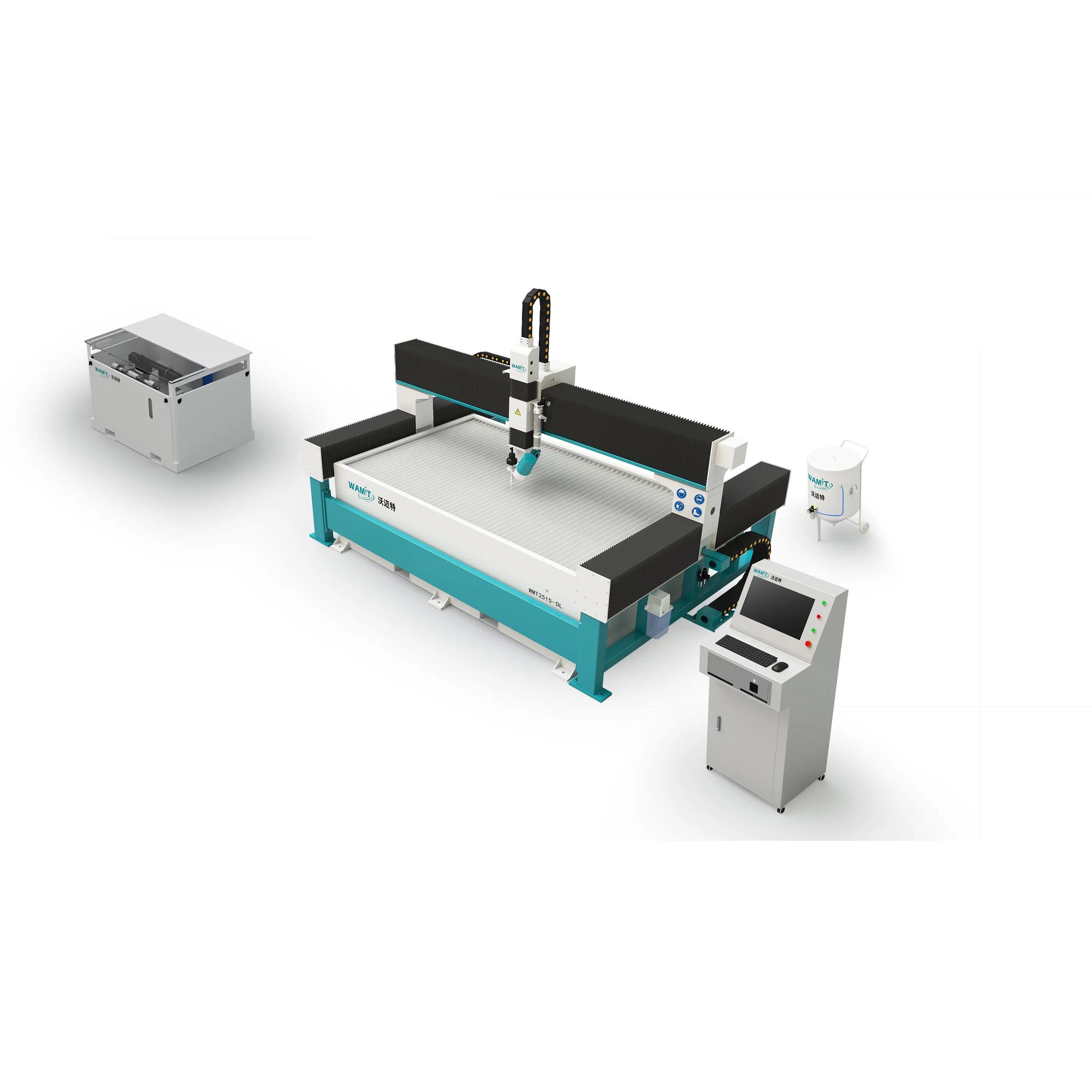

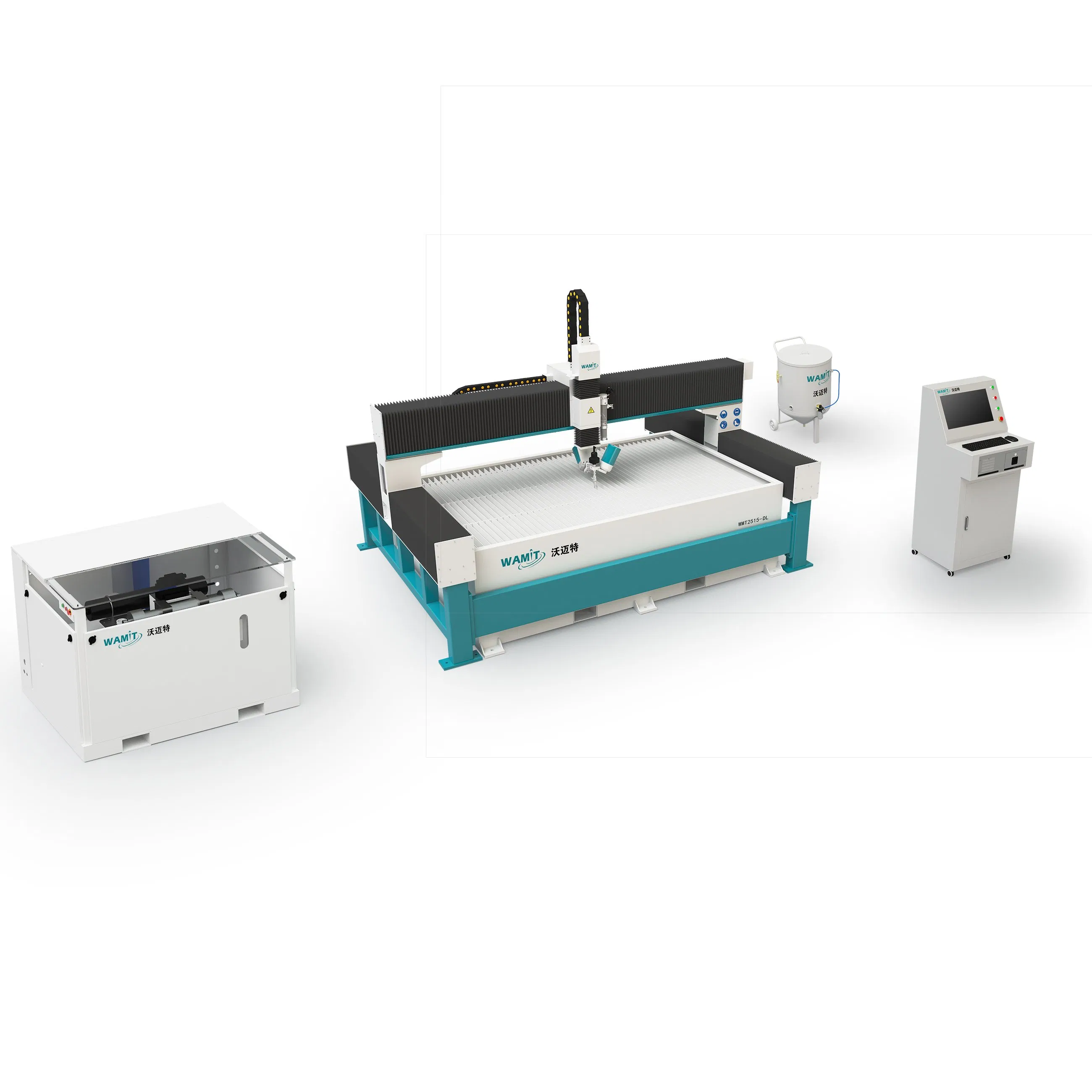

5 Axis High Pressure Water Jet Cutter

Our direct drive pump technology can save between 60%-70% electricity costs compared to traditional models. This machine features a specialized drilling function for countertop, glass, and metal processing.

Key Advantages:

X/Y axis utilizes advanced labyrinth protection
Automatic lubrication system from Japan
Internal components feature German Schneider branding
Absolute value motor with power-off memory (no zero detector required)

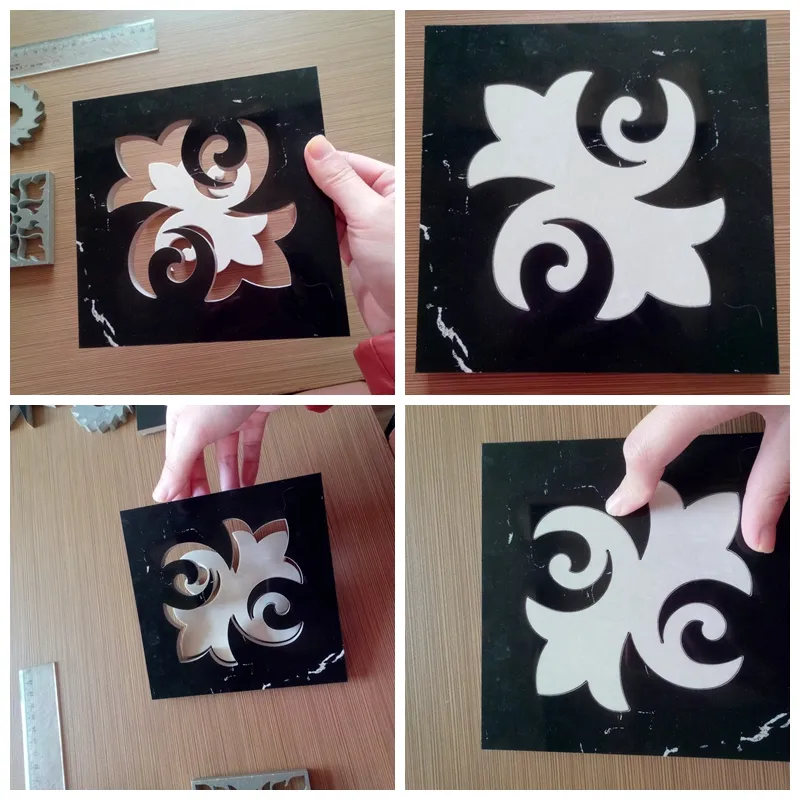

Versatile Material Cutting

This water jet system can cut nearly all industrial and decorative materials:

Stainless Steel

Aluminum

Titanium

Carbon Steel

Brass/Copper

Ceramic Tiles

Marble/Granite

Bullet Proof Glass

Acrylics/PVC

Composites

Rubber/Foam

Hardwood

⚙

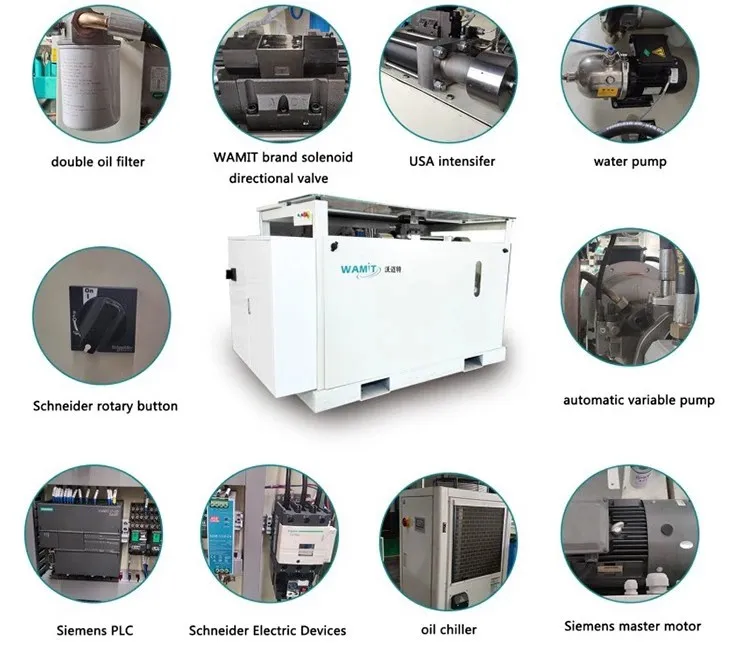

Core Components

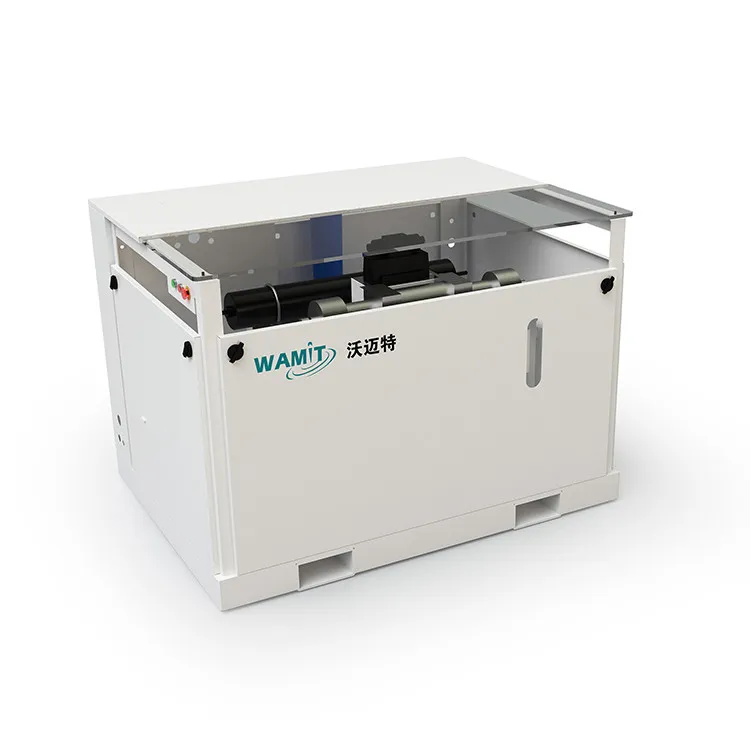

Intensifier Pump (60,000 PSI)

Max Operating Pressure: 420MPa
Water Discharge: 3.8L/min
Siemens Motor & PLC
Schneider Electric Components
Imported USA Intensifier Assembly

Abrasive Sand System

Maintenance-free operation
220KG Sand capacity (8-10 hours)
Reliable compressed gas delivery
No electronic control needed

⚡

Cutting Performance

Material	Thickness (mm)	Pressure (MPa)	Max Speed (mm/min)
Carbon Steel	10	370	550
Carbon Steel	20	370	220
Stainless Steel	13	370	500
Aluminum	20	370	650
Glass	12	370	1600
Titanium Alloy	10	370	800

📦

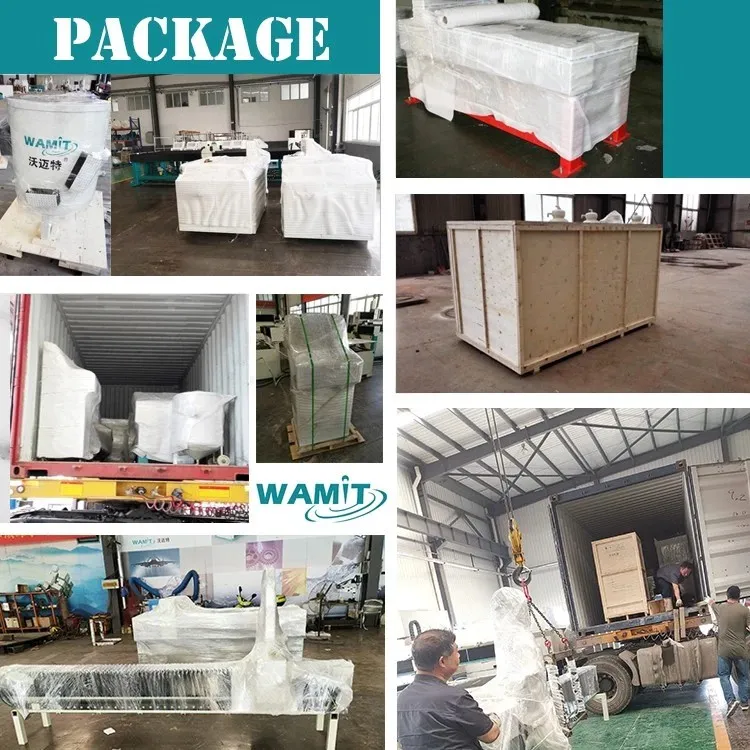

Packaging & Logistics

The machinery is securely packed for international transit. Typical configuration: Soft packing in one 20'FCL container to ensure protection against the elements and stability during shipping.

Frequently Asked Questions

What materials can be cut with this water jet machine?

It can cut a vast range of materials including stone, ceramics, glass, foam, plastics, rubber, copper, aluminum, stainless steel, and titanium.

What is the maximum cutting thickness?

While it can cut up to 240mm of steel, we recommend 150mm for the smoothest finish. Standard thickness capacities are 120mm for marble and 60mm for metals.

How much electricity can the direct drive pump save?

Our second-generation direct drive pump is designed for high efficiency, potentially saving 60% to 70% in electricity costs compared to standard intensifier pumps.

What is the standard delivery time?

Generally, the production time is 30 days. If the model is in stock, delivery can be arranged within 7 to 15 days.

How is after-sales service handled internationally?

We provide global support. In countries without local agents, we arrange for engineers to visit the customer's site for installation and training, usually lasting 7-10 days.

Is the CNC software easy to use?

Yes, we use specialized NCStudio water jet cutting software with an autosave function. We also offer optional imported software supporting over 15 languages.
