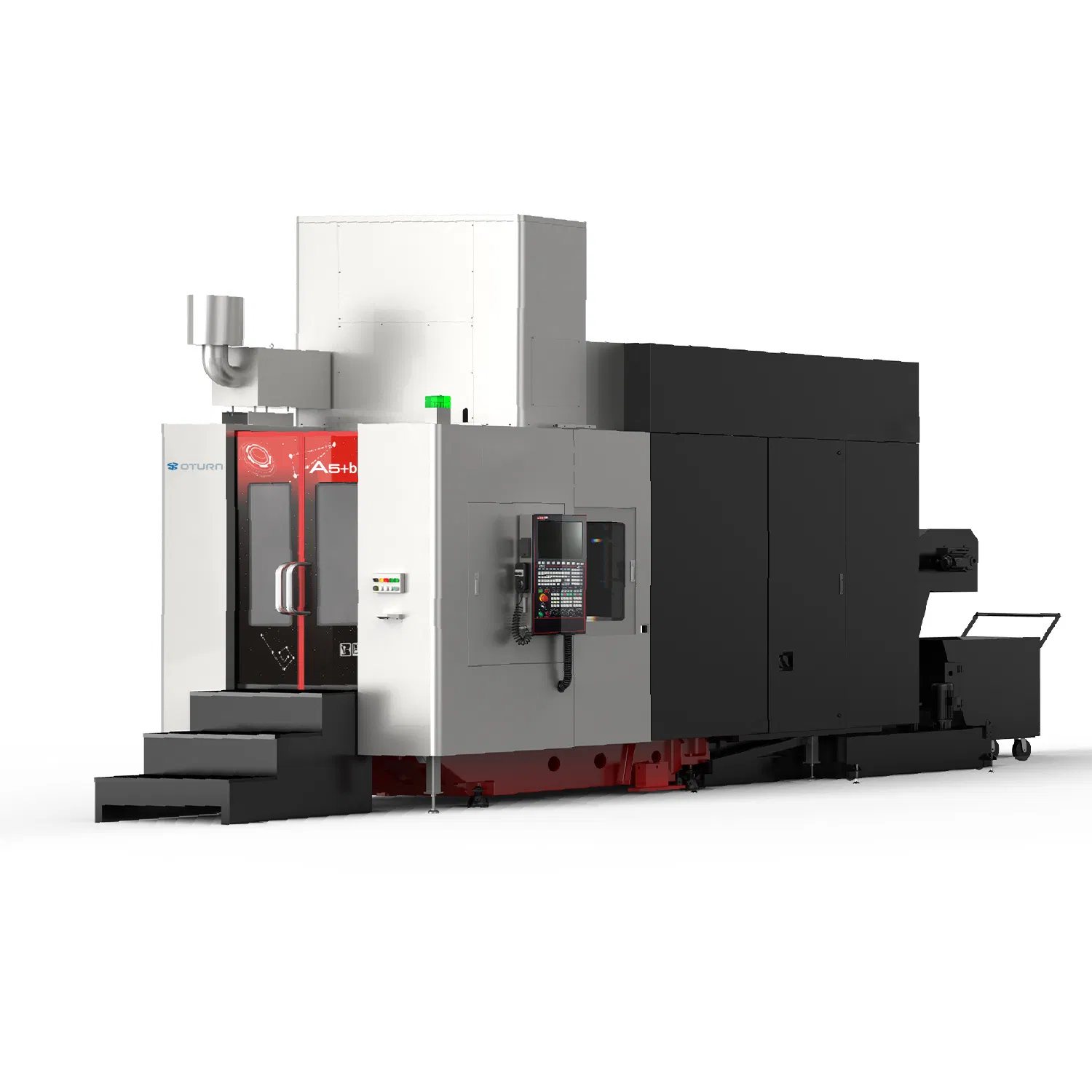

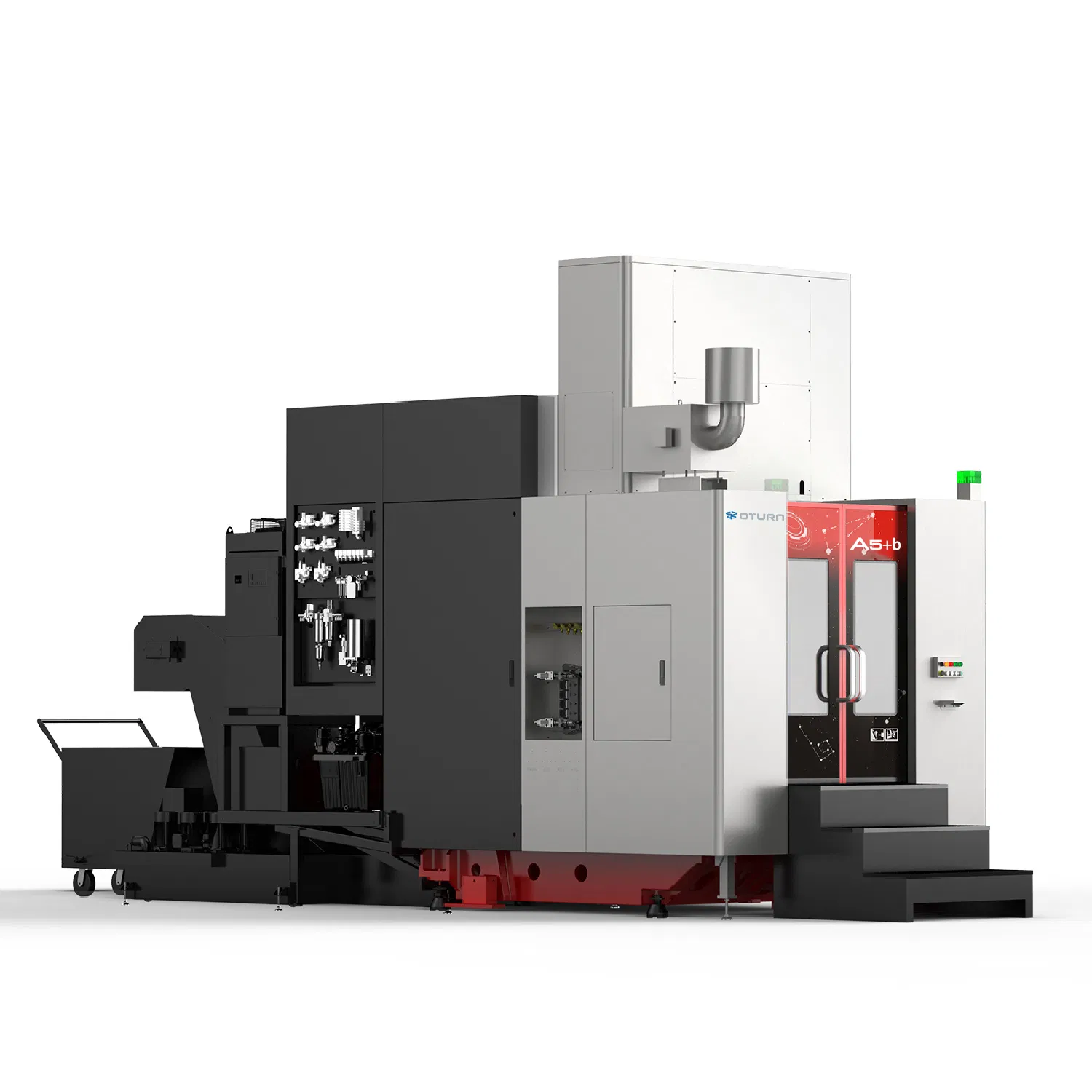

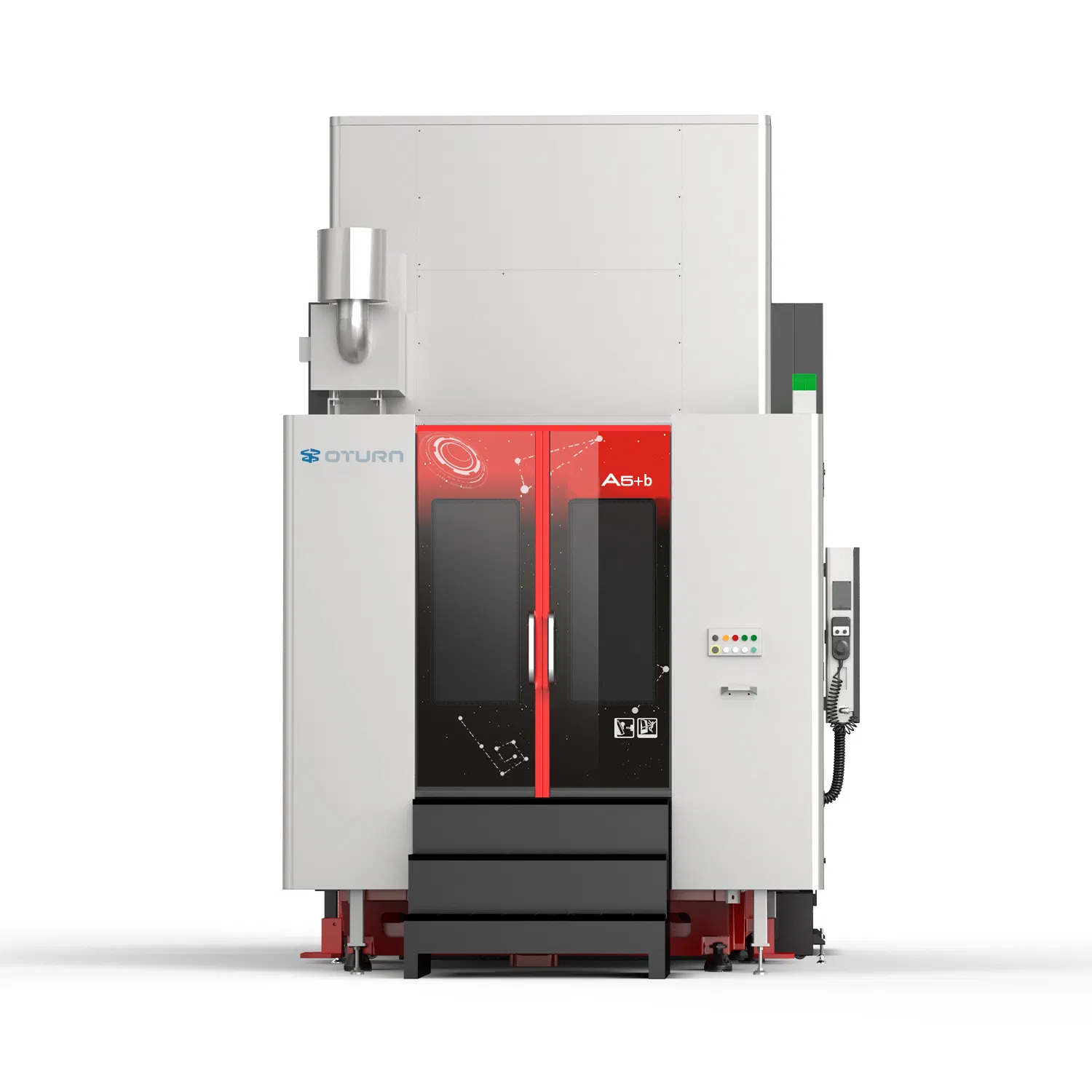

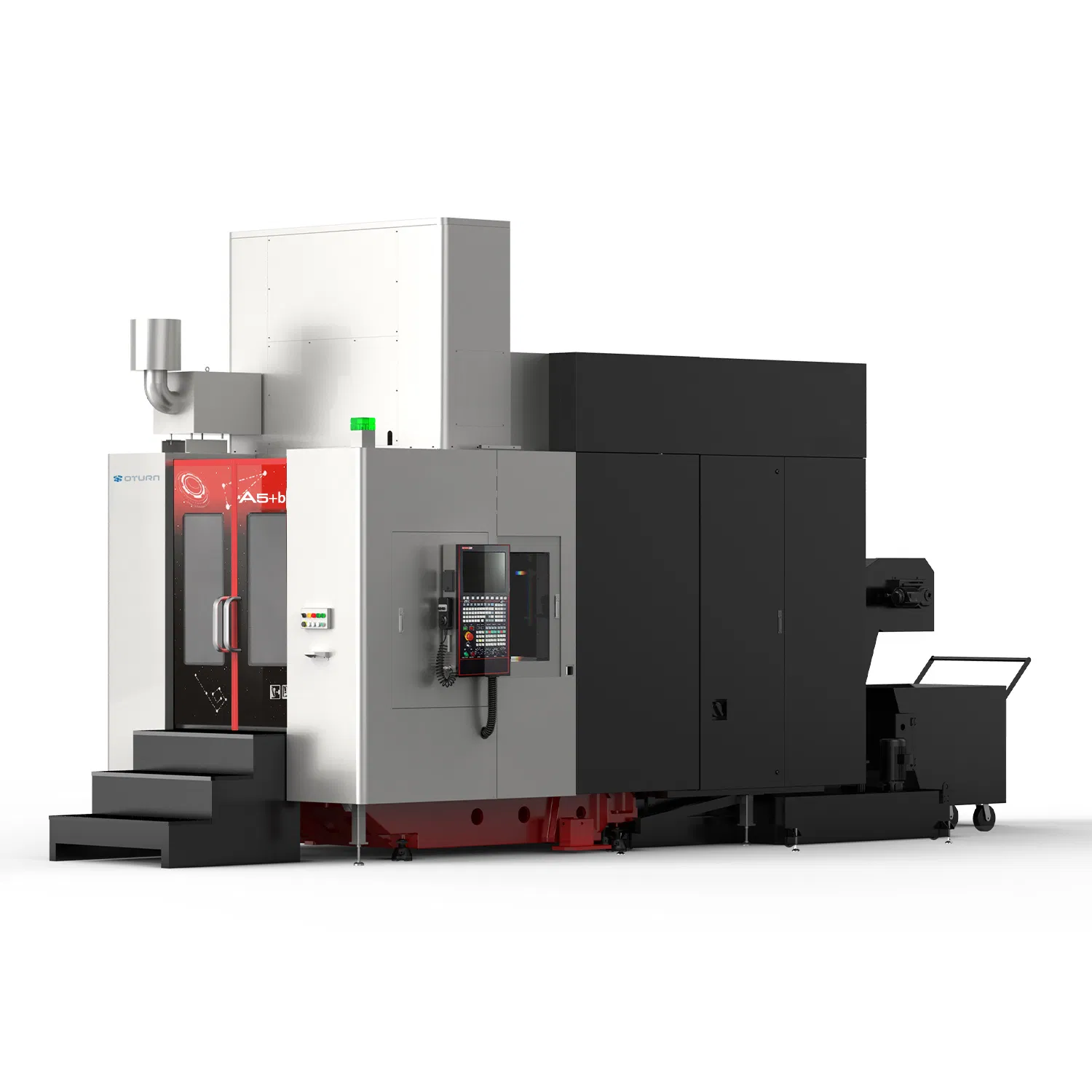

5-Axis Machining Center 5 Axis Simultaneous Horizontal CNC Milling Machine A5+B with Atc and Fanuc
5-Axis Machining Center 5 Axis Simultaneous Horizontal CNC Milling Machine A5+B with Atc and Fanuc
5-Axis Machining Center 5 Axis Simultaneous Horizontal CNC Milling Machine A5+B with Atc and Fanuc
5-Axis Machining Center 5 Axis Simultaneous Horizontal CNC Milling Machine A5+B with Atc and Fanuc
5-Axis Machining Center 5 Axis Simultaneous Horizontal CNC Milling Machine A5+B with Atc and Fanuc
1 / 5
5-Axis Machining Center 5 Axis Simultaneous Horizontal CNC Milling Machine A5+B with Atc and Fanuc
5-Axis Machining Center 5 Axis Simultaneous Horizontal CNC Milling Machine A5+B with Atc and Fanuc
5-Axis Machining Center 5 Axis Simultaneous Horizontal CNC Milling Machine A5+B with Atc and Fanuc
5-Axis Machining Center 5 Axis Simultaneous Horizontal CNC Milling Machine A5+B with Atc and Fanuc
5-Axis Machining Center 5 Axis Simultaneous Horizontal CNC Milling Machine A5+B with Atc and Fanuc

5-Axis Machining Center 5 Axis Simultaneous Horizontal CNC Milling Machine A5+B with Atc and Fanuc

Customization: Available
After-sales Service: Support
Warranty: One Year
Send Inquiry

Product Description

Basic Info Overview
Model NO.
A5+b
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Certification
GS, CE, ISO 9001
Control System
Fanuc, Siemens, Mitsubishi
Tool Magazine
24 PCS, 32 PCS
Spindle
Bt40, Bt50, Hsk63
Guide Rail
Linear Rail or Hard Rail
Product Description
5-Axis Machining Center

The 5-axis Horizontal Cradle Machine Center A Series is engineered for high rigidity, high precision, and high-efficiency processing. It incorporates built-in spindles (HSK E40/HSK A63/HSK A100) to eliminate vibration and achieve stable accuracy during high-speed, long-term operations. The forced cooling system protects the motor and bearings.

1
Moving column structure with 5-axis linkage capability (3-axis tool movement, 2-axis workpiece rotation).
2
Lightweight design with 90M/min rapid displacement and 0.8G acceleration.
3
Direct drive structure for A and B axes: zero transmission chain, zero reverse clearance, and superior rigidity.
4
T-shaped bed layout and X-axis stepped guide rails for optimal stress distribution.
5
High-speed electric spindle ensures quiet and rapid operation.
6
Three linear axis roller guide rails for low friction and high rigidity.

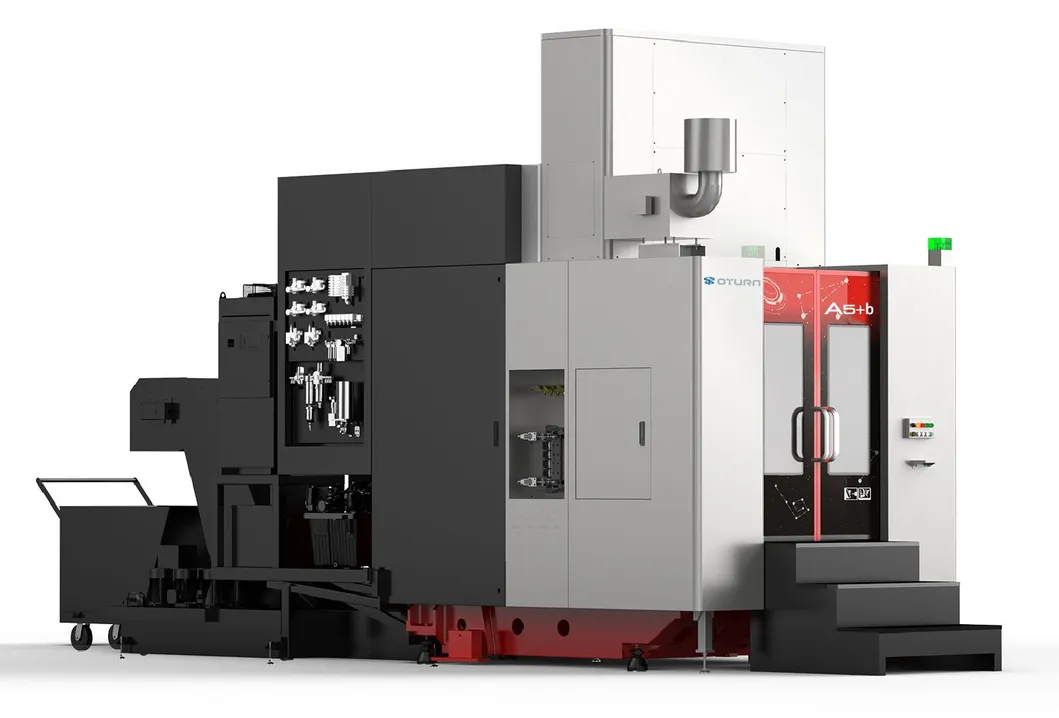

Machining Detail
Technical Parameters
Category Item Unit A5+b Specification
TravelX/Y/Z axis travelmm500/370/400
Distance spindle center to workbench (Y)mm130-500
Distance spindle end to B-axis center (Z)mm130-530
Maximum rotation diameter of B-axismm800
SpindleSpindle taper hole-A63
Maximum spindle speedr/min20000
Rated power of spindle motorkW30KW
Rated torque of spindleN.m47.7/57.3
AccuracyX/Y/Z Positioning accuracymm0.008
Repetitive positioning accuracymm0.006
B positioning / repeated accuracyarc.sec8/4
TurntableDisc diametermm500*500
Allow loadkg500
Tool MagTool magazine capacityT28T
Tool exchange time (T-T)S5
OtherMachine Dimensionsmm2100*5650*3052
Machine weightT6.5
Configurations & Quality Control

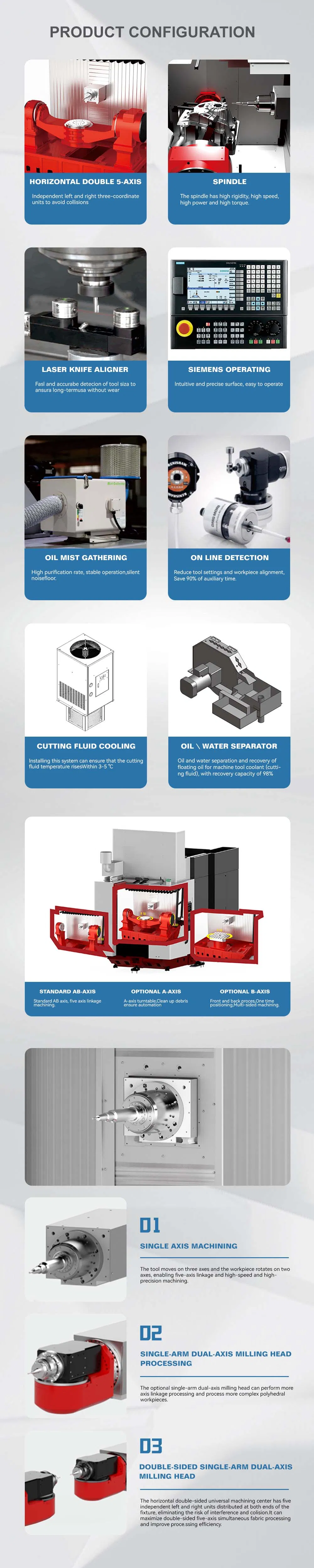

Configurations

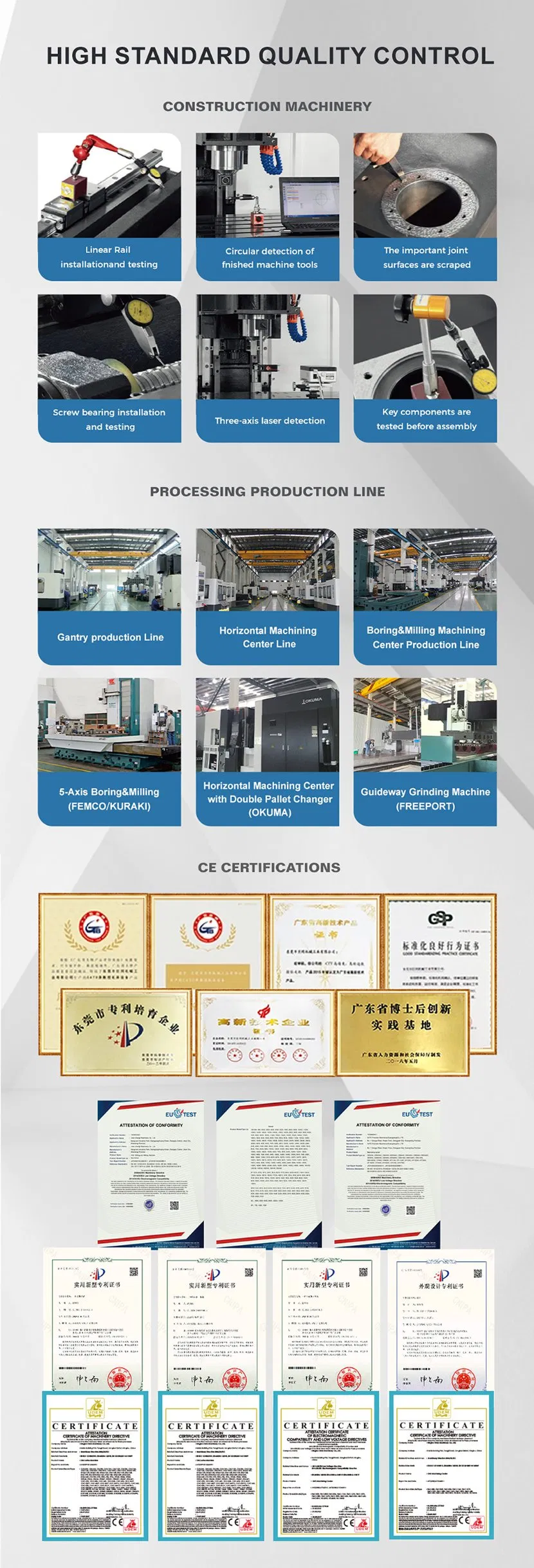

Production Facility Quality Control Process
Advantages
Frequently Asked Questions
How can I choose the most suitable machine?
Please provide your workpiece specifications or product drawings, and our technical team will evaluate the requirements to recommend the most suitable model for your needs.
What are the main machine types available?
We specialize in a comprehensive range of CNC equipment, including CNC Lathes, CNC Milling Machines, Vertical and Horizontal Machining Centers, and Turning-Milling composite centers.
What transportation solutions are provided?
We offer flexible transportation solutions including DDP, CIF, FOB, and FCA terms to ensure smooth delivery to your destination.
What are the standard payment terms?
Standard terms are T/T with a 30% initial payment upon ordering and the remaining 70% balance payment settled before shipment.
What is the Minimum Order Quantity (OMQ)?
The MOQ is typically 1 set. For specific low-cost auxiliary machinery, the quantity requirements may vary.
What information is needed for an accurate evaluation?
We suggest providing the size and material of your workpiece. If you require a CIF price, please specify the destination port for logistics calculations.
