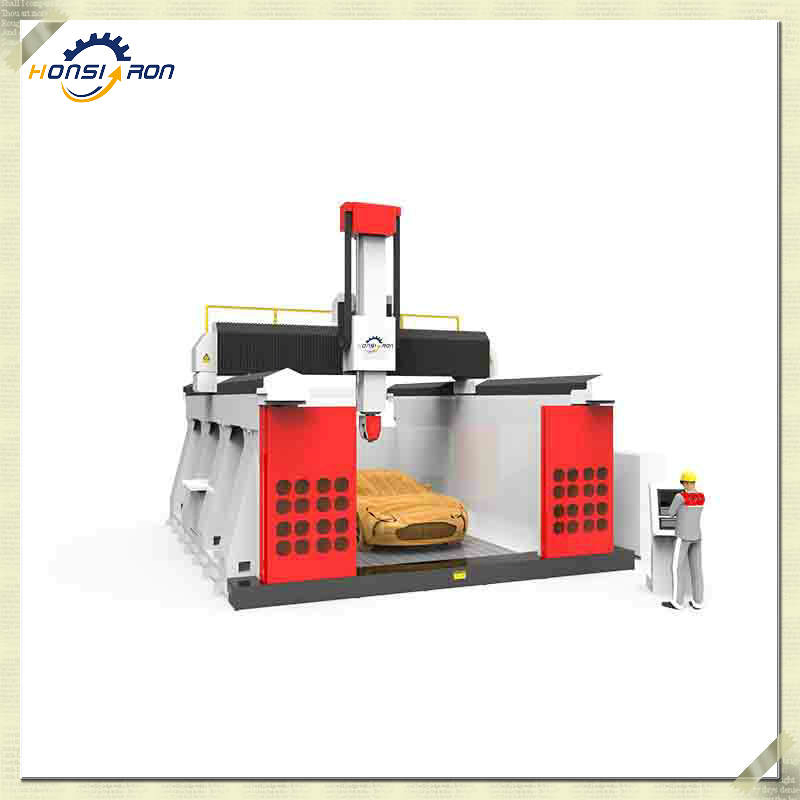

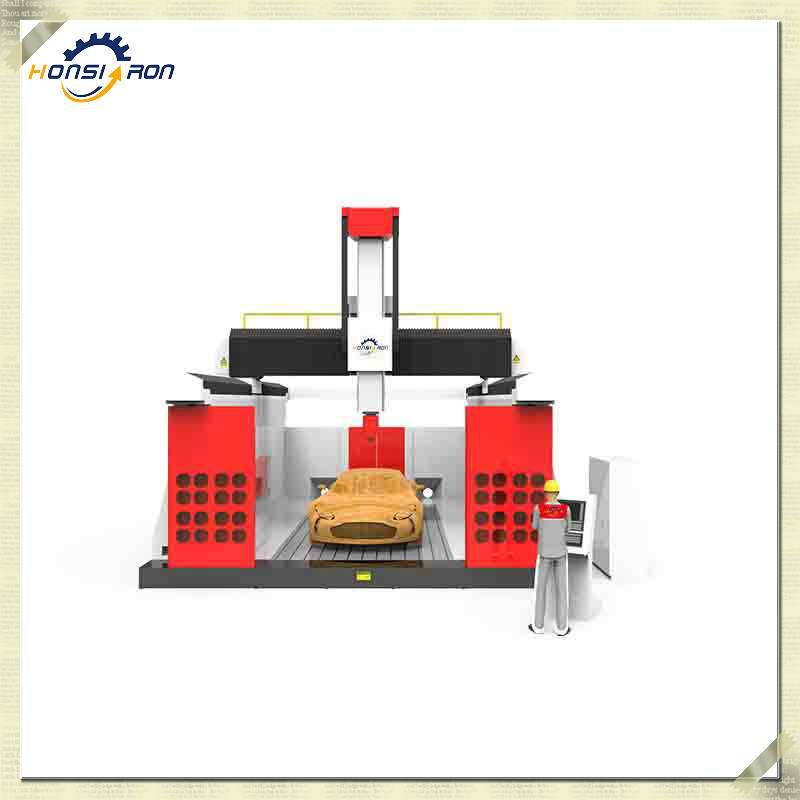

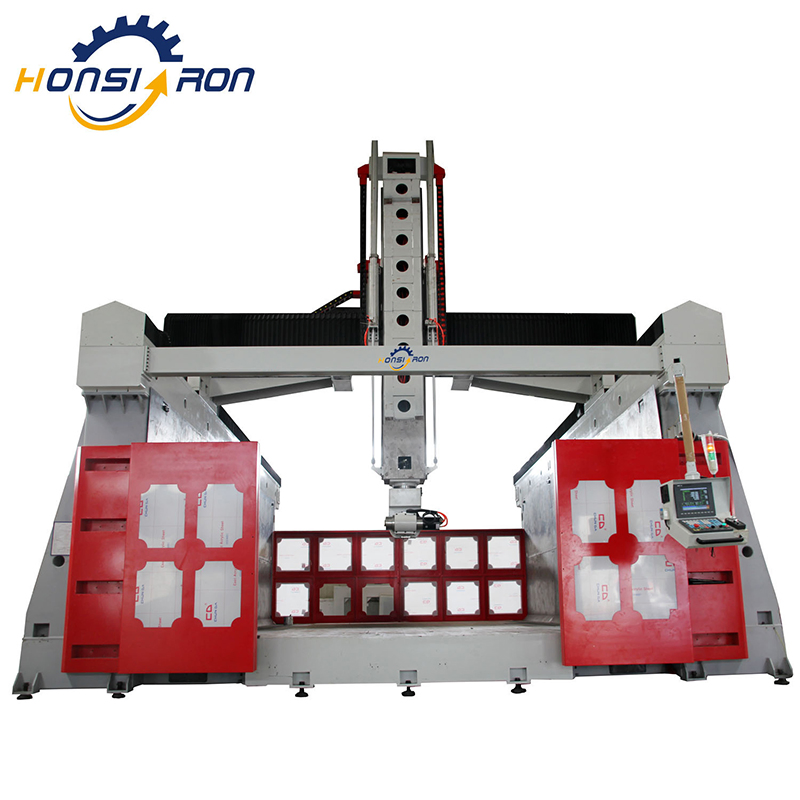

High Quality 5-Axis Simultaneous Sfs2030t-5s CNC Precision CNC Machining Center
High Quality 5-Axis Simultaneous Sfs2030t-5s CNC Precision CNC Machining Center
High Quality 5-Axis Simultaneous Sfs2030t-5s CNC Precision CNC Machining Center
High Quality 5-Axis Simultaneous Sfs2030t-5s CNC Precision CNC Machining Center
High Quality 5-Axis Simultaneous Sfs2030t-5s CNC Precision CNC Machining Center
1 / 5
High Quality 5-Axis Simultaneous Sfs2030t-5s CNC Precision CNC Machining Center
High Quality 5-Axis Simultaneous Sfs2030t-5s CNC Precision CNC Machining Center
High Quality 5-Axis Simultaneous Sfs2030t-5s CNC Precision CNC Machining Center
High Quality 5-Axis Simultaneous Sfs2030t-5s CNC Precision CNC Machining Center
High Quality 5-Axis Simultaneous Sfs2030t-5s CNC Precision CNC Machining Center

High Quality 5-Axis Simultaneous Sfs2030t-5s CNC Precision CNC Machining Center

Customization: Available
After-sales Service: 24 Hous Online Technical Support
Warranty: 1 Years, 1 Years
Send Inquiry

Product Description

📊 Basic Information
Model NO.SFS2030T-5S
CertificationCE, ISO 9001
ControlCNC (5-Axis)
Processing Precision0.02~0.03(mm)
Working Area3500X6500X2200mm
SpindleItalian 15/24kw Spindle (24000rpm)
Motor & DriverJapan Yaskawa Servo
Tool Magazine24 PCS ATC
HS Code84659900
🚀 Product Description

This High-Quality 5-Axis Simultaneous CNC Machining Center comes equipped with X, Y, Z, A, and C-axis operation, providing excellent flexibility. The 5-axis linkage control system makes it ideal for processing composite materials, aluminum, wood, and large 3D models.

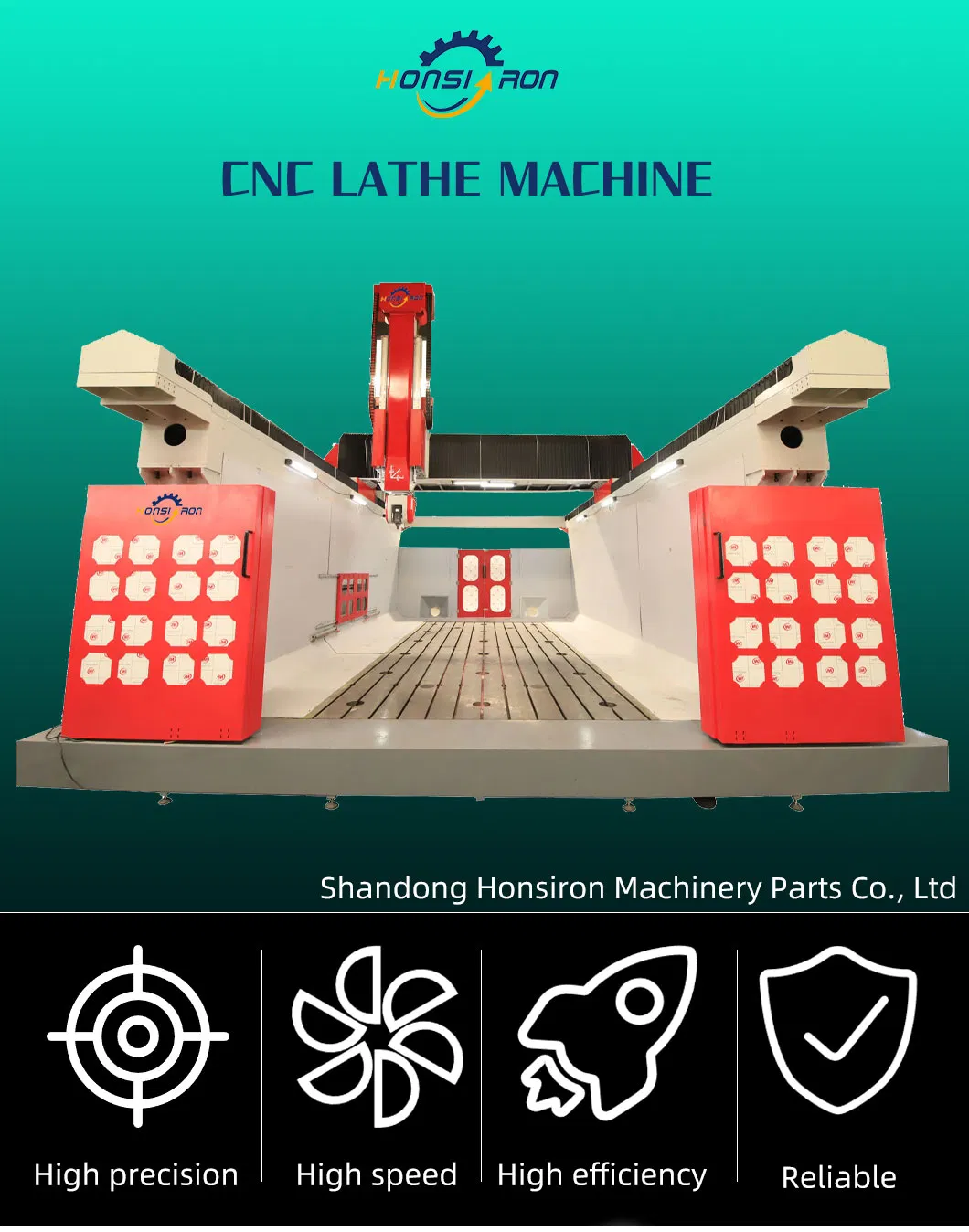

5-Axis CNC Machining Center
Industrial Design

Processing master models for automobiles, yachts, and high-speed rail EMUs.

Composite Materials

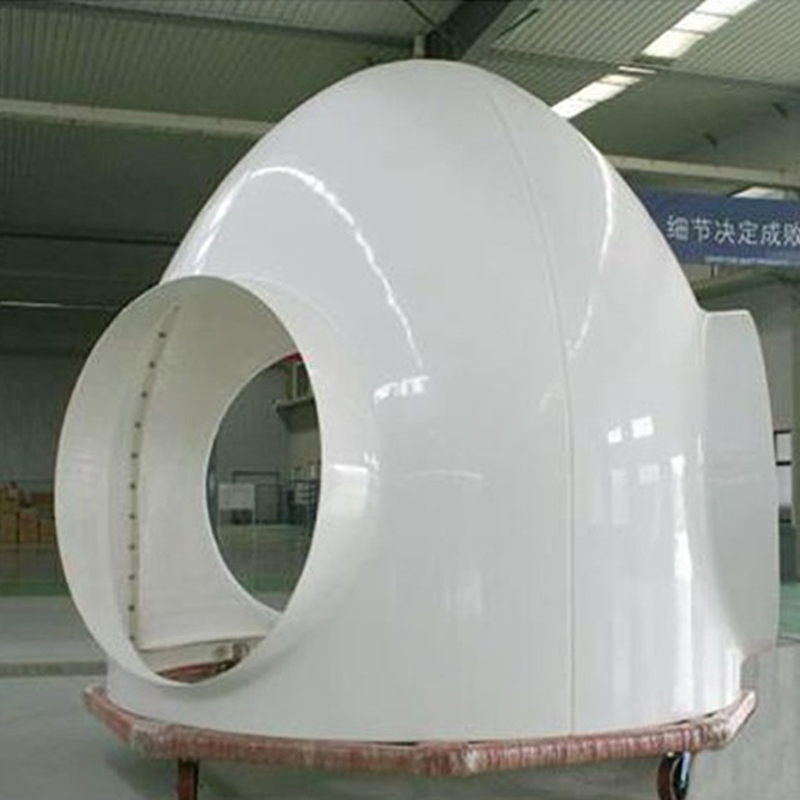

Precision processing of FRP molds, ABS plastic products, and wind power covers.

Mold Industry

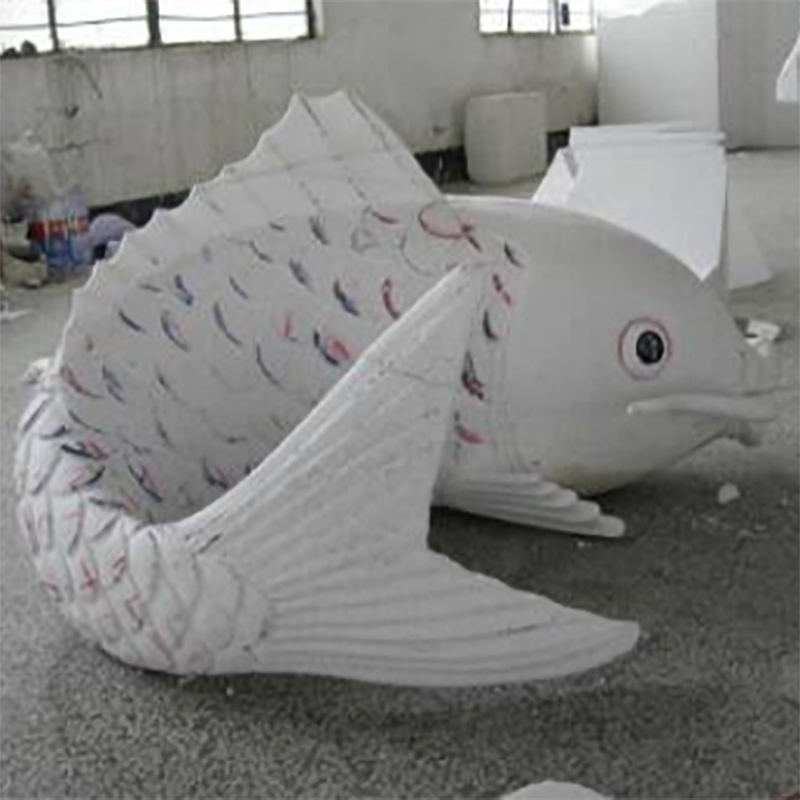

Five-axis processing of non-metallic molds like wooden molds and foam resin products.

⚙️ Technical Parameters
Machine Model SF2030T-5S SF3040T-5S SF3565T-5S
XYZ Travel Size (mm)2000*3000*10003000*4000*15003000*4000*1500
A axis+/- 120 degrees
C axis+/- 360 degrees
Working SpeedXY:30m/min, Z:10m/min
SpindleItaly 15Kw ATC spindle (0-24000rpm)
ControllerTaiwan Syntec controller
Table SurfaceCast Iron T-slot Table
MaterialsEPS, Wood, Plastic, Composites, Fiberglass, Aluminum
💎 Key Advantages
🏗️
High Rigidity & Stability: Features high-strength cast iron structure with T-slot workbench and resin sand modeling design. Main parts are tempered for precision retention.
🛡️
Anti-Collision System: Intelligent processing cross-border protection function prevents mechanical collisions caused by overtravel during operation.
🔧
Imported Professional Components: Equipped with high-torque harmonic/RV reducers and high-power spindles ensuring accuracy and efficiency.
🎯
HSK Taper Spindle: High clamping force and accuracy stability, perfect for high-speed processing and superior surface smoothness.

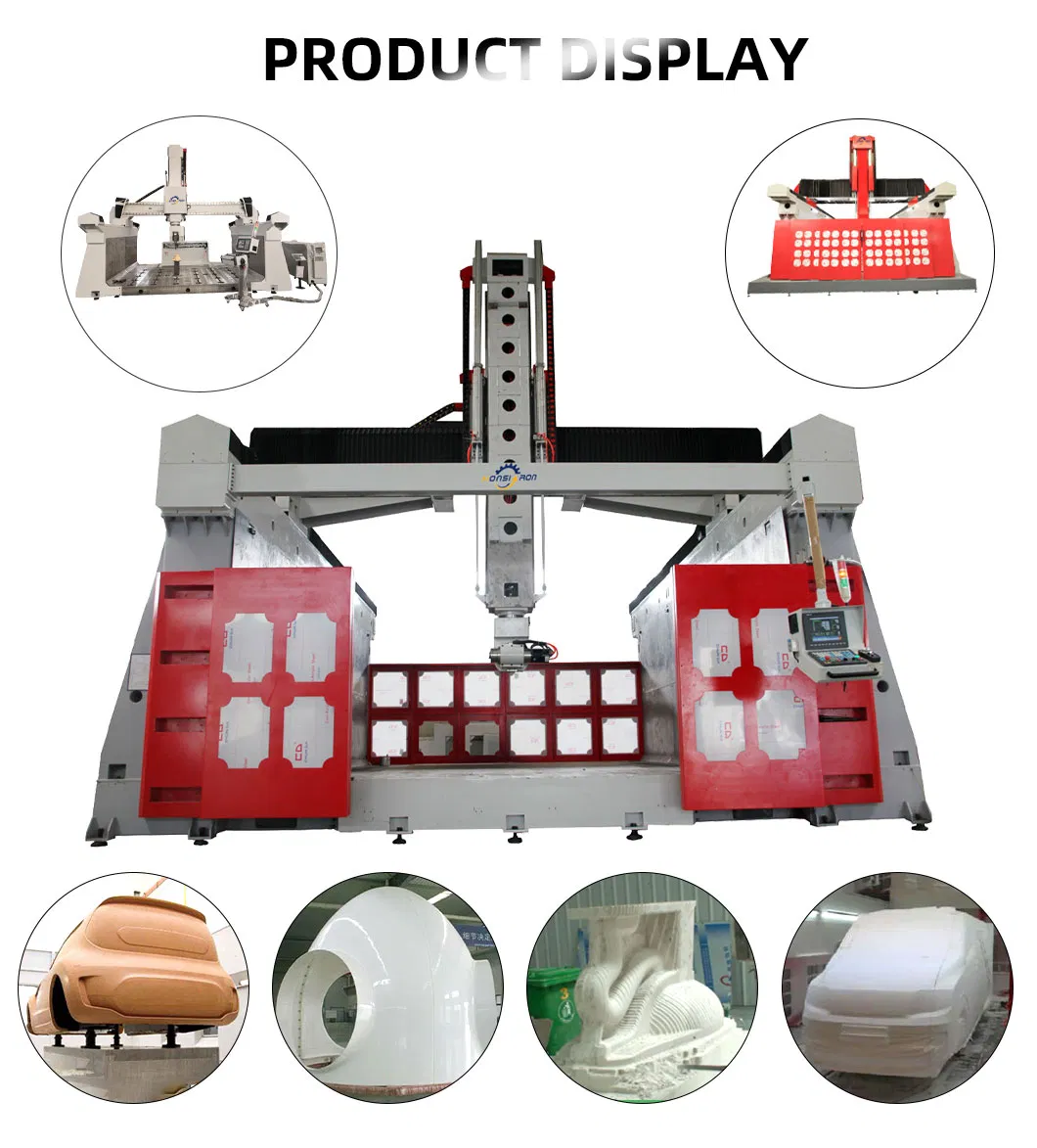

CNC Detail 1

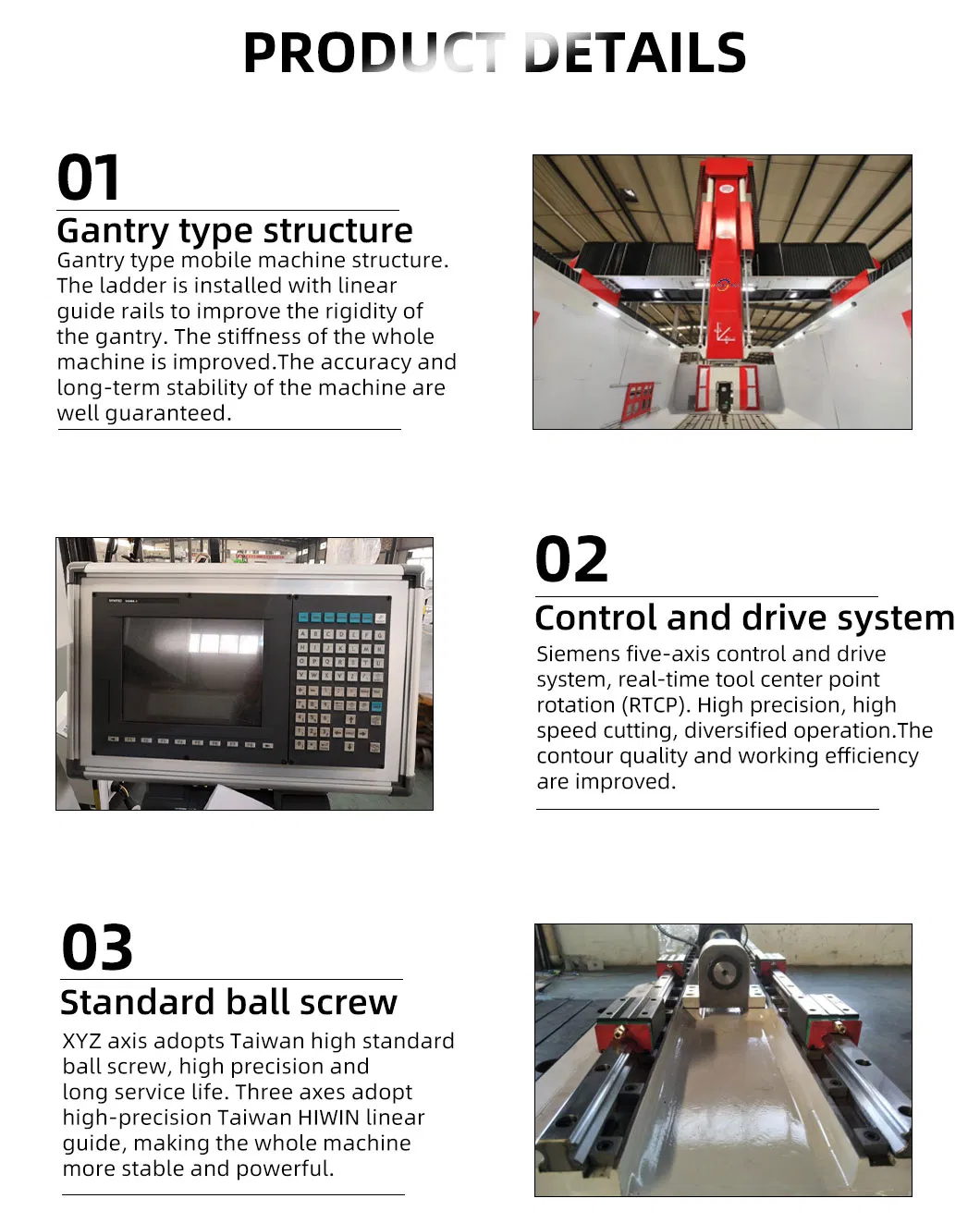

CNC Detail 2

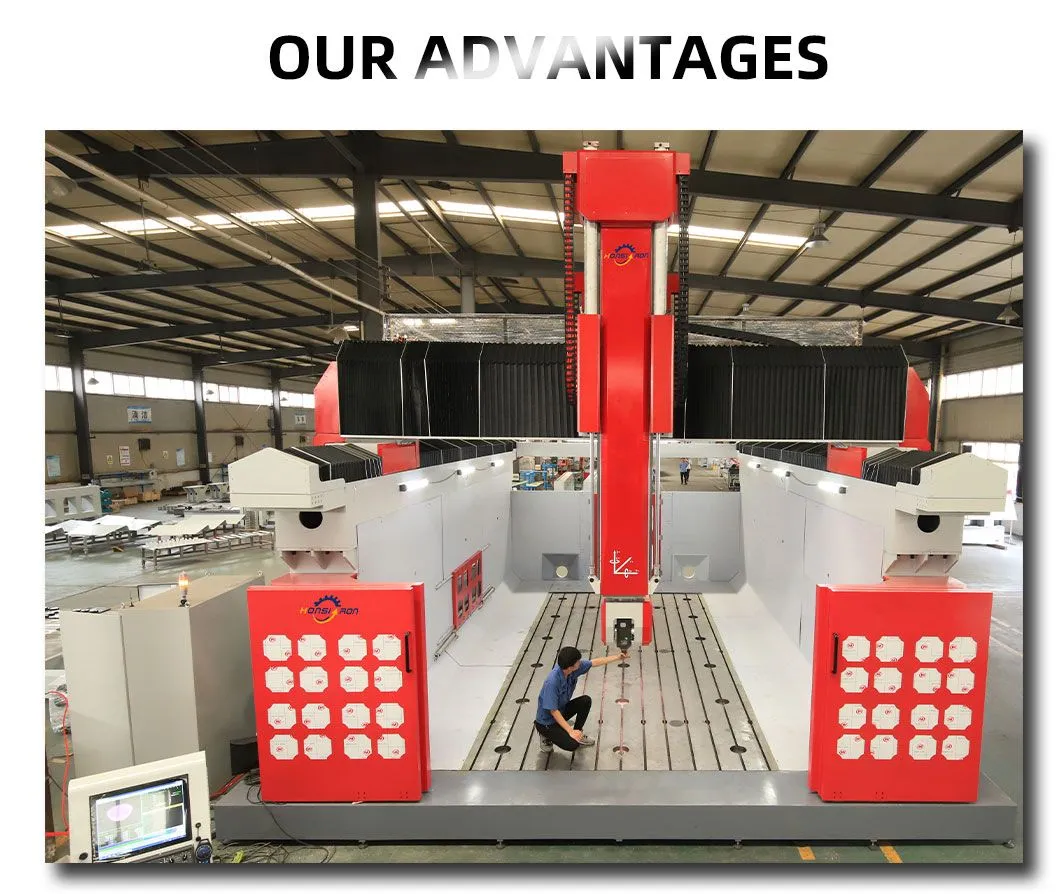

CNC Detail 3
🏭 Manufacturing & Testing

Equipped with advanced production machinery including American Haas CNC machining centers, Taiwan-made five-face milling centers, and eight-axis welding robots. Quality control is maintained through precision testing equipment.

✅ UK RENISHAW Laser Interferometer & Ballbar system
✅ Coordinate Measuring Machines & Laser Calibrators
✅ 20+ Years of Professional R&D Experience

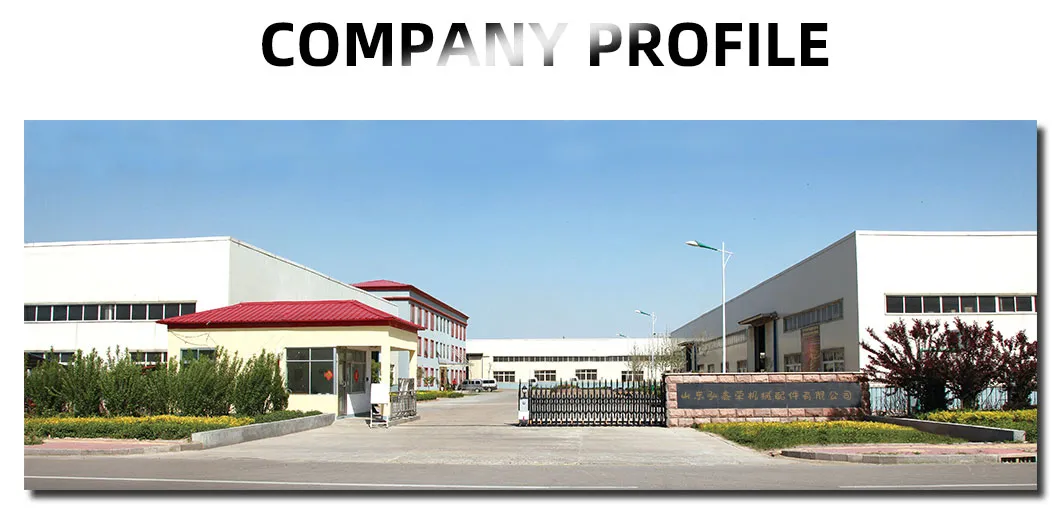

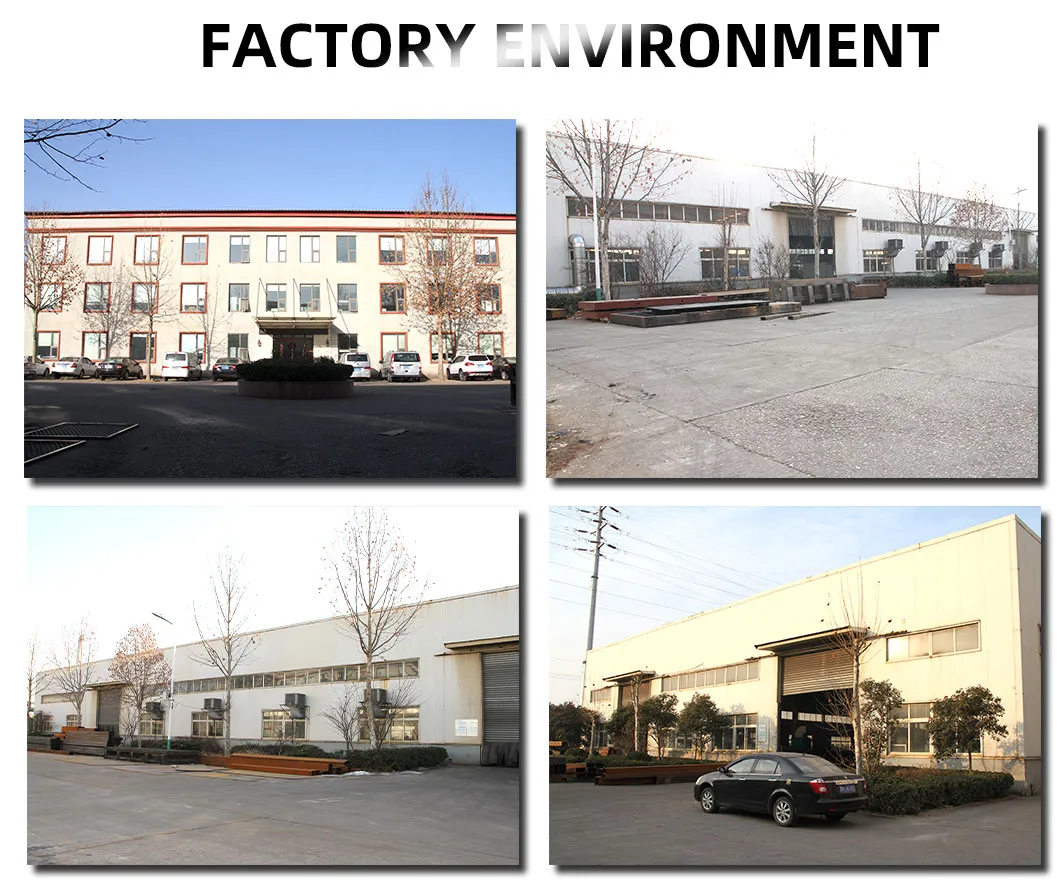

Factory Capability
Testing Equipment
📜 Certifications
Certification 1
Certification 2
Certification 3
❓ Frequently Asked Questions
1. Is this machine easy to operate for the first time?
Yes, the machine is designed for user-friendly operation. We can provide training and installation at your site, along with lifetime technical support.
2. What happens if the machine has a problem during the warranty period?
We provide free replacement parts during the warranty period. If necessary, our engineers can fly to your location for on-site support.
3. What materials are suitable for this 5-axis CNC?
It is designed for a wide range of materials including Wood, EPS foam, Plastic, Carbon Fiber, Composites, and Aluminum.
4. What type of control system and motors are used?
The machine uses a high-end Taiwan Syntec control system paired with original Japanese Yaskawa Servo motors for maximum precision.
5. Does the machine support high-speed processing?
Yes, it features an Italian ATC spindle (up to 24000rpm) and HSK taper tool holders, which are specifically suited for high-speed and high-precision applications.
6. How is the quality of the mechanical parts ensured?
We utilize advanced testing equipment like Renishaw laser interferometers and ballbar systems to verify accuracy and performance before delivery.
