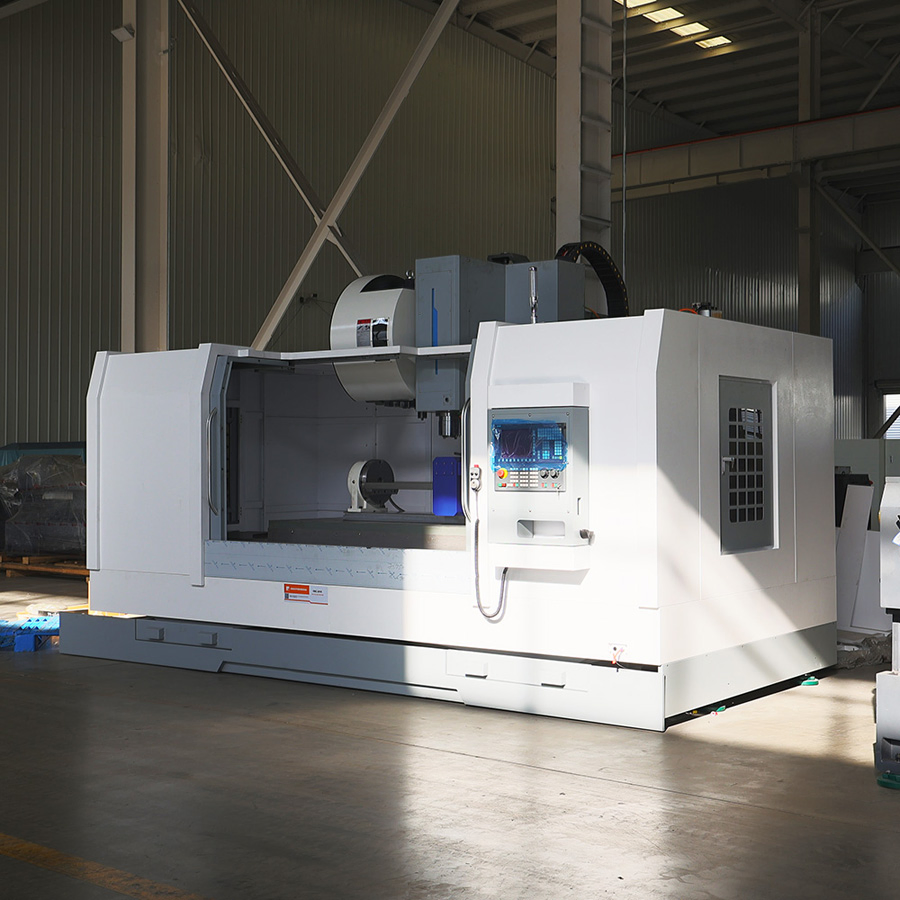

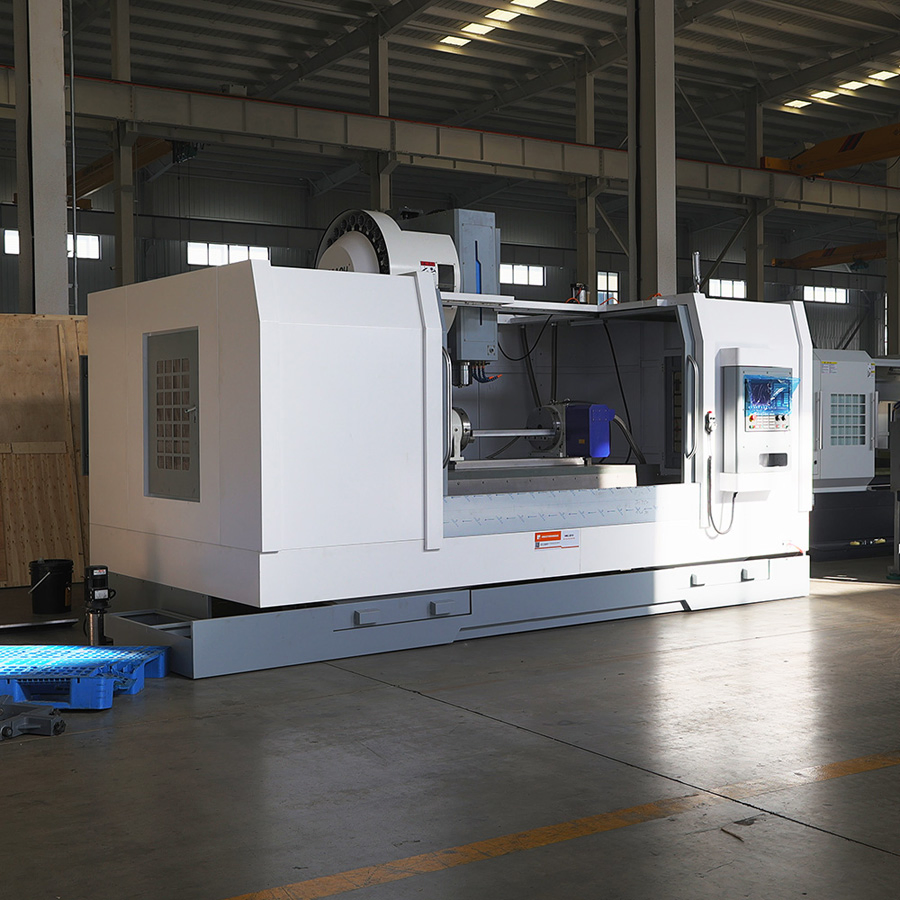

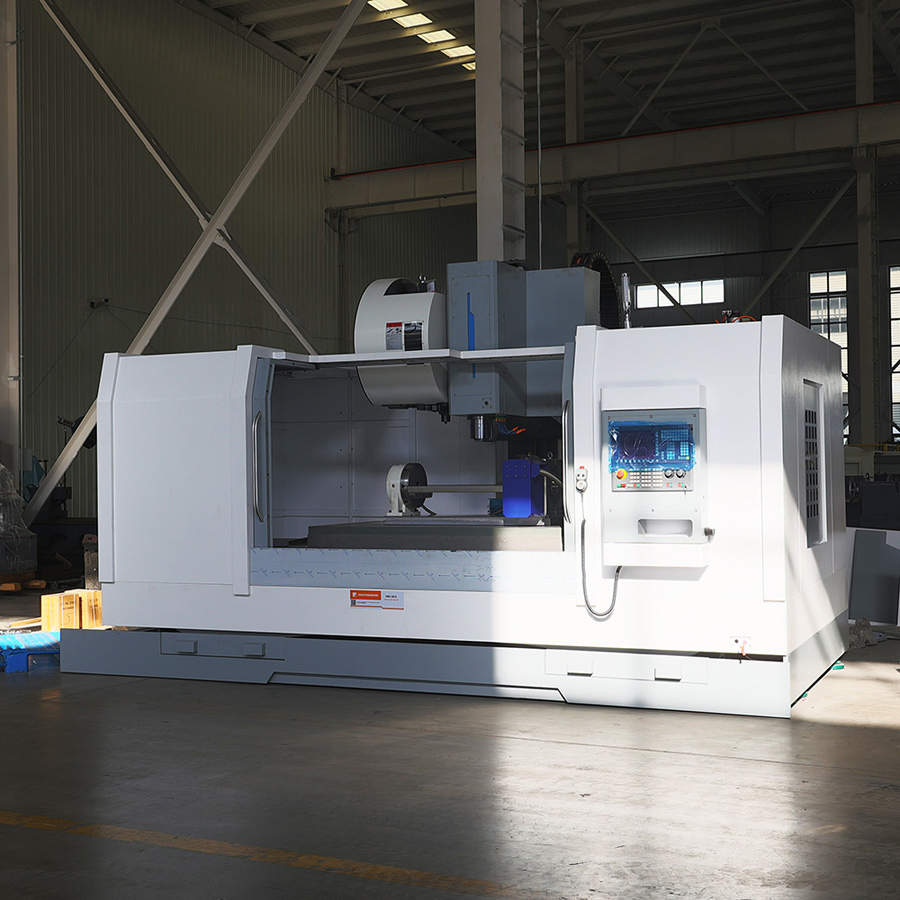

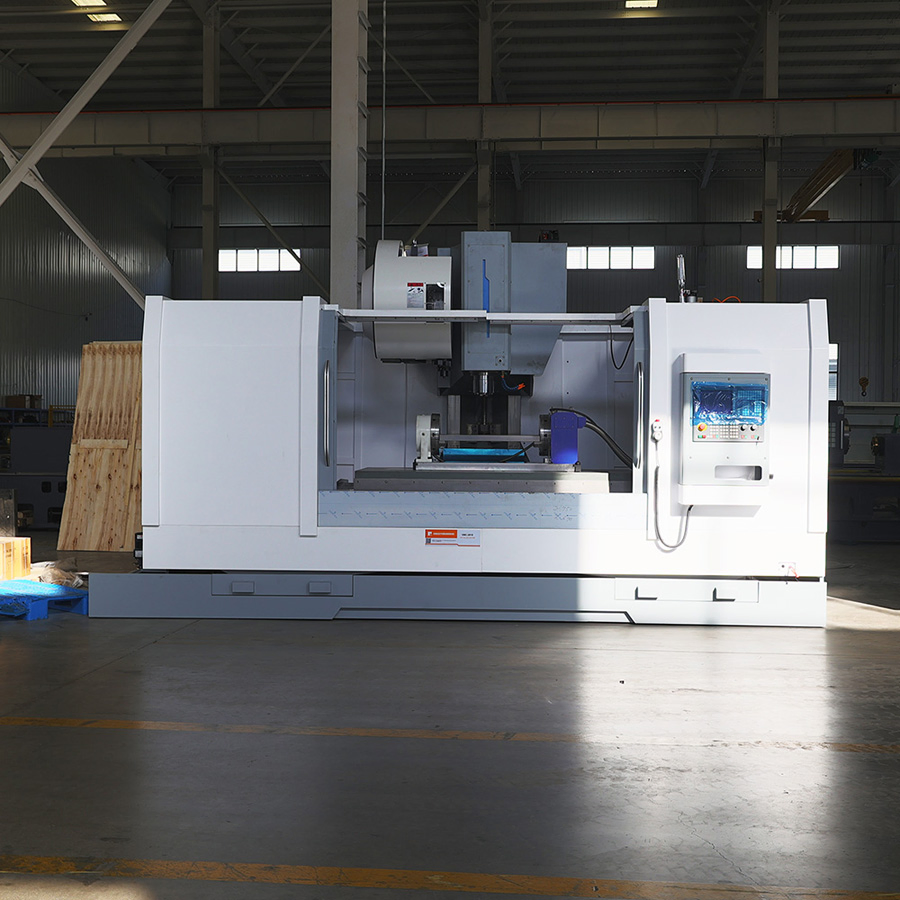

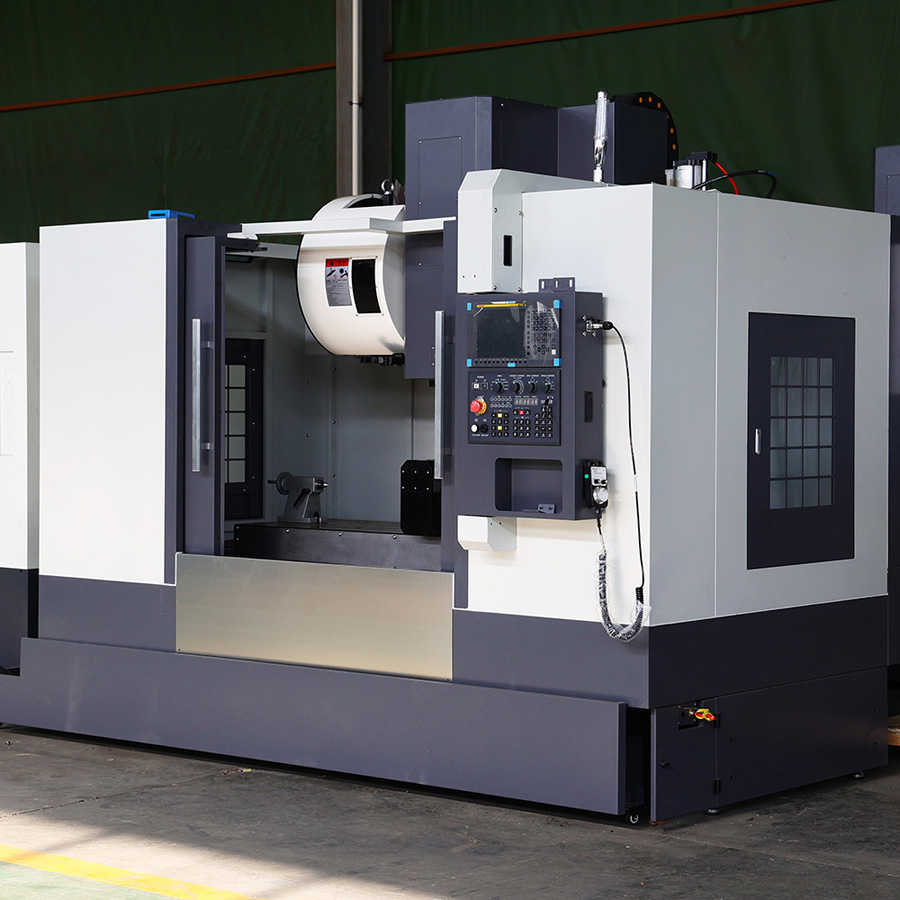

Vmc Machining Center 5 Axis CNC 5-Axis CNC Machining Center with Rotary Table CNC Milling Machine 5 Axis for Metal
Vmc Machining Center 5 Axis CNC 5-Axis CNC Machining Center with Rotary Table CNC Milling Machine 5 Axis for Metal
Vmc Machining Center 5 Axis CNC 5-Axis CNC Machining Center with Rotary Table CNC Milling Machine 5 Axis for Metal
Vmc Machining Center 5 Axis CNC 5-Axis CNC Machining Center with Rotary Table CNC Milling Machine 5 Axis for Metal
Vmc Machining Center 5 Axis CNC 5-Axis CNC Machining Center with Rotary Table CNC Milling Machine 5 Axis for Metal
1 / 5
Vmc Machining Center 5 Axis CNC 5-Axis CNC Machining Center with Rotary Table CNC Milling Machine 5 Axis for Metal
Vmc Machining Center 5 Axis CNC 5-Axis CNC Machining Center with Rotary Table CNC Milling Machine 5 Axis for Metal
Vmc Machining Center 5 Axis CNC 5-Axis CNC Machining Center with Rotary Table CNC Milling Machine 5 Axis for Metal
Vmc Machining Center 5 Axis CNC 5-Axis CNC Machining Center with Rotary Table CNC Milling Machine 5 Axis for Metal
Vmc Machining Center 5 Axis CNC 5-Axis CNC Machining Center with Rotary Table CNC Milling Machine 5 Axis for Metal

Vmc Machining Center 5 Axis CNC 5-Axis CNC Machining Center with Rotary Table CNC Milling Machine 5 Axis for Metal

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
vmc1160
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.04~0.05(mm)
Certification
CE, ISO 9001
X /Y/Z Axis Travel
1200/600/600mm
Weight
7200kg
Product Description

VMC Series CNC vertical machining center features x, y, and Z axis servo control semi-closed loop, with a compact and reasonable structure. The main shaft is driven by a high-performance servo motor.

🎯
High Precision: Equipped with high-precision, high-rigidity spindle for superior machining results.
⚙️
Robust Build: Fine workmanship with 2-mm thick sheet metal and 3 taps for flushing.
⚡
Efficient Drive: Advanced servo motor drive for reliable and high-speed operation.
🔇
Low Noise: Direct-connected spindle design ensures low vibration and noise levels.

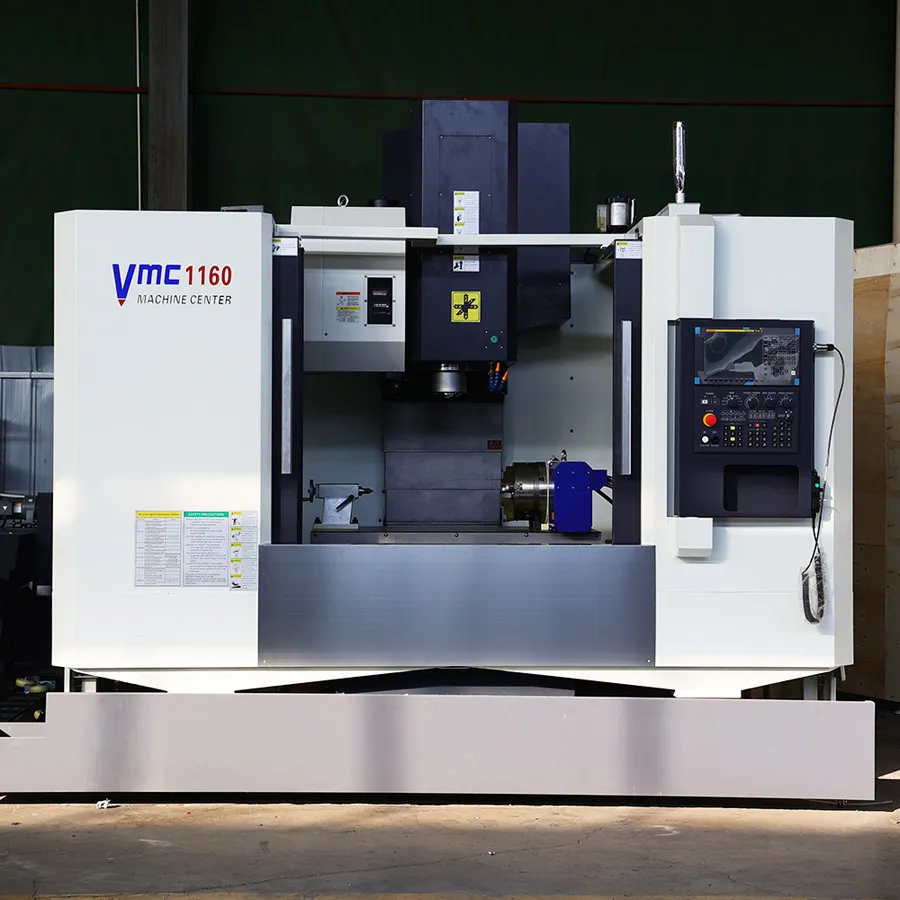

VMC Machining Center Overview

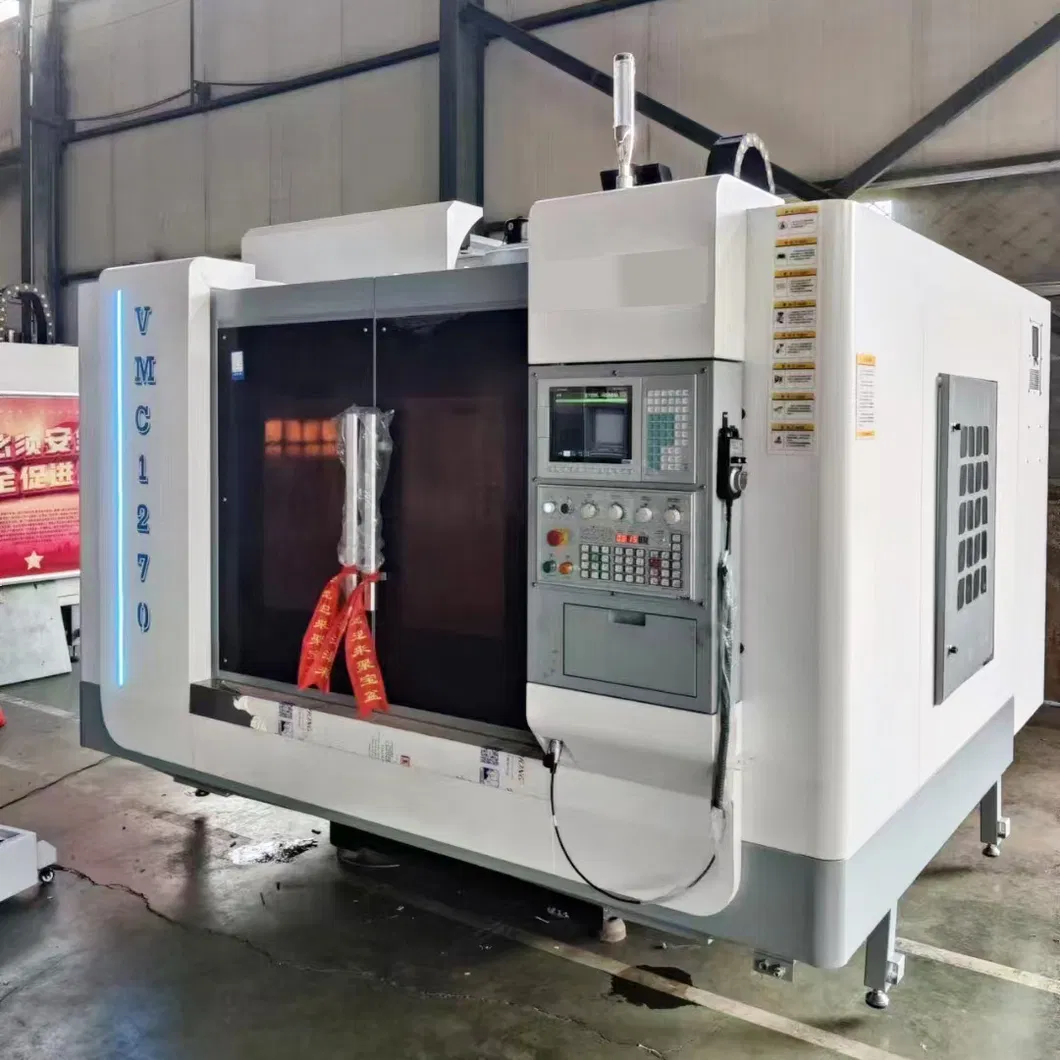

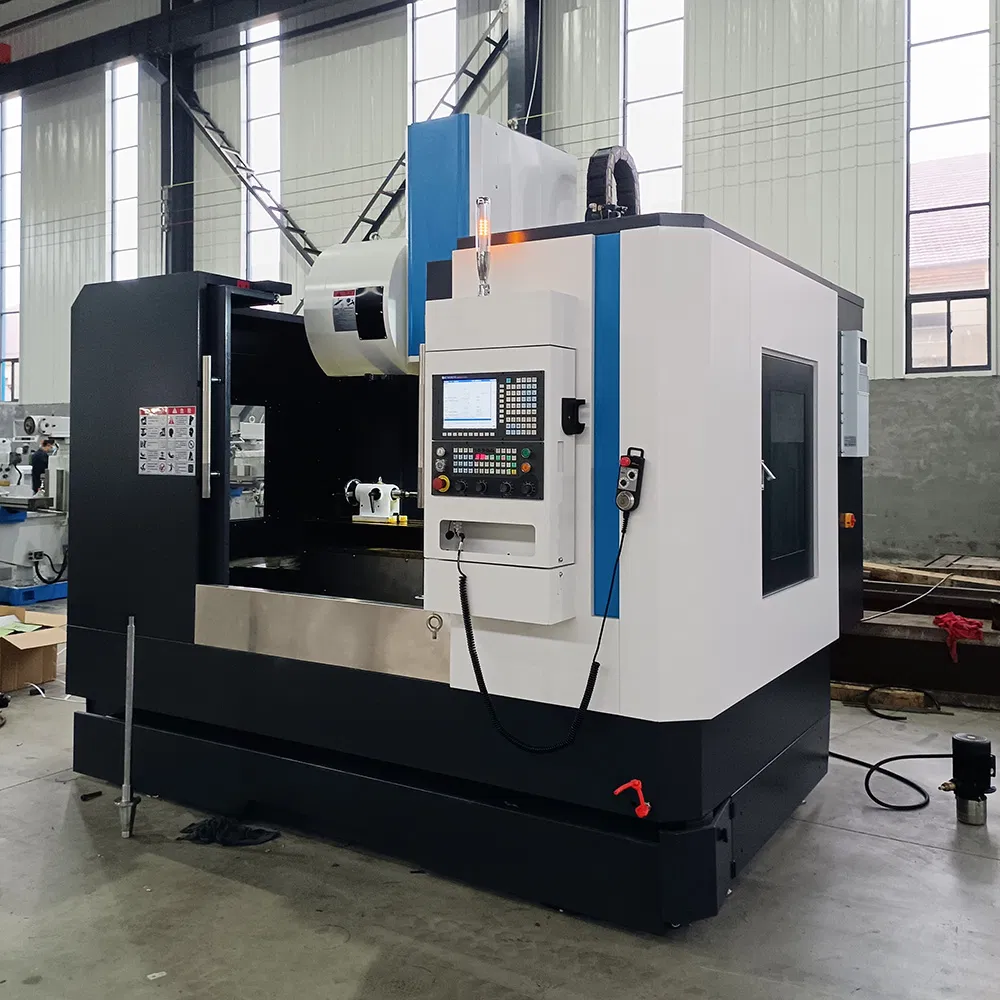

VMC Detail 1 VMC Detail 2

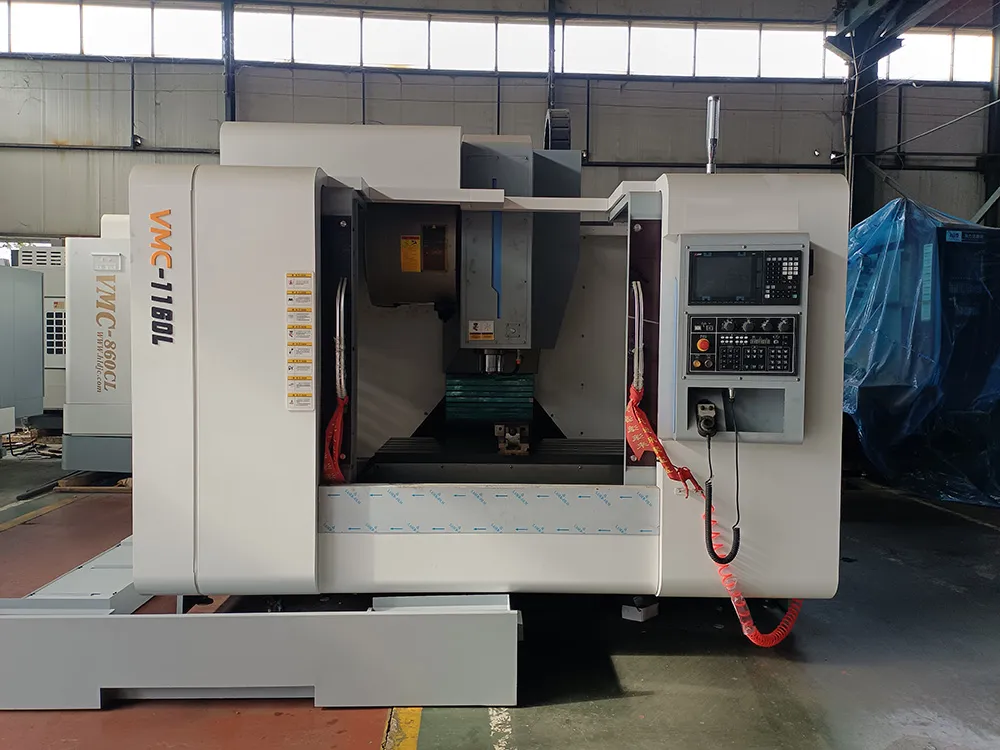

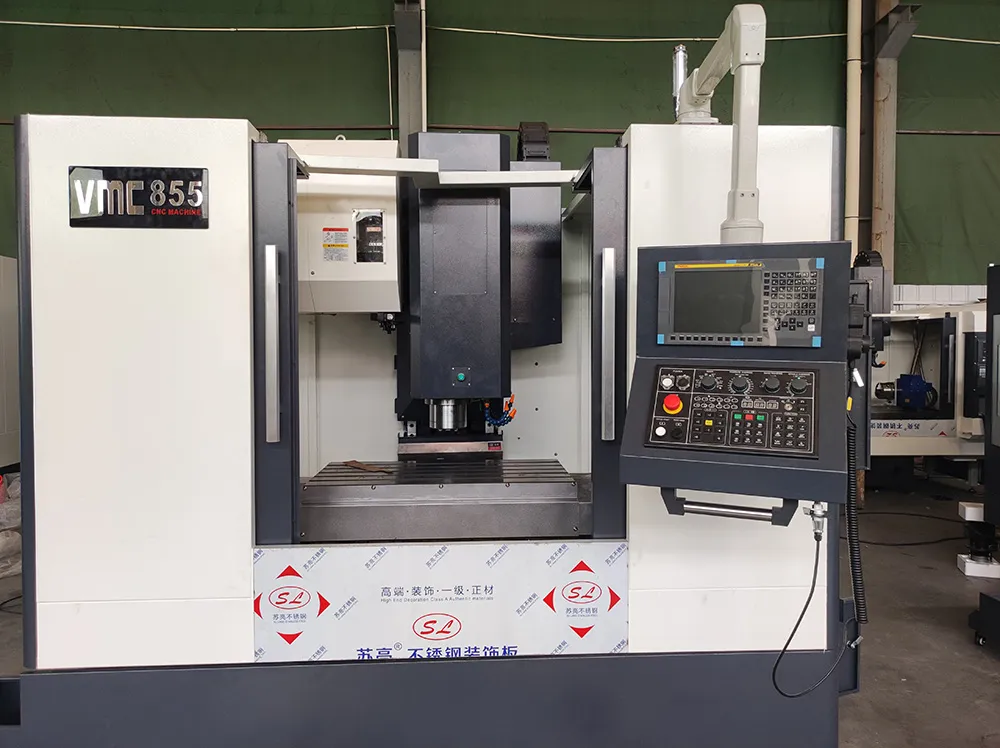

Machining View 1 Machining View 2
Technical Specifications
Specifications VMC650 VMC850 VMC855 VMC1060 VMC1270
X axis650mm800mm800mm1000mm1200mm
Y axis400mm500mm550mm600mm700mm
Z axis500mm500mm550mm600mm700mm
Spindle Speed8000 rpm8000 rpm8000 rpm8000 rpm8000 rpm
Workbench Area800×400mm1000×500mm1000×550mm1200×600mm1300×700mm
Weight Capacity400Kg500Kg500Kg600Kg700Kg
Positioning Accuracy±0.005/300mm0.005/300mm0.005/300mm±0.005/300mm±0.005/300mm
Detailed Components
Spindle
Taiwan VOLIS Spindle
Spindle BT40 8000rpm. Optional 10000rpm and 12000rpm. Servo motor drive, belt-type spindle with strong rigidity and reliability.

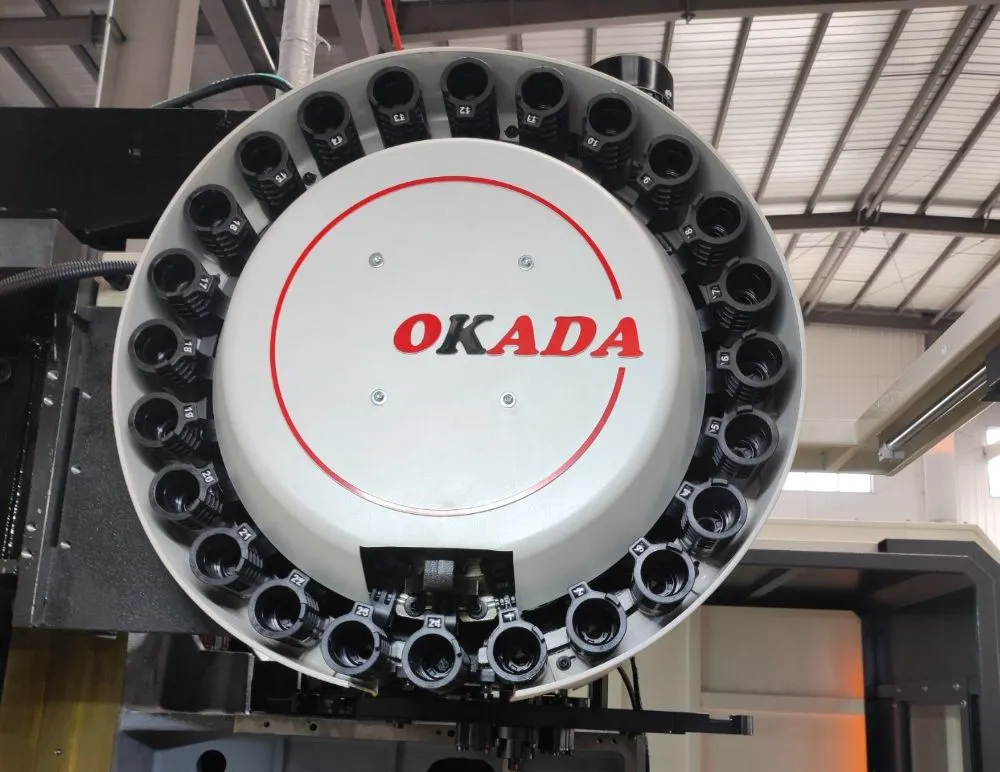

Tool Magazine
Taiwan OKADA Tool Magazine
ATC (Auto Tools Change) for automatic tool exchange. Supports 24/30/40/60 tools to increase production efficiency.

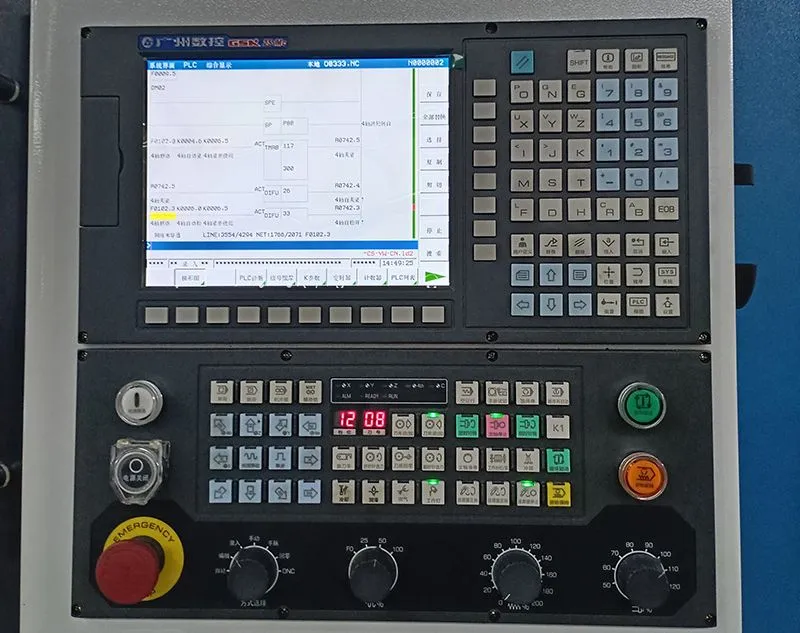

CNC System
CNC Operating System
Optional control systems: Fanuc, Siemens, Mitsubishi, Syntec, GSK, etc. Supports multi-language display.

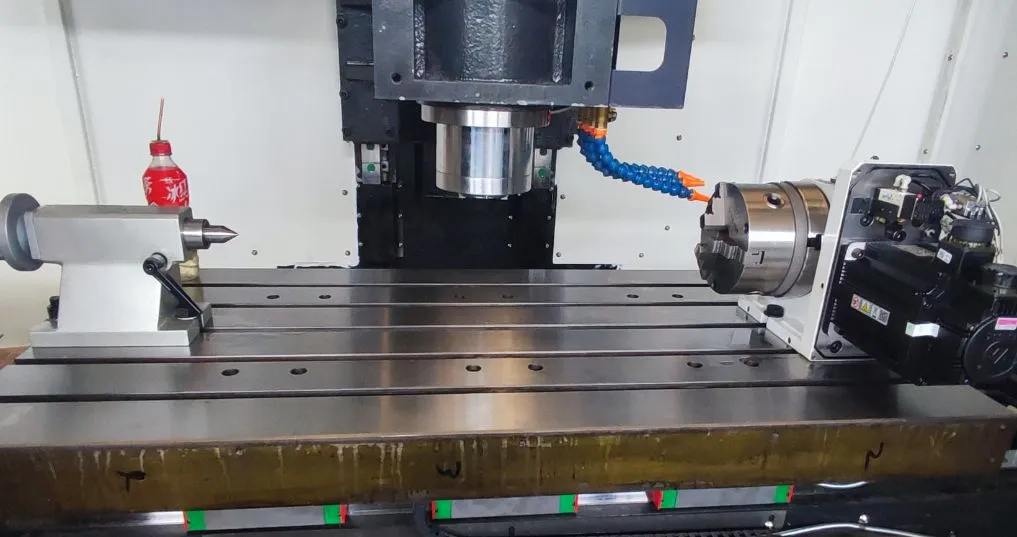

Workbench
Workbench & Guide Rail
Wear-resistant cast iron with audio hardened guide rails. Three-axis linear slideways for rapid displacement.
Main Structure Features
  • Castings with stable organization and permanent quality assurance.
  • Finite element analysis ensures optimal rigidity and earthquake resistance.
  • Ultra-wide box-type structures for base and column to support heavy loads.
  • Manual precision scraping on hard rail tracks with imported wear-resistant sheets.
  • Electrical cabinet separates strong and weak electricity for safety and scalability.

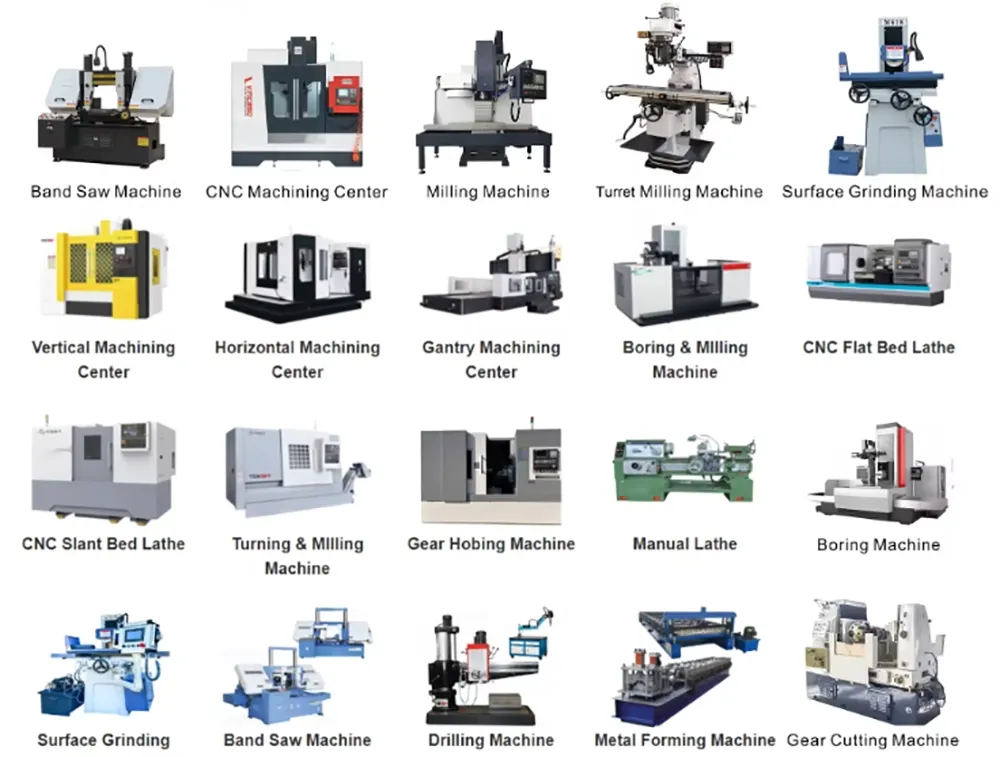

Related Products
Packaging & Shipping

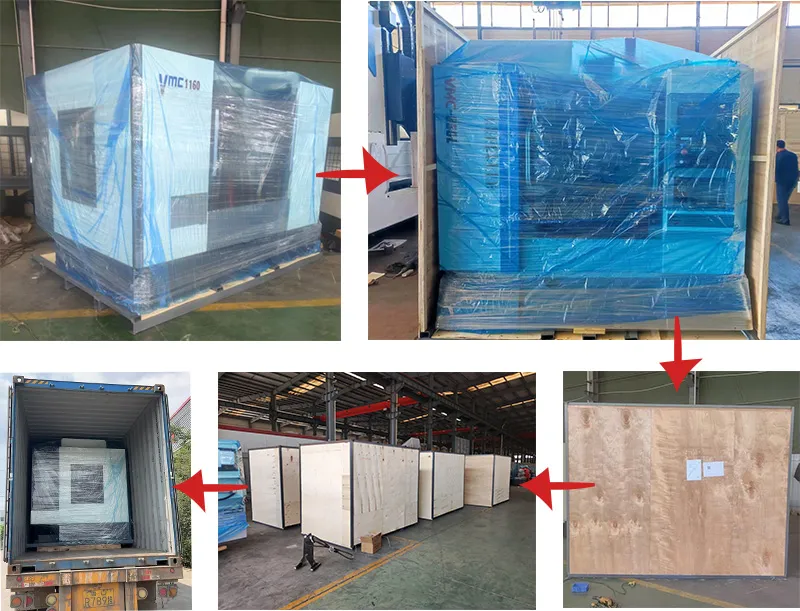

Packaging

Quality Assurance: All machines are assembled and debugged before delivery. We provide shipping solutions including ocean and land transportation. Please inspect goods upon arrival.

Our Service Capabilities
✅ Technical support online service
✅ Detailed technical files provided
✅ Machine operation videos
✅ On-site training service
✅ Spare parts replacement & repair
✅ 8-hour response time for inquiries
Factory Overview Service Flow
Frequently Asked Questions
What materials can these VMC machines process?
The VMC series is primarily designed for high-precision metal processing, including metal-cutting, forming, and non-conventional machining tasks.
Which CNC control systems do you support?
We offer multiple optional control systems such as Fanuc, Siemens, Mitsubishi, Syntec, and GSK, all of which support multi-language displays.
What is the positioning accuracy of the machines?
According to JIS standards, the machines achieve a positioning accuracy of ±0.005/300mm and a repeat positioning accuracy of ±0.003mm.
Can the spindle speed be customized?
Yes, the standard spindle speed is 8000 rpm, but we also offer high-speed options of 10000 rpm and 12000 rpm based on your requirements.
Do you provide technical support after purchase?
Absolutely. We provide online technical support, operational videos, technical files, and on-site training to ensure smooth machine operation.
How are the machines packaged for international shipping?
All machines are packed in seaworthy wooden cases to ensure safe transportation via ocean or land.
