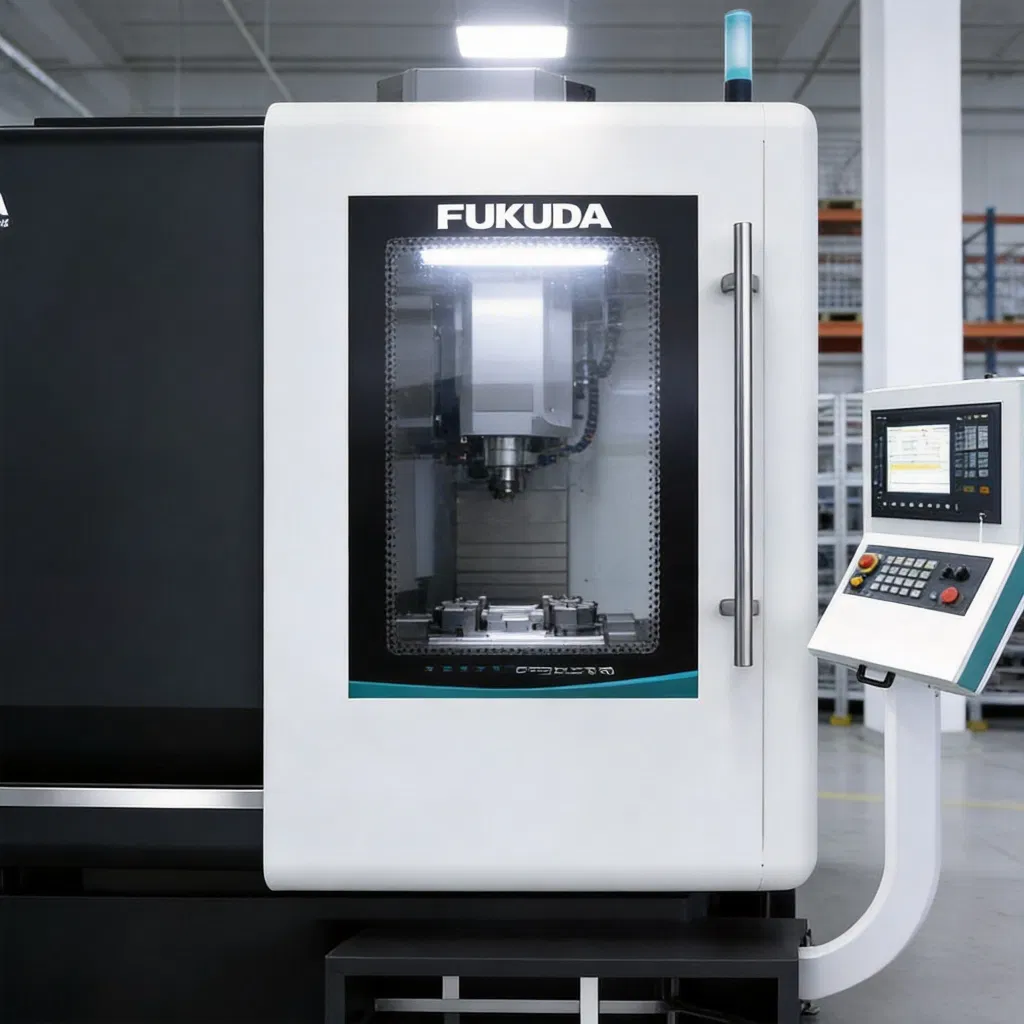

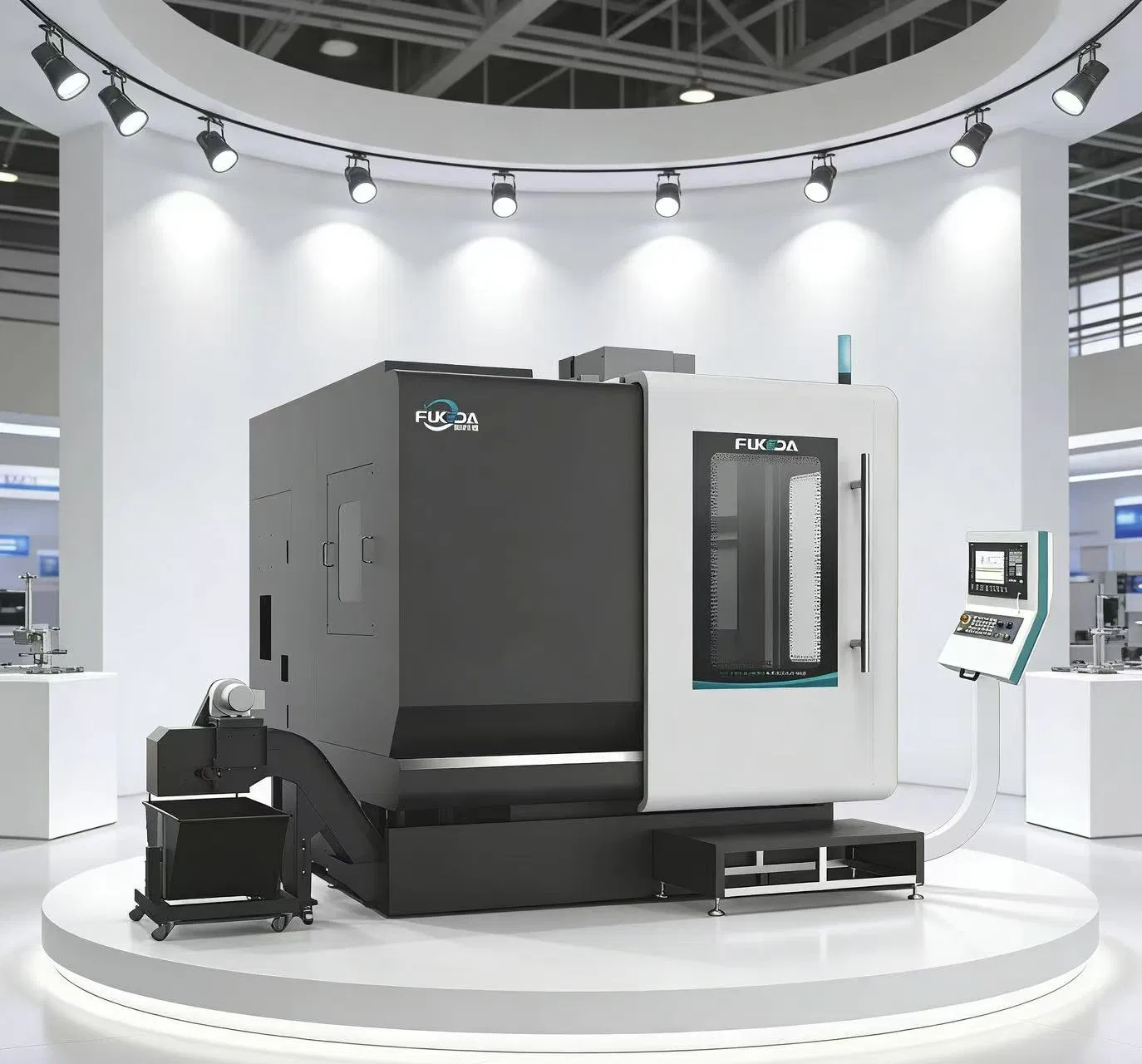

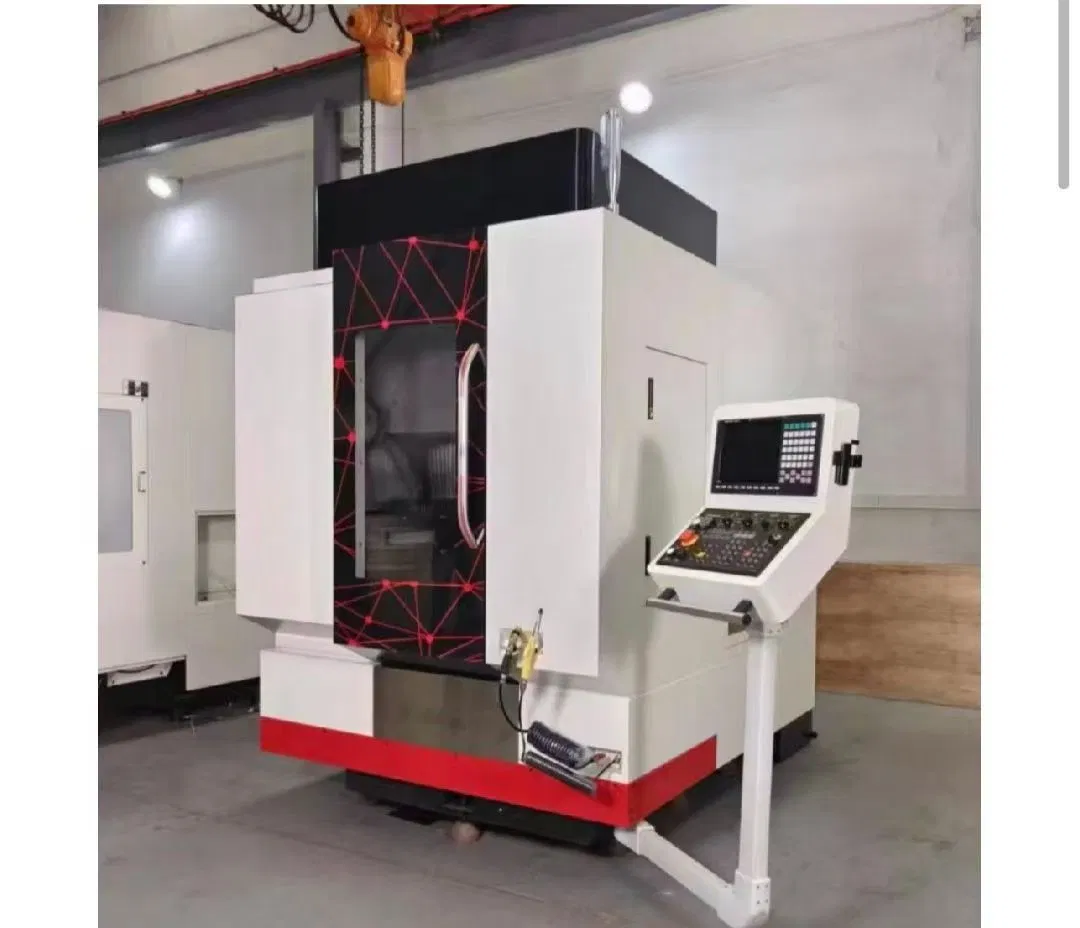

Bridge-Type 5-Axis CNC Machining Center for Simultaneous Complex Machining

1 / 5

Bridge-Type 5-Axis CNC Machining Center for Simultaneous Complex Machining

Customization:	Available
After-sales Service:	Support
Application:	Metal

Send Inquiry

Product Description

Basic Information

Model NO.

FMU500

Machine Type

High-Precision 5-Axis CNC Machining Center

Numerical Control

CNC/MNC

Processing Precision

0.01~0.02(mm)

Movement Method

Linear Control

Certification

CE, ISO 9001

Working Style

φ500, X/Y/Z, 18000rpm

Travel

600/750/500

Production Capacity

1000 sets/Year

★

Product Description

BRIDGE-TYPE 5-AXIS MACHINING CENTER FMU500 delivers precision & versatility for complex multi-surface machining. The robust gantry design ensures extreme rigidity and stability for heavy-duty cutting operations.

Equipped with 5-axis interpolation, it enables efficient machining of intricate components, significantly reducing cycle times. The FMU500 combines a high-speed spindle with superior thermal stability to maintain tight tolerances even during long production runs.

⚙

Key Applications

Automotive

Prototype development, cylinder heads, and precision engine components.

Mold & Die

Injection molds, stamping dies, and forming tools with complex 3D surfaces.

Medical

Surgical instruments, prosthetics, and precision medical device components.

Energy Sector

Wind turbine components and power equipment manufacturing.

📋

Technical Parameters

Parameter	Specification
Product Name	FMU500 Bridge-Type 5-Axis Machining Center
Structure Type	Bridge / Gantry Type Design
Main Function	High-Precision 5-Axis Machining of Complex Parts
Suitable Materials	Aluminum, Carbon Steel, Stainless Steel, Titanium, Composites
Working Style	φ500, X/Y/Z, 18000RPM
Travel (X/Y/Z)	600 / 750 / 500 mm
User Benefits	Fewer Setups, Shorter Machining Time, Higher Accuracy

📷

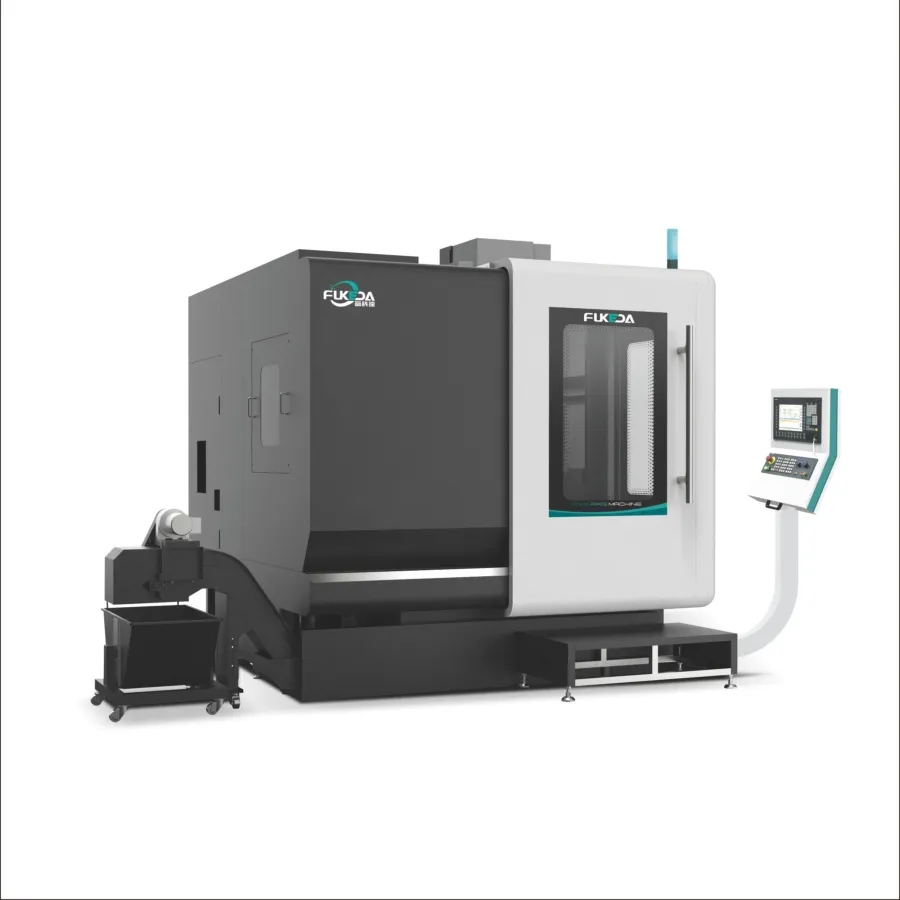

Detailed Photos

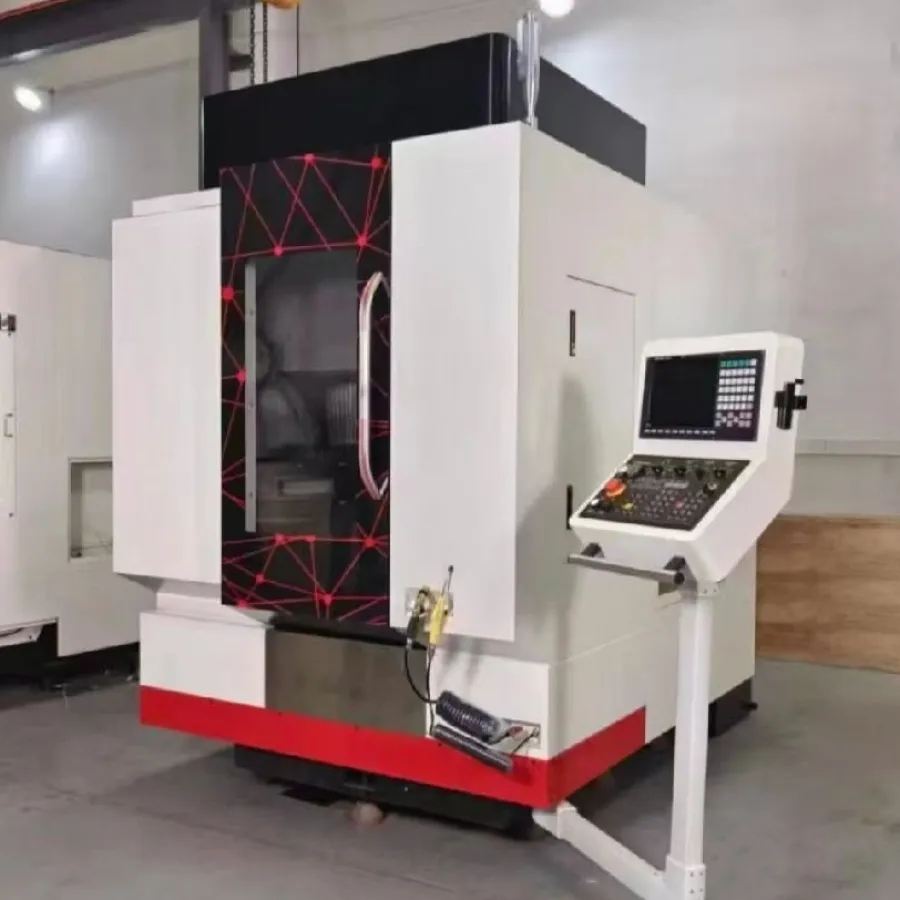

RIGID BRIDGE-TYPE GANTRY STRUCTURE: Delivers rigidity, vibration damping, and stability for hard materials at aggressive rates.

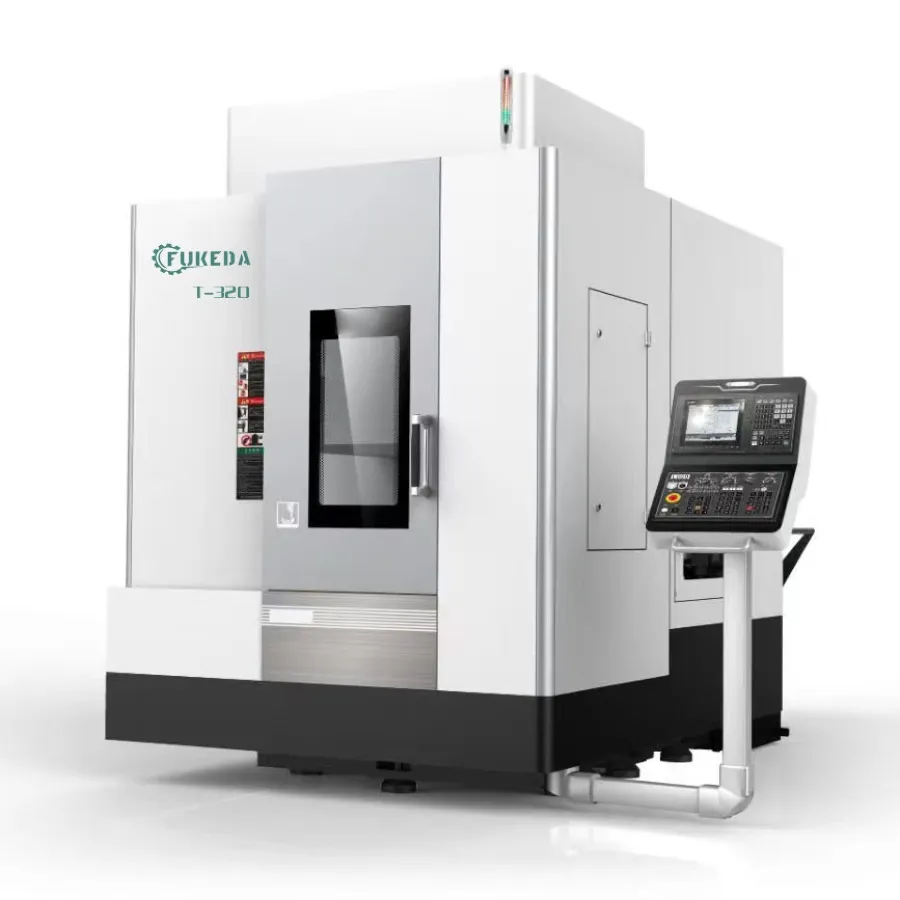

5-AXIS SIMULTANEOUS MACHINING: Allows complex contour processing and multi-angle finishing in one setup.

Frequently Asked Questions

What are the primary industries that use the FMU500?

The FMU500 is ideal for high-precision sectors including Aerospace, Automotive, Medical device manufacturing, and complex Mold & Die making.

What are the advantages of a bridge-type structure?

The gantry/bridge design provides superior rigidity and vibration damping compared to C-frame machines. This ensures better surface finishes and accuracy when machining hard materials.

What materials can the FMU500 handle?

It is capable of processing a wide range of materials such as Aluminum, Carbon Steel, Stainless Steel, Titanium Alloys, Copper, and various Composite materials.

Does the machine support simultaneous 5-axis movement?

Yes, the FMU500 features full 5-axis simultaneous interpolation, allowing for the machining of complex 3D contours and multi-sided parts in a single setup.

What kind of customization is available?

We offer on-demand customization including specific LOGO applications, custom colors, and size modifications to fit your specific production requirements.

How do I obtain a detailed technical quotation?

Please provide your specific machining requirements and product drawings. Our team will evaluate the needs and provide a tailored solution and pricing.
