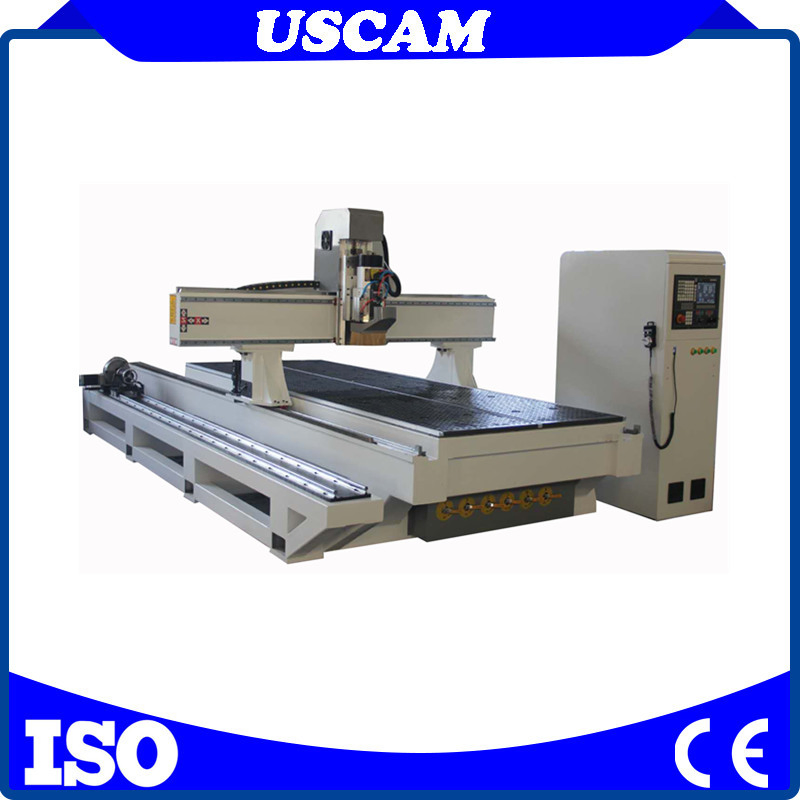

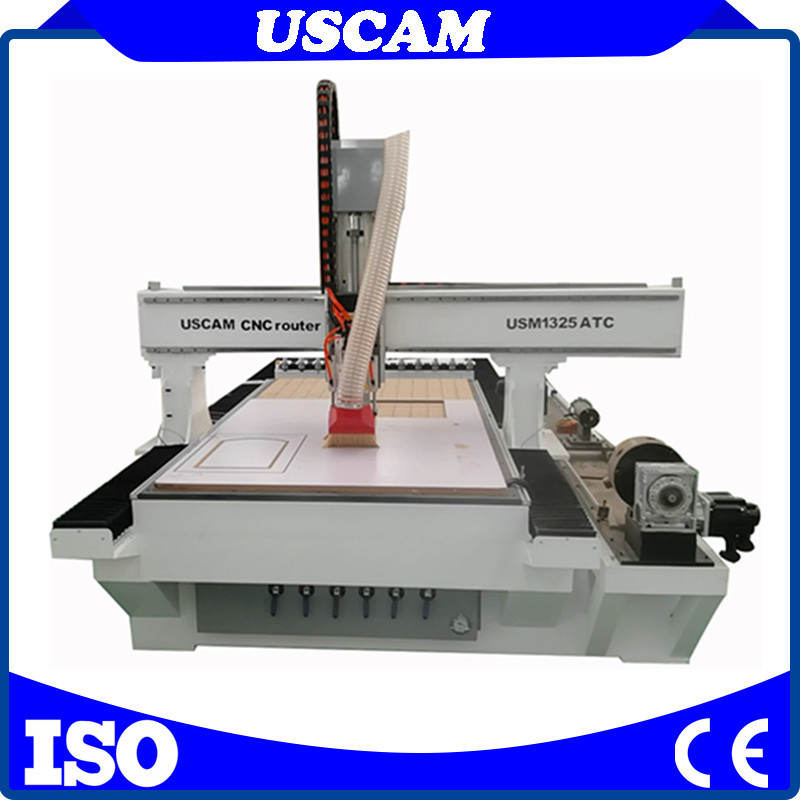

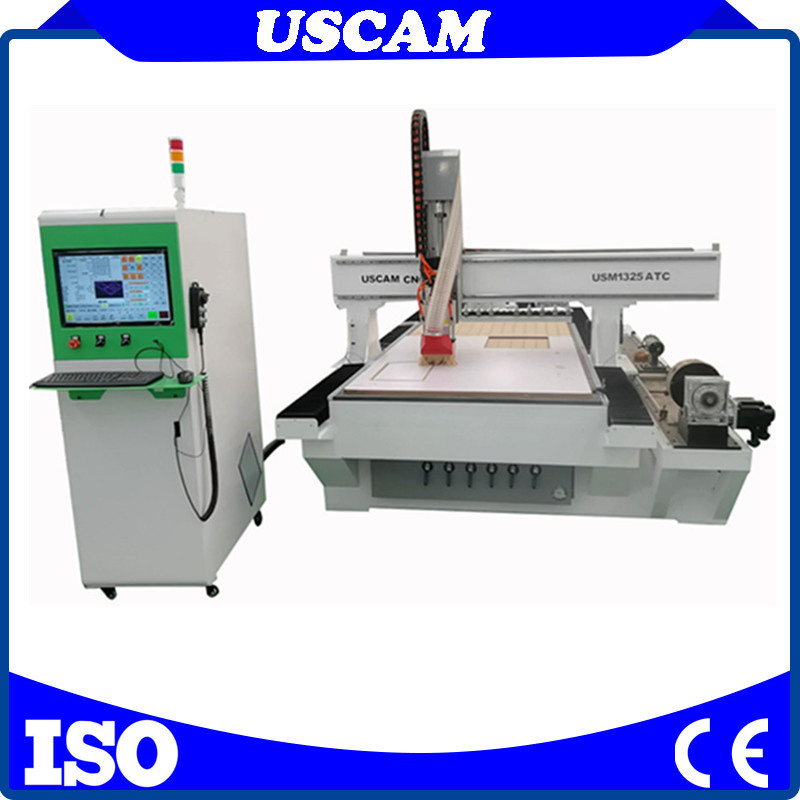

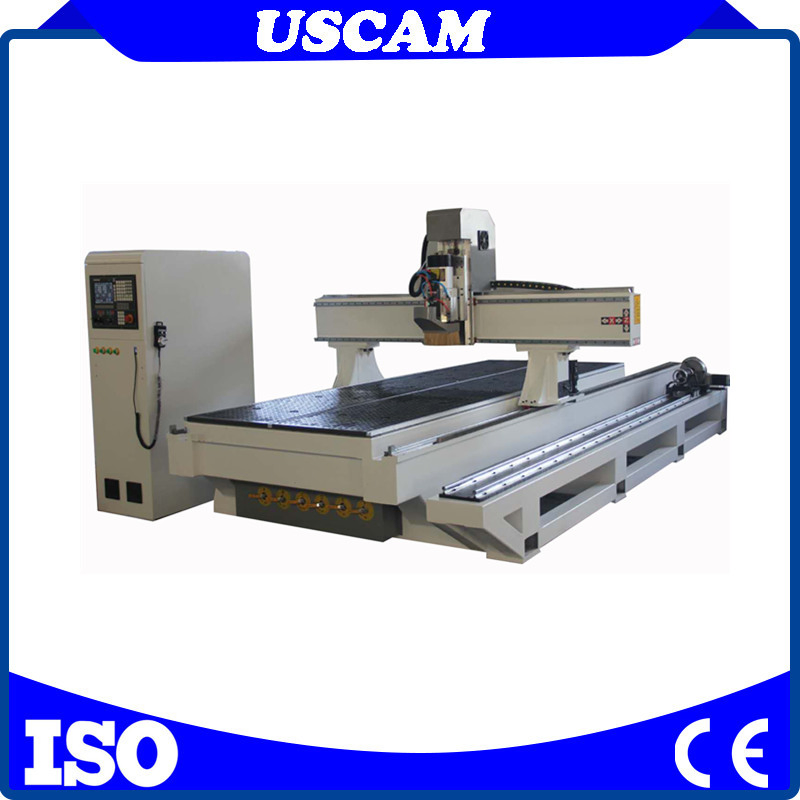

4X8 Atc CNC Router with Rotary Device for Cylinder Engraving and Carving Columns, Pillars, Chair Legs,MDF Plate Wood Furniture Engraving Carving Cutting Machine
4X8 Atc CNC Router with Rotary Device for Cylinder Engraving and Carving Columns, Pillars, Chair Legs,MDF Plate Wood Furniture Engraving Carving Cutting Machine
4X8 Atc CNC Router with Rotary Device for Cylinder Engraving and Carving Columns, Pillars, Chair Legs,MDF Plate Wood Furniture Engraving Carving Cutting Machine
4X8 Atc CNC Router with Rotary Device for Cylinder Engraving and Carving Columns, Pillars, Chair Legs,MDF Plate Wood Furniture Engraving Carving Cutting Machine
4X8 Atc CNC Router with Rotary Device for Cylinder Engraving and Carving Columns, Pillars, Chair Legs,MDF Plate Wood Furniture Engraving Carving Cutting Machine
1 / 5
4X8 Atc CNC Router with Rotary Device for Cylinder Engraving and Carving Columns, Pillars, Chair Legs,MDF Plate Wood Furniture Engraving Carving Cutting Machine
4X8 Atc CNC Router with Rotary Device for Cylinder Engraving and Carving Columns, Pillars, Chair Legs,MDF Plate Wood Furniture Engraving Carving Cutting Machine
4X8 Atc CNC Router with Rotary Device for Cylinder Engraving and Carving Columns, Pillars, Chair Legs,MDF Plate Wood Furniture Engraving Carving Cutting Machine
4X8 Atc CNC Router with Rotary Device for Cylinder Engraving and Carving Columns, Pillars, Chair Legs,MDF Plate Wood Furniture Engraving Carving Cutting Machine
4X8 Atc CNC Router with Rotary Device for Cylinder Engraving and Carving Columns, Pillars, Chair Legs,MDF Plate Wood Furniture Engraving Carving Cutting Machine

4X8 Atc CNC Router with Rotary Device for Cylinder Engraving and Carving Columns, Pillars, Chair Legs,MDF Plate Wood Furniture Engraving Carving Cutting Machine

Customization: Available
Certification: CE, ISO 9001
Usage: Woodworking, Plastic, Glass, Stone, Advertising
Send Inquiry

Product Description

Technical Specifications

Power
9.0kw
Control
CNC (LNC Controller)
Drive Type
AC Servo Drive
Working Area
1300*2500*200mm
Spindle
9kw Air Cooling Spindle
Inverter
Fuling Inverter
Motor
Leadshine Servo
Vacuum Pump
7.5kw Water Vacuum
Voltage
380V 50Hz/60Hz
Net Weight
1600kg

Product Description

4x8 ATC CNC router with rotary device for cylinder engraving and carving columns, pillars, chair legs, MDF plate wood furniture engraving carving cutting machine.

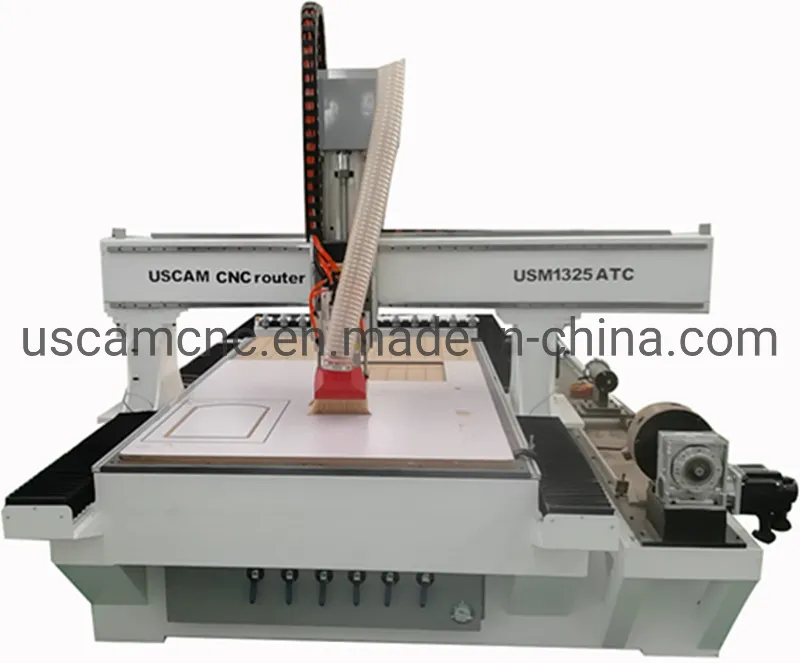

ATC CNC Router Machine
⚙️
High Efficiency ATC System: Equipped with a carousel tool magazine of 12 tools to improve working efficiency. Automatic tool changes save time and labor.
🔄
Integrated Rotary Device: Professional rotary axis for cylinder engraving, such as columns, pillars, and chair legs, maximizing the machine's versatility.
🏗️
Heavy Duty Structure: Built with an 8mm thickness steel heavy-duty body to ensure stability and precision during high-speed operation.

Technical Parameters

ModelUSC1325/1530/2030 Liner ATC CNC ROUTER
Working Area1300X2500X200mm / 1500X3000X200mm
Spindle Power9.0KW ATC Air-cooling Spindle
Tool Changer10/12 Straight Tool Changer
Control SystemLNC Controller (Optional: Syntec)
Servo SystemLeadshine Servo Motor and Driver
TransmissionX, Y High-precision Gear and Rack; Z Taiwan TBI Ball Screw
Guide RailTaiwan LP Square 30 Rails
Vacuum Pump7.5kw Water Vacuum Pump
Dust CollectionDual-drum 4.0kw Dust Collector
Accuracy0.01mm Working/Repositioning

Application Areas

🪑
Woodworking Industry: Stereo wave board, wooden doors, cabinet making, solid wood furniture, chair legs, and pillars.
📢
Advertising Industry: Label making, PVC, PCB drilling, logo production, acrylic cutting, and LED displays.
🎨
Handicrafts & Molds: Wood molds, foam molds, 3D surface carving for musical instruments, and exhibition showcases.

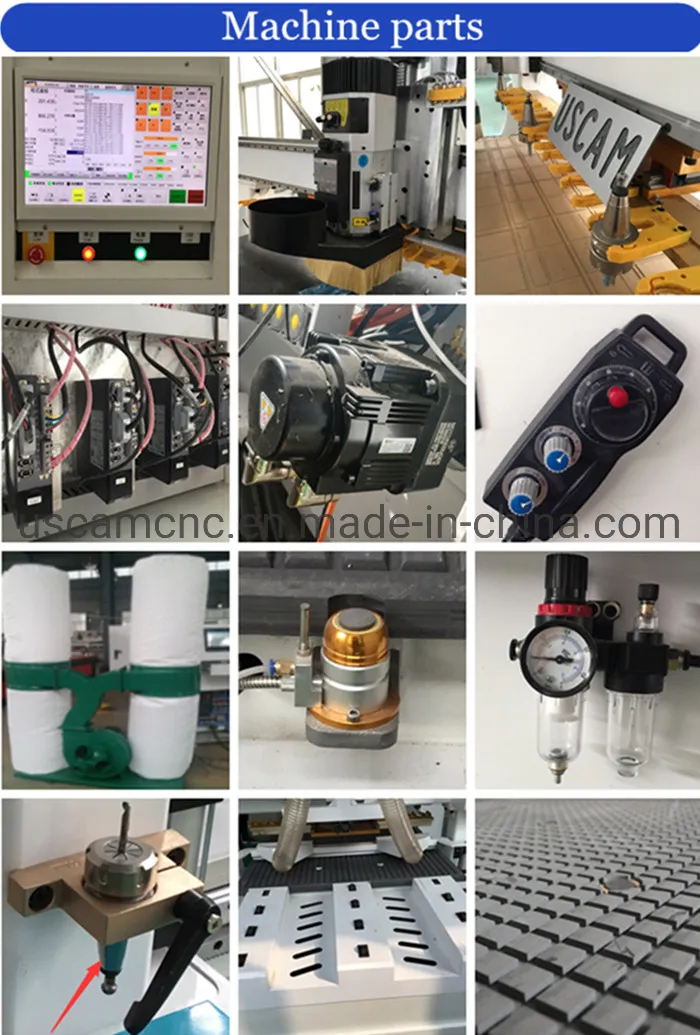

Quality Control Details

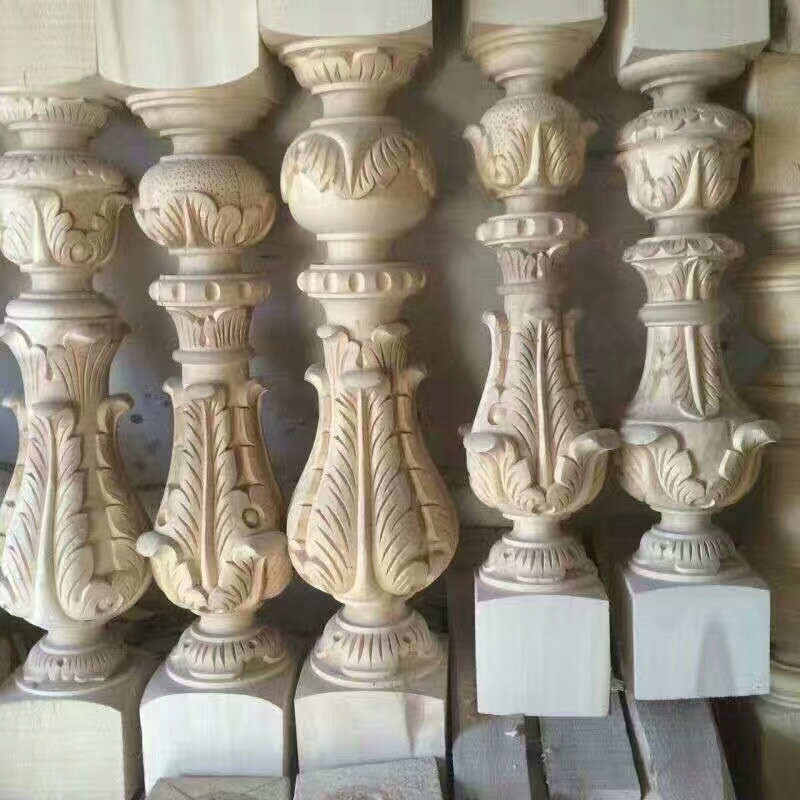

Application Samples

Quality Control & Service

✅ 8 hours of continuous testing for every machine before delivery.
✅ 18-24 months guarantee for the whole machine.
✅ Lifetime maintenance and free software updates.
✅ 24-hour online technical support by professional engineers.
Packaging Process

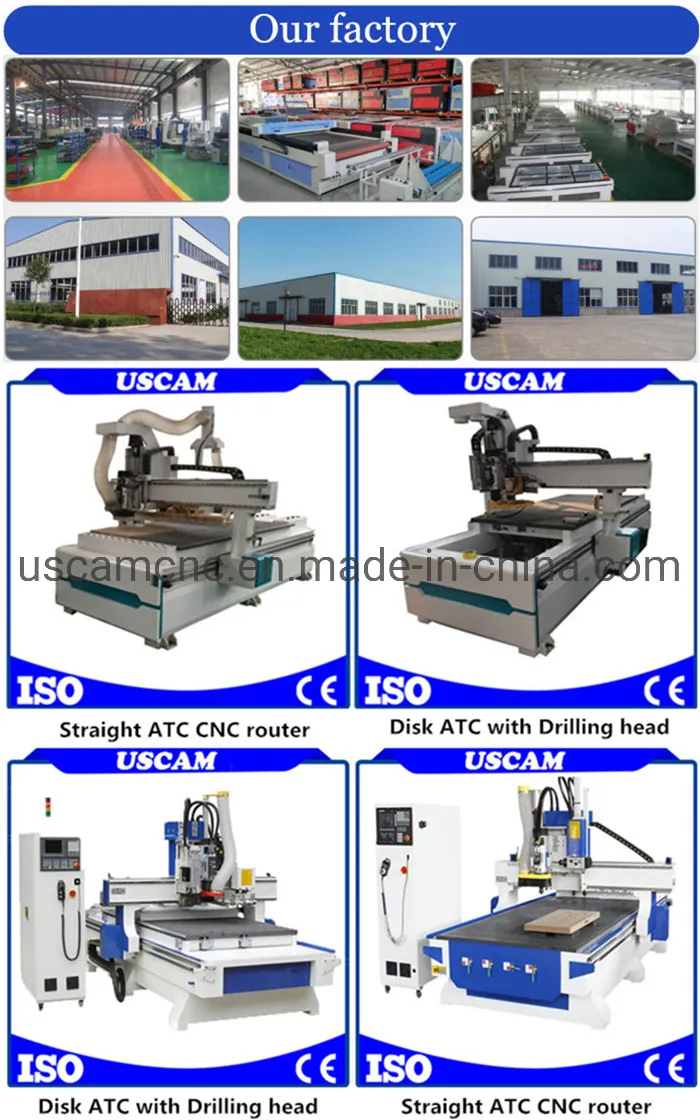

Delivery Preparation
Final Product Inspection

Frequently Asked Questions

What kind of packaging is used?
We use a 3-layer package: a waterproof plastic bag for the interior, protective foam for the middle, and a standard fumigation-free plywood case for the exterior.
Is the machine safe during transportation?
Yes. We consider all damage factors. Our shipping agents are highly experienced, and we have successfully exported to over 180 countries.
How do I install and operate the CNC router?
The machine is mostly installed before shipping. We provide detailed training videos and English manuals. Most customers (95%) can learn to operate it independently.
What should I do if the machine has a problem?
Contact us immediately. Our engineers respond within 24 hours to provide online support and will not leave the issue until it is solved.
What materials can this machine process?
It is ideal for solid wood, MDF, PVC, acrylic, PCB, foam, and soft metals like copper or aluminum.
How long is the delivery time?
Standard models are typically delivered within 7-15 days after receiving payment.
