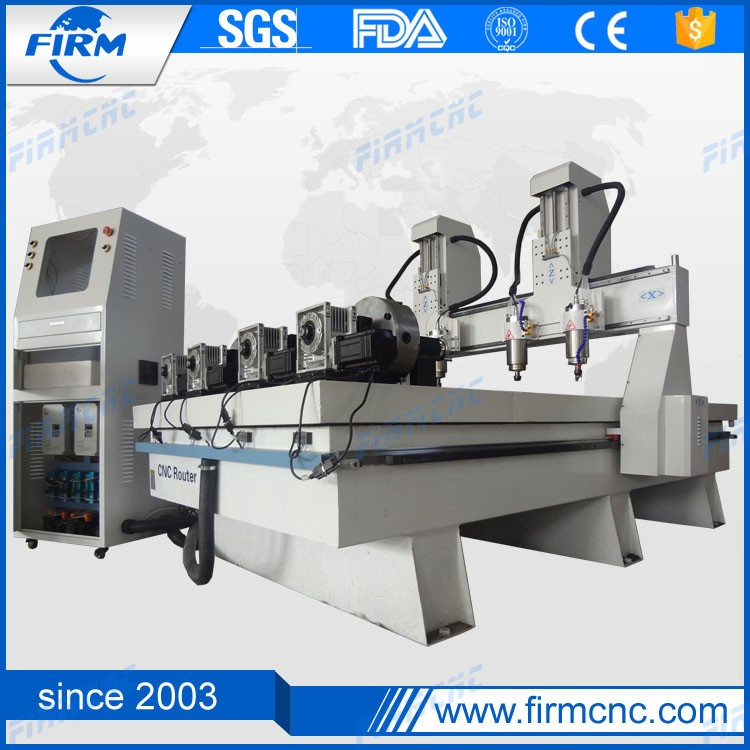

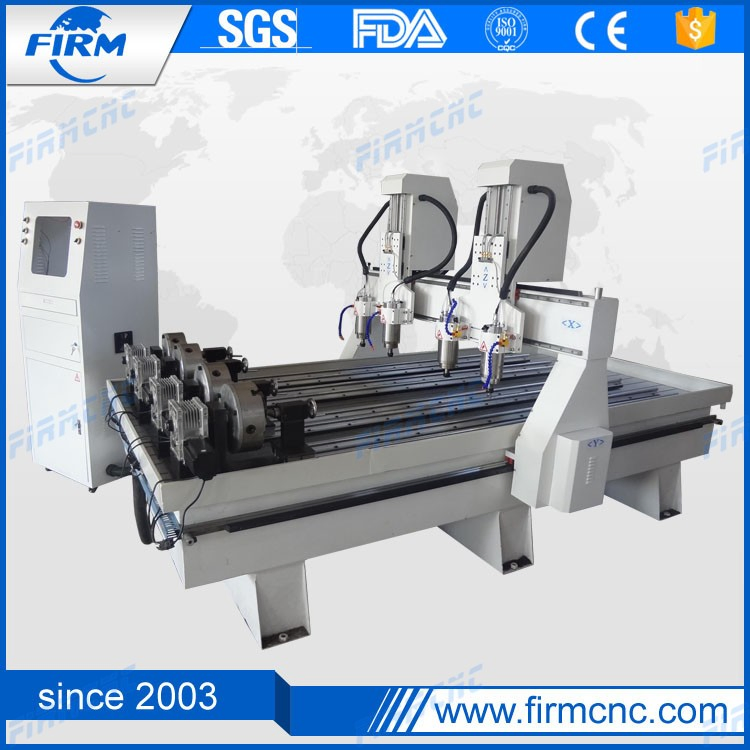

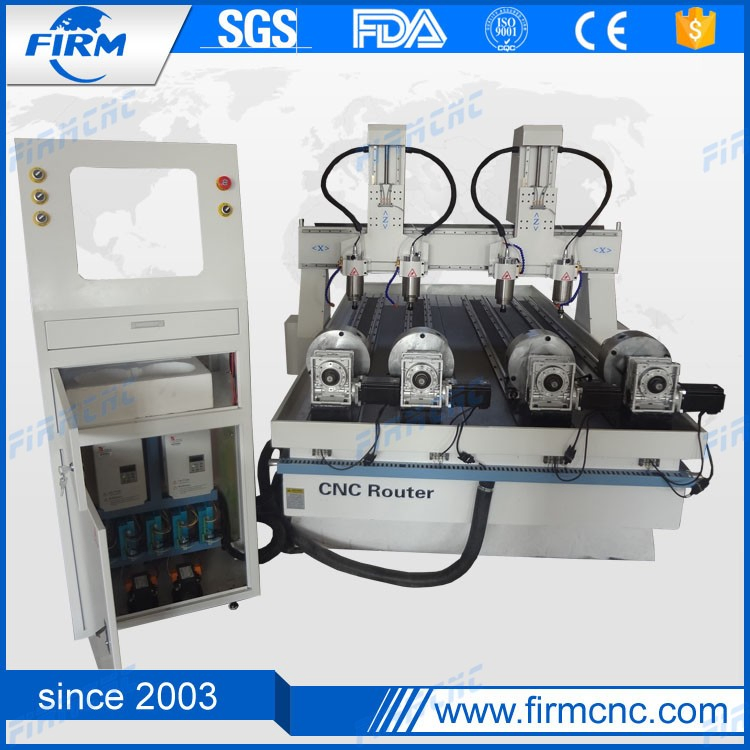

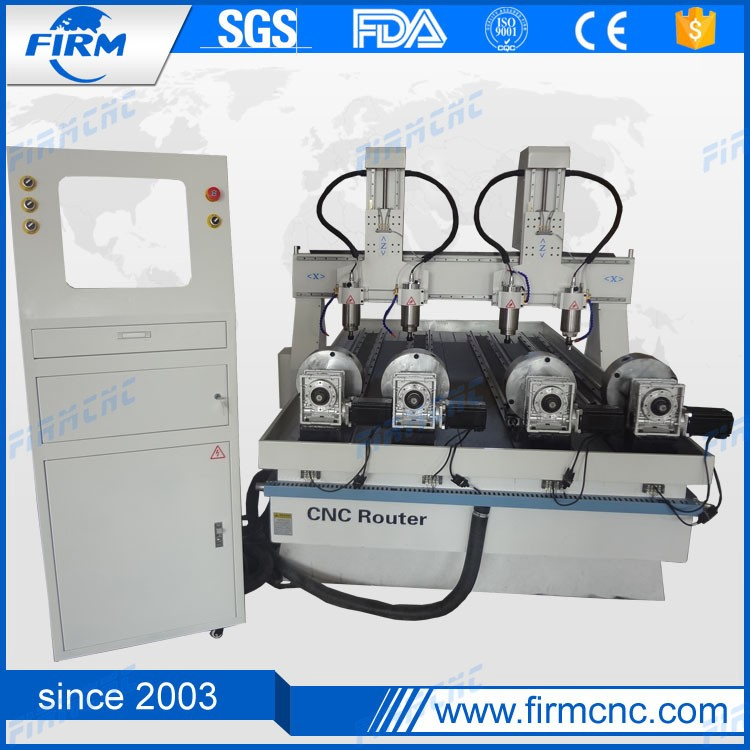

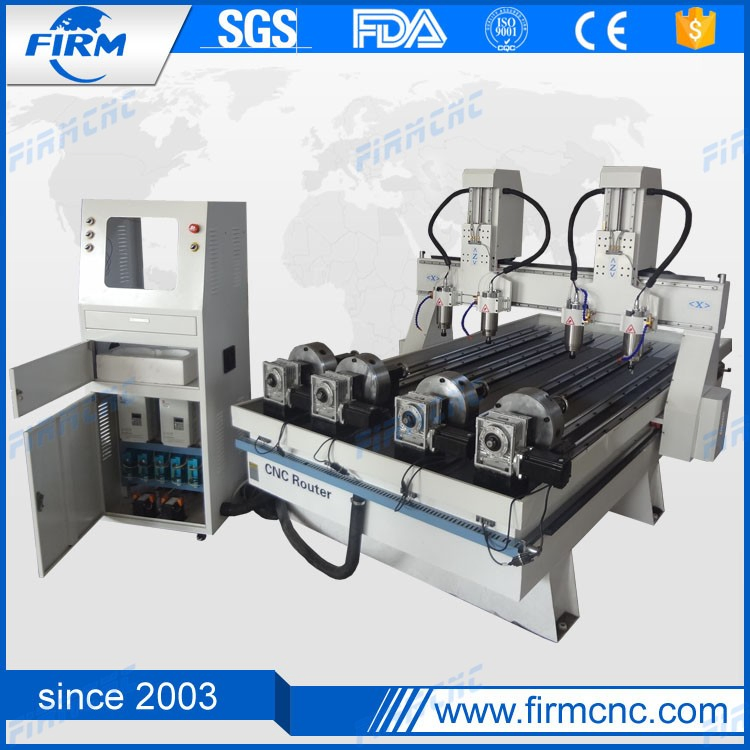

1325 4th Axis Rotary 3D Relief Carpenter Machines CNC Machine Router
1325 4th Axis Rotary 3D Relief Carpenter Machines CNC Machine Router
1325 4th Axis Rotary 3D Relief Carpenter Machines CNC Machine Router
1325 4th Axis Rotary 3D Relief Carpenter Machines CNC Machine Router
1325 4th Axis Rotary 3D Relief Carpenter Machines CNC Machine Router
1 / 5
1325 4th Axis Rotary 3D Relief Carpenter Machines CNC Machine Router
1325 4th Axis Rotary 3D Relief Carpenter Machines CNC Machine Router
1325 4th Axis Rotary 3D Relief Carpenter Machines CNC Machine Router
1325 4th Axis Rotary 3D Relief Carpenter Machines CNC Machine Router
1325 4th Axis Rotary 3D Relief Carpenter Machines CNC Machine Router

1325 4th Axis Rotary 3D Relief Carpenter Machines CNC Machine Router

Customization: Available
Type: Engraving Router
Spindle Layout: Spindle Over
Send Inquiry

Product Description

Basic Specifications

Model NO.
FM1325
Spindle Number
Single-Spindle
Controlling Mode
CNC
Certification
CE, ISO
Condition
New
Keywords
3 Axis CNC Router
Spindle
Water Cooling Spindle
Inverter
Fuling Inverter
Motor
Stepper Motors
Control System
Nc Studio System
Software
Artcam
Voltage
380V/50Hz

Product Description

1325 4th axis rotary 3d relief carpenter machines cnc machine router

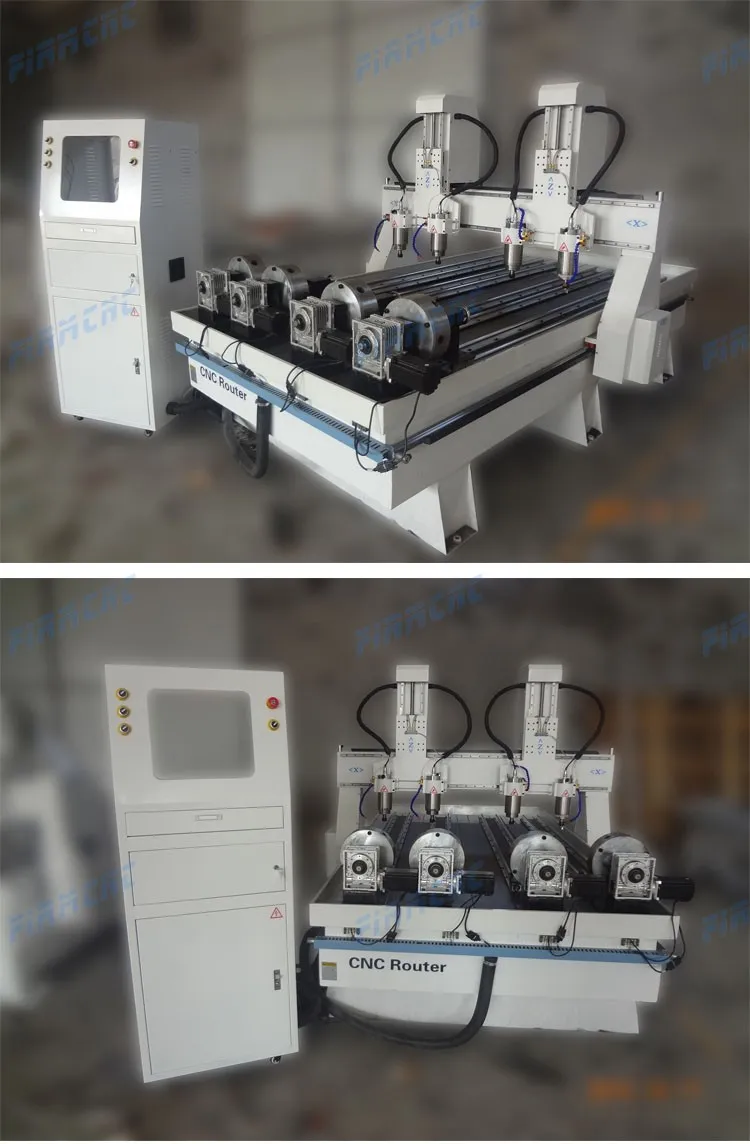

CNC Wood Router Feature

Main Features

  • 2.2KW or 3.0KW constant water cooling spindle (optional HQD or HSD), high precision and long life time.
  • 4 spindles 4 rotation axis, rotation axis diameter optional 100mm, 150mm, 200mm etc.
  • Thicken square pipe structure, well welded, no distortion for whole structure.
  • Adopt Taiwan square orbit, double slippers. Bearing heavy, working steadily high precision.
  • Control system: 4 axis DSP controller system, optional Mach3, NCstudio.
  • Support scanners, Art CAM, Type3, Wen tai, and other G-code formats.
  • Adopt high speed step motor and drivers.
  • Dust collector included for efficient waste removal.

Technical Parameters

Description Parameter Details
Model FM1325 FM1530 Option FM2030 Option
Working area 2500*1300*300mm 3000*1500*300mm 2000*3000*300mm
Transmission X/Y Axis helical rack and pinion, Taiwan Hiwin rails; Z Axis TBI ball screw
Spindle power 1.5kw, 2.2kw, 3kw water cooling spindle optional
Spindle speed 0~24000r/min
Motor system Step or servo motors and drivers
Controller Mach3/NC-studio/DSP controller optional
Weight 1550KG with package

Machine Components & Application

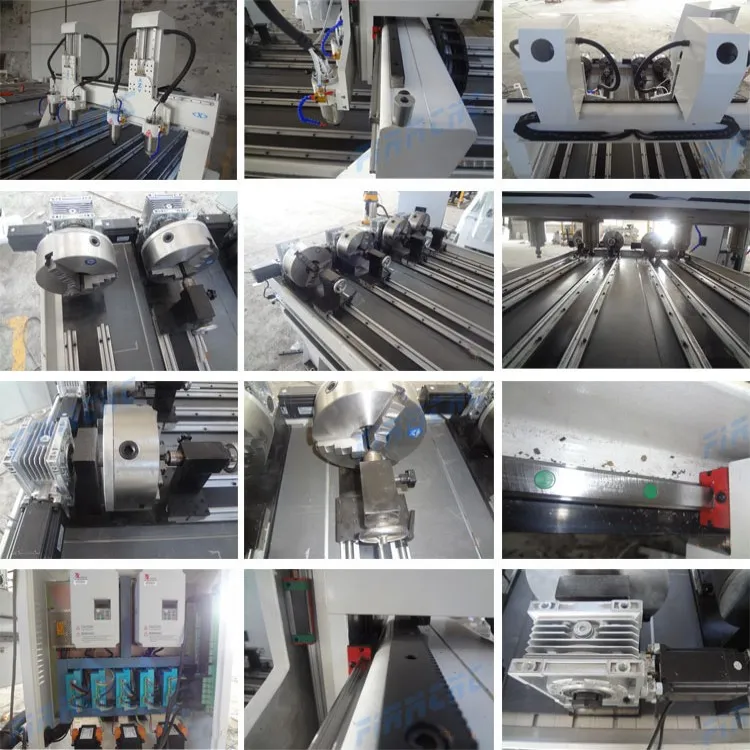

Main Components

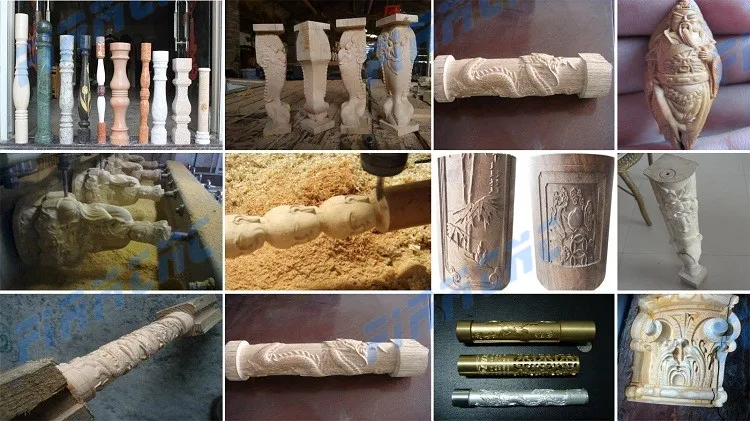

Application Samples

Suitable Industries: Furniture, home improvement, woodworking decoration, doors, and wooden handicrafts.

Processing Capabilities: Dimensional wave board processing, carving, cabinet doors, screens, and cylindrical objects like stair railings and musical instruments.

Service & Packaging

Service Support
Standard Packaging
  • English version working manual provided.
  • One-year machine warranty with free parts replacement for unintentional damage.
  • Engineers available for online support or remote control debugging.
  • Standard export plywood case packaging, moisture-proof and rain-proof.

Frequently Asked Questions

Q1. How can I choose the most suitable CNC router?
Please inform us of your intended working area and the specific materials you plan to process. We will recommend the most suitable machine based on your requirements.
Q2. Do you provide guidance on how to operate the machine?
Yes, after order confirmation, we provide a comprehensive operation manual and working videos. Our engineers also offer support via video calls or email.
Q3. What happens if a part needs to be replaced during the warranty?
During the one-year warranty period, we will send replacement parts for free. After the warranty, parts are available at agent pricing.
Q4. Can the machine process my specific samples?
Yes, we can process samples to ensure the machine meets your specific production standards.
Q5. Is overseas after-sales service available?
Yes, our technicians can provide training and service at your facility. The customer is responsible for travel expenses and accommodation.
