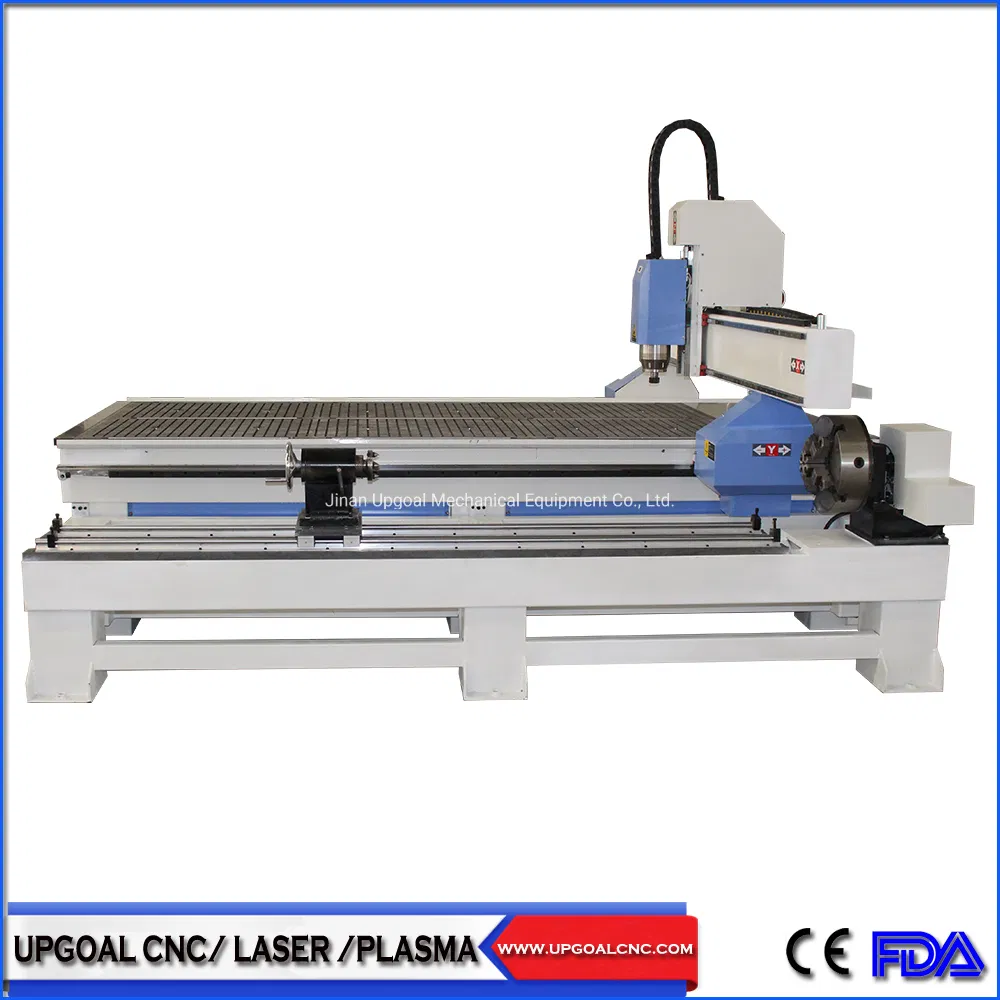

4 Axis Vacuum Table Woodworking CNC Router with Independent Diameter 300mm Rotary Axis
4 Axis Vacuum Table Woodworking CNC Router with Independent Diameter 300mm Rotary Axis
4 Axis Vacuum Table Woodworking CNC Router with Independent Diameter 300mm Rotary Axis
4 Axis Vacuum Table Woodworking CNC Router with Independent Diameter 300mm Rotary Axis
4 Axis Vacuum Table Woodworking CNC Router with Independent Diameter 300mm Rotary Axis
1 / 5
4 Axis Vacuum Table Woodworking CNC Router with Independent Diameter 300mm Rotary Axis
4 Axis Vacuum Table Woodworking CNC Router with Independent Diameter 300mm Rotary Axis
4 Axis Vacuum Table Woodworking CNC Router with Independent Diameter 300mm Rotary Axis
4 Axis Vacuum Table Woodworking CNC Router with Independent Diameter 300mm Rotary Axis
4 Axis Vacuum Table Woodworking CNC Router with Independent Diameter 300mm Rotary Axis

4 Axis Vacuum Table Woodworking CNC Router with Independent Diameter 300mm Rotary Axis

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.UG-1325
CNC or NotCNC
VoltageAC220V Single Phase or AC380V Three Phases
Working Area1300(X)mm*2500(Y)mm*200(Z)mm
Working TableVacuum Table with Aluminum Alloy T Slot
Guide RailLinear Square Guide Rail (Hiwin, Taiwan)
TransmissionHelical Rack & Pinion for X Y-Axis, Lead Ball Screw
Driving ModeStepper Motor (Chuangwei) and Driver (Leadshine)
Spindle Motor5.5kw Water Cooling, Er25
Spindle Speed0-24000rpm
Control SystemDSP A11e, Richauto
Rotary AxisRemovable Diameter 300mm, Working Length 2500mm
Suitable SoftwareArtcam, Type3, Ucancam V9, etc
Dust Collector3.0kw, Double Bags
Vacuum Pump5.5kw, Air Cooling
Tools CalibrationAuto
Lubrication SystemSemi-Auto
Specification3200*1670*2250mm, 1400kgs
⚙️

Product Main Features

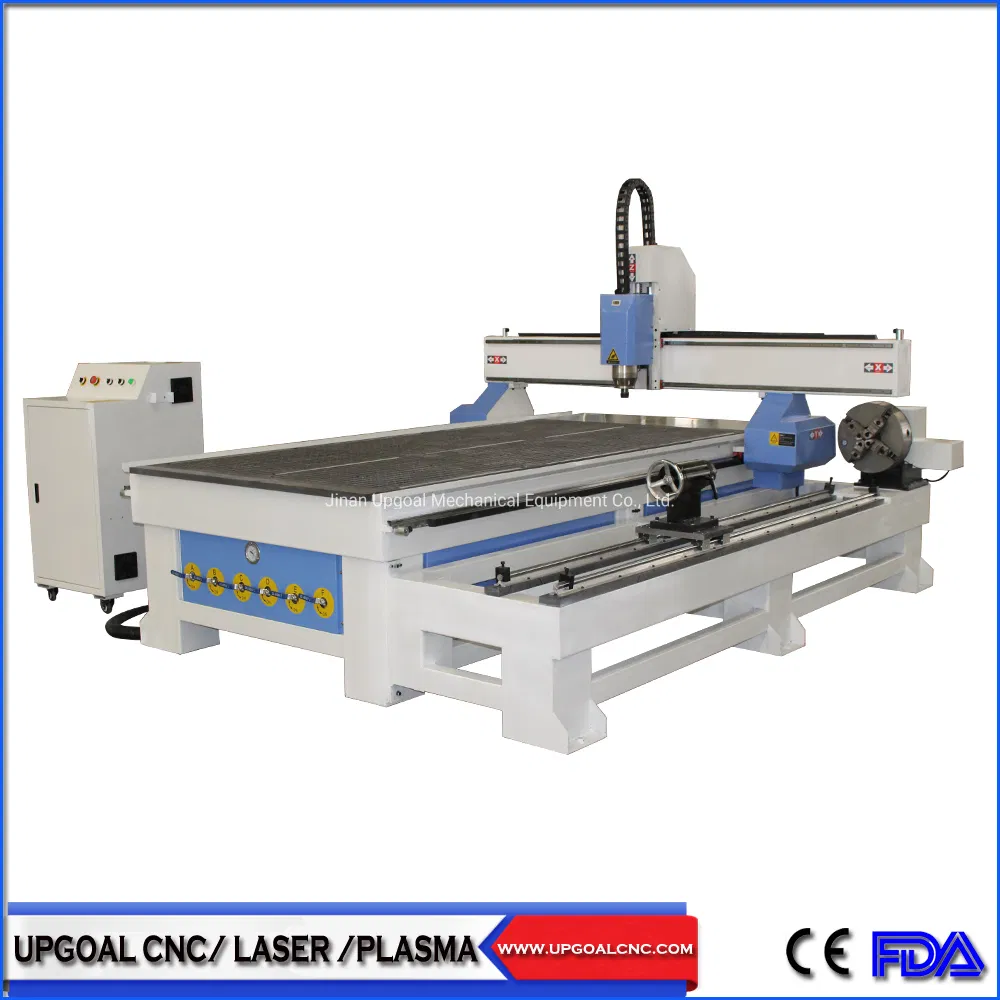

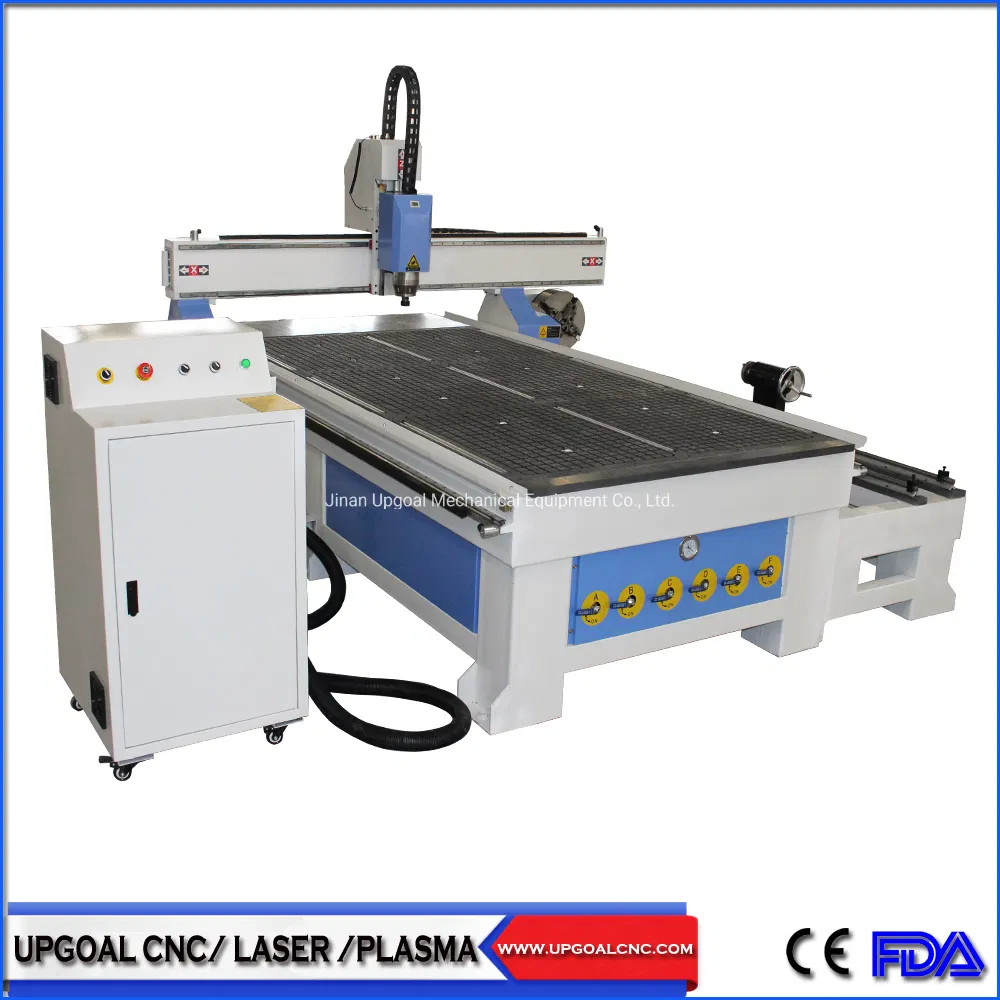

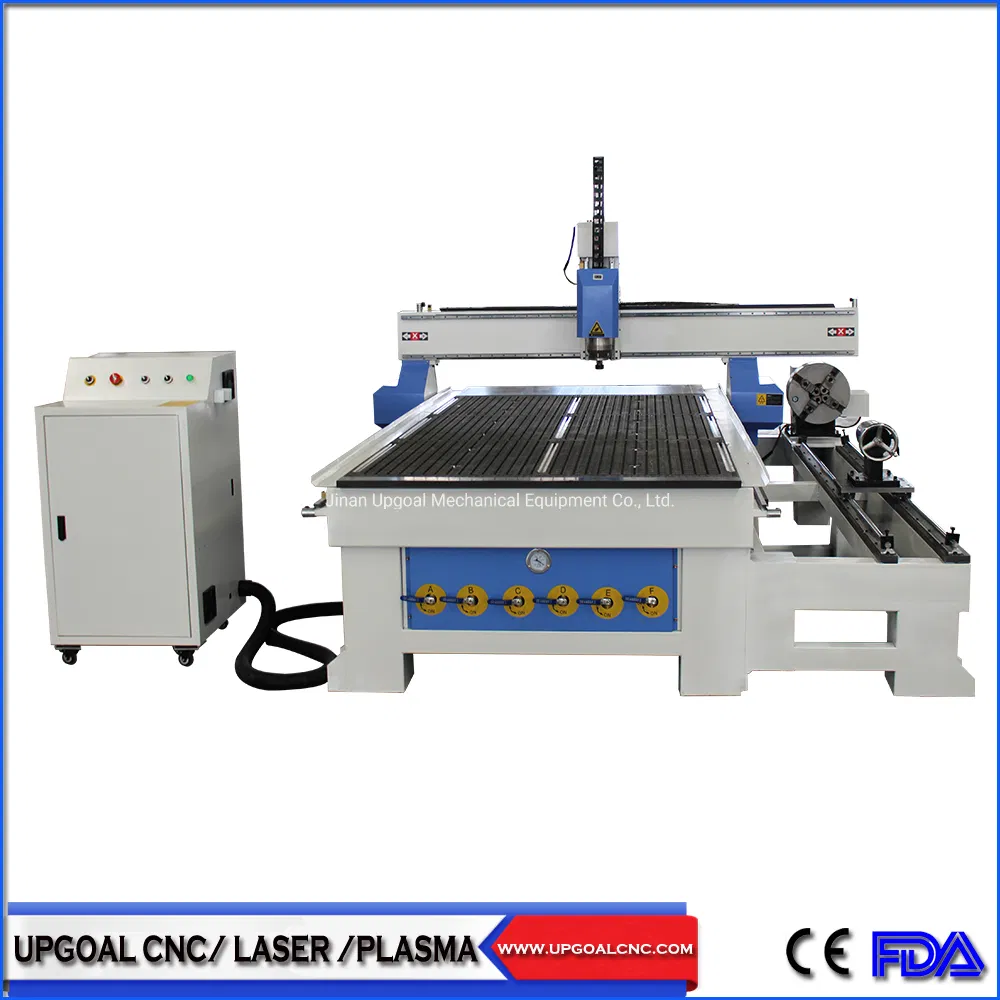

4 Axis Vacuum Table Woodworking CNC Router with Independent Diameter 300mm Rotary Axis

01. Robust Structure: Welded T-type steel tube structure with vibration Temper aging treatment ensures no deformation. Cast iron Gantry provides strong stability.
02. Precision Components: Hiwin Taiwan Linear square guide rails with ball bearing slide blocks ensure high weight capacity and smooth running.
03. High Efficiency: Helical gears pinion and rack transmission for X and Y axis for higher speed; Z-axis features precision ball screw.
04. Powerful Spindle: 5.5kw water cooling spindle with high torque and low noise, matched with high-performance frequency inverter.
05. 4th Axis Capability: Independent removable rotary axis (300mm diameter) for cylinder processing without occupying main table space.
06. Vacuum System: 5.5kw air cooling vacuum pump with 6-zone adsorption table for fast material loading.

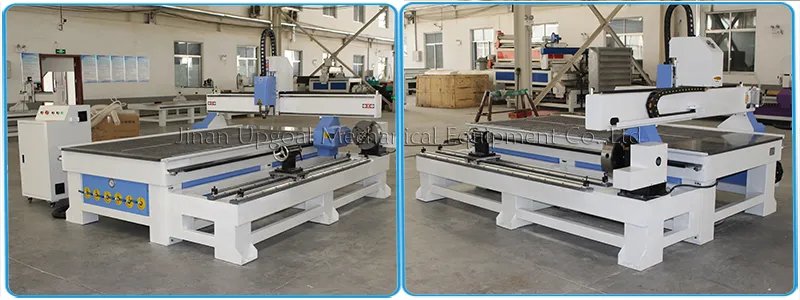

CNC Structure

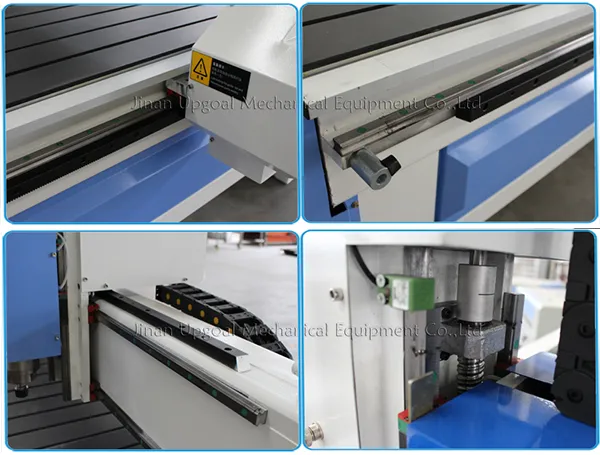

Transmission System

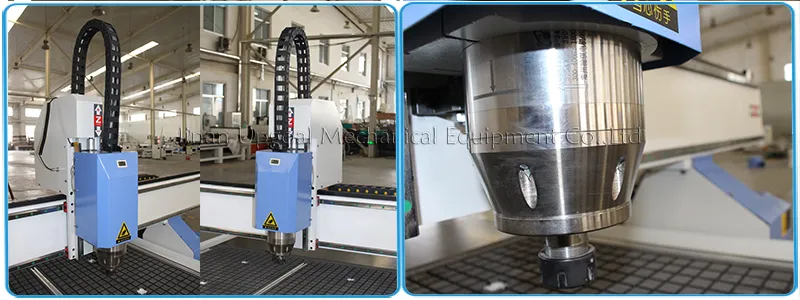

Water Cooling Spindle
07. Reliable Driving: Chuangwei stepper motors and Leadshine drivers provide high precision and stability (Y axis speed up to 25000mm/min).
08. Offline Control: RichAuto DSP A11E system with USB interface. Supports breakpoint memory and power failure resuming.
09. Clean Workspace: 3.0kw double bag dust collector effectively removes milling and saw dust.

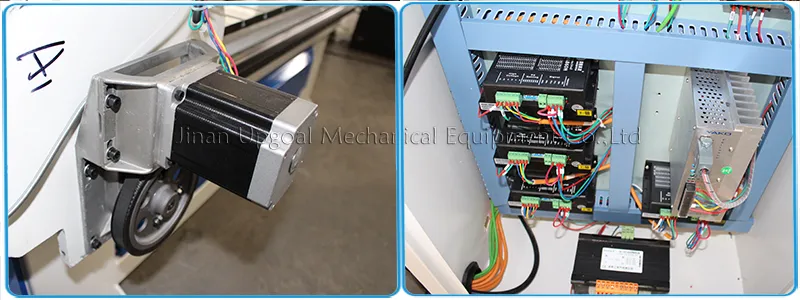

Driving System

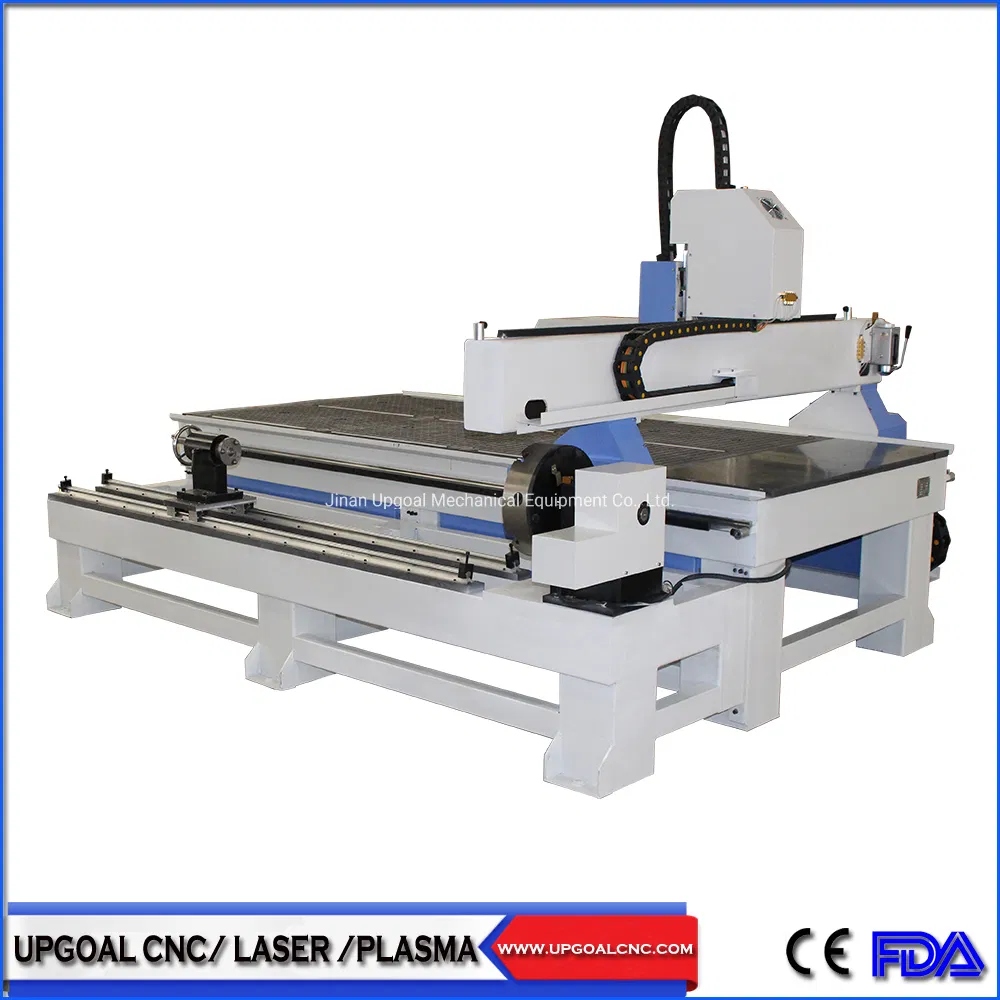

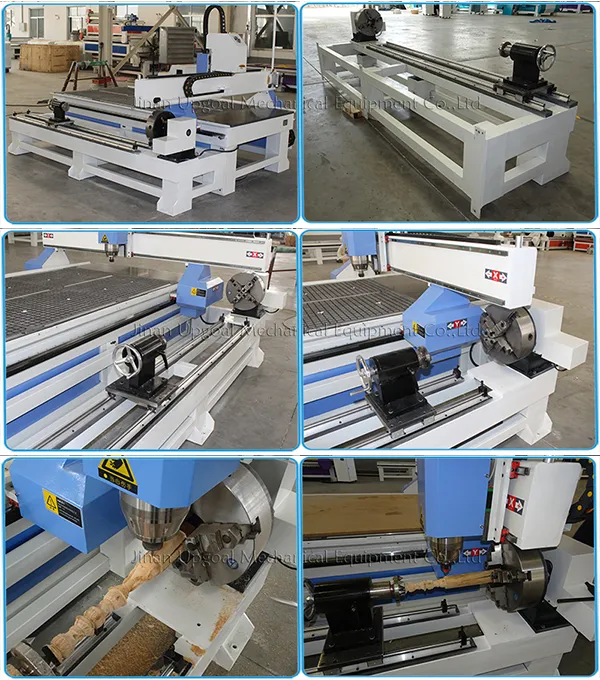

Rotary Axis

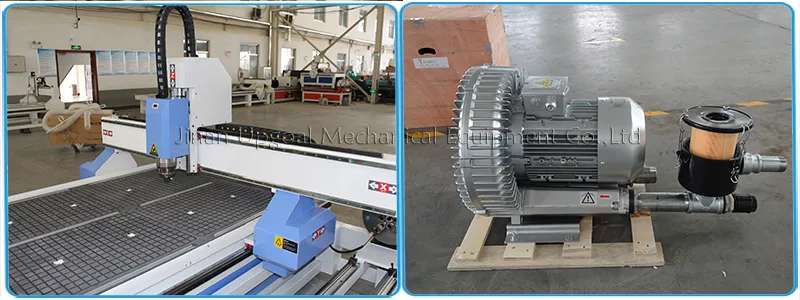

Vacuum Table

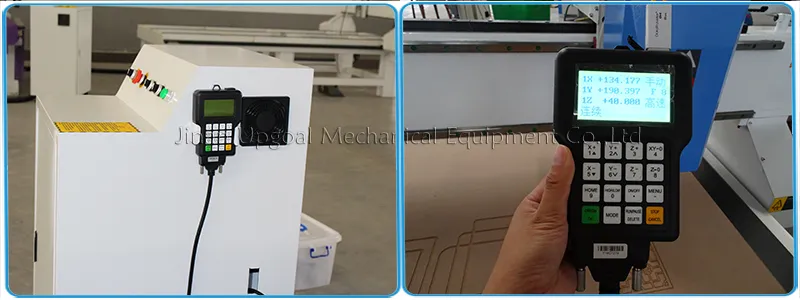

DSP Controller

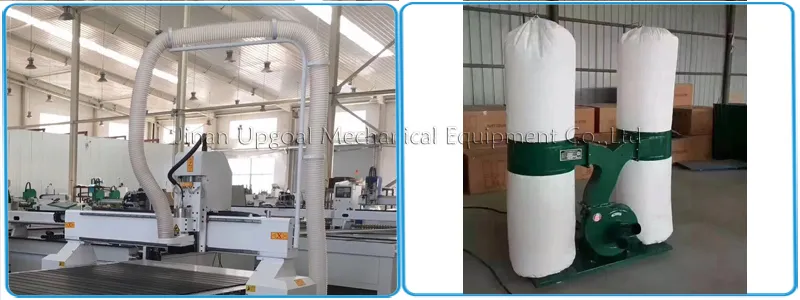

Dust Collector

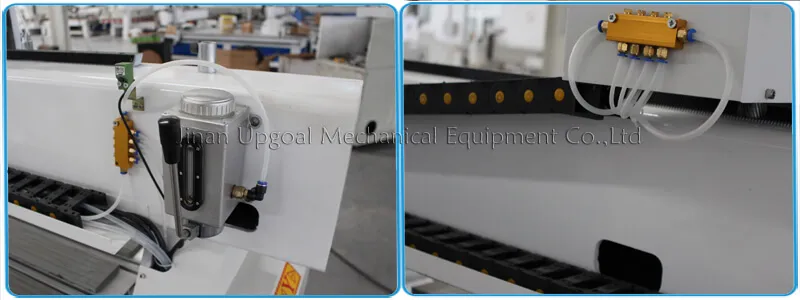

Lubrication System
📊

Technical Parameters

4th AxisIndependent & removable, diameter 300mm, length 2500mm
MaterialsStrong welded square steel tube structure
Moving TypeGantry moving
InverterSunfar
Traveling Speed>25000mm/min
Engraving Speed>12000mm/min
Machine Accuracy0.03mm
Carving InstructionsG code *Uoo *mmg *plt HPGL
Environment Temp0-45 ºC
CertificateCE
🏗️

Applications

Woodworking products, advertising signs, MDF board, photo frame cutting/engraving, sofa and bed head sculpture, wood door carvings, large furniture relief, copper/aluminum/plastic boards, etc.

🖼️

Samples & Packaging

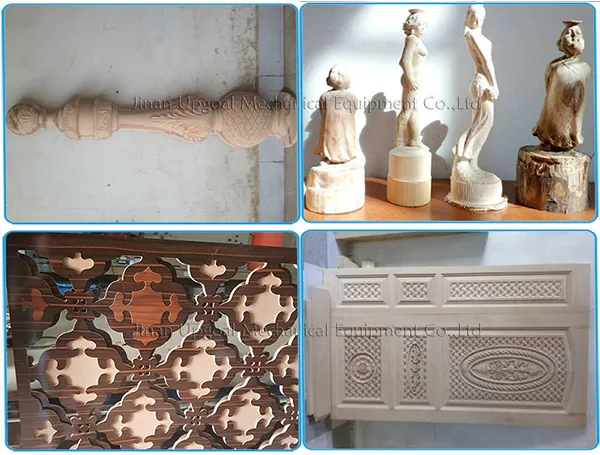

Samples

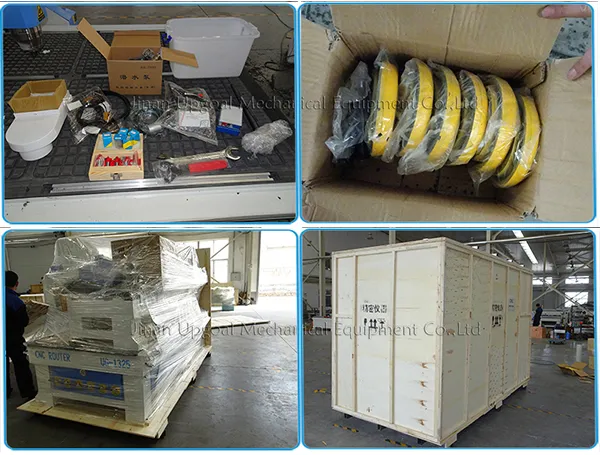

Packing
❓

Frequently Asked Questions

What materials can this CNC router process?
It is ideal for woodworking (MDF, solid wood), advertising materials (acrylic, plastic boards), and light metals like copper and aluminum.
How does the 4th rotary axis work?
The machine features an independent, removable rotary axis with a 300mm diameter. It is used for 4-axis cylinder processing and can be moved away when only flat-bed work is required.
What is the advantage of the vacuum table?
The vacuum table, powered by a 5.5kw air cooling pump, is divided into 6 zones. It allows for rapid adsorption and securing of materials without manual clamping, significantly saving time.
Can the machine continue working after a power failure?
Yes, the RichAuto DSP A11E control system includes a break-point memory and power failure resuming function to ensure precision during long-term projects.
What kind of maintenance does the machine require?
The machine is equipped with a semi-auto lubrication system, making it convenient to maintain the rails and screws. Regular cleaning of dust via the included dust collector is also recommended.
Is the software easy to use?
The machine is compatible with standard industry software like Artcam, Type3, and Ucancam V9. It uses standard G-code for easy integration with most design workflows.
