Basic Specifications
Working Area
2000*2900*200mm
Working Table
Vacuum Table & T Slot
Guide Rail
Hiwin Linear Rail
Transmission
Helical Rack & Pinion
Spindle Motor
5.5kw Water Cooling
Control System
DSP A18e 4 Axis

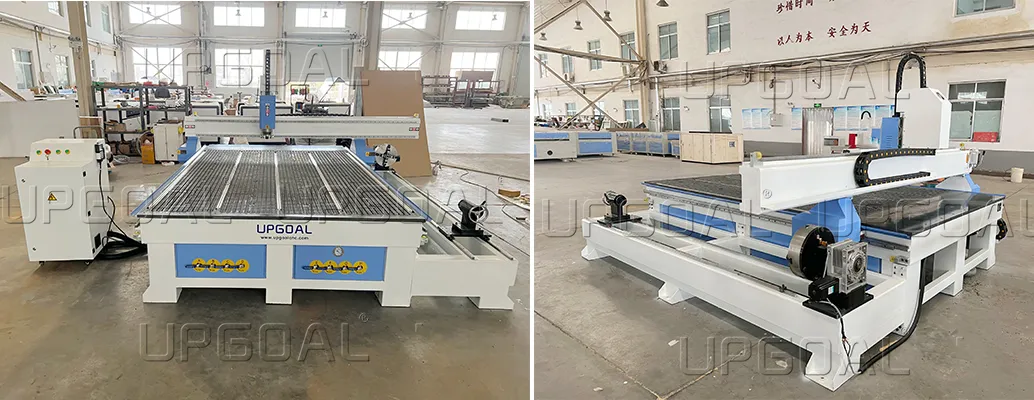

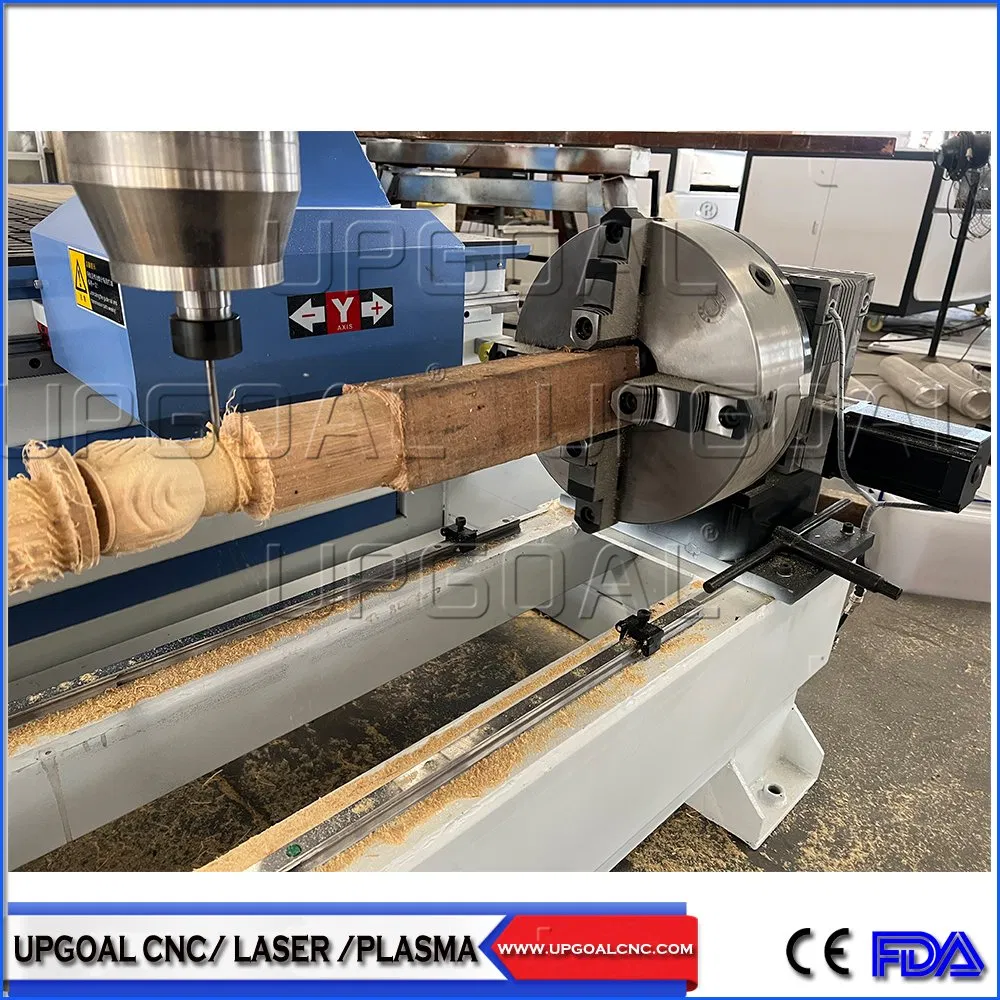

4 Axis Woodworking CNC Router with Rotary Axis
Key Performance Features
1

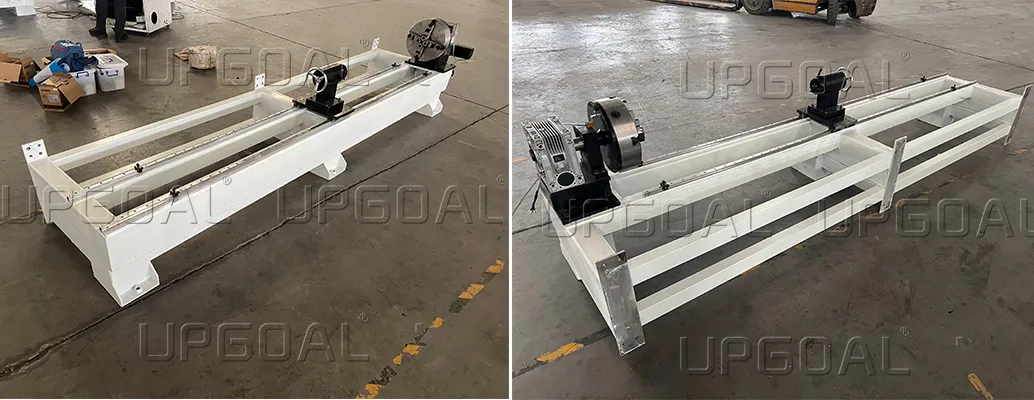

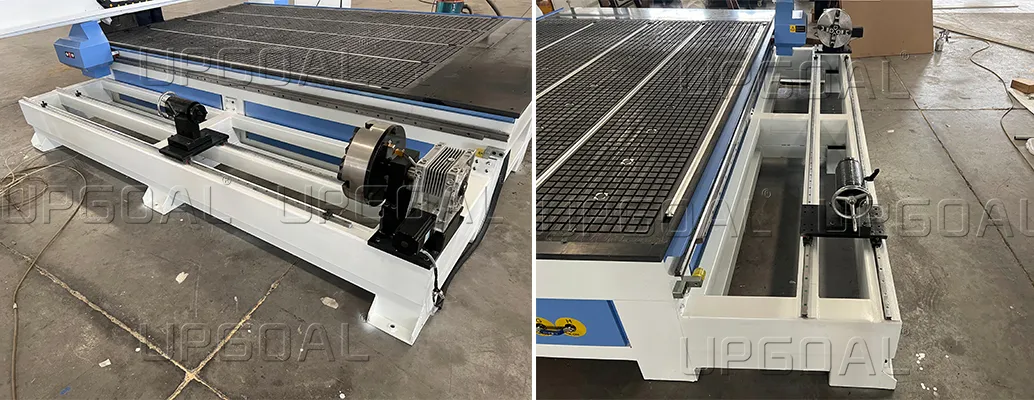

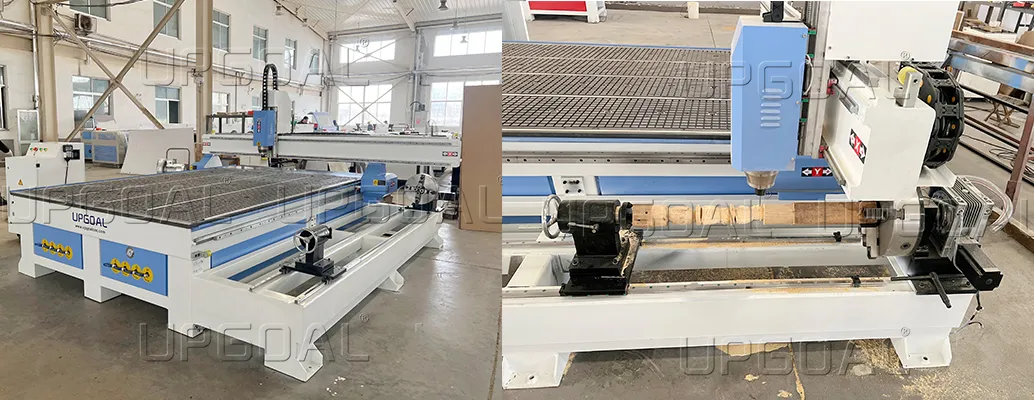

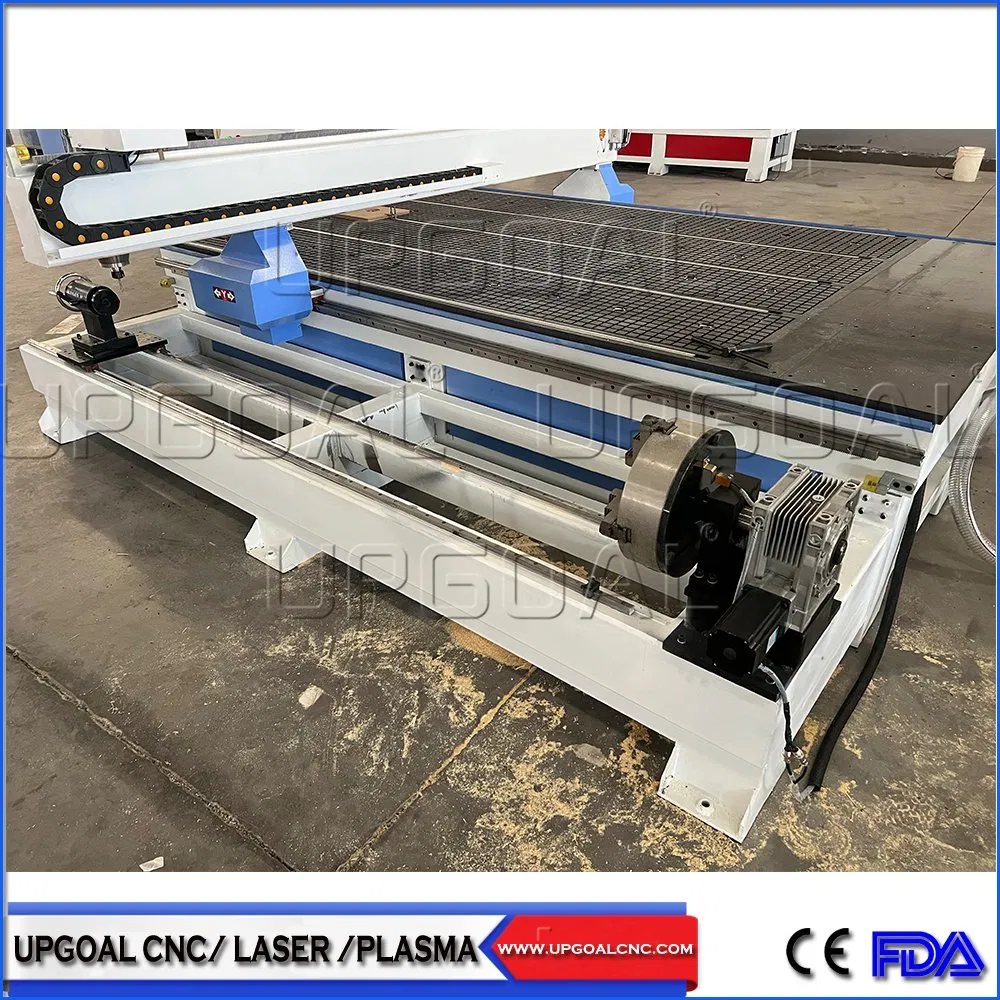

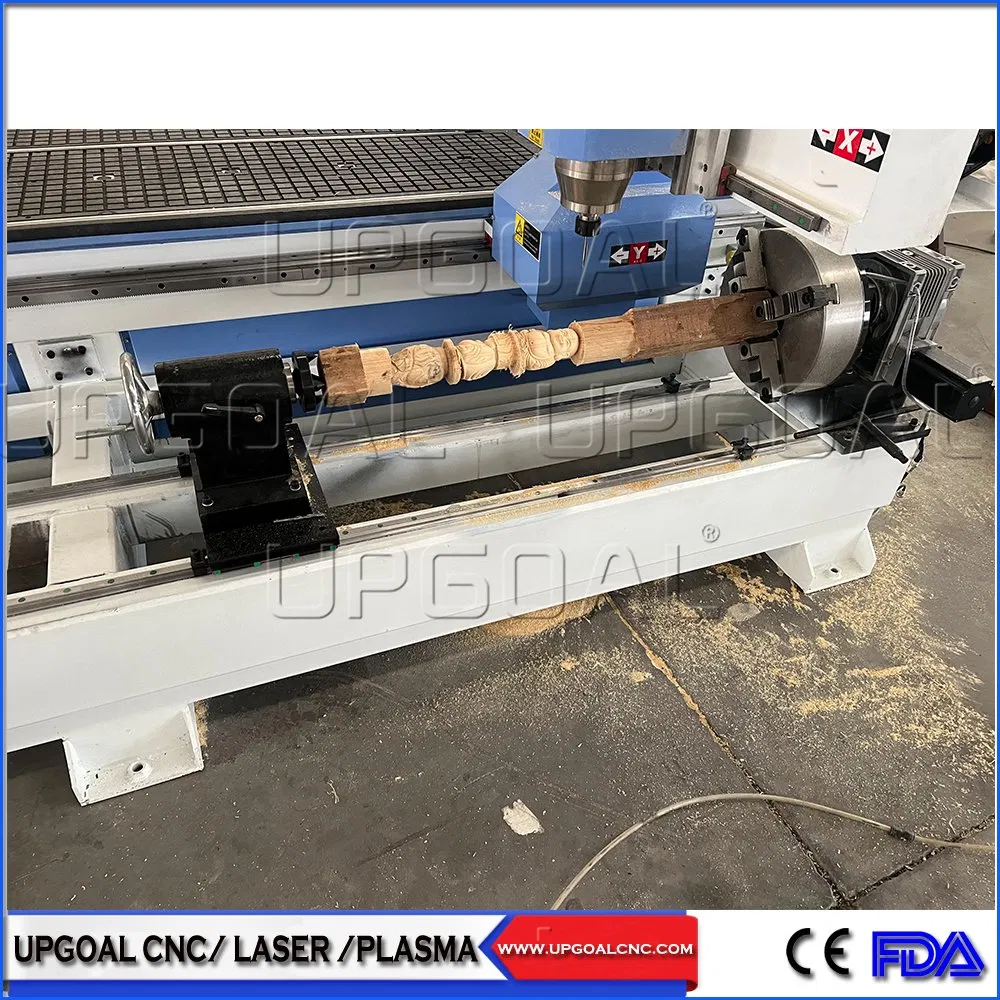

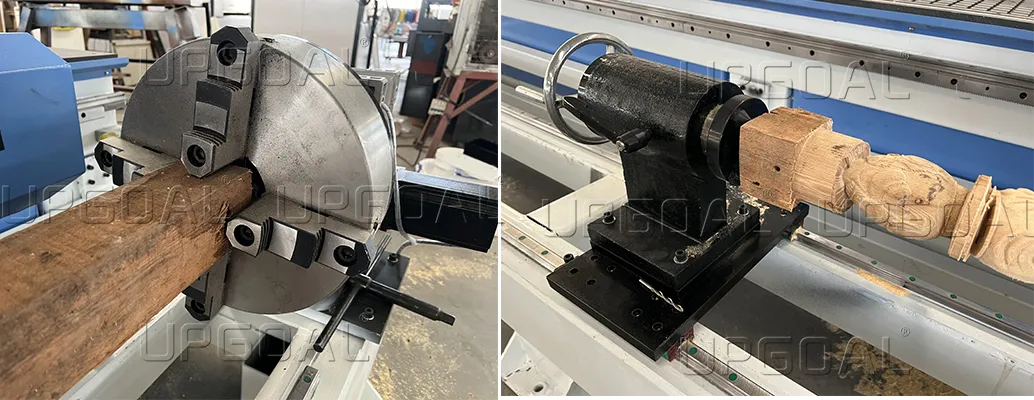

Independent Rotary Axis: Removable rotary holder with 320mm diameter and 2900mm length. Optimized for cylinder processing without occupying main table space.
2

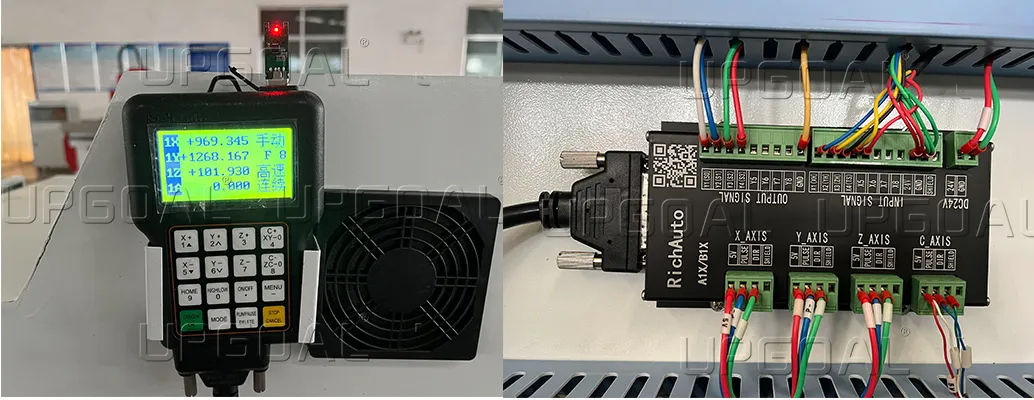

RichAuto DSP A18E Control: 4-axis offline control system with USB interface. High processing speed and smooth curve synchronization.
3

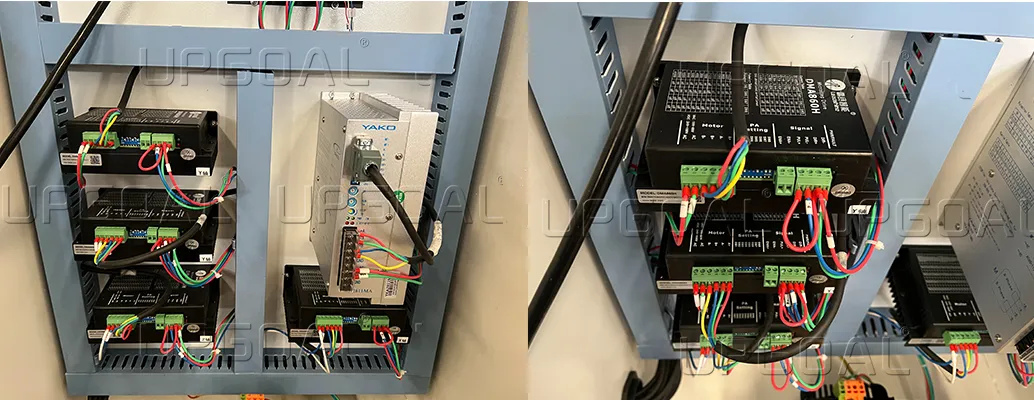

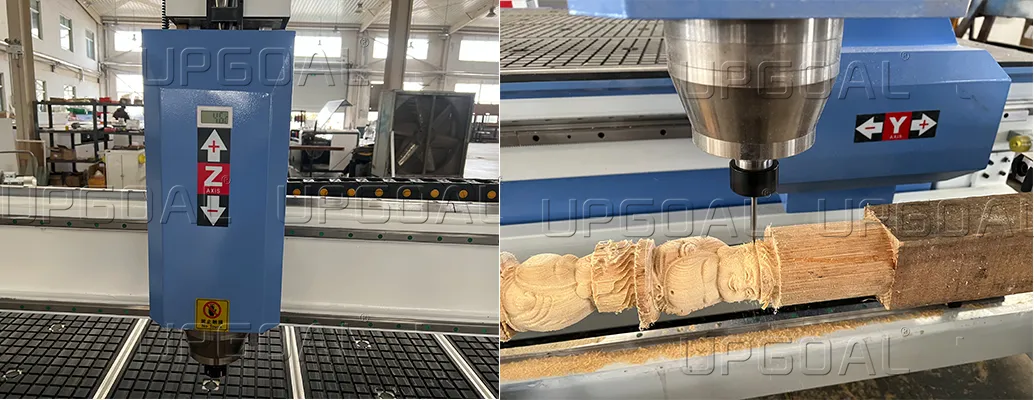

Powerful Spindle & Drive: 5.5kw water cooling spindle with temperature sensor. High-precision Chuangwei stepper motors and Leadshine DMA860H drivers.
4

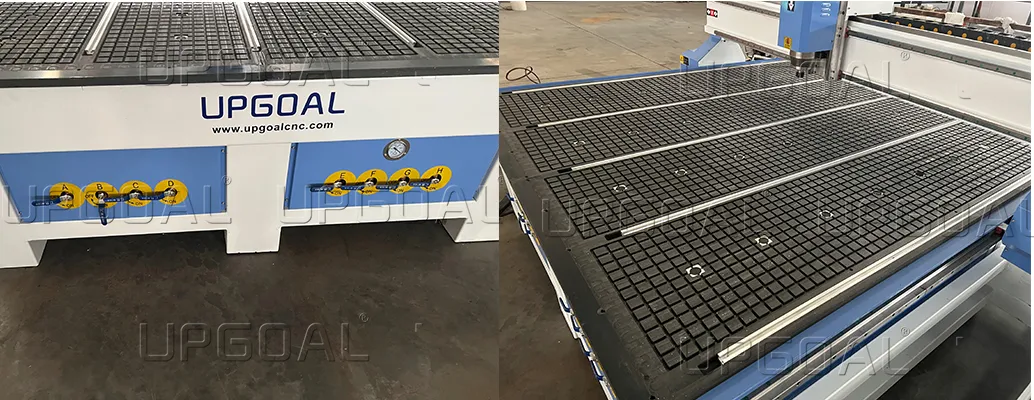

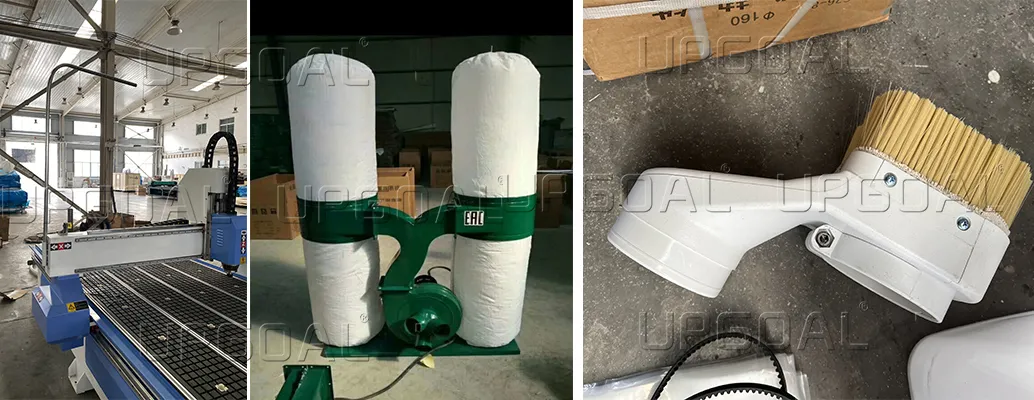

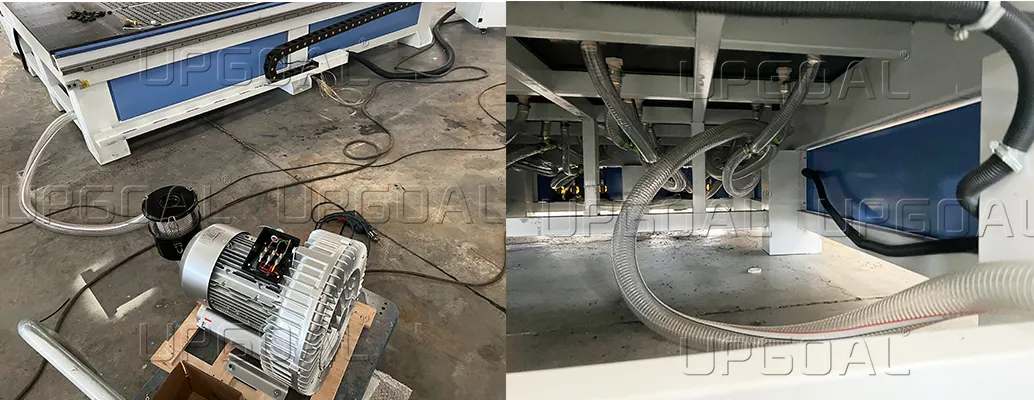

Vacuum Adsorption & Dust Collection: 6-zone vacuum table with 7.5kw air cooling pump. Includes 5.5kw double-bag dust collector for a clean workspace.
Technical Parameters
| Description |
Specifications |
| Effective working area | 2000(X)mm*2900(Y)mm*300(Z)mm |
| 4th axis | 320mm diameter, 2900mm length |
| Body Structure | Strong welded square steel tube |
| Transmission | X/Y Helical rack, Z Lead ball screw |
| Driving System | Stepper motor & Leadshine driver |
| Inverter | Fuling brand |
| Traveling speed | 25000mm/min |
| Engraving speed | 12000mm/min |
| Machine accuracy | 0.03mm |
| Lubrication system | Semi-auto |
| Tool calibration | Auto tool sensor |
Industry Applications
Woodworking
Advertising Signs
MDF Board
Photo Frames
Furniture Relief
Acrylic Cutting
Aluminum Sheet
Copper/Plastic Board
Applicable for 3D embossment engraving, 2D cutting, and bottom milling on wood, aluminum composite panels, and dual-color plates.

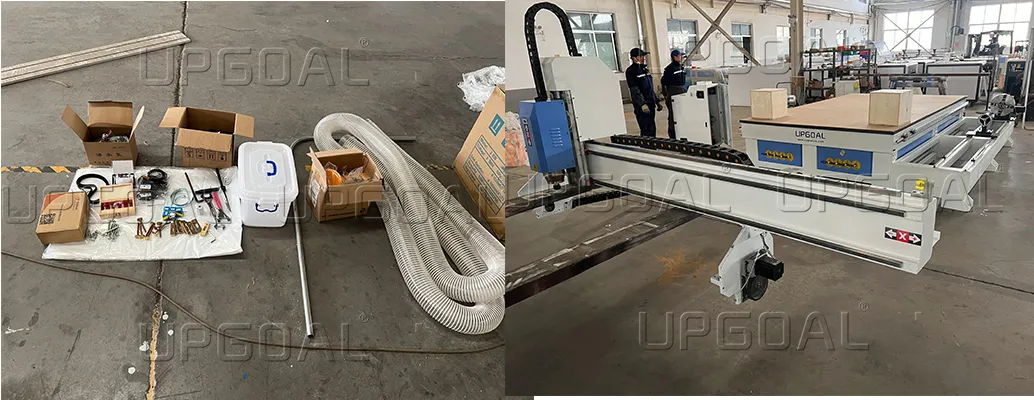

Samples & Accessories
Frequently Asked Questions
What is the maximum diameter for rotary processing?
The independent rotary axis supports a maximum diameter of 320mm and a working length of up to 2900mm.
Which software is compatible with this CNC router?
It is highly compatible with Artcam, Type3, Ucancam V9, Mastercam, and Caxa softwares.
How does the vacuum table improve efficiency?
The vacuum table is divided into 6 zones, allowing it to securely adsorb different sizes of material instantly, saving loading and unloading time.
What materials can this machine cut?
It processes wood, MDF, acrylic, aluminum sheets, aluminum composite panels, and various non-metal or soft metal materials.
Does the machine support breakpoint memory?
Yes, it features break-point memory and power failure resuming, ensuring long-time working precision even after interruptions.
What is the maintenance like for the lubrication system?
The machine uses a semi-auto lubrication system, making it very convenient to maintain the guide rails and transmission parts.
