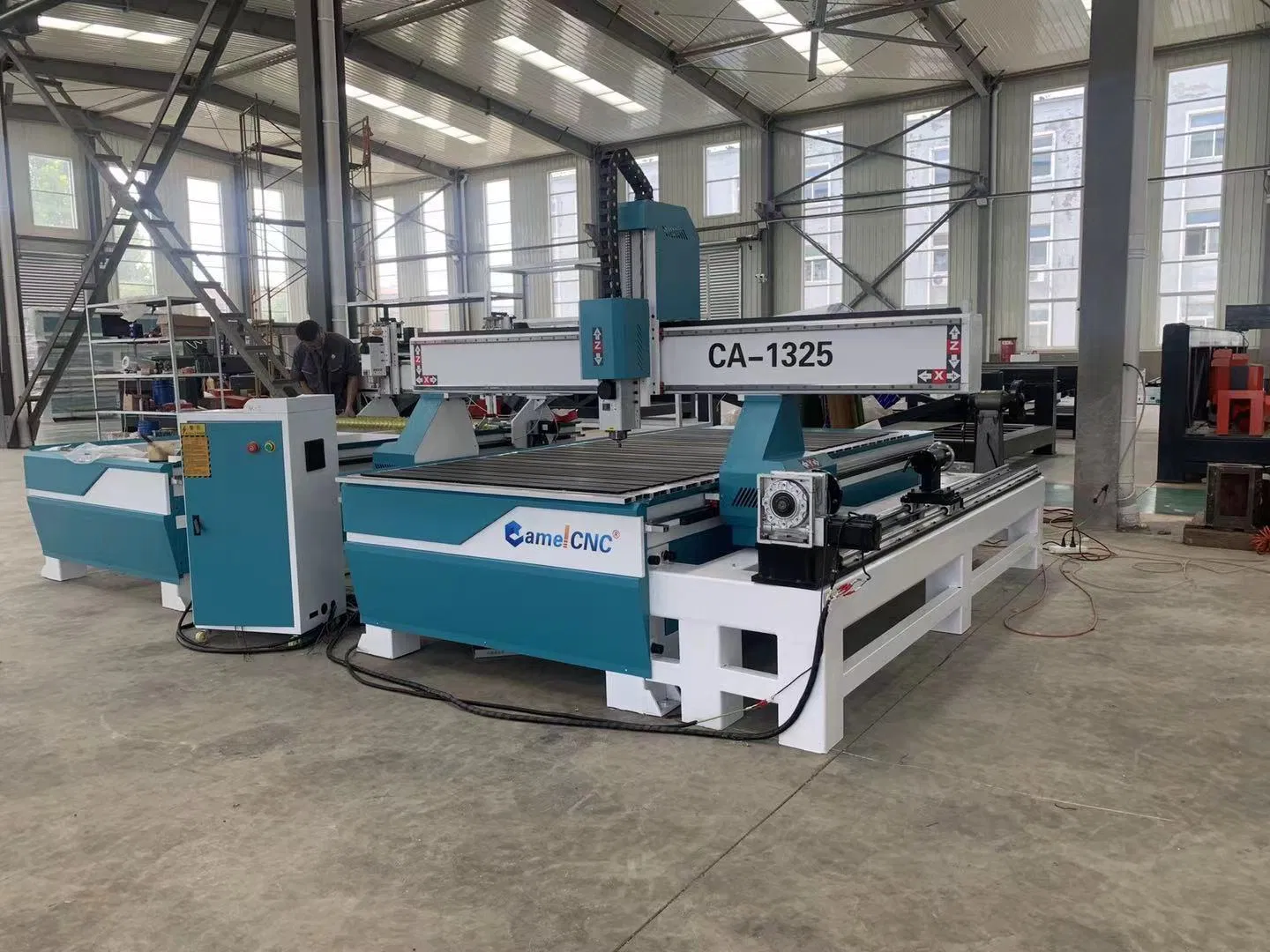

3D Router CNC 4 Axis 1325 Wood Carving Machinery Router/CNC Woodworking Router with Rotary Axis for Furniture Legs CNC Cutting 4 Axis Precio

Customization:	Available
After-sales Service:	Technical Video
Warranty:	3 Years

i

Basic Information

Model NO.CA-1325, CA-1530, CA-2030

ConditionNew

CertificationCE

CNC or NotCNC

Voltage220V

Transport PackagePlywood Case

Specification1200KG

HS Code84659900

Production Capacity500 Sets/Month

★

Product Description

Woodworking 4 axis wood router machine plywood cutting 3d engraving cnc router with 4th rotary

⚙

Technical Features

Double motors and drivers of Y axis ensure steady movement.

Rack gear transmission ensures fast speed and high accuracy.

Imported square rail ensures high accuracy and heavy workload.

Intelligent protection of working table can avoid damage resulted from the wrong operation.

Intelligent overrunning protection can avoid mechanical collision when set graphic exceeds processing size.

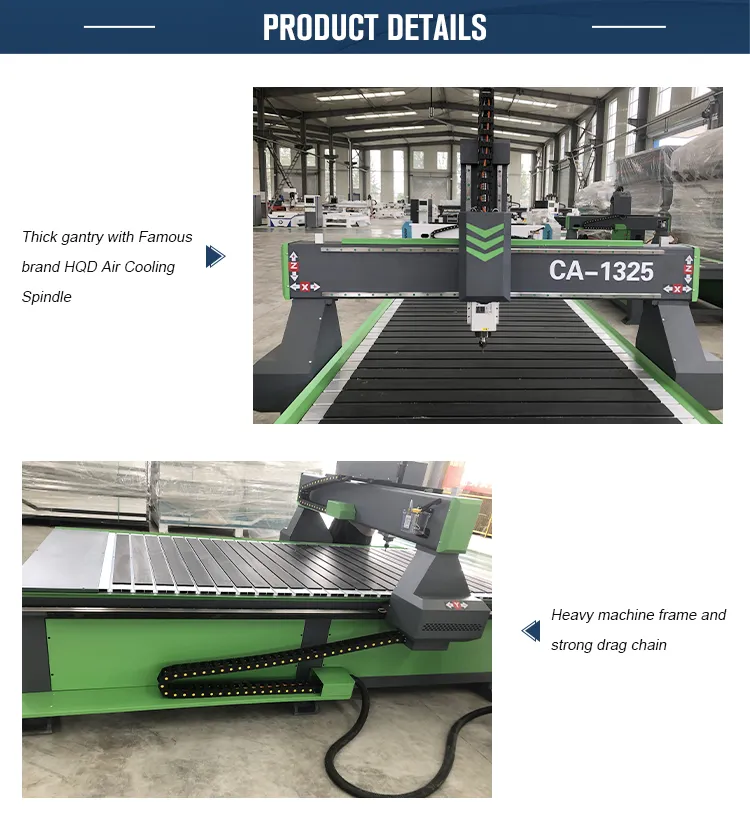

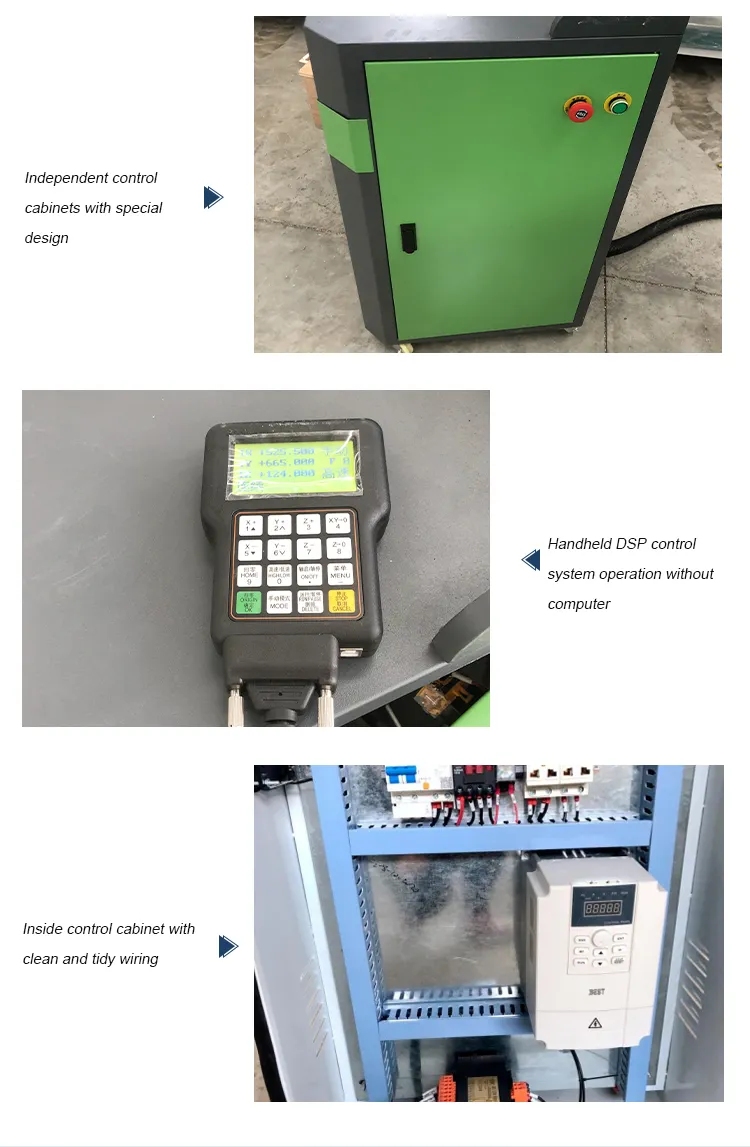

Component Details

Sample Display

Technical Parameters

No.	Description	Parameter
1	X,Y,Z Working Area	1300x2500x200mm
2	Table Size	1700×3040mm
3	Traveling Positioning Accuracy	±0.03/300mm
4	Repositioning Positioning Accuracy	±0.05mm
5	Lathe Structure	Welded Structure
6	X, Y Structure	Rack gear Transmission, Shaft Linear Bearings
7	Z Structure	Ball Screw, Shaft Linear Bearings
8	Max. Consume power	5Kw
9	Max. Speed	0-32000mm/min
10	Max. Working Speed	0-20000mm/min
11	Spindle Power Motor	3.2kw water-coolant Spindle
12	Spindle Speed	0-24000RPM
13	Drive Mode	450B stepper motor and drive
14	Working Voltage	AC220V/380V, 50/60Hz
15	Command	G Code, uoo, mmg, *plt
16	Operating System	NC studio control system (DSP optional)
17	Interface	USB
18	Flash Memory	512M
19	Collet	ER20
20	X,Y Working Delicacy	<0.01mm
21	Software	Ucancam, Artcam, Type3, JDpaint

📦

Packaging & Shipping

🏢

Process & Service

After Sales Support

?

Frequently Asked Questions

1. What materials can this CNC router process? It is ideal for woodworking, plywood cutting, 3D engraving on solid wood, MDF, acrylic, and soft metals like aluminum.

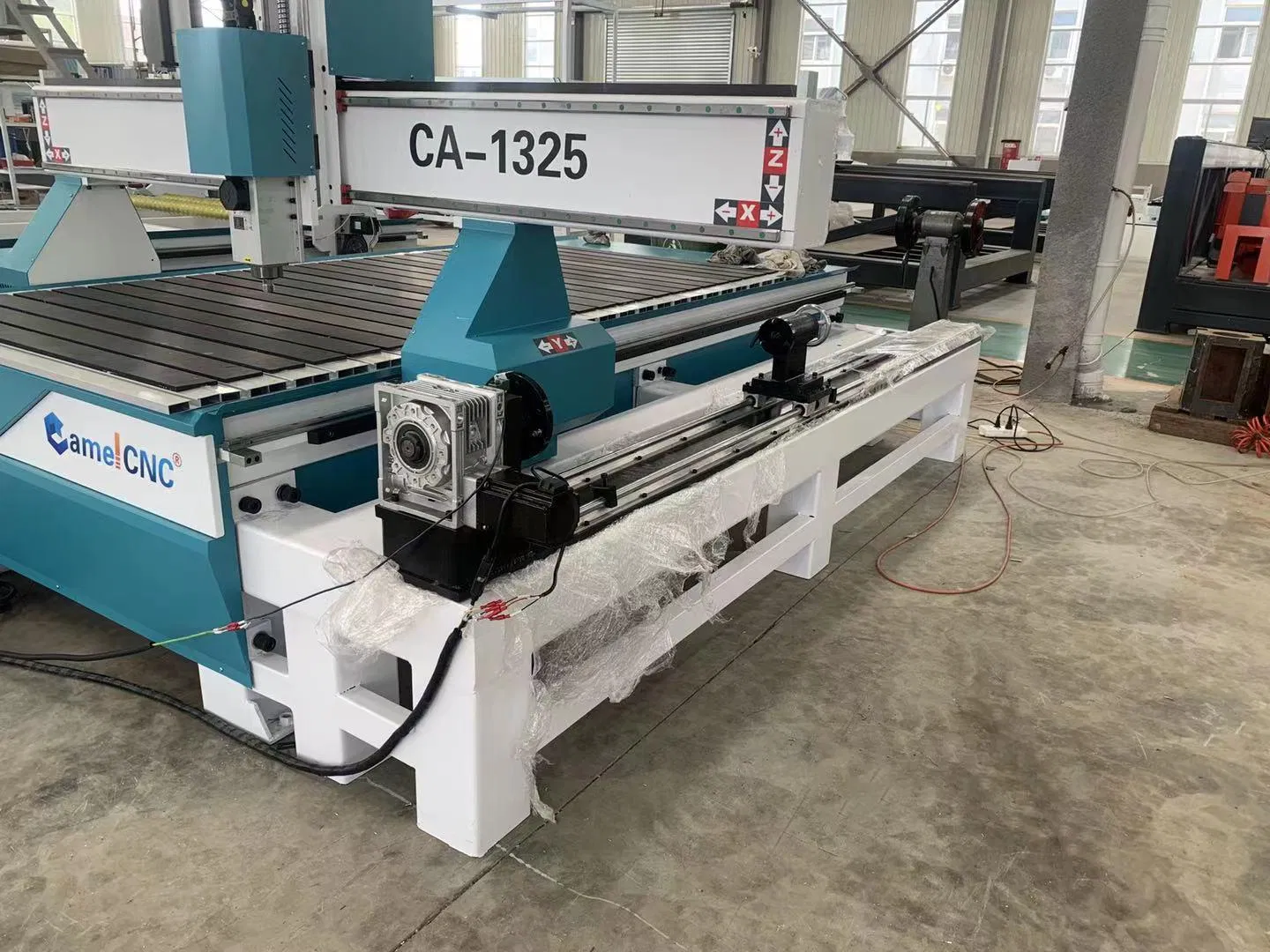

2. Does the machine come with the rotary axis? Yes, this 4-axis model includes a rotary device specifically designed for processing cylindrical items like furniture legs.

3. What software is compatible with this equipment? The machine supports industry-standard software such as Artcam, Type3, Ucancam, and JDpaint, using G-code commands.

4. How is the machine protected during shipping? Every unit is professionally packed in a robust plywood case to ensure safety and stability during international transport.

5. What is the power requirement for operation? The machine operates on AC 220V or 380V (50/60Hz), depending on your specific workshop configuration.

6. Is training provided for new operators? We provide comprehensive after-sales support, including detailed manuals and video tutorials to help you master the CNC operation quickly.
