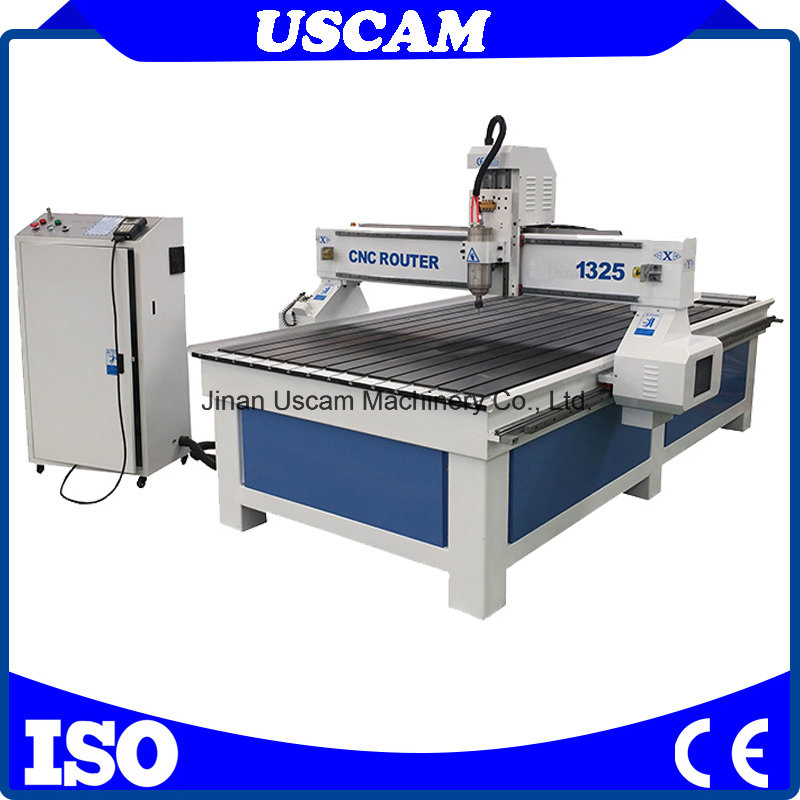

Wood Working Machinery 4 Axis CNC Router with Big Rotary
Wood Working Machinery 4 Axis CNC Router with Big Rotary
Wood Working Machinery 4 Axis CNC Router with Big Rotary
Wood Working Machinery 4 Axis CNC Router with Big Rotary
Wood Working Machinery 4 Axis CNC Router with Big Rotary
1 / 5
Wood Working Machinery 4 Axis CNC Router with Big Rotary
Wood Working Machinery 4 Axis CNC Router with Big Rotary
Wood Working Machinery 4 Axis CNC Router with Big Rotary
Wood Working Machinery 4 Axis CNC Router with Big Rotary
Wood Working Machinery 4 Axis CNC Router with Big Rotary

Wood Working Machinery 4 Axis CNC Router with Big Rotary

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
USM1325
CNC or Not
CNC
Voltage
380V
Driving System
Servo Motor/Stepper Motor
Operating System
Systec Atc Control System
Spindle Speed
0-24000 (R/ Min)
Guide Rail
Square Rail
Table Surface
Vacuum Table
Transmission
Taiwan TBI Ball Screw
Working Area
1300X2500mm
Software
Artcam/Type3
Lathe Structure
Welding Steel Frame
Production Capacity
5000/Month
HS Code
84649090
⚙️

Main Features

  • Whole machine is welded with thick square seamless steel structure, ensuring high stability and preventing deformation.
  • Three axes adopt high precision square orbit; X and Y axes feature rack and pinion transmission for fast working and high efficiency.
  • Z axis utilizes a ball screw for high precision and extended service life.
  • High power spindles provide constant power, low noise, and superior cutting force for improved efficiency.
  • Compatible with various CAD/CAM design software such as Type 3, Artcam, Castmate, and Wentai.
  • Integrated oil lubrication system simplifies maintenance; electric limit switches on all axes ensure safe operation.
  • Independent control box for easier operation and accessibility.

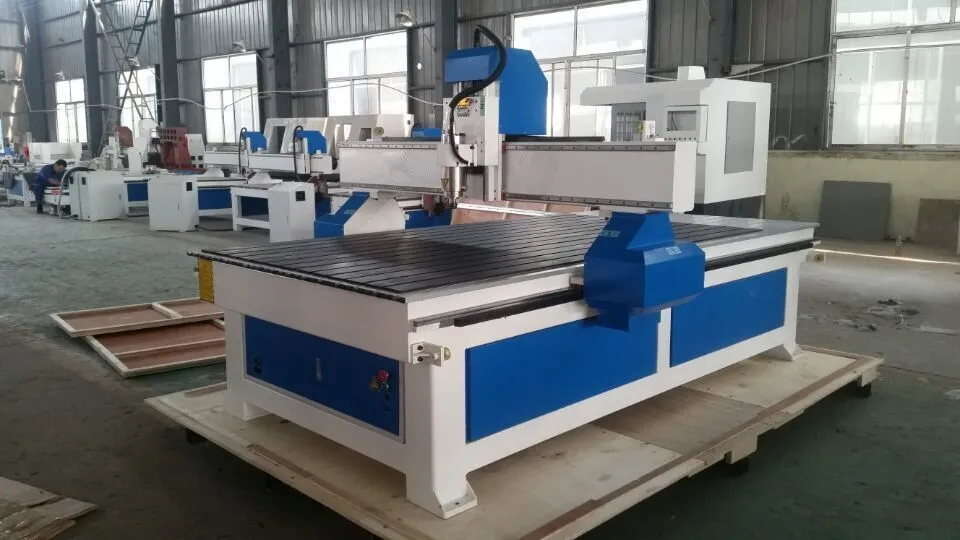

CNC Router Cutting
🛠️

Optional Components

Component Available Options & Descriptions
1. SpindleItaly HSD Air Cooling or Water Cooling Spindle (0-24000RPM)
2. InverterFulling or Delta Inverter: 150% rated torque at zero speed
3. Motor & DriveStepper or Servo configurations for smooth movement and high speed
4. Control SystemDSP Control System (NC-Studio, Mach3 optional), USB connectivity
5. TransmissionTaiwan TBI Ball Screw, Taiwan HIWIN Linear Rail for accurate motion
6. Working TableT-slot and Vacuum Table for maximum workpiece hold-down

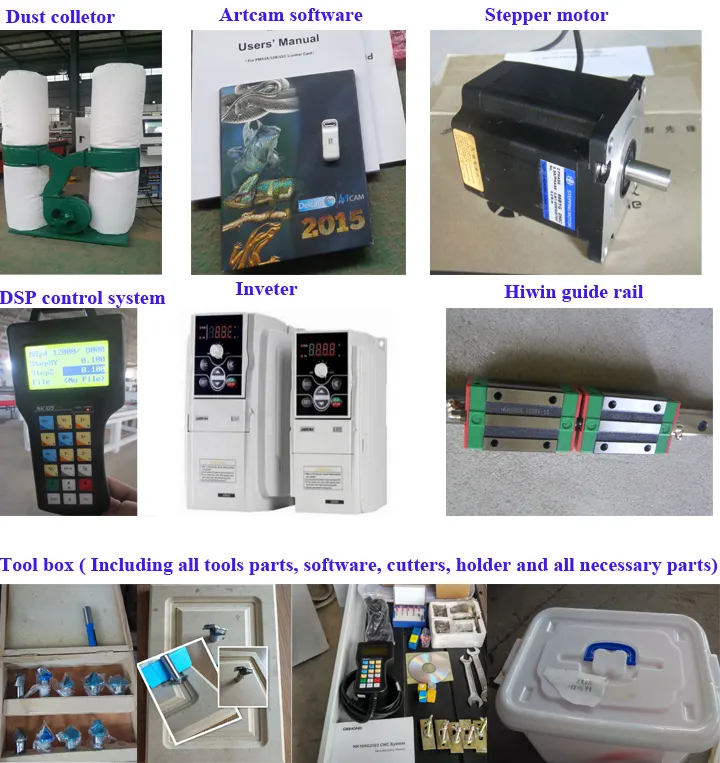

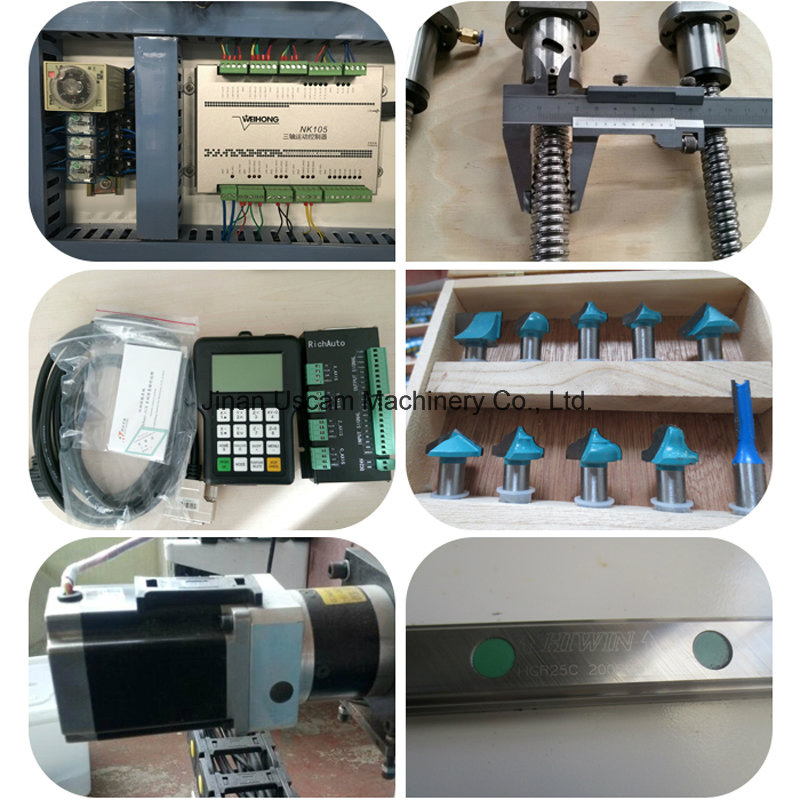

CNC Router Parts
📊

Technical Parameters

X,Y,Z Working Area1300x2500x200mm
Positioning Accuracy±0.01mm
Lathe Bed FrameSteel square tubes (8mm thickness)
X,Y StructureRack drive and Taiwan HIWIN guide
Z StructureTaiwan TBI Ball screw and Taiwan HIWIN guide
Drive MotorsJapan Yaskawa Servo motors
Max Rapid Travel Rate100000mm/min
Spindle PowerItaly HSD 9kw Automatic Tool Change
Working VoltageAC380V/50/60Hz, 3Phase
Operating SystemTaiwan Syntec system
Gross WeightApprox. 2000kg

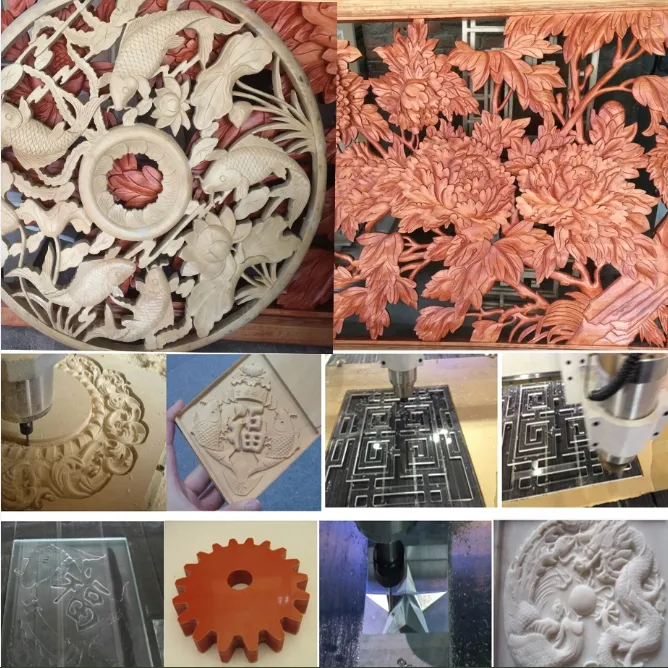

CNC Router Sample
🛡️

Service & Packaging

🛡️ After-Sale Commitment

  • 1.5 years quality guarantee for the machine and main parts.
  • Lifetime maintenance free of charge.
  • Free training courses provided at the plant.
  • 24 hours online technical support and daily service.
  • Machine adjusted and tested before delivery.

📦 Packaging & Delivery

  • 3-layer protection: Waterproof plastic, shock-absorbing foam, and standard plywood case.
  • Fumigation-free plywood for easier international import procedures.
  • Delivery within 7-15 working days after payment.
Packaging

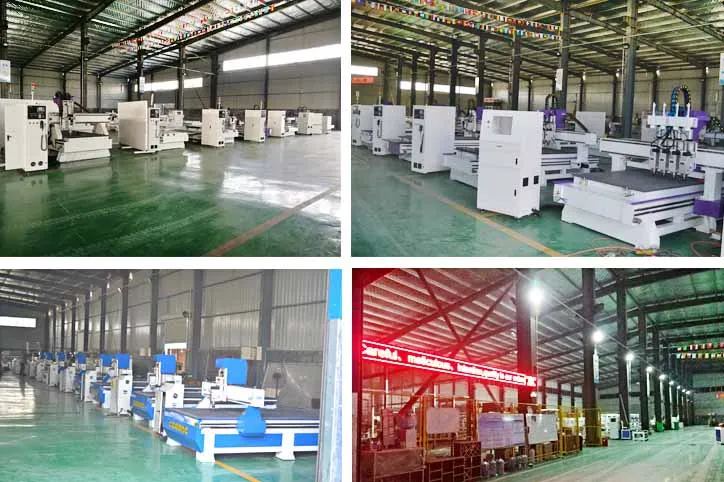

Factory
❓

Frequently Asked Questions

What is the machine packaging like?
We use a 3-layer package: an inner waterproof plastic bag, a middle foam layer for shock protection, and an outer professional plywood craft case.
Will the package be damaged during transportation?
Our packaging accounts for all damage factors to ensure safety. Our shipping agents are highly experienced in secure global transportation.
How do I install and operate the machine?
The machine is pre-installed before shipping. We provide detailed training videos and a user manual. About 95% of customers learn to operate it independently.
What happens if the machine has technical issues?
Contact us immediately. We respond within 24 hours to provide technical support and solve the problem for you.
What is the warranty period for this CNC router?
We provide a 1.5-year quality guarantee. Main parts (excluding consumables) are replaced free of charge during the warranty period.
What is the lead time for delivery?
The standard delivery time is within 7-15 working days after receiving the initial payment.
