High-precision solution for Wood Foam Sculpture Making, Engraving, Carving, and Cutting.

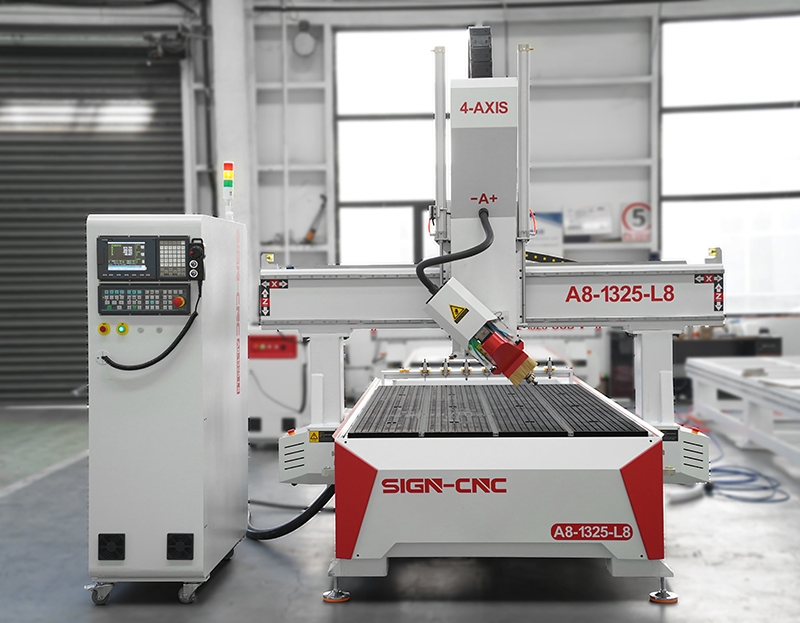

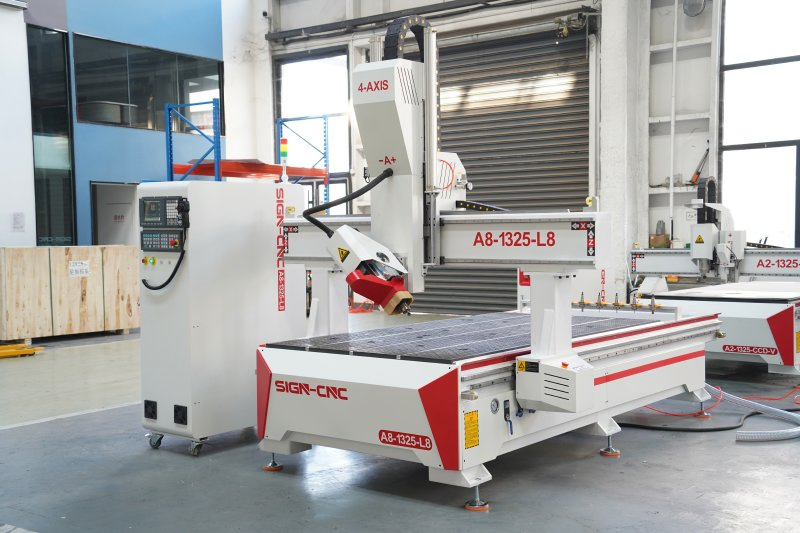

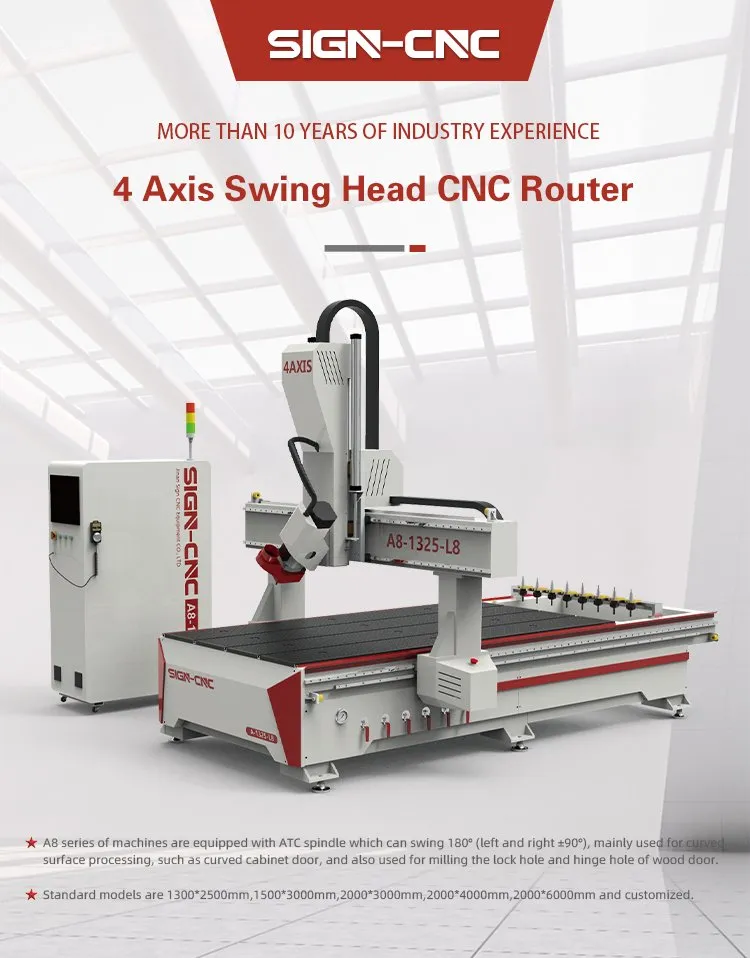

A8 series machines are equipped with an ATC spindle which can swing 180° (left and right ±90°), mainly used for curved surface processing, such as curved cabinet doors, and also used for milling the lockhole and hinge hole of wood doors.
| Parameter | Specifications |
|---|---|
| Model | A8-1325-L8 |
| Working area | 1300*2500mm |
| Z feeding | 300mm |
| Frame structure | Steel casting-welding |
| Type of table cover | Vacuum table with T-slot |
| Vacuum pump | 7.5kw air cooling |

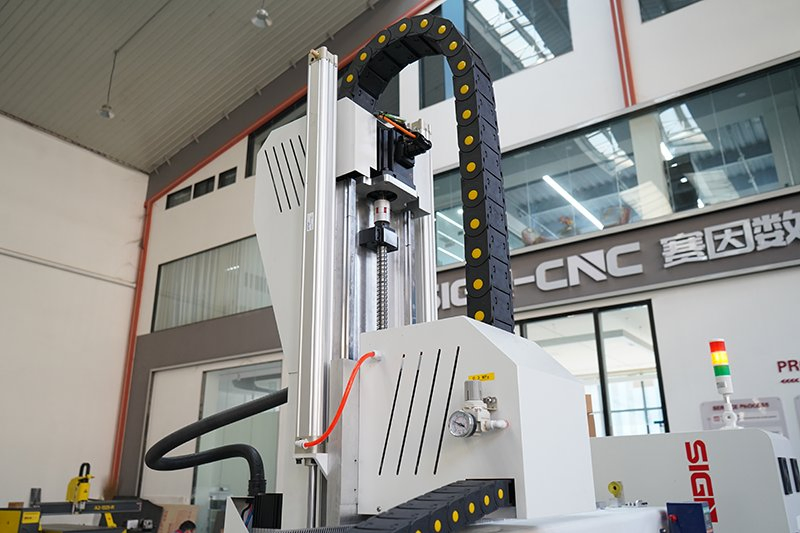

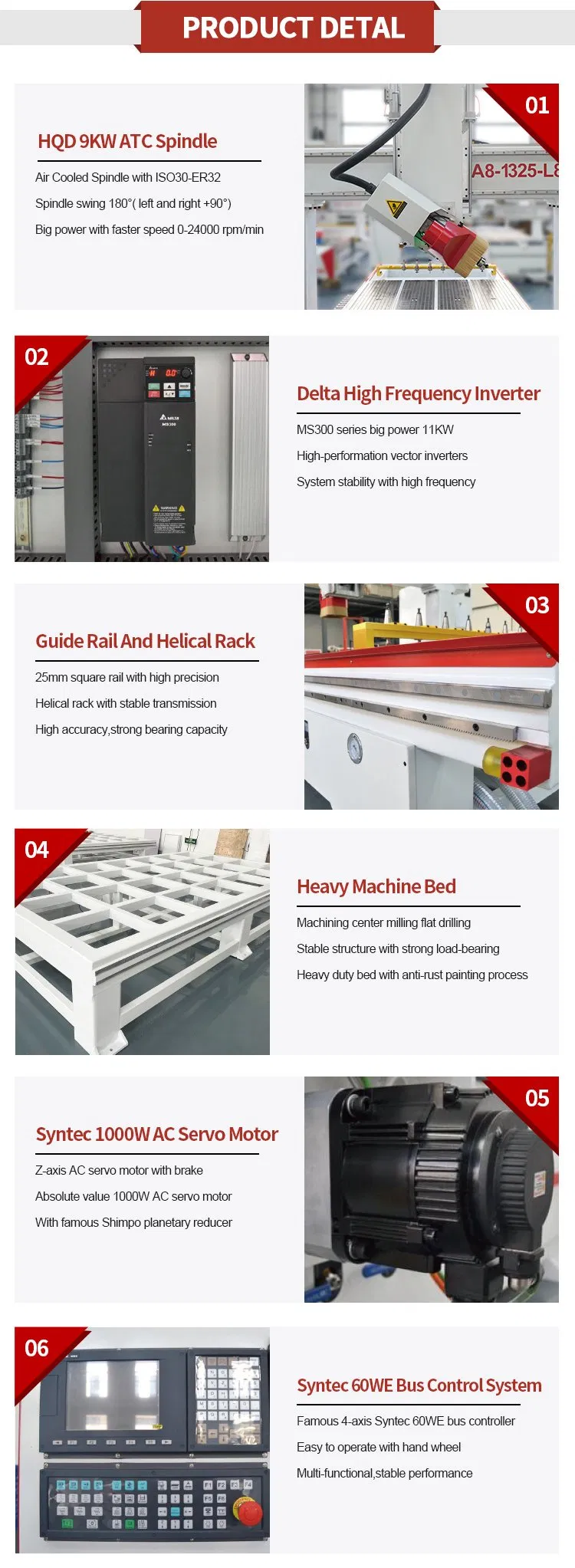

| Z axis transmission | Ball screw and 25mm square guide rails |
| X Y axis transmission | 25mm square guide rails + Helical rack |
| Max. Rapid Travel Rate | 45000mm/min |
| Max. Working Speed | 30000mm/min |
| Operating voltage | AC 380V/50Hz |
| Spindle power | 9.0KW ATC air-cooled ISO30-ER32 |

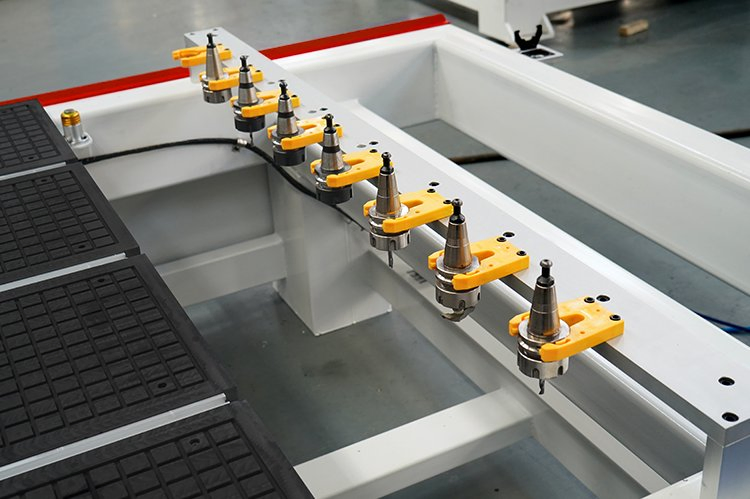

| Tool Magazine | Linear type 8 tools changer magazine |
| Drive motor type | AC servo motor and driver |
| Operating system | Syntec 60WE control system |
| Lubrication system | Automatic |
| Warranty | Two years |

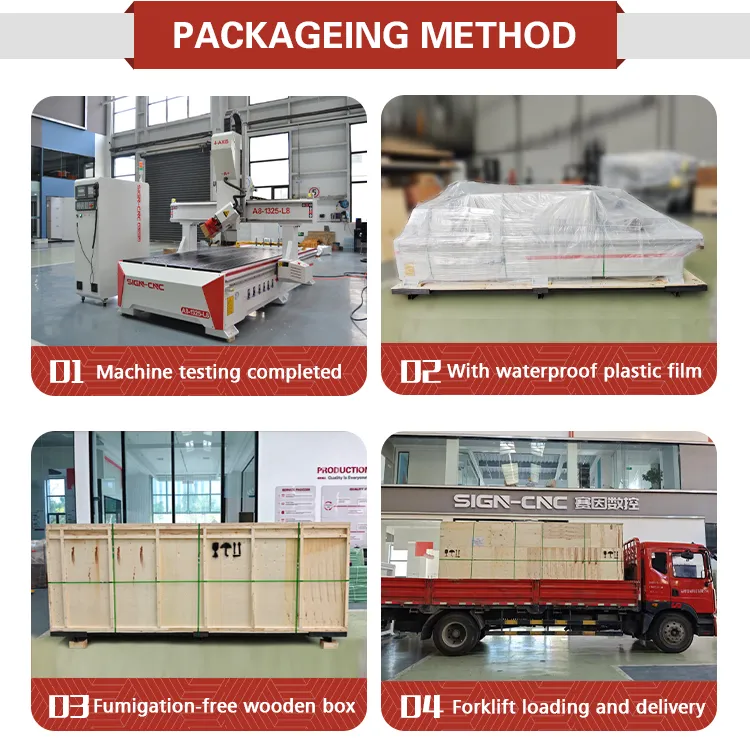

Solid and scientific packaging is a vital part of machine quality. We provide various packaging methods based on loading requirements to ensure the safety of your equipment.
