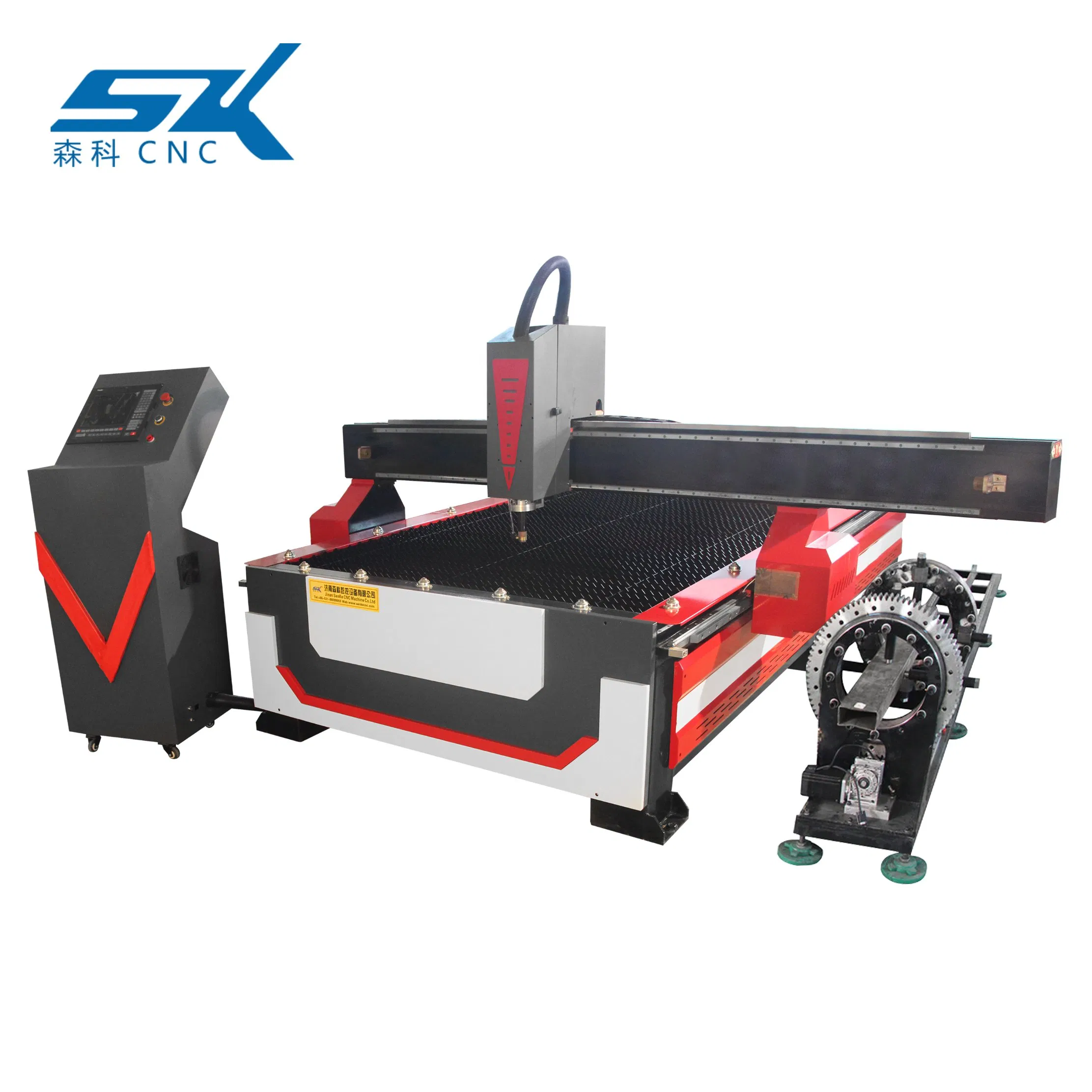

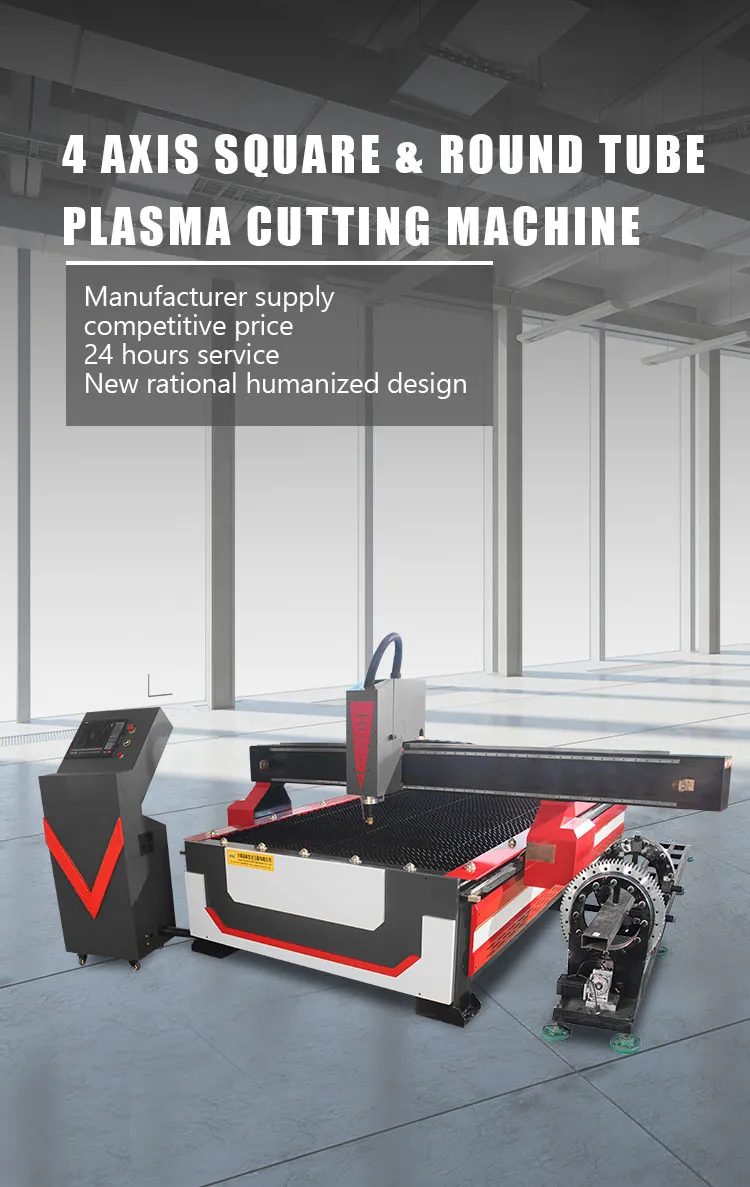

4 Axis Plasma Cutter CNC Plasma Pipe Sheet Cutting Machine With Rotary 1530 CNC Plasma Cutter for 20mm Metal Tube Pipe Cutting
📋 Basic Information
Cutting Material
Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
Cutting Mode
Plasma Cutting
Product Name
CNC Plasma Cutting Machine
Power Range
63A 100A 120A 160A 200A
Controller
Start Control System
Software
Powermill/ Artcam/Type3
Transmission
Taiwan Tbi Ball Screw
Guide Rail
Taiwan Hiwin Square Rail
Cutting Thickness
0.5-60mm Metal
Working Area
1300*2500mm / 1500*3000mm / Customized
Feature
High Speed / High Precision
Production Cap.
200 sets/Month
⚙ Technical Parameters
| Parameter Item |
Specifications |
| Model | SKZ-1325 / SKZ-1530 |
| Working Area | 1300*2500mm / 1500*3000mm |
| Body Structure | Thicker Strong Welded Steel 6 Legs Body |
| X,Y Structure | Taiwan Rack and Pinion |
| Z Structure | Taiwan TBI Ball Screw |
| Rails | Taiwan HIWIN Square Rails |
| Cutting Thickness | 0.1-30mm (Based on Power) |
| Max Moving Speed | 80000mm/min |
| Max Cutting Speed | 20000mm/min |
| Power Source | LGK 63A 100A 120A 200A Huayuan Plasma Source |
| Operating System | Start LCD visible panel control system |
| Drive Type | Stepper or Servo Motor and Driver |
| Software | Original StarCAM |
| Oil Lubricator | Yes, Included |
| Environment | Temperature: -10ºC ~ 45ºC |
| Package | Export Plywooden Box |

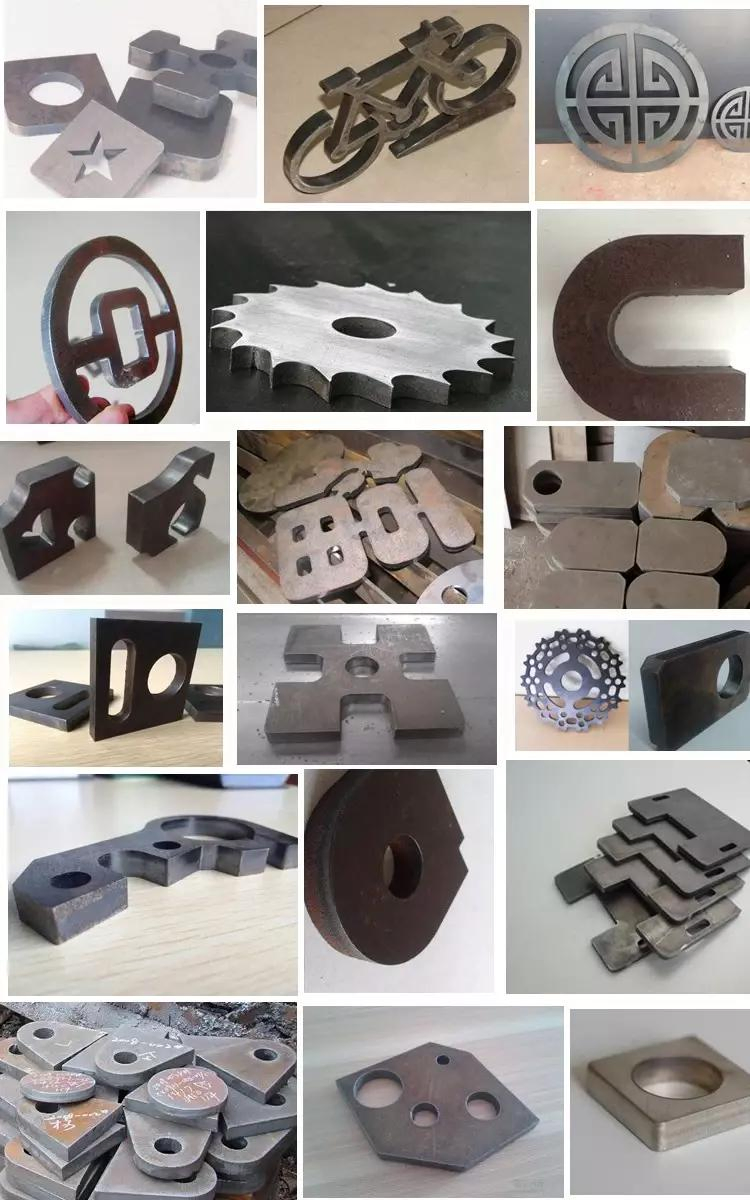

📷 Product Details & Showcase
❓ Frequently Asked Questions
Q1: I know nothing about this machine, what kind of machine should I choose?
It is very easy to choose. Just tell us what you want to do using a CNC plasma cutter, then let us provide you with professional solutions and suggestions.
Q2: How do I operate the machine if I am a new user?
We provide a comprehensive English manual and operation videos with the machine. If you have any doubts, we can provide support via remote communication tools.
Q3: What happens if there are problems during the warranty period?
We supply free replacement parts during the machine warranty period if problems occur. We also provide lifelong technical support and after-sales service.
Q4: What information is needed for an inquiry?
Please provide: 1) Your material size (length and width); 2) The type of material (Metal, Steel, Aluminum, etc.); 3) Whether you want to engrave or cut, and the maximum thickness.

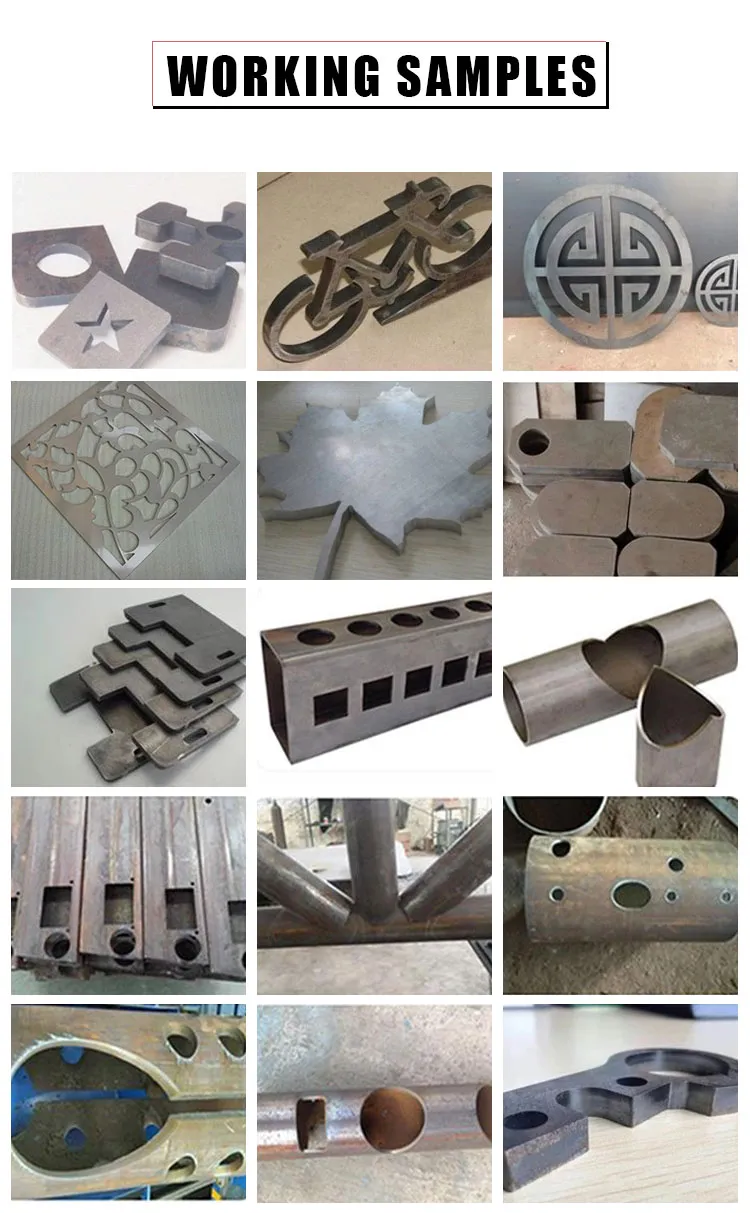

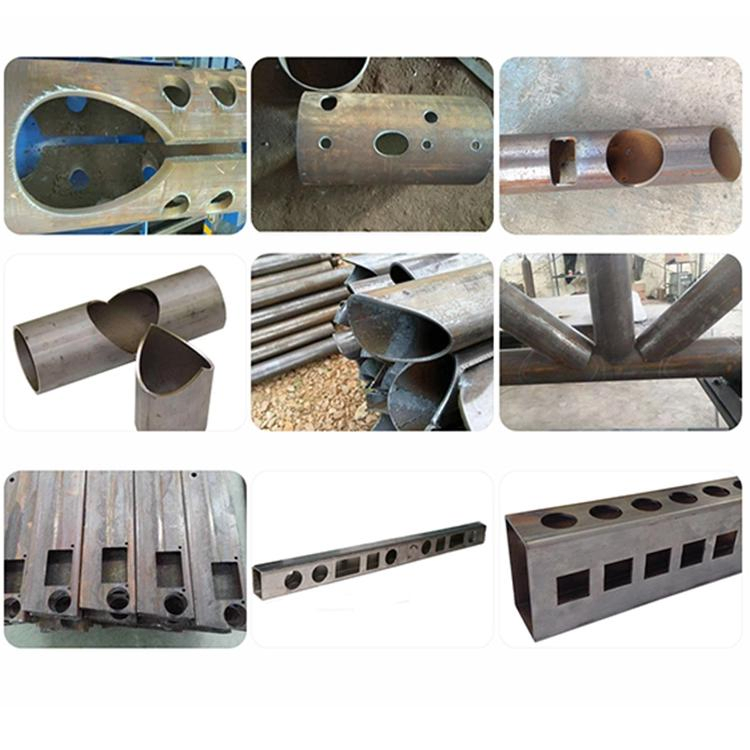

Q5: What materials can this CNC plasma machine cut?
This machine is designed for various metals, including Copper, Carbon Steel, Iron, Aluminum, Metal Alloys, and Stainless Steel with thicknesses ranging from 0.5mm to 60mm.
Q6: Which software is compatible with the machine?
The machine is compatible with high-end design and nested software like Powermill, Artcam, Type3, and the original StarCAM system.
