Basic Specifications
Model NO.JCS1520R
AutomationAutomatic
ControlCNC
Motor PowerHigh Power
CertificationCE, ISO, BV, TUV
CurrentAC
Applicable MaterialWood, Stone, Glass, Ice, Soft Metal, Plastic, Foam
X,Y, Z Working Size150mm(Diameter)*2000mm(Length)
Spindle Power11kw Water Cooling Spindle
Operating System4 Axis Ncstudio / 5 Axis Syntec
Production Capacity800sets/Year
HS Code8465990000

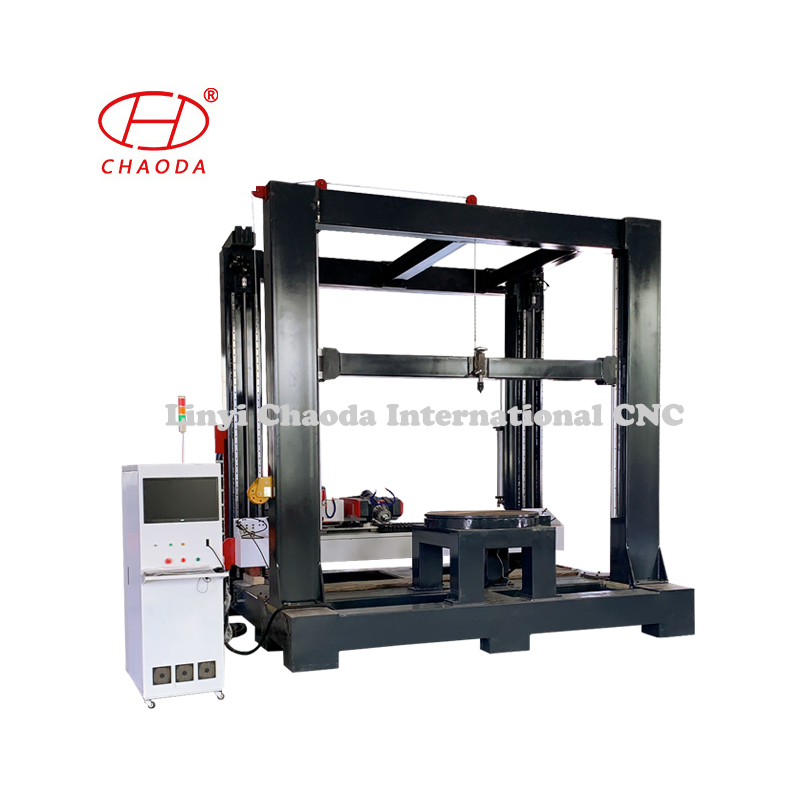

Product Description

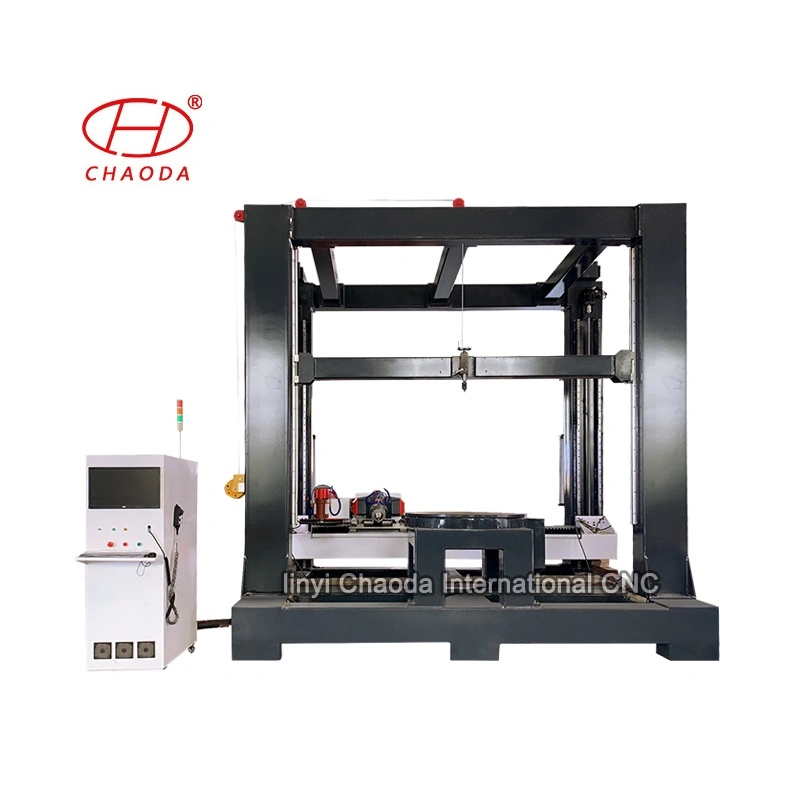

All Kinds of Stone CNC Router Machine, 5 Axis 4 Axis 3 Axis Stone Engraving and Milling Lathe for 3D Stone Sculpture, Stone Pillar and 2D Stone Letter & Relief
Professional Solutions:

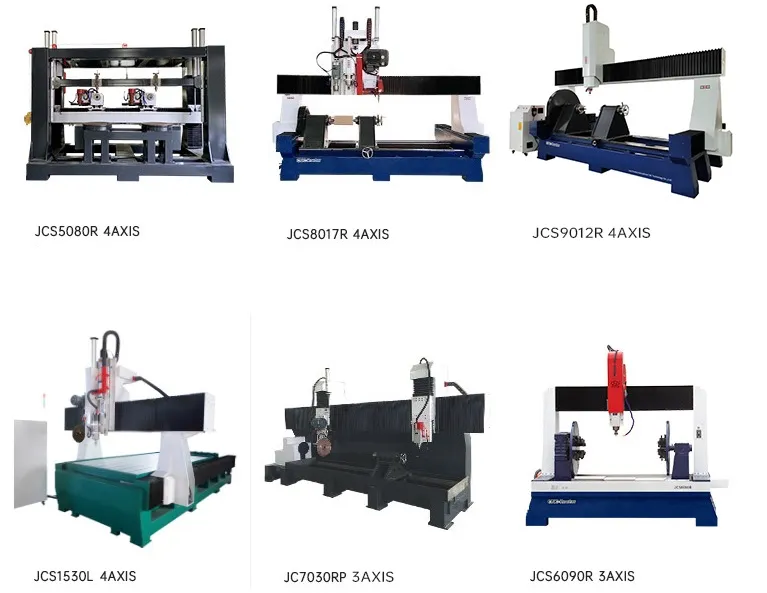

Our products include CNC routers of 3 axis, 4 axis, 5 axis, and 5+1 axis, as well as 3D scanners, hot wire foam cutters, laser machines, and plasma cutting machines. We supply best solutions to your specific project!
| Technical Parameters |
Details |
| Series | 5-axis 4 axis CNC |
| Model | JCS1520R |
| Working Size | 2000mm length, 1500mm diameter (customizable) |
| Lathe Bed Structure | T-extrusion, thick steel frame |
| X Structure | Rack and pinion, 4pcs HIWIN linear square rail |
| Z Structure | Double ball screw, 4pcs HIWIN linear square rail |
| Max. Moving Speed | 0-25000mm/min |
| Spindle | 11kw water cooling spindle (Option: 9kw, 12kw) |
| Saw Blade Unit | Yes, for rough machining |
| Operating System | 5 axis Taiwan Syntec controller (Option: 4 axis Ncstudio) |

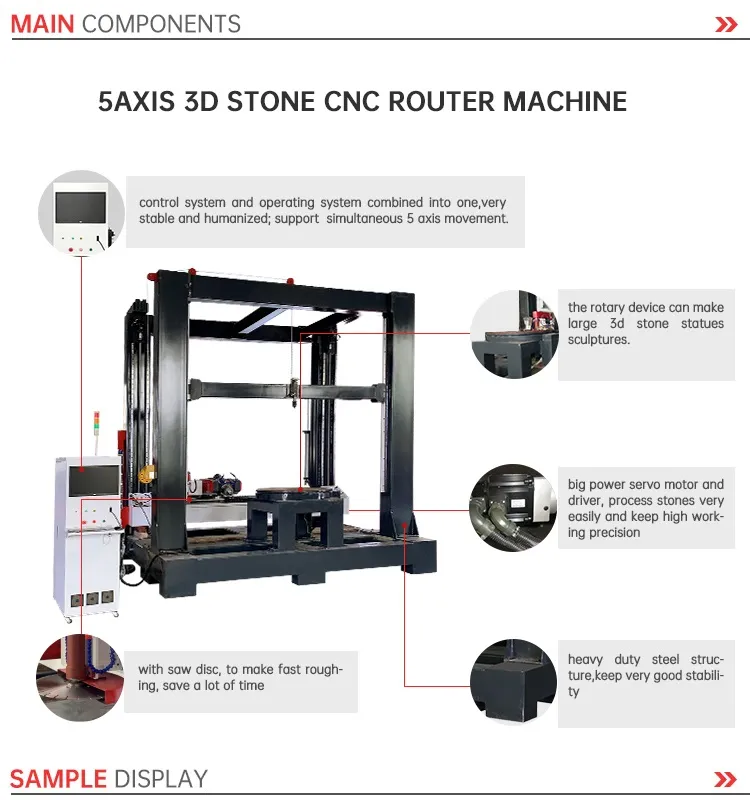

Main Features
- ✔ Heavy duty welded lathe bed of profiled steel, stabilized under high temperature.
- ✔ Y axis with double motors to ensure stable and precise performance.
- ✔ High precision rack gear transmission with imported linear guide rails.
- ✔ Unique double water cooling system for spindle and cutter protection.
- ✔ Dust-proof design for all components to extend service life.
- ✔ Multipurpose: processes stone, wood, foam, plastic, and soft metals.
Frequently Asked Questions
1. What materials can this CNC machine process?
The JCS1520R is highly versatile and can process marble, granite, wood, foam, plastics, glass, ceramics, and soft metals.
2. Does the machine support both 4-axis and 5-axis operations?
Yes, we offer configurations for both 4-axis (Ncstudio) and 5-axis (Taiwan Syntec) control systems based on your project requirements.
3. Can the working size be customized?
Yes, while the standard size is 2000mm length and 1500mm diameter, other sizes are available upon request to fit your specific needs.
4. What is the benefit of the integrated saw blade unit?
The saw blade unit is designed for rough machining, which significantly speeds up the initial material removal before fine engraving begins.
5. How does the cooling system work during heavy-duty tasks?
The machine features a unique double water cooling system that independently ensures both the spindle and the cutter remain cool during long working sessions.
6. What certifications does the machine have?
Our CNC router machines are fully certified with CE, ISO, BV, TUV, and SGS standards, ensuring high quality and safety.
