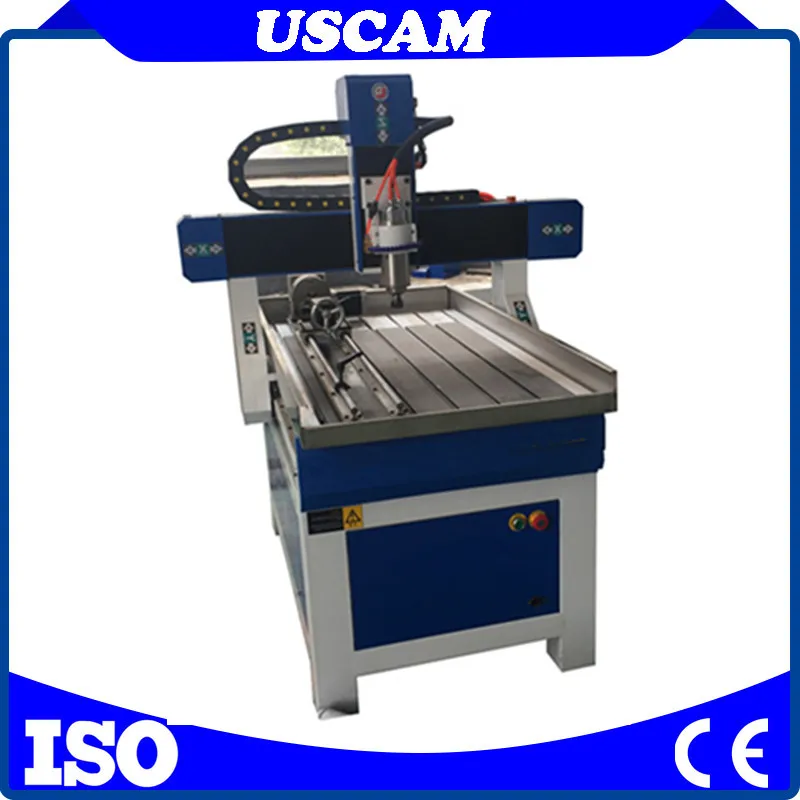

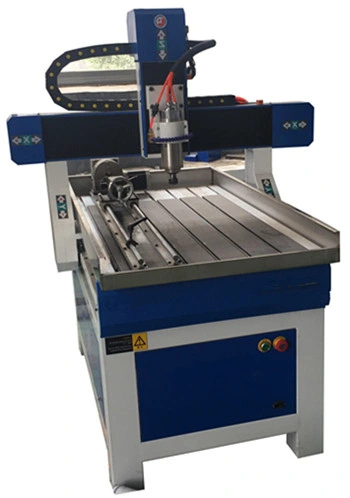

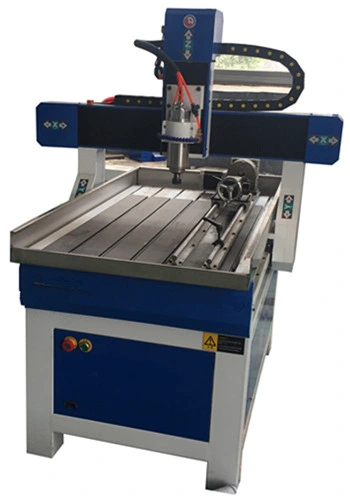

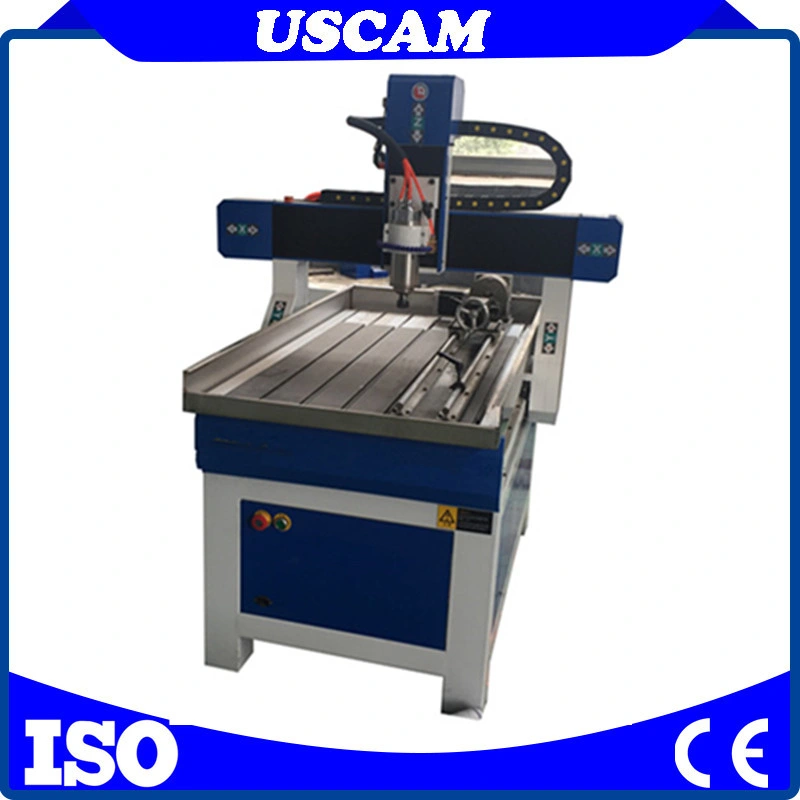

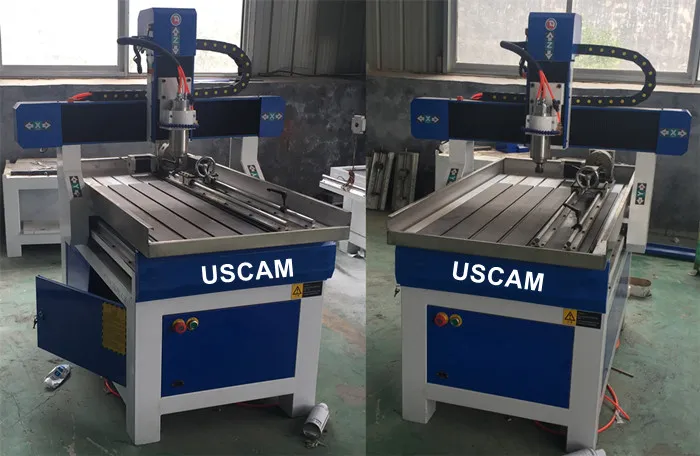

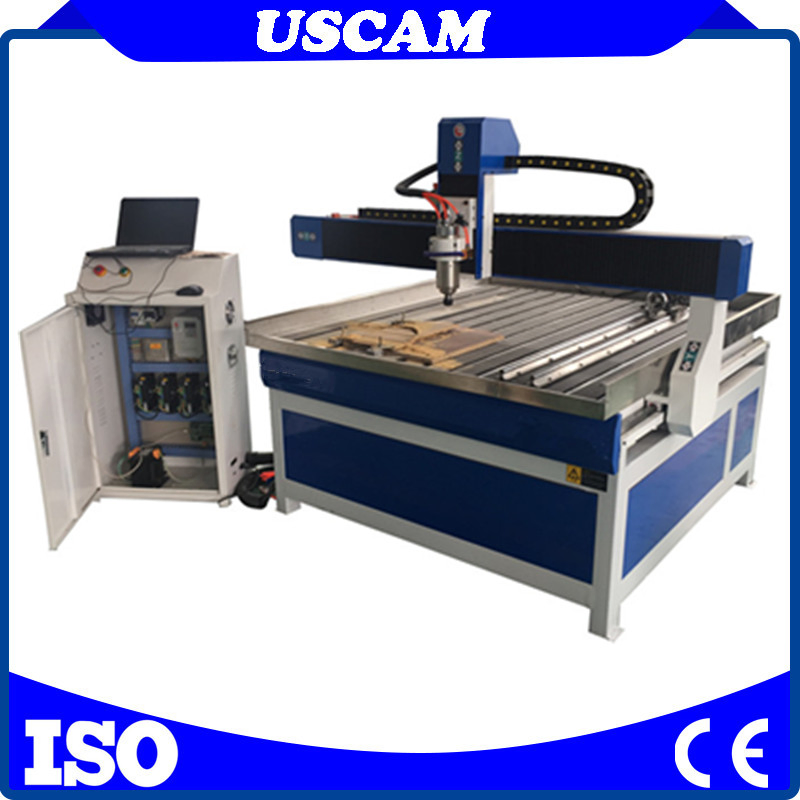

3D Mini Desktop Small Engraver 6090 Advertising CNC Router Machine for Carving and Engraving PCB / PVC/Acrylic / Aluminum/Wood/MDF

Customization:	Available
Certification:	CE, ISO 9001
Usage:	Woodworking, Advertising

📦 Basic Information

Power:Small Power

Control:CNC

Drive Type:Stepper Drive

Controller:DSP/Nc-Studio

Working Area:600X900X100mm

Spindle:1.5 Kw Air Cooling Spindle

Table:T-Slot Table/Vacuum Table

Rail:Taiwan Hiwin Square Rail

Inverter:Fuling Inverter

Motor:Stepper Motor

Driver:Leadshine Driver

Additional Parts:Water Tank and Water Pump

Transmission:X, Y Gear Transmission, Z-Axis Taiwan Tbi Ball SCR

Type:CNC Router

Feature:Wood Router

Transport Package:Strong Plywood Case

Origin:China

HS Code:8479899990

Capacity:500sets/Month

🚀 Application

Advertising signs, logo making, acrylic cutting, PP/PE/ABS/PVC/PC Board Cutting engraving, making of various materials, decorative products, and wood relief engraving or cutting, like wood window processing, wood table, chairs, wood doors, Woodenworking Industry, 3D Wave Board Processing, Cupboard Doors, Crafts Wooden Doors, Unpainting Door, Screen, Crafts Windows, Milling and Engraving On The Furniture, etc.

🛠️ Technical Parameters

MODEL	6090 Standard body frame
X Y Z Working area	600x900x100mm
Table	T-slot table/Vacuum table
Frame	Steel square tube
Inverter	Fuling Inverter
Spindle	1.5kw air cooling spindle
Motor and Drive	Leadshine driver and stepper motor
Switch	Omron
Electronic component	Schneider
X Y structure	Taiwan HIWIN square rail linear & rack pinion drive
Z structure	Taiwan HIWIN square rail & TBI ball screw
Max Travel Rate	50000mm/min
Max Working Speed	30000mm/min
Operating system	DSP controller/Nc-studio system
Software	Artcam, type3
Spindle speed	24000RPM
APLICATION	Wood 3d engraving, MDF, HDF, ACP, acrylic, Stone, aluminium (with water tank)

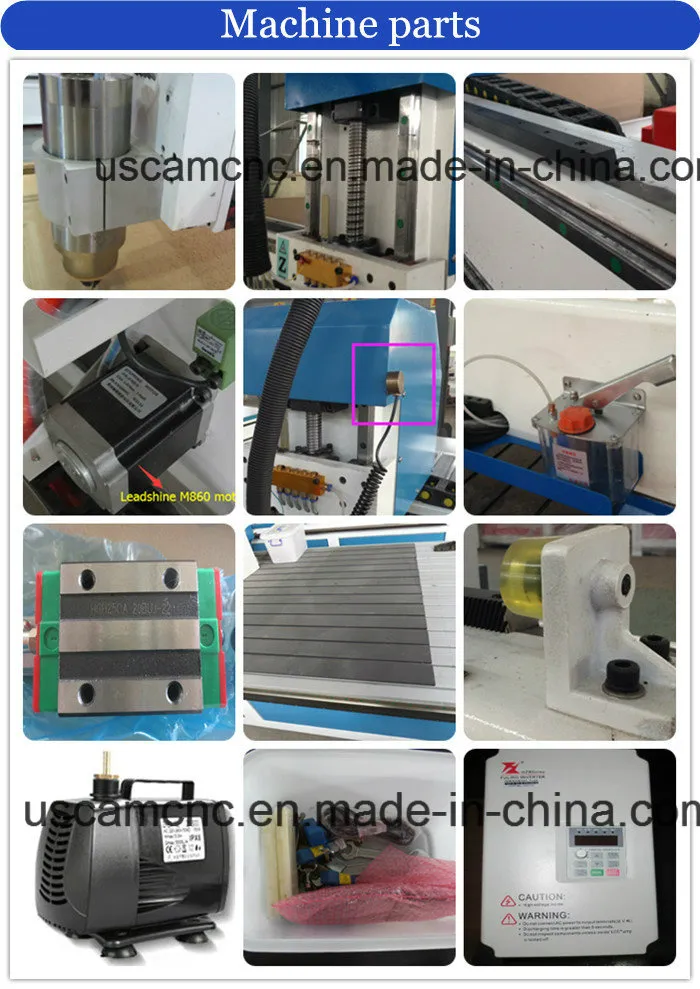

✨ Main Features

Welded steel tube structure with vibration Temper aging treatment ensures no deformation.
Transverse aluminum alloy T slot working table for better material fixing.
Large power 1.5kw air cooling spindle with stable performance and low noise.
Imported Hiwin, Taiwan Linear square guide rail for high precision and weight capacity.
Helical gears pinion and rack transmission for X and Y axis; Z-axis with precision ball screw.
DSP A11(RichAuto) offline control system with USB interface.
Dust collector system to keep the machine and environment clean.
Semi-auto lubrication system for convenient maintenance.
Auto tool calibration for efficient Z-axis point setting.
Break-point memory and power failure resuming functions.

🛠️ After-Sale Service

18 months guarantee of the whole machine.
Main parts changed free of charge if problems occur during warranty.
Consumable parts provided at agency price.
Software updates for free for the whole life.
24 hours online support (Skype, Cellphone, etc.).
English manual and CD video for maintenance included.

❓ Frequently Asked Questions

Q1: What is the effective working area of this CNC router? A1: The machine features a working area of 600x900x100mm, ideal for advertising and small woodcraft projects.

Q2: Can I process aluminum or stone with this machine? A2: Yes, it is suitable for stone and aluminum engraving when equipped with the included water tank and water pump.

Q3: Does the machine require a computer to operate? A3: With the DSP A11 offline control system, you can operate the machine using a USB interface completely independent of a computer.

Q4: What happens if there is a power failure during work? A4: The machine includes a break-point memory and power failure resuming function, ensuring long-time working precision.

Q5: What is the warranty period for this CNC router? A5: We provide an 18-month guarantee for the entire machine, with free replacement for main parts during the warranty period.

Q6: What kind of maintenance system is included? A6: The machine is equipped with a semi-auto lubrication system, making regular maintenance very convenient.
