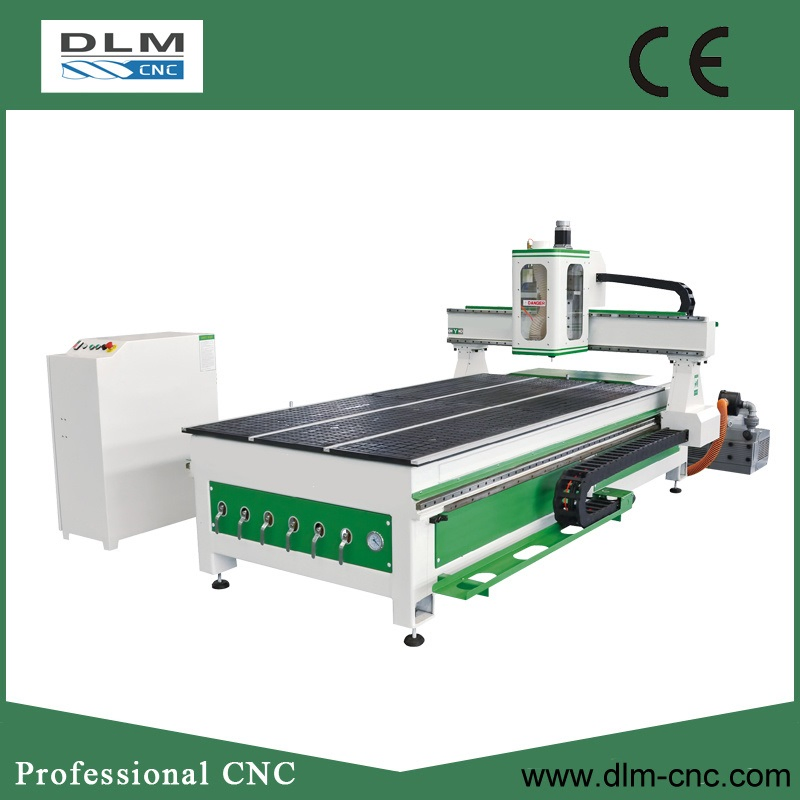

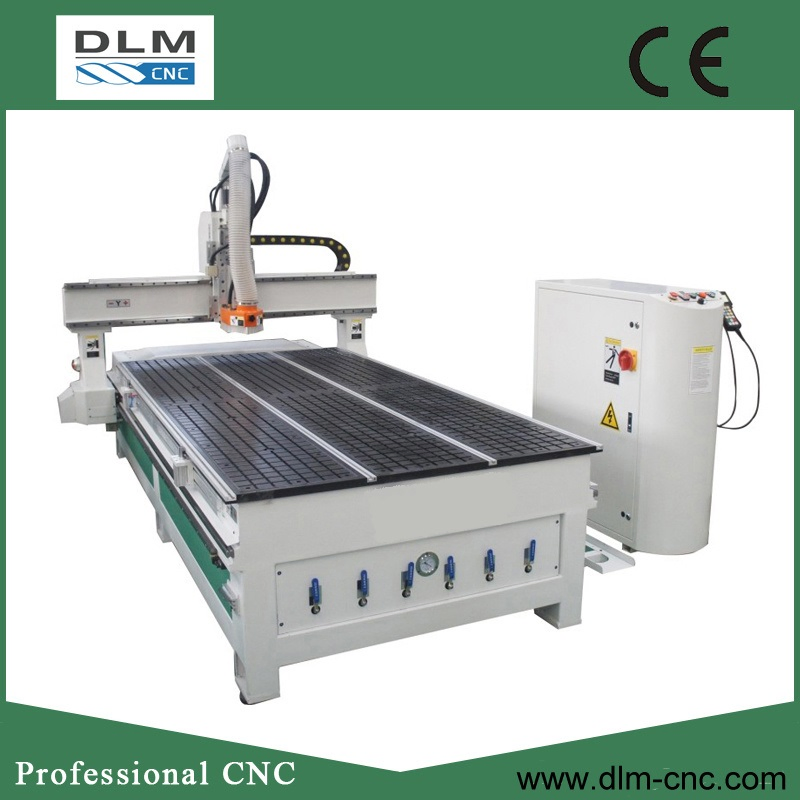

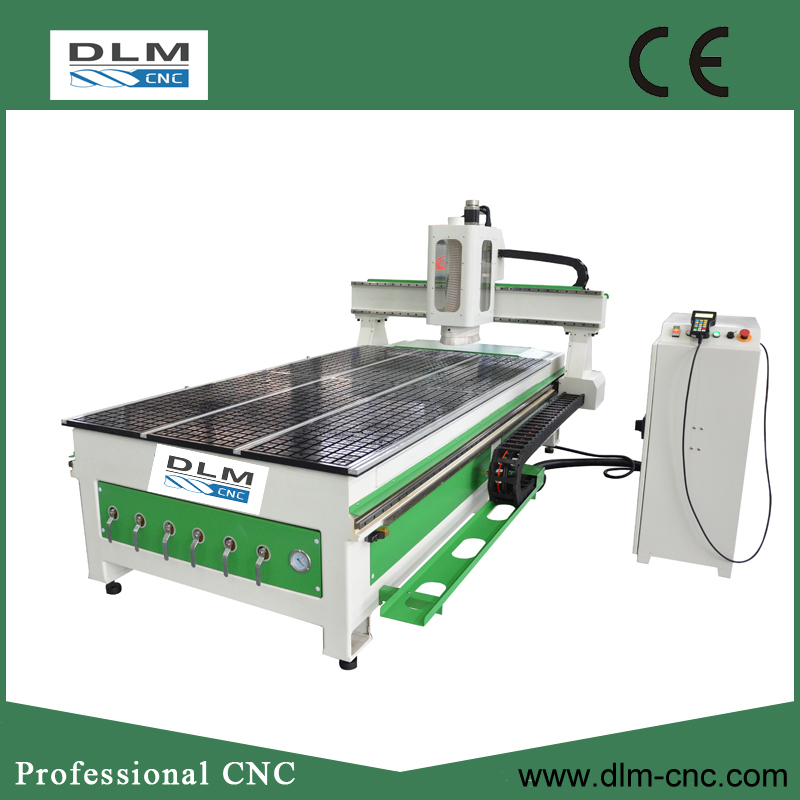

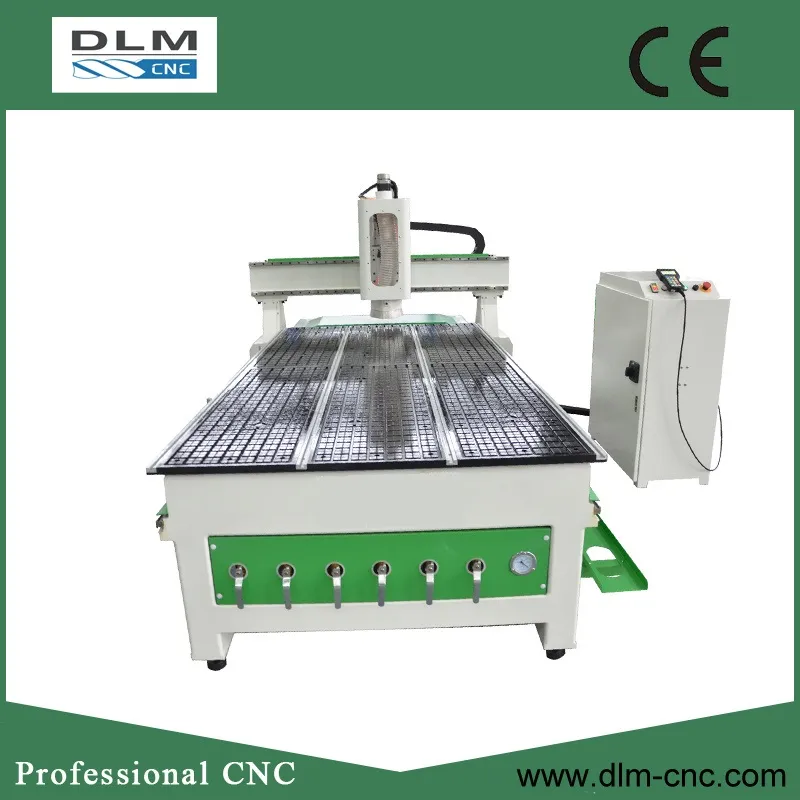

3D and 3 Axis CNC Woodworking Router

Customization:	Available
After-sales Service:	24 Hours Online
Warranty:	One Year

Send Inquiry

Product Description

Basic Information

Model NO.:NM-48

Application:Wood

Process Usage:CNC Non-Conventional Machine Tools

Movement Method:Contour Control

Control Method:Semi-Closed Loop Control

Numerical Control:CNC/MNC

Processing Precision:0.09~0.1(mm)

Certification:CE, ISO 9001

Spindle:6kw Air Cooling Spindle

Table:T-Slot Vacuum Table

Controller:DSP Controller System

Software:Type 3/ Artcam

Linear Rail:Taiwan Linear Rail

Rack:German Henrion Helical Racks

Product Description

China High Precision CNC Engraving Machine

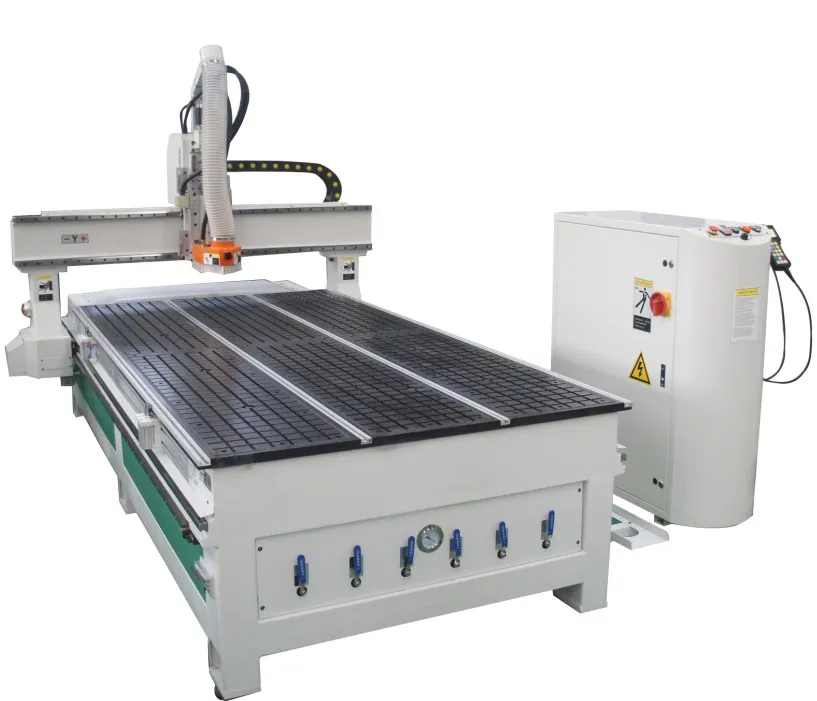

3D and 3 Axis CNC Woodworking Router Detail

Model	NM-48
Working Area	1300mm*2500mm
Spindle	6KW air cooling spindle
Inverter	7.5kw / Fulling
Rotary Axis	diameter 100, length 1m (optional)
Table Design	T-slot vacuum table
Vacuum Pump	5.5KW Chinese Becker Pump / 7.5KW optional
Rail	Taiwan linear rail
Rack	German Henrion helical rack
Software	Type 3 / ArtCAM
Controller	NC studio DSP / Taiwan Syntec
Dust Collector	3KW with double bags

◈ 6KW high frequency air cooling spindle
◈ Japan shimpo reducer coupled directly to servo motors
◈ Pneumatic material alignment stop
◈ Weihong NK105 handle controller, easy to operate
◈ Open architecture works with all industry standard CAD/CAM software

Frequently Asked Questions (FAQ)

Q1: What materials can the NM-48 CNC machine process? A: This machine is primarily designed for high-precision woodworking applications, including 3D engraving and routing.

Q2: What is the effective working area of this machine? A: The NM-48 features a generous working area of 1300mm x 2500mm, suitable for standard large-format sheet processing.

Q3: Which software is compatible with this CNC router? A: It supports industry-standard software such as Type 3 and ArtCAM, and its open architecture allows integration with most CAD/CAM packages.

Q4: What are the key components of the drive system? A: The machine utilizes high-quality Taiwan linear rails and German Henrion helical racks for smooth and precise movement.

Q5: Is a rotary axis available for 4-axis work? A: Yes, an optional rotary axis with a 100mm diameter and 1m length can be added for cylindrical processing.

Q6: What type of cooling does the spindle use? A: The machine is equipped with a high-performance 6KW air-cooling spindle, eliminating the need for complex water cooling systems.
