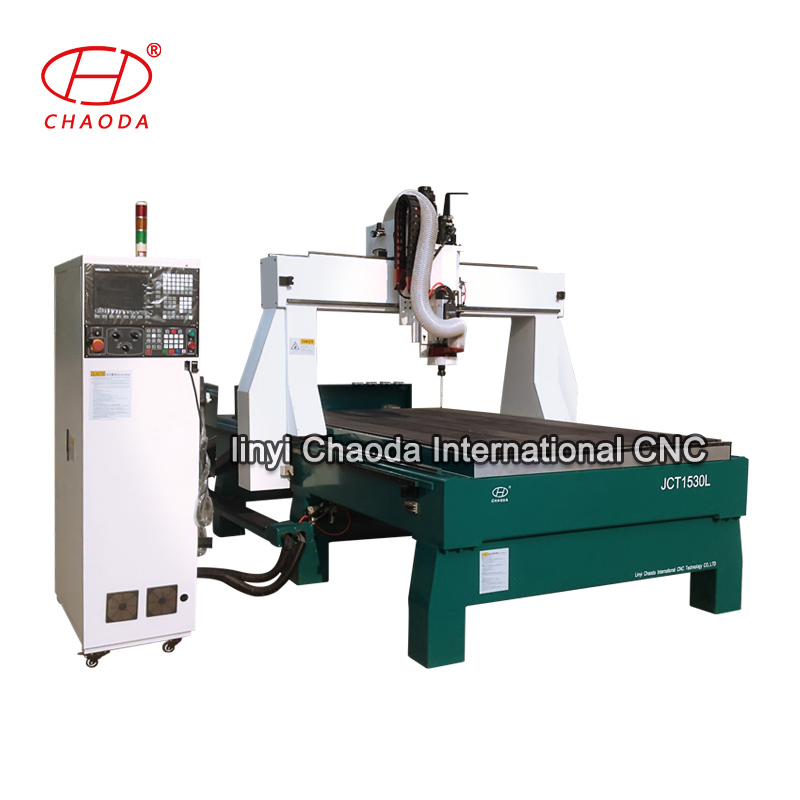

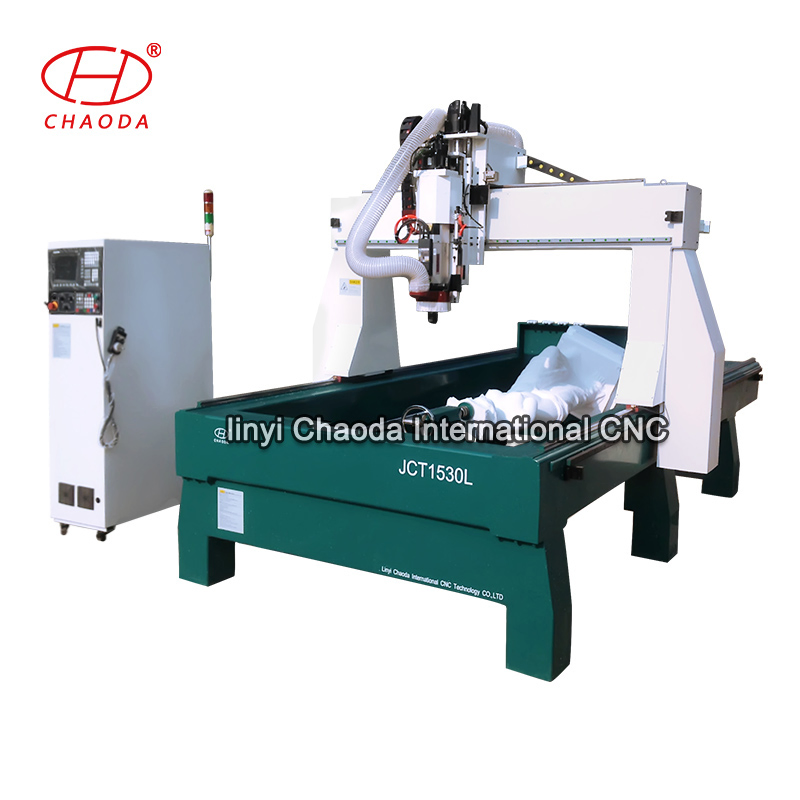

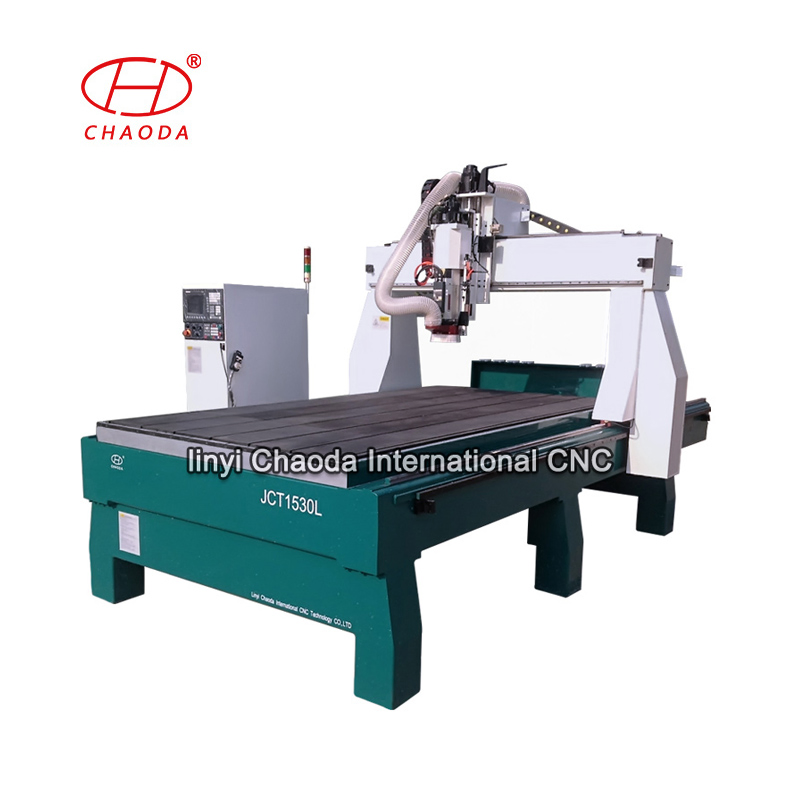

3D Wood Foam Sculpture Statue Figure Column CNC Carving Machine, 4 Axis 1530 CNC Router with 2.5m Rotary
3D Wood Foam Sculpture Statue Figure Column CNC Carving Machine, 4 Axis 1530 CNC Router with 2.5m Rotary
3D Wood Foam Sculpture Statue Figure Column CNC Carving Machine, 4 Axis 1530 CNC Router with 2.5m Rotary
3D Wood Foam Sculpture Statue Figure Column CNC Carving Machine, 4 Axis 1530 CNC Router with 2.5m Rotary
1 / 4
3D Wood Foam Sculpture Statue Figure Column CNC Carving Machine, 4 Axis 1530 CNC Router with 2.5m Rotary
3D Wood Foam Sculpture Statue Figure Column CNC Carving Machine, 4 Axis 1530 CNC Router with 2.5m Rotary
3D Wood Foam Sculpture Statue Figure Column CNC Carving Machine, 4 Axis 1530 CNC Router with 2.5m Rotary
3D Wood Foam Sculpture Statue Figure Column CNC Carving Machine, 4 Axis 1530 CNC Router with 2.5m Rotary

3D Wood Foam Sculpture Statue Figure Column CNC Carving Machine, 4 Axis 1530 CNC Router with 2.5m Rotary

Customization: Available
Warranty: Online Services
Type: Engraving Router
Send Inquiry

Product Description

⚙️ Basic Information
Model NO.
JCT1530L
Spindle Layout
Vertical
Spindle Number
1
Feed Mode
Mechanical
Controlling Mode
CNC
Condition
New
Xyz Working Size
1500*3000*500mm
Rotary Size
1000mm Diameter, 2500mm Length
Spindle Power
9kw Air Cooling Spindle
Operating System
4 Axis Weihong Control System
Origin
China
Capacity
100sets/Month
📦 Product Overview

3D Wood Foam Sculpture Statue Figure Column CNC Carving Machine

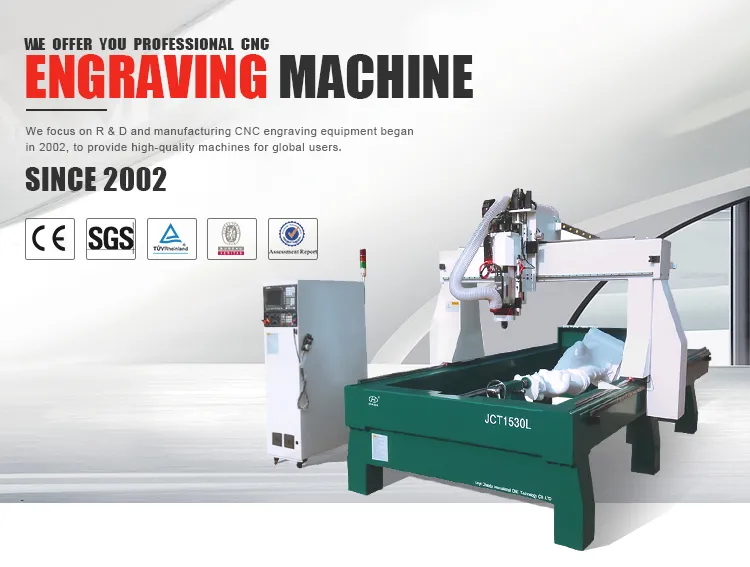

CNC Carving Machine Main View
  • High configuration and top quality parts for maximum performance and durability.
  • Equipped with a large rotary device for 3D sculptures, statues, figures, and stage props.
  • Features a flat table for deep 3D reliefs, molds, and furniture production.
  • Advanced Ncstudio control system for stable and easy operation.
CNC Component Detail
📊 Technical Specifications
Model No.JCT1530L
Flat Working Size1500*3000*500mm
Rotary Working Size1000mm diameter, 2500mm length
Lathe Bed StructureT-extrusion, Thick Steel frame
TableRemovable, T-slot with clamps
X/Y StructureRack and pinion, linear square rail
Z StructureBall screw, linear square rail
Max. Working Speed0-30000mm/min
Spindle9kw air cooling ATC spindle
Tool MagazineLinear type auto tool changer, 8 tools
Driving SystemJapan YASKAWA servo motor and driver
Working MaterialsEps foam, Styrofoam, Woods, MDF, PVC, Acrylic, Aluminum, etc.
🖼️ Machine & Sample Gallery

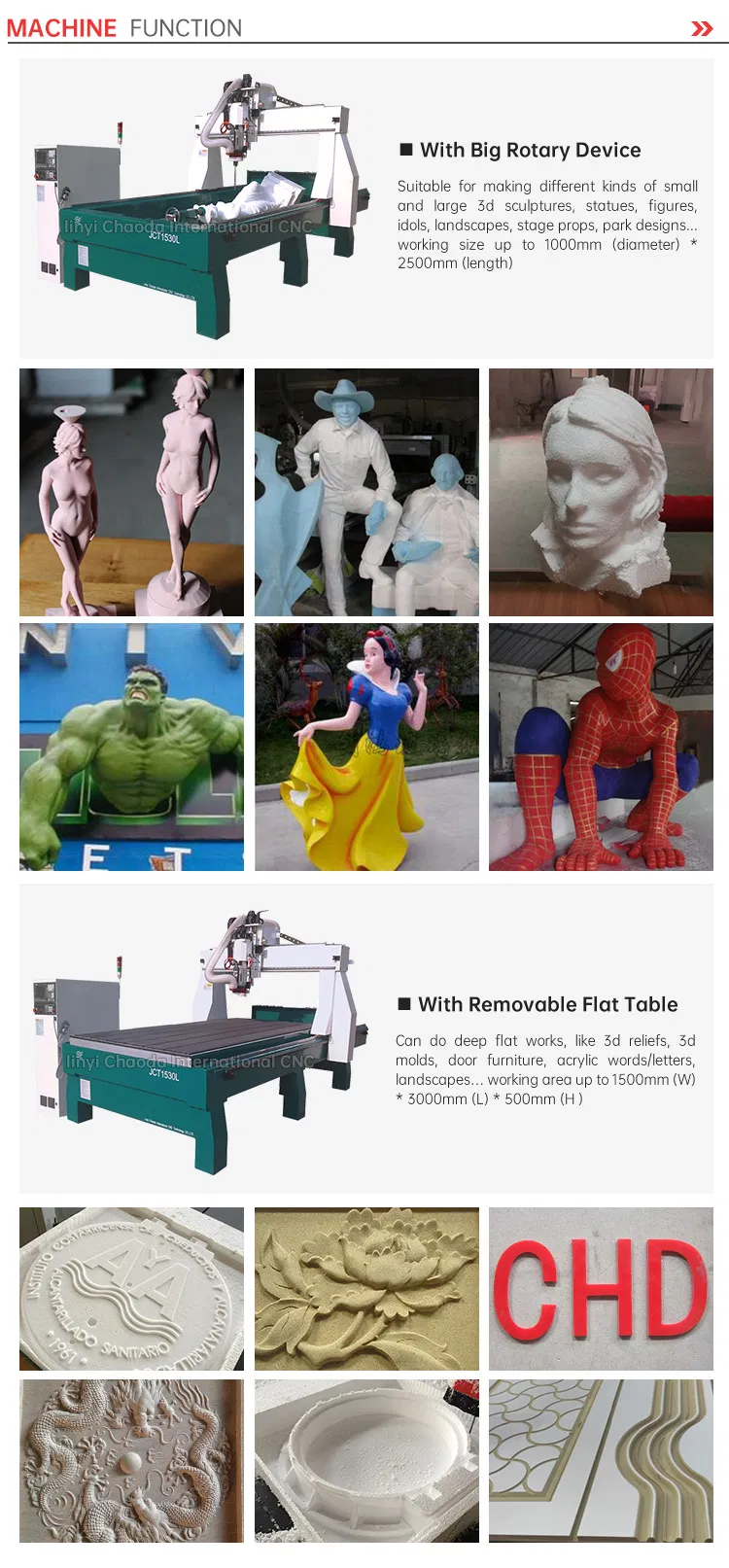

Machine Structure Detail

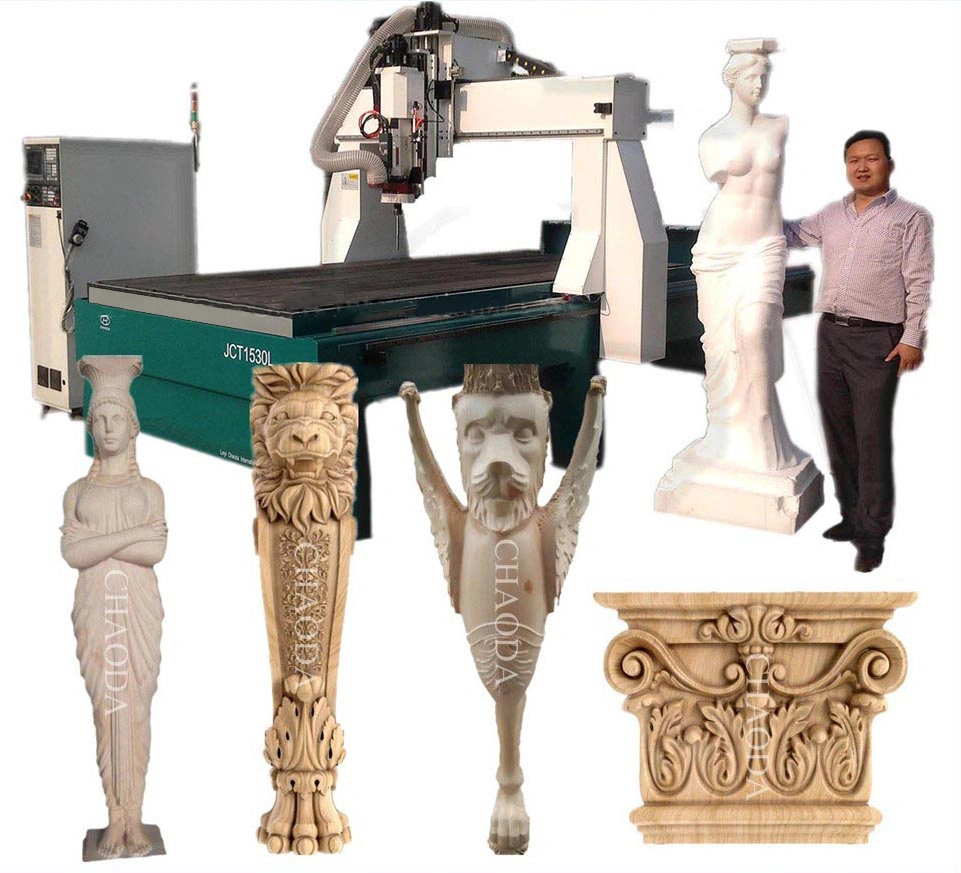

Carving Samples
🛠️ Service & Support
✅ Sample testing before shipment
✅ 2 days free training for each machine
✅ 12 months warranty
✅ English version manual and operation videos
✅ Free technical support via phone/email/chat
✅ Engineers available for overseas service
Detailed Machine View
Application Gallery
❓ Frequently Asked Questions
What materials can this 4-axis CNC machine process?
The machine is highly versatile and can process EPS foam, Styrofoam, various types of Wood, MDF, PVC, Rigid plastics, Acrylic, and even soft metals like Aluminum.
What is the maximum size for 3D rotary carving?
The rotary device supports workpieces up to 1000mm in diameter and 2500mm in length, making it ideal for large statues and columns.
Does the machine come with an automatic tool changer?
Yes, it features a linear type auto tool changer (ATC) with an 8-tool capacity, significantly increasing production efficiency.
What type of control system and motors are used?
The machine utilizes a professional 4-axis Ncstudio control system paired with high-precision Japan Yaskawa servo motors and drivers for stability and accuracy.
Is technical training provided?
We provide 2 days of free training for each machine, along with friendly English manuals and operation videos to ensure users can operate the equipment effectively.
What is the warranty period for the CNC router?
Each machine comes with a 12-month warranty and lifelong free technical support via various communication channels.
