📋 Basic Specifications
Process Usage
CNC Machine Tools
Movement Method
Linear Control
Control Method
Semi-Closed Loop
Processing Precision
0.01~0.02(mm)
Product

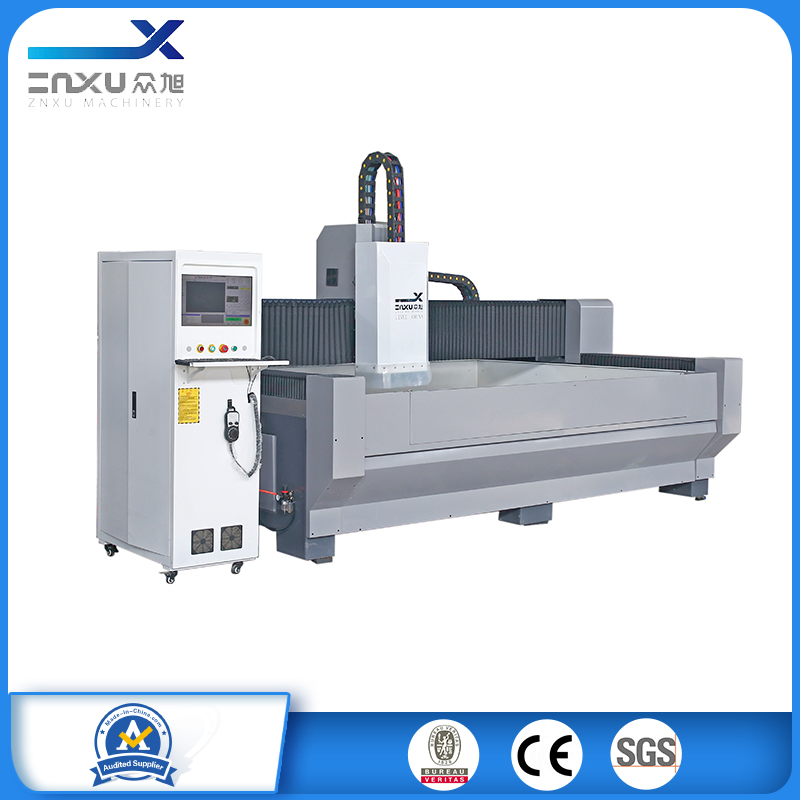

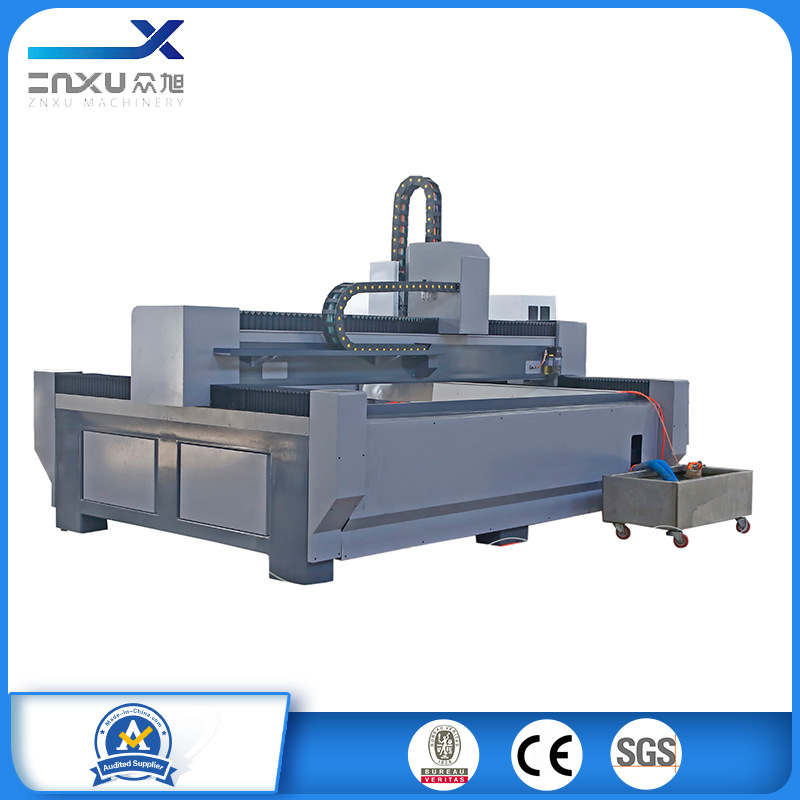

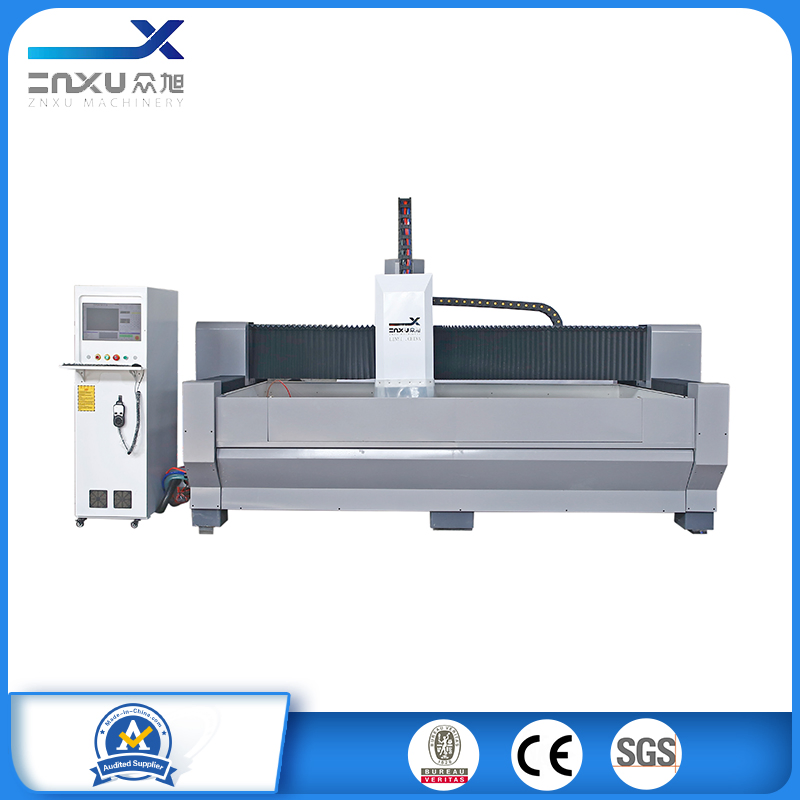

3 Axis Water Jet Machine
Function
Slotting, Notching, Drilling, Grinding, Cutting
⚙️ Technical Parameters
| Description |
Unit |
Parameter |
| Model No. | 1 | ZXX - C3018 |
| Column | Set | Heavy iron |
| Control System | set | LEETRO |
| Axis Details | PC | Cutter change: by hand; RPM: 24000; Power: 7.5KW |
| Invertor | kw | BEST: 11KW |
| Max Glass Size | mm | 3000*1800mm |
| Max Grinding Size | mm | 2500*1450mm |
| Max Milling Size | mm | 2700*1650mm |
| Positioning Accuracy | mm | 0.01 |
| Max Process Speed | M/MIN | 3M/MIN |
| Machine Size | mm | 2250*4000*2200mm |
| Weight | KG | 2200 |

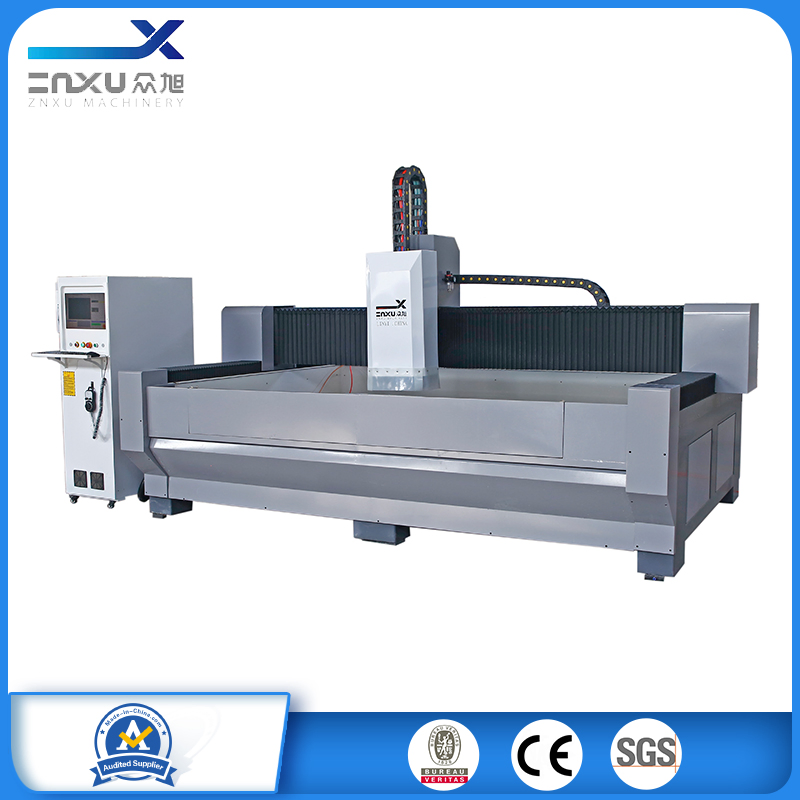

🖼️ Product Visuals
🛠️ Service & Support
✔
On-site installation and after-sales support provided.
✔
Complete machine shipping (one whole part) with operation manual and instructional CD.
✔
Free training and accommodation at the factory for installation and operation learning.
✔
One-year warranty period with life-long maintenance.
✔
24-hour technical support via email, chat, or messaging platforms.
❓ Frequently Asked Questions
Q1: What materials can this machine process?
The Zxx-C3018 is specifically designed for glass processing, including cutting, milling, and grinding.
Q2: What is the maximum glass size supported?
The standard maximum glass size is 3000*1800mm, though the length can be extended by adding more tables.
Q3: What functions does the 3-axis water jet offer?
It supports open slotting, notching, hole making, grinding, and precision cutting.
Q4: What is the positioning accuracy of the machine?
The machine offers high precision with a positioning accuracy of 0.01mm and repeated positioning accuracy of 0.01mm.
Q5: How is the technical support handled?
We provide 24-hour technical support through various digital channels and offer a one-year warranty on all main parts.
Q6: Is on-site installation available?
Yes, we provide on-site installation and after-sales service. Technicians can be dispatched to your location as per the service terms.
