TitanPro Cutting
TitanPro Cutting

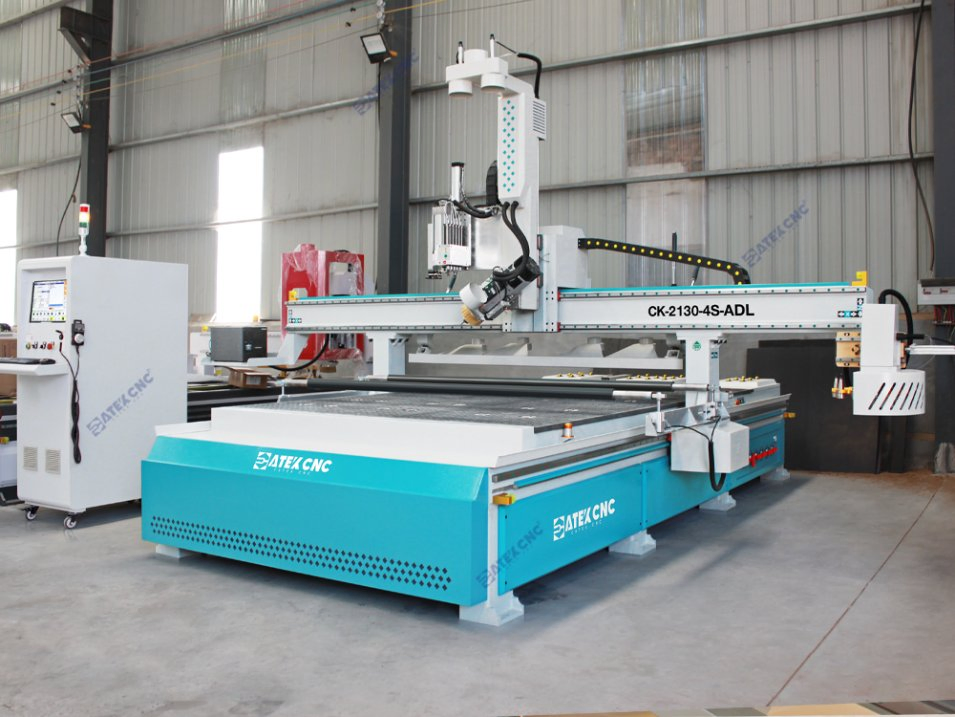

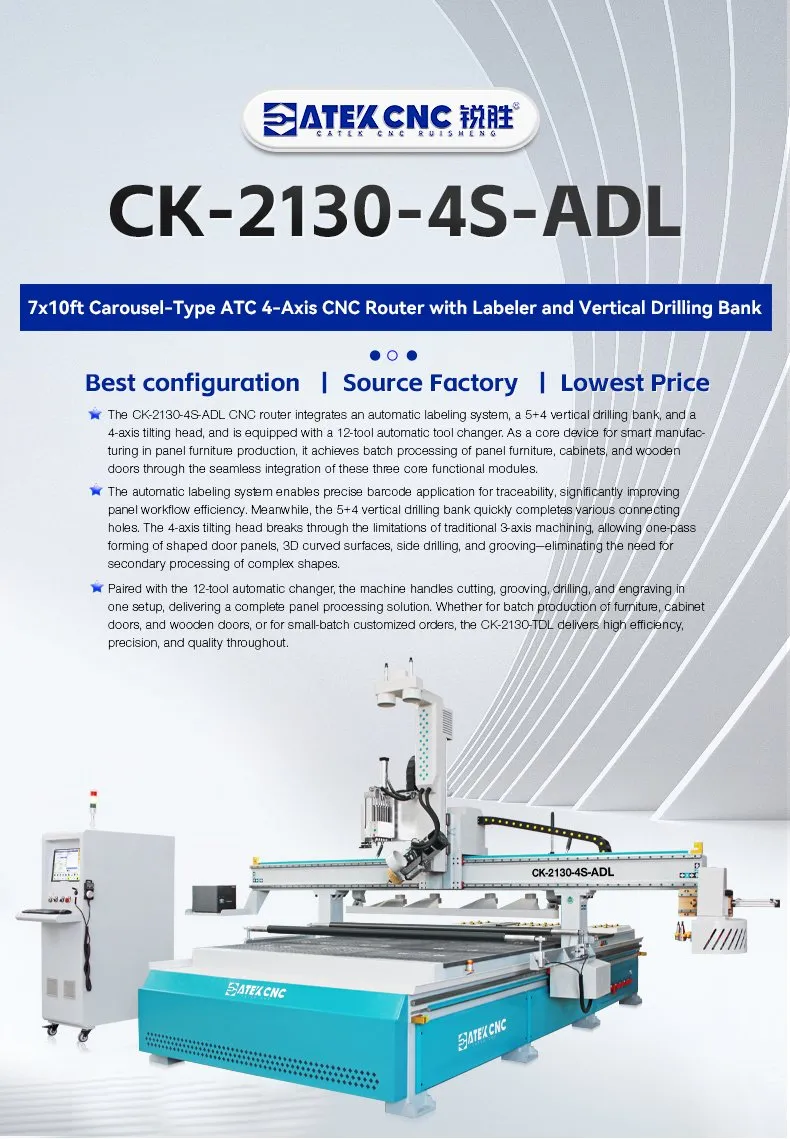

| Model | CK-2130-4S-ADL |
| Condition | New |
| Certification | ISO, CE, RoHS |
| CNC or Not | CNC |

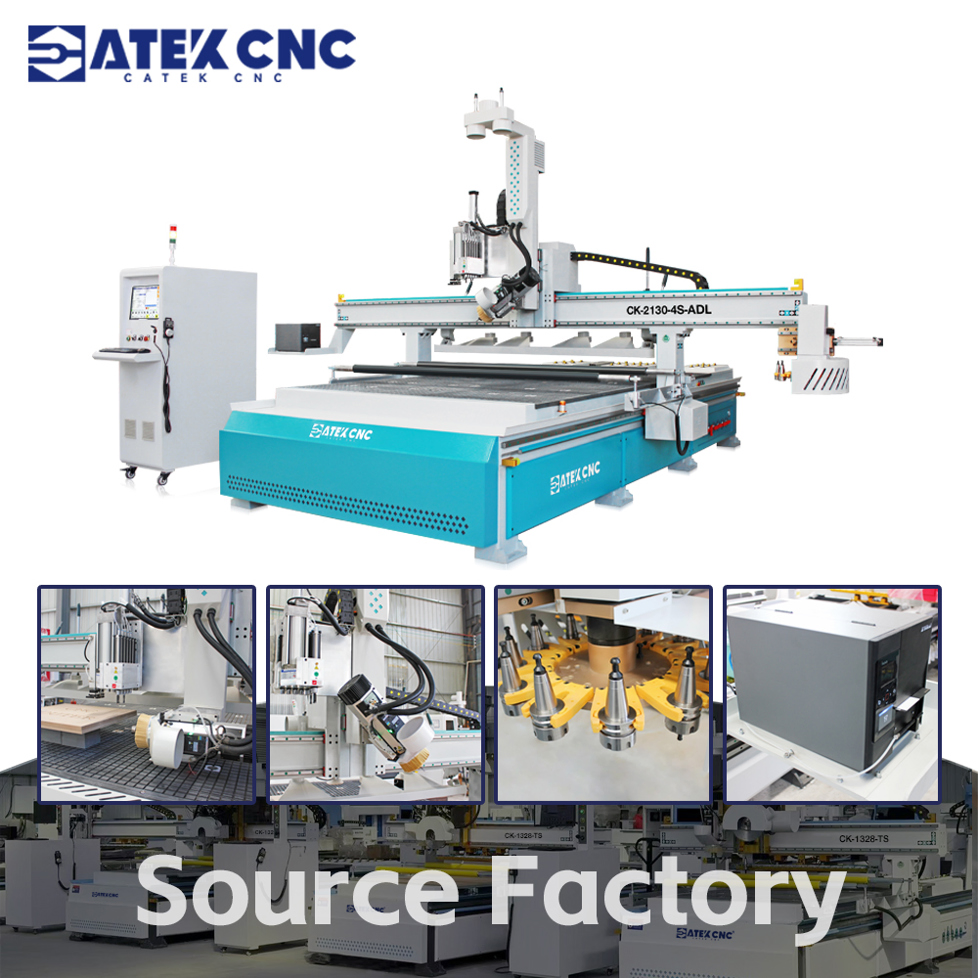

| Product Name | Atc CNC Router Machine for Wood |
| X/Y/Z Work Schedule | 2100*3000*200mm |
| Spindle | 9kw HQD High-Speed Air-Cooled ATC Spindle |
| Table Type | 9-Zone, 29-Hole Vacuum Adsorption Table |
| Drilling Bank | 5+4 Vertical Pneumatic Drilling Bank |
| Servo Motor | Leadshine 1500W Bus-Type Absolute Servo |
| Control System | LNC Control System |
| Frame Structure | Heavy-duty frame with 8mm thickened steel plate, quenched and sandblasted |
| 4-Axis Swivel Angle | ±90° |
| Tool Magazine | 12-tool carousel-type tool magazine |
| Tool Holder Type | ISO30 ER32 φ20 |
| Guideways | Taiwan 30mm HIWIN linear guides |
| Vacuum Pump | 11kW water-ring vacuum pump |
| Max. Rapid Traverse | 100000mm/min |
| Weight | 2800kg |

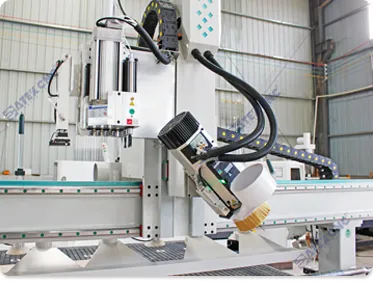

9KW air-cooled automatic tool changer spindle paired with a 5+4 vertical drilling device for versatile machining without manual intervention.

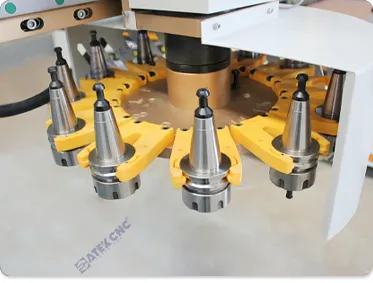

The 12-tool disc-type changer uses ISO30 holders, allowing rapid switches between tools to maximize processing efficiency.

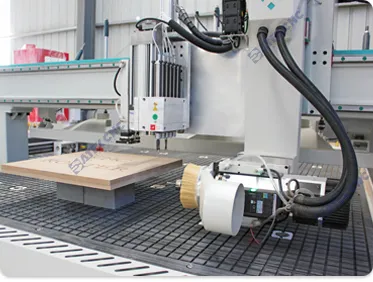

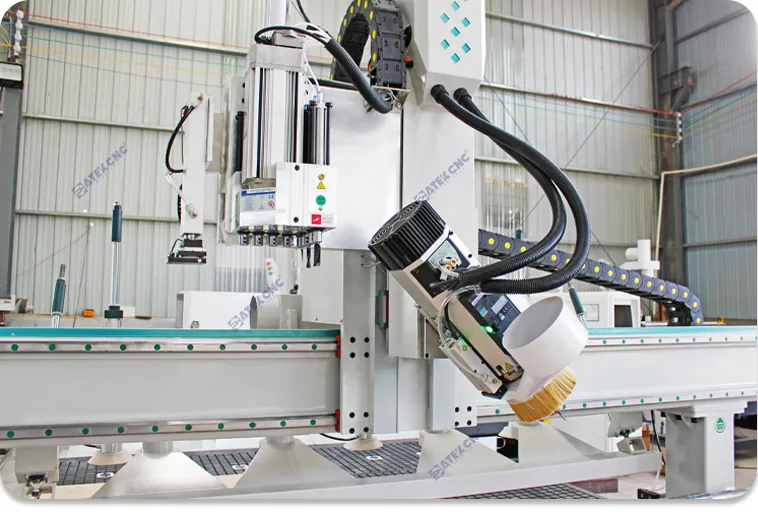

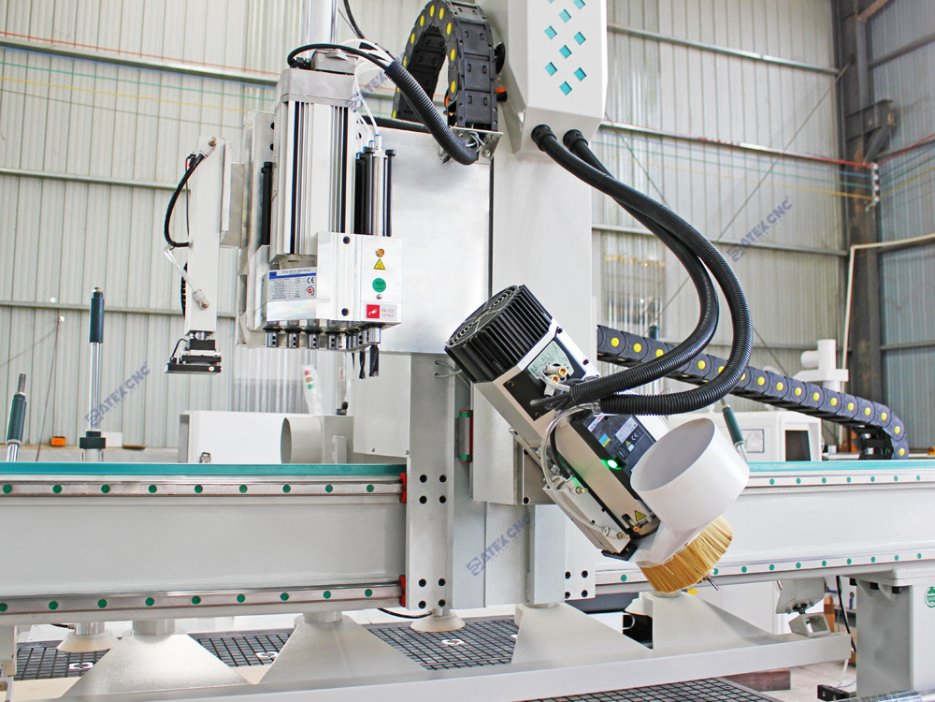

Supports oscillation for complex bevel cutting, curved surface engraving, and irregularly shaped borders.

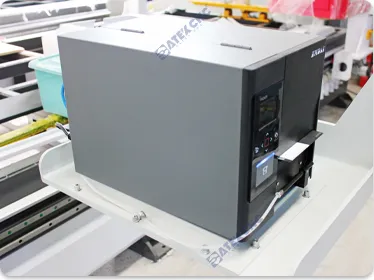

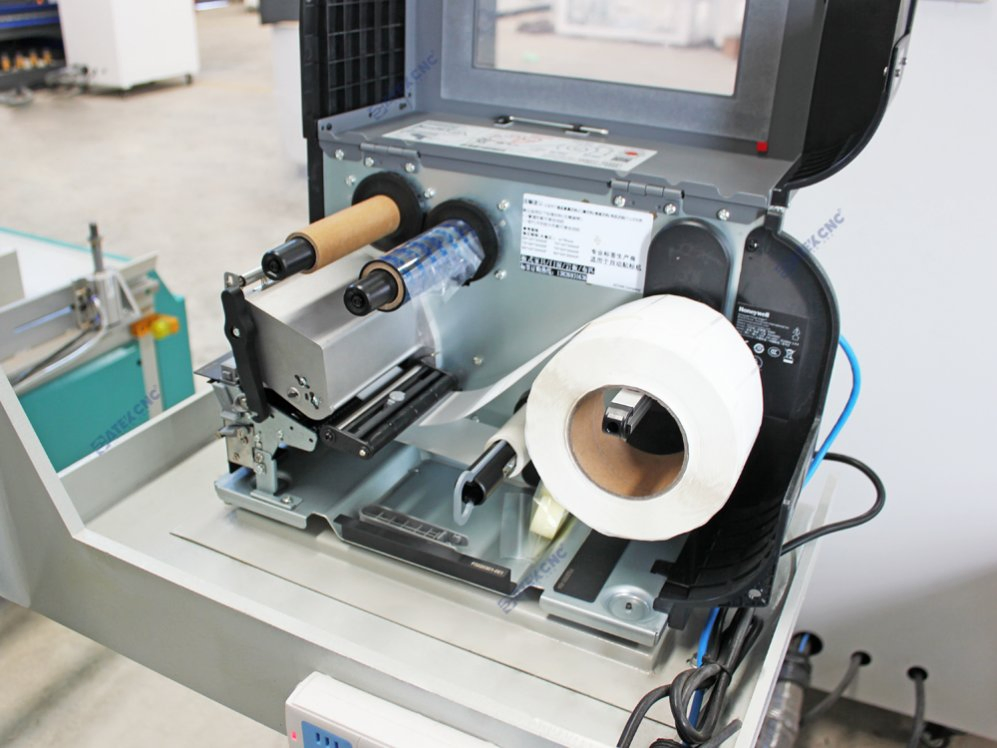

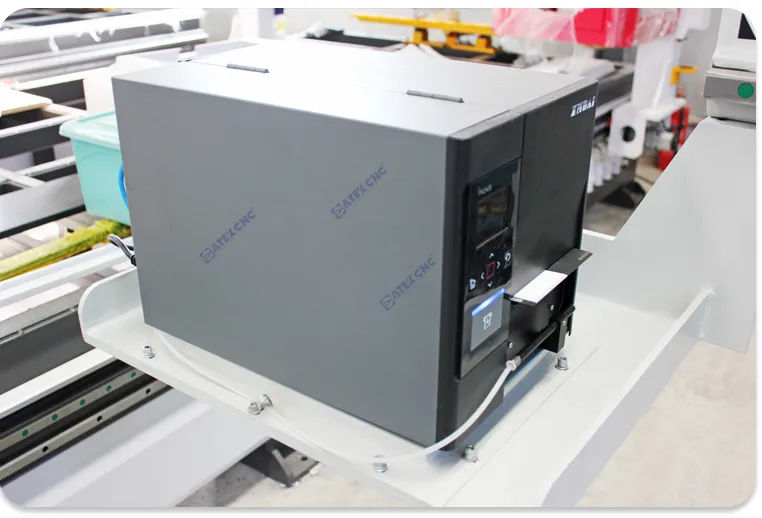

Automatically prints and pastes barcodes onto boards for seamless order tracking and management.
