Basic Specifications
Application
Granite, Marble, Trimming
Dimensions
8000*1200*1600 mm
Product Overview

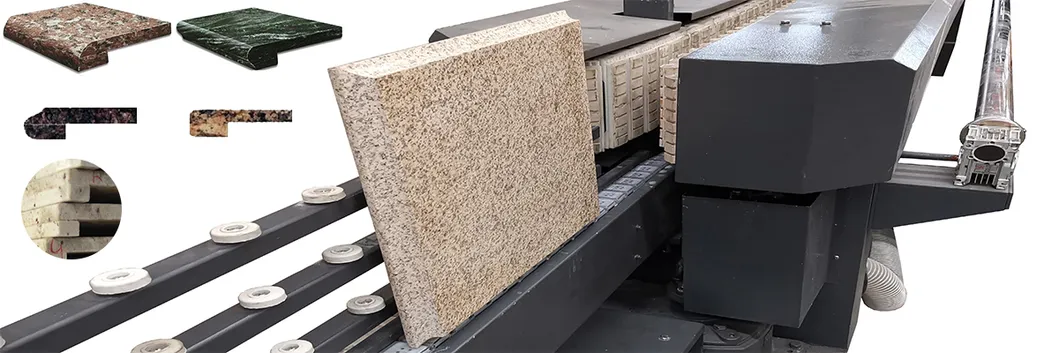

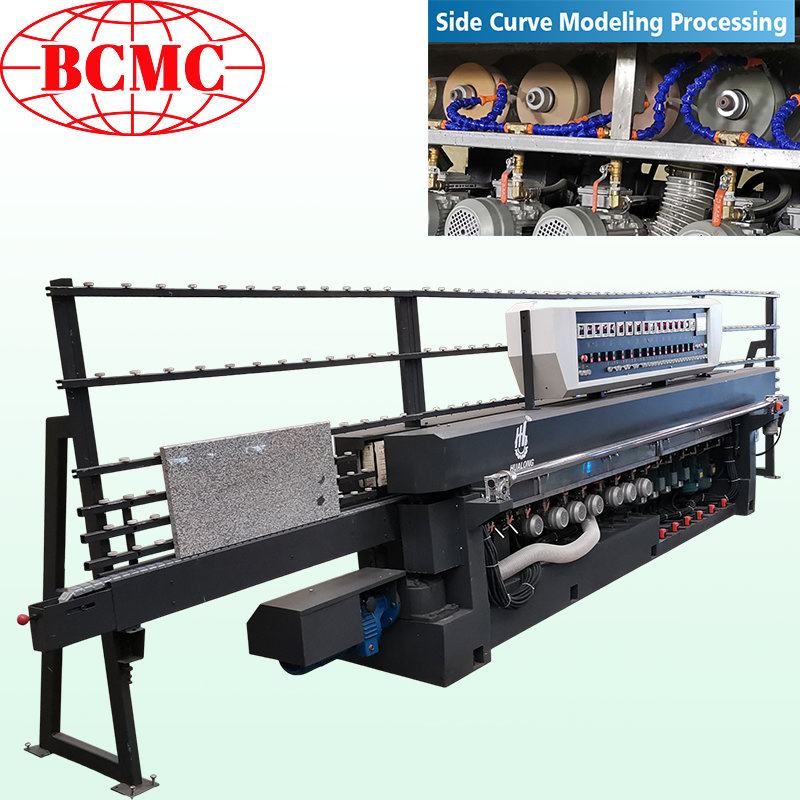

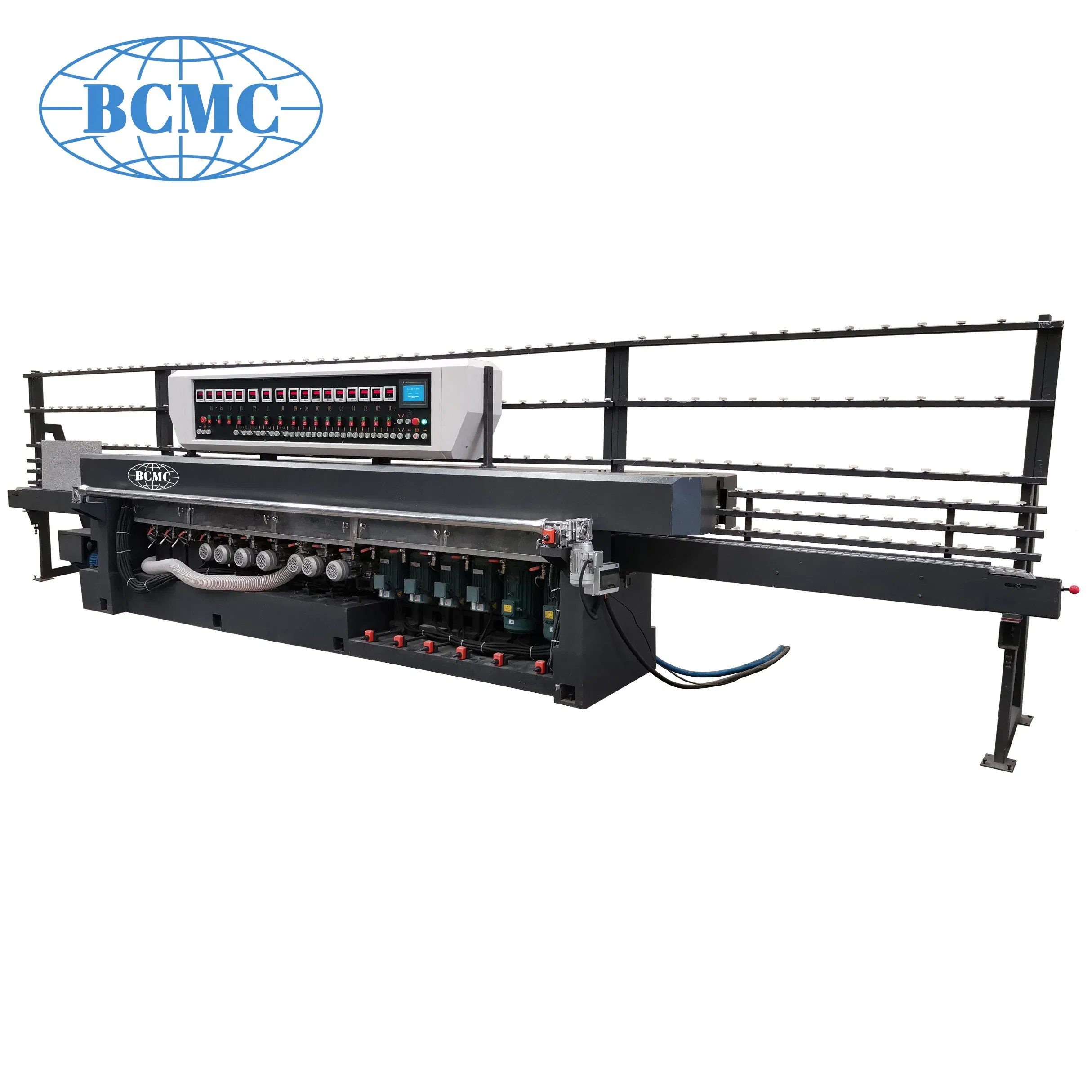

BCSP-16 is a multifunctional automatic stone edge polishing machine designed for grinding and shaping various types of stone. Equipped with a series of advanced grinding and polishing wheels, this equipment provides high-efficiency processing for slab edges of granite, marble, quartz, and other stones. It is versatile enough to perform side polishing, chamfering, and intricate curve modeling.
Main Features
- Slab side processing with one-time molding, ensuring a quick and fine finish.
- Optimized for batch production and continuous flow processing with excellent efficiency.
Core Components

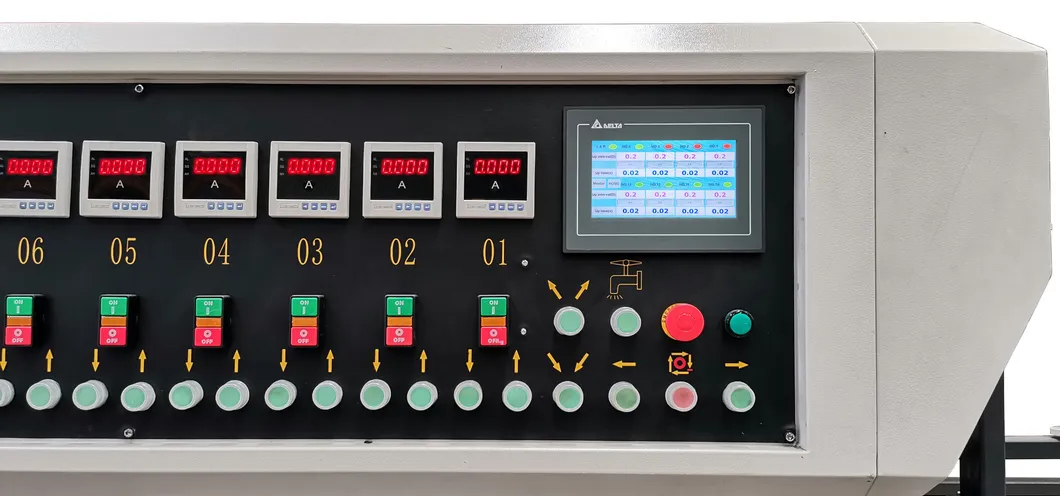

Control Panel
Easy-to-operate interface with intuitive buttons and visible monitoring.

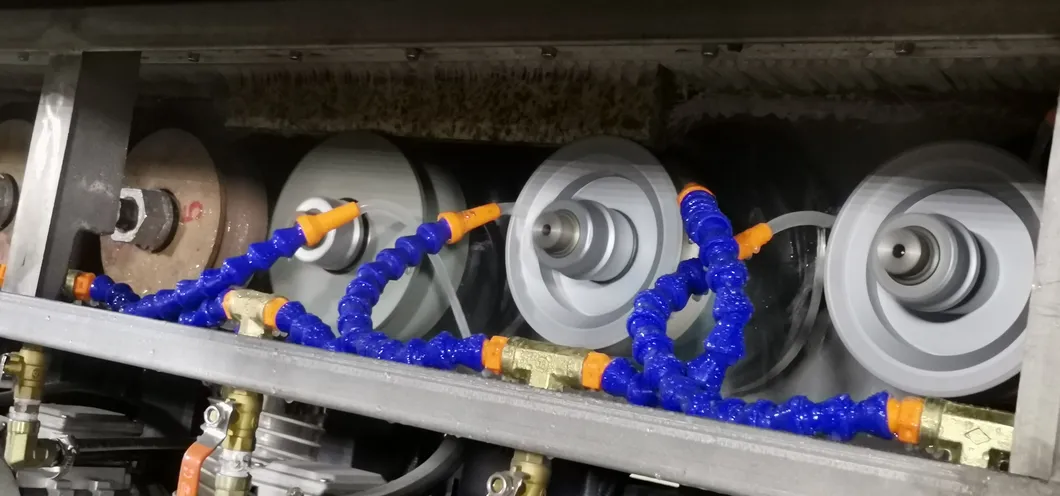

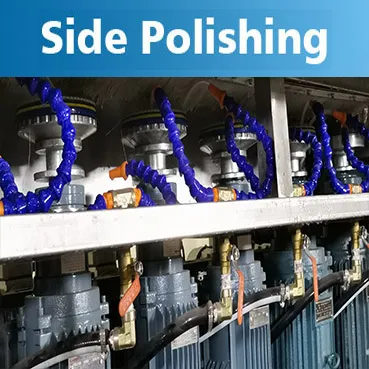

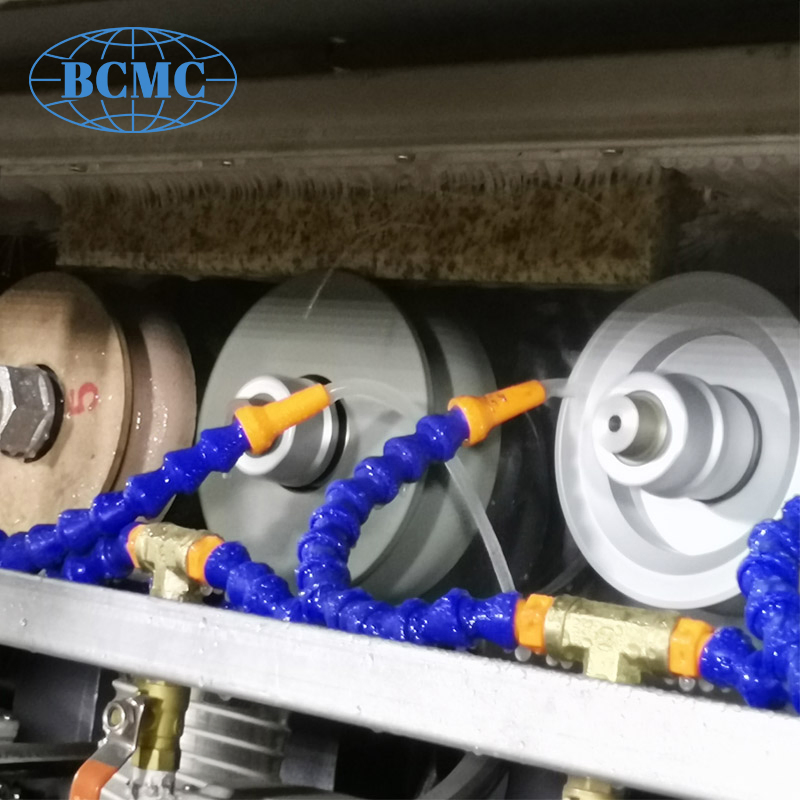

Polishing Head
Multi-polishing heads integrated into one machine to handle various edge polishing requirements.

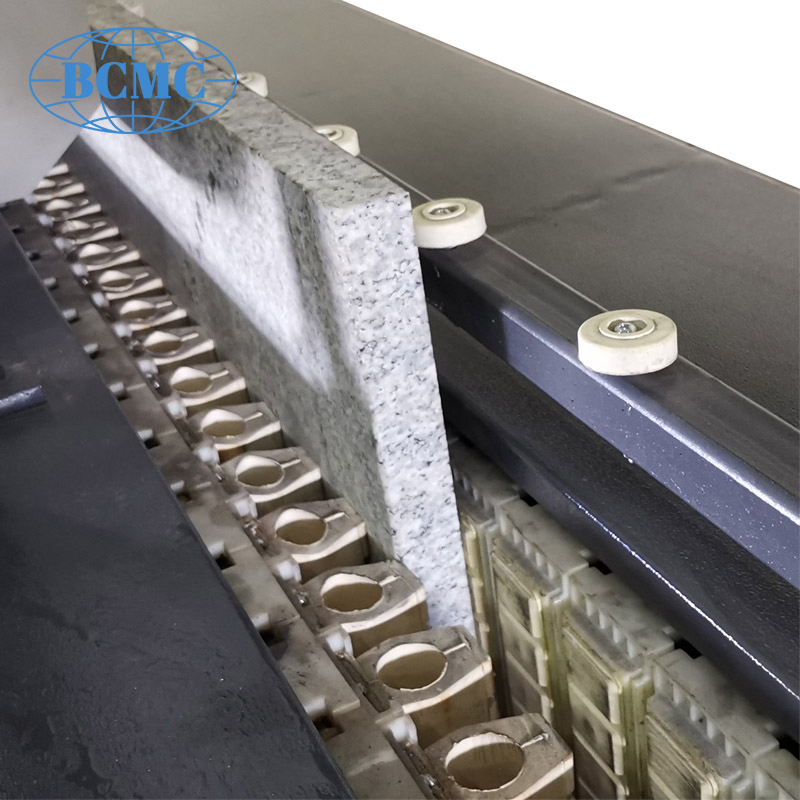

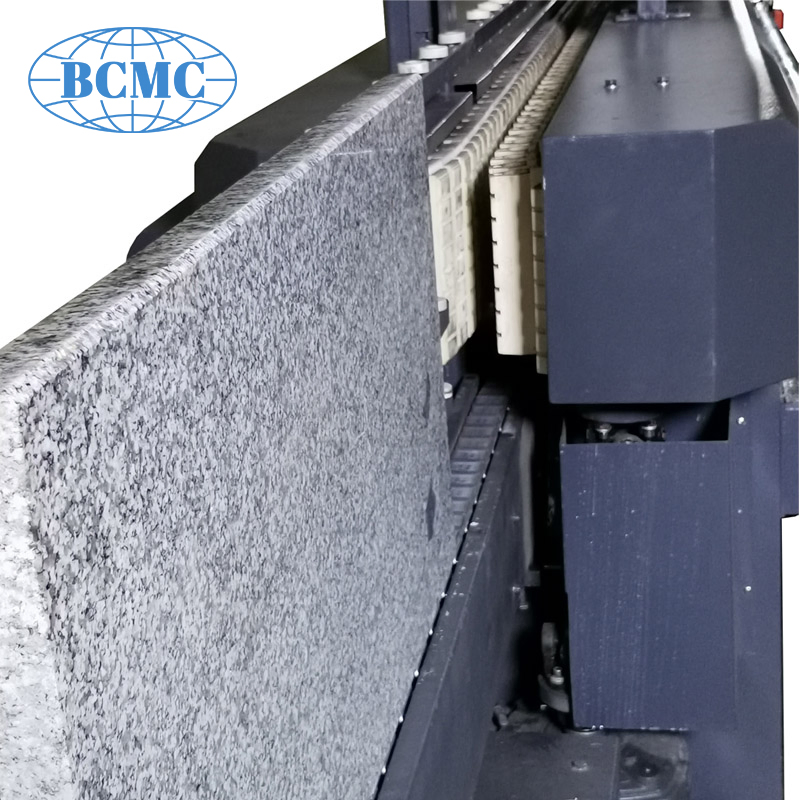

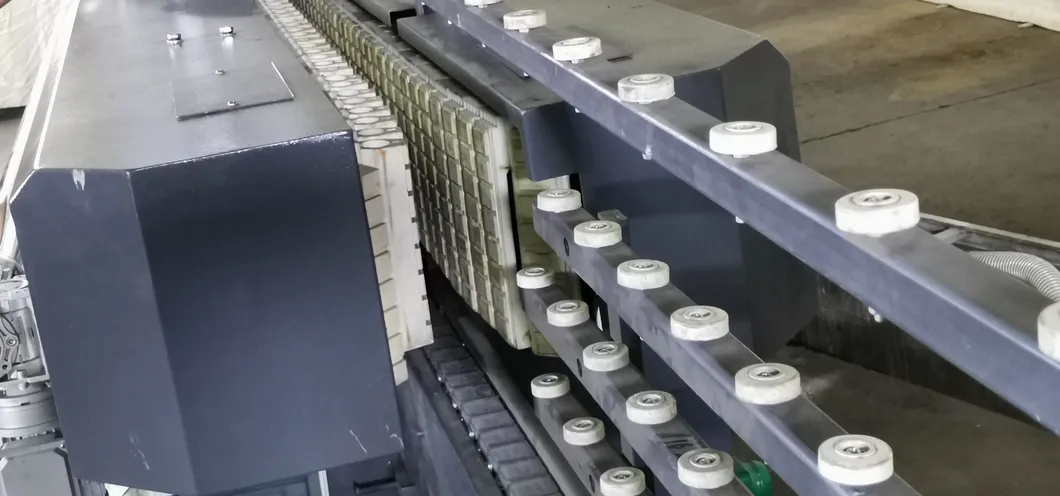

Conveyor System
Ensures stable and convenient transit of stone slabs into the processing zone.

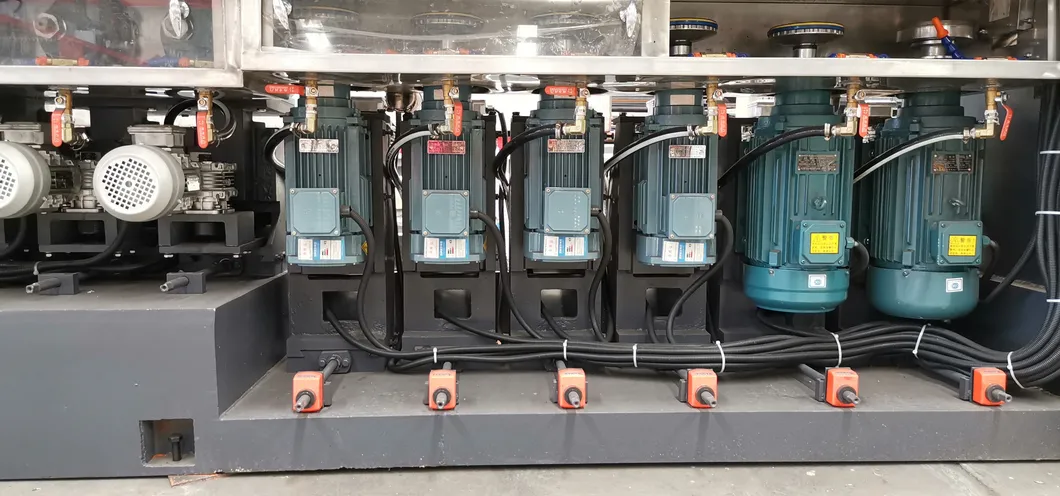

Driving Motors
Equipped with powerful motors to guarantee steady performance under heavy workloads.
Technical Parameters
| Description |
Unit |
Specification |
| Thickness of processing | mm | 10 - 45 |
| Min. Size of processing | mm | 200 x 100 x 15 |
| Max. Size of processing | mm | 2000 x 2000 x 45 |
| Speed of processing | m/min. | 0.8 - 4 |
| Water consumption | m³/h | 3 |
| Number of grinding heads | pc | 16 |
| Gross Power | kw | 60 |
| Gross Weight | kg | 4000 |
| Dimensions (L x W x H) | cm | 800 x 120 x 160 |

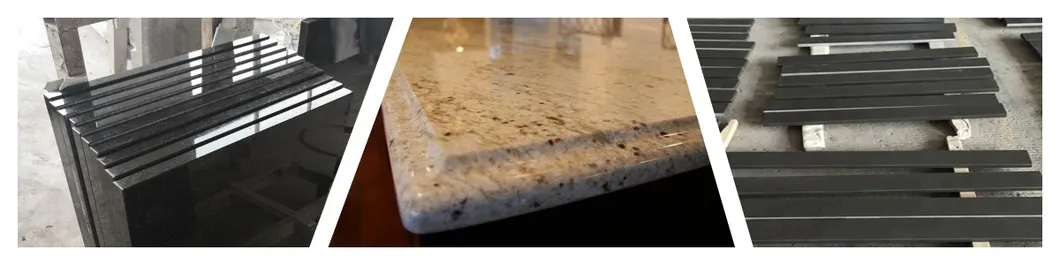

Wide Applications
Stone Edge Processing
Stone Edge Polishing
Staircases & Thresholds
Fireplace Edges
Flooring Slabs
Tombstone Art
Street Furniture
Ventilated Facades
Product Gallery
Frequently Asked Questions (FAQ)
1. What materials is the BCSP-16 suitable for?
The BCSP-16 is designed to process various stone materials, including granite, marble, quartz, and other natural or engineered stones.
2. What is the maximum processing thickness for this machine?
The machine can handle stone slabs with a processing thickness ranging from 10mm to 45mm.
3. Can the BCSP-16 perform different types of edge polishing?

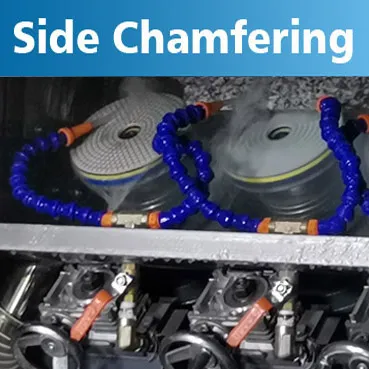

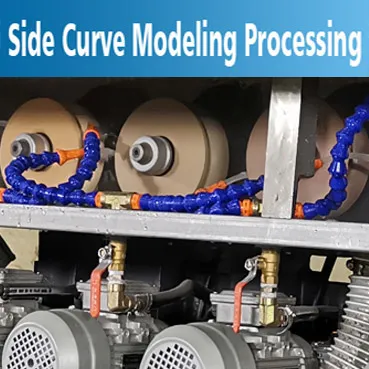

Yes, it is multifunctional and capable of side polishing, chamfering, and intricate curve modeling grinding.
4. Is the machine suitable for large-scale production?
Absolutely. It is specifically designed for batch production and flow processing, offering high efficiency and one-time molding capabilities.
5. What type of control system does the machine use?
The machine uses a CNC automatic control system, which ensures high precision and ease of operation.
6. Does the machine require wet grinding?
Yes, the machine utilizes a wet grinding method with a water consumption rate of approximately 3 m³/h to ensure quality finishing and tool longevity.
