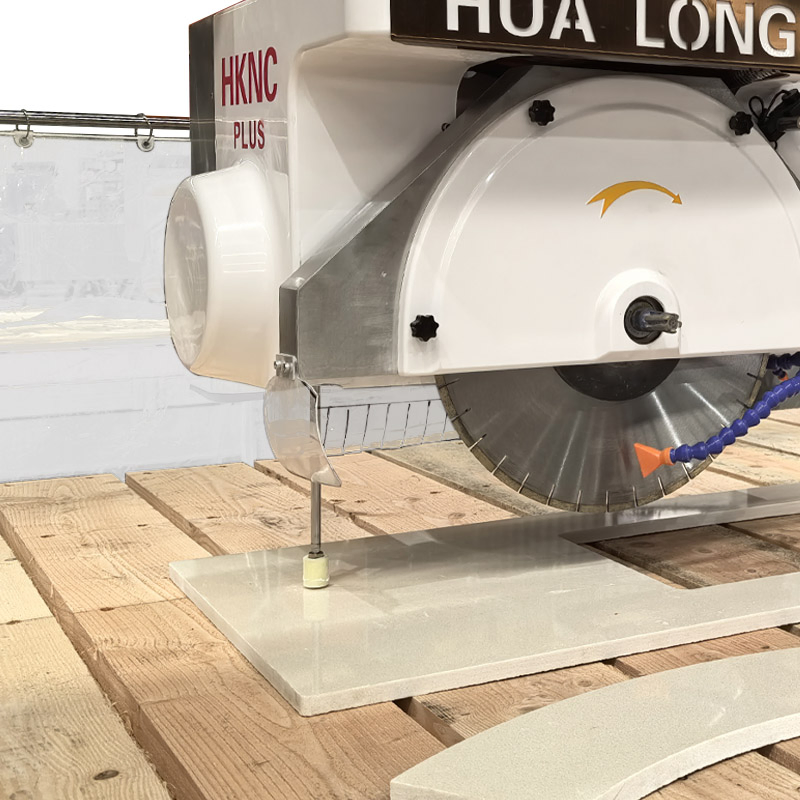

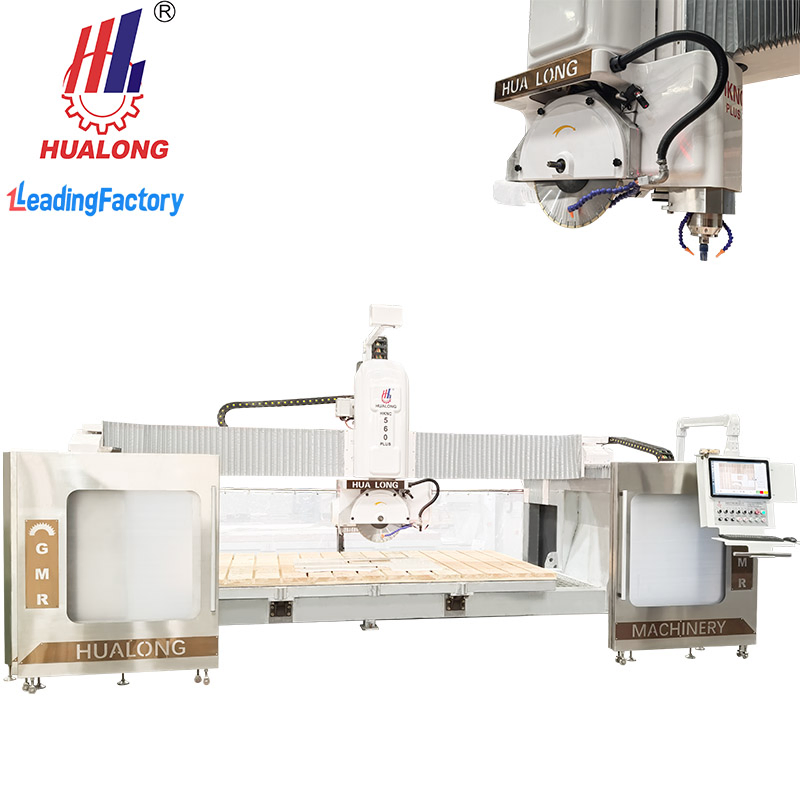

2026 Hualong Machinery Hknc-500 Plus Waterjet Marble CNC 5+1 Axis Bridge Saw Automatic Stone Cutting Machine

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
HKNC-500 plus
Usage
Ceramics, Granite, Marble
Application
Machinery, Art & Craft, Stone Industry
Source Voltage
220V/380V
Automation
Automatic
Control
CNC

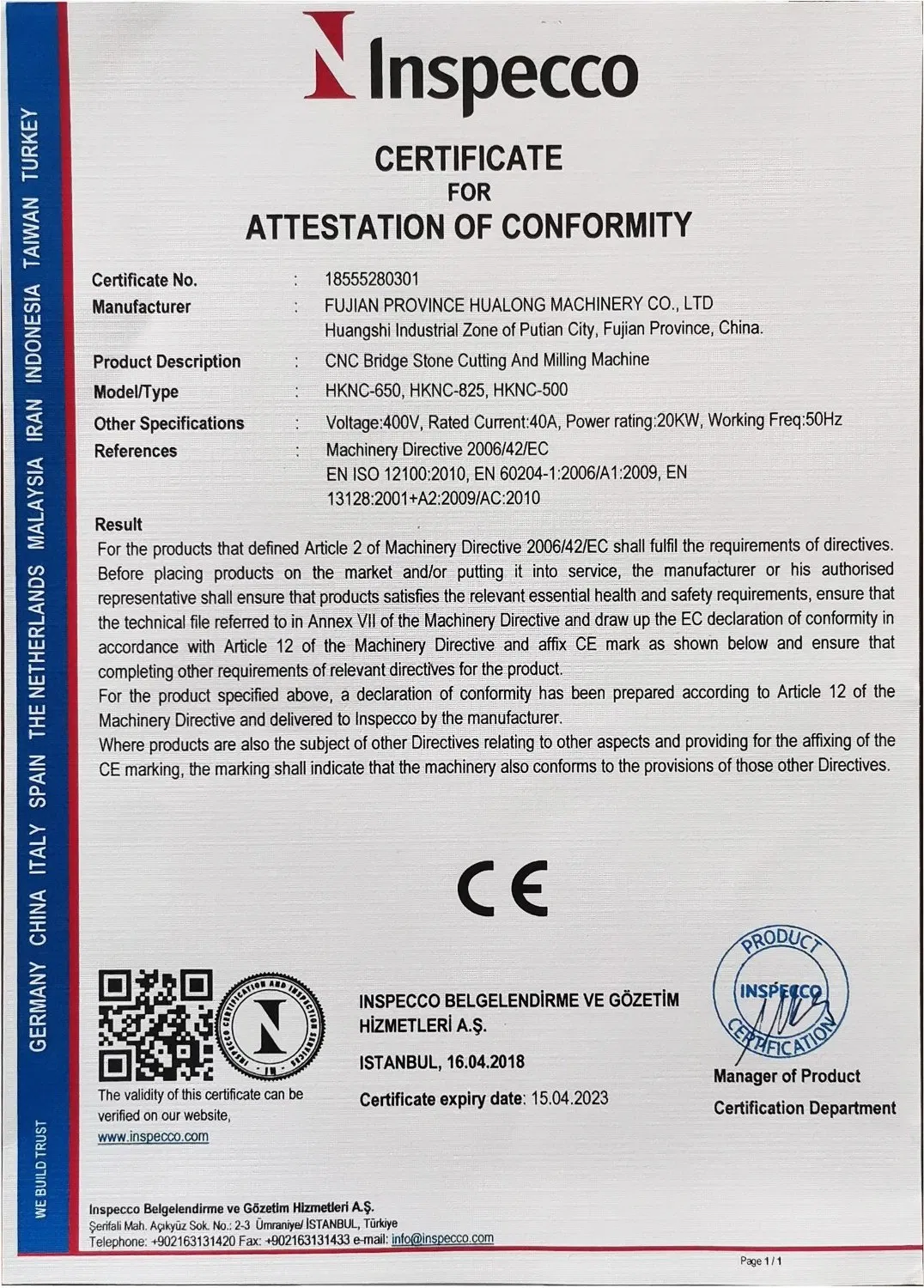

Certification
ISO, CE
Head Rotation
0-360 Degree
Table Tilt
0-85 Degree
Guide Rail
Hiwin Linear Guide
Product Description

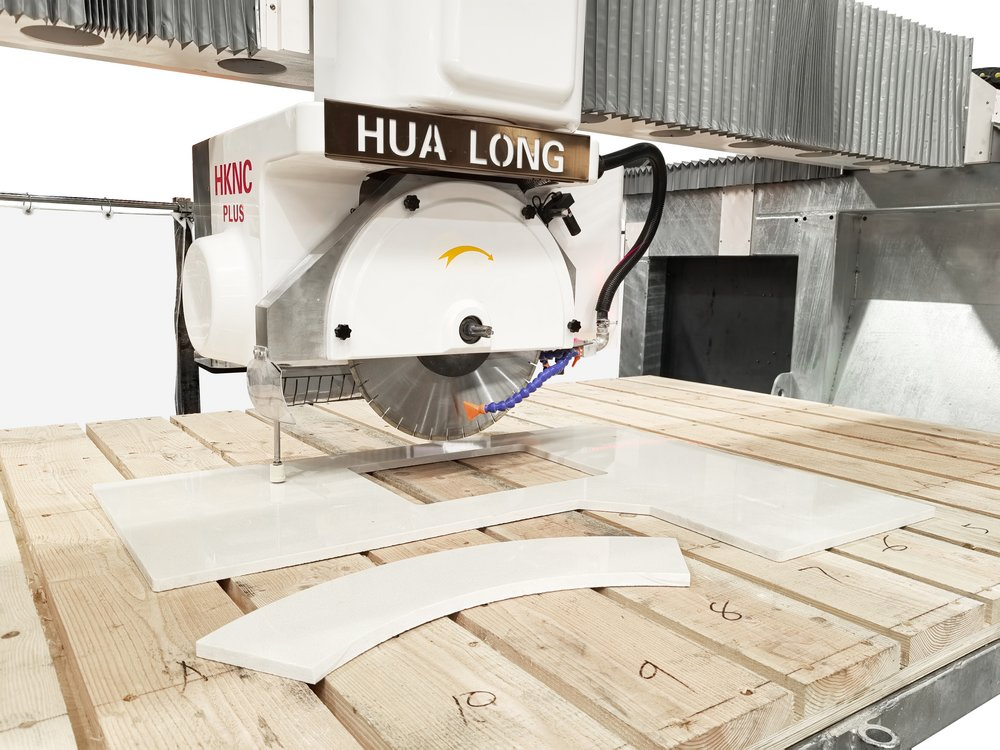

CNC Stone Machine
The HKNC-500+ is a high-performance stone machine with 5-axis interpolation control. It is a multifunctional CNC stone cutting, shaping, and engraving machine built for modern workshops, combining simplicity with maximum versatility. It is ideal for processing slabs and blocks of natural stone, synthetic stone, and ceramic.
🔷 Core Functions:
  • Vertical, inclined, and horizontal cuts with disc blade.
  • Curve cutting with Contour Cutting technology.
  • Machining with core tools: drills, end mills, and excavation wheels.
  • Incremental routing for sink cutting, profiling, and engraving.
Main Features

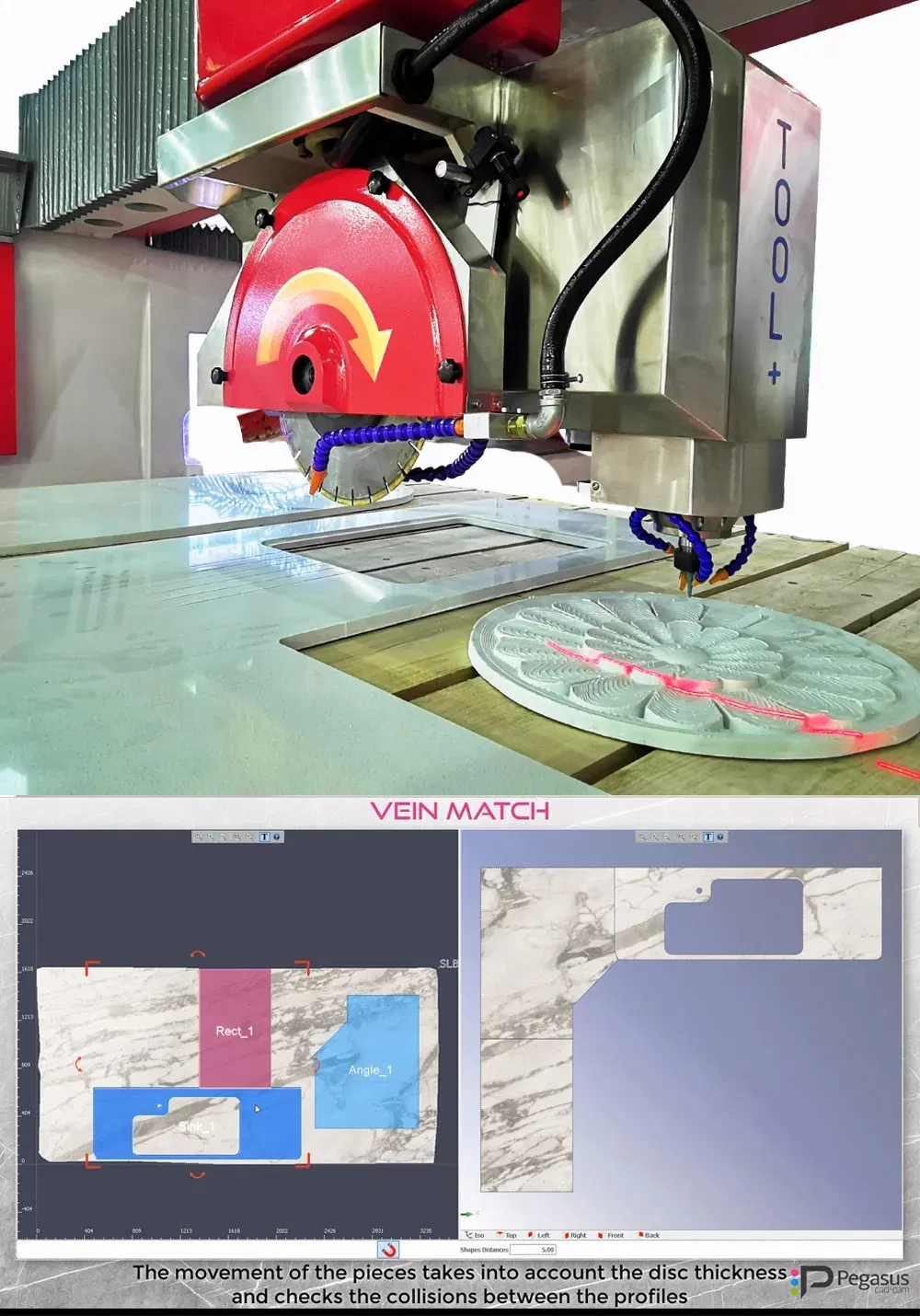

Feature 1

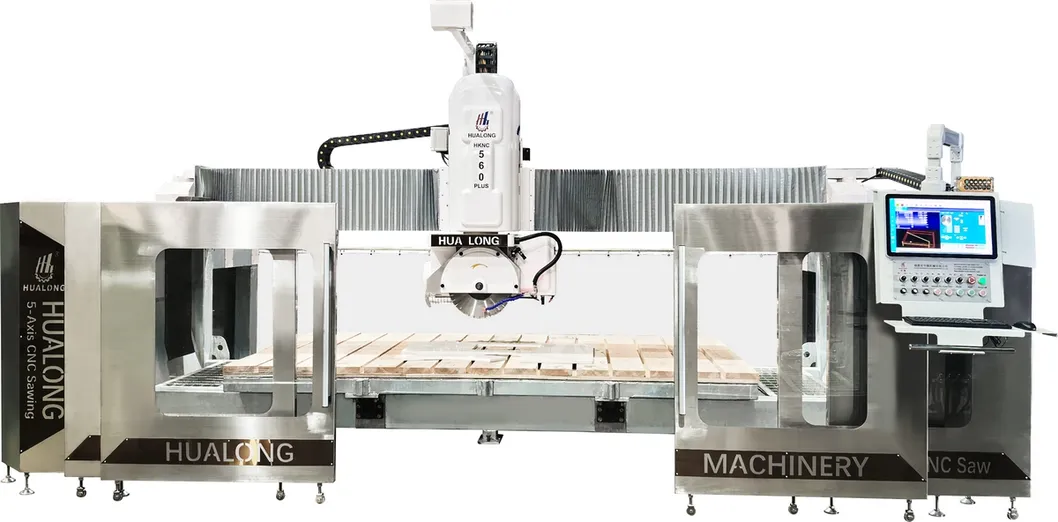

Feature 2
  • 🚀 5-axis interpolation control with Italian CNC Esa system.
  • 🚀 User-friendly 19" color touch-screen interface.
  • 🚀 Blade rotation 0°-360° and tilt 90° for any direction's chamfering.
  • 🚀 Working platform tilts up to 85 degrees for easy slab loading.
  • 🚀 Manual / Automatic nesting to optimize slab surface usage.
  • 🚀 Optional: Electric spindle (0-24000 rpm) for fine 2D carving and faster engraving.
Technical Specifications
Parameters Value Unit
Diameter of saw bladeø400-ø500mm
Dimension of working platform3300x2000mm
Max. cutting length3300mm
Max. cutting thickness140mm
Max. lifting stroke250mm
Power of main motor26.4kw
Gross power33kw
Water consumption2m³/h
Dimensions (L x W x H)5700x3260x2765mm
Premium Components

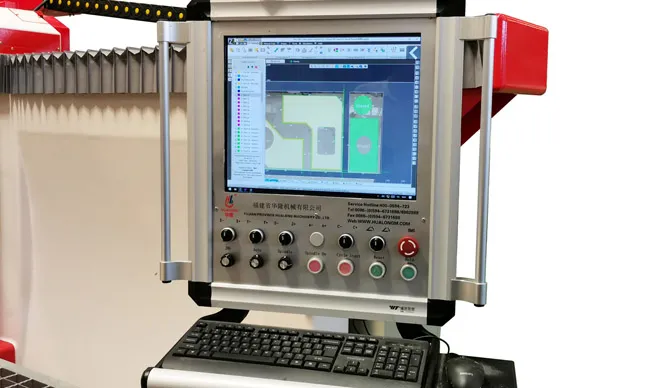

Esa System
Software

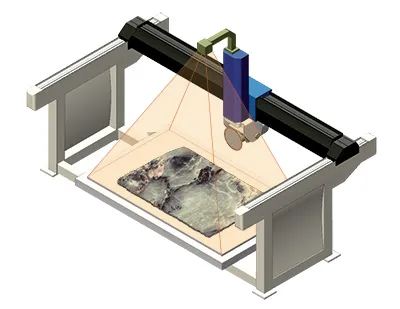

Slab Capture

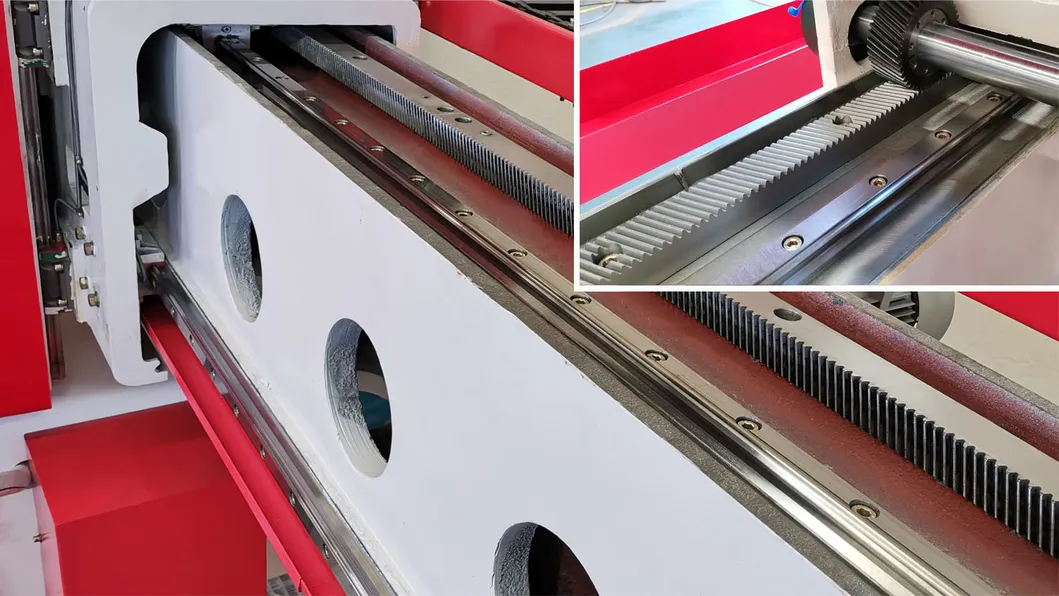

Linear Guide

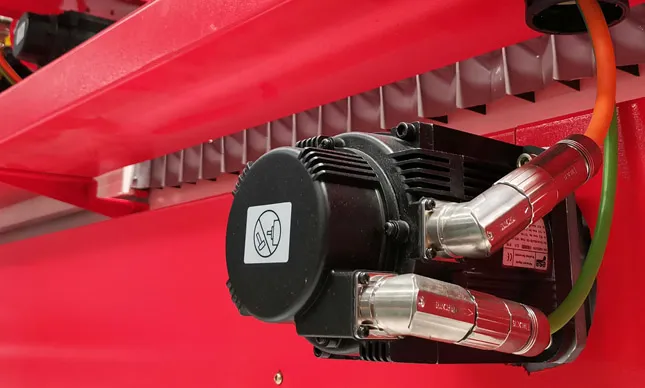

Servo Motor

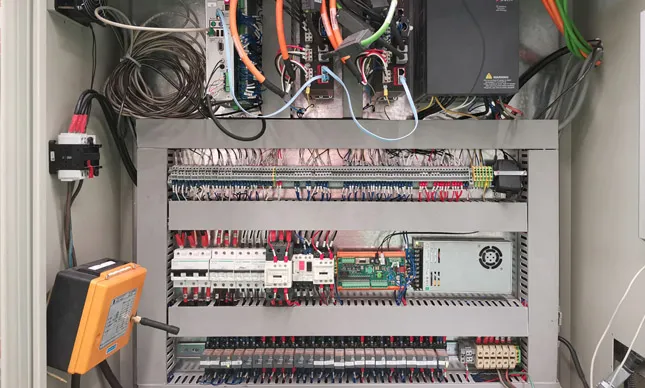

Electric Cabinet
Application Fields
This versatile CNC machine is widely used for producing: Countertops, Doorsteps, Staircases, Thresholds, Fireplaces, Flooring, 2D decorative wall panels, and Ventilated facades.

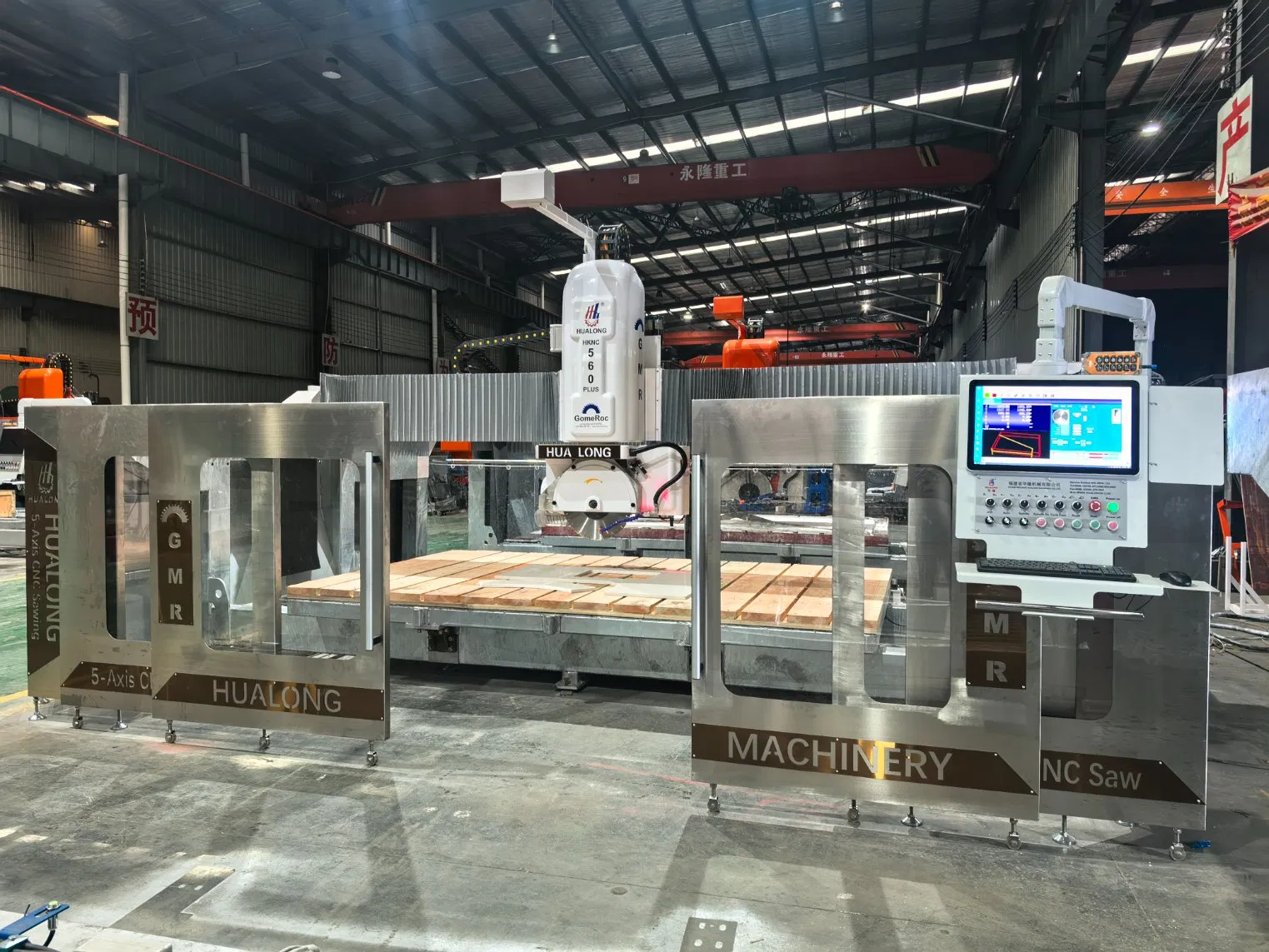

Work Spot
Frequently Asked Questions (FAQ)
💡 Are you a professional manufacturer?
Yes, we are a leading stone machine manufacturer with over 30 years of professional experience in the industry.
💡 Can the machine be customized to my requirements?
Absolutely. We support OEM and ODM orders to ensure the machine meets your specific workshop needs.
💡 Is the CNC system easy to operate for beginners?
Yes, the machine comes with an English instruction manual and guide videos. We also provide free professional online guidance until you are comfortable operating it.
💡 What is the minimum order quantity (MOQ)?
Our MOQ is 1 set. We can arrange shipping directly to your port or designated address.
💡 How do you handle after-sales service and repairs?
We offer lifelong free online technical support. Many of our machines feature remote troubleshooting, allowing us to solve issues via remote control and video guidance.
💡 What stone materials can this machine cut?
It is specifically designed for high-speed cutting and engraving of natural granite, marble, ceramics, and synthetic stones.
