Basic Specifications
Application
Metal, Ceramic, Glass, Stone Industry
Bench Specs
4430*2780*2200 mm
📝
Product Description

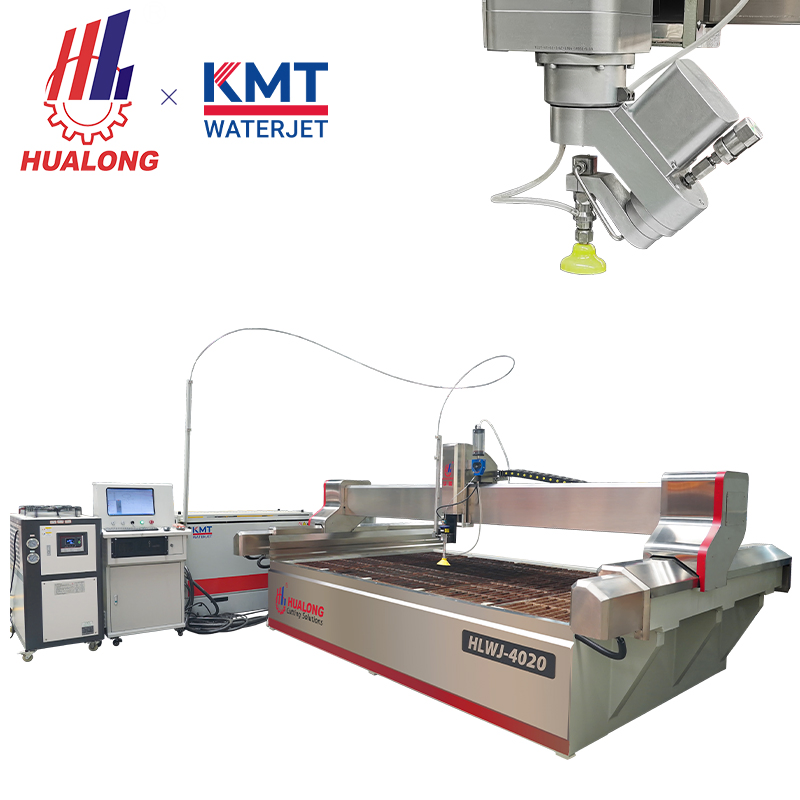

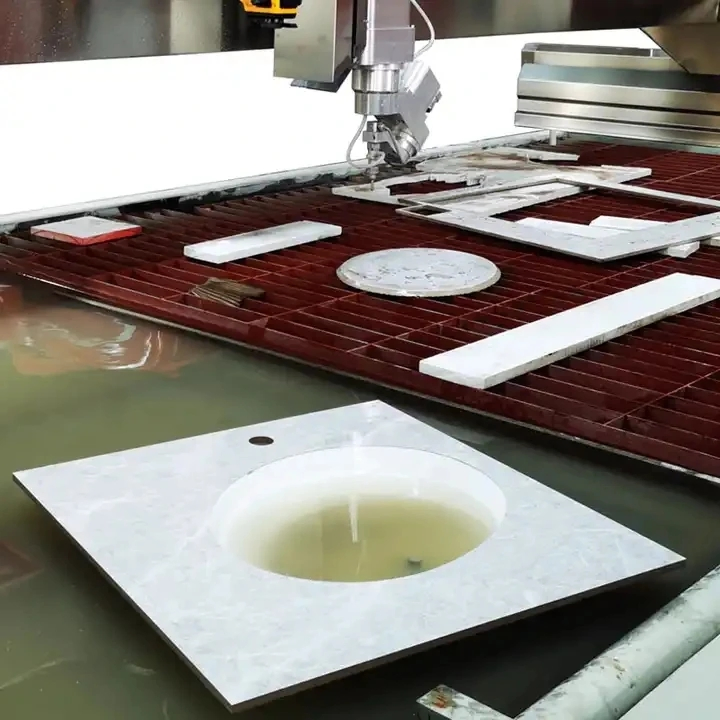

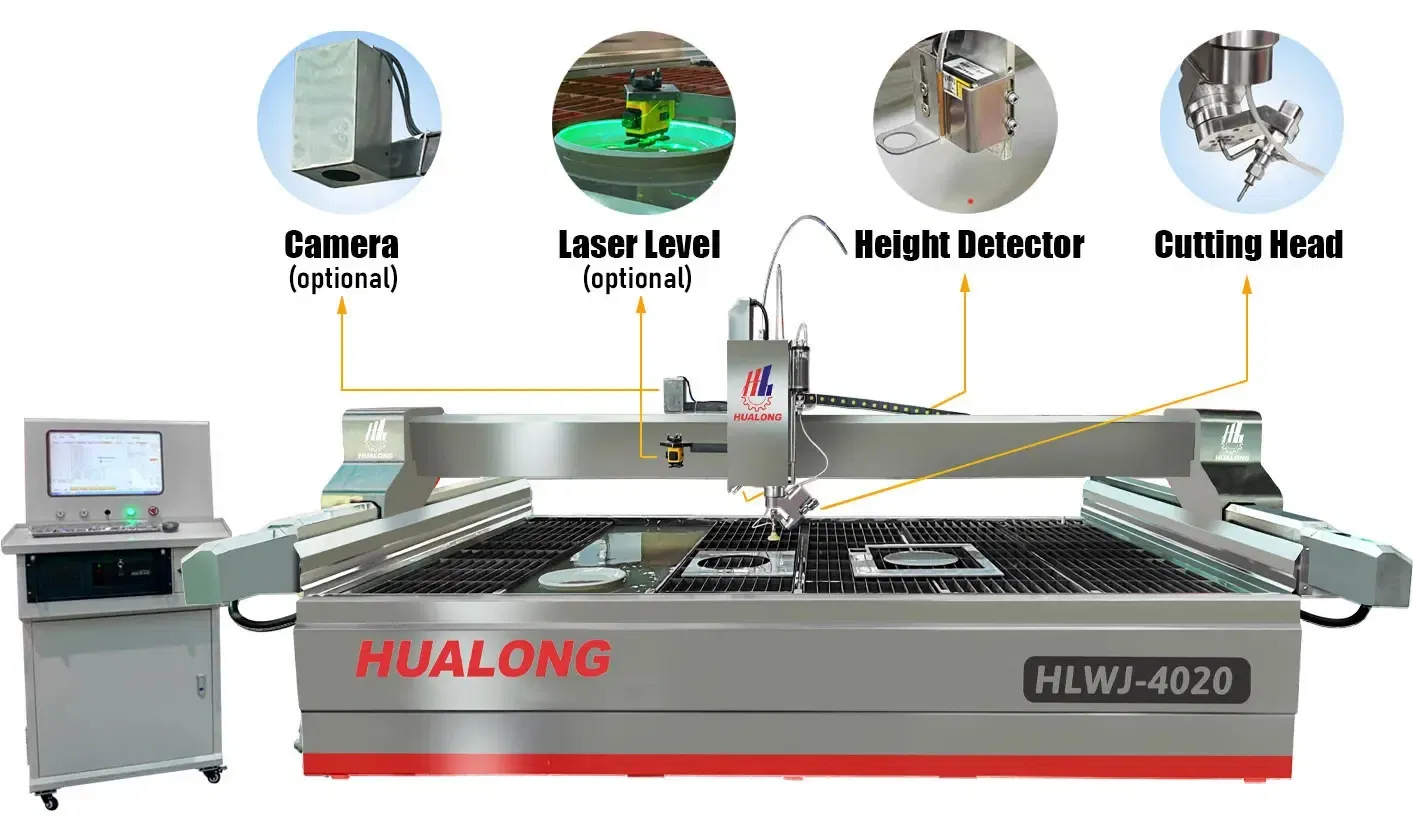

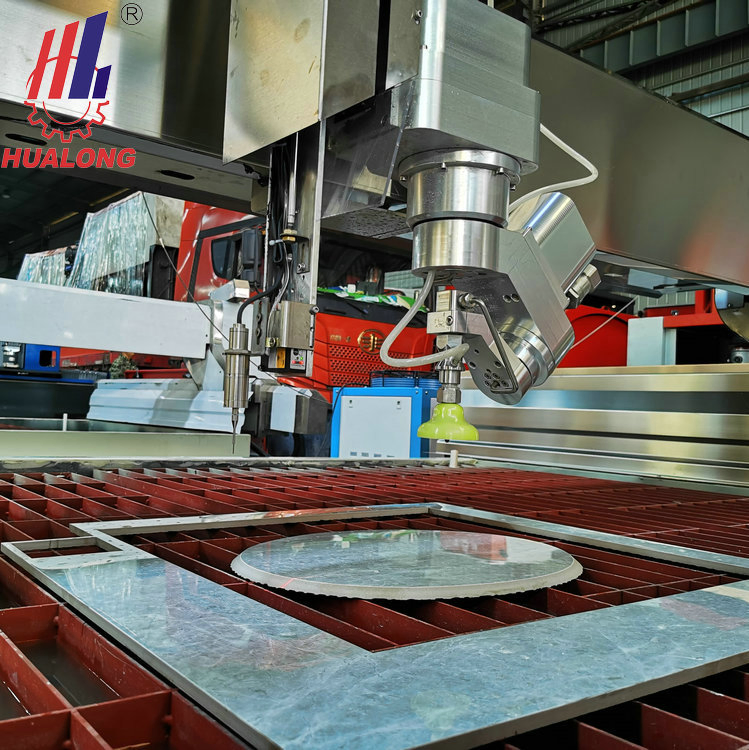

BCWJ-3020 uses a very high-pressure jet of water and abrasive (typically garnet) to erode a narrow line in the stock material. It is an industrial tool capable of cutting almost any material while maintaining high precision. This 5 axes waterjet cutter can cut at any angle within ±60°, solving traditional water cutting inclination problems and achieving 2D/3D cutting easily.
The line cutting accuracy is ±0.1mm, and angle cutting accuracy is ±0.1°. This machine is designed to cut bevel surfaces, straight surfaces, conical surfaces, circular surfaces, rotating surfaces, grooves, chamfers, and arbitrary surfaces. It is compatible with steel, stainless steel, aluminum titanium, marble, granite, ceramic, glass, rubber, foam, and many other materials.
⭐
Main Features
- Processable any curve cutting, flexible, convenient and versatile.
- Fast and smooth notch with no dust, thermal deformation, or pollution.
- Narrow kerf (0.5-1.0 mm) optimizes material use and cost effectiveness.
- Cut Recovery feature allows picking up exactly where the jet stopped.
- Programmable Z-axis height with automatic retraction between pierces.
- High-Performance drive system with servo motors and helical rack for rapid axial movement.
- Driver system completely sealed against water, dust, and grit for long working life.
⚙️
Technical Data
| Specifications |
Unit |
BCWJ-3020 |
BCWJ-4020 |
| Working area | cm | 330*210 | 410*210 |
| X-axis stroke | mm | 3200 | 4000 |
| Y-axis stroke | mm | 2000 | 2000 |
| Z-axis stroke | mm | 80-130 | 80-130 |
| Max C-axis rotation | ° | +/- 360 | +/- 360 |
| Max A-axis swing | ° | +/- 60 | +/- 60 |
| Cutting accuracy | mm | +/- 0.1 | +/- 0.1 |
| Repeatable accuracy | mm | +/- 0.05 | +/- 0.05 |
| Traverse speed | mm/min | 5000/15000 | 5000/15000 |
| Main motor power | kw | 37 | 37 |
| Dimensions (LxWxH) | cm | 443x278x220 | 494x280x222 |
🧩

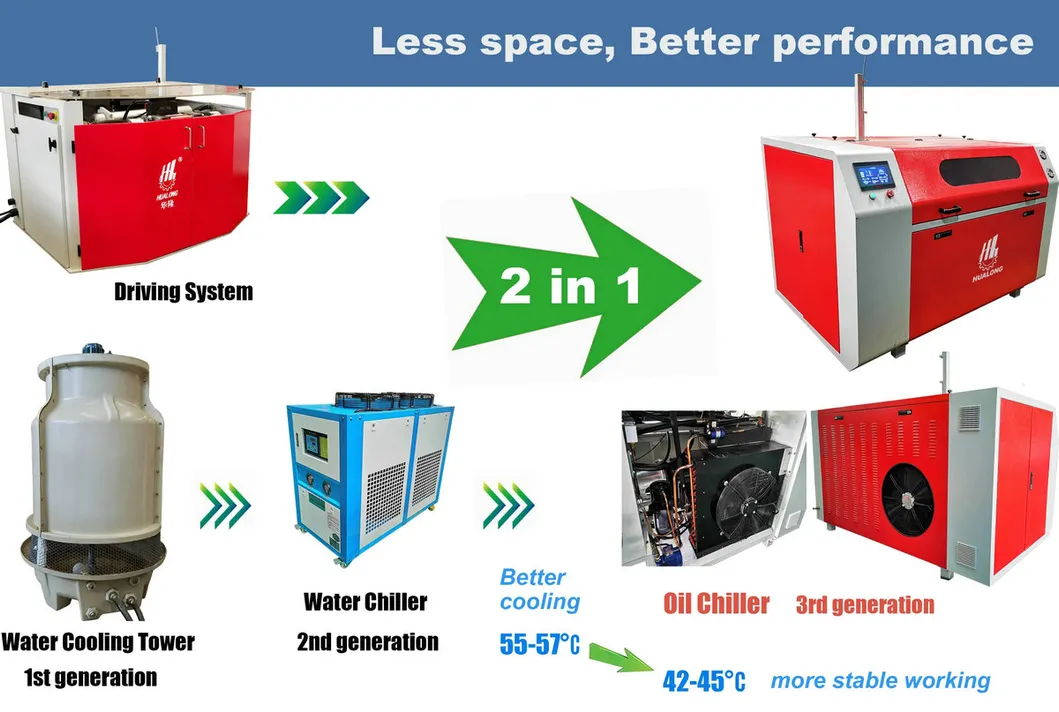

Detailed Spare Parts

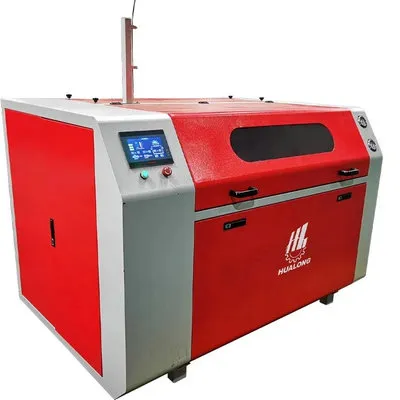

High Pressure Pump
Adopt imported core parts, durable and safe. Continuous output pressure up to 4137bar (60000psi) / 400MPa, with sustainable cutting pressure at 380MPa.

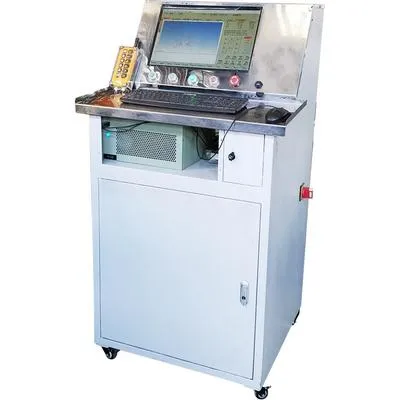

Movable Operator Station
Equipped with CNC system, 19" LCD, pump interface, keyboard and mouse. Compatible with G code, PLT, and DXF files generated by major CAD/CAM software.

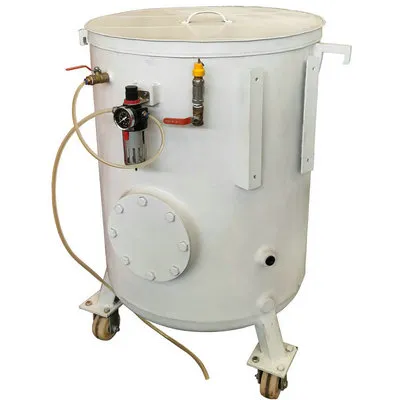

Auto Abrasive Delivery System
Self-sealing system with air valves to prevent jams. Auto control with CNC auxiliary functions allows for slight flow adjustments.

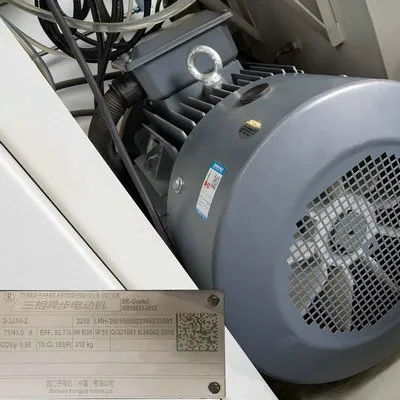

Main Motor
High-efficiency (92.7%) 37 kw motor designed to generate stable motion energy for the high-pressure pump system.
🛠️

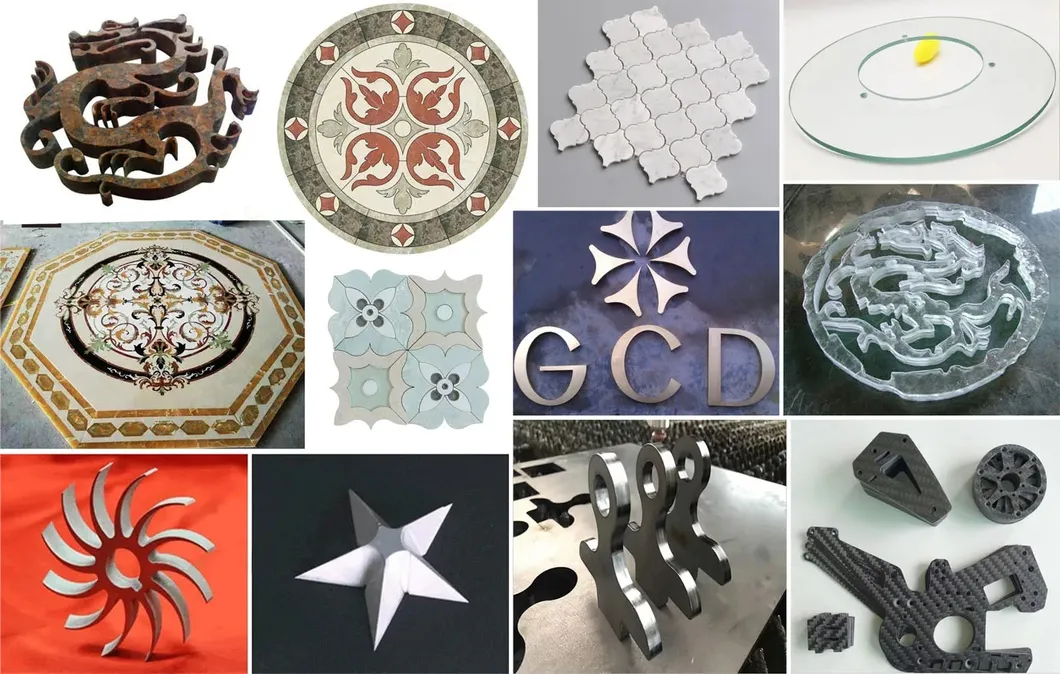

Industrial Applications
* Stone/Ceramic industries: Countertops, art puzzles, flooring Inlays.
* Glass industry: Bathroom glass, automotive glass, and appliance glass.
* Metal industries: Decoration, stainless steel cutting, equipment covers.
* Other: Gasket cutting and Foam product cutting.
❓
Frequently Asked Questions
Q1: What materials can this waterjet machine cut?
A: It can cut almost any material including steel, stainless steel, aluminum, titanium, marble, granite, ceramic, glass, rubber, and foam.
Q2: What is the maximum cutting angle of the 5-axis head?
A: The 5-axis waterjet cutter can achieve any angle within ±60°, making it ideal for 3D cutting and chamfering.
Q3: How accurate is the cutting process?
A: The machine maintains a line cutting accuracy of ±0.1mm and an angle cutting accuracy of ±0.1°.
Q4: Does the waterjet cutting process cause heat damage?
A: No, waterjet cutting is a cold cutting process, which means there is no thermal deformation or heat-affected zones on the material.
Q5: What control system does the machine use?
A: The machine utilizes a mature CNC motion control system (NcStudio) which is compatible with G code files from software like AutoCAD, Mastercam, and UG.
Q6: Is the abrasive flow adjustable?
A: Yes, the automatic abrasive delivery system allows for slight flow adjustments and is controlled through the CNC auxiliary functions.
