A bridge saw can cut granite with impressive accuracy, yet its linear guides may quietly lose that precision. Dust, water, abrasive slurry, and hardened coolant often collect around the rails. Small contamination becomes rough travel, vibration, and uneven blade movement. Maintenance is not optional.
This guide explains how to lubricate linear guides on a bridge cutting machine without relying on guesswork. Dr. Alexander H. Slocum, a respected manufacturing engineer at MIT, describes reliable machine design with a practical principle: “The design must make correct operation easier than incorrect operation.” That idea applies directly to guide lubrication. The right lubricant, applied in the right amount, protects motion components without attracting excessive stone dust.
Five methods will be examined. They include cleaning before lubrication, selecting a guide-compatible lubricant, applying a thin and even film, using automatic lubrication systems, and inspecting guide movement afterward. Each method has a purpose. More grease is not always better. Too much lubricant can trap abrasive particles beside the bearing blocks.
Look closely.
A clean guide should feel smooth, not sticky. Operators should also check unusual noise, brown residue, dry patches, or resistance during manual travel. These signs may indicate contamination, misalignment, seal damage, or an incorrect lubricant. The process is straightforward, but real workshops are rarely perfect. Lubrication schedules may be missed during busy cutting periods. That weakness deserves attention, because regular inspection often prevents expensive guide replacement and inaccurate stone cuts.

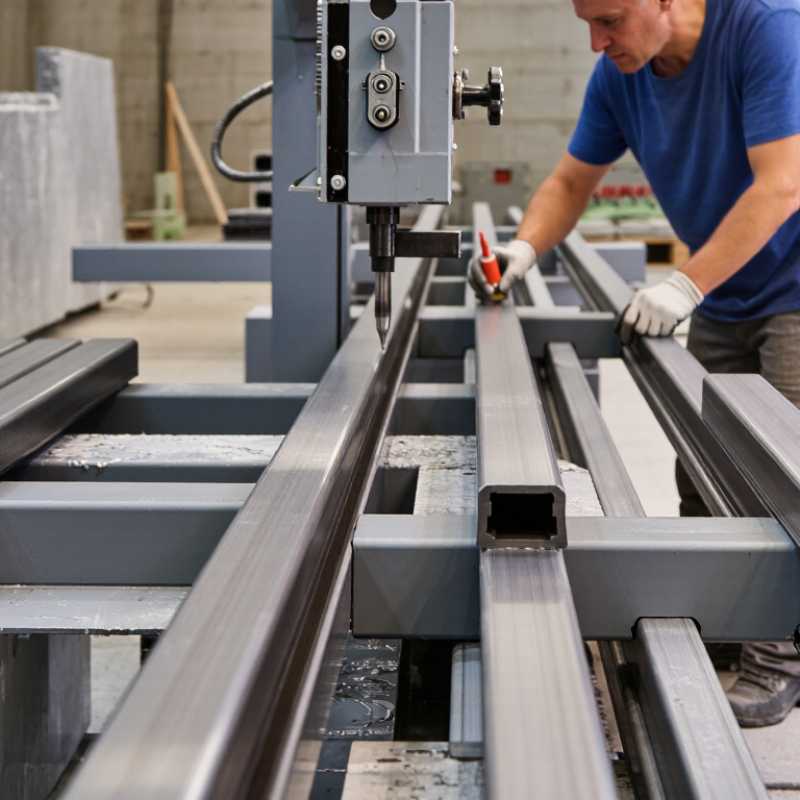

5 Best Ways to Lubricate Linear Guides on Bridge Saws?
Identify the Lubricant Type and Compatibility Requirements
Bridge saw guides face water, stone slurry, dust, and repeated movement. The correct lubricant must match the guide material, seals, bearings, and operating temperature. Check the equipment manual and lubricant technical sheet before applying anything. Grease often suits exposed rails because it stays in place. Oil may work better inside sealed or metered systems. Dry-film lubricant can help where dust quickly sticks to wet products.
Use five practical methods: apply grease with a clean hand tool, add oil through a fitted port, use a metered lubrication system, brush a thin protective film, or re-lubricate after thorough cleaning. Never mix products casually. Different base oils or thickeners can separate, harden, or damage seals. Some additives may also attack plastic wipers. Small details matter.
Clean the guide first. A dirty rail turns fresh lubricant into abrasive paste. Apply a thin, even layer, then move the carriage slowly by hand. Wipe away excess near the cutting area. Too much lubricant attracts slurry. Too little leaves bright, dry contact marks. I have seen operators choose heavy grease because it feels safer, but it sometimes increases drag. That choice deserves a second look. Inspect the rail after several cutting cycles, and record changes in noise, resistance, and surface wear.
| No. | Lubrication Method | Recommended Lubricant Type | Best Application | Compatibility Requirements | Application Procedure | Typical Reapplication Guidance | Important Precautions |
|---|---|---|---|---|---|---|---|
| 1 | Manual oiling with a light machine oil | Low-viscosity mineral or synthetic way oil, commonly around ISO VG 32–68, when permitted by the guide manufacturer. | Open linear rails, sliding ways, and systems exposed to abrasive stone slurry that require frequent cleaning. | The oil must be suitable for the rail material, seals, wipers, and bearing surfaces. It should not contain solvents that attack elastomer seals. | Clean the rail, remove slurry and rust particles, apply a thin uniform film, and move the carriage through its full travel to distribute the oil. | Inspect before each shift in wet or abrasive service. Reapply after washing or whenever the surface appears dry. | Excess oil can collect stone dust and contaminate cut surfaces. Do not use penetrating solvent sprays as a substitute for lubricant. |
| 2 | Grease lubrication through bearing fittings | NLGI 1 or NLGI 2 lithium-complex or polyurea grease approved for linear bearings and the operating temperature range. | Sealed or recirculating ball-bearing guide blocks that have grease ports or are specified for grease service. | Confirm thickener and base-oil compatibility before mixing greases. Lithium-complex and polyurea greases should not be mixed without compatibility confirmation. | Wipe the fitting clean, add a small measured amount, and slowly cycle the carriage. Stop if contaminated grease or abnormal resistance appears. | Use the equipment manual as the primary schedule. A common inspection interval is every 1–3 months, with shorter intervals under heavy slurry exposure. | Overgreasing can increase drag, heat, seal stress, and contamination. Never force grease into a sealed block unless the design allows relubrication. |
| 3 | Automatic metered oil or grease lubrication | Metered way oil or compatible bearing grease supplied through a centralized lubrication system. | Bridge saws operating for long hours, multi-axis machines, or guides that are difficult to access safely during production. | The pump, tubing, metering units, seals, and lubricant must be rated for the same viscosity, temperature, and pressure conditions. | Set the delivery rate according to the guide manufacturer’s instructions, verify flow at every lubrication point, and protect lines from kinks and slurry damage. | Check reservoir level and delivery function daily or weekly, depending on use. Inspect every point during scheduled maintenance. | A blocked line can leave a guide unlubricated while appearing normal. Do not increase the pump rate to compensate for a blocked or leaking line. |
| 4 | Water-resistant grease for wet and slurry-prone areas | Water-resistant lithium-complex, calcium-sulfonate-complex, or equivalent grease approved for the guide assembly. | Guide blocks, rollers, and sliding components regularly exposed to cooling water, stone slurry, and washdown operations. | Verify compatibility with stainless or hardened steel surfaces, polymer seals, scrapers, and existing grease. Water resistance does not eliminate the need for relubrication. | Remove contaminated grease where practical, clean the fittings, apply fresh grease sparingly, and inspect the wipers and seals for damage. | Inspect after every major washdown. Relubricate when water has entered the housing, the grease has emulsified, or the guide develops noise or rough movement. | Do not assume a waterproof label guarantees compatibility. Mixing an incompatible grease can cause softening, hardening, oil separation, or loss of lubrication. |
| 5 | Dry-film or low-dust lubrication | A manufacturer-approved dry-film lubricant based on PTFE or another solid lubricant, used only where the guide design permits it. | Special sliding surfaces where wet oil or grease attracts abrasive dust and where the load, speed, and temperature are within the product specification. | Confirm suitability for the guide material, coating, seals, load, speed, temperature, and existing lubricant. Most recirculating ball guides still require the specified oil or grease. | Degrease only with a material-safe cleaner, allow the surface to dry, apply a thin film, and allow curing time if required by the product instructions. | Inspect frequently because dry films wear away visibly. Reapply according to the product data sheet and operating conditions. | Do not apply over wet grease or oil unless compatibility is confirmed. Dry-film products are not a universal replacement for bearing grease. |
| Selection rule: The bridge saw or linear-guide manufacturer’s lubrication specification takes priority over any general recommendation. Before changing lubricant type, verify viscosity or NLGI grade, operating temperature, load and speed, seal material, water resistance, and compatibility with the lubricant already present. | |||||||
Remove stone dust, dried coolant, and old grease with a lint-free cloth. Keep the rail visibly clean. Do not lubricate over gritty residue.
Use the lubricant specified in the machine or guide service instructions. Check compatibility with seals and existing grease. The wrong product may swell seals or attract abrasive particles.
Apply a thin, even film along the rail or lubrication port. Less is usually safer. Heavy grease can collect grit and increase carriage resistance.
Move the bridge slowly from end to end after applying lubricant. Repeat the movement several times. This helps expose dry areas and distribute the film across the guide.
Stop immediately if travel feels tight, uneven, or gritty. Do not force the bridge. Rough movement may indicate contamination, misalignment, or insufficient lubricant.
Inspect the guides before each busy cutting session or work shift. Schedule a weekly inspection and a deeper monthly check. High-use machines may need shorter intervals.
Look for rust-colored streaks, dry spots, unusual noise, and uneven travel. Milky, gritty, or black lubricant requires investigation. Water and stone slurry can change the correct maintenance interval.
Record the date, lubricant type, guide condition, and carriage feel. Recheck the full travel after several cuts. I sometimes apply too little on the first pass, but that is safer than flooding the guide.
Proper lubrication is essential for smooth, accurate, and reliable bridge saw operation. To understand how to lubricate linear guides on a bridge cutting machine, first select a lubricant that matches the guide material, bearing design, operating conditions, and manufacturer’s technical requirements. Before applying anything, remove stone dust, slurry, old grease, and other debris from the rails and contact surfaces using suitable cleaning tools. Applying lubricant to a dirty guide can trap abrasive particles and increase wear.
Spread a thin, even layer across the rails, bearings, and other moving contact points without over-lubricating. Then move the bridge slowly through its full travel range so the lubricant can reach the entire guide system and distribute evenly. Finally, establish a regular maintenance schedule based on operating frequency and site conditions. During inspections, check for unusual noise, stiffness, vibration, uneven movement, lubricant contamination, or excessive buildup. Prompt cleaning and reapplication can help maintain precision, reduce friction, and extend the service life of the linear guide system.
